Katool KT-J80T 80 Ton Air/Hydraulic Truck Jack
Original price was: £472.97.£260.13Current price is: £260.13.
Description

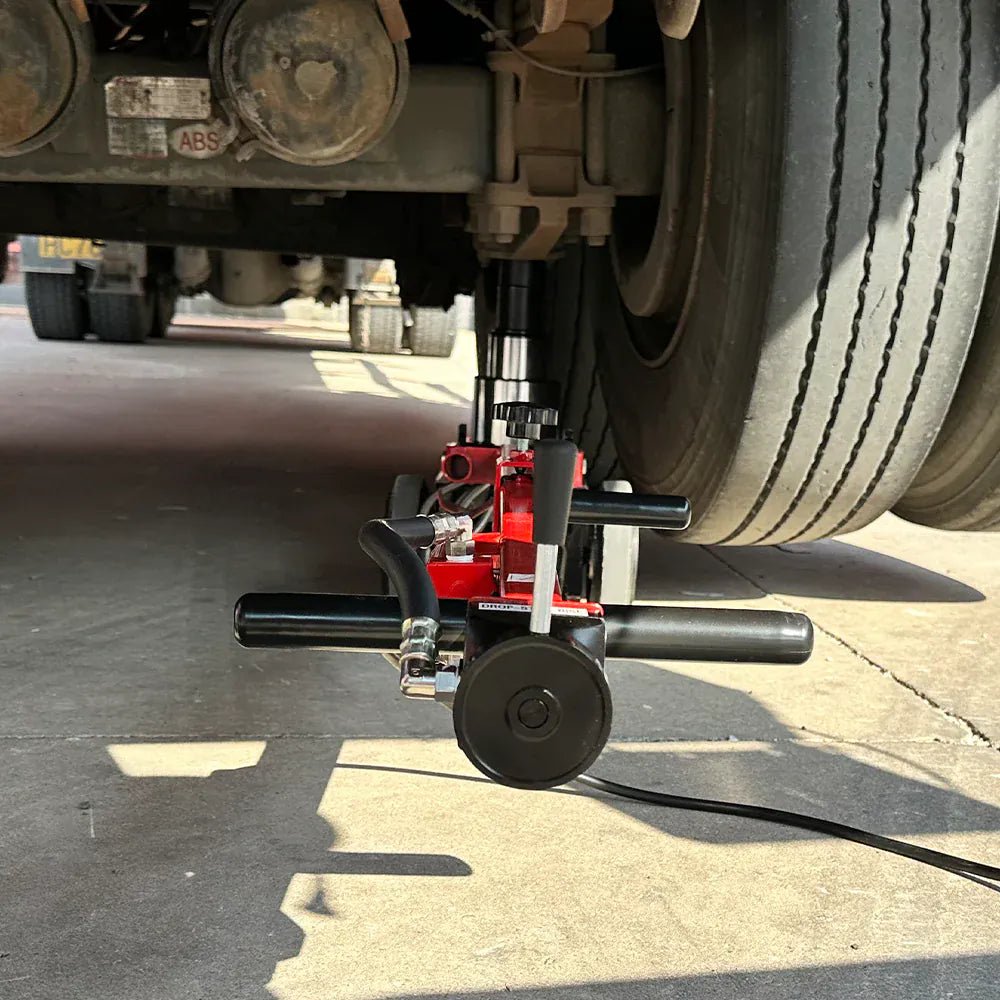

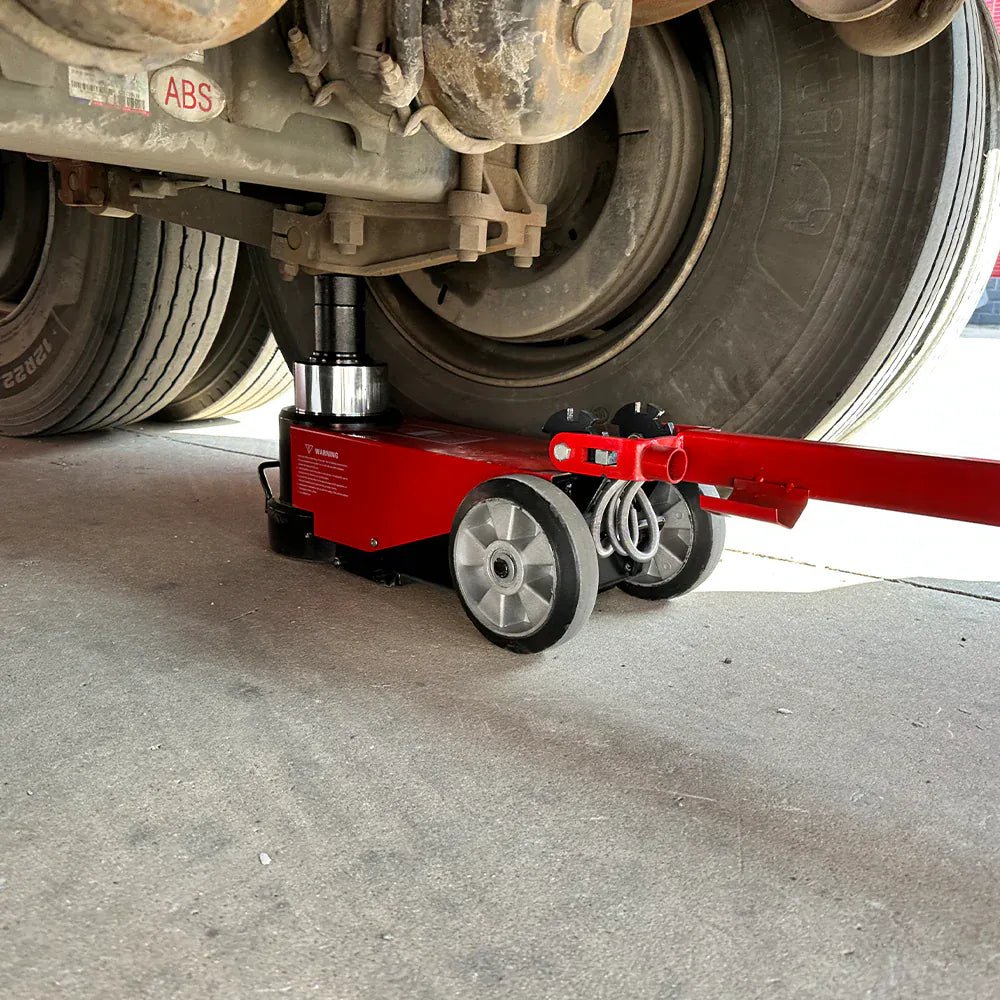

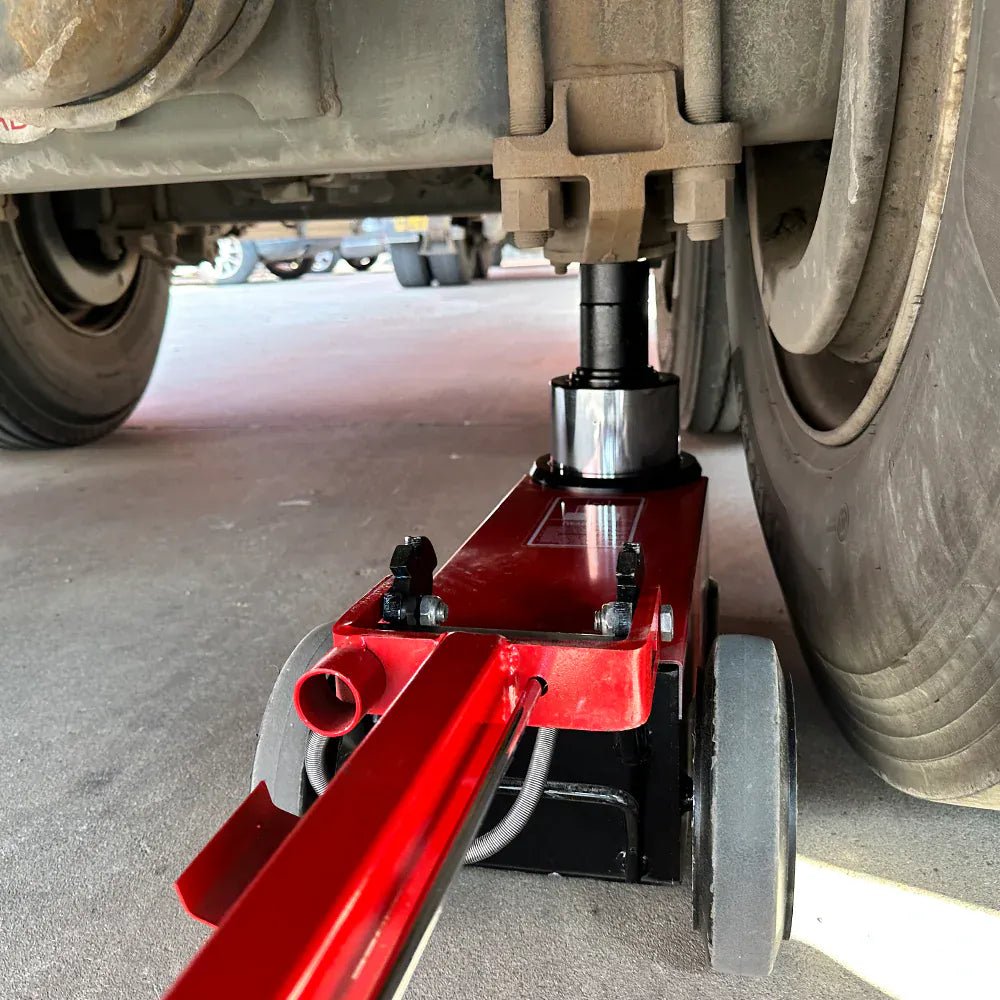

The Katool KT-J80T is an air-actuated hydraulic service jack rated at 80 tons, built for heavy commercial vehicles — class 7 and 8 trucks, buses, agricultural tractors, and industrial equipment. The jack runs entirely on shop compressed air: a single trigger handle delivers controlled lift, and the system retracts the ram automatically when the trigger releases.

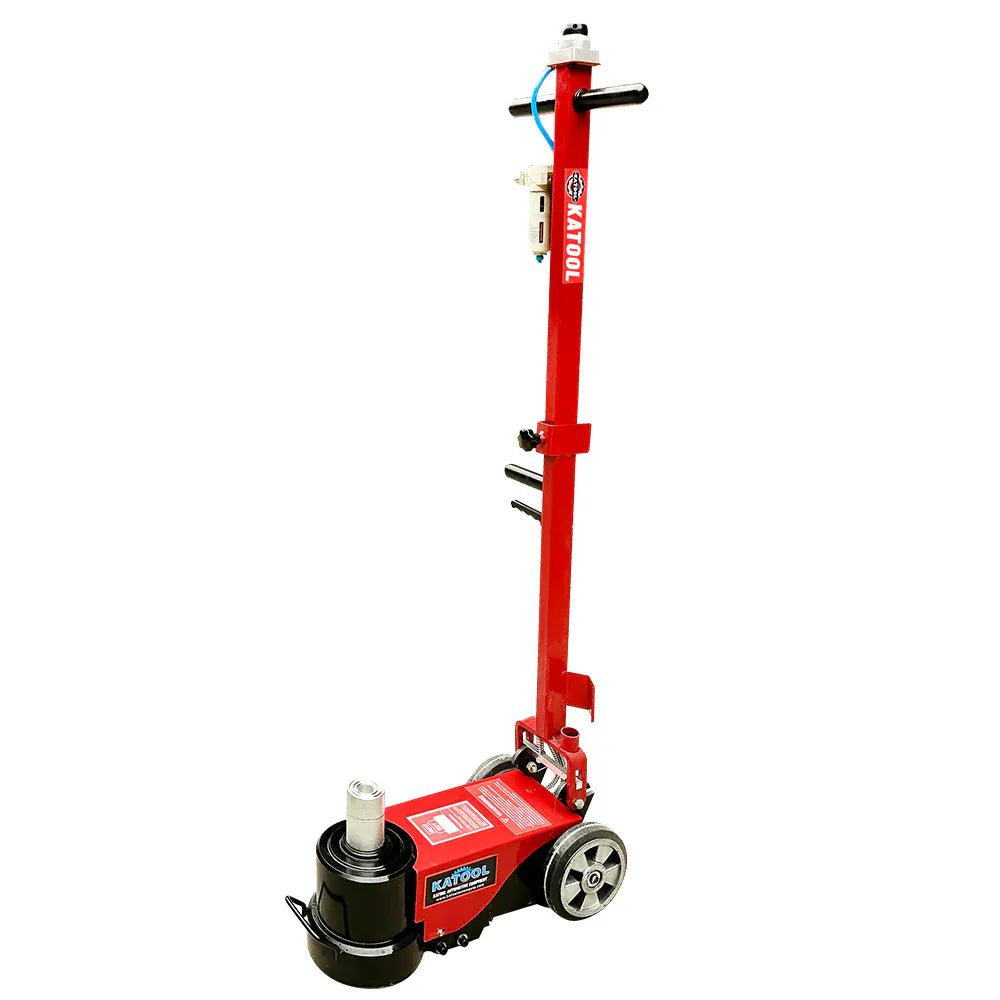

The two-stage telescoping ram pulls double duty. The lower-travel stage handles the full 80-ton rating; at higher extension the outer stage lifts loads up to 40 tons. Working range runs from a 7.6″ minimum height to a 14.5″ maximum lift height, suiting most heavy-truck jack-pad clearances. The chrome-plated ram, integrated air filter / oil-water separator on the supply line, and foldable carry handle keep the unit easy to roll between bays without dragging shop debris into the air system.
Features
- 80-ton lifting capacity (40-ton stage at full extension; 80-ton stage at lower travel)
- Air-actuated hydraulic operation runs entirely on shop compressed air

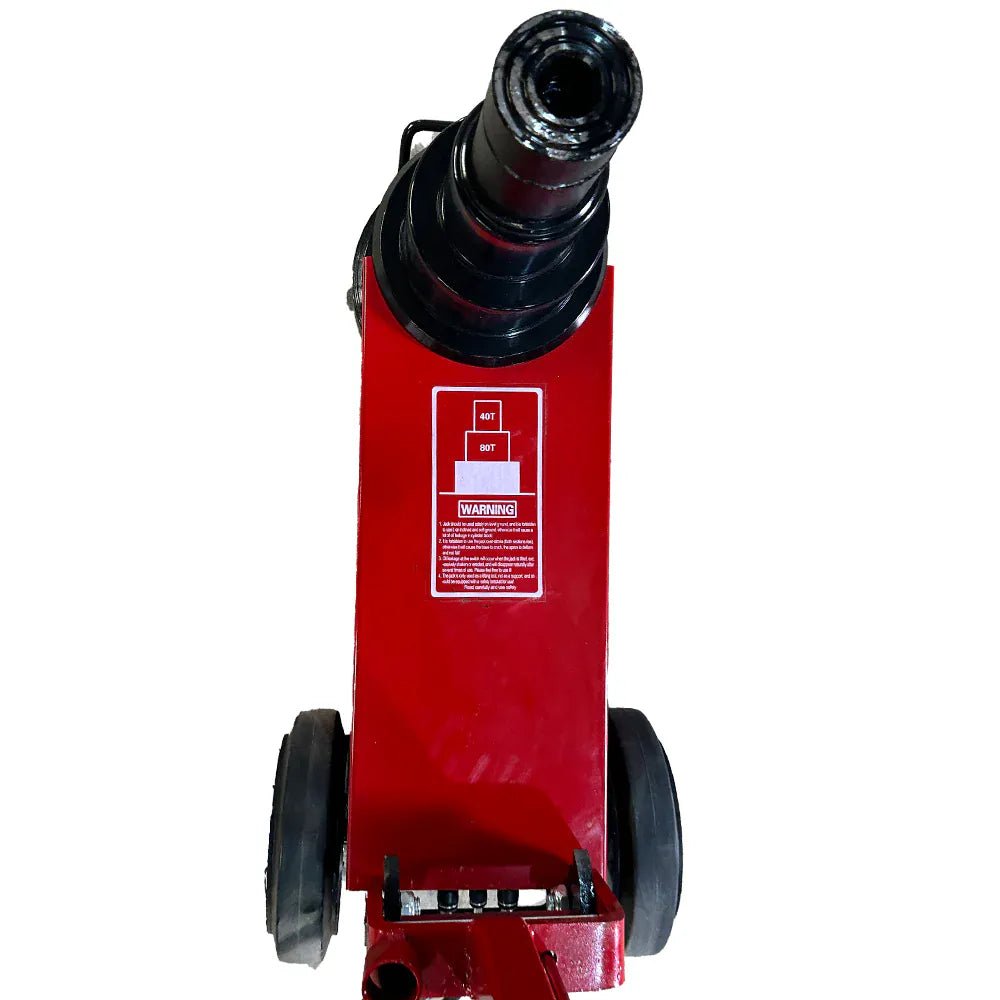

- Two-stage telescoping chrome-plated ram
- Single-trigger control with automatic return
- Integrated air filter / oil-water separator on the supply line
- Foldable carry handle for storage and transport
- Built-in wheels and positioning handle for shop mobility
- Heavy-duty welded steel frame and chassis
- Low 7.6″ minimum height for tight under-vehicle access
Specifications
| Katool KT-J80T 80 Ton Air/Hydraulic Truck Jack Specifications | |
|---|---|
| Model | KT-J80T |
| Product Type | Air/Hydraulic Service Jack |
| Lifting Capacity | 80 tons |
| Two-Stage Capacity | 40 tons at full extension; 80 tons at lower stage |
| Minimum Height | 7.6″ (195 mm) |
| Maximum Lift Height | 14.5″ (370 mm) |
| Lift Stroke | ~6.9″ (175 mm) |
| Ram | Chrome-plated steel, two-stage telescoping |
| Operation | Pneumatic (air-actuated hydraulic) with automatic return |
| Handle | Foldable for storage and transport |
| Mobility | Integrated wheels with positioning handle |
| Construction | Heavy-duty welded steel |
| Air Supply Conditioning | Integrated air filter / oil-water separator |
Documents
Manual and technical documents available on request — contact sales@mygaragesupplies.com or call 307-381-1810.
