Katool KT-M150D 15,000 lb Direct-Drive Symmetric Two Post Lift

Description

The Katool KT-M150D is a commercial-grade 15,000 lb capacity two post lift built for fleet shops, truck service bays, and high-volume garages working on heavier vehicles than a 10,000-class lift can safely handle. The symmetric column geometry centers the load between the posts, and a direct-drive cylinder system replaces traditional chain-over-sheave lifting for smoother cycles and fewer wearing parts.

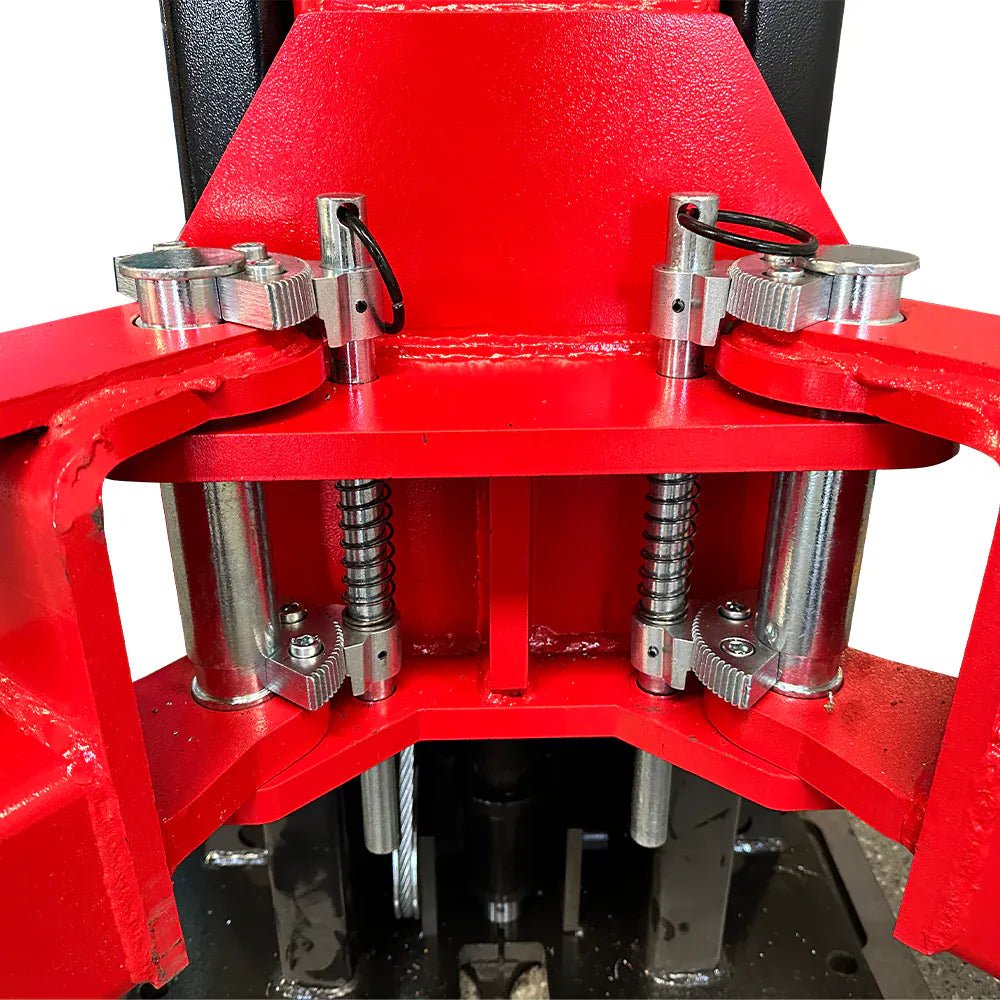

A single-point lock release consolidates the descent control into one lever — both columns disengage together, so the operator never has to walk the lift to release each side. The lifting frame is fabricated from Q235 and Q245 structural steel, and the standard arm hardware ships with stacking adapters (round pads plus stacking sleeves) for picking up trucks, vans, and vehicles with high frame rails.

The KT-M150D rises to a 72.83″ maximum lifting height and clears 116″ between columns, with an overall height of 176.8″. A 3 kW (4 HP) motor running on 220V / 60 Hz drives the hydraulic system, and the manufacturer specifies a minimum 5.9″ of 3,000 PSI concrete for installation — verify your slab before scheduling.

Ships via freight.

Features

• 15,000 lb lifting capacity — sized for trucks, vans, and commercial fleet vehicles
• Direct-drive cylinder system — smoother cycles and fewer wearing parts than chain-over-sheave designs
• Symmetric two-post geometry — load centers between the columns for balanced lifting
• Single-point lock release — one lever disengages both columns for controlled lowering
• 72.83″ max lifting height — undercar clearance for stand-up service
• Q235 / Q245 structural steel column and lifting-frame fabrication
• Standard adapter kit included — round pads and stacking sleeves with the arms

Specifications

Documents

Katool KT-M150D User Manual (PDF)
