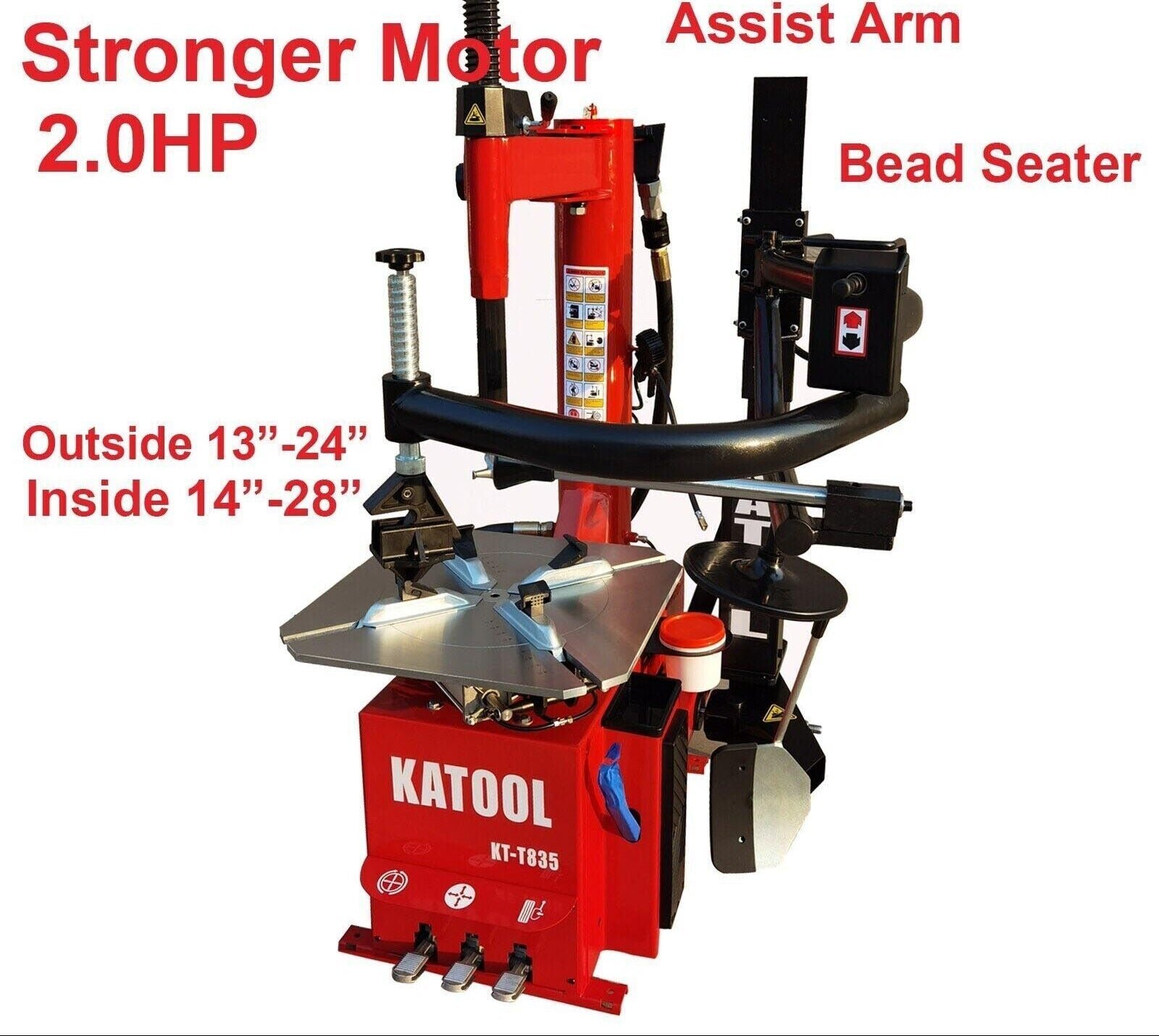

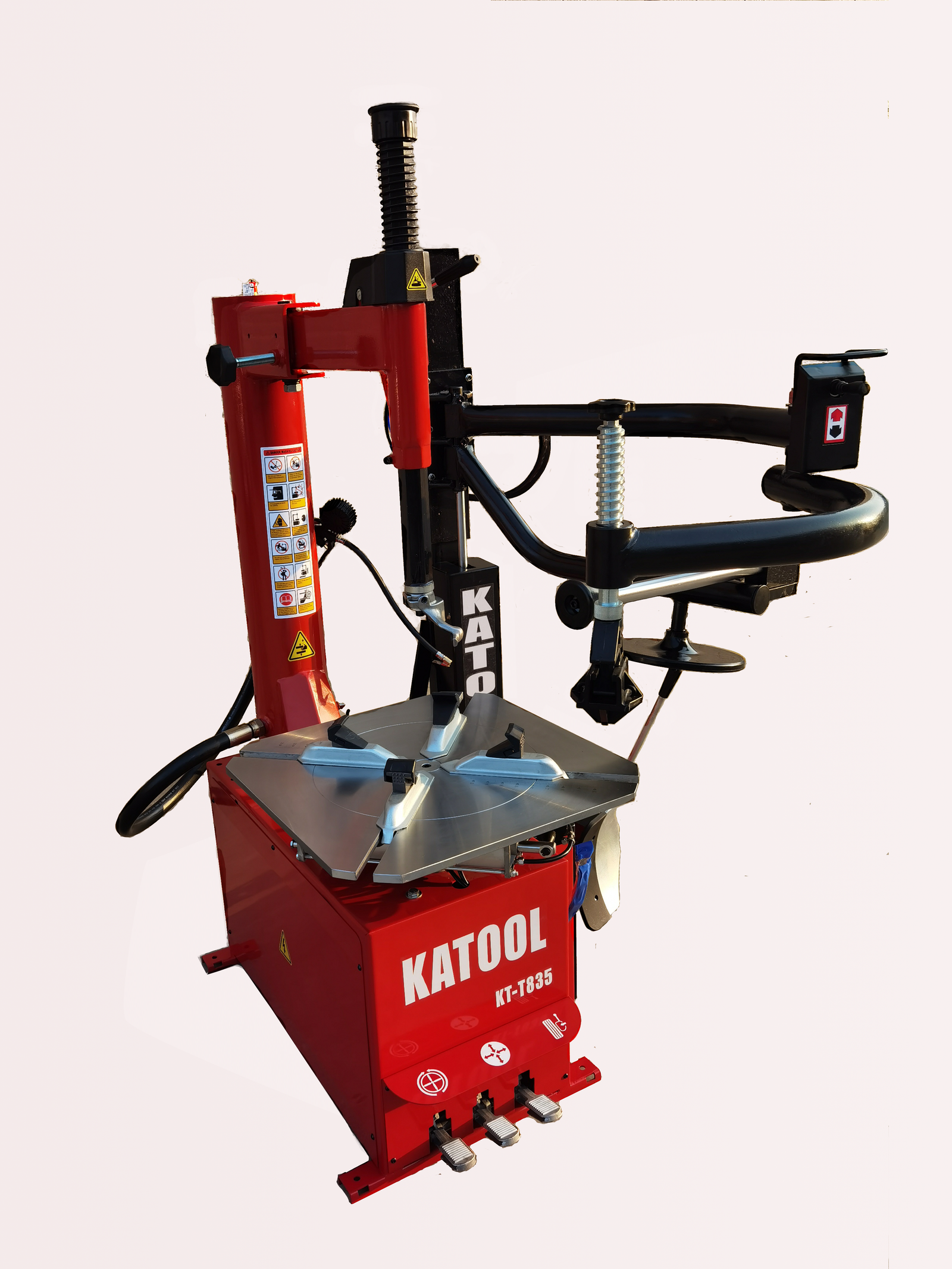

Katool KT-T835 Wheel Clamp Tire Changer Machine

T835 Tire Changer by Katool

Slow tire changes cutting into your productivity? The KT-T835 Tire Changer from Katool is designed to restore efficiency to busy workshops and service centers. With the capacity to handle tires up to 15 inches wide and 41 inches in diameter, along with a wide clamping range, this machine is built for speed and versatility. A powerful 2.0HP motor delivers smooth, consistent performance, while intuitive controls make operation straightforward. Greater efficiency translates directly into faster turnaround times and more satisfied customers—and the KT-T835 helps you achieve both.

Built with durability and operator convenience in mind, the KT-T835 is a smart long-term investment for high-volume environments. Upgrade your workshop and get more done with confidence using the KT-T835 Tire Changer.

Tire Changer T835 Specifications

• Max Wheel Diameter: 41″
• Max Wheel Width: 15″

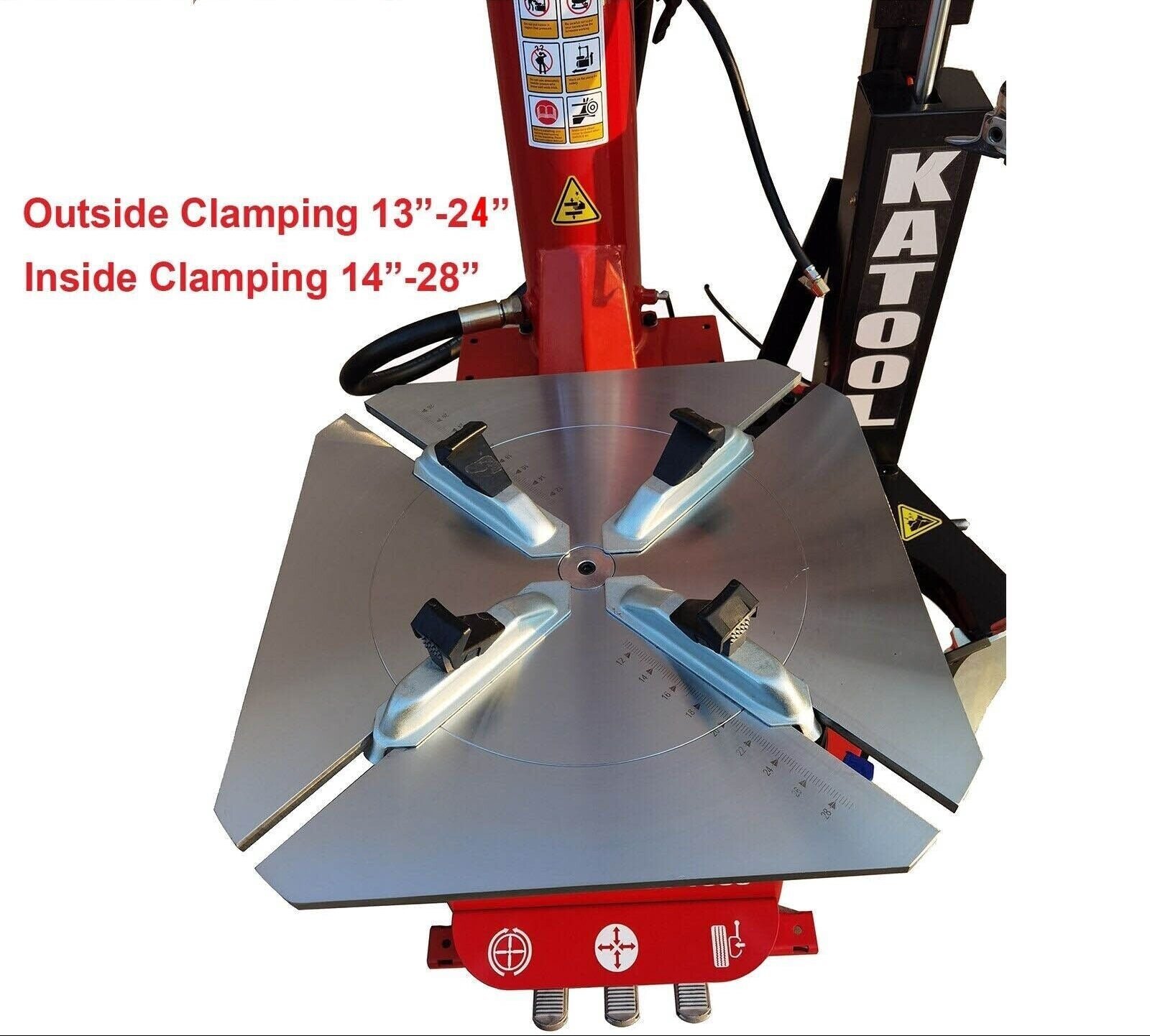

• Outside Clamp: 13″–26″
• Inside Clamp: 14″–28″
• Power Supply: 110V 1PH / 60Hz
• Motor Power: 2.0HP / 1.5 kW
• Rotation Speed: 6.1 r/min
• Air Pressure: 0.8–1.0 Mpa (116–145 psi)
• Net Weight: 582 lbs

KT-T835 Special Features

• Alloy steel jaws with 0.8–1.1 mm carburized interface and full quenching process for enhanced strength and durability, complete with jaw covers to protect rims
• Stainless steel mounting head with solution treatment and polished surface, engineered for optimal performance and equipped with a plastic rim protector
• Integrated inflation gauge with pedal control
• High-quality spade cover to effectively prevent rim damage
• Pull-type pedal control system for easier operation and maintenance
• Premium motor with pure copper winding for faster heat dissipation, lower failure rates, and extended service life
• High-quality filter system ensures reliable oil drop lubrication, filters compressed air, and prolongs pneumatic system lifespan
• Designed for North America with 110V / 1PH / 2.0HP motor for stronger power and higher efficiency

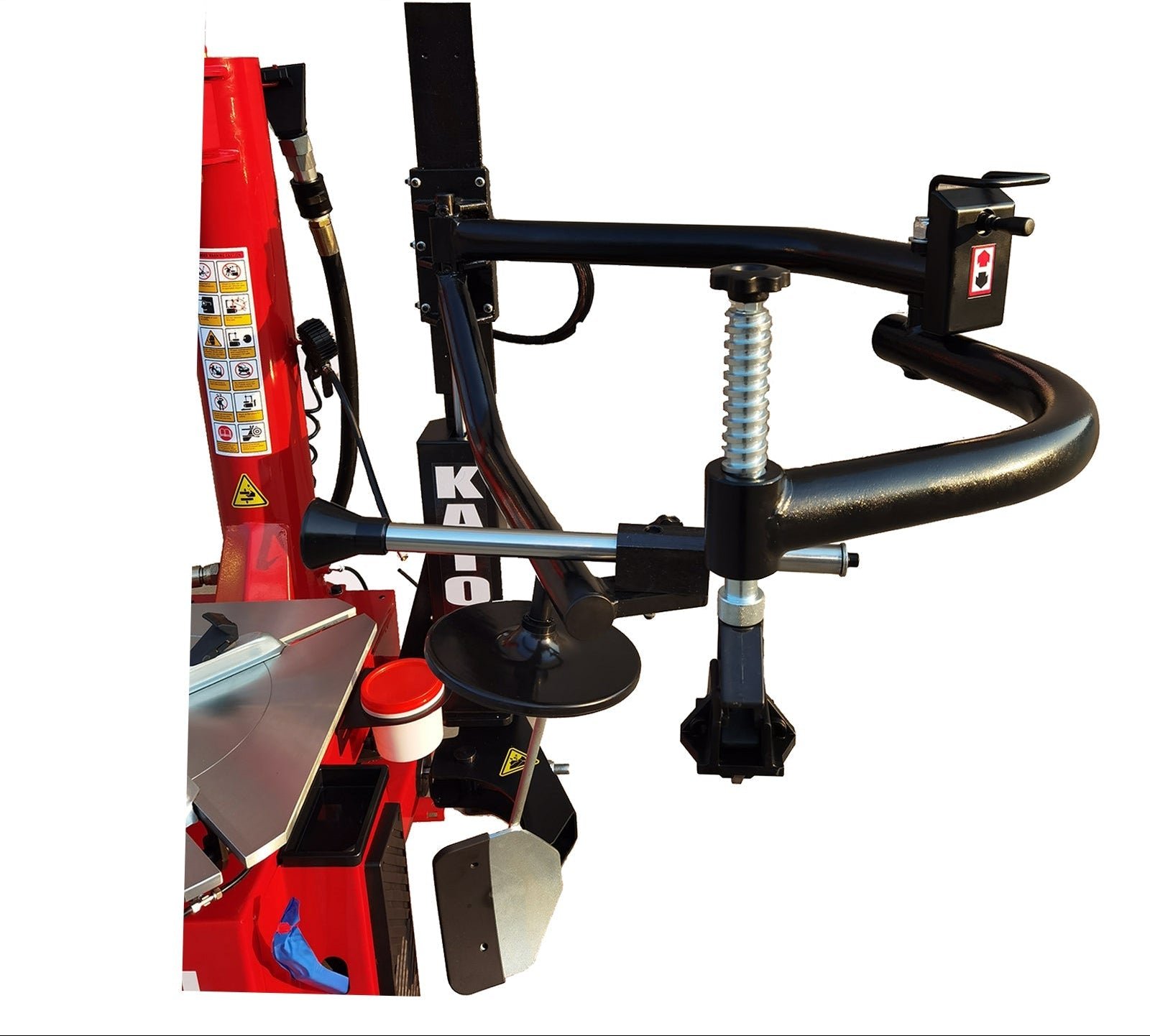

• Dual-side assist arms for improved handling of stiff or low-profile tires
• Bead blast seater head with post tank for efficient bead seating
• 186 mm stainless steel bead breaker cylinder for strong and consistent performance
• Closed-body design to protect internal components

Katool Warranty

• One-year (12-month) warranty covering all parts and manufacturing defects, free of charge
