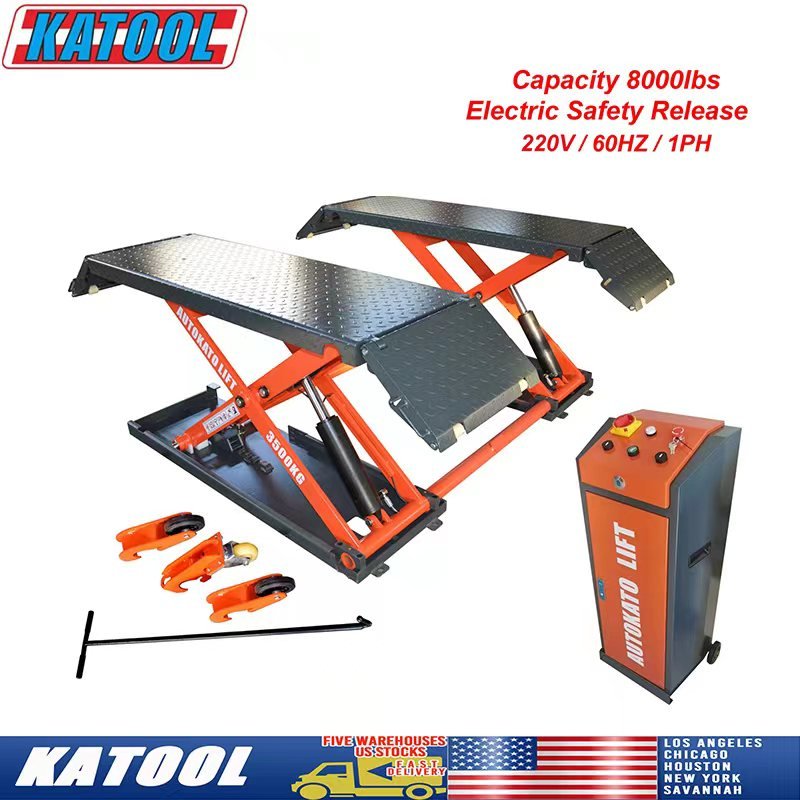

Katool KT-X85 8000lb Mid Rise Scissor Lift – Electric Lock

KT-X85 Mid Rise Scissor Lift by Katool

Upgrade your garage or workshop with the KT-X85 Mid Rise Scissor Lift from Katool, engineered for comfort, efficiency, and safety. With an 8,000 lb lifting capacity, this lift easily supports heavier vehicles. Its adjustable lifting range from 4.25 inches to 40.15 inches provides optimal working height for inspections, routine maintenance, and detailed repair tasks.

The KT-X85 is designed to balance power and convenience. Its compact footprint supports both mobile and fixed mounting configurations, allowing it to adapt to different space requirements. Safety features include a 24V control system and an integrated height limit switch to prevent over-lifting. Composite rubber lifting blocks and self-lubricating components enhance durability, while CE approval and certification confirm compliance with stringent safety standards. Suitable for both professional shops and home garages, the KT-X85 delivers dependable performance and long-term value.

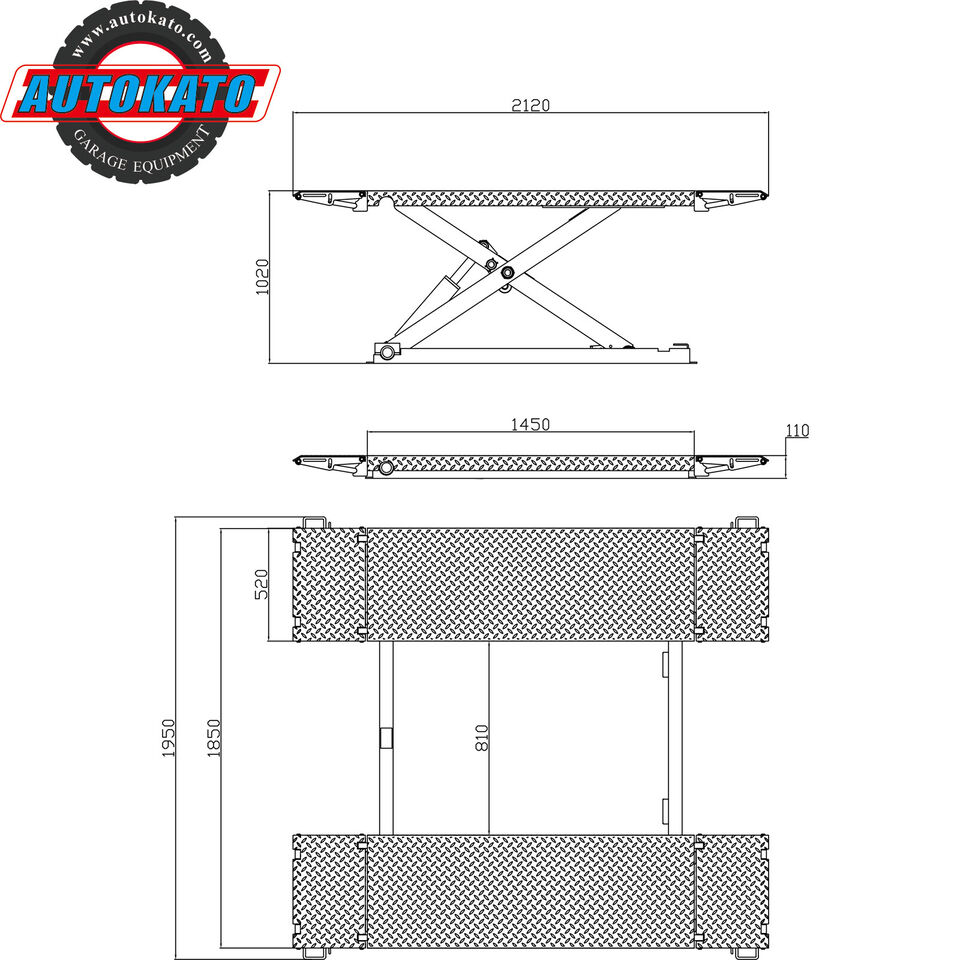

X85 Specifications

• Lifting Capacity: 8,000 lbs (3,500 kg)
• Max Lifting Height: 40.15″
• Min Height: 4.25″
• Platform Length: 57″
• Total Length: 83.5″
• Platform Width: 20.5″
• Total Width: 76.75″
• Power: 110V (30 amp) or 220V
• Oil: AW-46 or AW-32 (for colder climates)

Pallet Dimensions

• Scissor Lift: 78″ x 64″ x 10″ — 1,084 lbs
• Pump: 43″ x 23″ x 18″ — 200 lbs

KT-X85 Special Features

• 8,000 lbs (3,500 kg) lifting capacity
• Electric lock system for enhanced safety
• CE approved and certified, tested at 115% dynamic load and 150% static load
• Flexible setup with mobile or fixed mount design

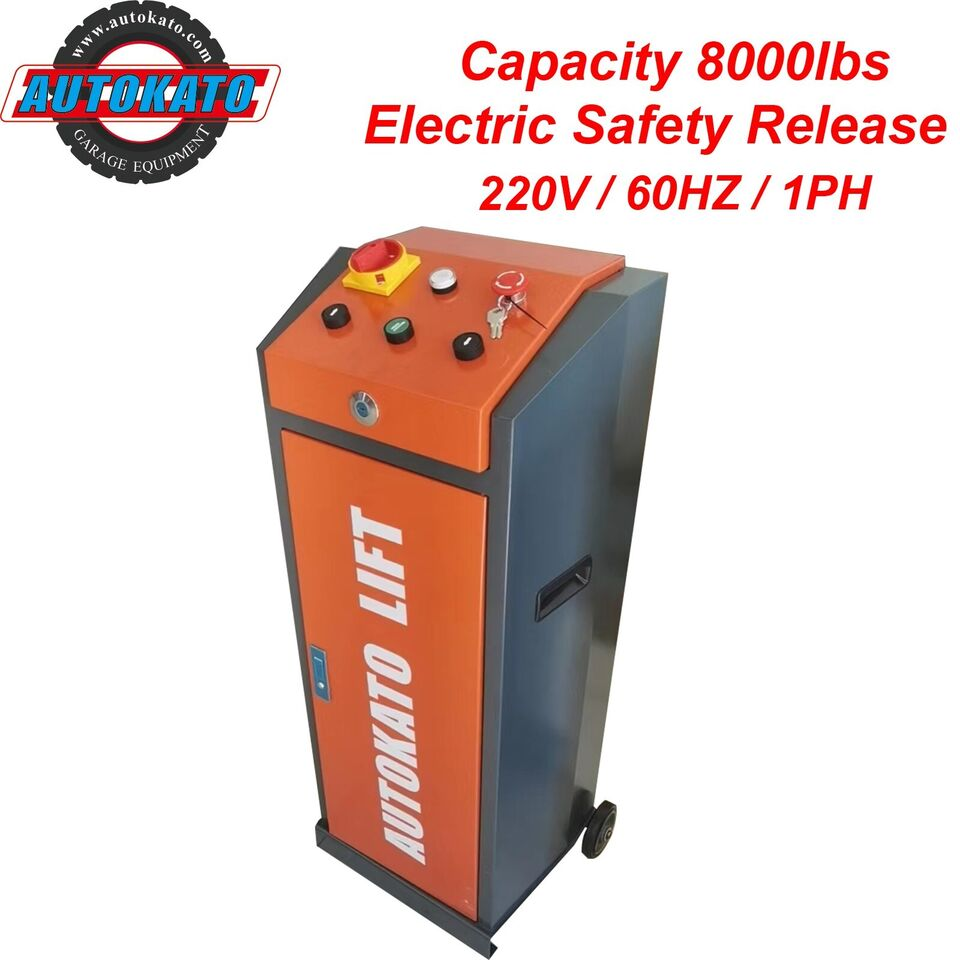

• Safe 24V control system with height limit switch
• Composite rubber lifting blocks included
• Self-lubricated bushings and bearings for extended service life
• Drive-up ramps that lock as platform extensions for longer vehicles
• Includes caster kit for easy mobility
• Premium hydraulic system with aluminum motor and cooling fan

Katool Warranty

• 12 months coverage on all parts and manufacturing defects
• Additional 36 months warranty on lift structural components
• Optional support bars (sold separately) for SUVs and full-frame vehicles

Warehouse Pickup Available

Contact us for details.

• Azuza, CA 91702
• Brookshire, TX 77423
• City of Industry, CA 91744
• Deer Park, TX 77536
• Kalamazoo, MI 49048
• Linden, NJ 07036
• Pooler, GA 31322
• Romeoville, IL 60446

Additional Pallet Dimensions

• Lift: 78″ x 64″ x 10″ — 1,213 lbs
• Control Unit: 43″ x 12″ x 18″ — 200 lbs
