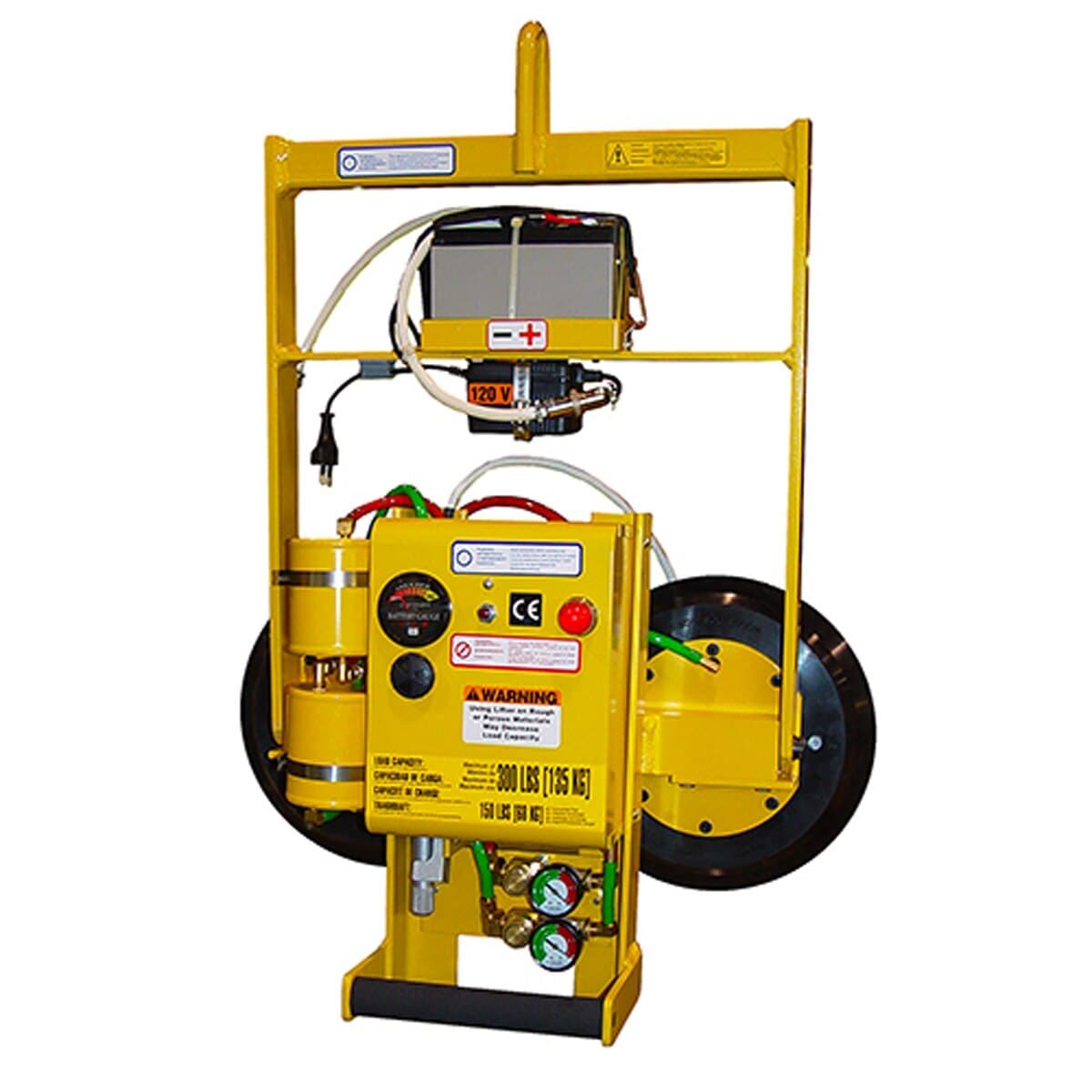

Manual Tilter 300 – MT2 Lifter Series
Price range: £2,323.69 through £2,426.55
With quick attach and release, these lifters enable ergonomic handling of heavy loads by a single operator.
Now available w/ Intelli-Grip Technology®, automatically monitoring vacuum and power systems to maximize safety and efficiency while simplifying maintenance and repairs.
Standard Pad Spread:
11″ x 11″ [28 cm x 28 cm]
Number / Size of Vacuum Pads:
2 / 10″ [25 cm] diameter, lipped pads
Maximum Load Capacity:
300 lbs [135 kg]
Weight of Lifter:
60 lbs [28 kg]
Standard Operating Power:
12 volts DC, 10 amps (Other voltages available)
Apply / Release Times:
3 seconds / 3 seconds (approx)
Load Movement:
Manual tilt, 90° between upright and flat
Standard Features:
On-board battery and charger
Battery energy gauge
Low vacuum warning light
Low vacuum warning buzzer
Vacuum gauge
Vacuum line filter
Vacuum reserve tank
| Load Capacity | 300 lbs [135 kg] |
| Per-Pad Capacity | 150 lbs [68 kg] |
| Pad Model | HV11 |
| DC Power | Standard |
| DC Volts | 12 VDC |
| DC Amps | 10 |
| Charger Voltage | 100/120/240 |
| Charger Hertz | 50/60 |
| Charger Phase | 1 |
| Apply Time (DC) | 3 seconds |
| Release Time (DC) | 3 seconds |
| Weight (DC) | 60 lbs [28 kg] |
| Manipulation | Continuous |
| Tilt | 90° |
| Tilt Power | Manual |
| Max Pad Spread (L) | 23.5″ [60 cm] |
| Min Pad Spread (L) | 23.5″ [60 cm] |
| Max Pad Spread (W) | 11″ [28 cm] |
| Min Pad Spread (W) | 11″ [28 cm] |
| Max Height | 32.25″ |
| Min Ambient Temp | 32° F |
| Min Load Temp | 32° F |
| Max Ambient Temp | 100° F |
| Max Load Temp | 100° F |
