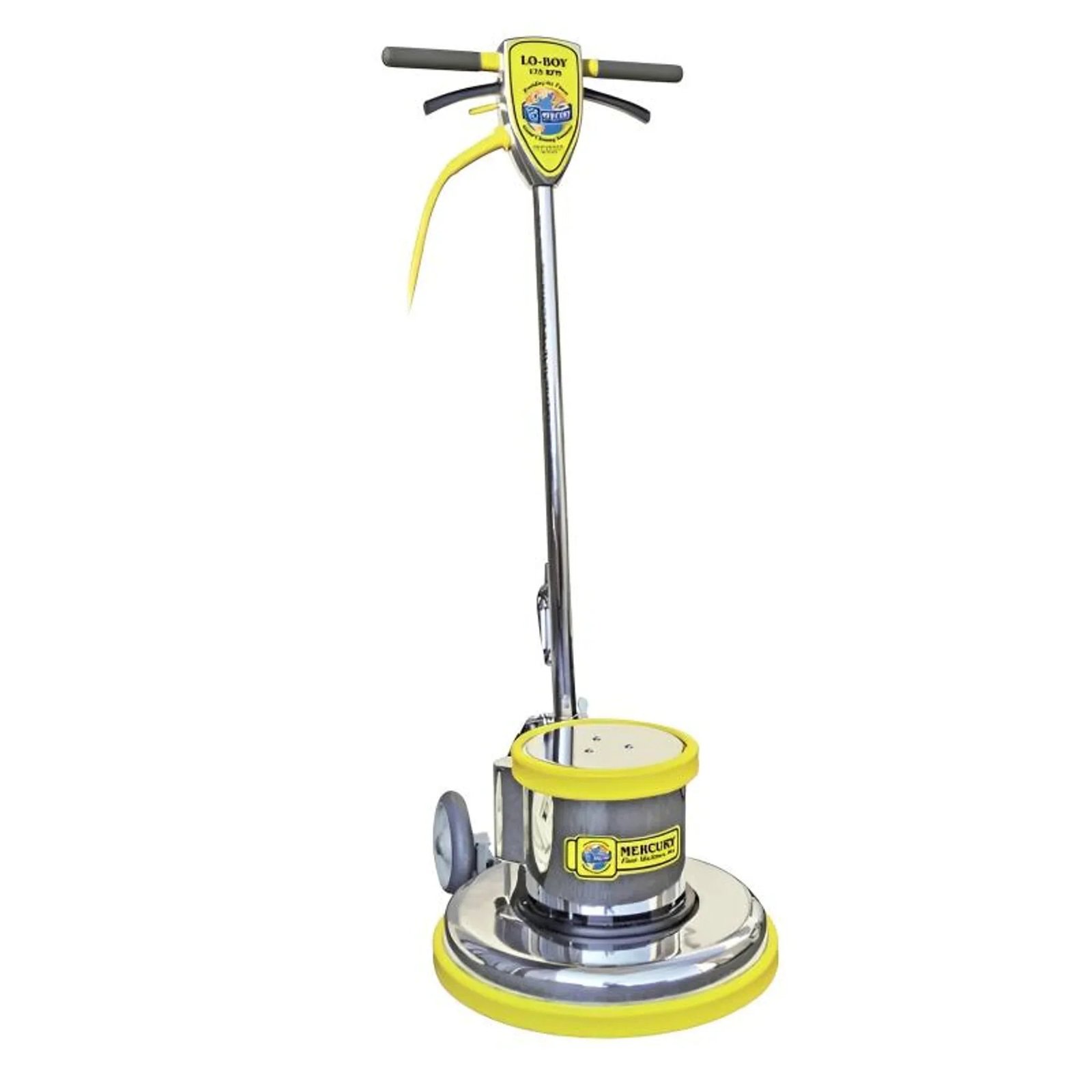

Mercury Floor Machines L-19E Lo-Boy Floor Machine – 19″, 175 RPM, 102 lbs

Mercury L-19E Lo-Boy: 19″ Ultra-Quiet Floor Machine for Occupied Facilities

The L-19E is the 19″ model in the Lo-Boy series — 102 lbs, 175 RPM, with the same under-apron gearbox design that defines the Lo-Boy’s acoustic advantage over conventional floor machines. At 19″, the L-19E fits through standard commercial doorways that the L-20E and L-21E cannot always pass, making it the narrowest practical option for occupied-building cleaning in corridors, restroom entries, and service hallways.

L-19E Motor, Transmission, and Pad Specifications

• Apron size: 19″ — fits standard 36″ commercial doorways; narrower than the L-20E and L-21E
• Speed: 175 RPM — same as all Lo-Boy and Hercules models; consistent floor finish results across machines
• Machine weight: 102 lbs — lightest in the Lo-Boy series (L-20E: 103 lbs, L-21E: 105 lbs); still heavier than most standard-weight 19″ machines
• Motor: 1.5 HP A/C — same power platform as the larger Lo-Boy and Hercules models; draws 13–15A
• Gearbox location: Under the apron — enclosed in the low-profile housing; reduces noise transmission through the handle frame
• Included accessories: 18″ pad driver and 17″ rotary brush
• Electrical: 13–15A draw; two circuits recommended for sustained operation

Where the L-19E Fits in Occupied-Building Cleaning Programs

The L-19E targets the same use cases as the L-20E and L-21E — daytime cleaning in facilities where machine noise disrupts occupants — but in spaces those wider models cannot access efficiently. Hospital patient corridors, hotel hallways between guest rooms, school classroom wings, and corporate office service paths frequently have 36″–38″ clearance that a 20″ or 21″ machine requires maneuvering to navigate. The L-19E passes through those spaces with room on each side, allowing continuous runs without pausing to reposition. For facilities with varied zone widths, pairing the L-19E with the L-21E provides full building coverage at matched speed: the smaller machine handles the restricted zones, the larger machine handles open areas, and finish results are uniform throughout because both run at 175 RPM on the same motor platform.

Under-Apron Gearbox and 102 lb Weight at 19″ Scale

At 102 lbs on an 18″ pad driver, the L-19E delivers higher pounds-per-square-inch than the L-20E or L-21E — the same principle applies across all floor machine sizes: weight concentrated over a smaller pad area results in greater localized pressure. For the Lo-Boy series, this means the L-19E is not a reduced-capability machine in narrow zones — it is a higher-pressure machine in a narrower footprint. The under-apron gearbox provides the same noise reduction benefit at 19″ as at 20″ and 21″: vibration from the rotating gear assembly stays within the apron housing rather than coupling to the handle column. Operators moving between wide and narrow zones during the same shift can run the L-19E in both, switching between a broad pass in open areas and tight-turn maneuvering in corridors without changing machines or pads.
