Mi-T-M CWC-5004-4MAV Belt Drive Pressure Washer – 5000 PSI, Vanguard 627cc, AR

Mi-T-M CWC-5004-4MAV Belt Drive Pressure Washer – 5000 PSI, Vanguard 627cc

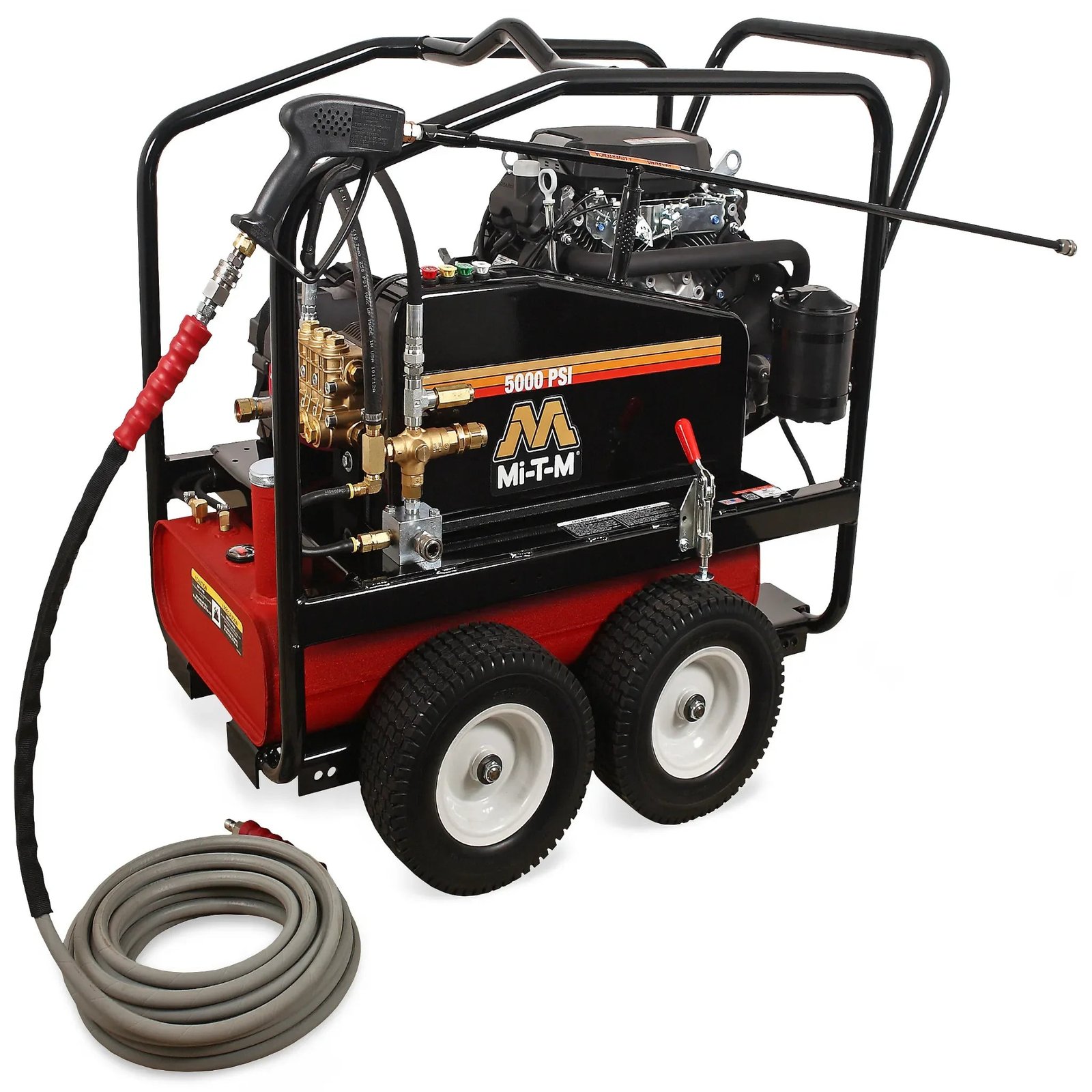

The Mi-T-M CWC-5004-4MAV delivers 5,000 PSI at 4.0 GPM via a 627cc Vanguard OHV engine and an AR triplex pump. Powder-coated steel roll cage with lifting hook. Electric start with sealed battery. 13-gallon fuel tank with aluminized interior for up to 9.5 hours runtime. Factory-preset unloader. Weight: 433 lbs. Consult factory for California compliance.

CWC-5004-4MAV Vanguard Engine and AR Pump

• Pressure: 5,000 PSI
• Flow rate: 4.0 GPM
• Engine: 627cc Vanguard OHV, electric start, sealed battery
• Pump: AR triplex with external bypass, forged brass manifold, thermal and safety relief valves, clear-sleeve water filter
• Unloader: Factory preset
• Fuel tank: 13 gallon, aluminized interior (up to 9.5 hr)
• Lance: 48 in.
• Hose: 50 ft × 3/8″
• Tires: 13″ flat-free with locking brake

Vanguard Engine Selection in Commercial Pressure Washers

Vanguard engines (a Briggs & Stratton commercial engine brand) are preferred by operators with established Briggs commercial service relationships. The 627cc Vanguard OHV produces the same 5,000 PSI / 4.0 GPM output as the Honda GX630 and Mi-T-M 670cc variants. The MAV is the Vanguard-engine equivalent of the MAH (Honda) and MAM (Mi-T-M) in the 5,000 PSI AR-pump CWC lineup. All three share 433 lb weight and identical frame dimensions.

Related: Pressure Washers · Gasoline Pressure Washers · Commercial Cleaning Equipment

Frame and Accessories

Optional CX-0118 skid feet for stationary installations (must be ordered with unit). Net weight: 433 lbs. Dimensions: 43″ × 27.75″ × 38.5″.

Documents: Spec Sheet · Manual
