MRCOOL 36k BTU DIY 5th Generation Mini-split Air Handler 230V
Original price was: $1,243.42.$746.05Current price is: $746.05.

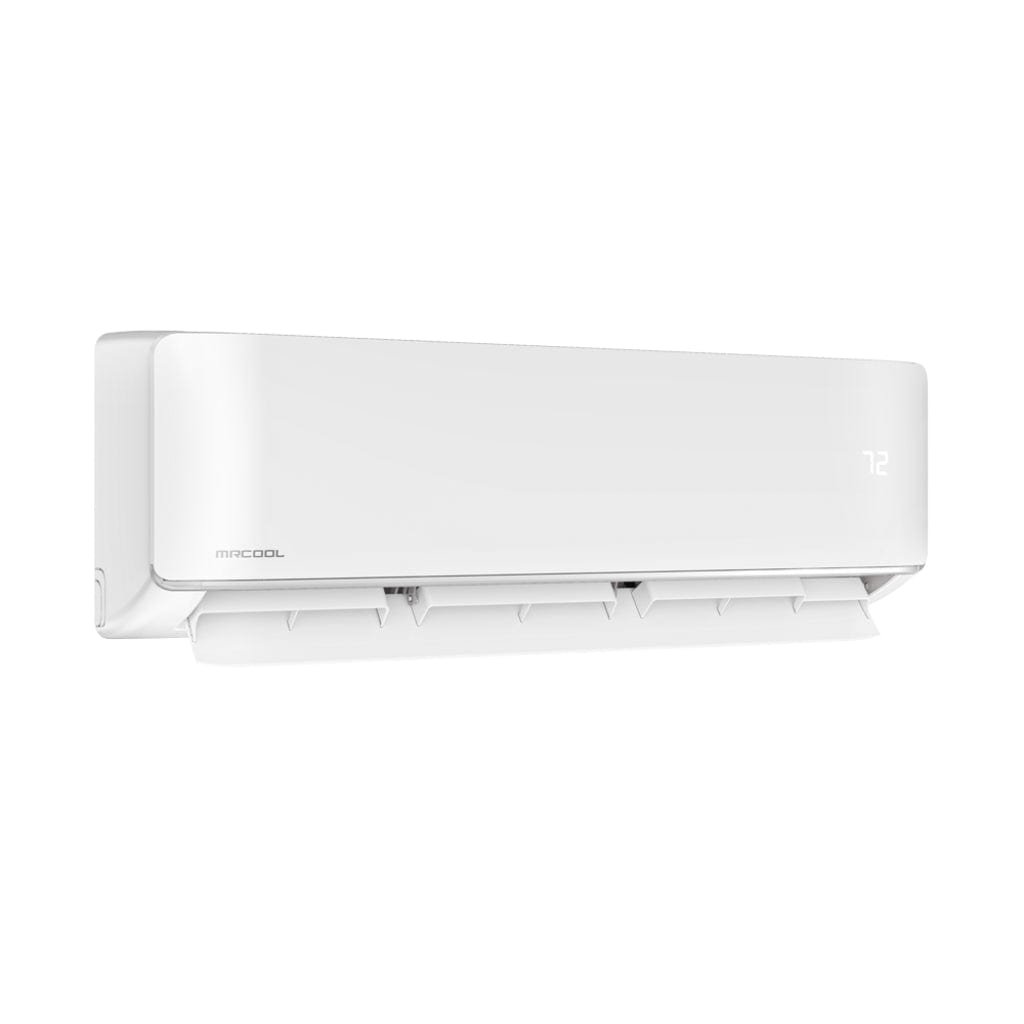

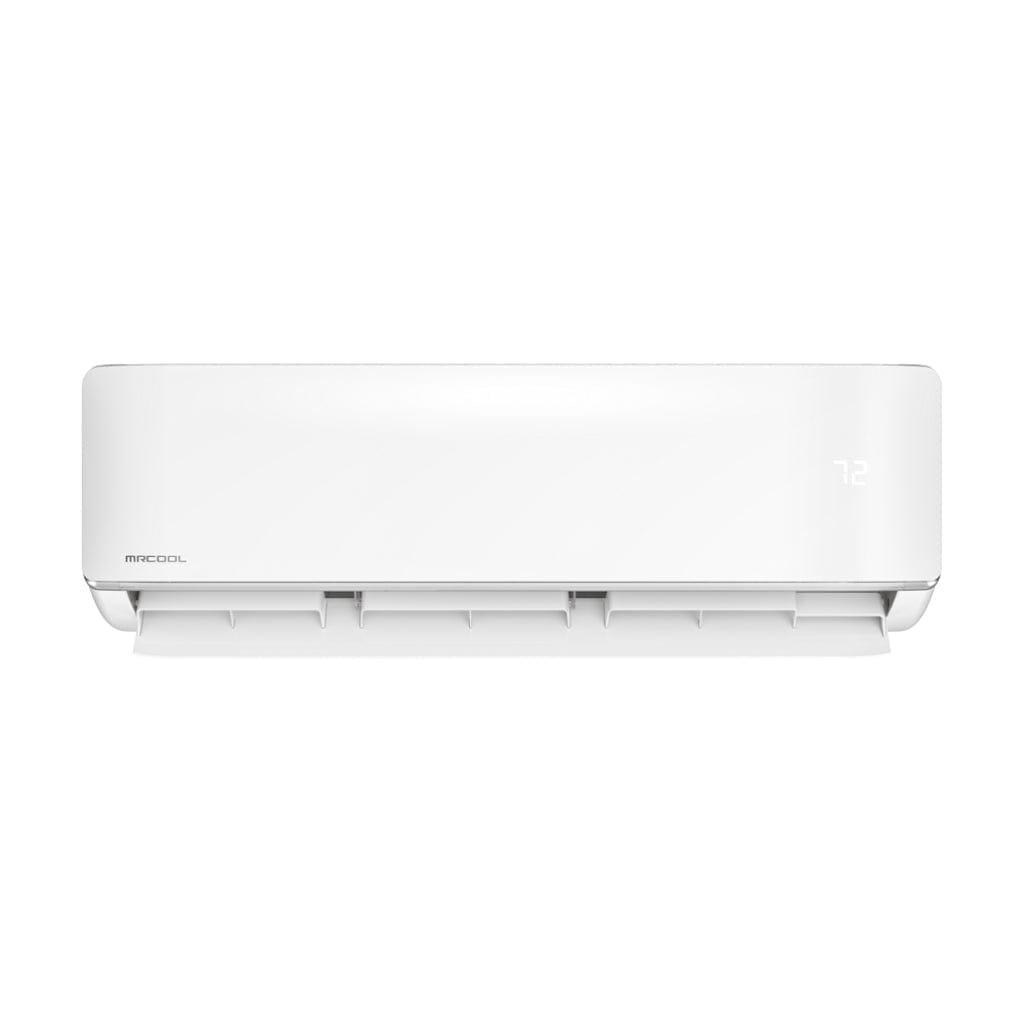

MRCOOL® 36k DIY 5th Generation Mini-Split Air Handler – 230v
Enhance your home’s comfort with the MRCOOL® DIY® 36K BTU 5th Generation Ductless Mini-Split Air Handler—designed for DIY installation and outstanding performance. This unit effectively heats and cools spaces up to 1,550 sq. ft., making it perfect for larger living rooms, open floor plans, or whole floors. With the included 25-foot DIY® QuickConnect® line set pre-charged with eco-friendly R-454B refrigerant, you can skip the vacuuming and complicated setup. The installation is fast, safe, and requires no special tools or HVAC expertise.
The DIYPRO® cable adds extra durability by protecting the system from environmental elements, eliminating the need for traditional electrical conduit.
Take full control over your indoor climate with multiple control options—use the wireless remote, the SmartHVAC app for iOS and Android, or opt for hands-free control through Amazon Alexa or Google Assistant. The air handler includes Follow Me technology, which monitors the temperature around the remote and adjusts airflow for consistent comfort. Additionally, Dry Mode helps reduce humidity, promoting a healthier indoor environment.
Built to last, the Gold Fin® Condenser coating provides superior corrosion resistance, making it particularly beneficial in coastal environments. For added peace of mind, this system comes with an industry-leading warranty: a limited lifetime warranty, 7-year compressor warranty, and a 5-year parts warranty.
The MRCOOL® DIY® 36K Air Handler combines high performance, energy efficiency, and smart features—all in a simple, easy-to-install design that puts comfort directly at your fingertips.
Features:
NEEP ccASHP Certified:
Listed by NEEP as a cold-climate Air-Source Heat Pump, ensuring verified performance and efficiency in colder environments.
Intertek Certified: 5031495
Tested and approved by Intertek, meeting strict safety and performance standards.
Straightforward DIY Installation:
Designed with homeowners in mind, this system allows for an easy, do-it-yourself setup without professional help.
DIYPro® Cable for Future-Ready Setup:
The included DIYPro® cable removes the need for electrical conduit, simplifying installation and helping to future-proof your system.
Follow Me® Comfort Feature:
With the MRCOOL DIY® remote nearby, the Follow Me® function monitors the ambient temperature around you for consistently targeted comfort.
Built-In Smart Compatibility:
Equipped with the MRCOOL® Smart HVAC Controller® Module and App, the unit works seamlessly with Google Assistant and Amazon Alexa right out of the box—no extra configuration required.
Specifications:
| TONNAGE: | 3.0 |
| VOLTAGE (V): | 208/230 |
| PHASE: | 1.0 |
| CYCLE: | 60.0 |
| MAX FUSE BREAKER (A): | 15.0 |
| MIN CIRCUIT AMPACITY (A): | 3.0 |
| MAX COVERAGE AREA: | 1550 sqft |
| LIQUID LINE SIZE: | 3/8 |
| SUCTION LINE SIZE: | 5/8 |
| AUXILIARY HEATER INCLUDED: | No |
| AUXILIARY HEATER AVAILABLE: | No |
| FAN ONLY OPTION: | Yes |
| QUIET MODE: | Yes |
| AUTO COOL: | Yes |
| WIFI COMPATIBILITY: | Yes |
| APP COMPATIBILITY: | Yes |
| WORKS WITH IOS: | Yes |
| WORKS WITH ANDROID: | Yes |
| REMOTE CONTROL INCLUDED: | Yes |
| HAS BATTERIES: | Yes |
| CONTAINS ELECTRONICS: | Yes |
| CONTAINS CHEMICALS: | Yes |
| CONTAINS AEROSOL: | Yes |
| CONTAINS COMPRESSED GAS: | Yes |
Â
Size and Dimensions:
| NET DEPTH (IN): | 11.1 |
| NET HEIGHT (IN): | 14.25 |
| NET WIDTH (IN): | 49.57 |
| NET WEIGHT (LBS): | 48.72 |
| GROSS DEPTH (IN): | 18.74 |
| GROSS HEIGHT (IN): | 16.57 |
| GROSS WIDTH (IN): | 53.94 |
| GROSS WEIGHT (LBS): | 67.9 |
Â
Â
Â
