Namco Scooter Cub 4115 Carpet Extractor – 100 PSI, 160″ Lift, 6-Gal Waste, 3-Stage Motor

Namco Scooter Cub 4115 Carpet Extractor – 100 PSI, 160″ Water Lift, 3-Stage Motor

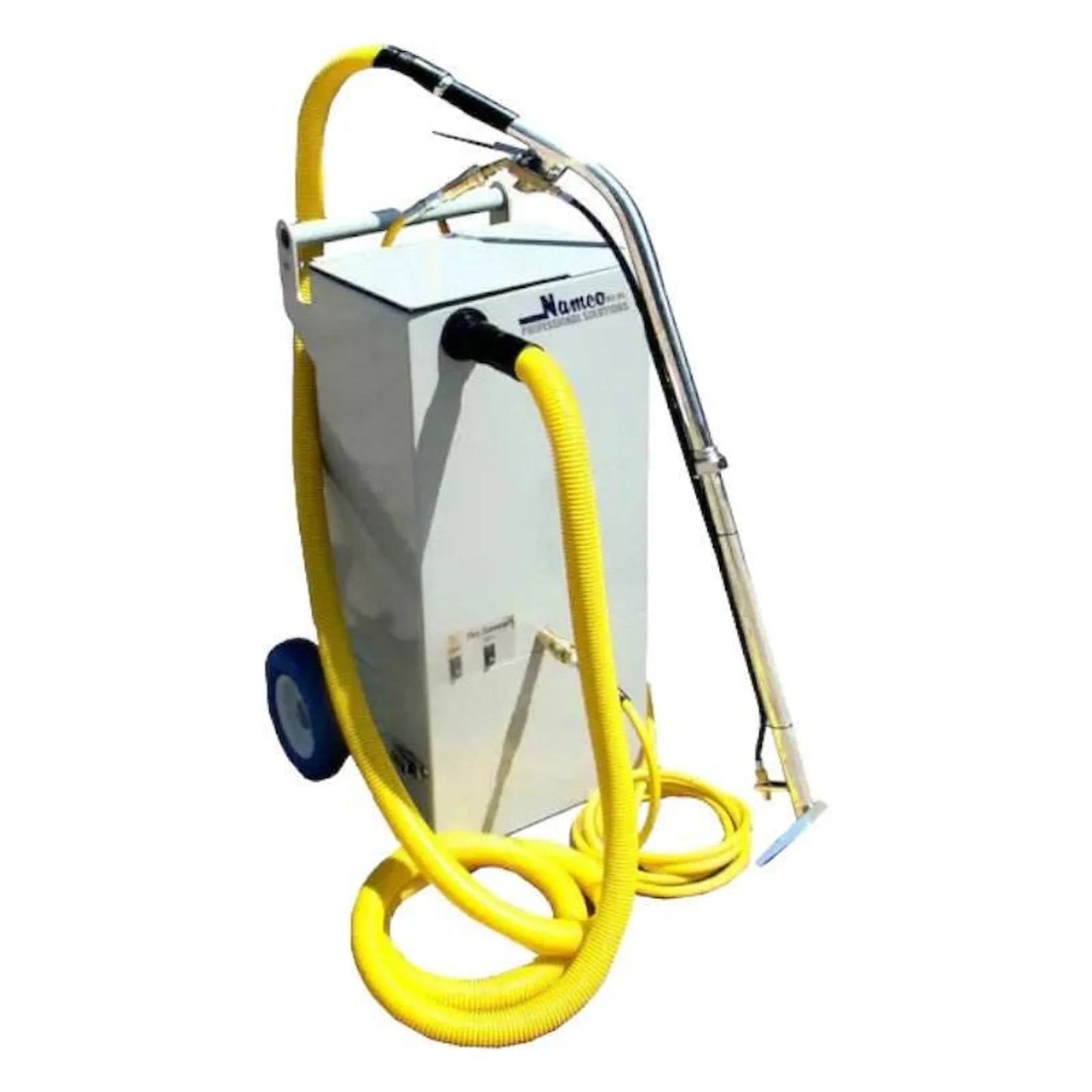

The Namco Scooter Cub 4115 is a self-contained carpet extractor producing 100 PSI at the pump and 160 inches of water lift from a 3-stage vacuum motor. The 6-gallon waste and 4-gallon solution tanks support standard hotel room and office carpet cleaning runs. At 120V on a standard outlet, the Scooter Cub handles the extraction demands of routine commercial carpet maintenance without the complexity of truck-mounted systems.

4115 Motor Stages, PSI, and Water Lift Performance

• Motor: 3-stage vacuum — three sequential impeller stages amplify suction beyond what single- and two-stage motors can achieve in a portable machine; produces 160″ of static lift.
• Water lift: 160 inches — pulls moisture from commercial carpet pile and backing effectively in a single extraction pass.
• PSI: 100 at pump — adequate for commercial carpet extraction on low-to-mid pile carpet; lower than the Scooter Beast (400 PSI) but appropriate for routine maintenance extraction.
• Waste tank: 6 gallons — handles hotel rooms and standard commercial office areas before requiring emptying.
• Solution tank: 4 gallons — supplies cleaning solution to the wand during extraction passes.
• Power: 120V standard outlet — no special circuit requirements for standard commercial cleaning environments.

Hotel and Commercial Office Carpet Extraction Applications

The Scooter Cub 4115 targets hotel room carpet cleaning routes where 100 PSI and 160″ lift are sufficient for the regular monthly or quarterly maintenance extraction cycles that keep commercial carpet looking maintained between deep cleaning events. At 6-gallon waste capacity, a single tank fill handles 2–4 standard hotel rooms before requiring emptying—matching the workflow of a hotel housekeeping team cleaning a room block. The 3-stage motor’s 160″ lift recovers moisture thoroughly enough from maintained commercial carpet to reduce drying time to 2–4 hours at standard room temperatures, allowing rooms to return to service within a half-shift after extraction.

3-Stage Motor and Water Lift Advantage

In a 3-stage motor, the airstream passes through three impeller housings in sequence. Each stage increases air velocity and static pressure above the previous stage. A single-stage motor in the same power class produces approximately 80–100″ of lift; a two-stage approximately 120–140″; the 3-stage reaches 160″ with the same motor size. This allows the Scooter Cub to achieve higher suction force in a portable machine than two-stage extractors of comparable size, which translates directly to more moisture recovered per extraction pass and shorter carpet drying time.
