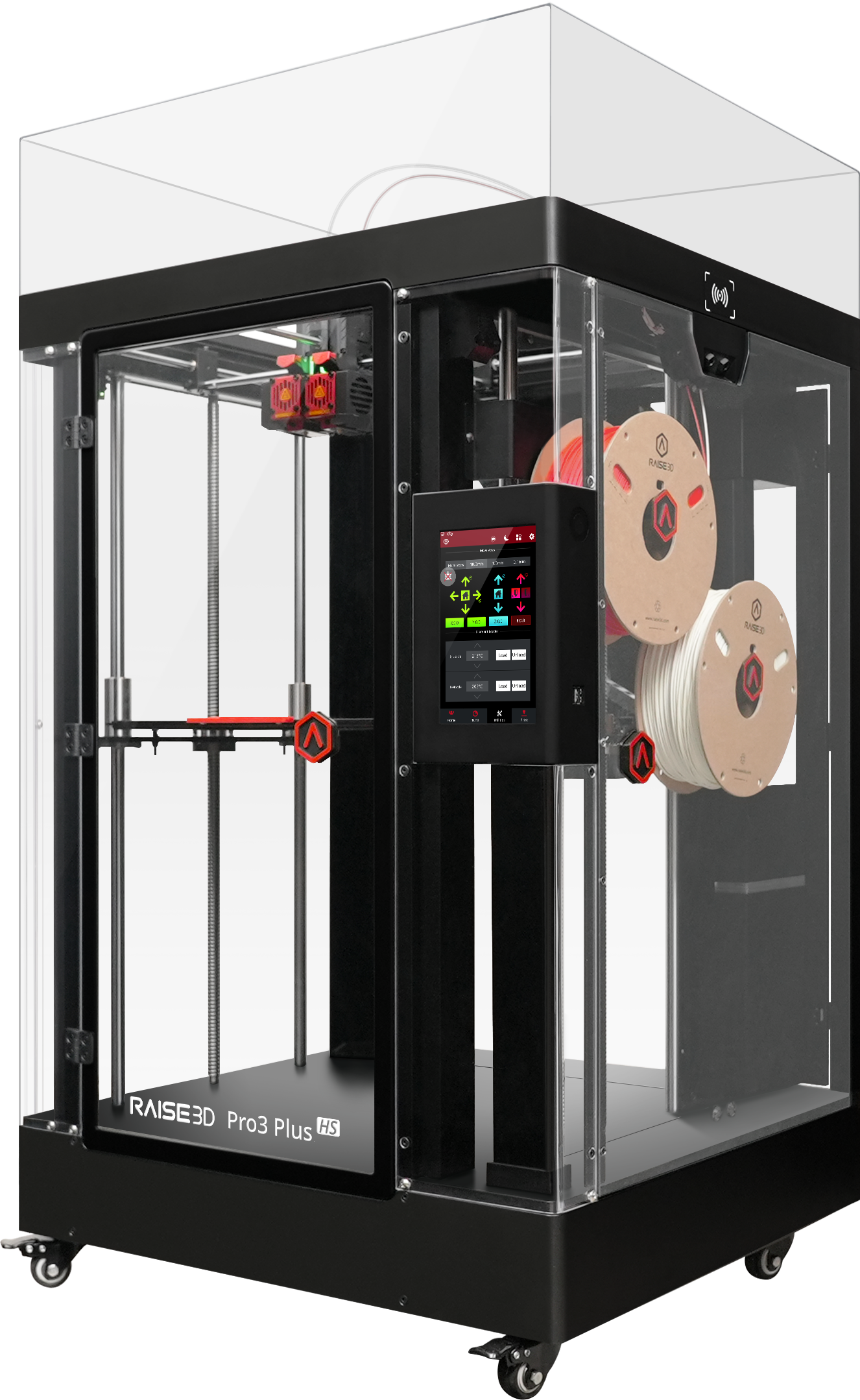

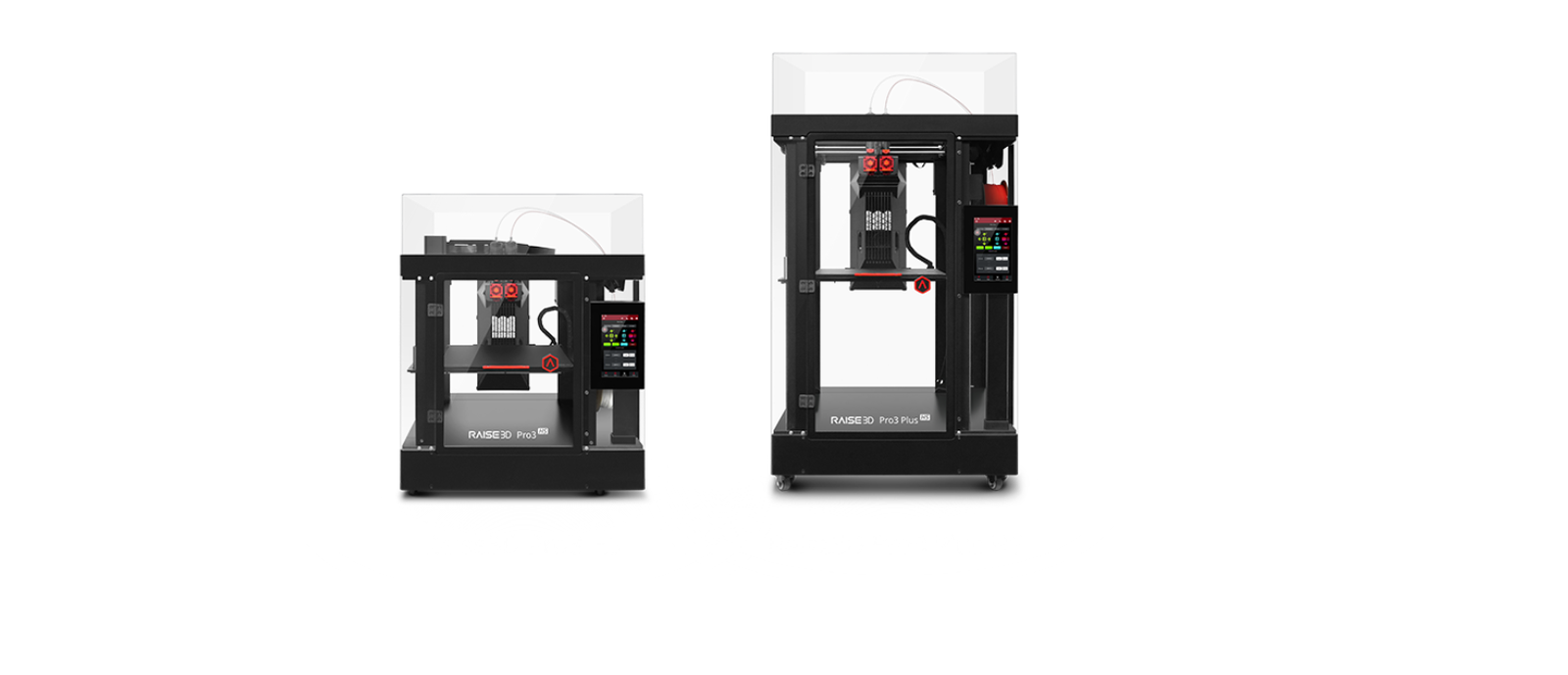

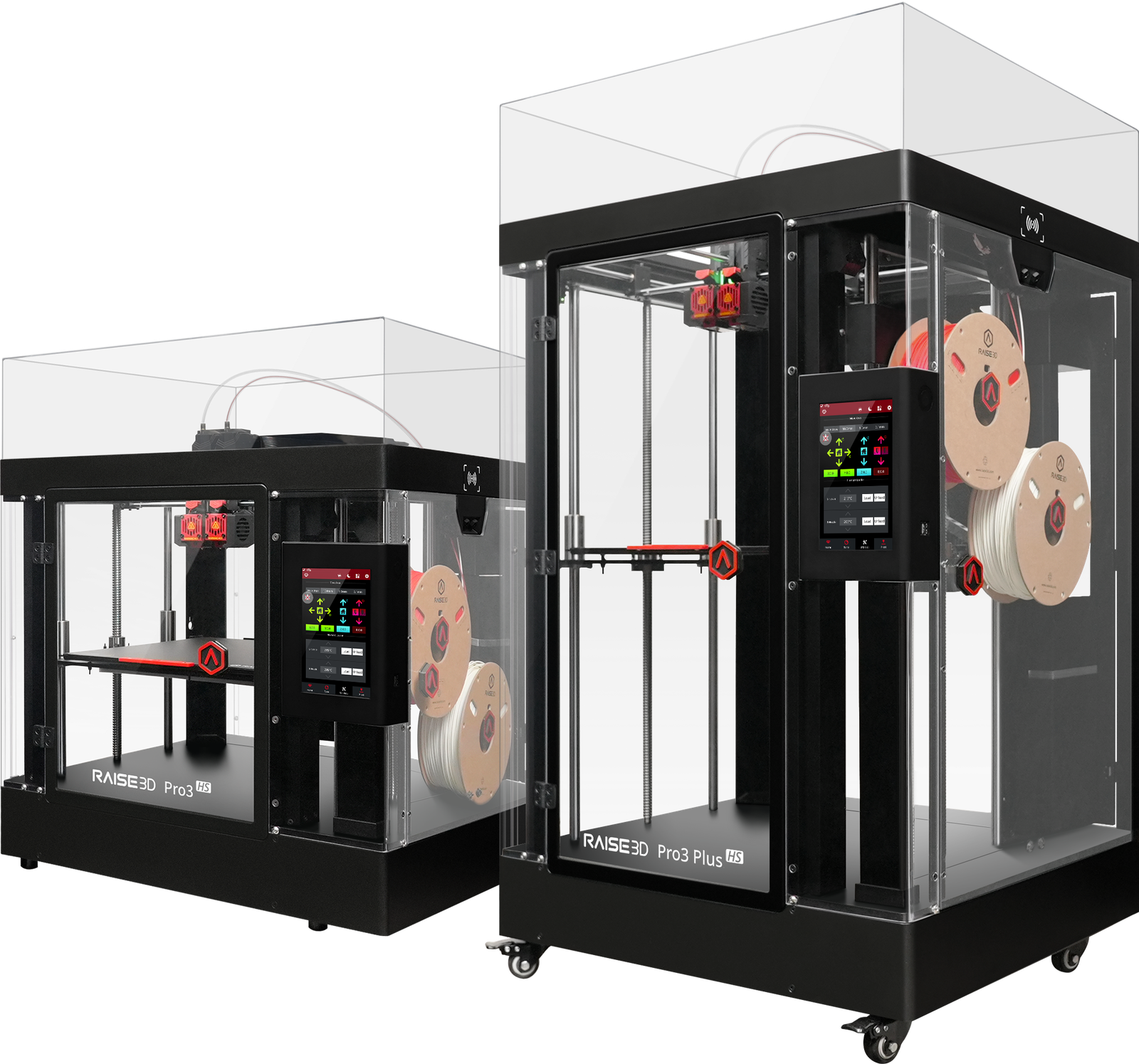

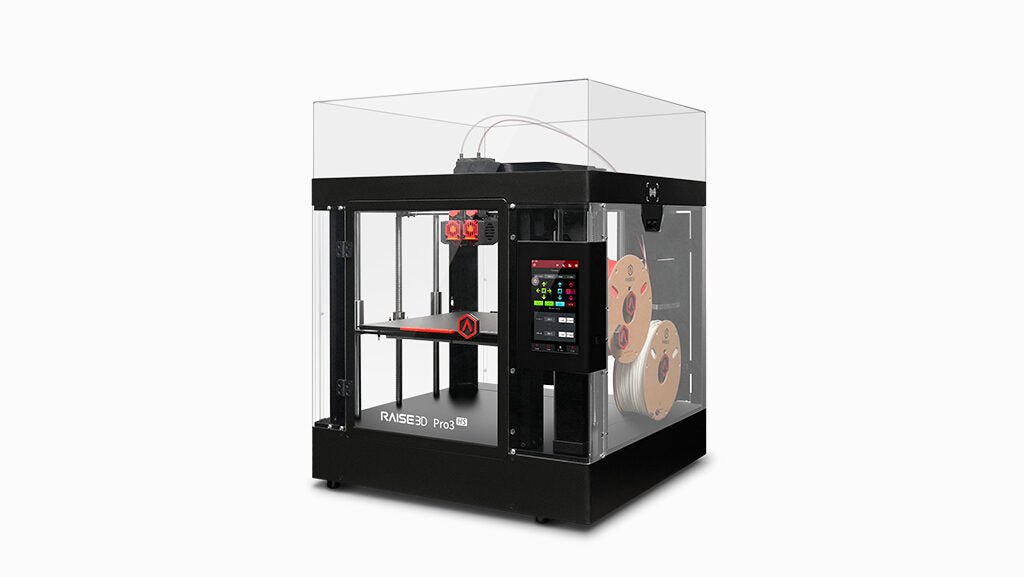

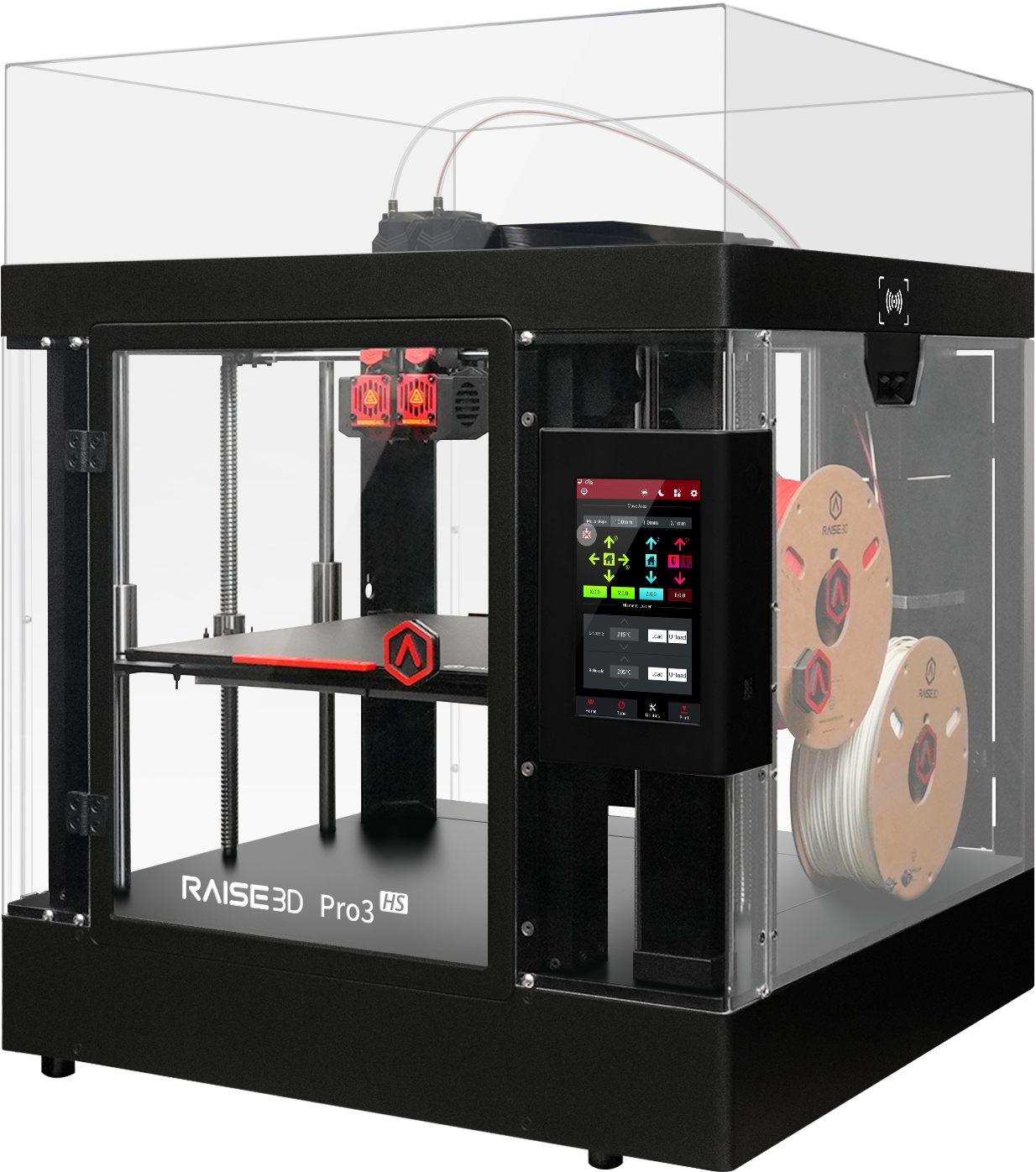

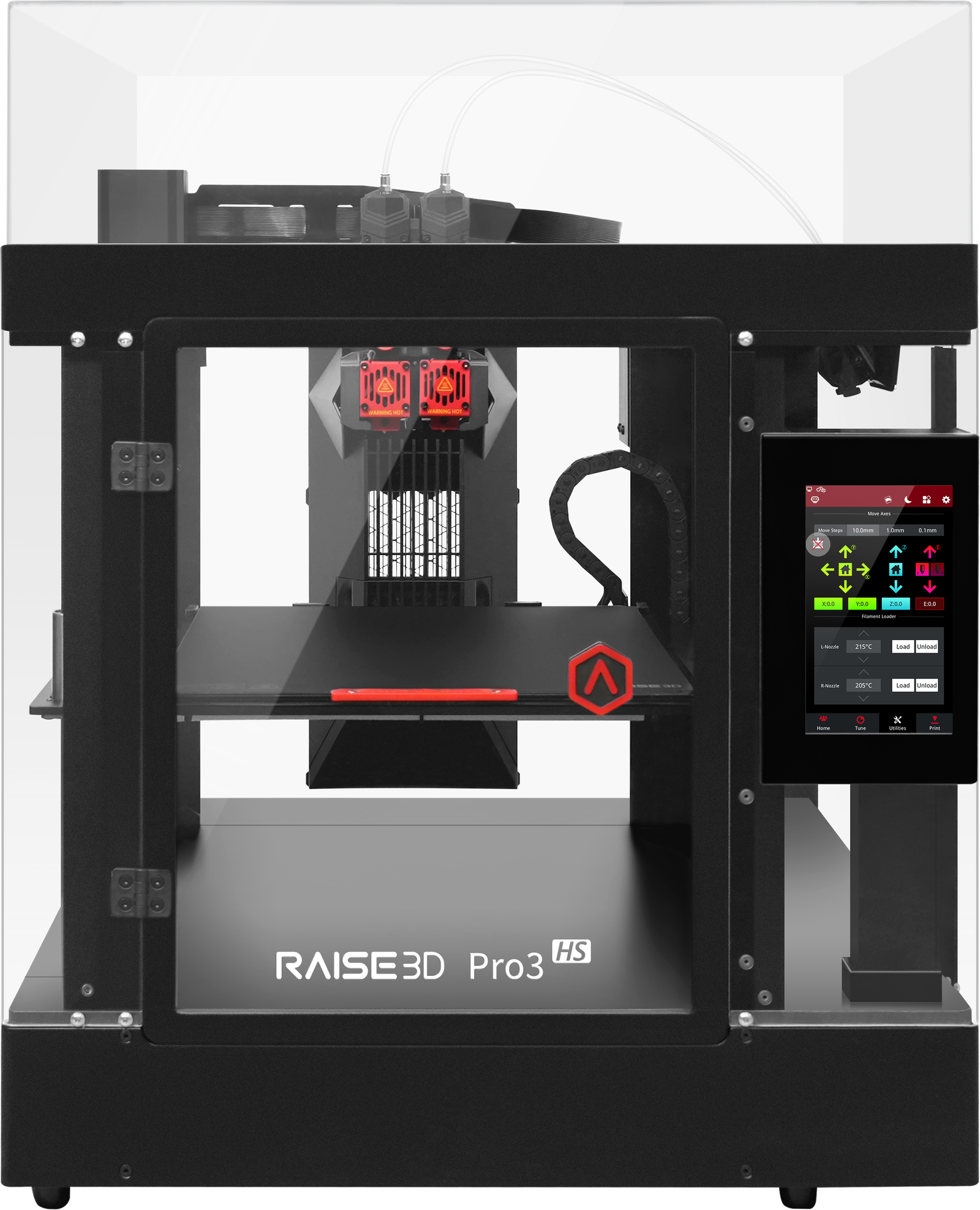

Raise3D Pro3 HS Series Pro3 HS/ Pro3 PLUS HS 3D Printer

Use “Raise3D5” for 5% off plus free shipping!

The Raise3D Pro3 HS Series is a powerful professional-grade machine that builds upon the various performance improvements introduced on Raise3D’s flagship Pro3 Series. It improves on printing speed, production efficiency and reliability. With the goal of bestowing general manufacturers and print farmers with the ability to produce small batches efficiently and reliably, whether they’re end-use parts or tooling fixtures.

The Raise3D Pro3 HS Series is a high-performance professional 3D printer that builds on the Pro3 Series with integrated Hyper FFF® technology, offering industry-leading speeds for composite printing with high efficiency and reliability. The updated motion control system with a closed-loop stepper motor further improves the precision and accuracy of high-speed printing, making it ideal for printing demanding industrial applications with minimal manual intervention.

Features

-Built-in Hyper FFF® Technology

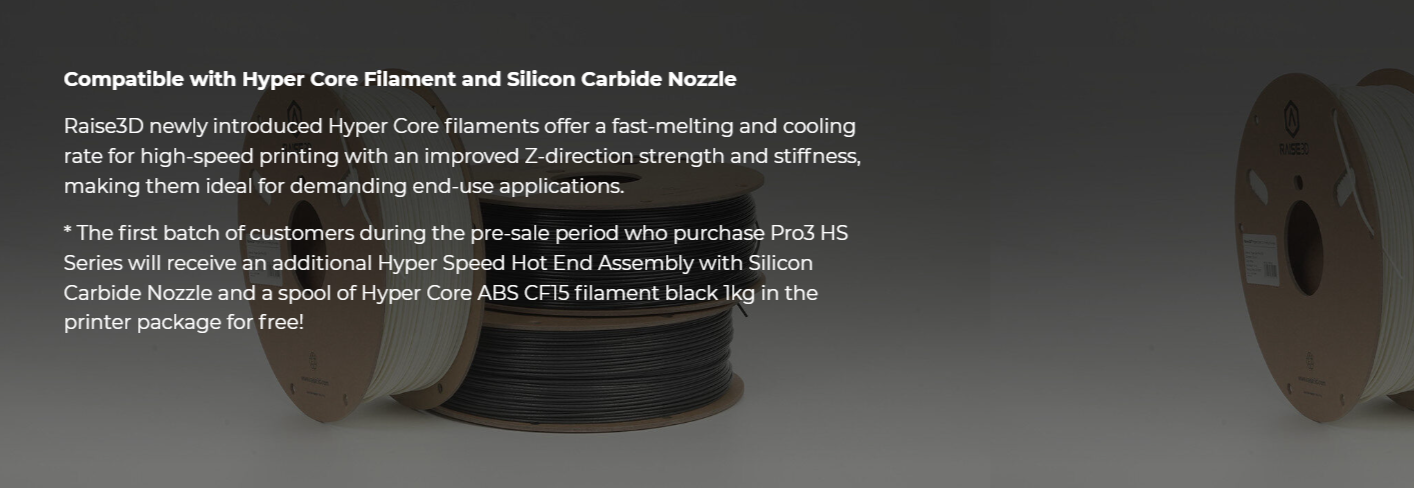

-Hyper Core and Industrial High-Performance Materials Available For Printing

-Automatic Filament Switching

-External 2.5kg Storage Boxes (sold separately)

-Drive System Optimization

-New RFID Sensor

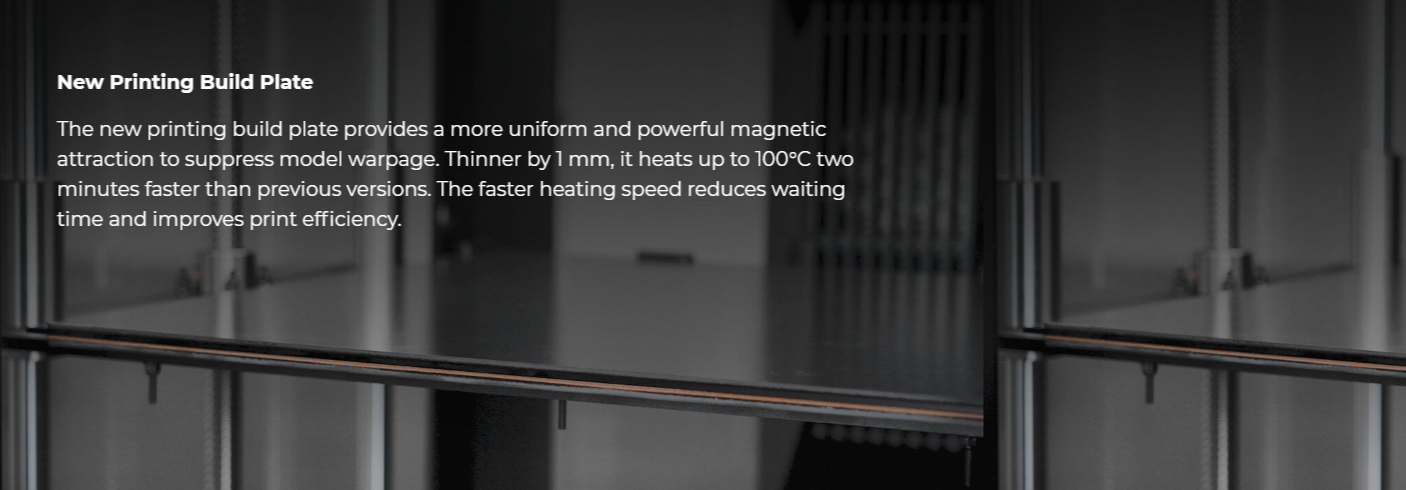

-New Printing Build Plate

-Automatic Filament Unloading

-Air Flow Manager+EVE Smart Assistant+Auto Bed Leveling+Automatic Pausing with Door/Lid Sensors+HD Camera

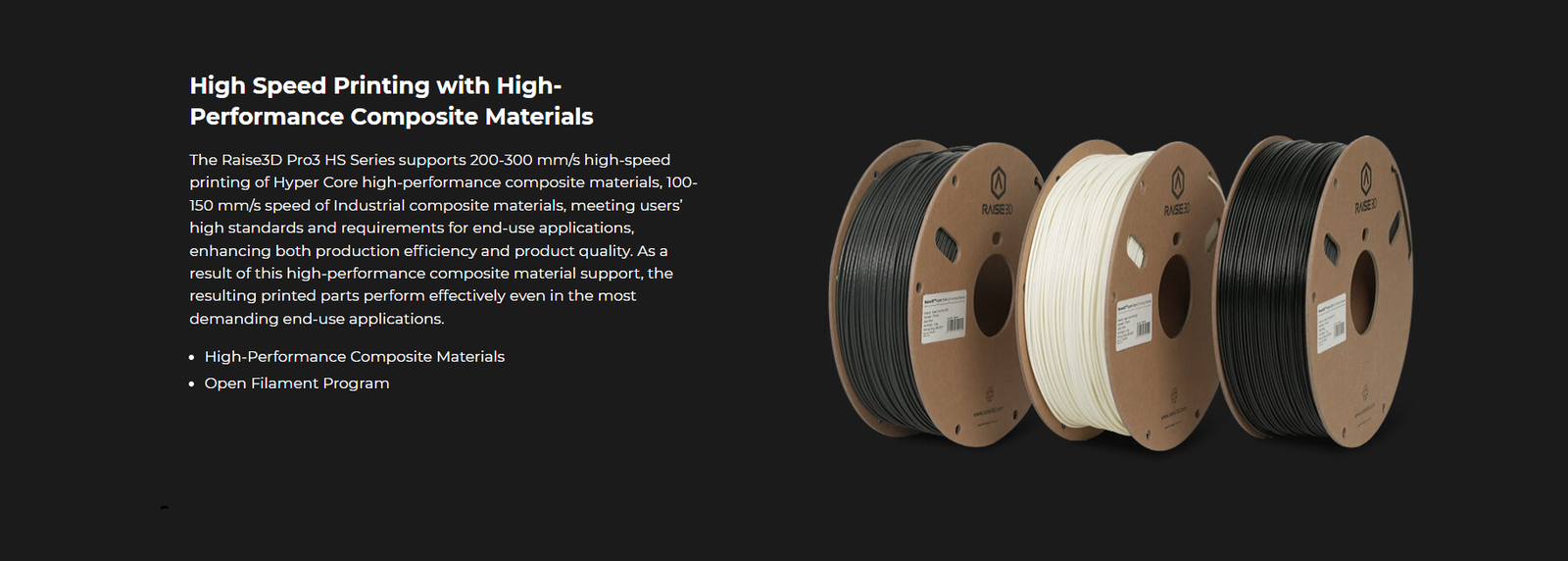

High-speed printing with high-performance composite materials

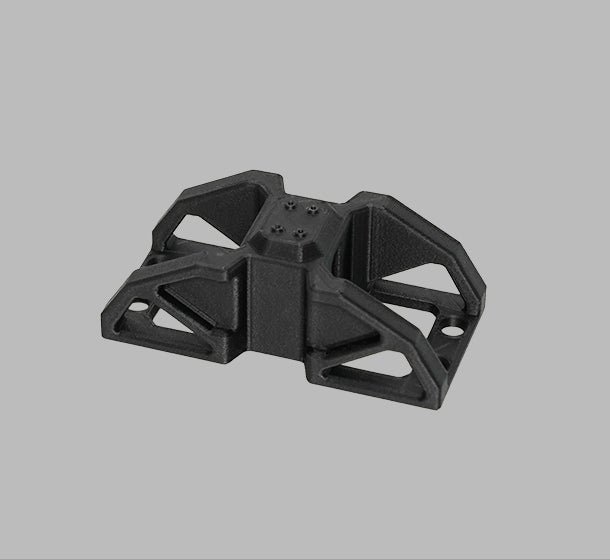

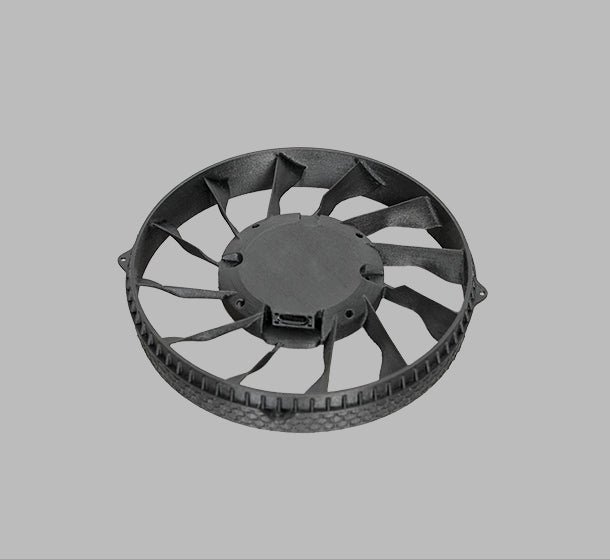

The Raise3D Pro3 HS series supports high-speed printing of Hyper Core high-performance composites at 200-300 mm/s and industrial composites at 100-150 mm/s, meeting users’ high standards and requirements for end-use applications and increasing both production efficiency and product quality. This support for high-performance composites enables the printed parts to be used effectively in even the most demanding end-use applications.

-High-performance composite materials

-Open filament program

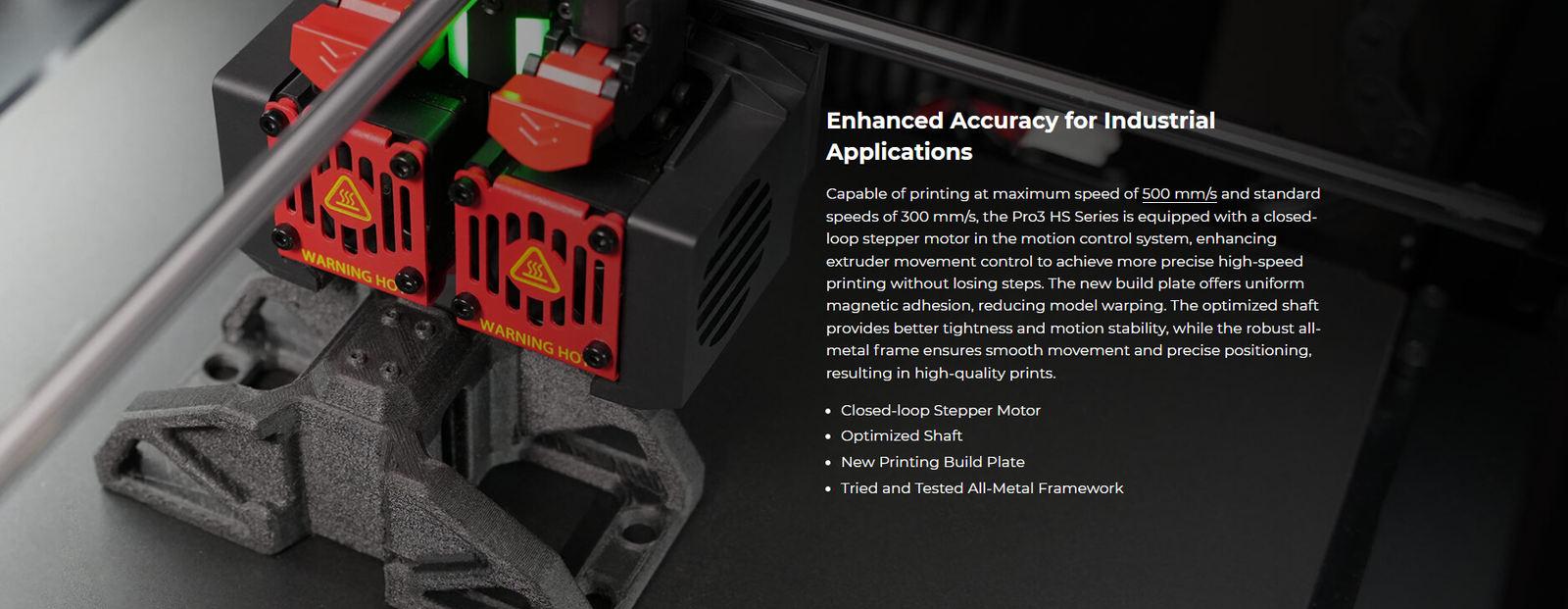

Higher speed and improved accuracy

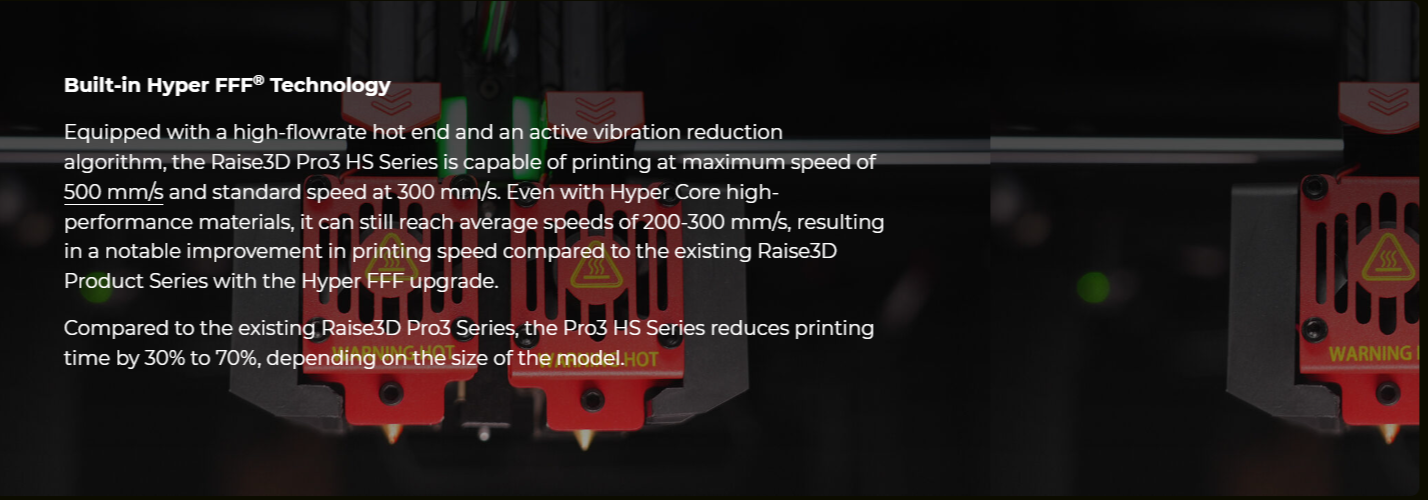

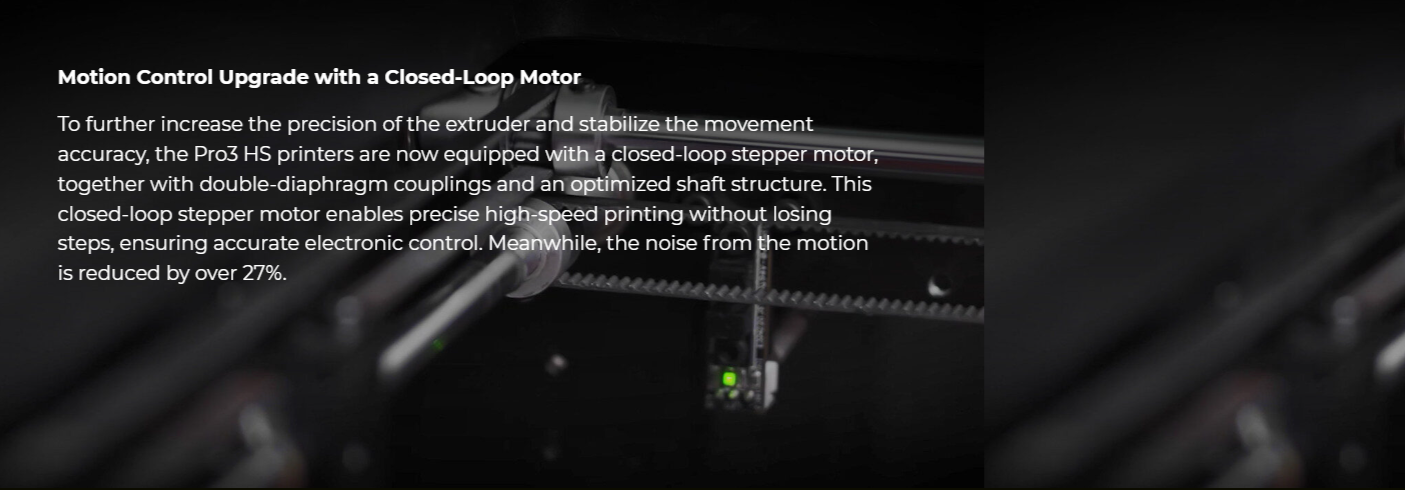

The Raise3D Pro3 HS Series incorporates Hyper FFF® technology for precise and reliable high-speed printing with Hyper Speed Technology, which features a high-flow rate hot end and an active vibration reduction algorithm. The Pro3 HS Series can print at standard speeds of 300mm/s and is equipped with a closed-loop stepper motor in the motion controller, which improves control of the extruder movement to achieve more precise high-speed prints without losing steps. The new build plate provides uniform magnetic adhesion and reduces model deformation. The optimized shaft provides better sealing and motion stability, while the robust all-metal frame ensures smooth movement and precise positioning, resulting in high-quality prints.

-Built-in Hyper FFF® technology

-Stepper motor with closed control loop

-Optimized wave

-New pressure build-up plate

-Proven all-metal frame

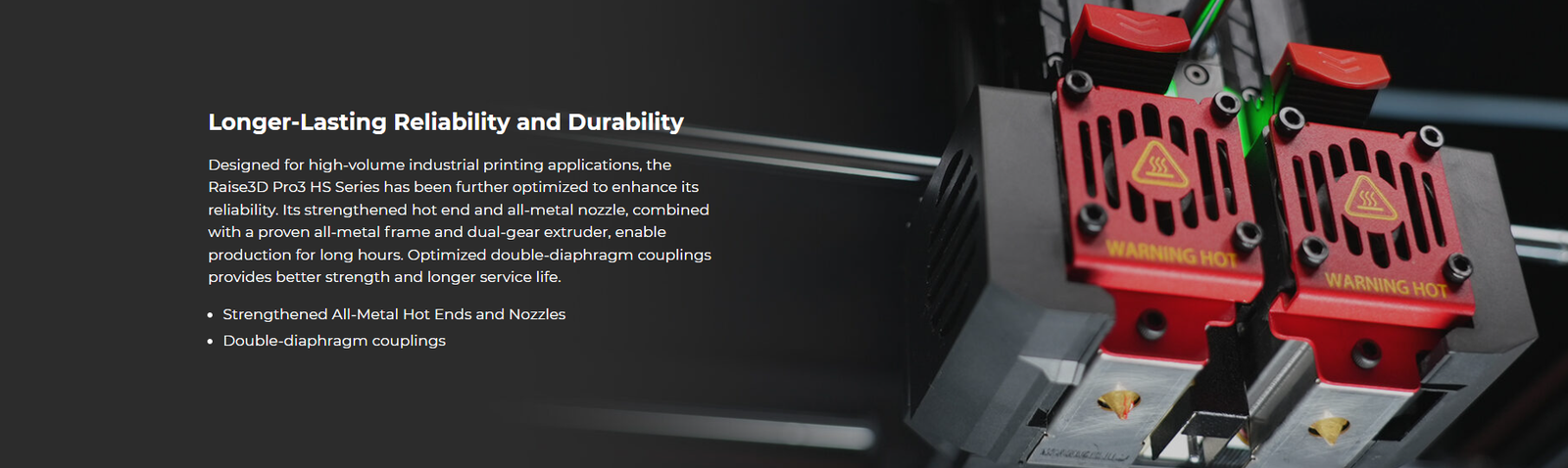

Longer lasting durability

The Raise3D Pro3 HS series is designed for high-volume industrial printing applications and has been further optimized to increase its reliability. The reinforced hot end and all-metal nozzle combined with the proven all-metal frame and two-speed extruder enable production over many hours. Optimized double diaphragm couplings ensure better strength and longer service life.

-Strengthened all-metal hot ends and nozzles

-Double diaphragm couplings

Extended continuous production time and reduced need for manual intervention

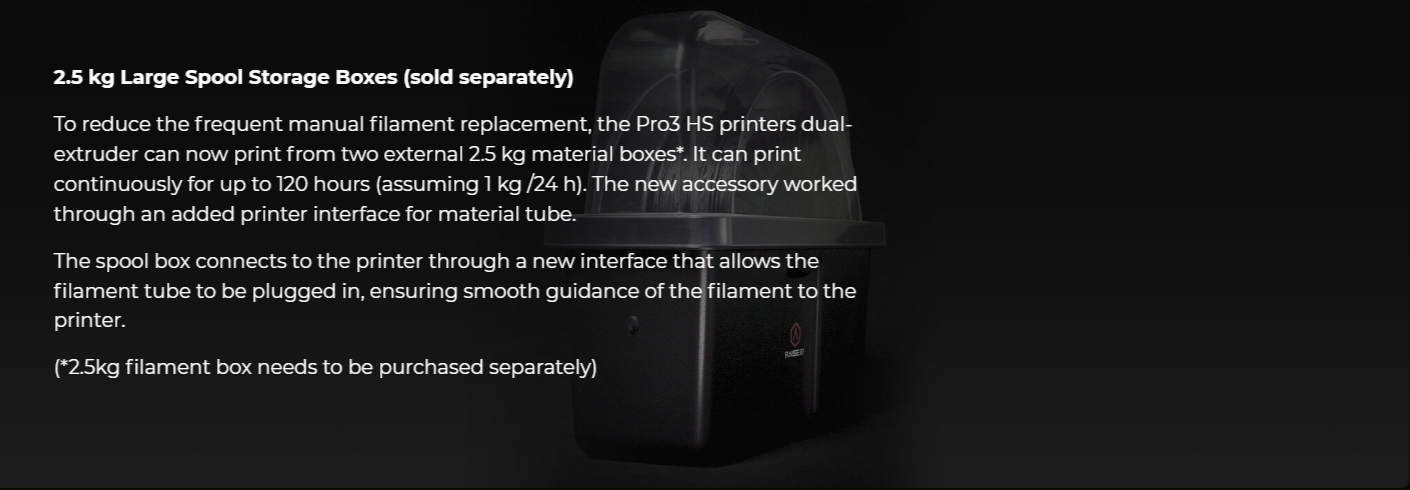

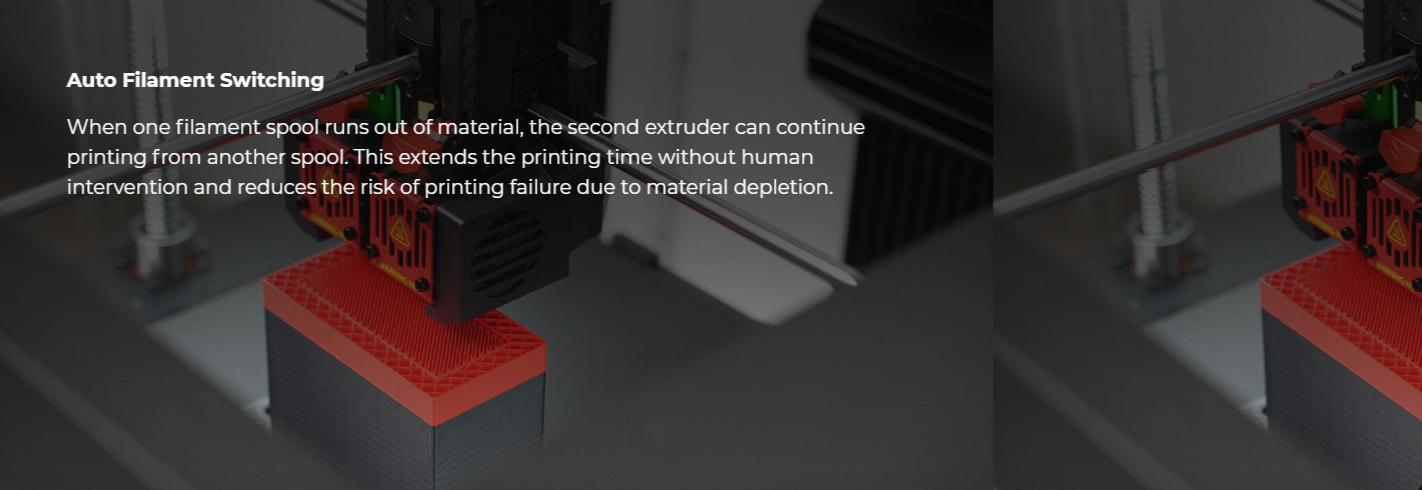

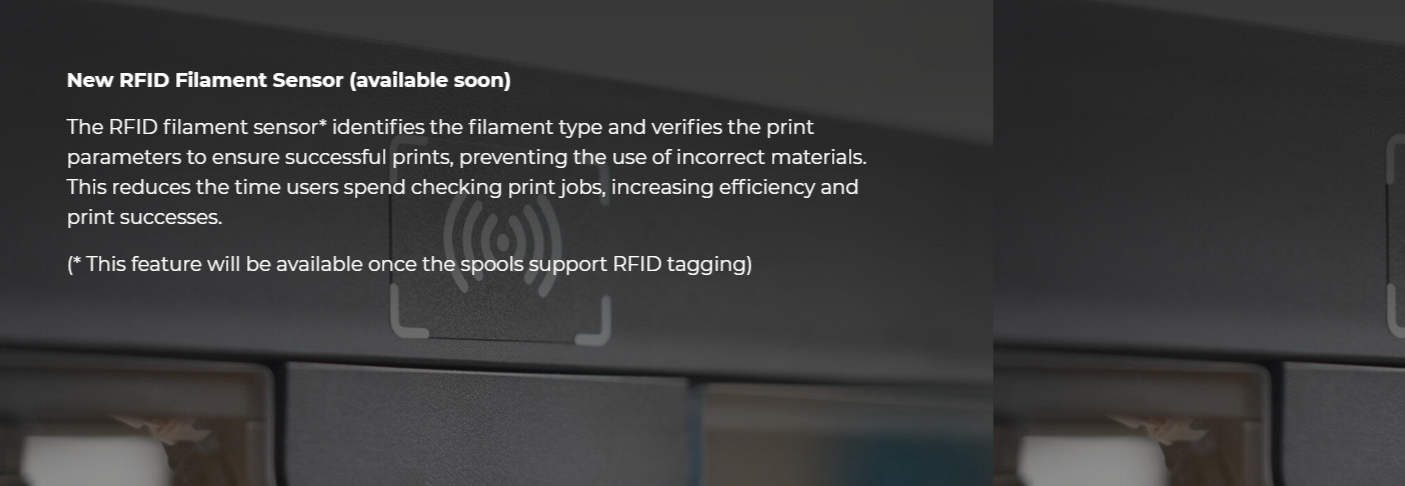

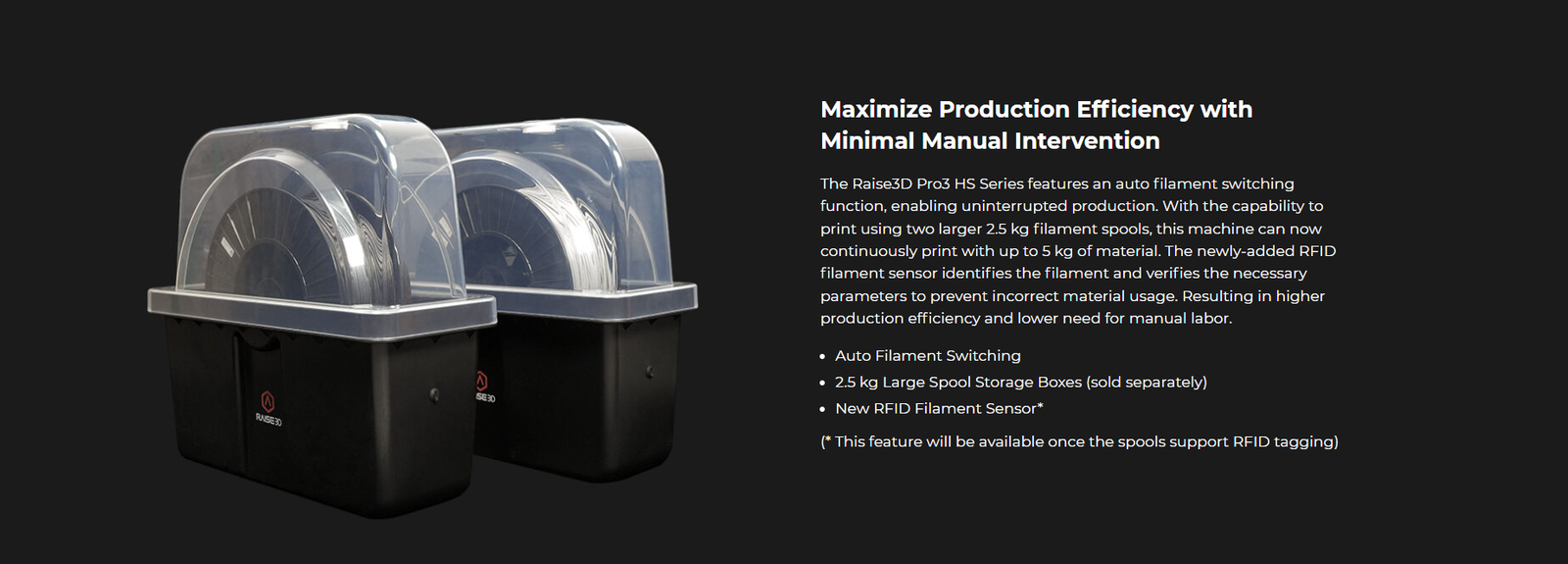

The Raise3D Pro3 HS Series features an automatic filament switching feature that allows for uninterrupted production. With the ability to use two larger 2.5kg filament spools, this machine can now print continuously with up to 5kg of material. The newly added RFID filament sensor identifies the filament and checks the required parameters to prevent incorrect material use. The result is greater production efficiency and less need for manual labor.

-Automatic filament switching

-2.5 kg large spool storage boxes (sold separately)

-New RFID filament sensor*

(* This feature will be available once the coils support RFID tagging)

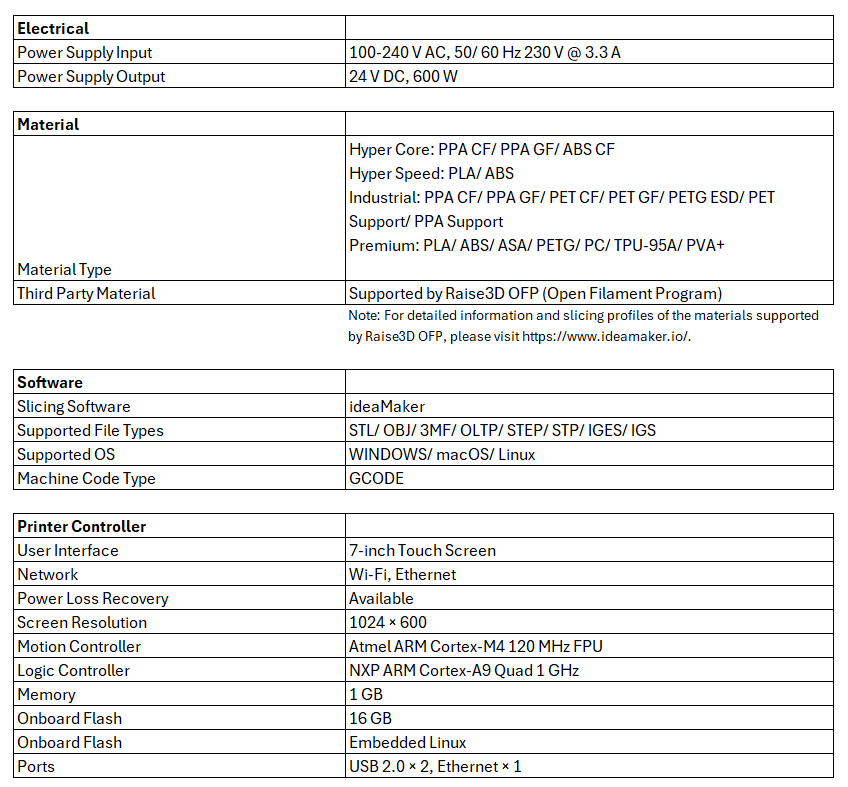

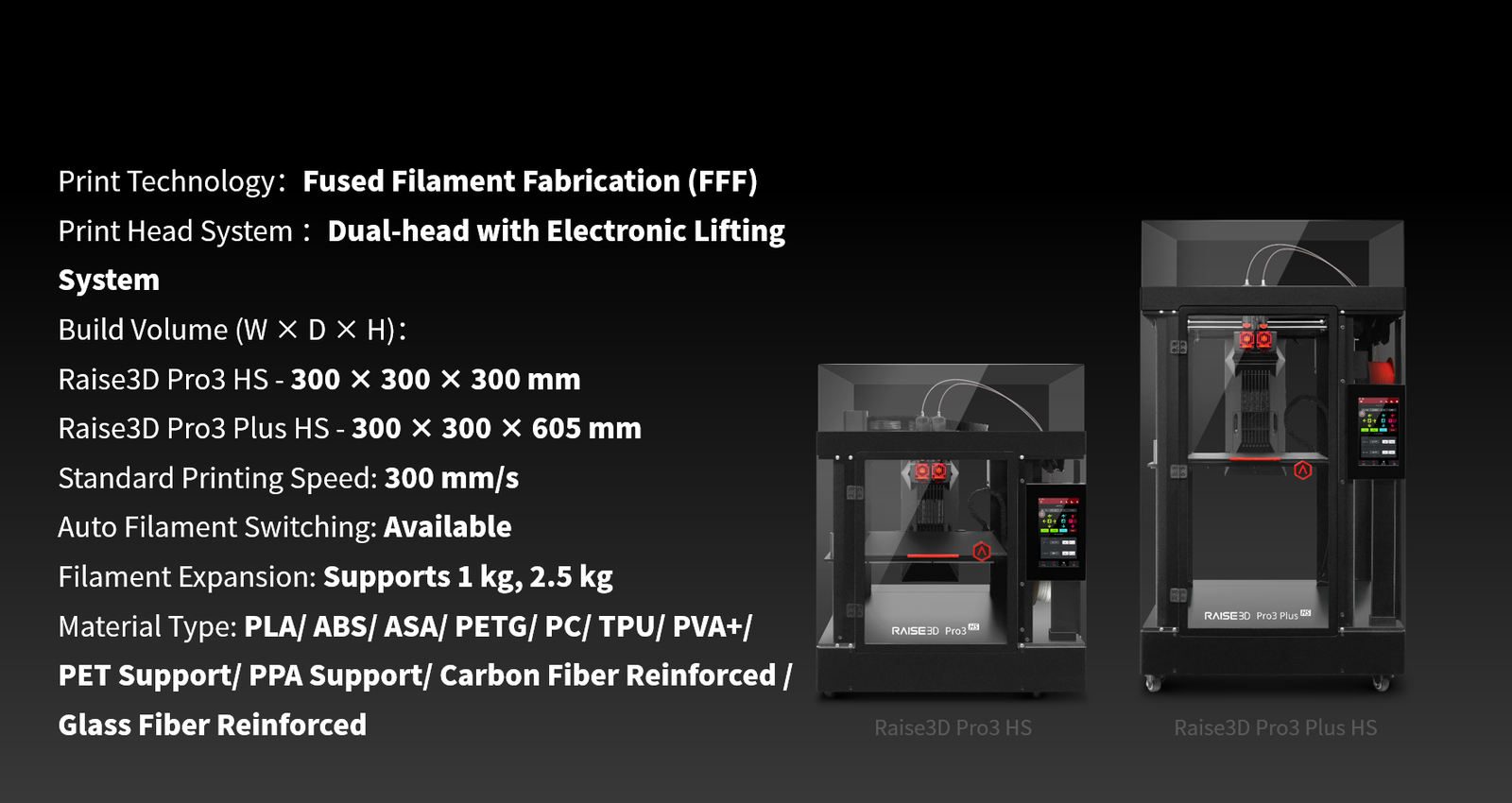

Specifications

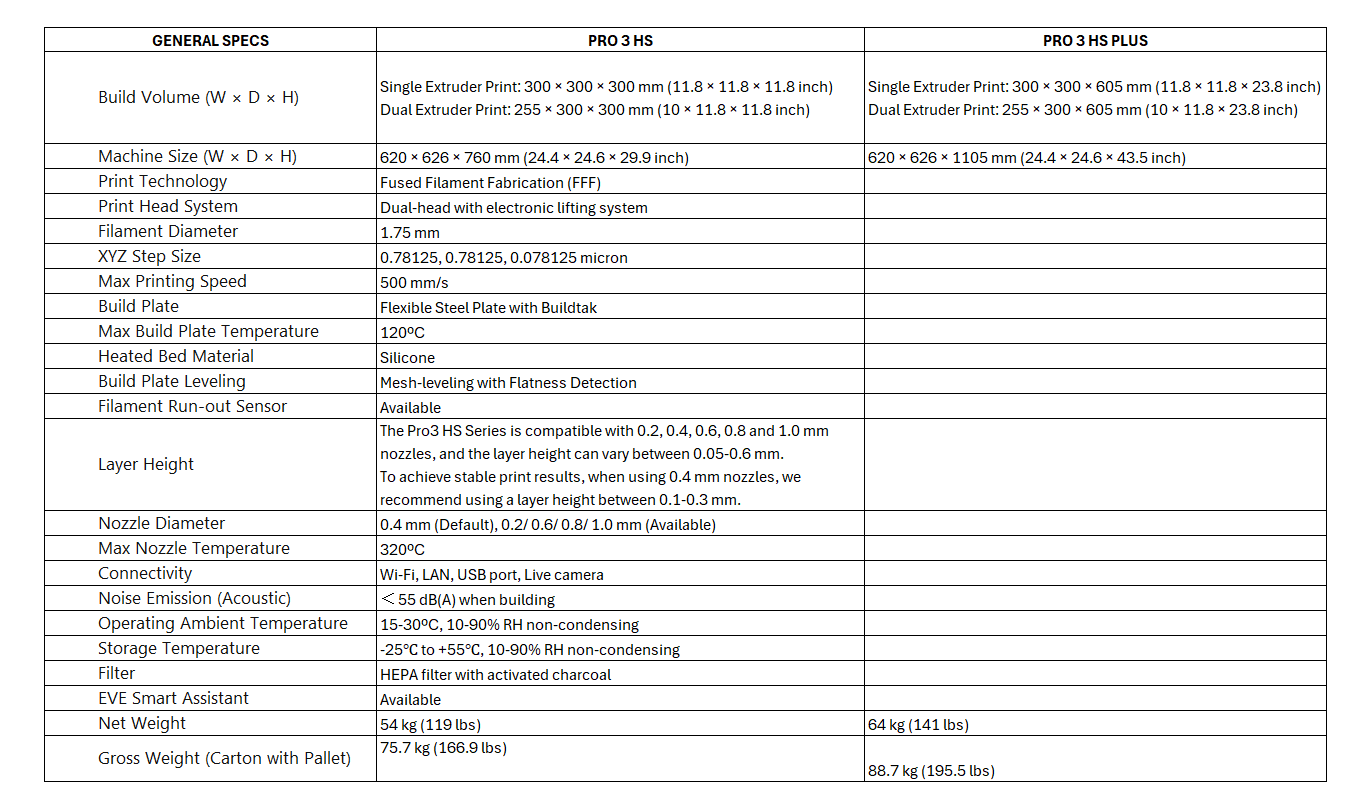

Technical Specifications of the Raise3D Pro3 HS series

Build volume (W × D × H) Pro3 HS:

-Single extruder print: 300 × 300 × 300 mm (11.8 × 11.8 × 11.8 in)

-Dual extruder print : 255 × 300 × 300 mm (10 × 11.8 × 11.8 in)

Printing technology: Fused Filament Fabrication (FFF)

Print head system: Dual head with electronic lift system

XYZ step size: 0.78125, 0.78125, 0.078125 microns

Standard print speed: 300 mm/s

Print bed: Flexible steel plate with BuildTak

Build plate leveling: Mesh leveling with flatness detection

Heated bed material: Silicone

Maximum build plate temperature: 120 ºC

Nozzle diameter: 0.4 mm (standard), 0.2/ 0.6/ 0.8/ 1.0 mm (available)

Maximum nozzle temperature: 320 ºC

Automatic filament switching: Available

RFID filament sensor: Available

Filament run-out sensor: Available

Filter: HEPA filter with activated carbon

Raise3d New Key Upgrades

Warranty

If interested in extended warranty, please call us at 833-767-4275.

Resources

Pro 3 HS Series Tech Specs

Pro 3 HS Series Brochure
