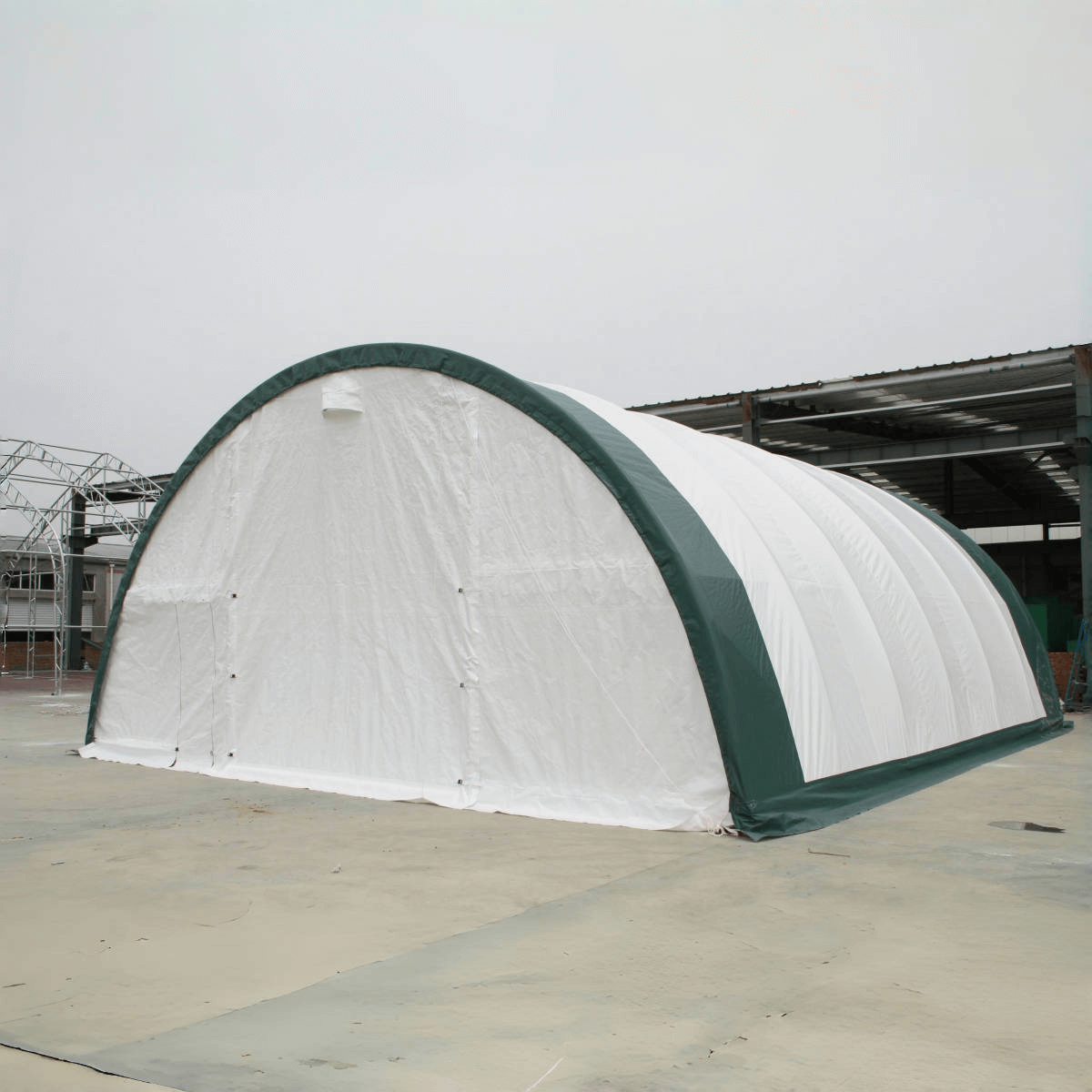

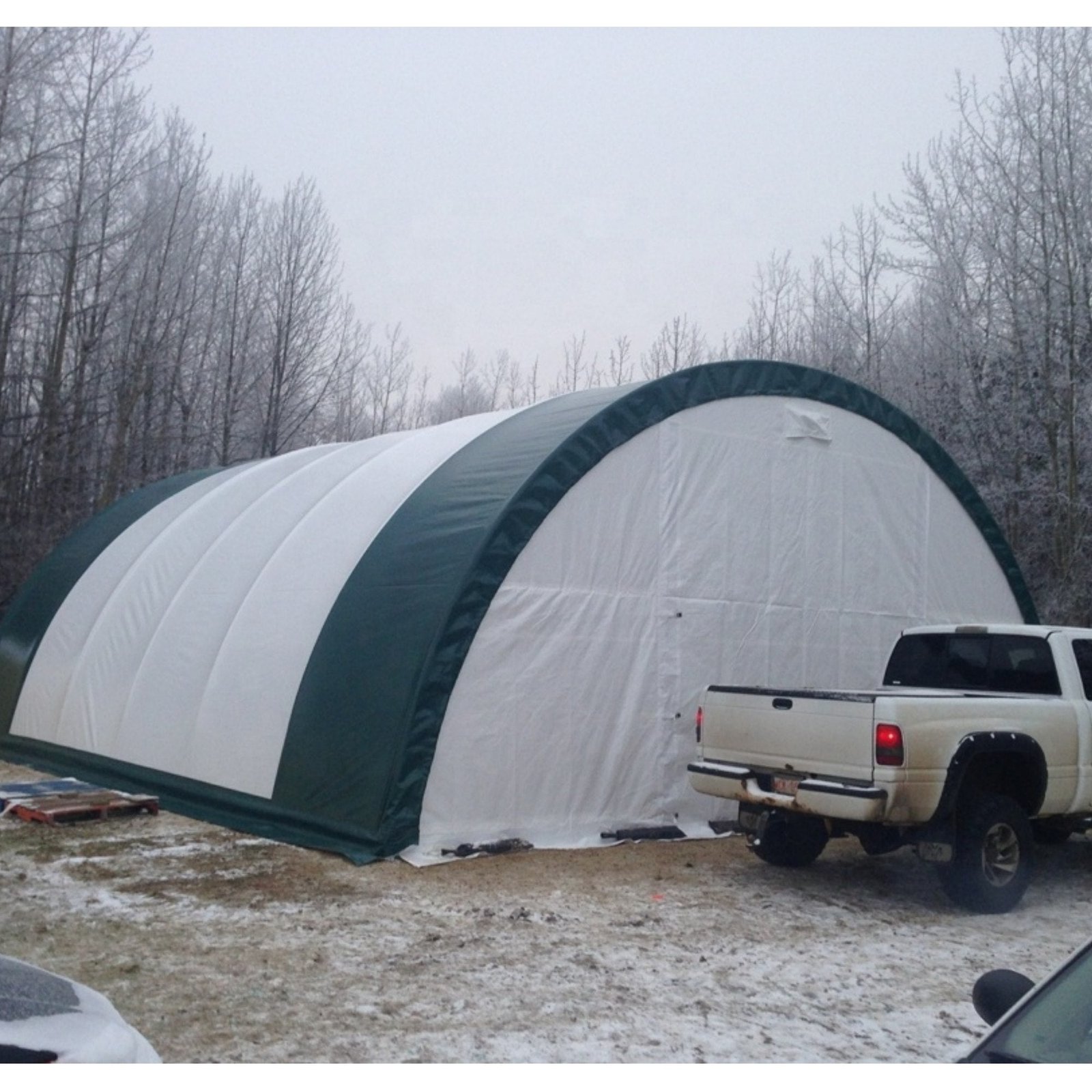

Single Truss Arch Storage Shelter W30’xL40’xH15′
Price range: $2,127.55 through $2,251.19

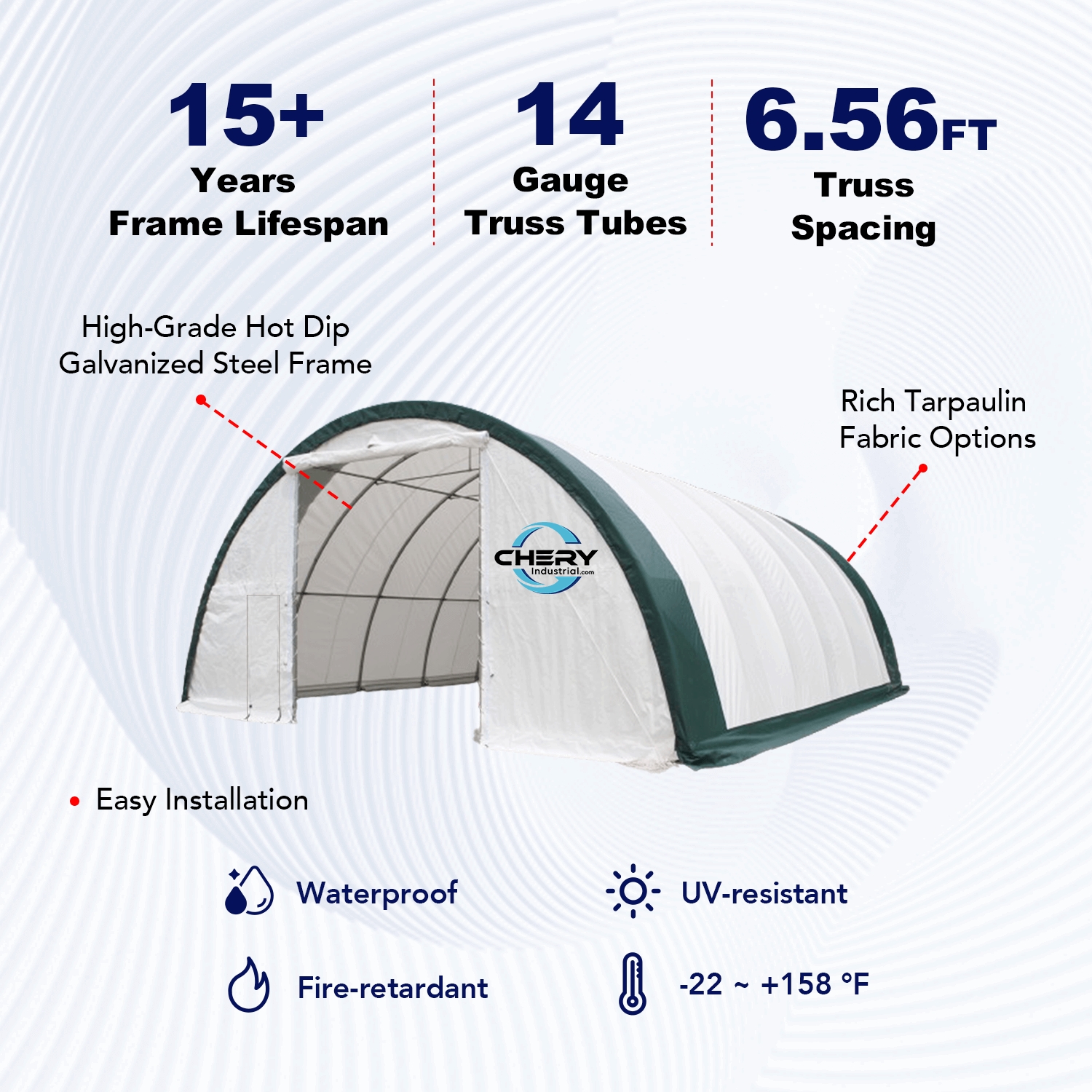

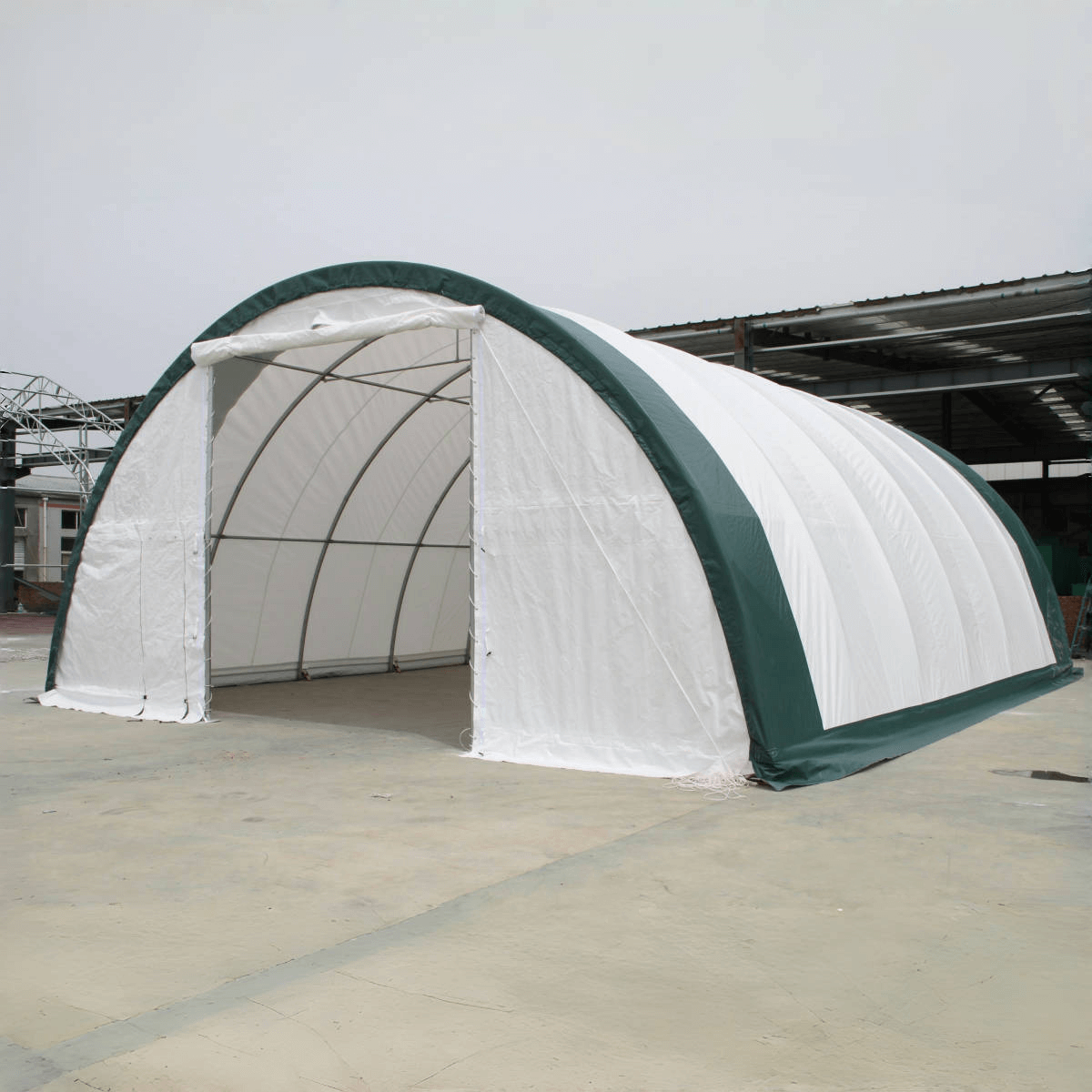

The Gold Mountain Single Truss Arch Storage Shelter W30′ x L40′ x H15′ features a sturdy galvanized steel frame for stability and resistance to wind and snow. Designed for all-season outdoor storage, its UV-resistant PE or PVC canopy provides protection from sun and water, while the rollup door offers extra security on windy or rainy days. Ideal for industrial, commercial, agricultural, and personal use, it accommodates vehicles, equipment, firewood, and more.
Owners are responsible for removing snow immediately if it does not slide off on its own.

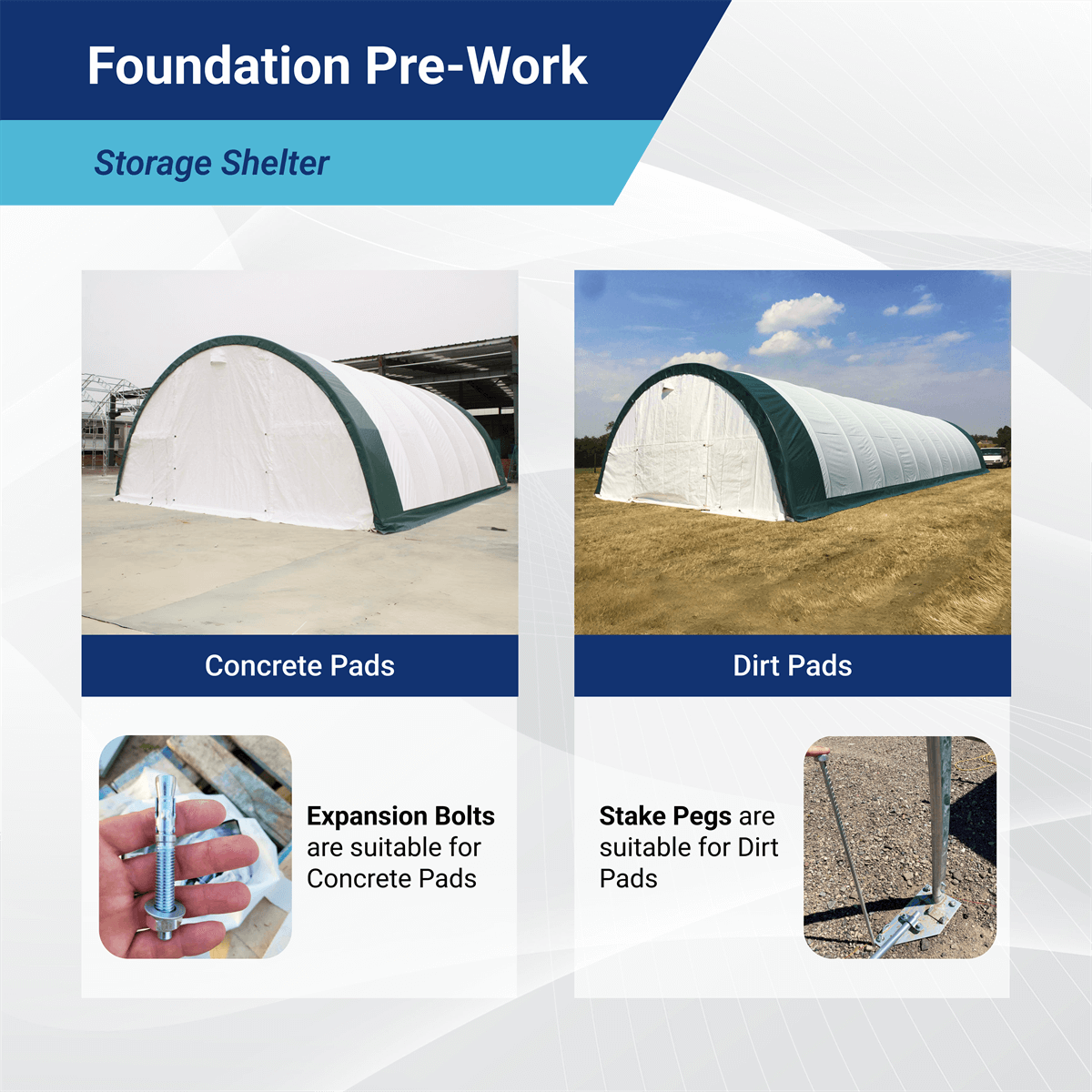

Please Note: Stake pegs are replaced by expansion bolts. If you need stake pegs, you can contact customer service to place an order.
Your browser does not support the video tag.
How to build a Storage Shelter?
Specification
| Description | Specifications |

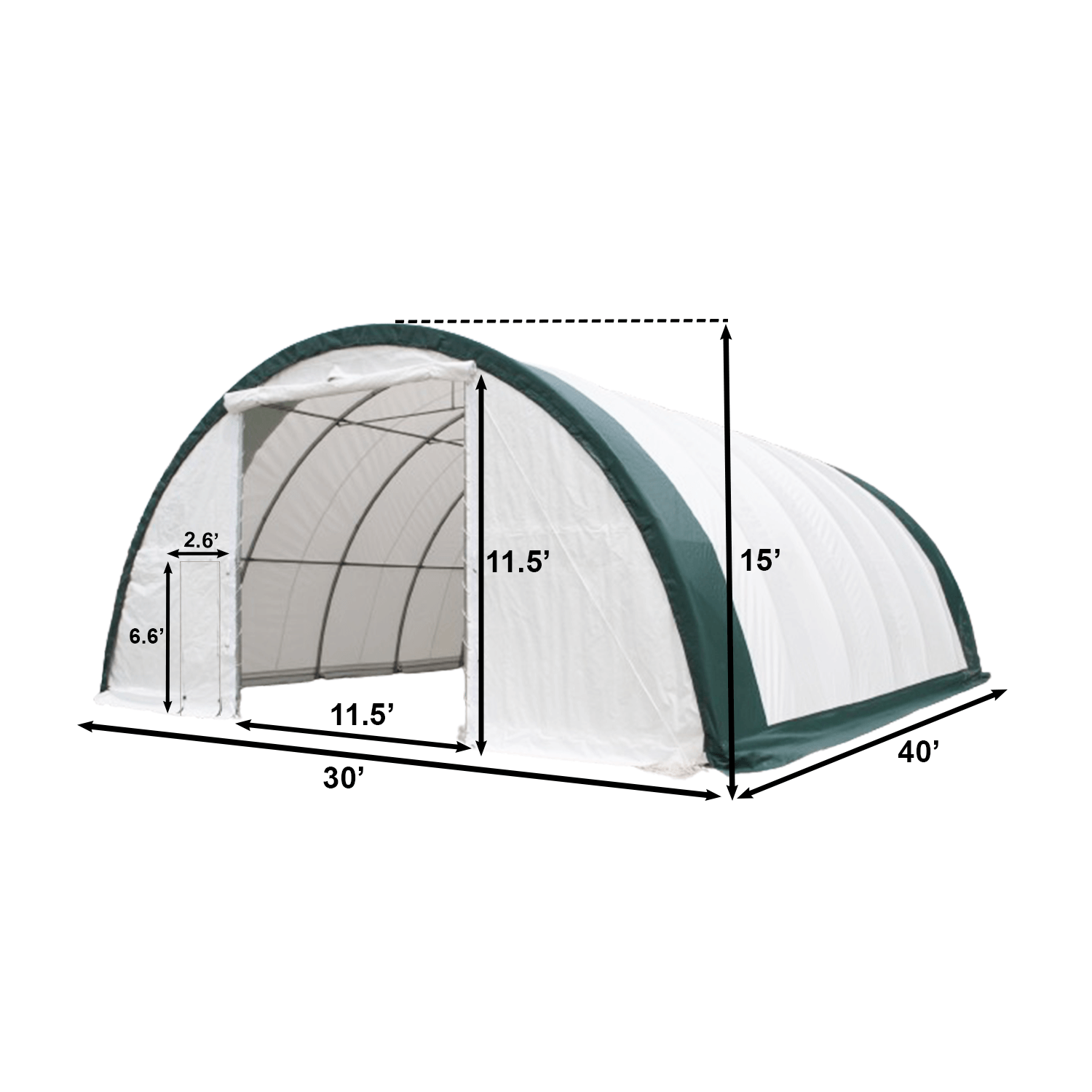

| Dimensions (WxLxH) | 30’x40’x15′ |

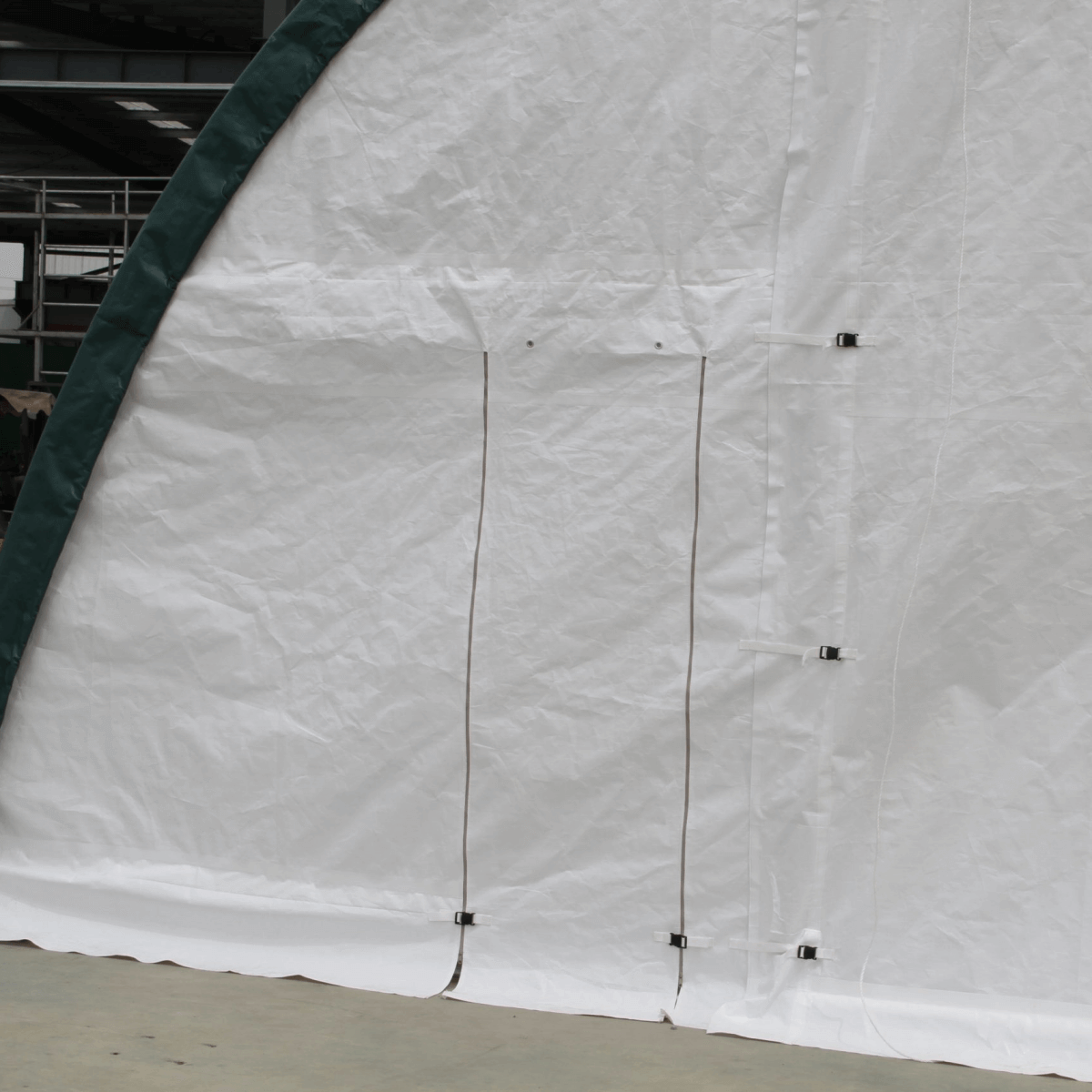

| Door size (WxH) (Front & Rear) | 11.5’x11.5′ |
| Door Type | Rope Pullup Door |
| Man Door (WxH) | 2.6’x6.6′ |

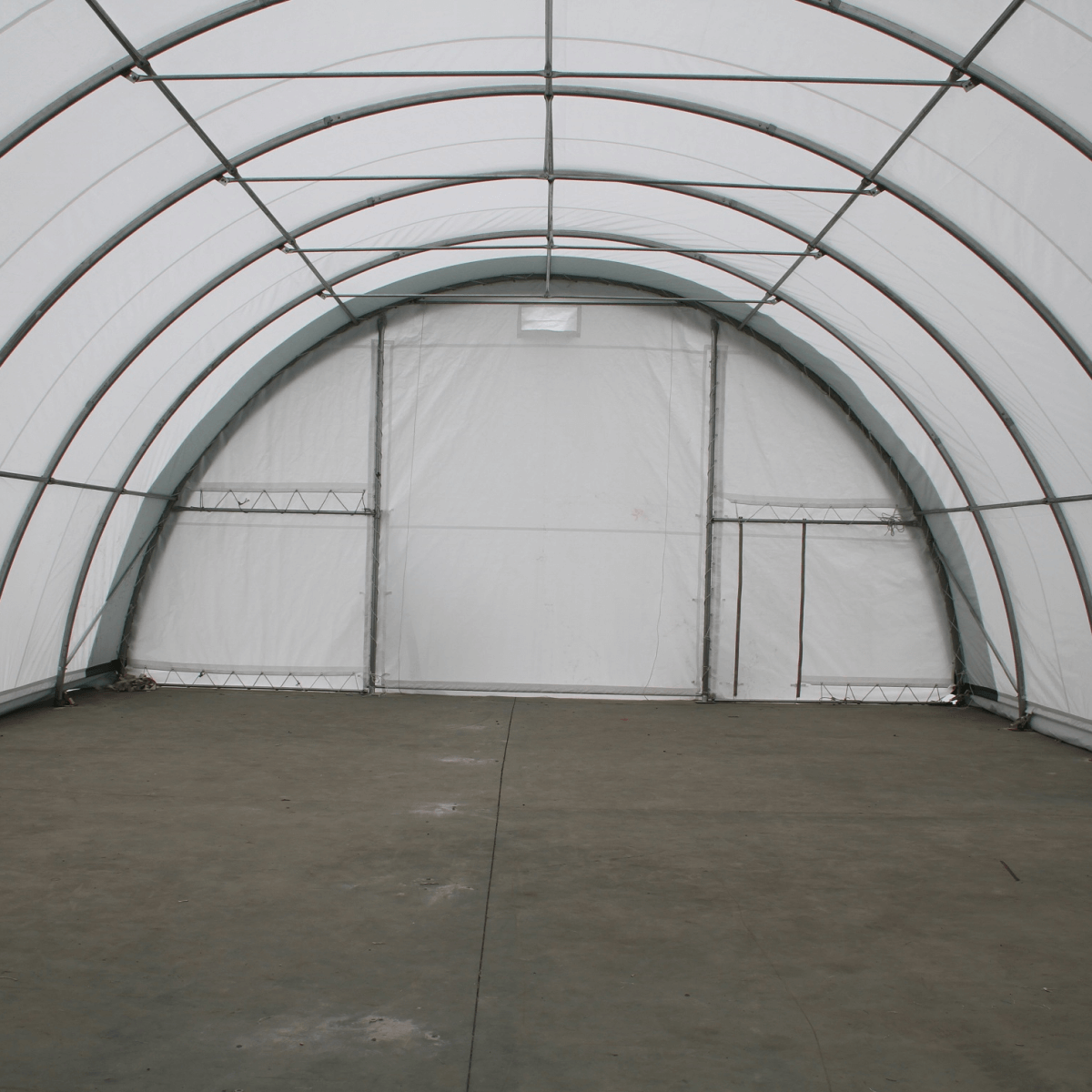

| Frame | Single Truss Galvanized Tube |
| Steel Frame | Hot Dip Galvanized Steel |
| Truss tube | 14 Gauge |
| Tarp Fabric | PE or PVC |
| Tarp Color (customizable) | White with Green/Red Edge |
| Temperature resistance | -22 – +158 °F |
| Arch Ø | Φ 70x42x2mm |
| Purlin Ø | Φ 40×1.5mm |
| Arch Spacing | 6.56 ft |
| Number of Arch | 7 |
| Number of Anchor plates | 14 |

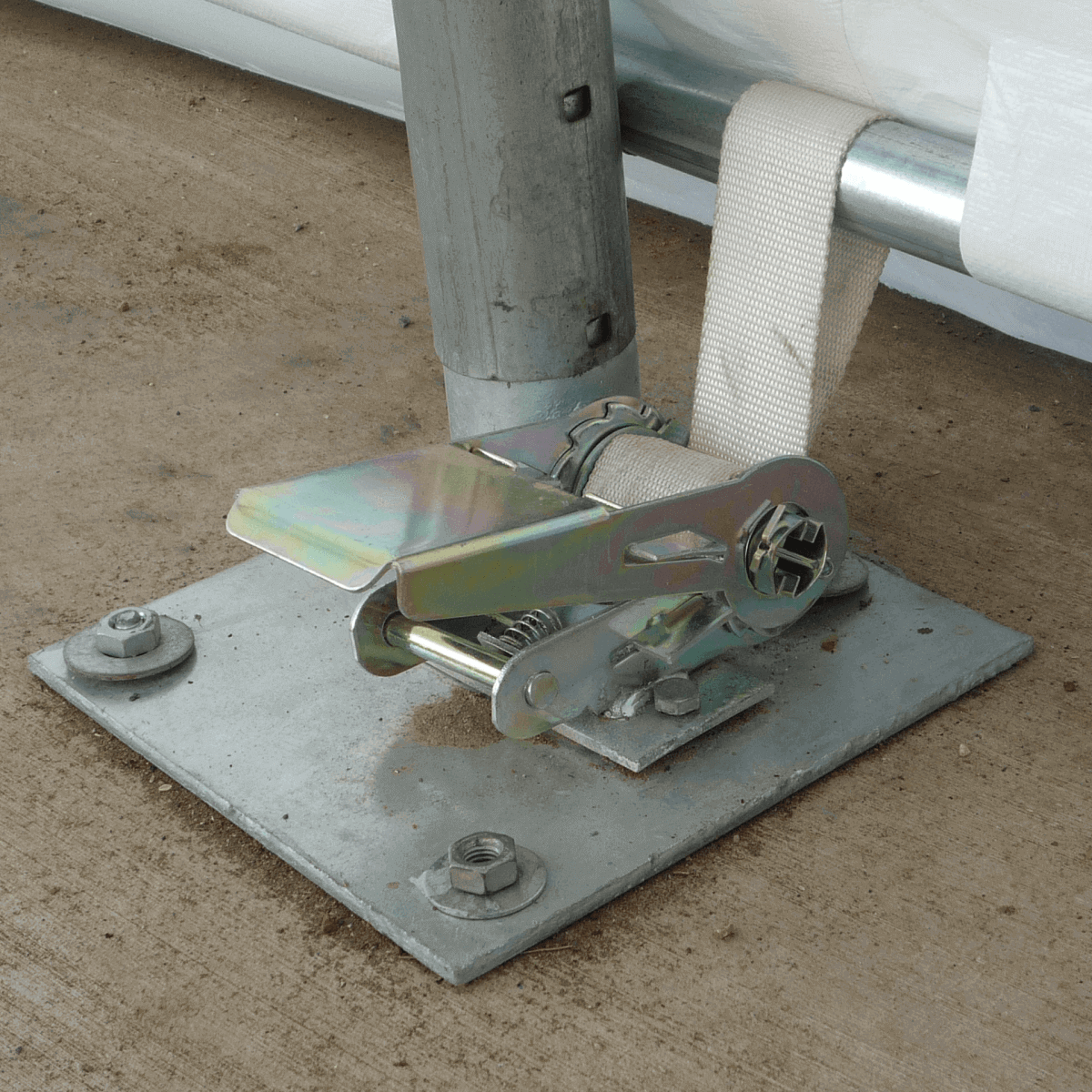

| Tension System | Pipe and Ratchet Tie-Down System |
| Average assembly time for DIY with 4 persons | 3 Days |
| Snow Load | 42 lbs/ft² |
| Wind Load | 50 miles/h |
| Tarp lifespan | 7-10 years, depending on the type of fabric and environmental conditions. |
|
Frame lifespan |
15+ Years |
|
Warranty |
– PE: 2 Years Warranty. – PVC: 8 Years Warranty. |
|
Fabric (Optional) |
|
Installation Tips
-
Requirements vary by product and local regulations. Permits are typically not needed for temporary placement. For (semi) permanent installations, contact your municipality.
-
Ensure the roof fabric is tightened properly to avoid sagging and re-tighten once or twice after a few months. This is especially important when assembling in cold weather (autumn and winter), as the fabric is stiff. Warmer temperatures may loosen the fabric, so re-tighten before the next winter.
Features
- No building permits required*
- Stable, durable, and competitively priced
- Freestanding style
- 100% waterproof, self-cleaning, tear-resistant, and UV resistant
- CSA/TUV Snow Rating Test Report
- SGS Fabric Certificate
- Type: Prefabricated Building
- Applications: warehouses, carports, event and exhibition tents, garages for trucks, buses, vans, and boats, freight warehouses, commercial tents
Package Details
- Dimensions (L x W x H): 114.2 x 28.4 x 25.2 inches
- Weight: 1,903 lb
- A forklift or equivalent is required for unloading
Â

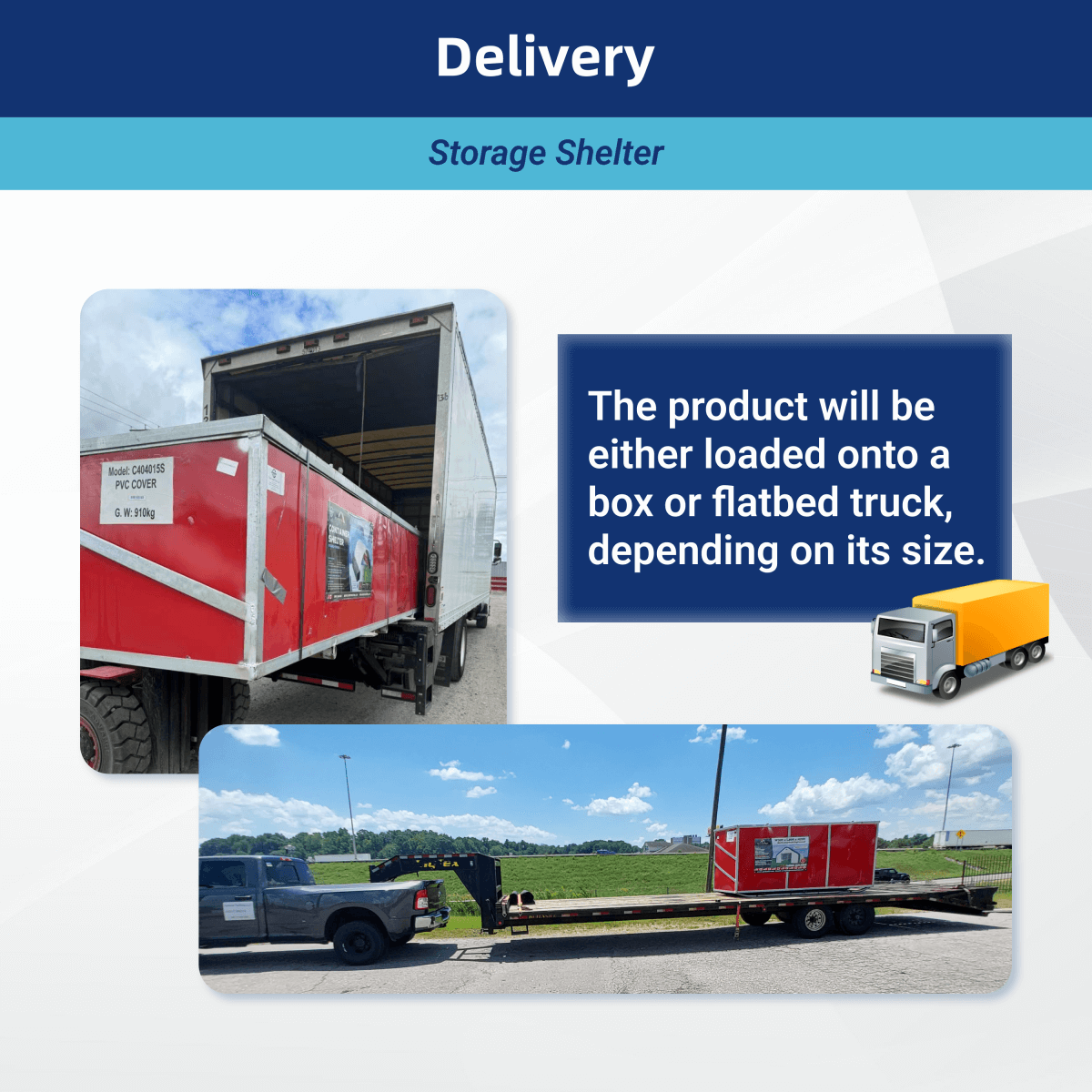

Delivery and Unloading
- The product is shipped on a box or flatbed truck depending on size.

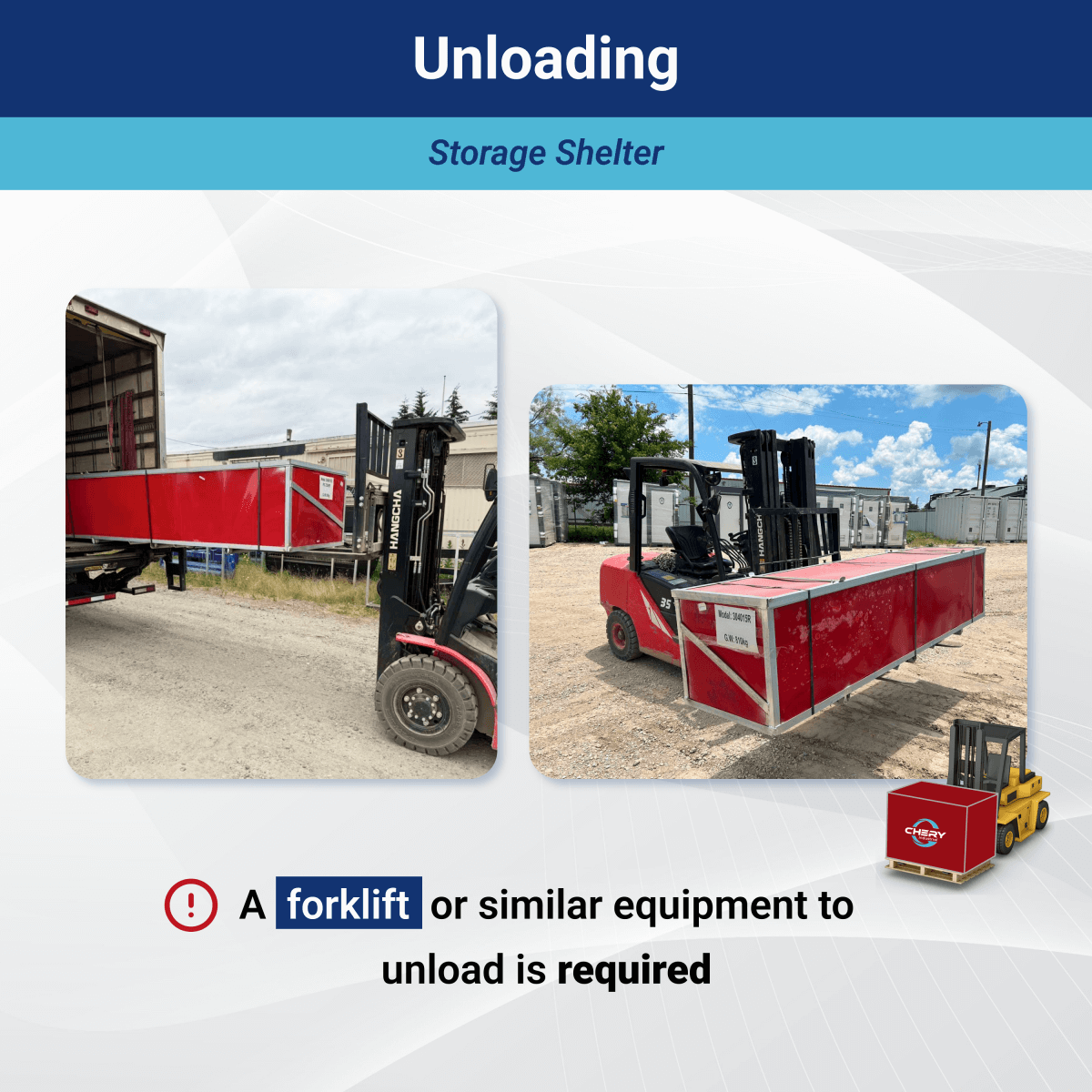

- A forklift or equivalent is required for unloading.
Still, have questions? Email service@cheryindustrial.com and we will respond to you in 48 hours 🙂
