Single Truss Arch Storage Shelter W30’xL65’xH15′
Original price was: $4,255.24.$2,553.14Current price is: $2,553.14.

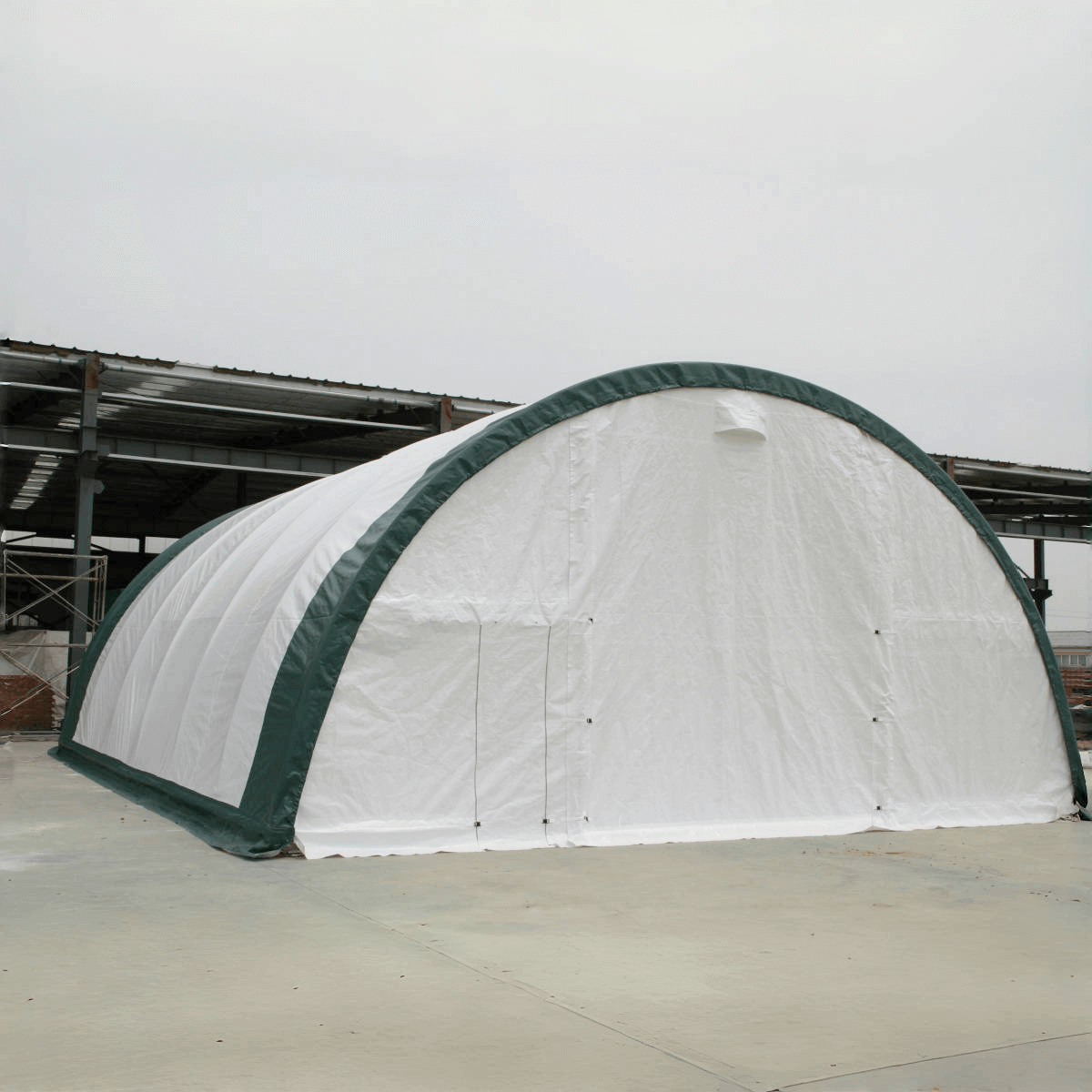

The Gold Mountain Single Truss Arch Storage Shelter W30’ x L65’ x H15’ features openings at both ends and is waterproof and UV-resistant, making it ideal for humid coastal regions. Easy to assemble, this storage tent provides durable protection for vehicles, equipment, and event spaces. Perfect for agricultural, industrial, and commercial applications, it can be used for vehicle storage, warehouse facilities, or outdoor events such as weddings and activities.
Owners are responsible for removing snow immediately if it does not slide off on its own.
Please Note: Stake pegs are replaced by expansion bolts. If you need stake pegs, you can contact customer service to place an order.
Your browser does not support the video tag.
How to build a Storage Shelter?
Specification
| Description | Specifications |

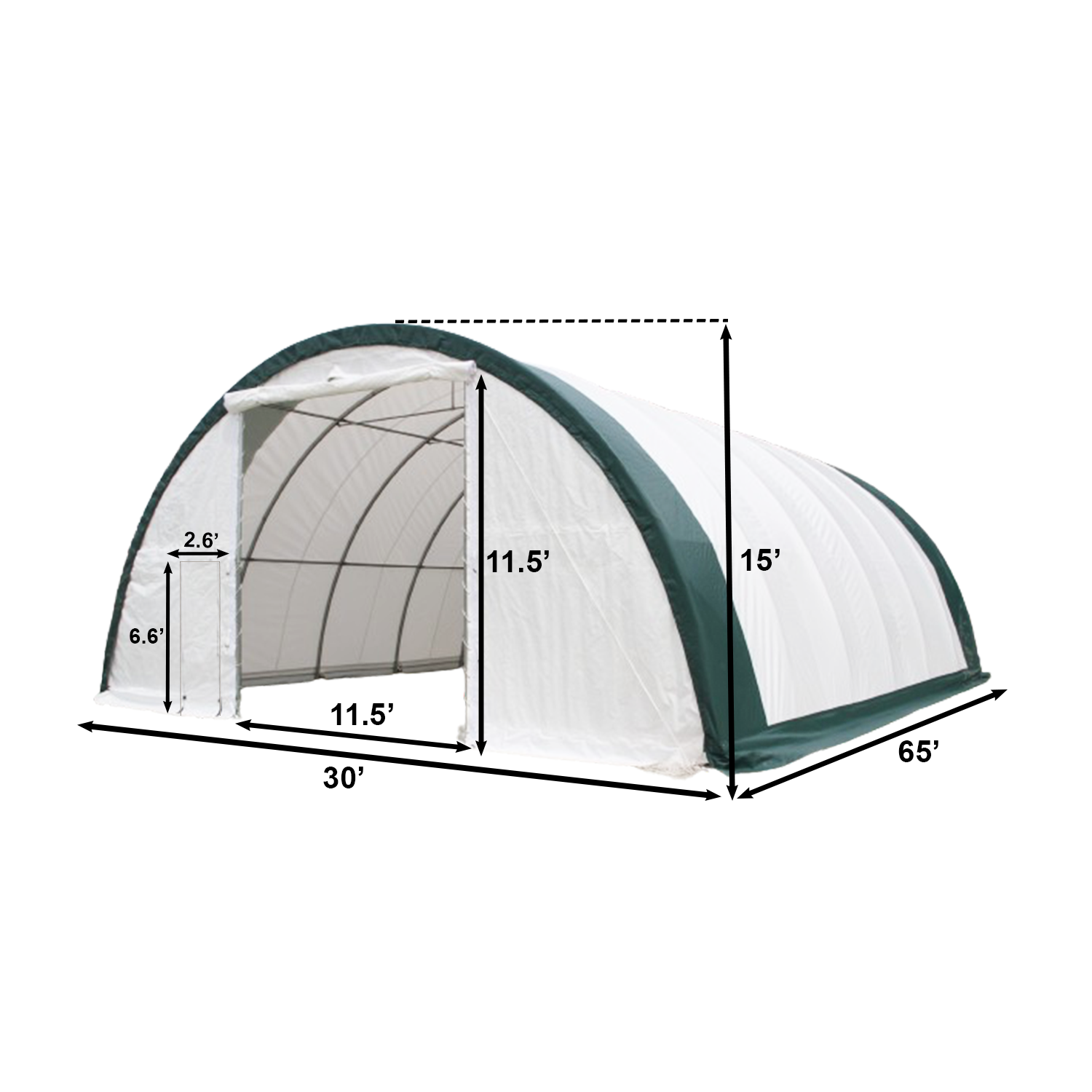

| Dimensions (WxLxH) | 30’x65’x15′ |

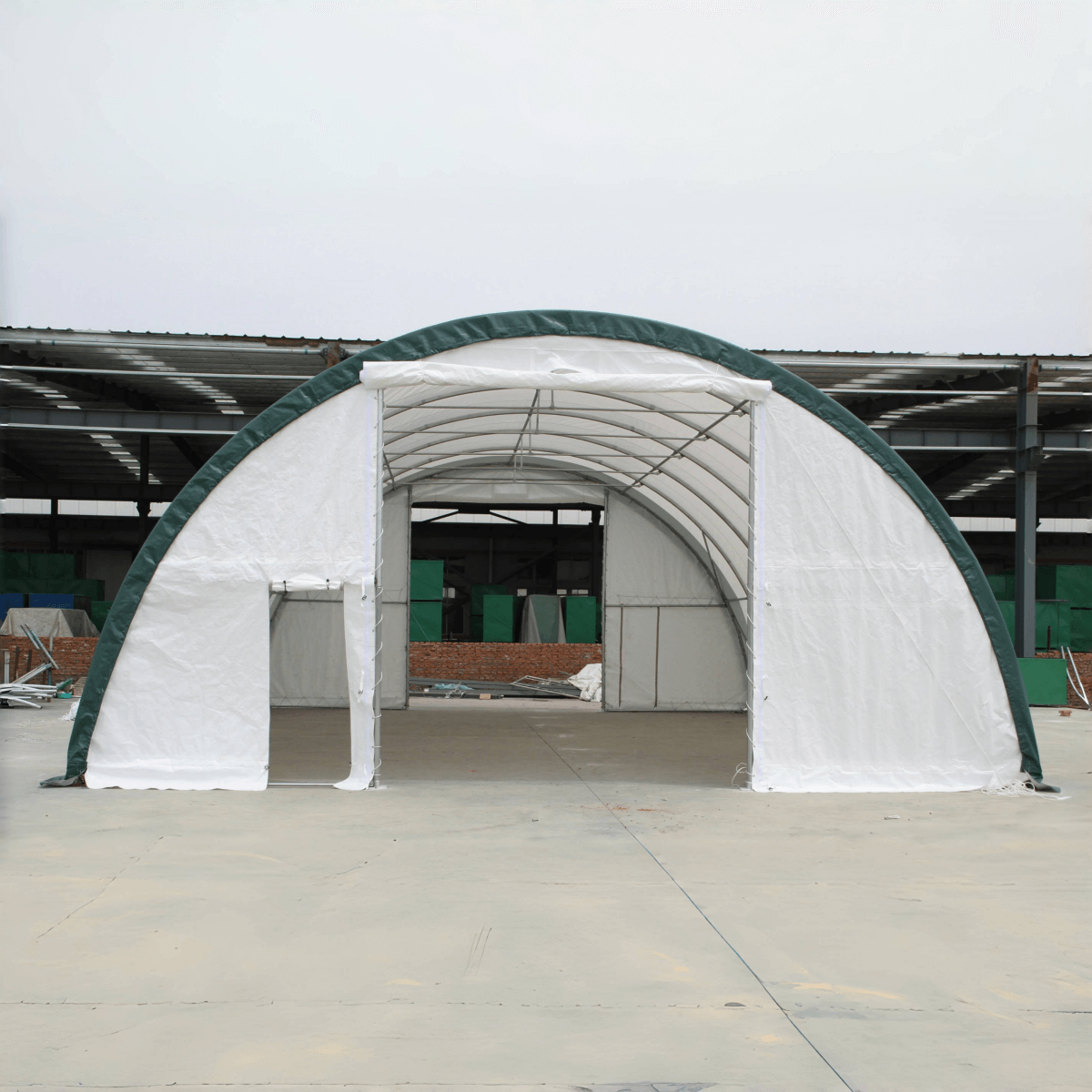

| Door size (WxH) (Front & Rear) | 11.5’x11.5′ |
| Door Type | Rope Pullup Door |
| Man Door (WxH) | 2.6’x6.6′ |

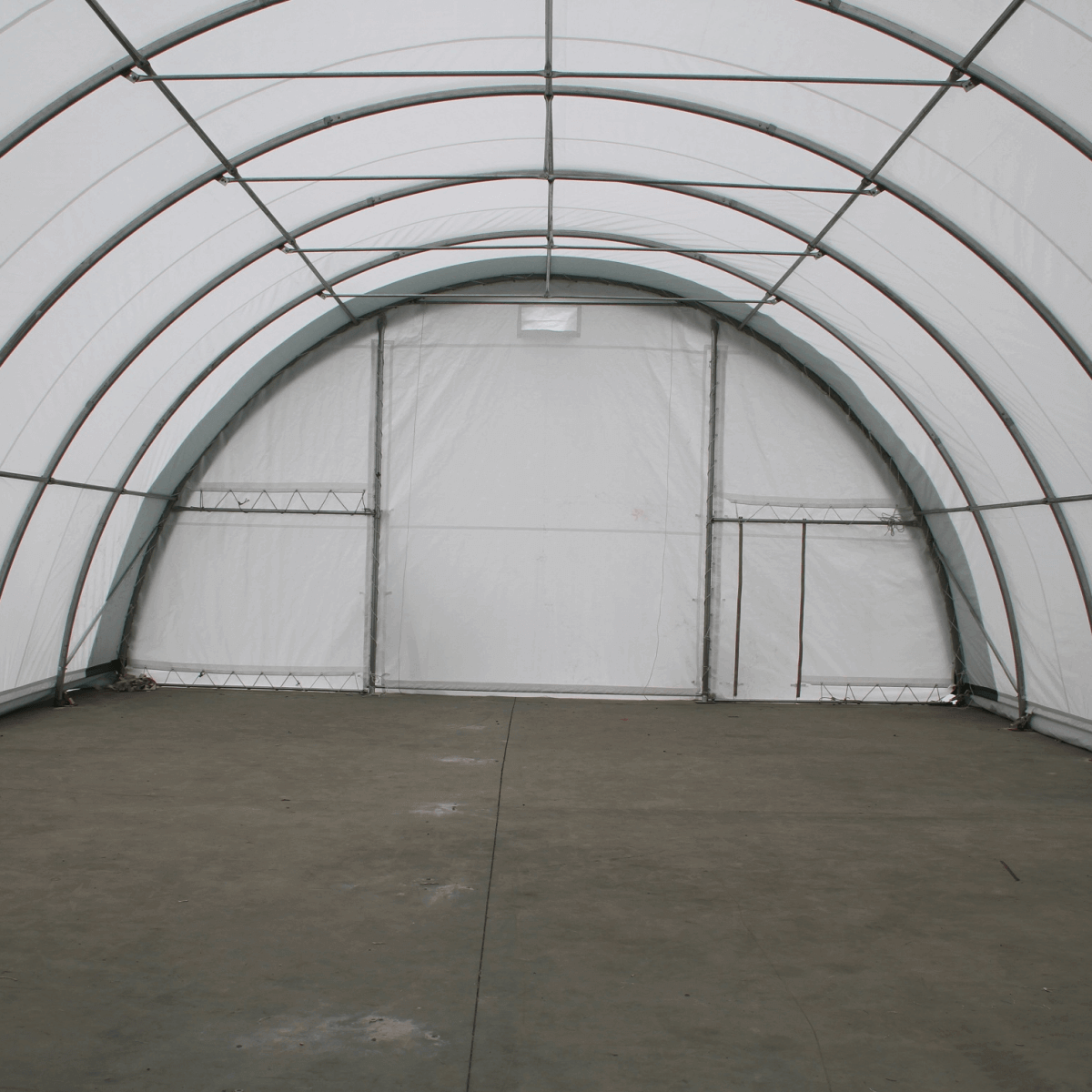

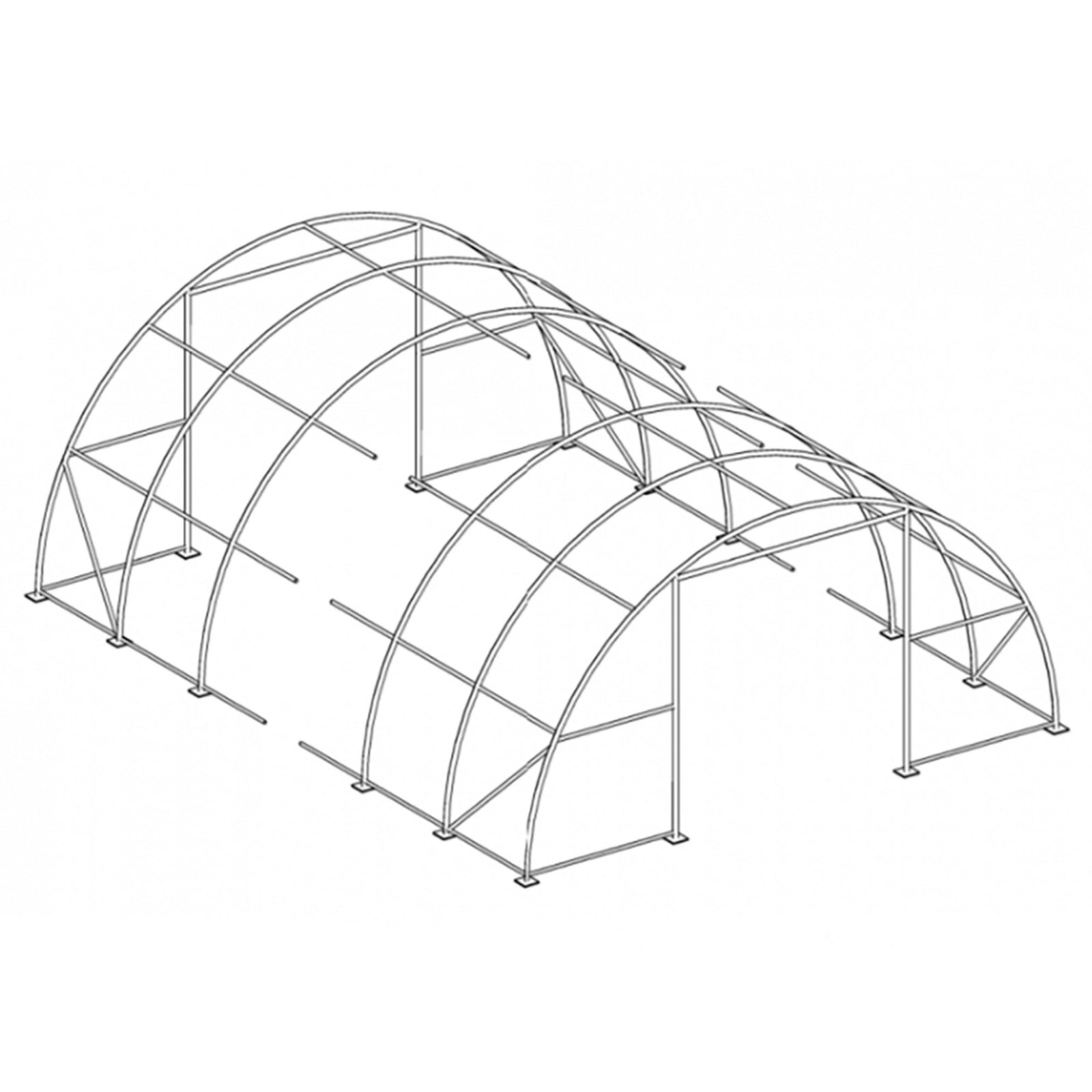

| Frame | Single Truss Galvanized Tube |
| Steel Frame | Hot Dip Galvanized Steel |
| Truss tube | 14 Gauge |
| Tarp Fabric | PE or PVC |
| Tarp Color (customizable) | White with Green/Red Edge |
| Temperature resistance | -22 – +158 °F |
| Arch Ø | Φ 70x42x2mm |
| Purlin Ø | Φ 40×1.5mm |
| Arch Spacing | 6.56 ft |
| Number of Arch | 11 |
| Number of Anchor plates | 22 |

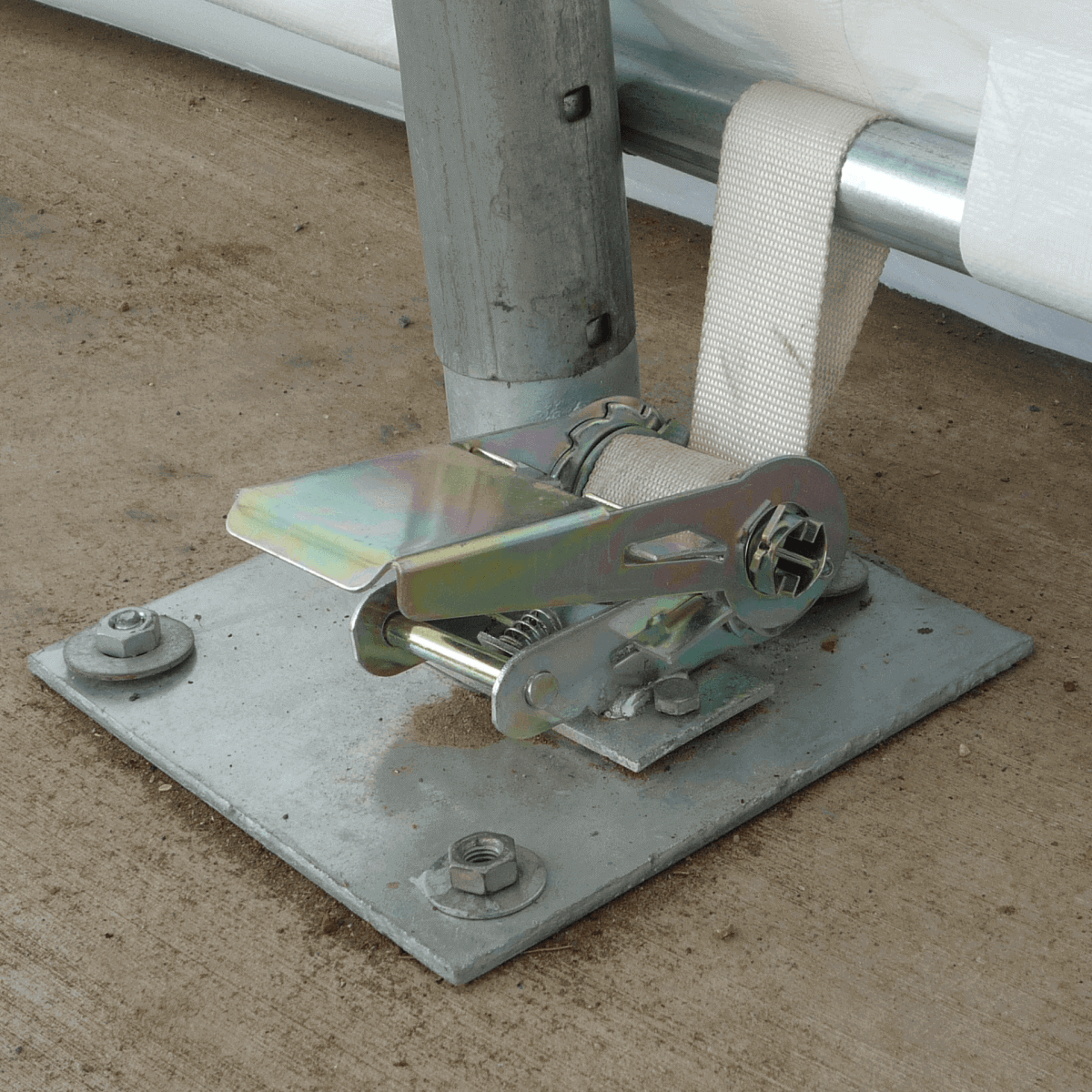

| Tension System | Pipe and Ratchet Tie-Down System |
| Average assembly time for DIY with 4 persons | 3 Days |
| Snow Load | 42 lbs/ft² |
| Wind Load | 50 miles/h |
| Tarp lifespan | 7-10 years, depending on the type of fabric and environmental conditions. |
|
Frame lifespan |
15+ Years |
|
Warranty |
– PE: 2 Years Warranty. – PVC: 8 Years Warranty. |
|
Fabric (Optional) |
|
| Country of Origin | China |
Installation Tips
-
Requirements depend on the product and local regulations. A permit is generally not needed for temporary placement. For (semi) permanent installations, it is recommended to consult your municipality.
-

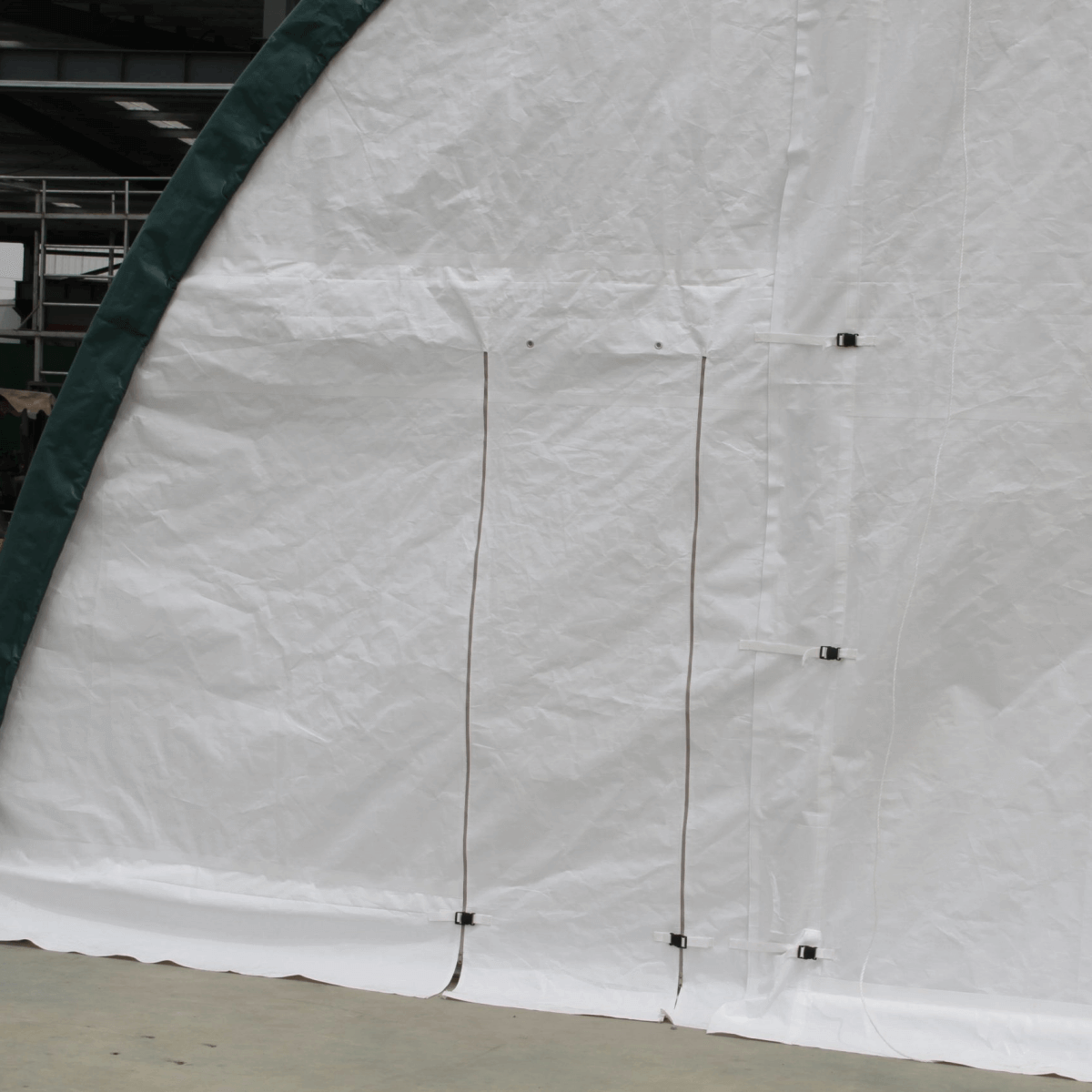

The roof fabric must be tightened properly to prevent sagging and should be re-tightened once or twice after a few months. This is especially important when assembling in cold weather (autumn and winter), as the fabric is stiff. Warmer weather may cause the fabric to loosen, so it should be re-tightened before the next winter season.
Features
- No building permits required*
- Water, UV, and fade-resistant
- Freestanding style
- Large capacity for trucks, automobiles, and bulk storage
- Protects belongings from wind, snow, and rain
- CSA/TUV Snow Rating Test Report
- SGS Fabric Certificate
- Average cover lifespan: 7–10 years, depending on environmental and weather conditions
Package Details
- Dimensions (L x W x H): 114.2 x 28.4 x 35.4 inches
- Weight: 2,447 lb (11 oz cover); 2,580 lb (16 oz cover)
- A forklift or equivalent is required for unloading
Delivery and Unloading
- The product will be either loaded onto a box or flatbed truck, depending on its size.
- A forklift or equivalent is required for unloading.
