Severe Heavy Duty U-Joint Service Kit

The 20160 kit provides the ultimate brute strength to easily remove and install even the most seized u-joints and bearing caps found on Dana/Spicer SPL 350/SFX/X, SPL 250 Lite and Meritor RPL 35 Series drivelines.

These drivelines are extremely robust, and their design requires a finessed process for removal and installation.

The Severe Heavy Duty U-Joint Puller slips over the yoke of the driveline and pulls the u-joint to the maximum allowance, enabling the Bearing Cap Extractor to take over. The 10107 Bearing Cap Extractor attaches to the accessible portion of the bearing cap, and with minimal effort, pulls the bearing cap until fully extracted.

For installation, the Severe Heavy Duty Bearing Cap Installer finishes up the service. This is the only system on the market with the ability to completely remove and install u-joint and bearing caps on SPL 350/SFX/X, SPL 250 Lite and RPL 35 Series drivelines. And like every Tiger Tool product, quality, reliability, and performance are built in.

Kit Includes

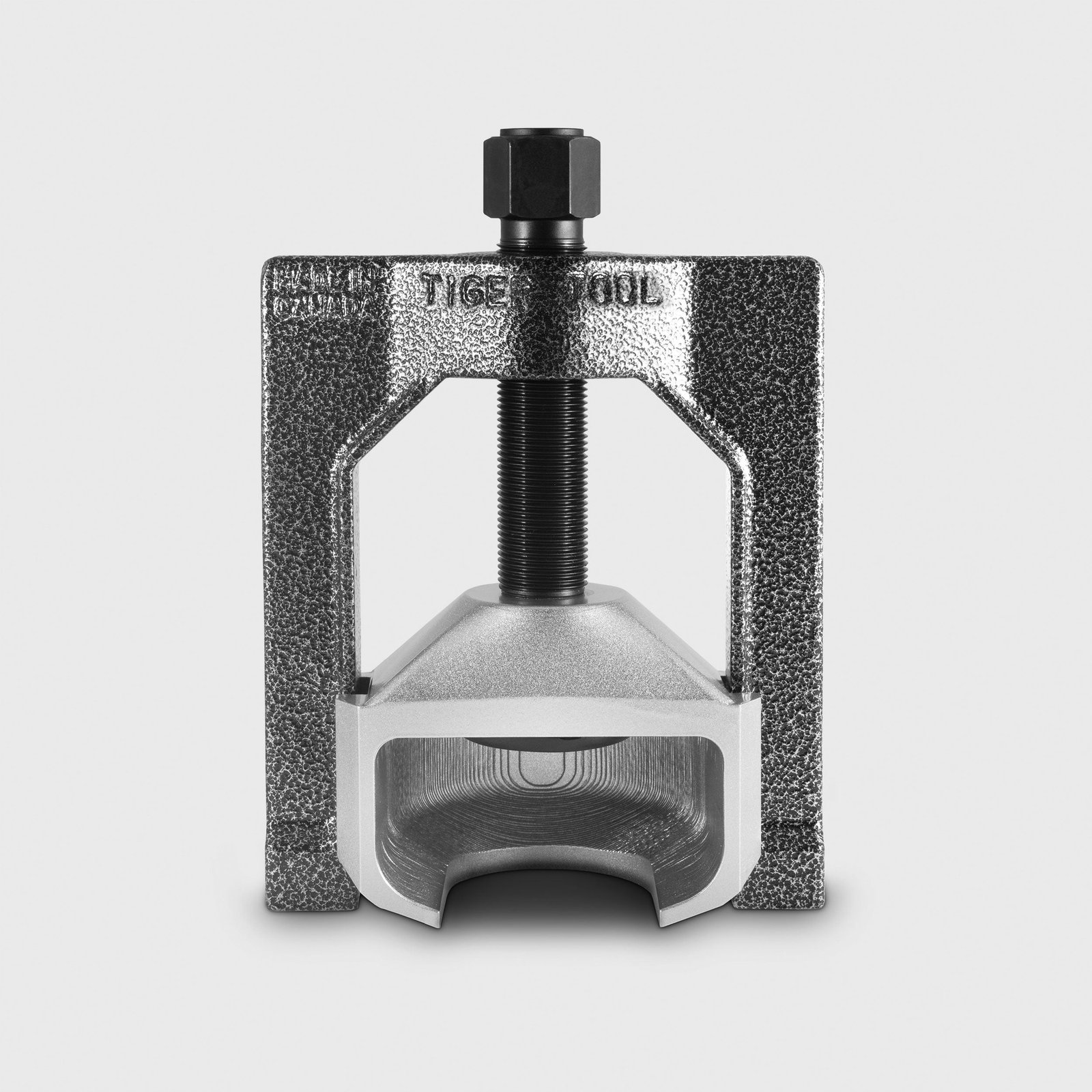

10106 | Severe Heavy Duty Universal Joint Puller
The Severe Heavy Duty U-Joint Puller, together with the 10107 Severe Heavy Duty Bearing Cap Extractor, provides the ultimate brute strength for disassembling even the most seized u-joints in minutes on Dana/Spicer SPL 350/SFX/X, SPL 250 Lite and Meritor RPL 35 Series drivelines.

• Manufactured from high-grade steel for strength and durability
• Eliminates dangerous vice-and-socket or hammering methods
• Reduces the risk of damage to driveshafts, yokes, joints and bearing caps
• Quality, experience, and reliability you can count on

10107 | Severe Heavy Duty Bearing Cap Extractor
The Severe Heavy Duty Bearing Cap Extractor, together with the 10106 Severe Heavy Duty U-Joint Puller, provides the ultimate brute strength for disassembling even the most seized u-joints in minutes on Dana/Spicer SPL 350/SFX/X, SPL 250 Lite and Meritor RPL 35 Series drivelines.

• Manufactured from high-grade steel for strength and durability
• Eliminates dangerous vice-and-socket or hammering methods
• Reduces the risk of damage to driveshafts, yokes, joints and bearing caps
• Quality, experience, and reliability you can count on

U.S. Patent No. 10987788

10218 | Severe Heavy Duty Bearing Cap Installer
Accurately install bearing caps in minutes into the Dana/Spicer SPL 350 and Meritor RPL 35 Series drivelines.

Application
Commonly found on class 6-8 transportation trucks and equipment. (Kenworth, Peterbilt, Freightliner, Mack, Volvo, etc.)

Dana/Spicer SPL 350 & SPL 250 Lite Series drivelines

Meritor RPL 35 Series drivelines
