Slider Walk Ramp with Under-Truck Storage Bracket

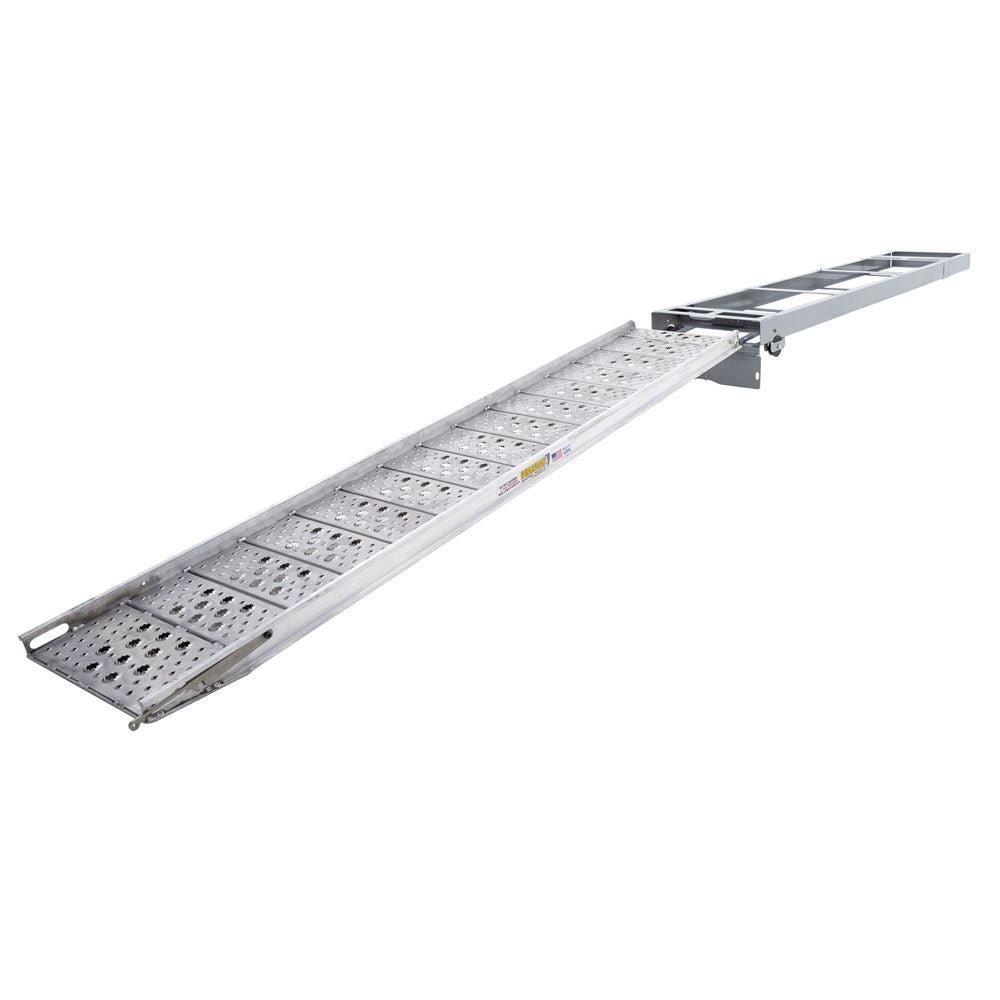

HD Ramps 16′ Walk Ramp with Under-Truck Storage Bracket Kit

Safe, Convenient Loading & Storage

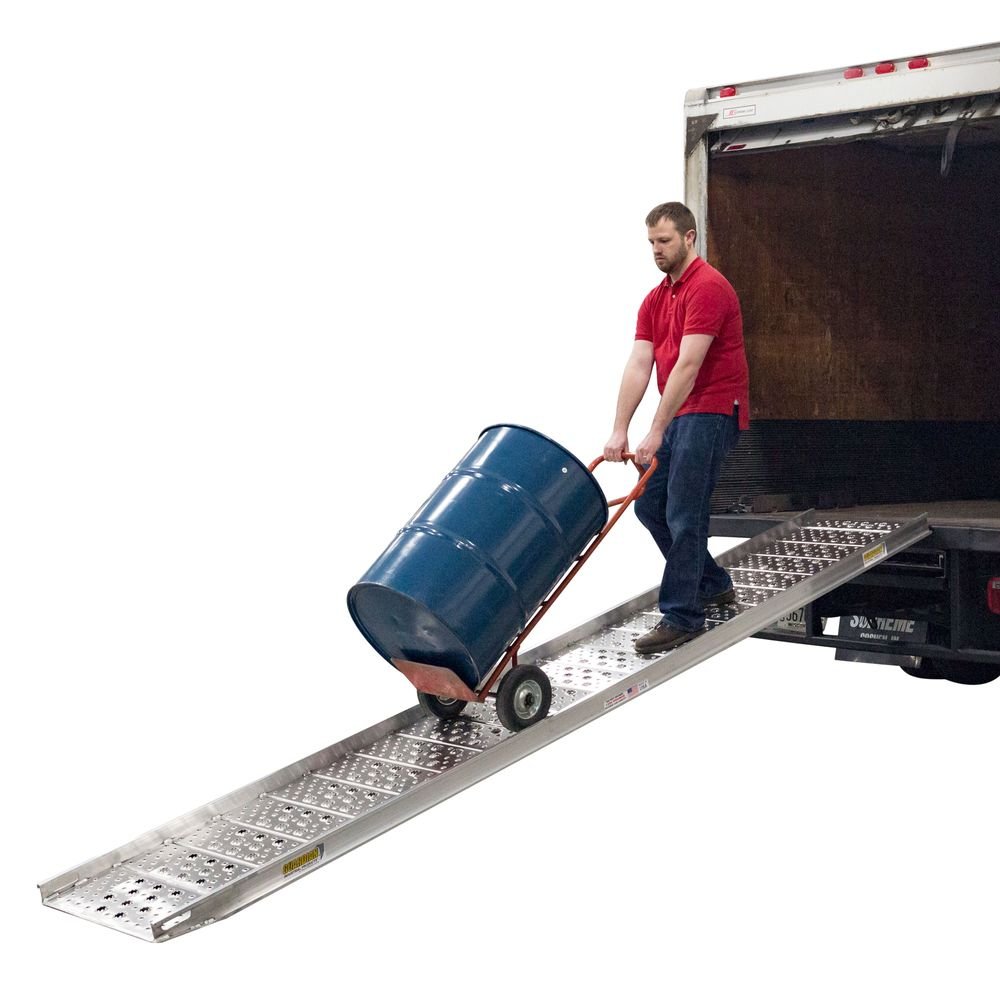

This all-in-one kit includes a 16′ aluminum walk ramp and a heavy-duty under-truck storage bracket for fast setup, secure storage, and easy takedown. Designed for safety and efficiency, it’s perfect for box trucks, deliveries, and commercial use.

Key Features

• Complete System: Includes 16′ walk ramp and under-truck storage bracket for convenience and protection.

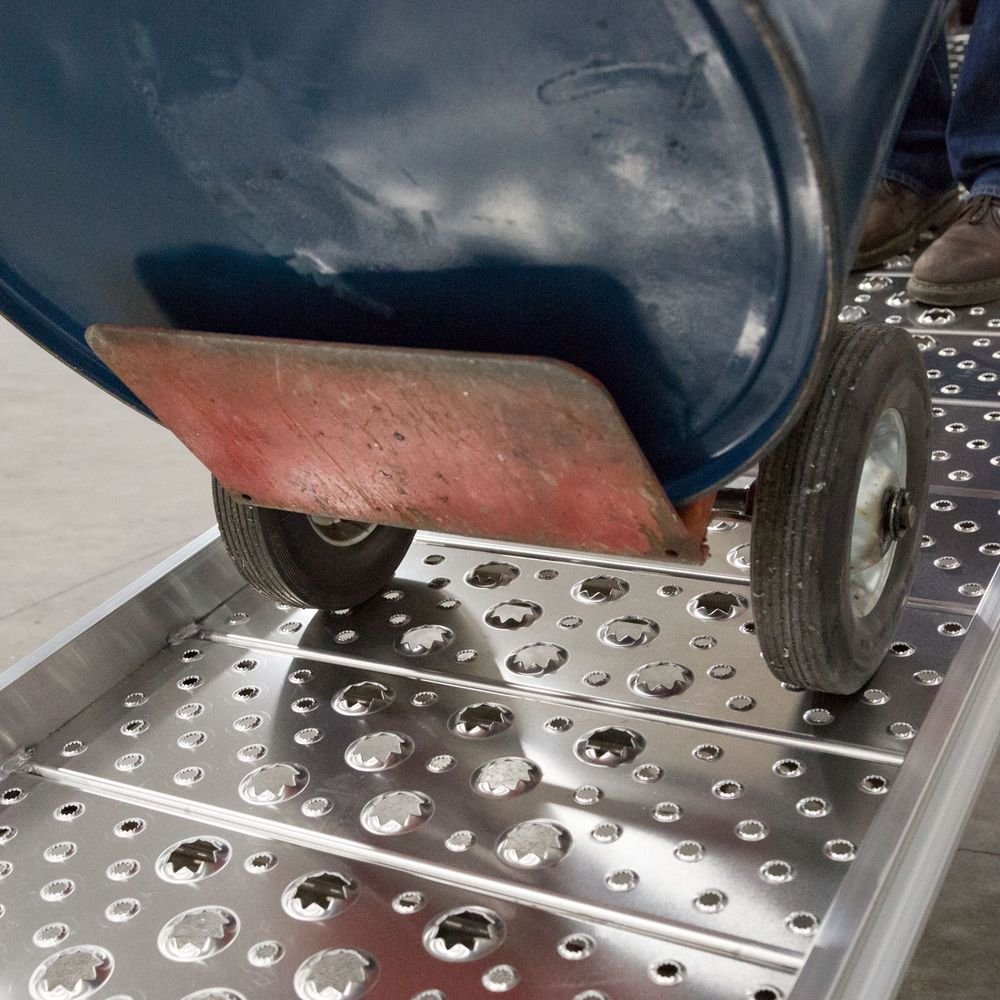

• EZ-Traction Punch Plate: Provides superior traction in rain, snow, mud, or ice, with extra grip in the center for safe foot traffic.
• Raised Curbs: 2.25″ curbs keep hand trucks, dollies, and carts safely on the ramp.
• Knife-Cut Foot: Smooth transition from ground to ramp for easier loading and unloading.

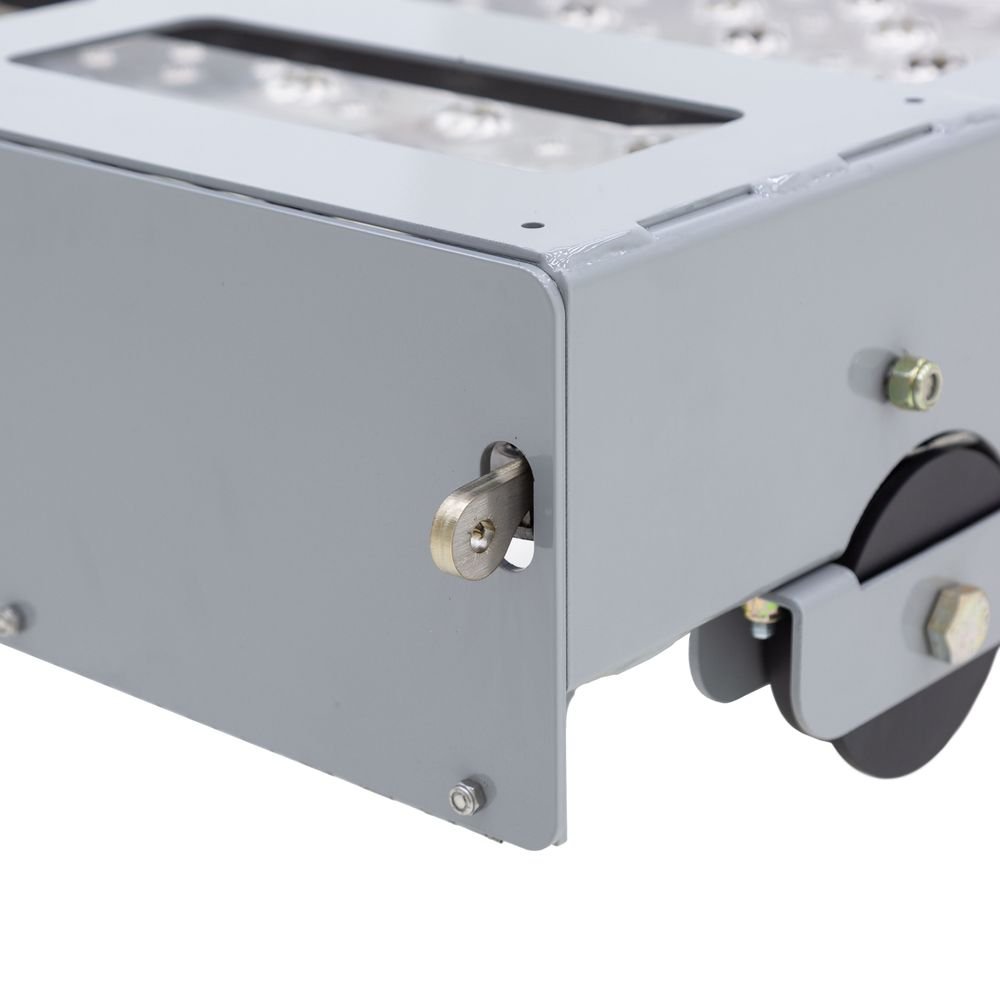

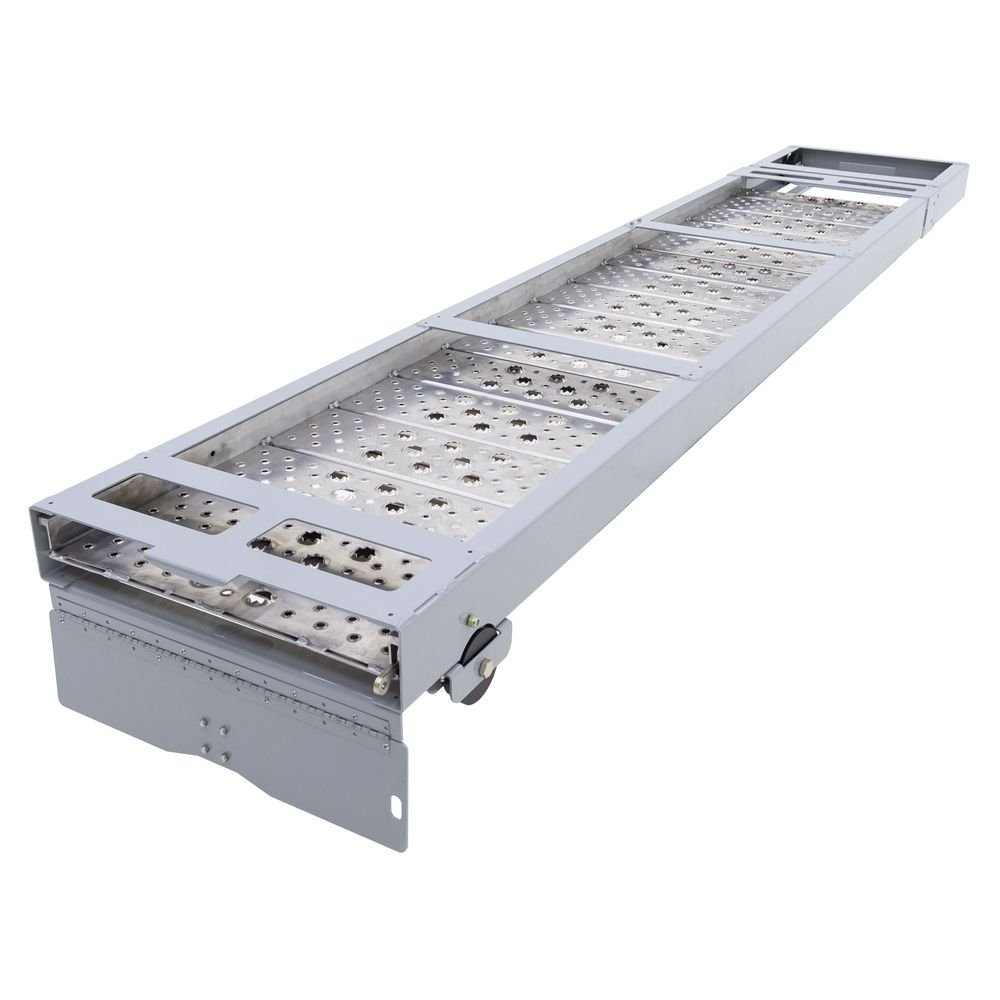

• Secure Storage: Bracket stores ramp safely under the truck, equipped with track wheels for smooth roll-out and an anti-theft stop plate for safety.

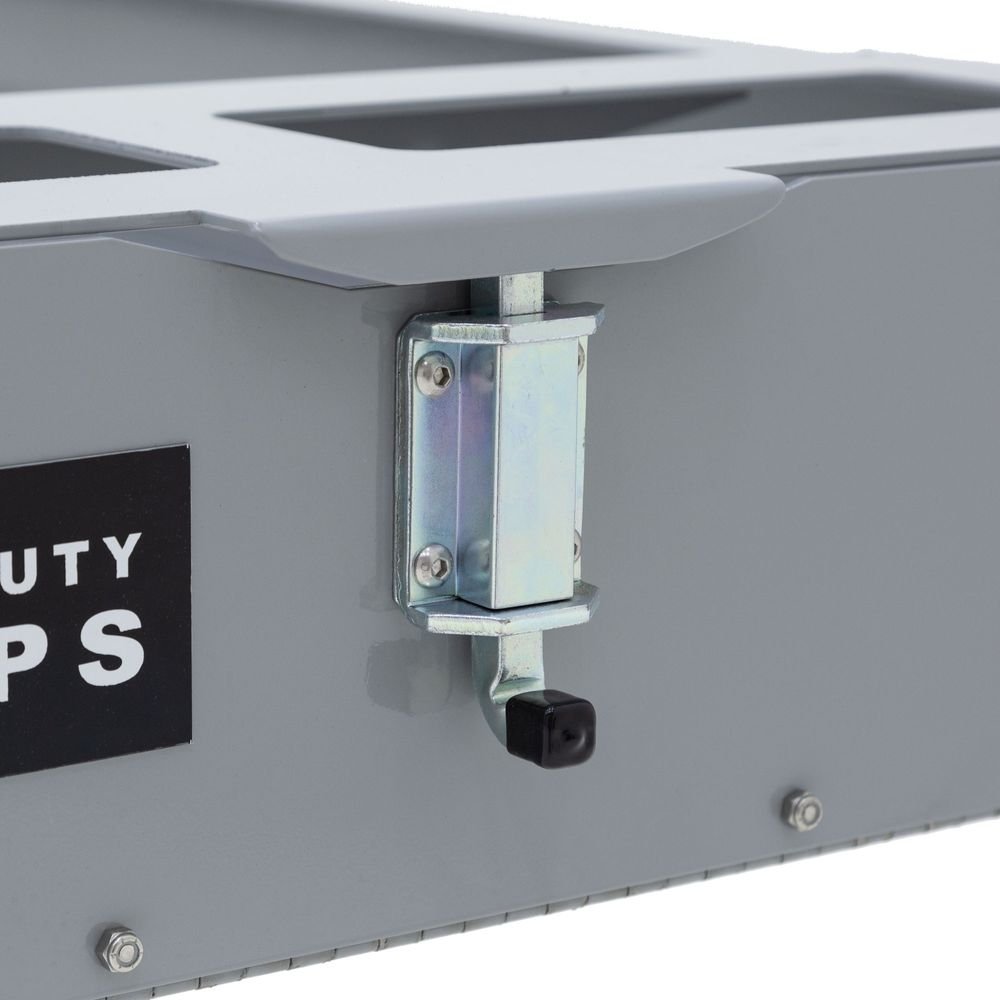

• Easy Operation: Ramp lifts out of the bracket and slides into sill slots for a smooth, stable transition. Bracket door locks when ramp is stored.

Specifications

• Ramp Length: 16′
• Bracket Dimensions: 17′ 11-1/4″ L x 28″ W x 5-1/4″ H
• Weight: 283.55 lbs
• Maximum Capacity: 1,000 lbs
• Minimum Height: 35″
• Maximum Height: 56″
• Usable Width: 24-1/2″
• Material: Aluminum
• Attaching End: Hook
• Made in the USA

Why Choose HD Ramps
This lightweight yet strong aluminum ramp system is engineered for safety, durability, and ease of use. Perfect for commercial applications, it allows rapid deployment and secure storage in one simple solution.

Warranty
Backed by a 5-year warranty, guaranteed free of defects at time of purchase.
