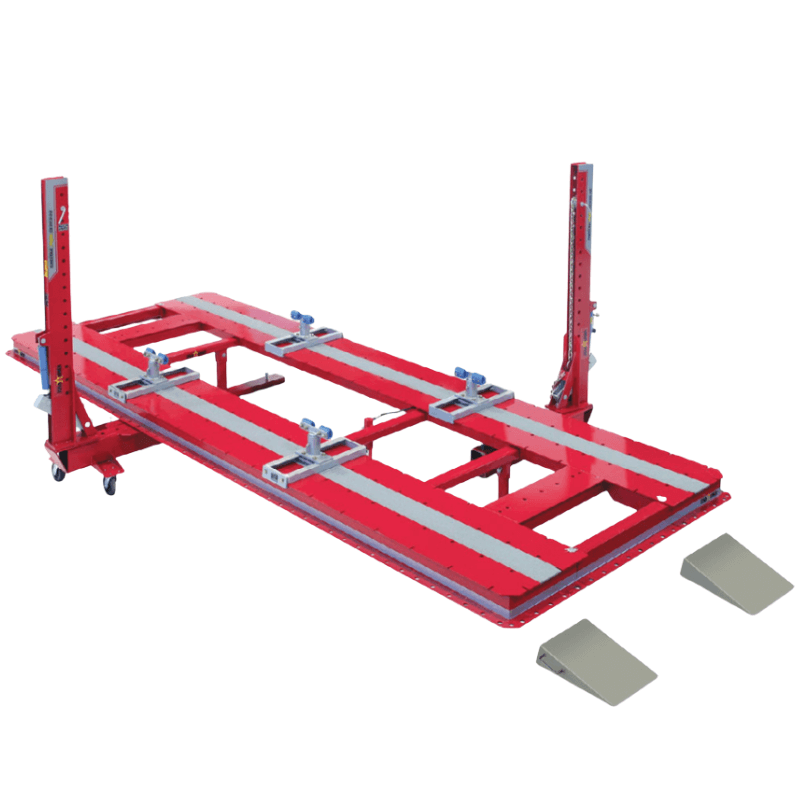

Star A Liner CHEETAH SF 24 Frame Rack – 24″ Auto Body Repair Machine

Star-A-Liner CHEETAH SF 24 Frame Rack – 24′ Auto Body Repair Machine for Cars & Trucks

The Star-A-Liner CHEETAH SF 24 Frame Rack is a heavy-duty auto body repair machine built to handle unibody cars, full-size SUVs, and four-door dually trucks. With a 24-foot bed and a powerful 10-ton hydraulic pulling system, it provides the strength and precision needed for even the toughest collision repair jobs. Its 360-degree pulling radius and multiple tower extensions ensure complete access and flexibility for technicians, helping them achieve accurate repairs in less time.

Designed for professional collision repair shops, this frame rack offers unmatched durability and efficiency. Measuring nearly 30 feet long with towers extended and weighing 7,680 lbs, it is engineered for large-scale repair operations. The 24-inch working height keeps vehicles positioned at an ideal level, while the 92-inch wide bed accommodates a wide range of vehicle types. With air-powered hydraulics requiring only 100 psi, the system provides reliable power for consistent results.

Available in three models—Cheetah 24’ II W/HYD (9011240), Cheetah 24’ II W/ABC (9011242), and Cheetah 24’ III W/HYD (9011243)—the CHEETAH SF 24 gives repair shops flexibility to choose the right fit for their workflow. This frame rack delivers the strength, reach, and performance professionals depend on to increase productivity and restore vehicles to factory standards.

Auto Body Repair CHEETAH SF 24 Specification

• Part IDs: 9011240 (Cheetah 24’ II W/HYD), 9011242 (Cheetah 24’ II W/ABC), 9011243 (Cheetah 24’ III W/HYD)

• Length of Bed (Top): 24 ft. (732 cm)

• Length with Towers Extended: 29 ft. 10 in. (909 cm)

• Width of Bed: 92 in. (234 cm)

• Width with Towers Extended: 14 ft. (427 cm)

• Width of Treadway: 28 in. (71 cm)

• Width Between Treadway: 36 in. (91 cm)

• Overall Height: 8 ft. 6 in. (259 cm)

• Tower Height: 6 ft. 8 in. (203 cm)

• Working Height: 24 in. (61 cm)

• Weight: 7,680 lbs. (2,975 kg)

• Power Required – Hydraulics: 100 psi air (6.89 bar)

• Pulling Power Hydraulics: 10 ton (9 metric ton)

• Pulling Radius: 360 degrees

CHEETAH SF 24 Frame Rack Body Repair Machine Special Features

• Heavy-duty 24-foot frame rack for collision repair

• Supports unibody cars up to full-size dually trucks

• Equipped with a powerful 10-ton hydraulic pulling system

• 360-degree pulling radius for complete repair flexibility

• Wide 92-inch bed accommodates various vehicle types

• Towers extend length to nearly 30 ft. for large-scale jobs

• Sturdy 7,680 lb. construction ensures durability

• 24-inch working height improves technician efficiency

• Available in three models: 24’ II W/HYD, 24’ II W/ABC, 24’ III W/HYD

• Warranty: 5 Years (Machine & Hydraulics)
