SWAG 30″ Finger Brake DIY Builder Kit

Press brake kit comes un-assembled, you do the final assembly and welding.

You asked for it … & here it is.

Constructed out of high strength 3/8″ steel with a 1.0″ x 4.0″ thick top die and 2.25″ wide bottom die. The kit is shipped with fingers in the following sizes, 1″, 2″, 3″, 4″, 8″ & 12″ long. The top clamping bar is machined out of a solid bar of 2″ x 2″ 4140 Chromoly steel.

This 30″ finger brake kit will bend steel and aluminum up to 30″ wide and is designed to fit in hydraulic presses that are at least 33″ wide between the vertical beams, however it can easily be cut down or modified to accommodate smaller presses. It fits perfectly in a Harbor Freight 50 Ton press. It will also work with the Sunex 50 Ton, Grizzly 50 Ton and the Dake 25 Ton. The internal diameter of the supplied shaft collar is 2.5″, if your press has a smaller diameter ram head, alternative sizes can be found on Amazon.

PLEASE NOTE: You may need to loosen the winch cables in order to place your finger brake into your press depending on which model press you will be using.

The max bending width and thicknesses are determined upon your hydraulic press and thus actual numbers are dependent upon your press. But with ample tonnage and proper support, this brake will bend up to 1/8″ of A-36 steel full width and much thicker material in smaller widths.

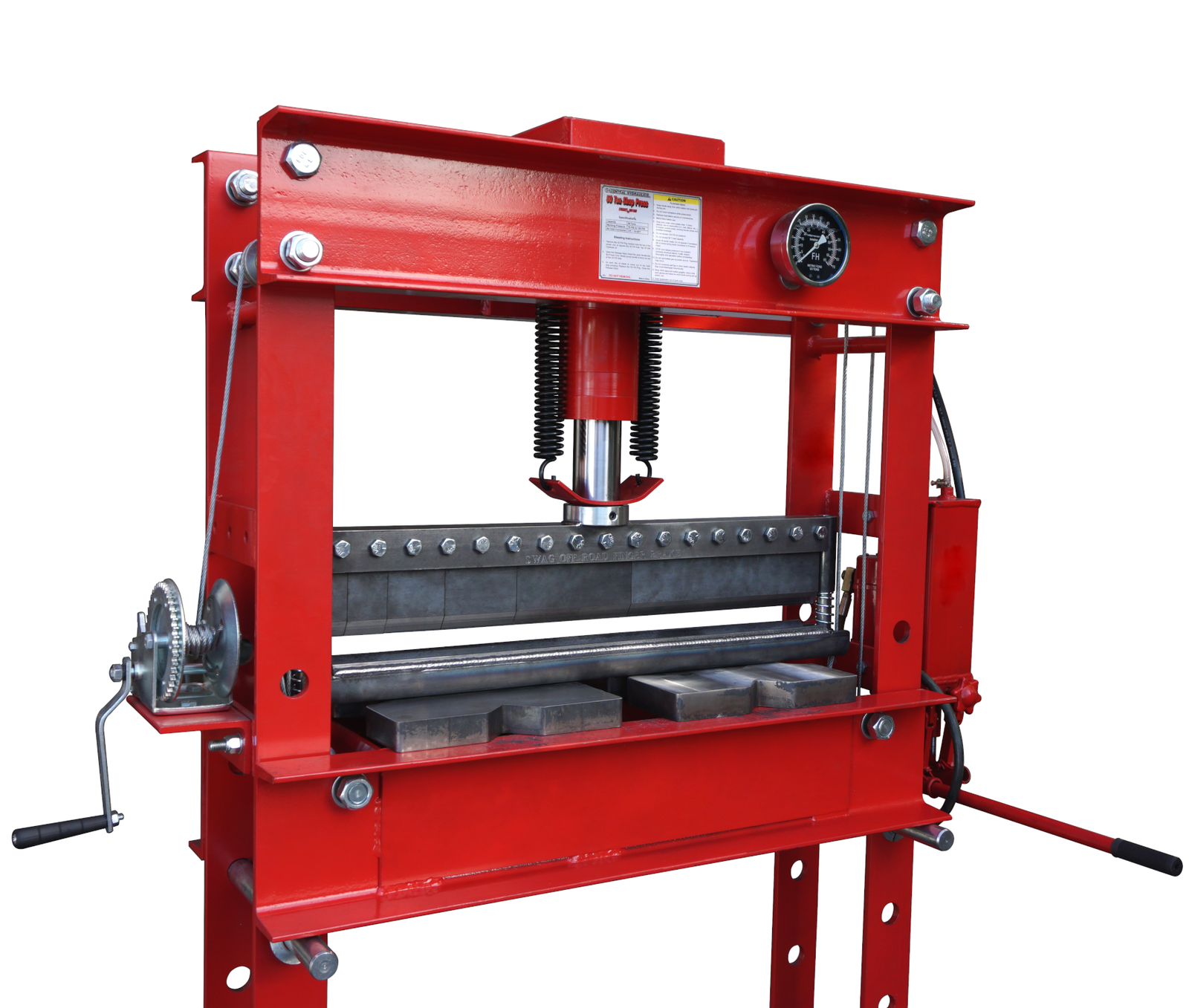

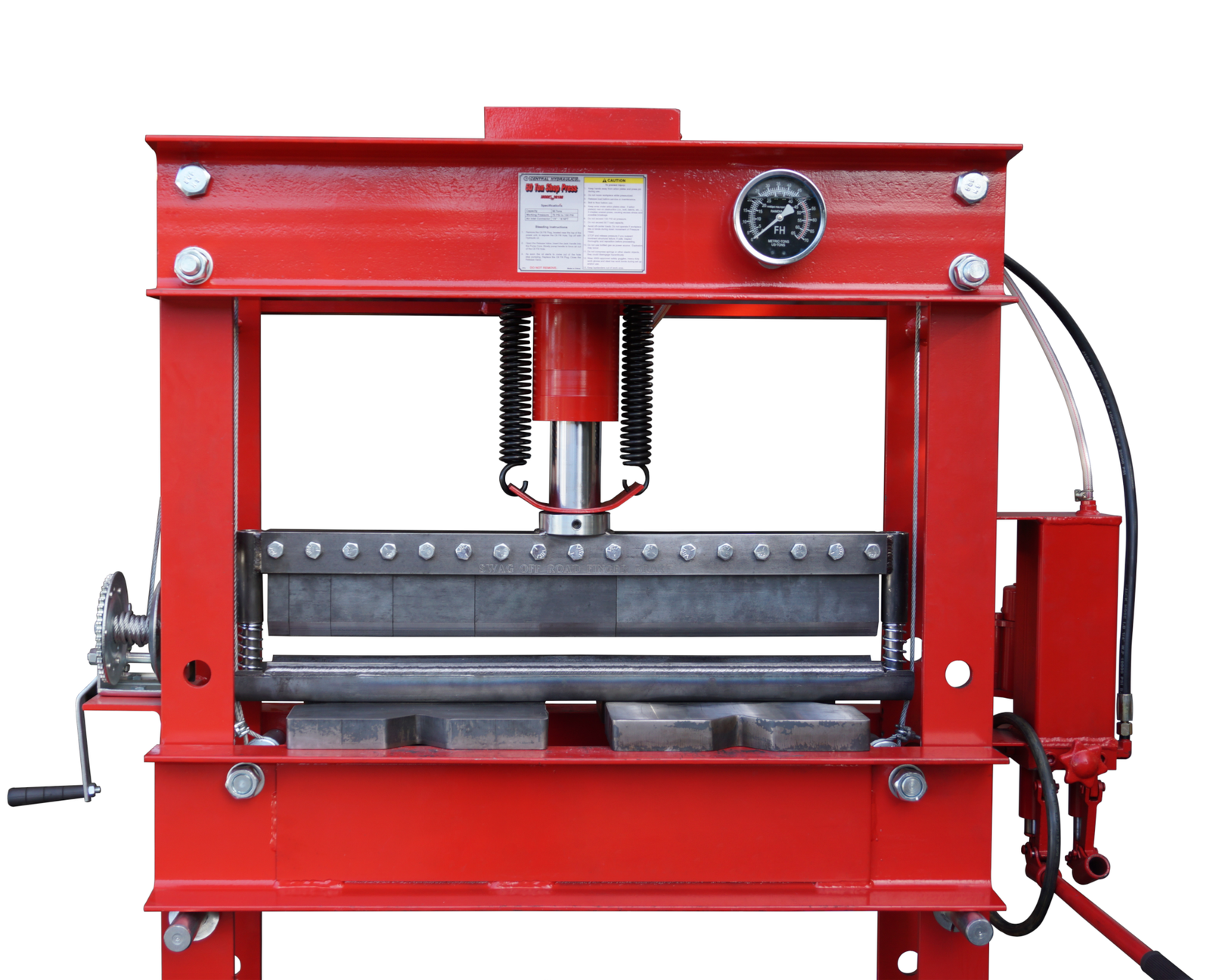

NOTE: The Harbor Freight 50 Ton Shop Press shown in the product photos is not included.

This item ships in two packages due to the high overall weight.

NOT INTENDED FOR USE WITH ROUND MATERIAL. IT WILL DAMAGE YOUR DIES.

Tools required for assembly: Welder, grinder, level, small square.
