Tornado BR 22/14T Walk-Behind Floor Scrubber – 22″ Cylindrical, 14 Gal, 22,000 sq ft/hr, 99695T

BR 22/14T Cylindrical Scrubber — Traction-Drive Walk-Behind for Schools, Hotels, and Healthcare

The BR 22/14T sits between Tornado’s compact BR 16/3 and the larger BD 26/20 — the right size for facilities with 10,000–30,000 sq ft of hard floor per building and corridors that can’t accommodate a 26″ or wider machine. The cylindrical brush system picks up debris in a single pass without a separate sweep, which matters in schools and hospitals where dry sweeping before scrubbing doubles the labor time. At 67 dB, it runs during occupied hours in libraries, hotel lobbies, and outpatient clinics without triggering noise complaints. The four-sided parabolic squeegee wraps farther around the scrub deck than a standard two-sided squeegee, reducing streak lines at the edges of each pass.

BR 22/14T Cylindrical Brush, Traction Drive, and Squeegee Design

The cylindrical brush is the key choice over disk for this size class — it sweeps and scrubs simultaneously, meaning debris pickup doesn’t require a pre-sweep pass on lightly soiled floors.

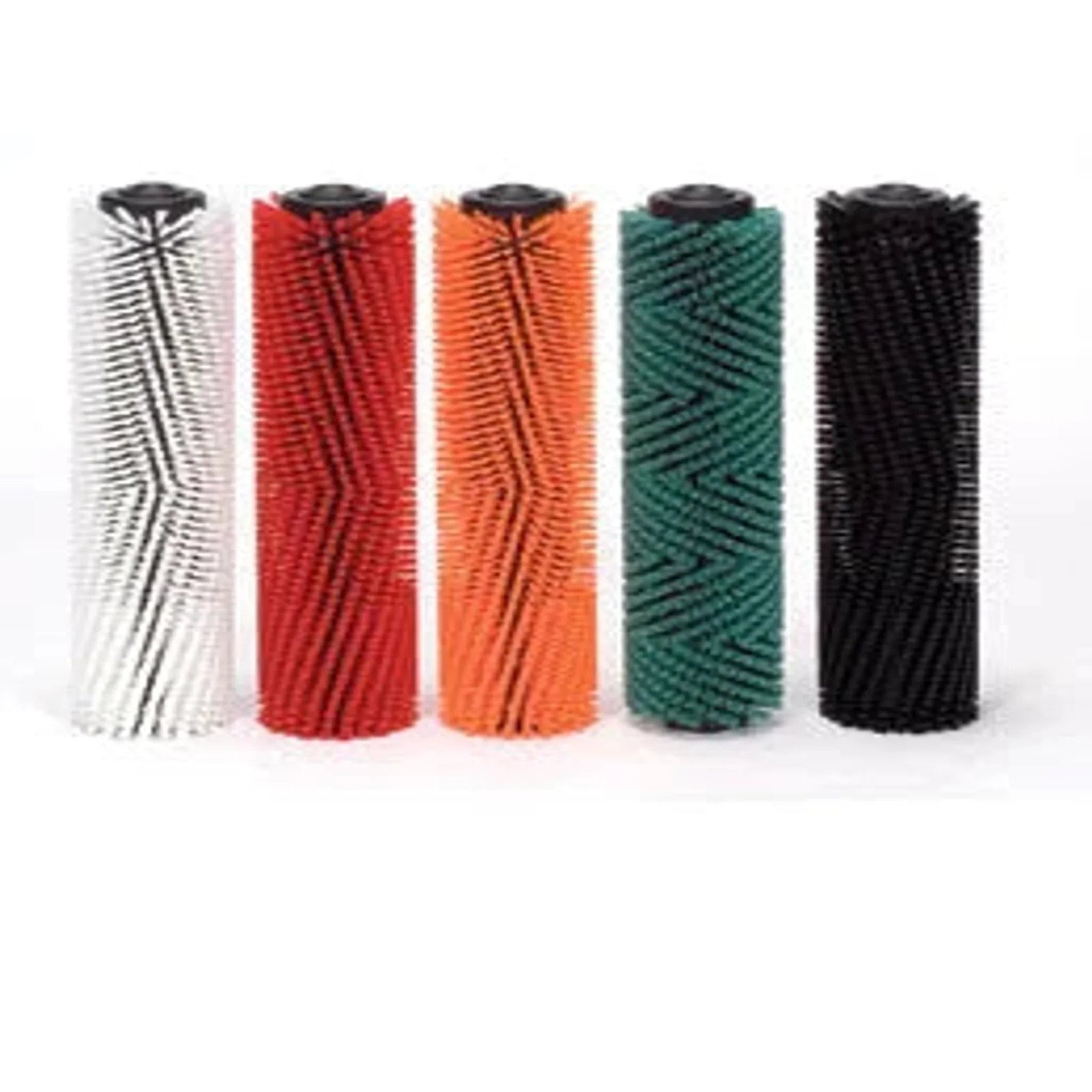

• 22″ cylindrical brush — simultaneously picks up dry debris and scrubs; eliminates a separate sweep step on moderately soiled floors
• Four-sided parabolic squeegee — wraps around the scrub deck on all four sides; leaves drier floors with fewer streaks at pass edges vs standard two-sided designs
• Traction drive included — no operator push required on flat floors; 24V system handles the move while the operator steers and manages the solution
• On-board 24V, 20A charger — plug in at end of shift; TPPL variant includes on-board charger matched to NXS120 batteries
• 67 dB(A) sound level — below the threshold for most occupied-facility noise policies; runs during school hours, active hotel lobbies, and clinical environments
• 14-gal solution / 15-gal recovery tanks — sized for continuous 3-hour runs in most schools and mid-size commercial buildings without refill stops

BR 22/14T Applications and Environments

Schools and school districts are the most common buyers: the cylindrical brush eliminates the pre-sweep step that typically adds 20–30 minutes per building, and the 67 dB rating lets custodial staff run the machine during the school day without disrupting classes. Hotels with hard-surface corridors and lobby floors between 5,000 and 15,000 sq ft per floor specify the BR 22/14T for night cleaning where the traction drive reduces operator fatigue across 6-hour shifts. Outpatient clinics and small hospital buildings use it in treatment corridors, waiting areas, and administrative wings where the 22″ path fits standard doorway-width hallways and the cylindrical system handles the fine debris — dust, paper, packaging — that accumulates in these environments. Restaurants with sealed concrete or quarry tile floors use it for nightly cleaning after close, where the combination of sweep and scrub in one pass saves 20–30 minutes per shift.

What Ships in the Box

Every BR 22/14T includes one 24V, 20A on-board charger and the battery set matched to the ordered configuration: Wet-Acid (99695T-C) includes two 99812 12V, 185 Ah Lead Acid batteries; TPPL (99695TE) includes two NXS120 TPPL batteries. Front and rear squeegees installed. Non-spill battery option available.

Specifications

Documents

BR 22/14T Parts Manual (PDF)

BR 22/14T Operations Manual (PDF)
