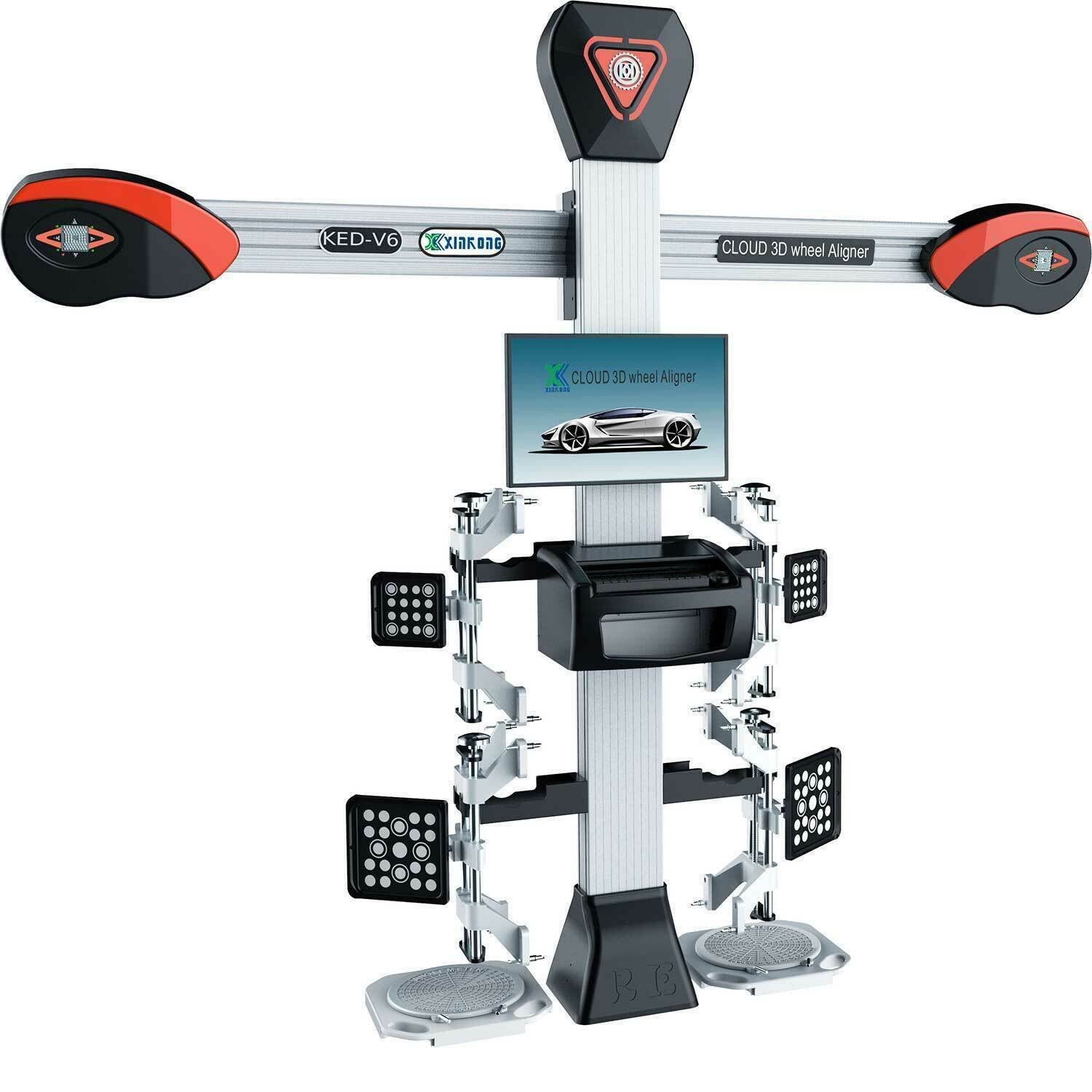

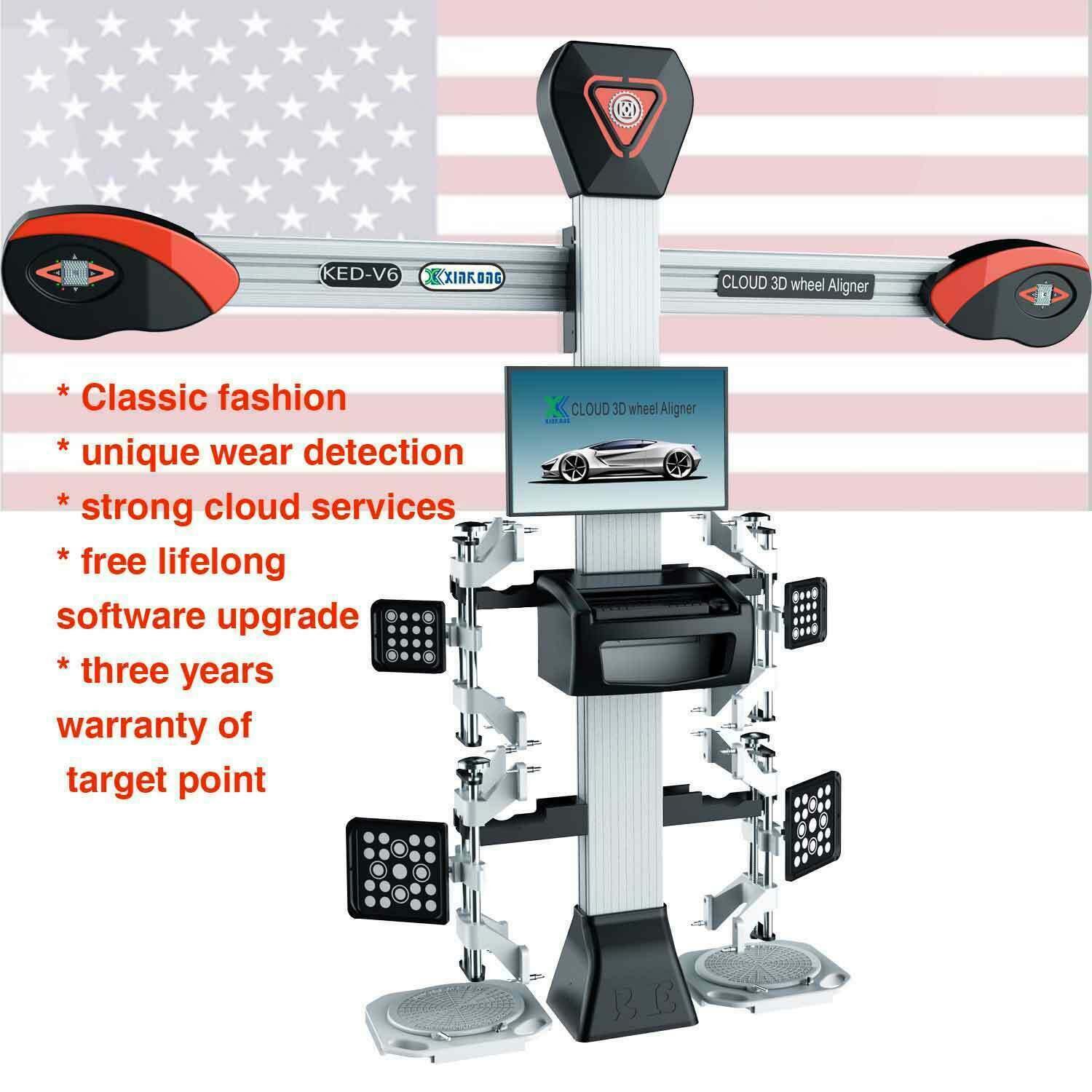

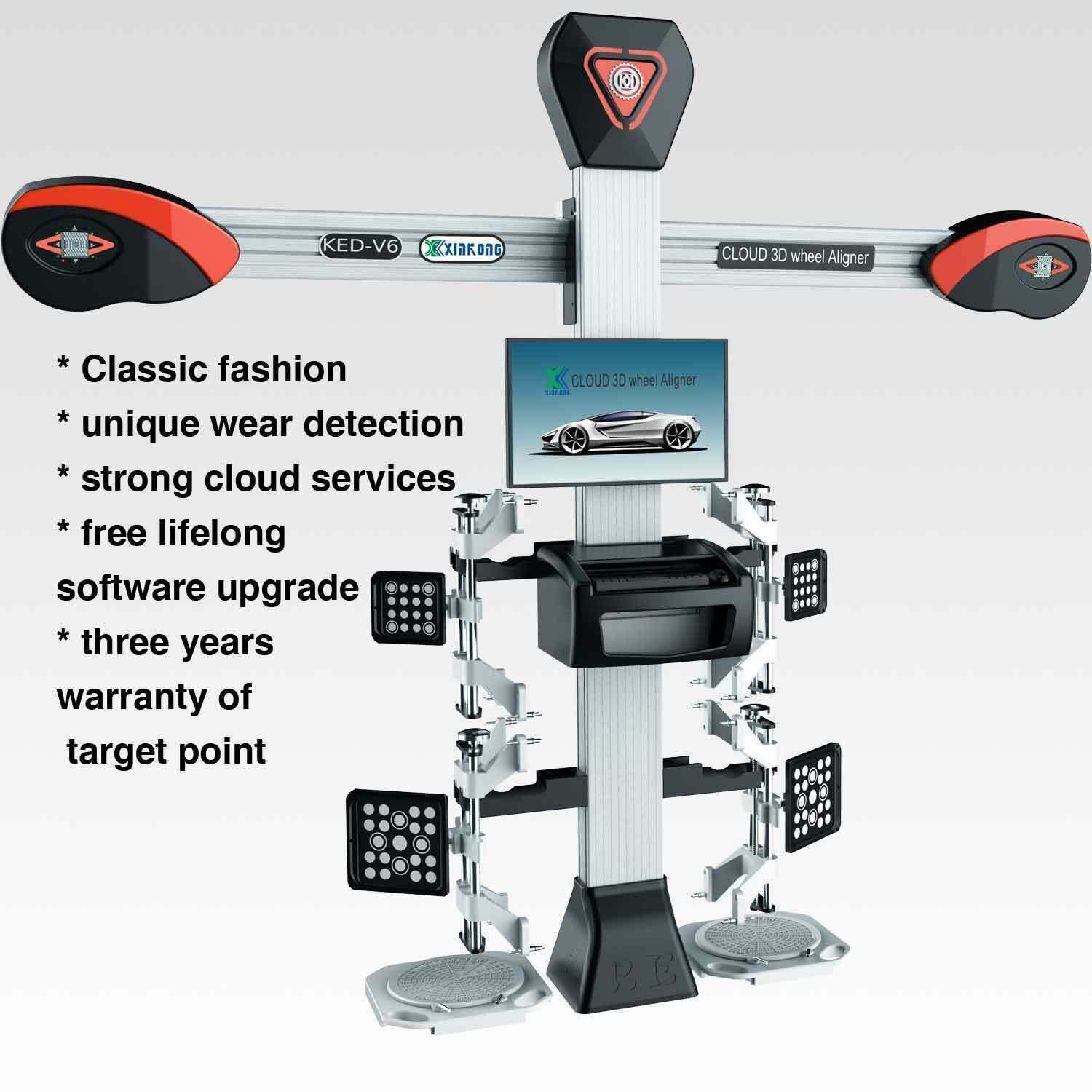

V6 Wheel Alignment Machine 3D Tire Aligner System Brand New

https://www.youtube.com/embed/-ZCUYJRzvBI?rel=0

https://www.youtube.com/embed/bXYJGqnJzRc?rel=0

Item specifics

Item Width: 55 cm

Car Maker:

Audi,Australia Ford,Benz,BMW,Brilliance,Chevrolet,Chevy,Chrysler,Citroen, Dacia, Dadi, Daewoo, Daihatsu,

Demo,Fiat,Ford,GM,Holden,Honda,Hyundai,Isuzu,Jaguar,Kia,Lancia,Land Rover,Mahindra,Maruti,Mazda,Mitsubish,Nissan,Opel,Peugeot,Porsche,Renault,Romeo,

Rover,Saab,Seat,Skoda,Smart,Subaru,Suzuki,Tata,Toyota,Volvo,VW

Item Height: 43 cm

Voltage: 110V

Language: English,Spanish

Special Features: 3D wheel alignment

External Testing Certification: CE

Item Type: Mechanical Testers

Item Length: 275 cm

Item Weight: 130 kg

Guarantee: Original Free software upgrade

Feature: 3D four wheel aligner

Core advantage

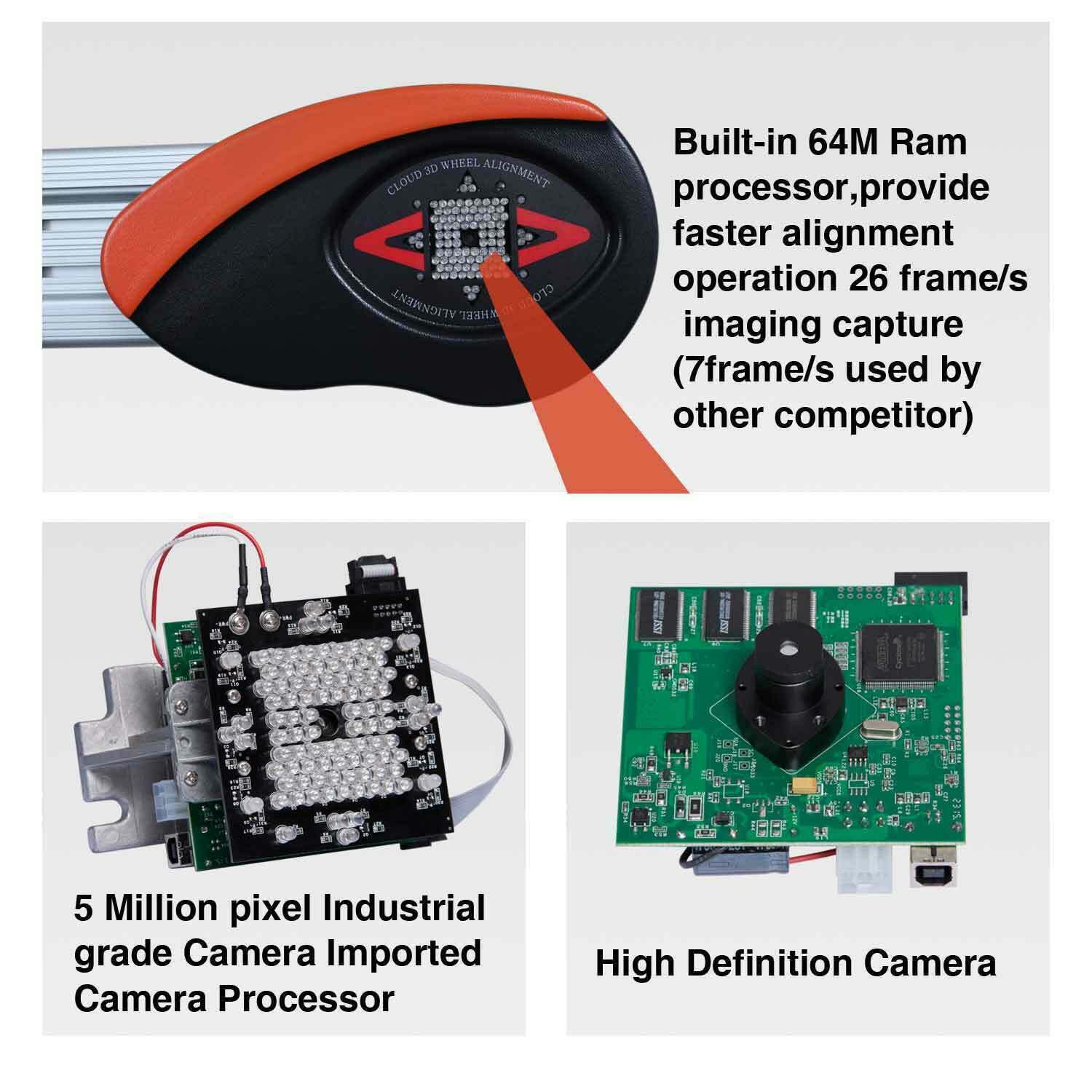

• 5 Million Pixel Industrial Grade Camera, 26 frame/s imaging capture( 7 frame/s used by other competitor)

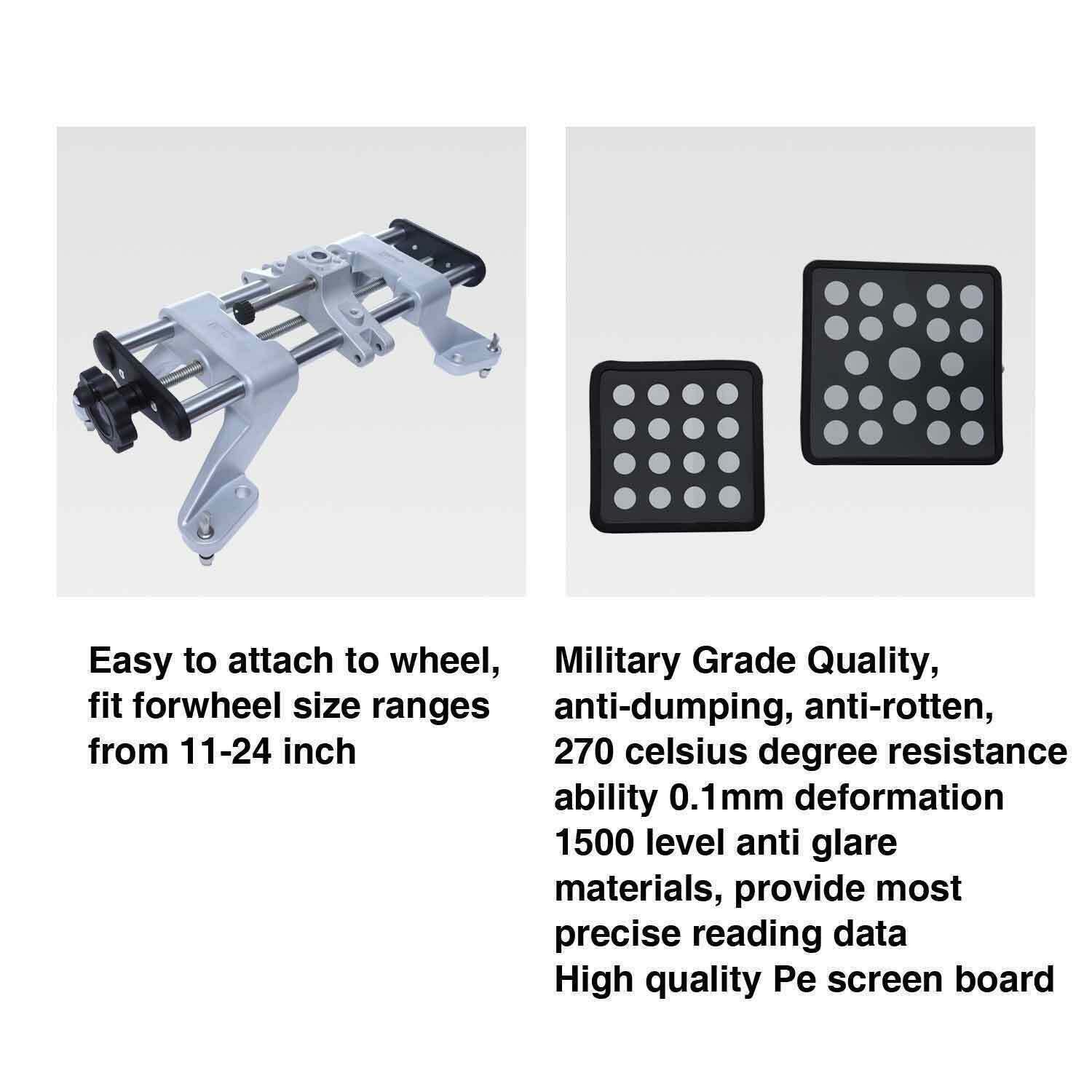

• Military Grade Quality, anti-dumping, anti-rotten, 270 celsius degree resistance ability 0.1mm deformation

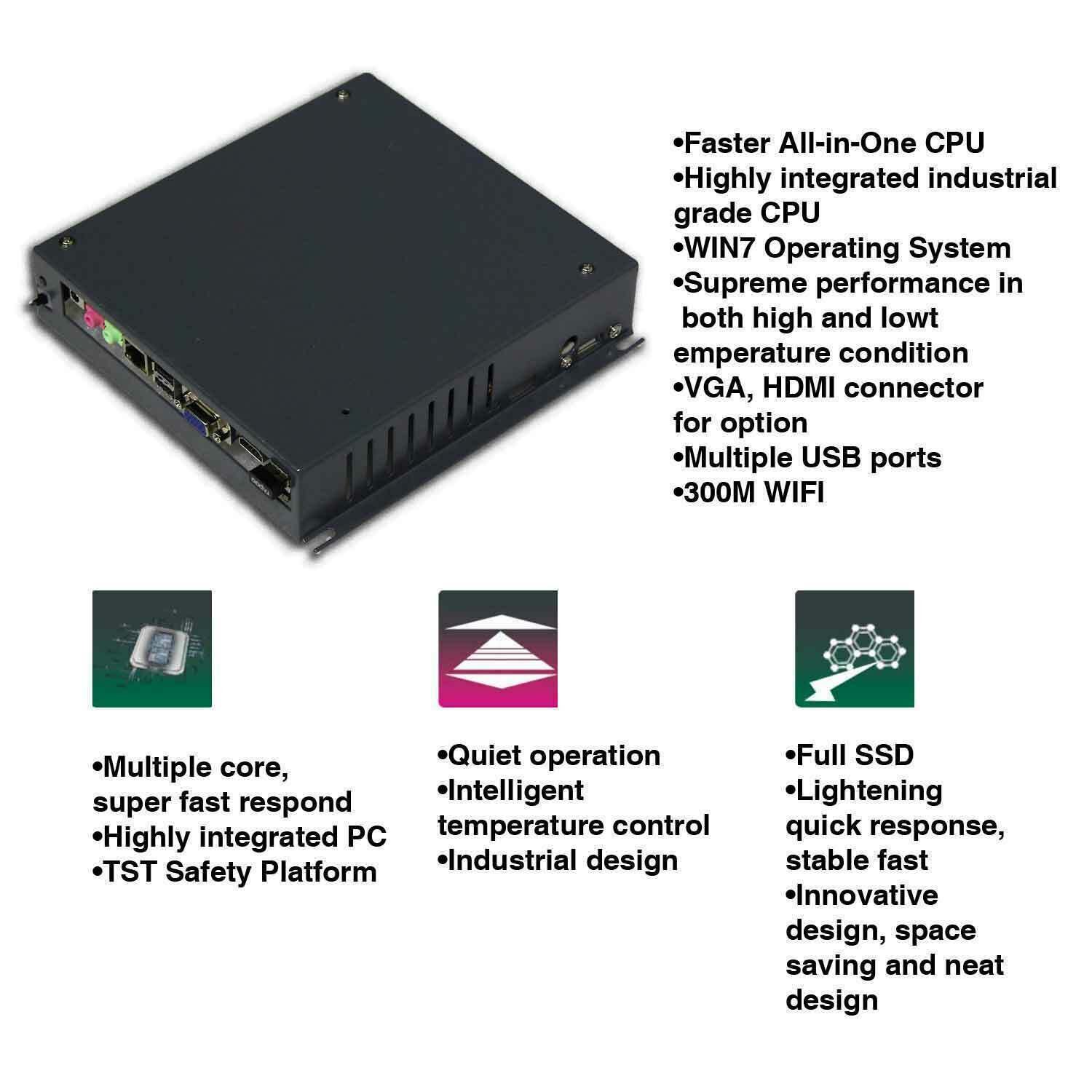

• Integrated CPU, less malfunction rate
• Short distance required for push-car operation, time saving.
• Only one time push-car operation is required, fast and accurate reading
• High accuracy, up to 0.01 degree.
• Client management system and printer
• Unlike conventional 3D aligner, KEED aligner is not subject to horizontal level of scissor lift
• WIN 7 Operating System
• One meter installation distance required for aligner and scissor lift
• Key technology. More Powerful, More profit
• 24 inch industrial grade display

Technical Specification

measurement              accuracy  accuracy    total measurement range

Camber                        ±0.01°      ±8°         ±8°

Caster                          ±0.01°     ±19°       ±19°

SAI                               ±0.01°     ±19°       ±19°

TOE                              ±0.01°     ±2°         ±8°

Thrust Angle                 ±0.01°     ±2°         ±4°

Steering angle               ±0.01°    ±2°         ±40°

Rear axle deflection      ±0.01°     ±2°         ±4°

Track width difference   ±0.01°     ±2°        ±8°

Front set-back                ±0.01°    ±2°         ±4°

Rear set-back                 ±0.01°    ±2°         ±4°

Wheel tread                ±0.25cm <268cm <268cm

Wheel base                 ±0.25cm <546cm <546cm

Wheel Circumference   ±0.15cm <156cm <156cm
