Bissell Big Green DFS29 Manual Walk-Behind Sweeper – Gear-Driven Fan, No Power Required

Bissell DFS29 Manual Walk-Behind Sweeper with Patented Gear-Driven Suction

The Bissell Big Green DFS29 generates vacuum-like suction through a patented gear-driven fan that activates when the operator pushes the machine—no battery, cord, or motor required. The sealed vacuum chamber and multi-stiffness chevron brush system collect debris and fine dust in both forward and reverse directions, making it the only manual sweeper that functions in both directions of travel.

DFS29 Gear-Driven Fan, Chevron Brush, and Bidirectional Operation

• Gear-driven fan system — wheel rotation powers the internal fan through a mechanical gear train; suction strength scales with operator walking speed.
• Sealed vacuum chamber — contains the airflow path between the brush and the collection hopper; prevents fine dust from escaping the brush zone during sweeping.
• Multi-stiffness chevron brush — center bristles stiffer for debris capture; outer bristles more flexible for edge sweeping; chevron pattern channels debris toward the collection opening.
• Side broom — pulls debris from edges and corners into the chevron brush path.
• Bidirectional operation — suction activates in both forward and reverse travel; effective in tight spaces where pull-back is required.
• No power source — zero battery cost, zero charging time, zero emissions; operates anywhere including outdoor areas without access to power.

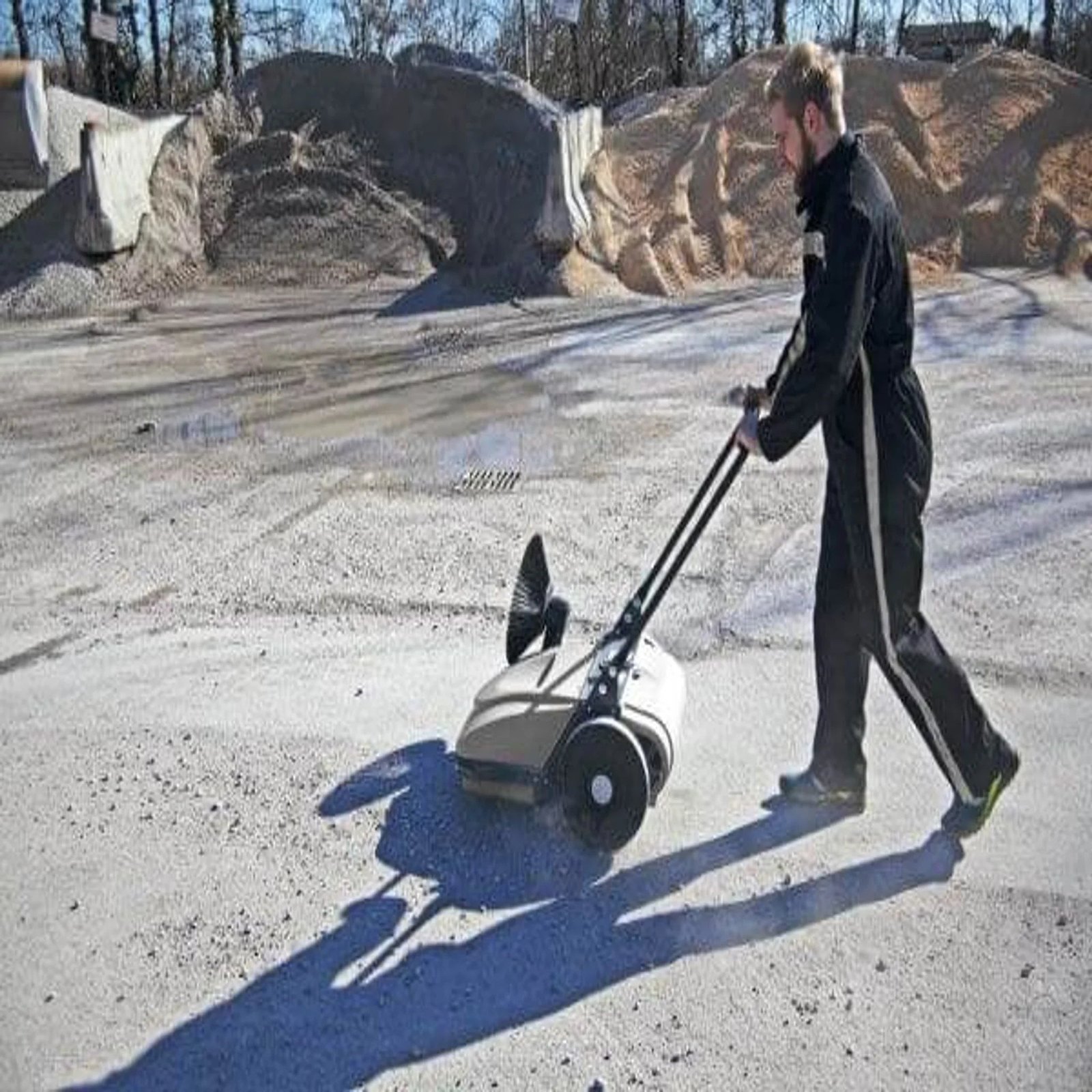

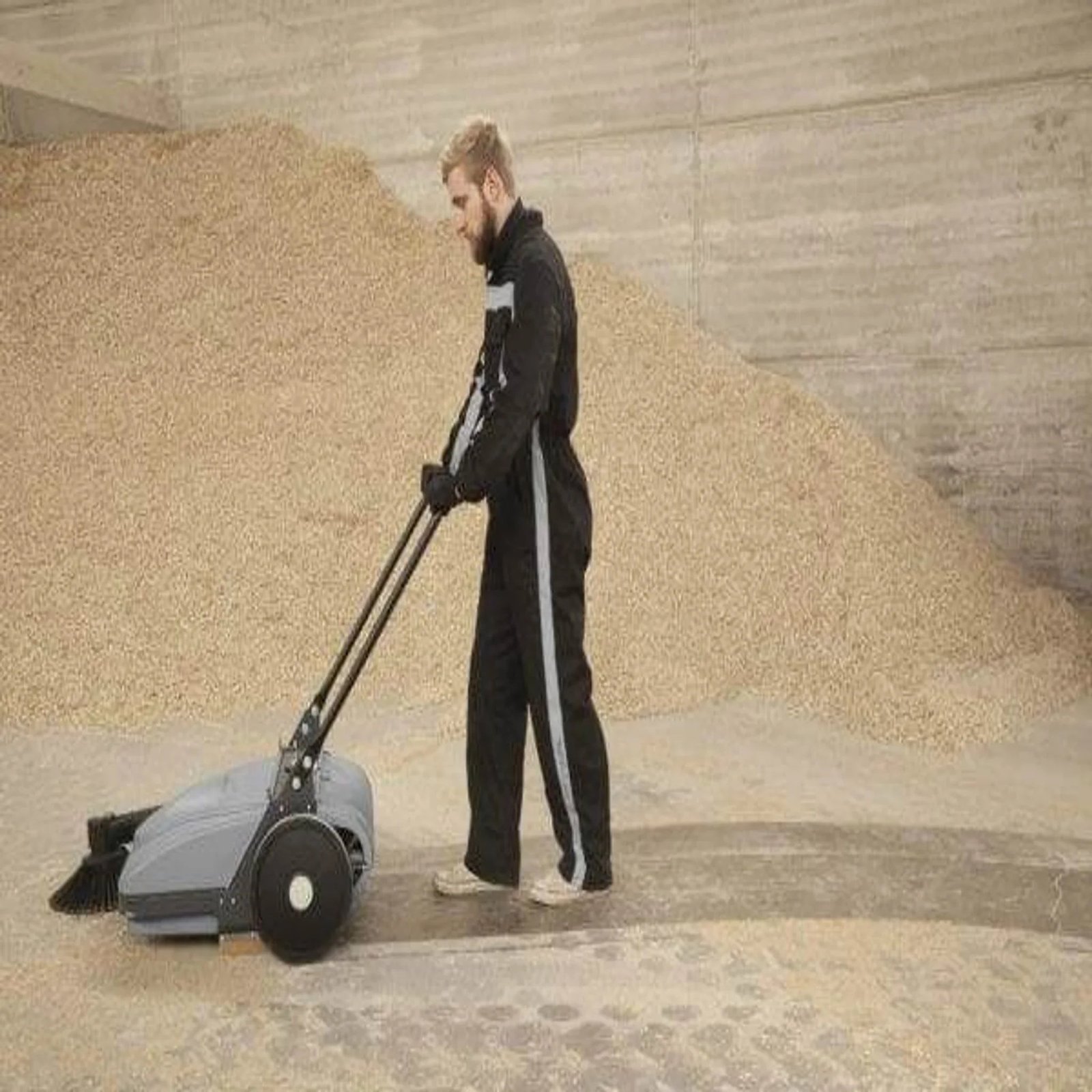

Indoor and Outdoor Applications for the DFS29

The DFS29 fills the gap between a push broom and a powered sweeper. It provides better dust control than a push broom through its sealed vacuum chamber, and operates anywhere a powered sweeper cannot—outdoor loading docks, parking garages, construction areas without power access, and facilities that prohibit battery-powered equipment near certain materials. Warehouses use the DFS29 for spot-cleaning between powered sweeper cycles, eliminating the need to bring out large equipment for small debris accumulations. Schools and retail facilities use it for quick-response cleaning in areas where battery equipment is not immediately available.

Gear-Driven Suction vs. Battery-Powered Alternatives

Battery-powered sweepers provide higher suction force at consistent levels regardless of operator speed. The DFS29’s gear-driven fan produces suction proportional to walking speed—slower pushes produce less airflow. This makes the DFS29 most effective at a steady walking pace on flat surfaces where fine dust needs containment. On heavy debris—gravel, large particles, liquid spills—battery-powered machines provide better performance. The DFS29 advantage is zero operating cost, no charging schedule, and operation in locations where battery equipment is restricted or impractical.
