XPOWER AP-1800D HEPA Air Scrubber – 1100 CFM, DC Brushless, PM2.5 Sensor, 115V

XPOWER AP-1800D Commercial HEPA Air Scrubber – 1100 CFM, DC Brushless Motor

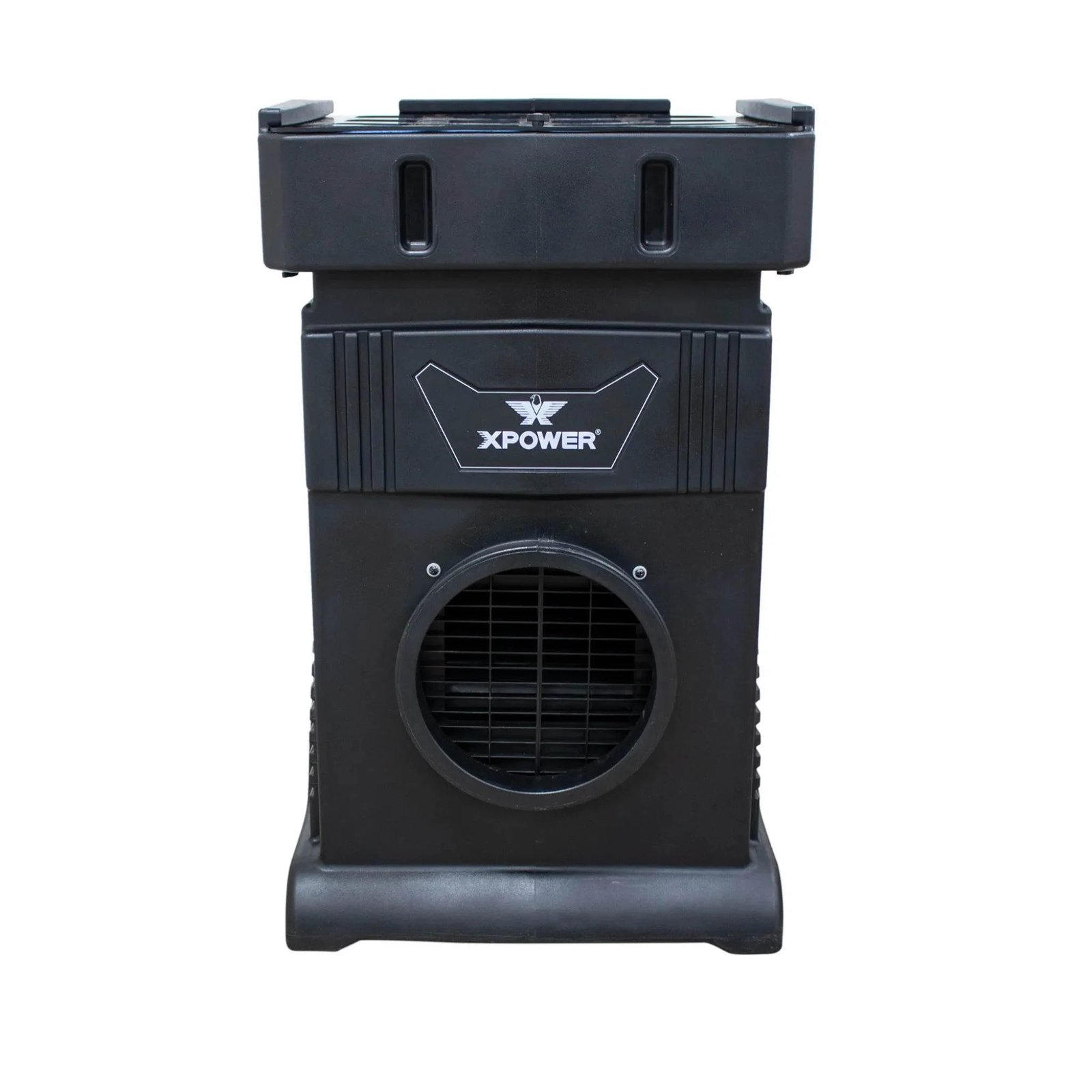

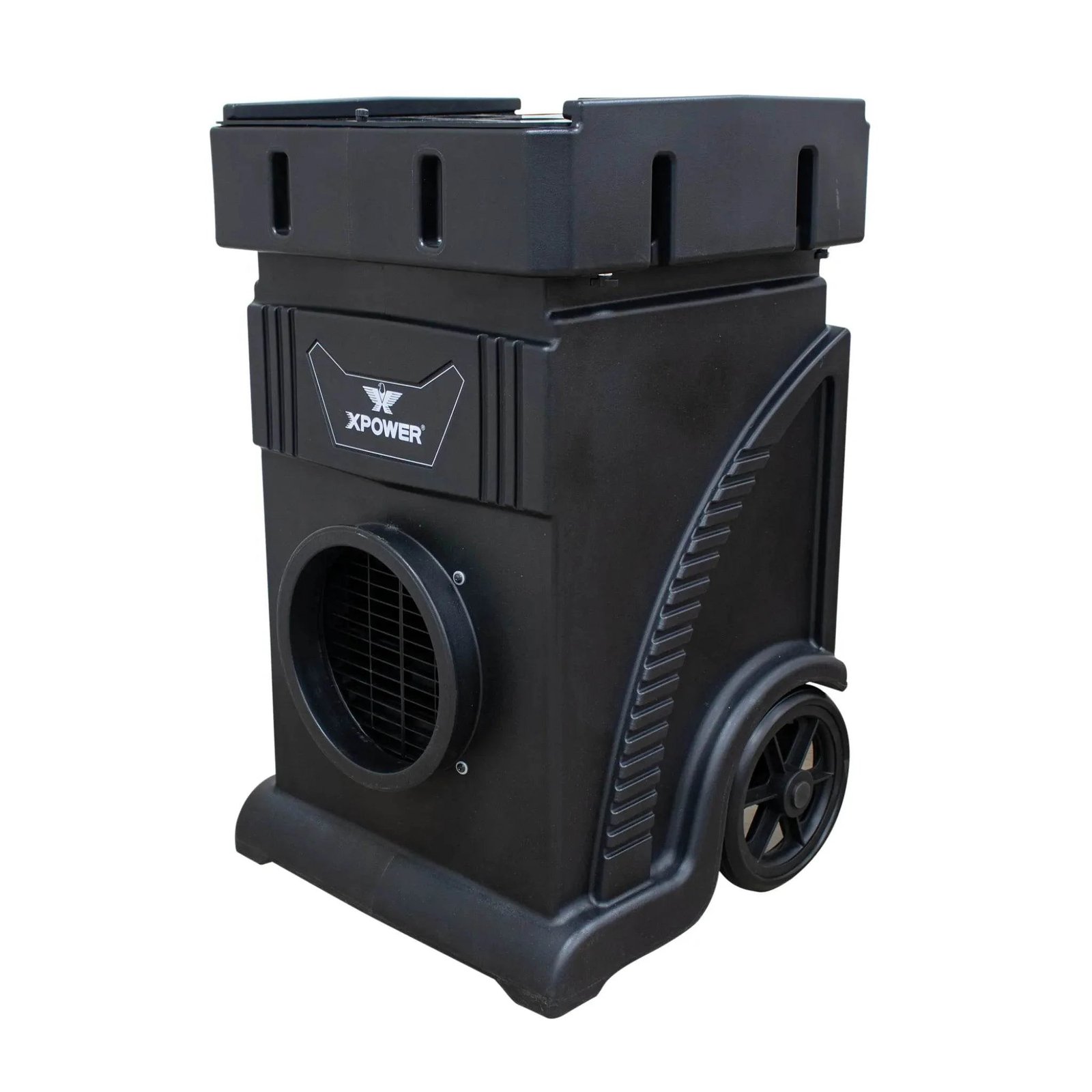

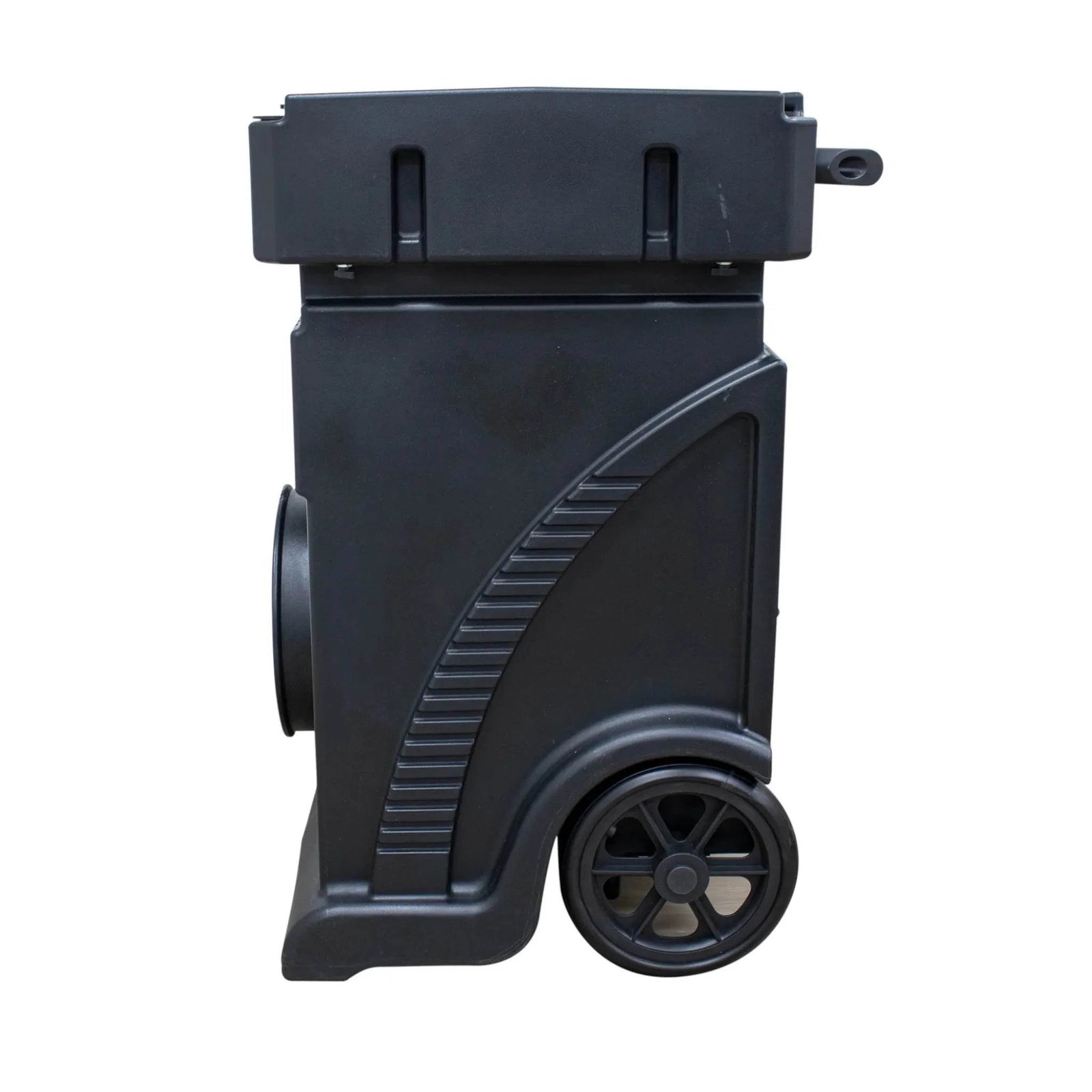

The XPOWER AP-1800D is a 1100 CFM HEPA air scrubber running a DC brushless motor at 3.5A on 115V. Its 4-stage filtration includes a washable nylon mesh pre-filter (RP-20), pleated media filter (PF19), activated carbon filter (CF35-490), and HEPA filter (HEPA300-490PV). Variable speed from 500–2100 RPM, integrated PM2.5 digital sensor with color-coded display, 12″ ductable exhaust, and 65.7 lbs with integrated wheels and aluminum kick plate for tilting. At 3.5A, it is the most energy-efficient unit in the AP brushless series for its class.

AP-1800D – Key Specifications and Features

• Airflow: 1100 CFM, variable speed (500–2100 RPM)
• Motor: DC brushless
• Electrical: 115V, 60 Hz, 3.5A
• Filtration: 4-stage — RP-20 pre-filter, PF19 pleated media, CF35-490 activated carbon, HEPA300-490PV HEPA (99.97% @ 0.3 µm)
• PM2.5 sensor: integrated digital display with green/orange/red color coding
• Exhaust duct: 12″ ductable outlet
• Housing: roto-molded polyethylene, stackable (2 units)
• Cord: 13 ft with integrated storage
• Dimensions: 37.2″ × 25.2″ × 22.6″
• Weight: 65.7 lbs

Where the AP-1800D Performs

Medical offices and dental clinics specify the AP-1800D for continuous IAQ management in occupied treatment areas because the DC brushless motor operates at noise levels compatible with patient care environments. At 3.5A, six units can run simultaneously on a standard 20A circuit under NEC continuous load rules — enabling whole-building deployment on existing electrical infrastructure without new circuits. Healthcare facility renovation teams use the 4-stage filtration (including the activated carbon stage) to simultaneously address particulate contamination from construction dust and VOC off-gassing from adhesives and sealants. The PM2.5 sensor provides real-time IAQ documentation that facilities require for ICRA compliance during phased renovation in occupied buildings.

Related: Air Scrubbers · XPOWER Equipment · Mold Remediation Equipment

4-Stage Filtration with Activated Carbon

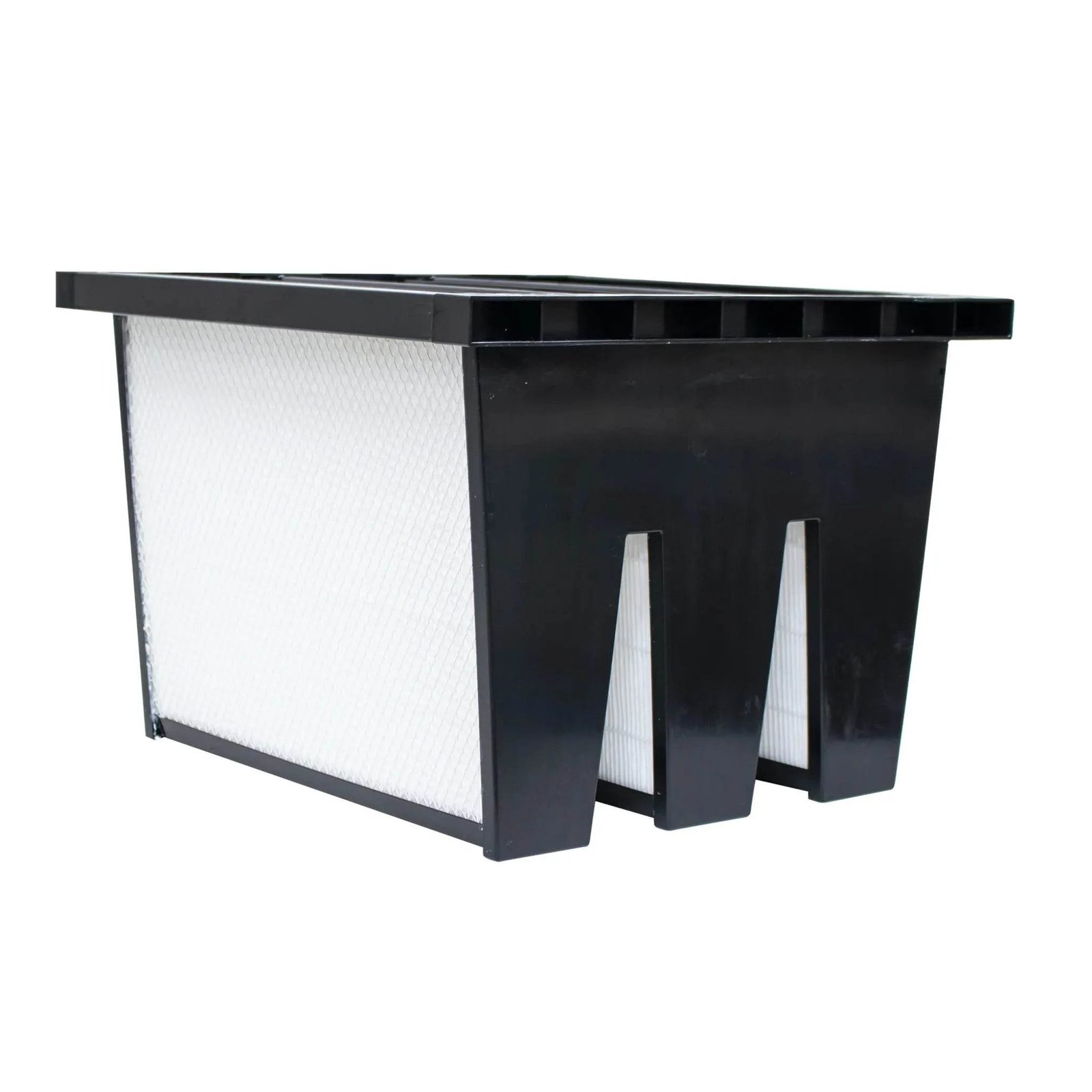

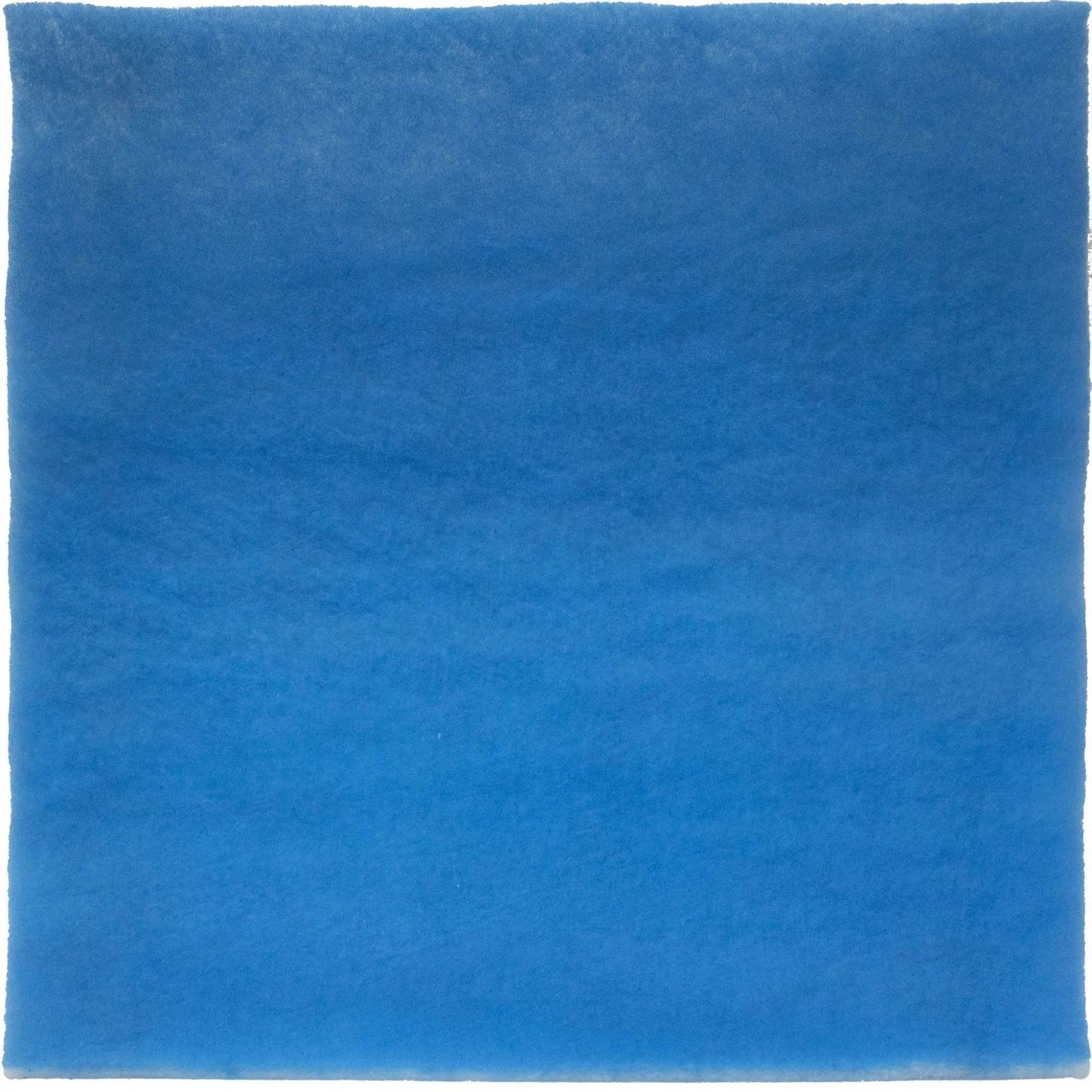

The AP-1800D’s 4-stage filtration is the complete sequence for both particle and odor/VOC removal. Stage 1 (washable nylon mesh) captures large debris and is reusable. Stage 2 (pleated media) captures mid-range particles and extends HEPA life. Stage 3 (activated carbon CF35-490) adsorbs odors, smoke, and VOCs — a stage absent in the 3-stage X-4700A/X-4700AM units. Stage 4 (HEPA300-490PV) captures 99.97% of 0.3-micron particles. The carbon stage makes the AP-1800D the correct specification where odor control alongside particulate removal is required.
