XPOWER XD-165L LGR Dehumidifier – 165 PPD AHAM, 476 CFM, 115V, 121 lbs

XPOWER XD-165L Low Grain Refrigerant (LGR) Dehumidifier

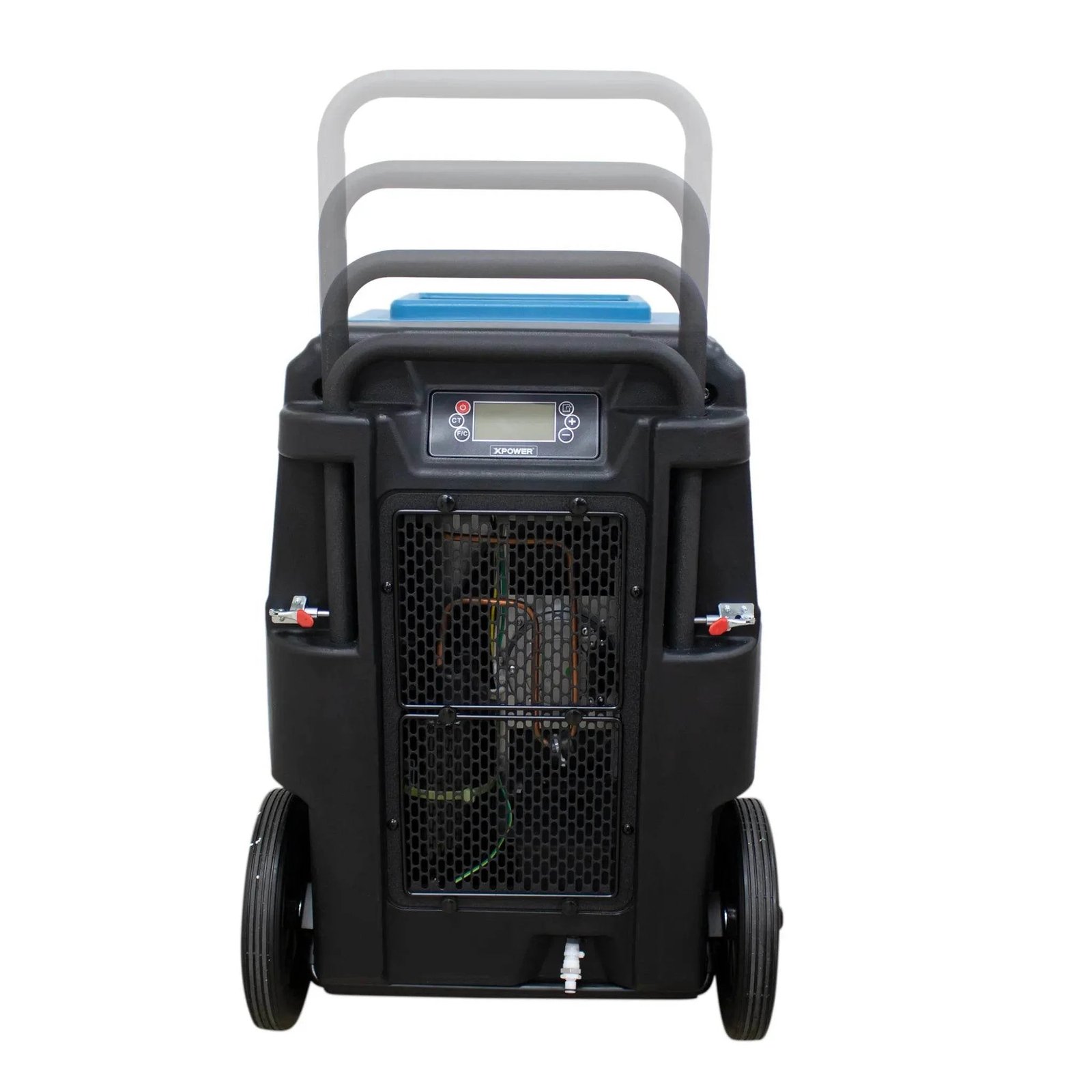

The XPOWER XD-165L is an LGR dehumidifier rated at 165 PPD at AHAM conditions (80°F/60% RH) and 280 PPD at saturation (90°F/90% RH), running on 115V at 10.2A with 476 CFM airflow. It carries an auto-purge condensate pump with a 40-ft drain hose, roto-molded polyethylene housing, built-in wheels and telescoping handle, and ETL/CETL listing. WTRDHM>XL Xactimate code applies as an LGR unit above 85 PPD AHAM, qualifying it for insurance-based water damage restoration billing.

XD-165L – Key Specifications and Features

• Extraction rate: 165 PPD at AHAM (80°F, 60% RH); 280 PPD at saturation (90°F, 90% RH)
• Electrical: 115V, 10.2A
• Airflow: 476 CFM, automatic speed control
• Operating range: 33°F to 105°F
• Condensate: auto-purge pump, 40-ft drain hose
• Digital display: humidity, temperature, runtime readout
• Housing: roto-molded polyethylene
• Power cord: 25 ft
• Stackable: yes (1 unit)
• Certifications: ETL/CETL
• Xactimate code: WTRDHM>XL
• Dimensions: 22″ × 22.4″ × 29.8″
• Weight: 121 lbs

Where the XD-165L Performs

Water damage restoration contractors use the XD-165L on Category 2 and 3 loss jobs where the LGR classification (WTRDHM>XL) is required for Xactimate billing. The 165 PPD AHAM rating is the standard insurance benchmark — at saturation the unit extracts 280 PPD, clearing water-laden air in fresh-loss environments. The 476 CFM airflow directs warm, dehumidified air across wet structural surfaces to accelerate the drying gradient. HVAC contractors handling post-flood HVAC system remediation use it because the 33°F minimum covers cooled crawl space environments where non-LGR units lose efficiency. The roto-molded housing and telescoping handle match the durability and transport requirements of job-site-to-job-site fleet rotation.

Related: LGR Dehumidifiers · XPOWER Equipment · Commercial Dehumidifiers

LGR Technology and the WTRDHM>XL Xactimate Code

LGR dehumidifiers use a pre-cooling coil before the main evaporator, lowering incoming air temperature to increase moisture saturation differential before refrigerant contact. This achieves lower dewpoints than conventional refrigerant units, which is why IICRC S500 protocols specify LGR equipment for Category 2 and 3 structural drying. The WTRDHM>XL Xactimate code applies to LGR units at or above 85 PPD AHAM; the XD-165L at 165 PPD AHAM qualifies. The 40-ft auto-purge drain hose allows condensate discharge to a remote drain without repositioning the unit, which is critical in confined crawl spaces and basement restoration setups.

Documents

Spec Sheet

Manual
