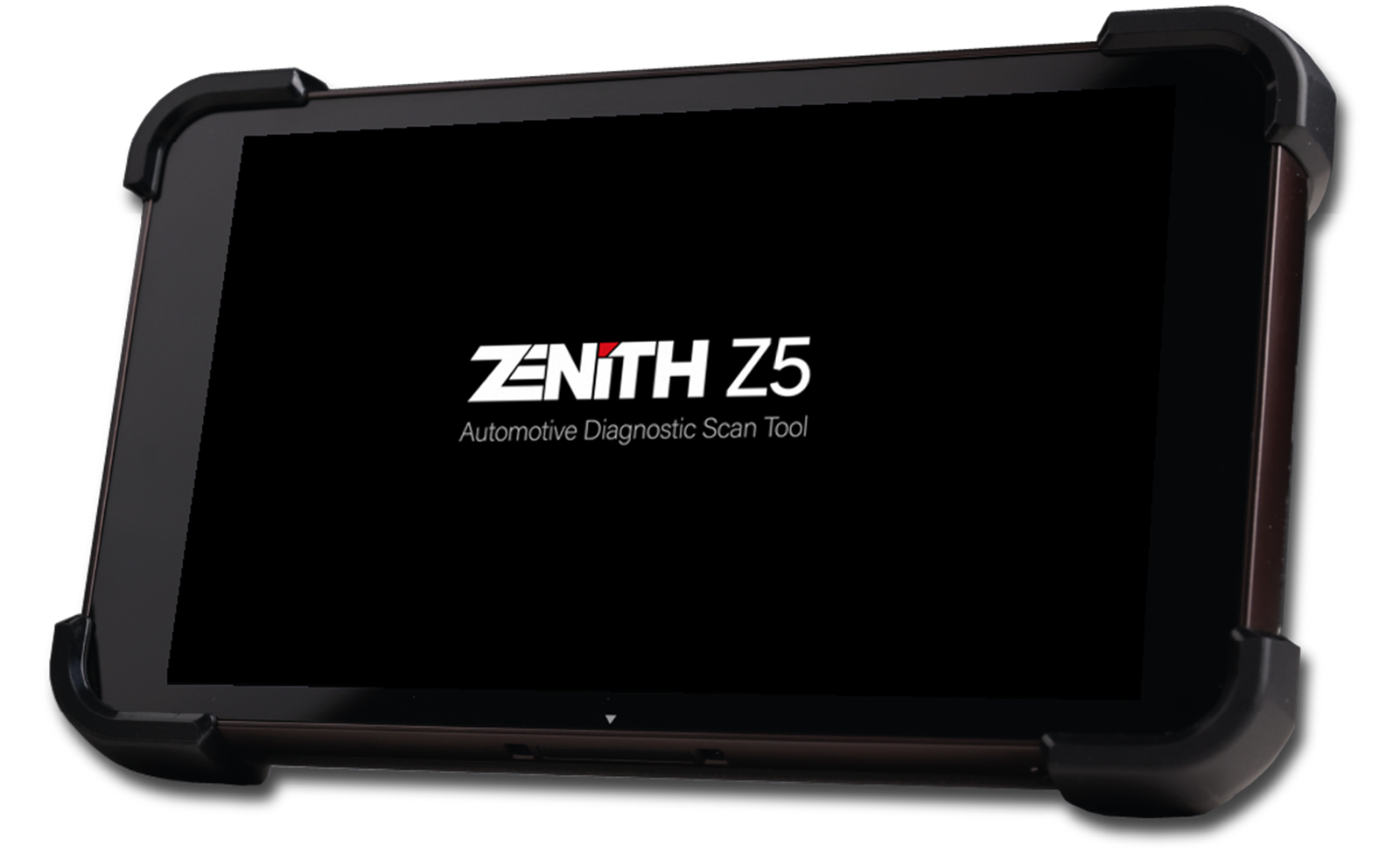

Zenith Z5 multi-brand bi-directional scan automotive diagnose tool

“Born in Korea, raised in Japan.” Introducing the most used scan tool from Asia, Zenith Z series Scanner.

Extremely FAST ALL-SYSTEM SCAN Blazingly FAST Topology SCAN Supports from OBD I to the latest diagnostic protocols From simple Read/Erase Codes to Actuation Tests with simultaneous Graph Live Data

• Ultra Fast System Search

  Zenith offers ultra fast and auto system scan function that detects the VIN, model year, model name, engine type, and other necessary information that are retrieved.



•

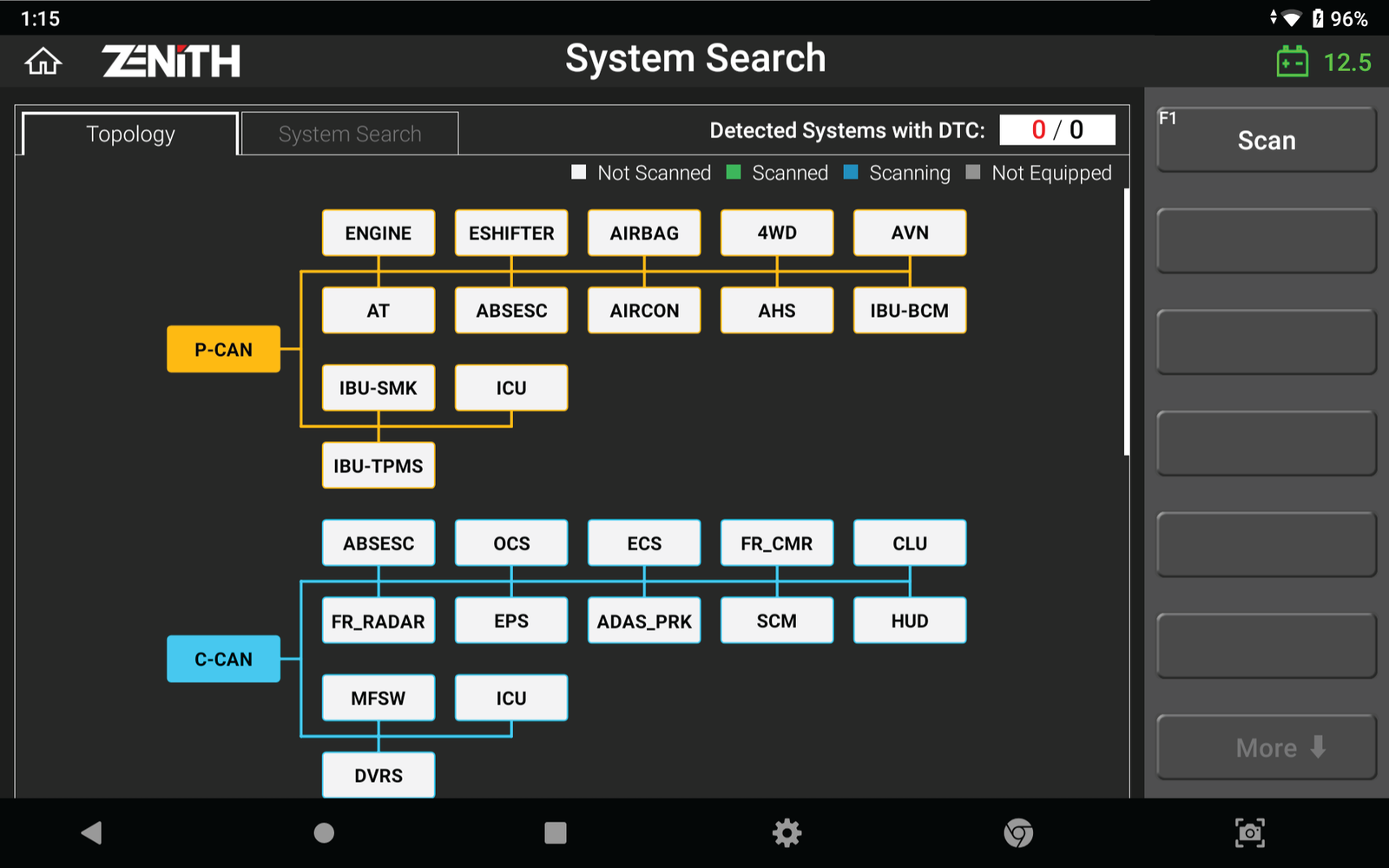

  Topology Scan

  Zenith also offers ultra fast Topology scan function that scans all the vehicle systems, reports fault codes, and provides access to advanced diagnostic functions in each detected system.



•

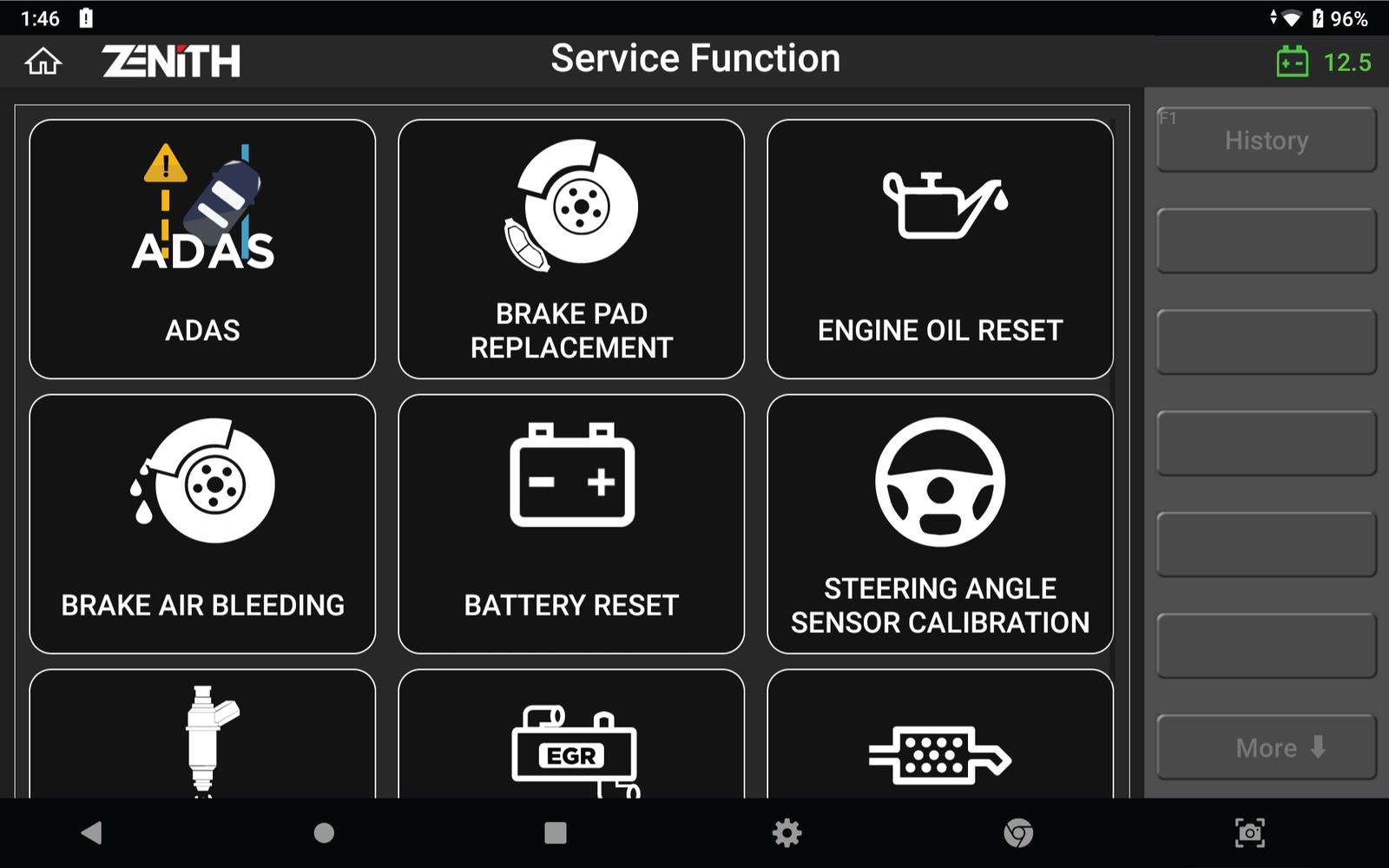

  Service Function

  Time is money! Zenith offers shortcuts to the most frequently used functions in the workshops to save time for technicians to navigate through the original menu system.



•

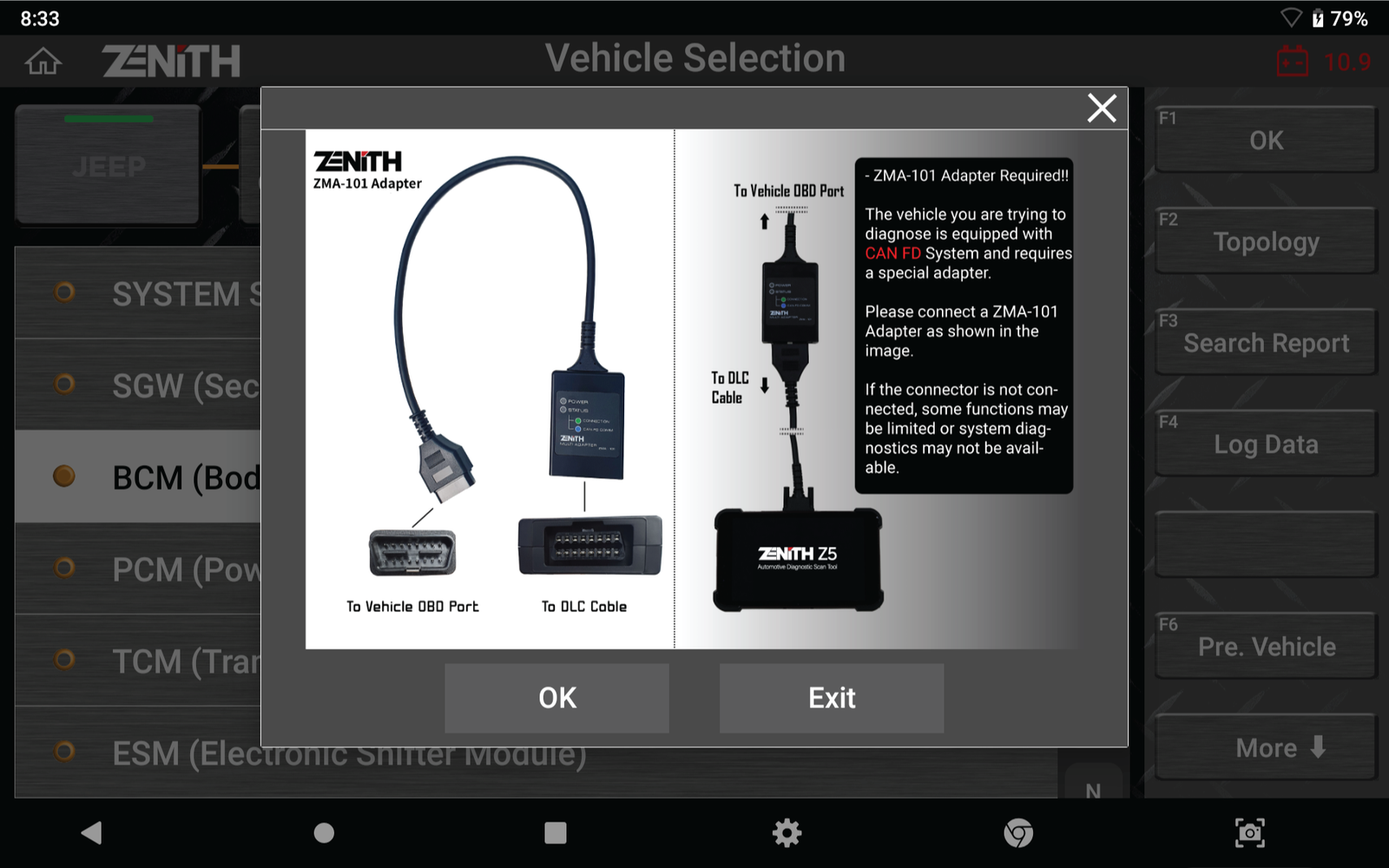

  CAN FD & DoIP

  With our proprietary Zenith Multi Adapter, Zenith Z5 can diagnose vehicle models with CAN FD & DoIP protocol.



•

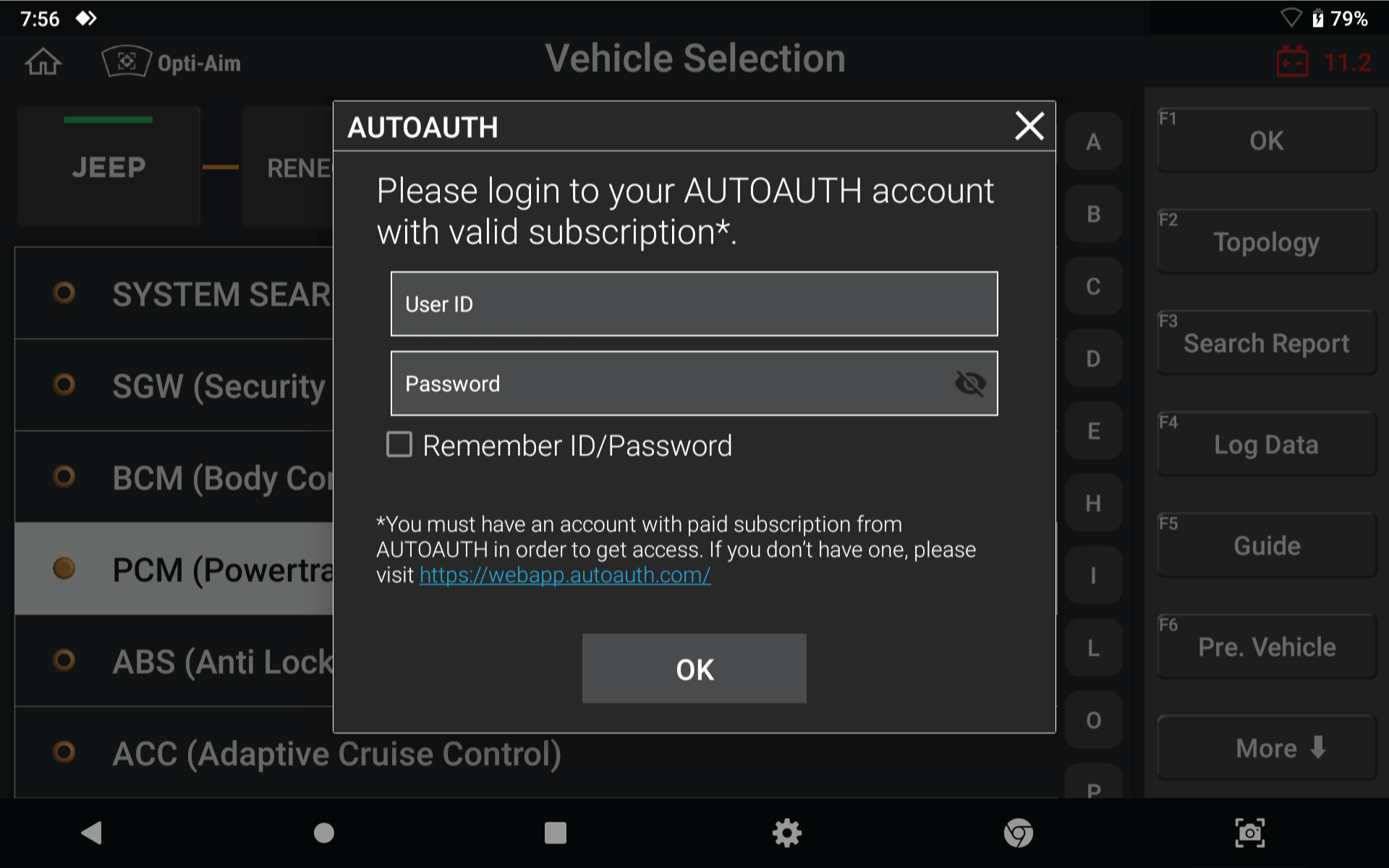

  Security Gateway Ready

  Zenith offers Security Gateway Access for not only the latest Hyundai, Kia and Genesis models, but also Stellantis (FCA), and Nissan via AutoAuth. Zenith is also ready for Ford security functions as well.



•

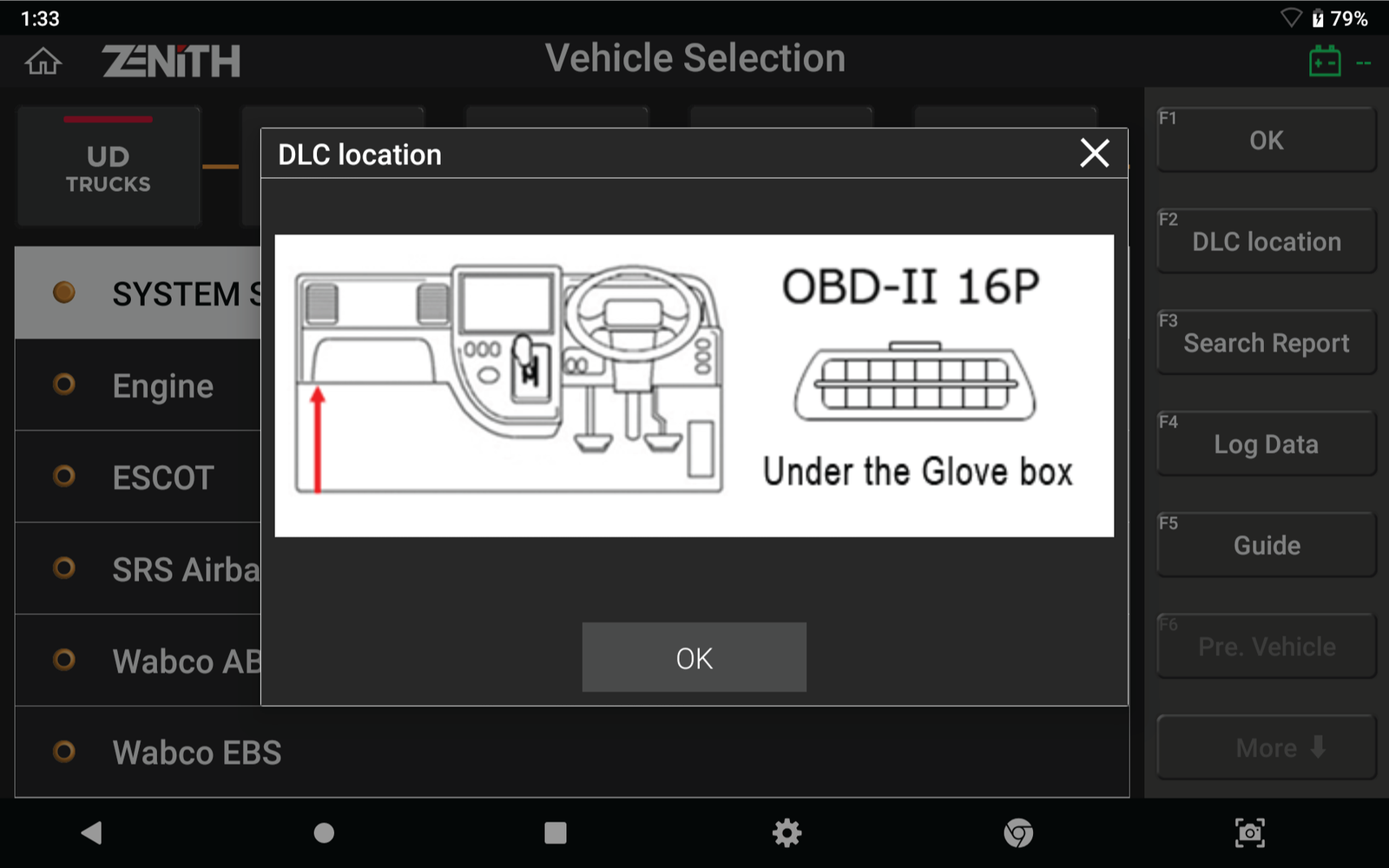

  24V Trucks

  Zenith supports bi-directional communications for Asian light duty to medium duty trucks with 24V system.



•

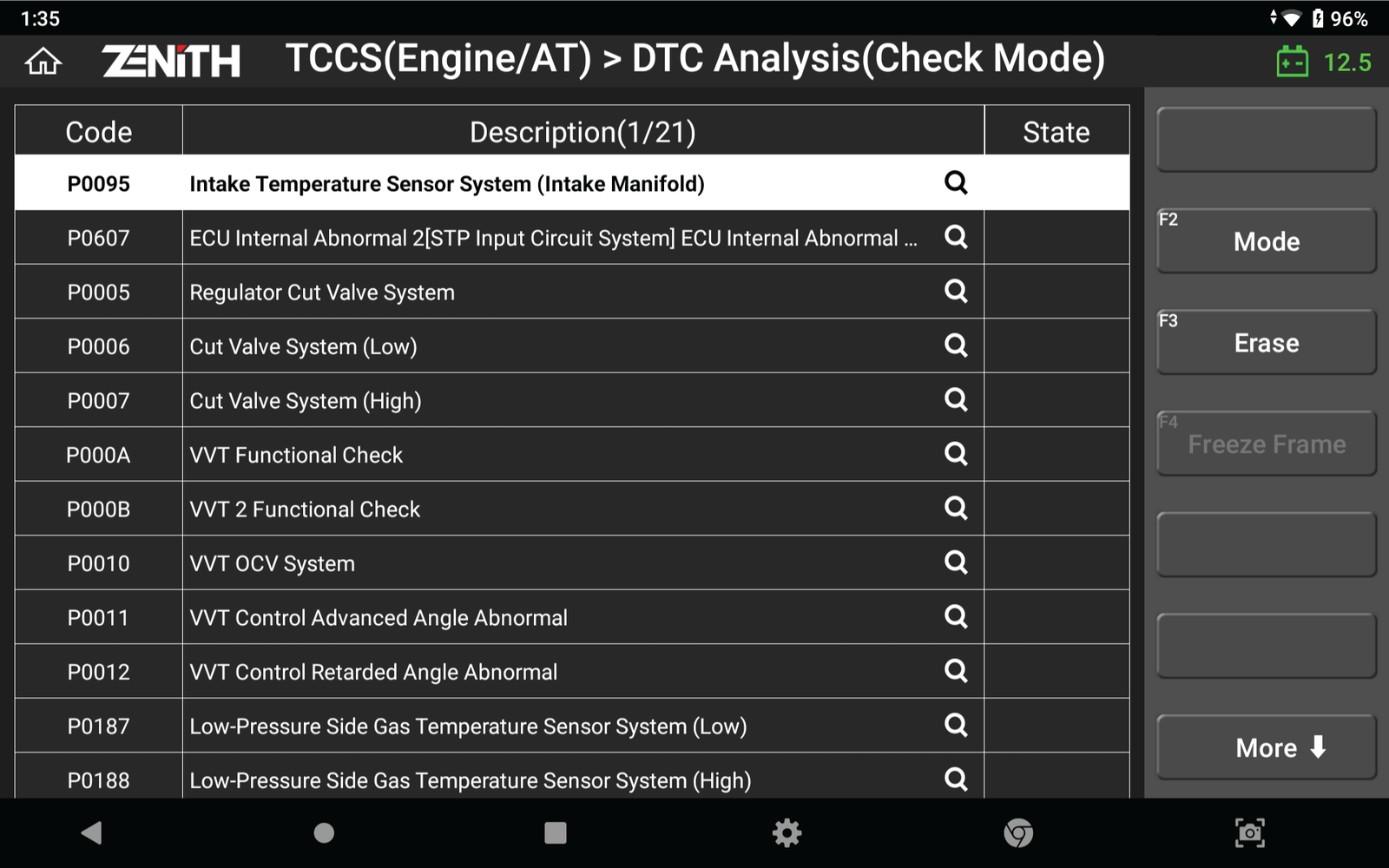

  Full Text Description

  No more acronyms and cutting of significant texts. Zenith offers the long-text DTC description in full screen, so you get all the information you need. Zenith also allows users to view bigger texts by zooming in and out of DTC description with two fingers.



•

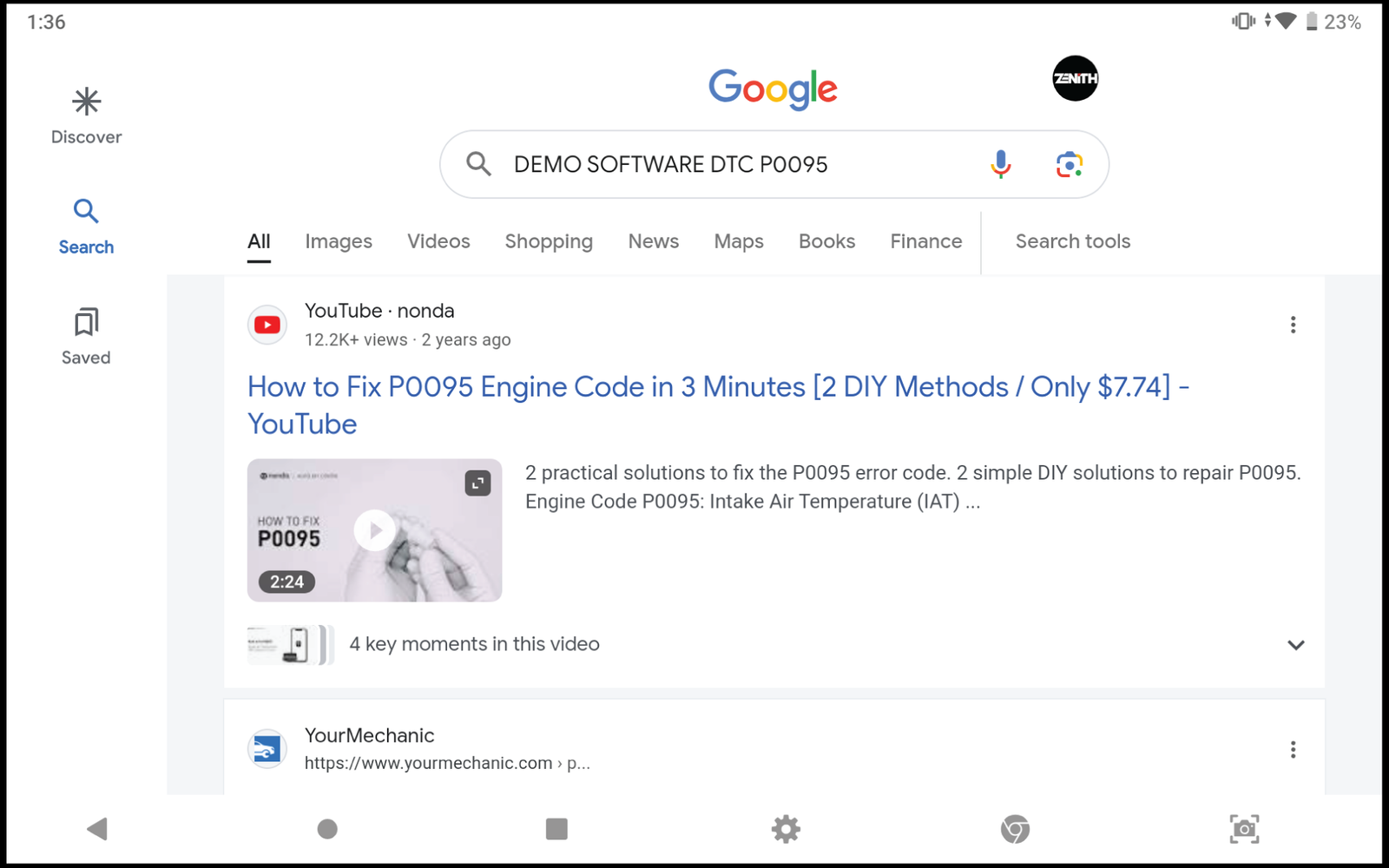

  Search DTC

  No need to going back and forth to search the DTC on the web. Simply hit the magnifying button next to the description!



•

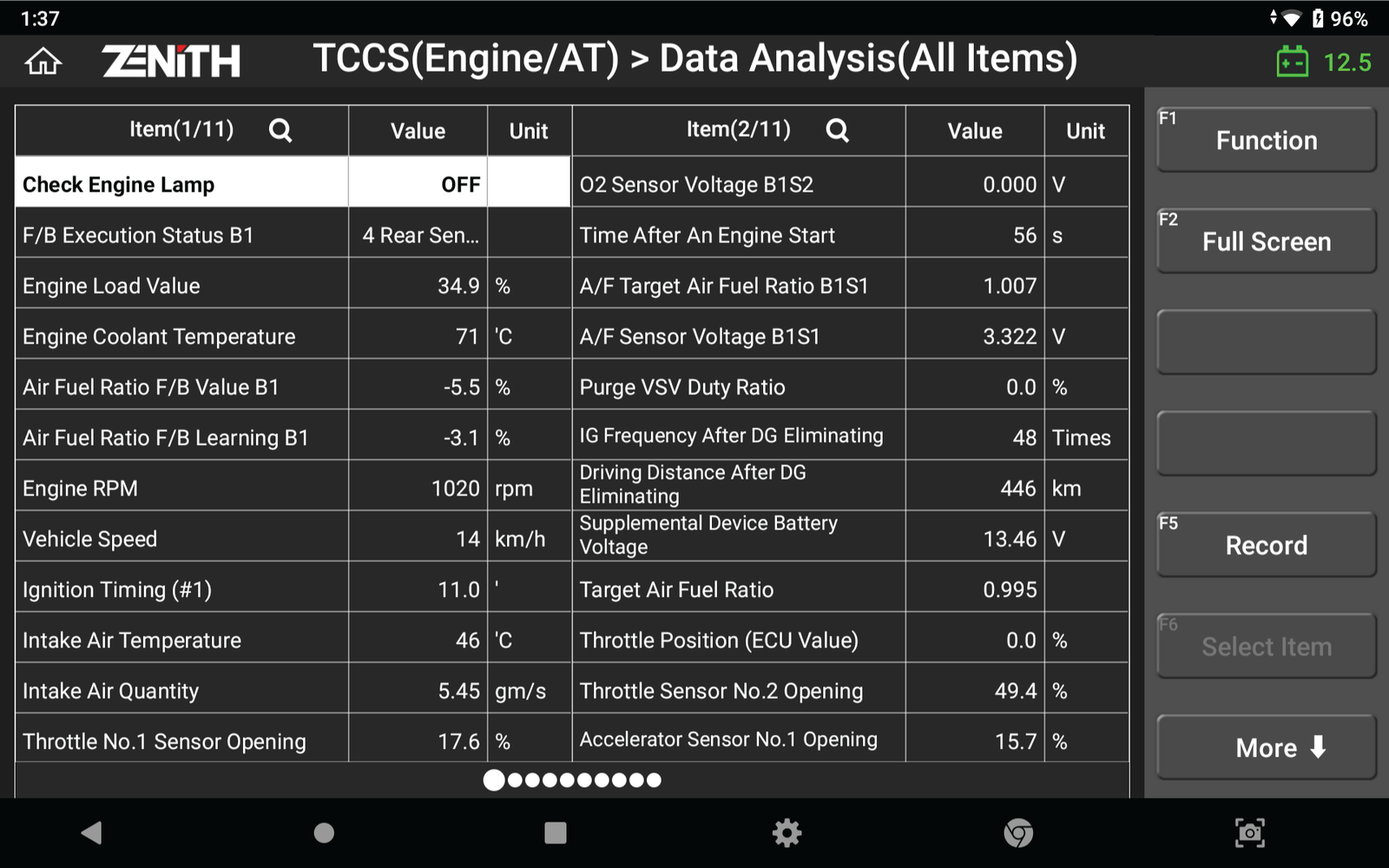

  Live Data

  We understand that sensor data is important for professionals. Zenith offers intuitively designed and extremely fast Data Analysis where user can view/compare multiple live data with freedom of choice. Not only displaying multiple data in one screen, but Zenith also allows users to search and select desired items.



•

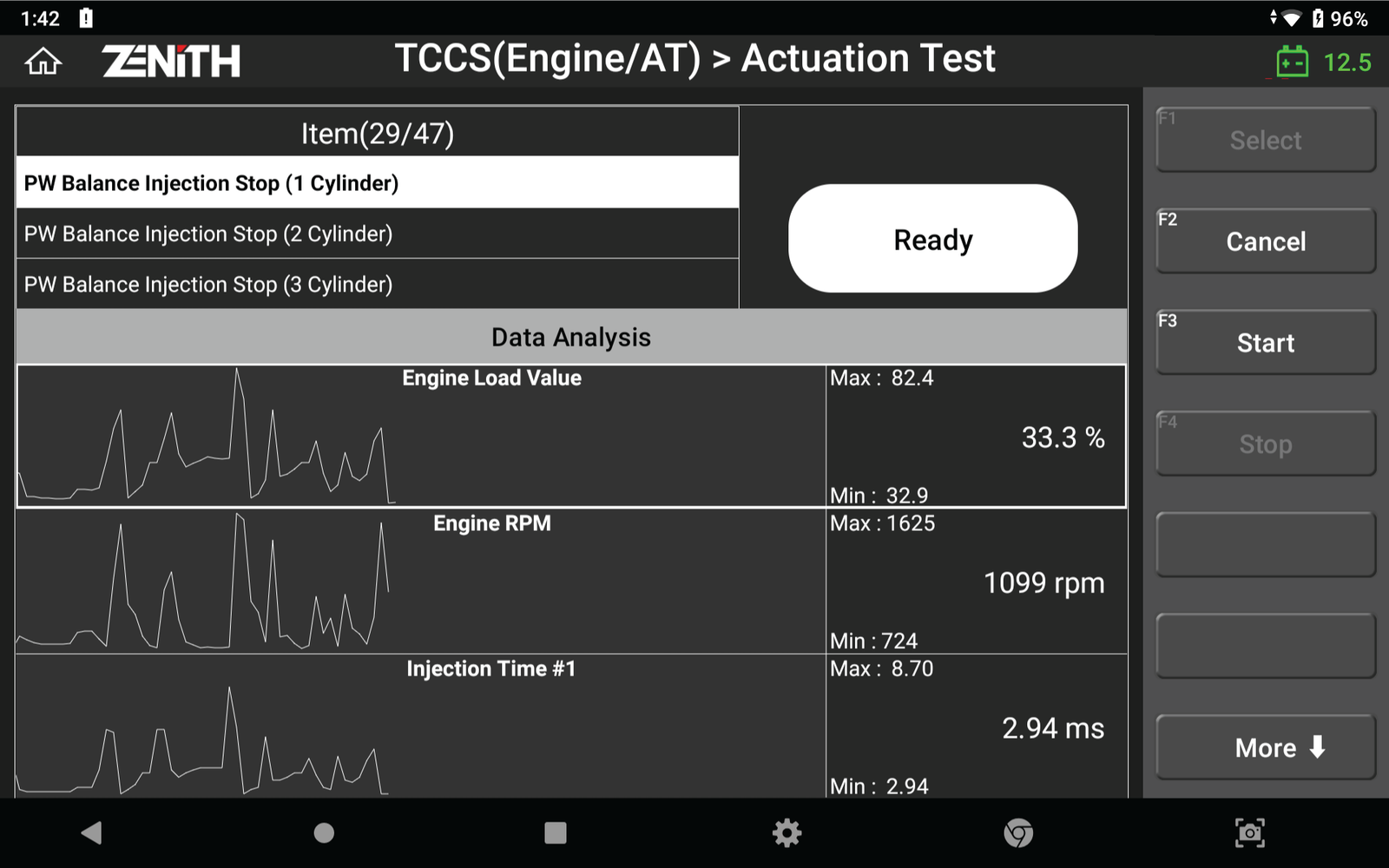

  Actuation Test

  Zenith offers not just simple actuation test function. We go next step to combine live data and graphing in actuation test, so that user can check the performance of the testing component live!



•

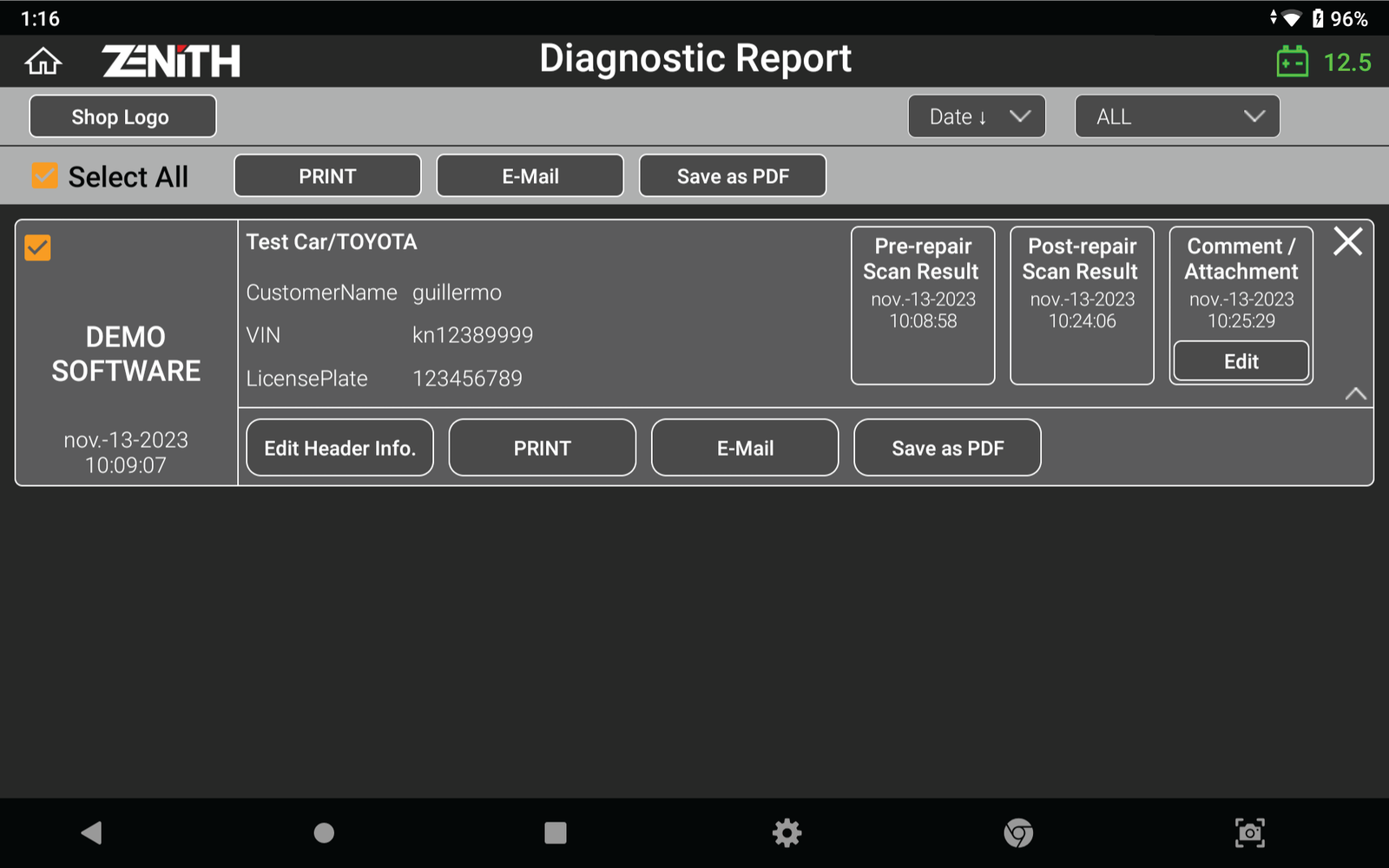

  Pre & Post Diagnostic Report

  Zenith offers easy creation of diagnostic report with Pre-scan and Post-scan result. Not only user can save the reports as PDF file, also with the help of its robust network connectivity, user can print the report directly with a blue-tooth printer or send them to desired E-mail address.



•

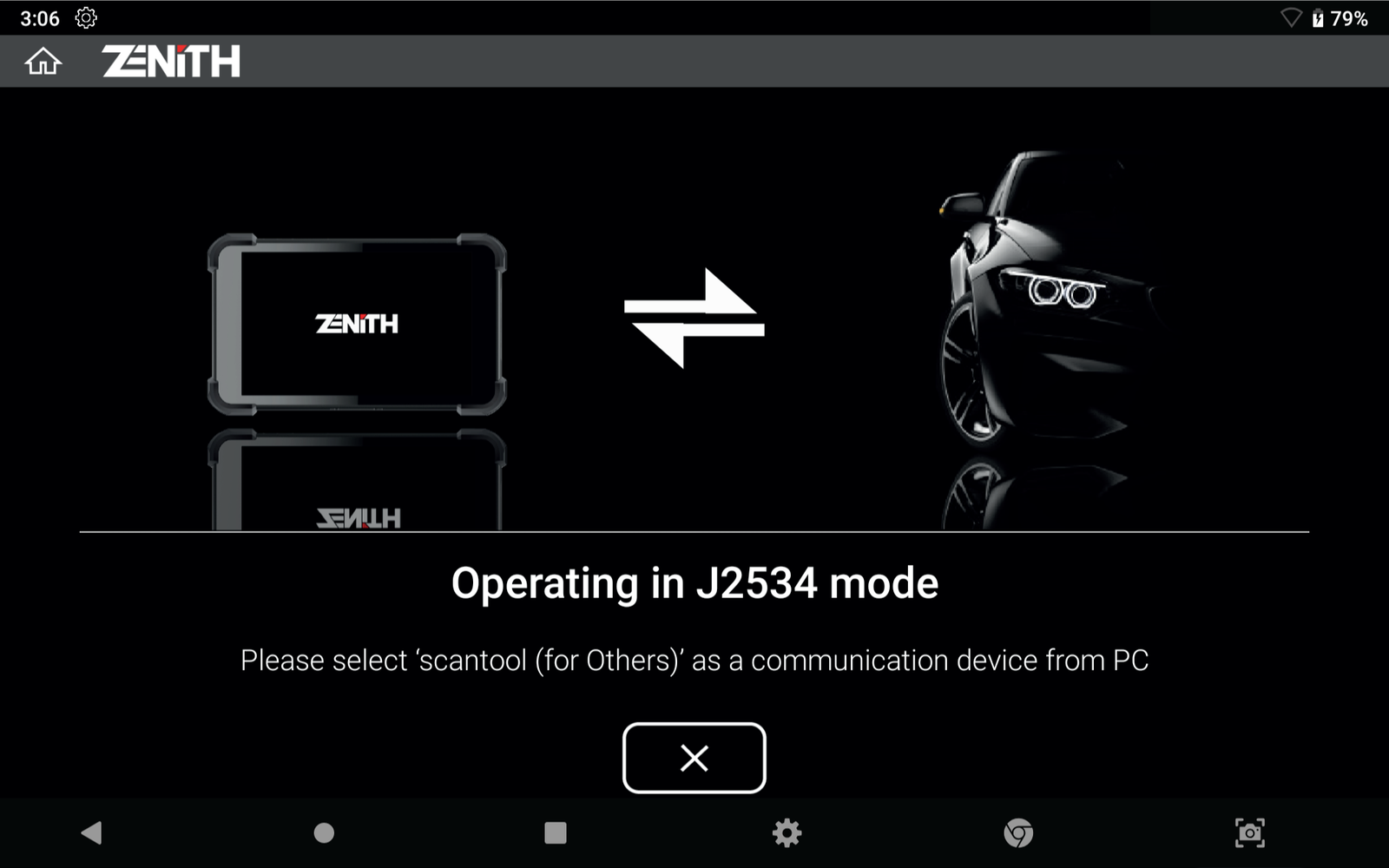

  J2534 Pass-thru

  Zenith acts as a J2534 Pass-thru device for multiple car makes with CAN-Bus, KW

Over 70 % Market Share in Korea and Japan A TRUE ALL-IN-ONE SCANNER (EV, ADAS and more) FAST BIDIRECTIONAL SCANNER

 True All-In-ONE Scan Tool Compact but powerful multi-brand bi-directional scan tool Features CPU: Operating System: System Memory: External Memory: LCD: Input Devices: Camera: Sound: Rechargeable Battery: Operating Voltage: Sensors: Dimension: External Port: Network: Octa Core Processor @ 2.0 GHz Android 9 Internal 32GB, RAM 3GB Micro SD Card 8.0 inch FHD (1920 x 1200) Capacitive Touch Screen, 3 Hard Keys (Power, Volume +, Volume -) 8 megapixel auto-focus with LED flash Loud Speaker | 1 Microphone; 3.5 pi standard audio jack Li-ion 3.8V 3200mAh DC9 ~ 30V Ambient Light, Proximity, Gyroscope, Accelerometer 225 x 136 x 33mm USB 1ea, USB C 1ea RJ45 Ethernet, WiFi 802.11 a/b/g/n, Bluetooth 4.2 Supported Vehicle Communication Protocols : CAN (High speed, Low speed, Single), ISO-13400, ISO-11898, ISO-9141, ISO-9141-CARB, KWP-2000, SAE-J1708, SAE-J1587, J1850(PWM/VPW), Melco Pull-Down Quick access to mostly used service functions without navigating menu system Bi-directional communications with 24 V commercial trucks and buses Ready for most protocols on the market including CAN FD and DoIP. (CAN FD Adapter available as optional accessory) Ultra fast Topology scan for all-system-scan TOPOLOGY Latest ADAS calibration software included in one package Robust connectivity for smart update, Bluetooth printing, browsing and much more an tool ‘Pass-Thru’ device for programming the ECUs for multiple carline Fast and easy diagnostic report on pre and post scan result
