10′ L x 16″ W Heavy Equipment Ramps, Pin-On End, Stub Foot – 10,000 lb. per Axle
Original price was: £1,713.03.£1,027.82Current price is: £1,027.82.
Heavy-Duty Pin-On Aluminum Equipment Ramps – 10′ x 16″

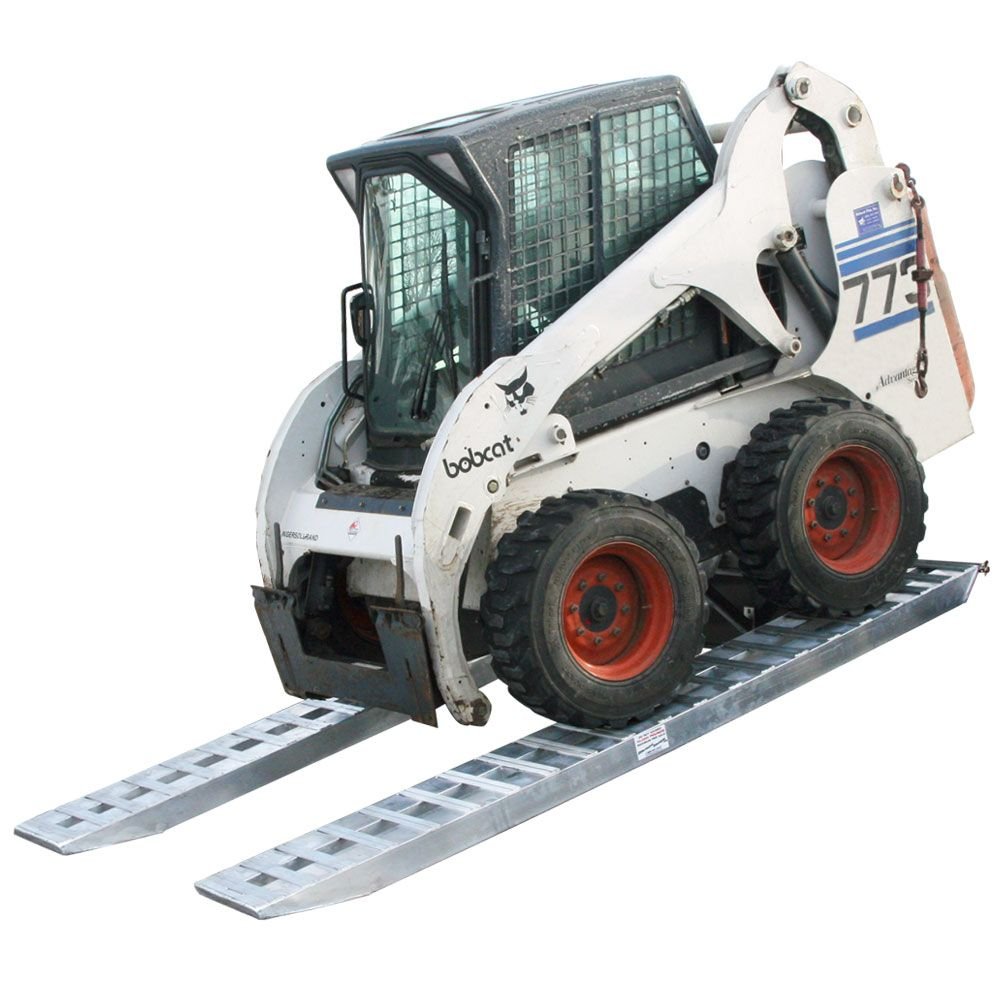

Safely and efficiently load heavy machinery with these industrial-grade aluminum ramps, built for skid steers, tractors, trenchers, and other equipment up to 10,000 lbs. per axle. Designed for versatility, these ramps accommodate rises from 36″ to 42″.
Key Features:

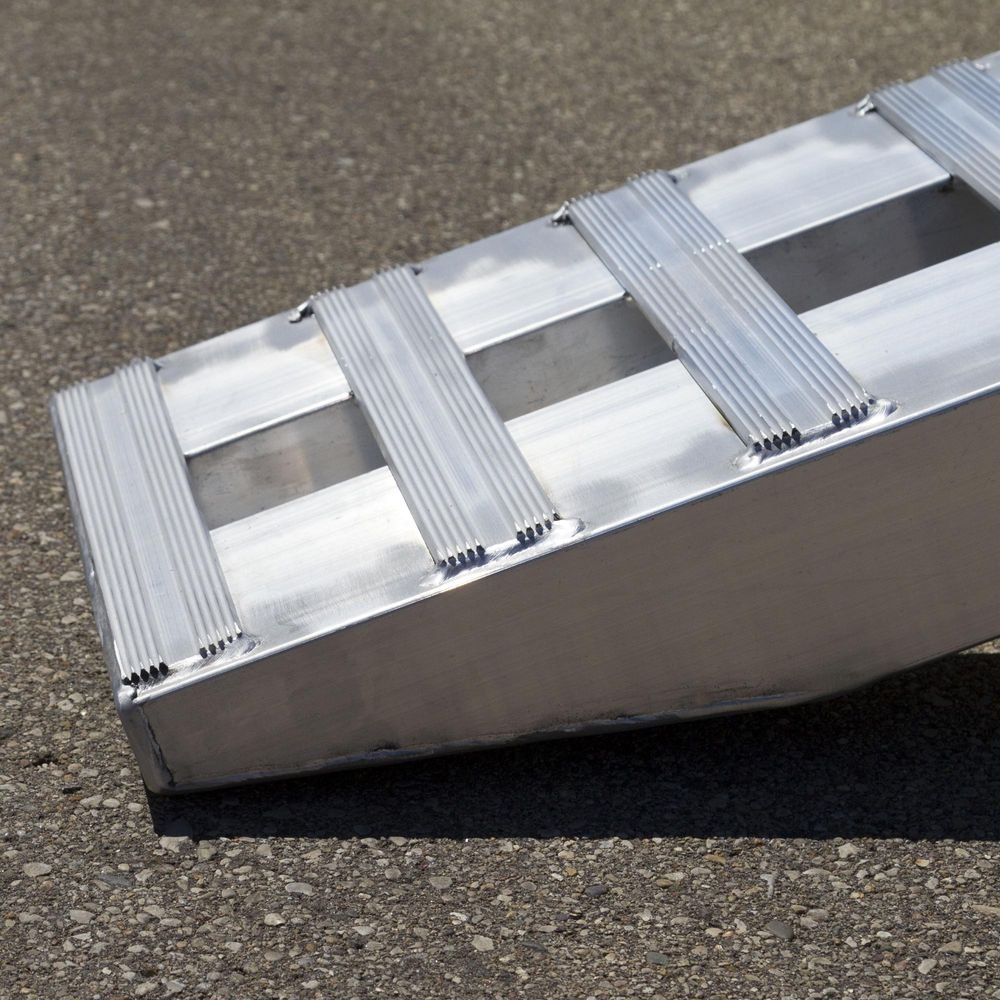

- Serrated Rung Traction: Each flat, welded rung is horizontally serrated to maximize tire grip and improve water drainage. The open design allows debris to pass through effortlessly.
- Pin-On End: Provides the most secure ramp connection for industrial and commercial use. The hollow tube rests in a pre-installed skid seat (sold separately) and is locked in place with a pin, preventing the ramp from slipping or being removed accidentally.
- Stub Foot: Reinforced rectangular foot allows adjustable ramp angles without sacrificing structural strength, ensuring stable loading from various heights.
- Durable Aluminum: Made in the USA from lightweight, heavy-duty aluminum, offering a strong yet portable ramp solution.
Specifications:
- Length: 10′
- Width: 16″
- Height: 4-1/4″
- Weight: 73 lbs. each
- Maximum Capacity: 10,000 lbs. per axle
- Minimum Height: 36″
- Maximum Height: 42″
- Material: Aluminum
- Foot Type: Stub
- Attaching End: Pin-On
Additional Information:
- Sold in pairs for full trailer support
- Extra-wide serrated rungs provide traction in snow, rain, or mud
- Pin-on connector must be secured to skid seat brackets before use
- Wall brackets available for loading into basements or other tight areas
Usage Guidelines:
- Not recommended for trucks with mounted cranes, forklifts, or steel-track vehicles
- Always verify axle weight; front axle is typically heaviest
- Never exceed maximum axle capacity
Warranty & Safety:
This HD Ramps product comes with a 5-year warranty and is guaranteed defect-free at the time of purchase.
⚠️ WARNING: This product may expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
