10′ L x 20″ W Heavy Equipment Ramps, Pin-On End, Pin-On Foot – 20,000 lb. per Axle

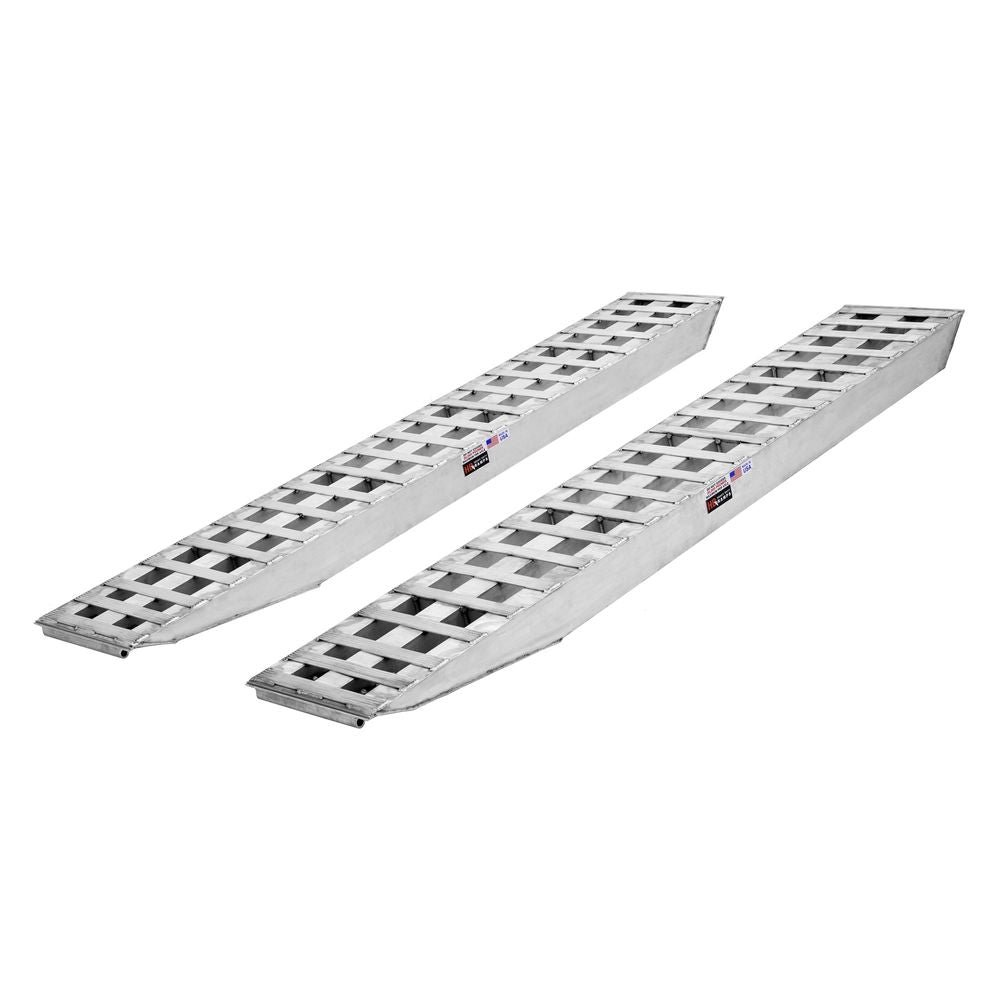

Heavy-Duty 20,000 lb. Pin-On Aluminum Equipment Ramps – 10′ x 20″

Handle the toughest loading jobs with these ultra-strong aluminum ramps, engineered for heavy machinery and industrial use. Each ramp supports up to 20,000 lbs. per axle and fits loading heights between 36″ and 42″, making them ideal for both standard trailers and step-deck configurations.

Key Features:

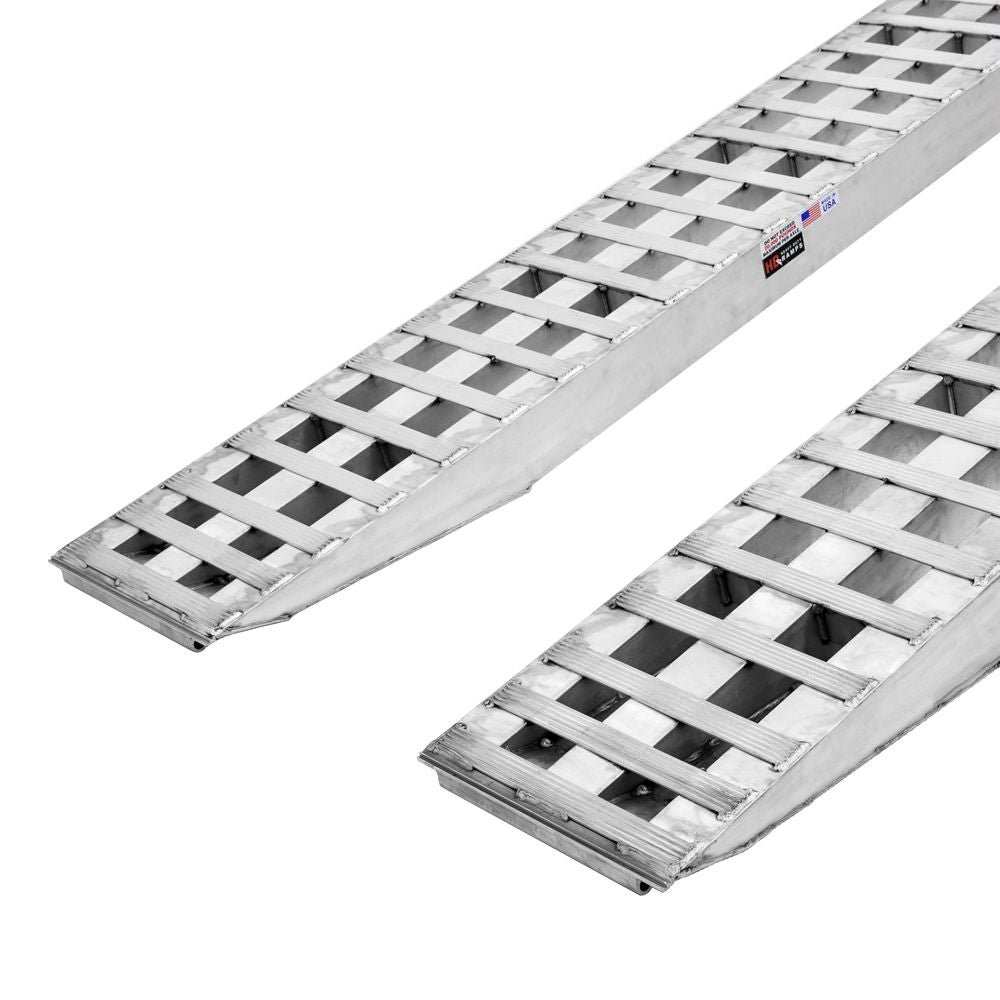

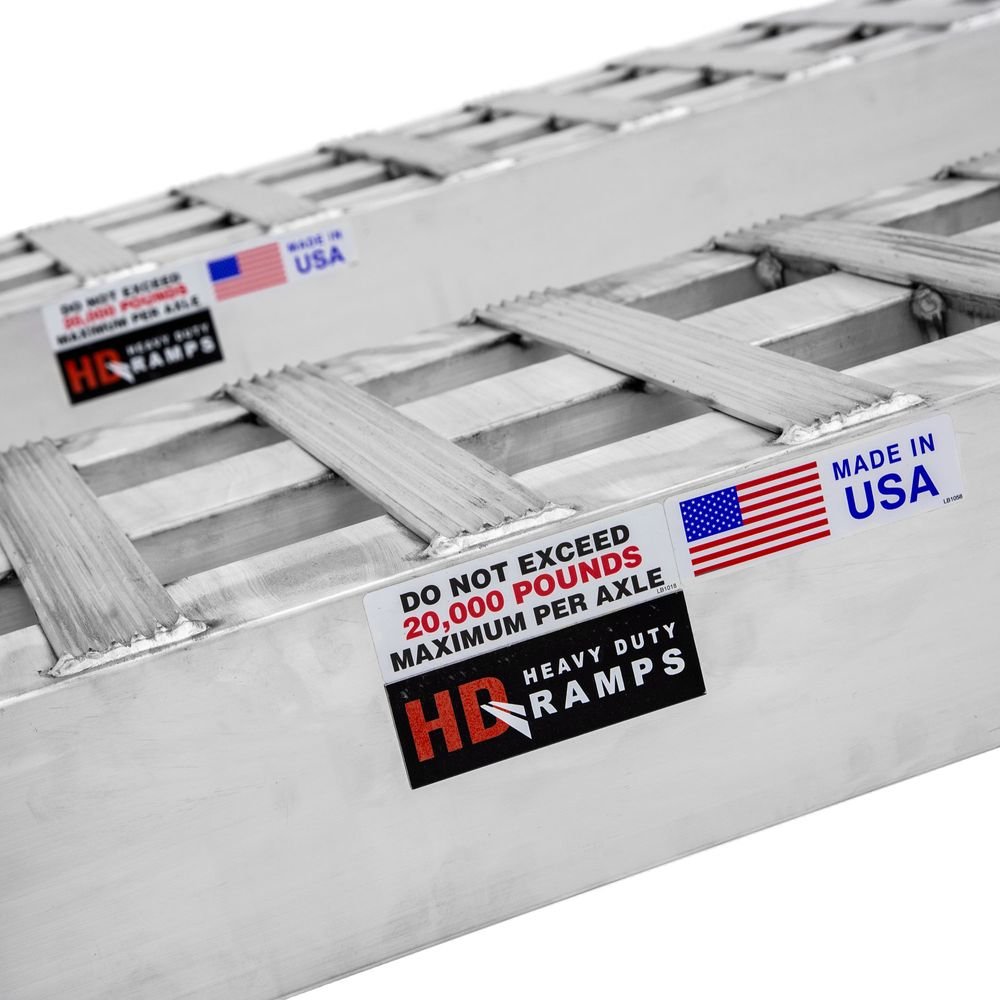

• Serrated Rung Traction: Flattened, welded rungs with horizontal serrations ensure excellent tire grip and efficient water drainage. The open design allows mud and debris to pass through easily.
• Pin-On End: The most secure attachment option for industrial applications—each ramp connects using a pin and skid seat (sold separately), locking firmly in place and preventing accidental movement.
• High-Strength Aluminum Build: Made in the USA from heavy-duty aluminum that combines strength and portability. Each ramp weighs 240 lbs., built to handle demanding equipment loading needs.
• Wide, Two-Beam Construction: Provides superior stability and traction on uneven or slippery surfaces such as rain, snow, or mud.
• Bi-Directional Design: Both ends are equipped with welded pin-receiving tubes, allowing use in either direction.

Specifications:

• Length: 10′
• Width: 20″
• Height: 6″
• Weight: 240 lbs. each
• Maximum Capacity: 20,000 lbs. per axle
• Minimum Height: 36″
• Maximum Height: 42″
• Material: Aluminum
• Foot Type: Stub
• Attaching End: Pin-On

Additional Information:

• Works with standard and step-deck trailers
• Optional wall brackets available for basement loading applications
• Sold in pairs for full loading setup

Usage Guidelines:

• Not for use with vehicles equipped with cranes, forklifts, or steel tracks
• Never exceed the ramp’s maximum axle weight
• To determine axle weight, drive your vehicle’s heaviest axle (usually the front) onto a scale
• Note: When used with step-deck trailers, these ramps cannot serve as load levelers due to their 20″ width

Warranty & Safety:
Every HD Ramps product is backed by a 5-year warranty and guaranteed to be free from defects at the time of purchase.
