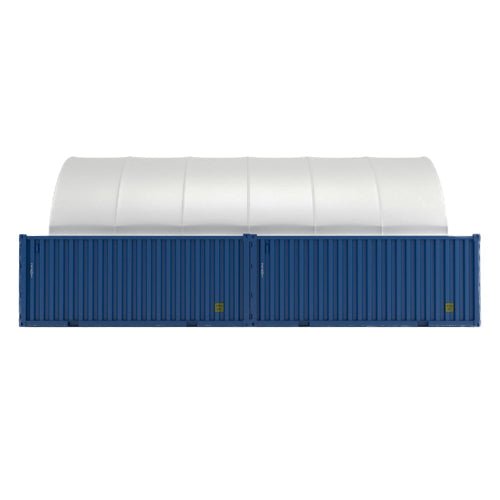

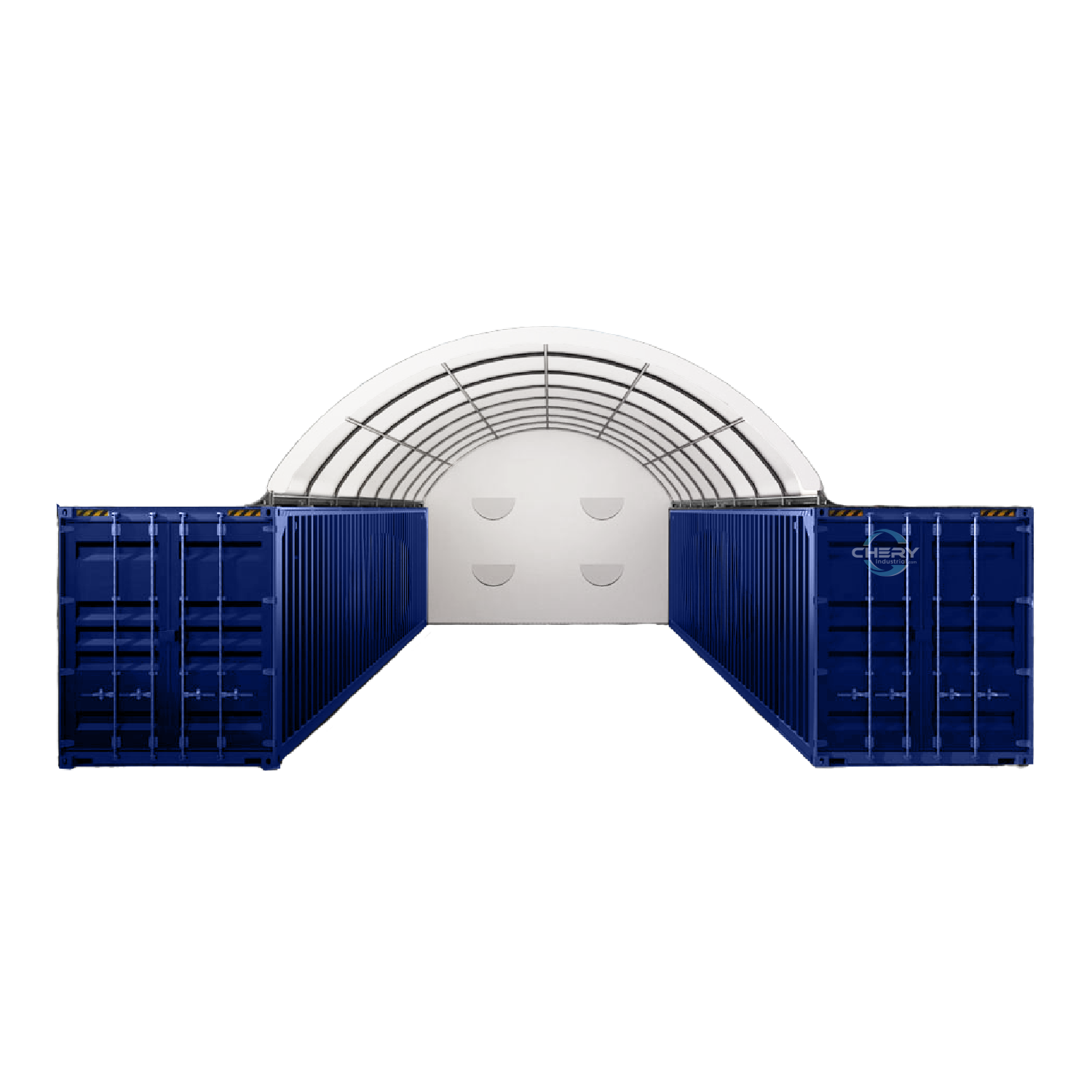

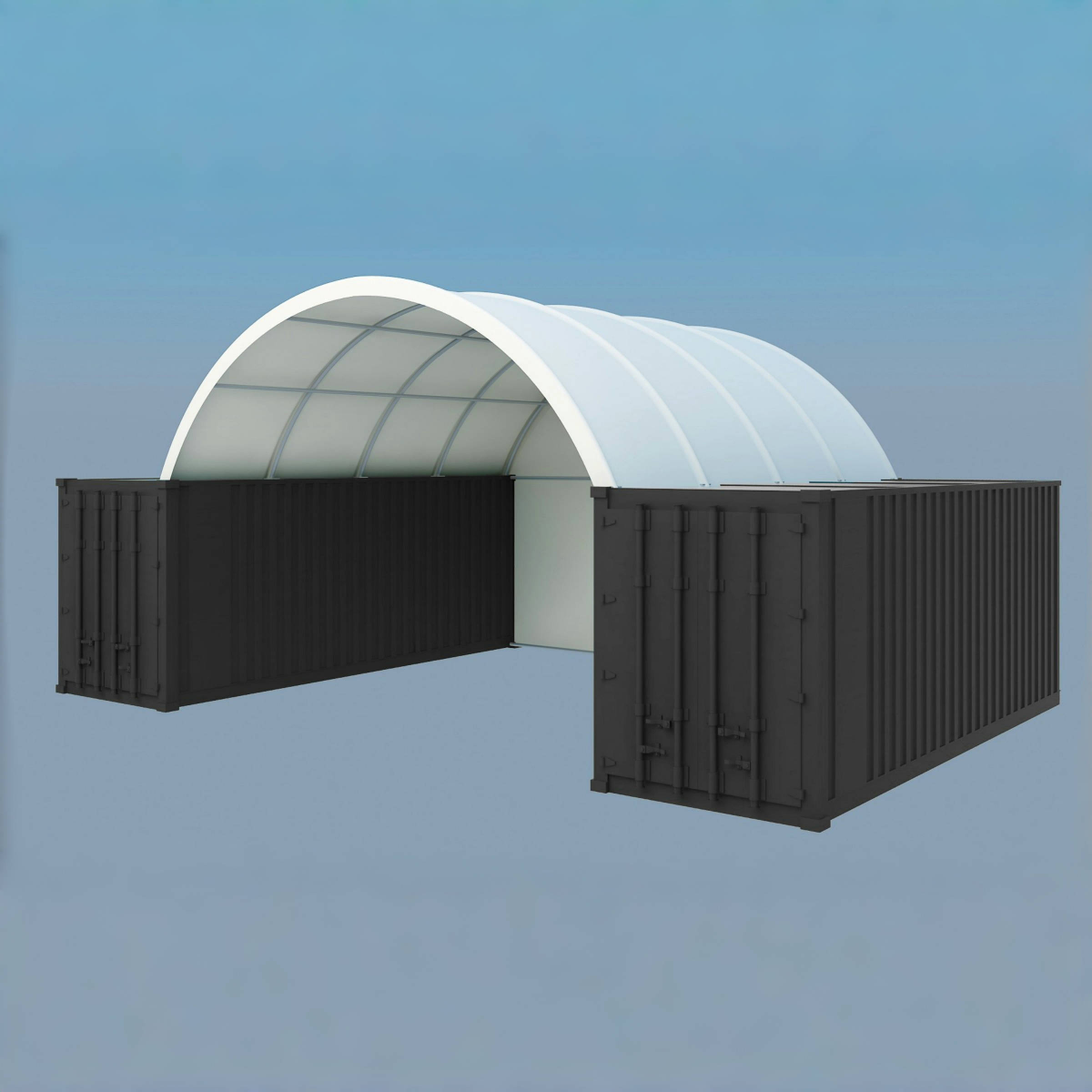

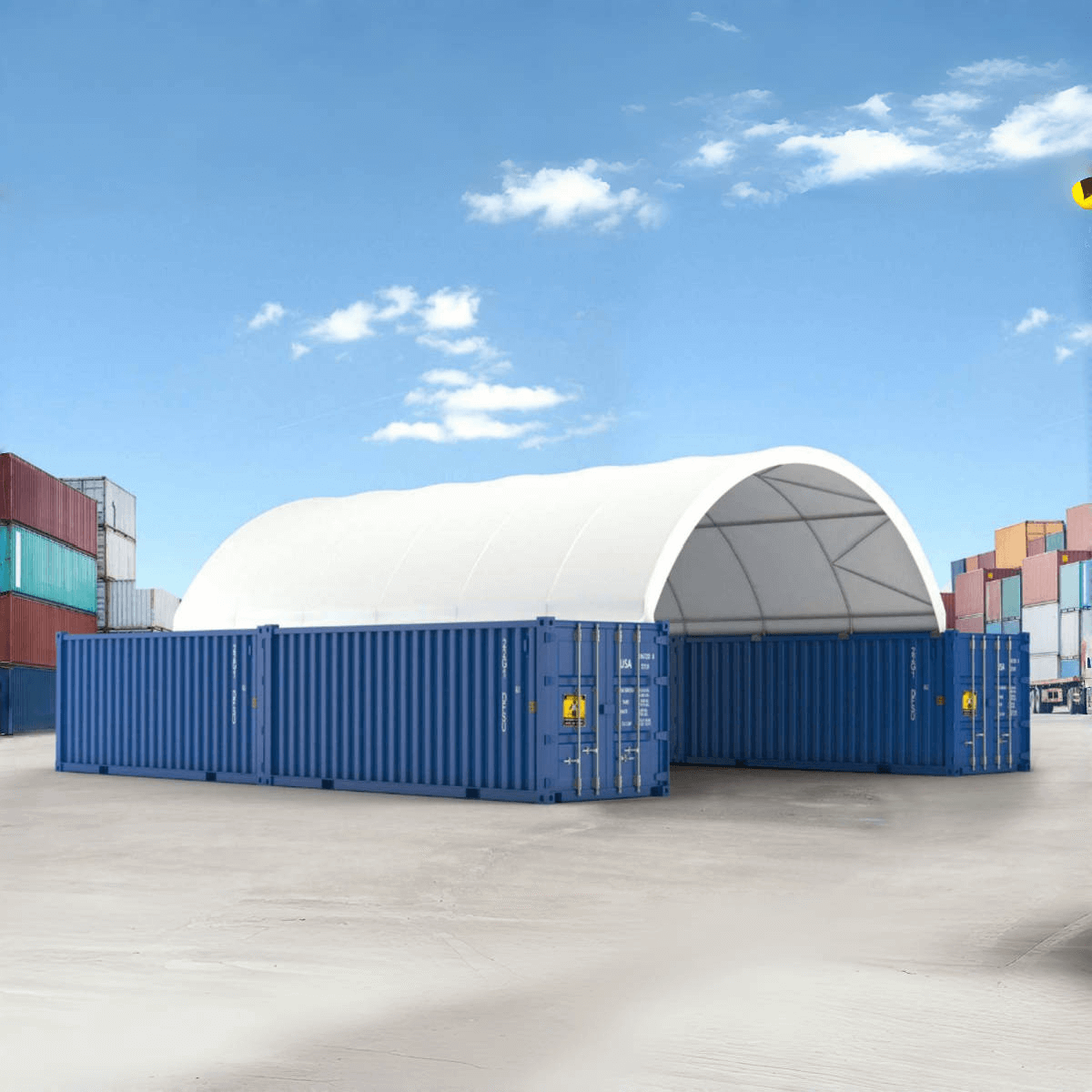

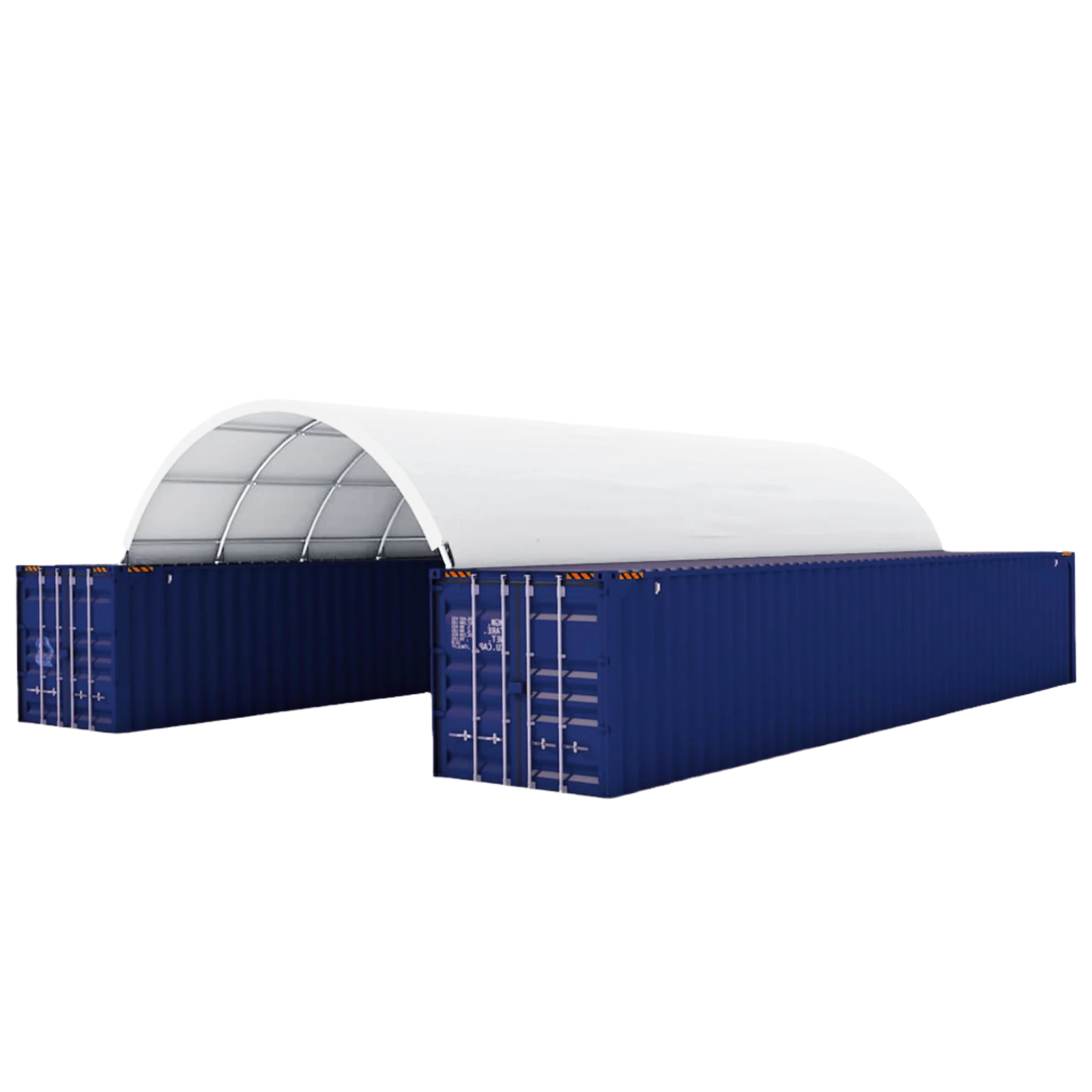

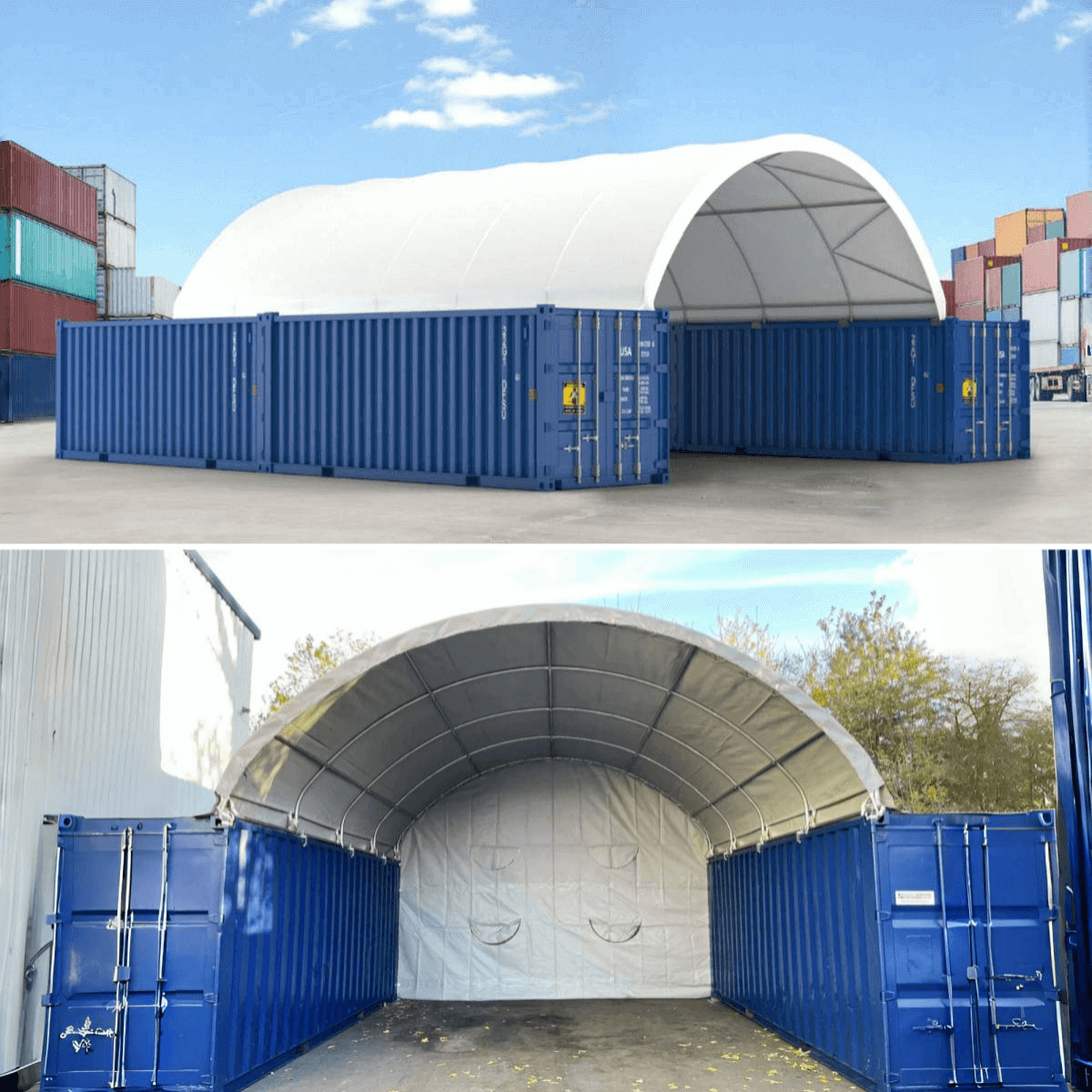

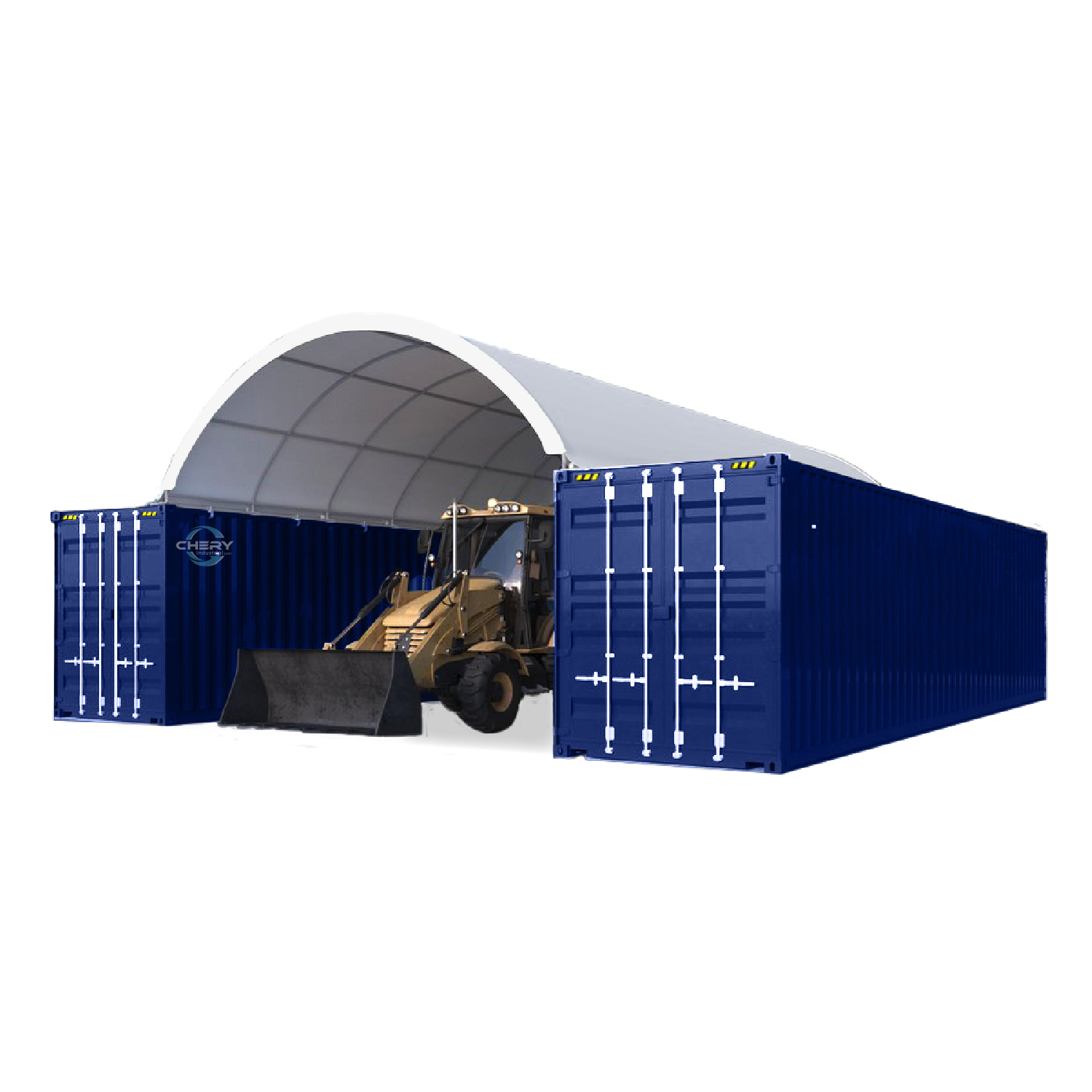

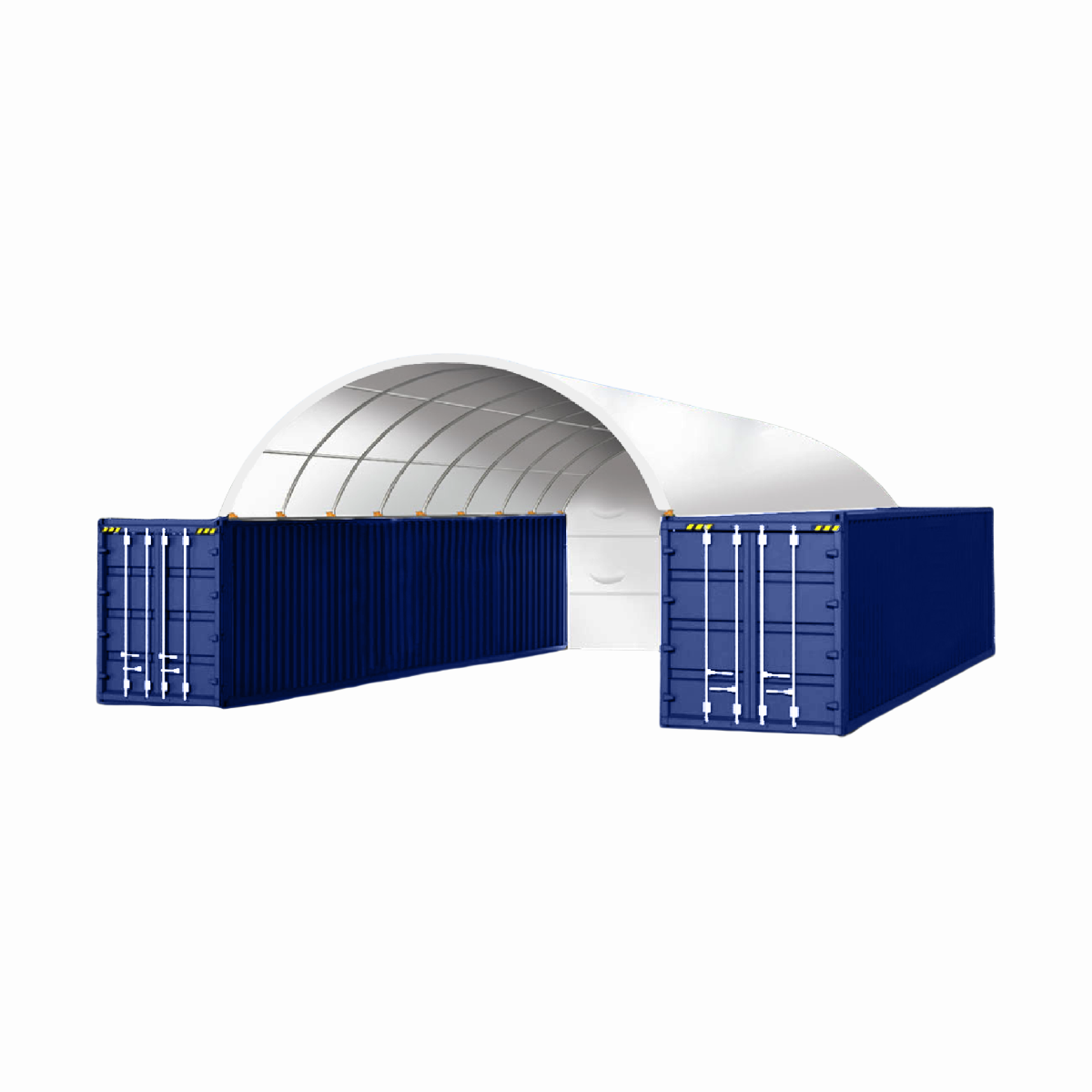

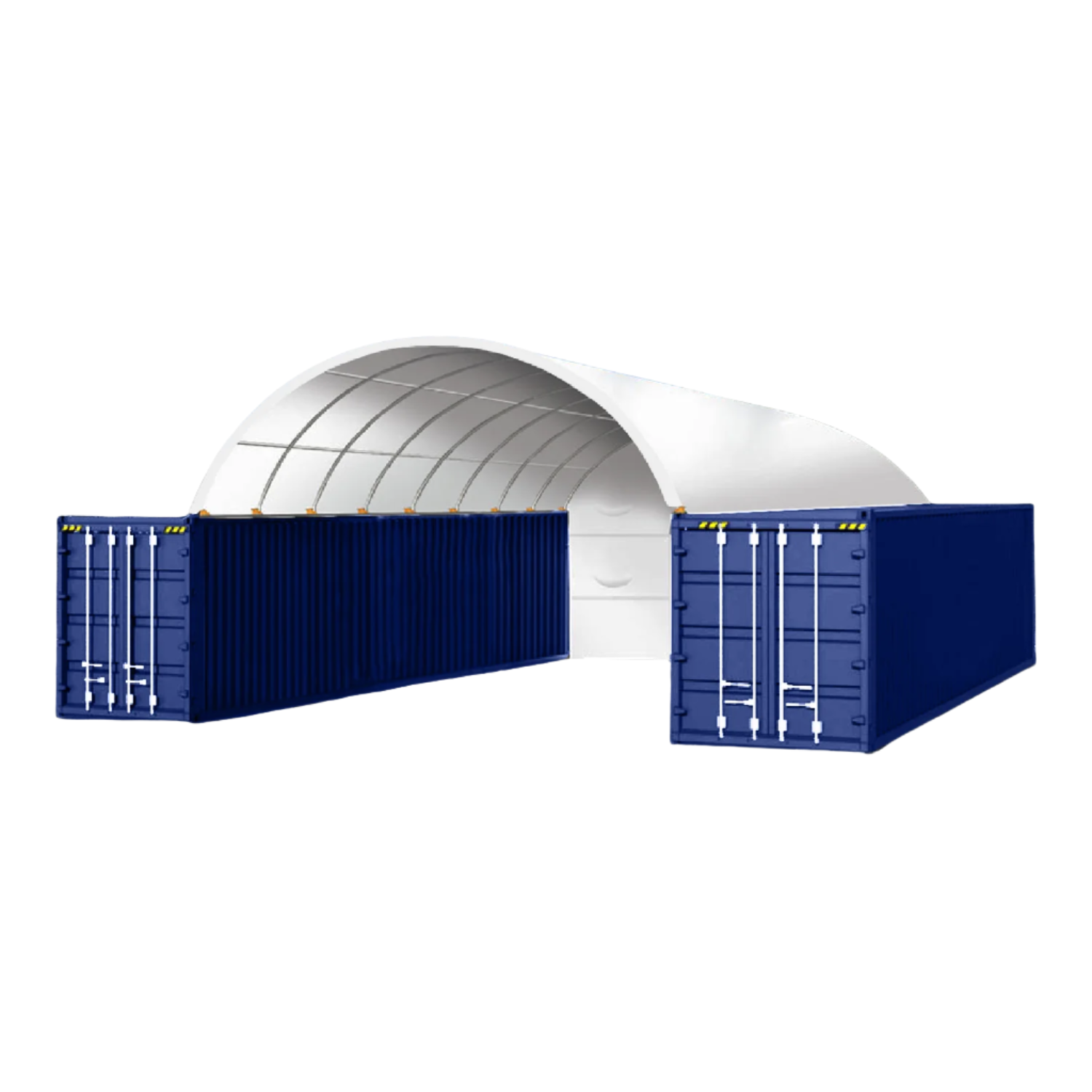

20×40 ft Container Shelter with Closed Back Panel
Price range: £1,343.55 through £1,791.55
20×40 ft Container Shelter with Closed Back Panel
The 20×40 ft Container Shelter with Closed Back Panel offers a spacious, durable, and versatile solution for storage and protection. Featuring a robust PE back panel and tarpaulins available in multiple materials, this shelter is ideal for warehouses, farms, workshops, temporary offices, car lots, livestock housing, and large events.
How to Install the Container Shelter?
Specification
| Description | Specifications |
| Model | C2040 Dome Container Shelter |

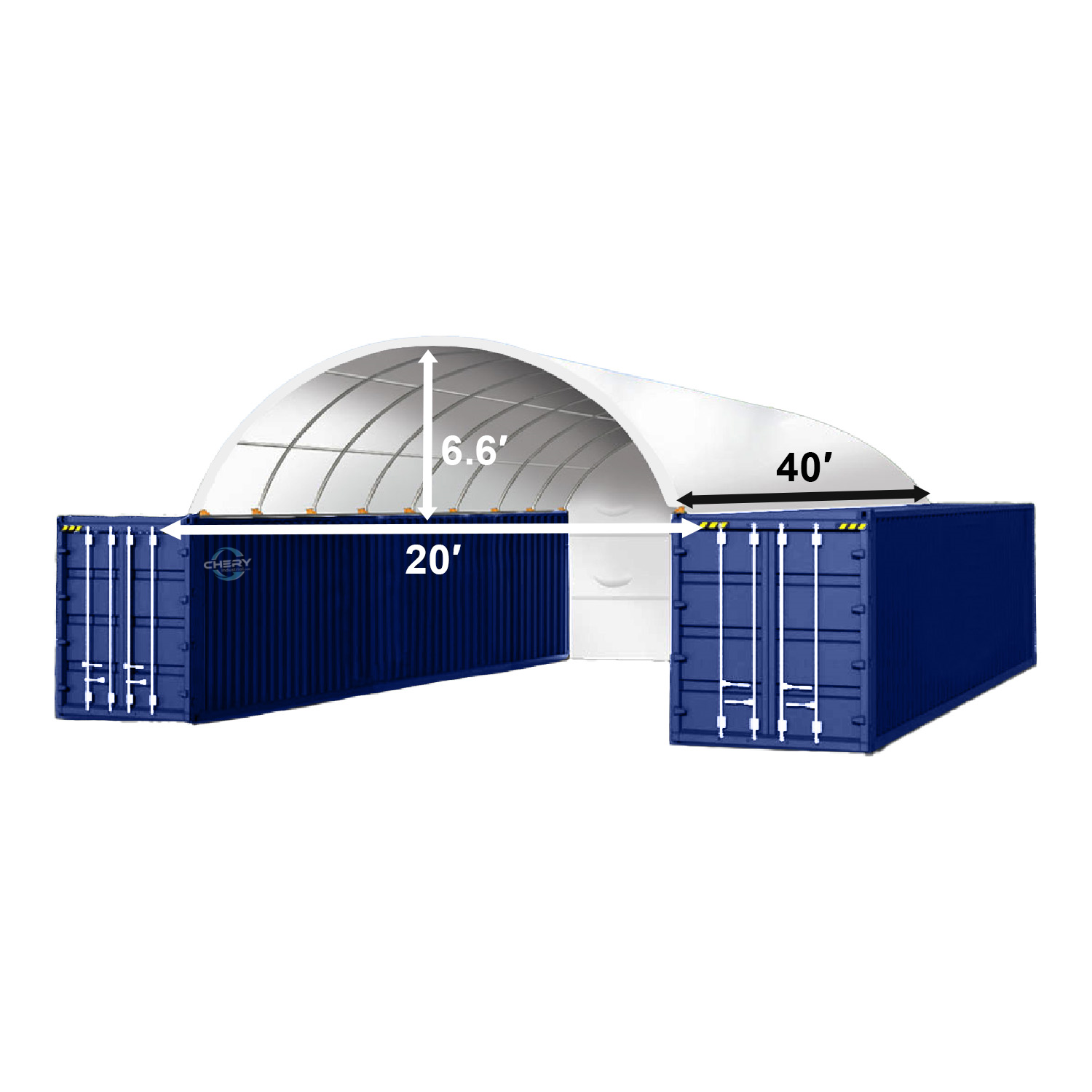

| Dimension (ft) | W20xL40xH6.6 |
| Frame | Single Truss Galvanized Tube |
| Steel Structure | High-Grade Hot Dip Galvanized Steel |
| Fabric |
|
| Fabric Feature | Waterproof, UV-resistant, Fire-Retardant, Self-Cleaning Property |
| Temperature resistance | -22 – +158 °F |
| Front/back walls (optional) |
|
| Arch Interval | 5 ft |
| Arch Ø (mm) | Ø45×1.5 |
| Purlin Ø (mm) | Ø32×1.2 |
| Tension System | Pipe and Ratchet Tie-Down System |
| Easy Installation | Twist lock and clamp installation |
| Weld | No welding required |
| Snow Load | 48 lbs/ft² |
| Wind Load | 50 miles/h |
| Average assembly time for DIY with 4 persons | Max. 1 day |
| Safety | The tarpaulin is PFAS-free and EU REACH compliant. |
| Tarp Lifespan | 7-10 years, depending on the type of fabric and environmental conditions. |
| Frame Lifespan | 15+ years |
| Warranty |
|
Notes
- “Lifespan” refers to the durability of the materials, not the installation of the shelter.
- Structural integrity may be affected by sudden weather events (e.g., high winds, heavy snow, rain). Always check weather forecasts and consider limitations.
Features
- Style: Pony Wall
- Tarpaulin: PFAS-free and EU REACH compliant
- Certifications: CSA/TUV Snow Rating, SGS fabric Certificate
- Interior: No pole inside, 100% usable space
- Usage: Warehouse, farm tent, equipment storage, car lot, temporary office, livestock house, workshop, parties, large events

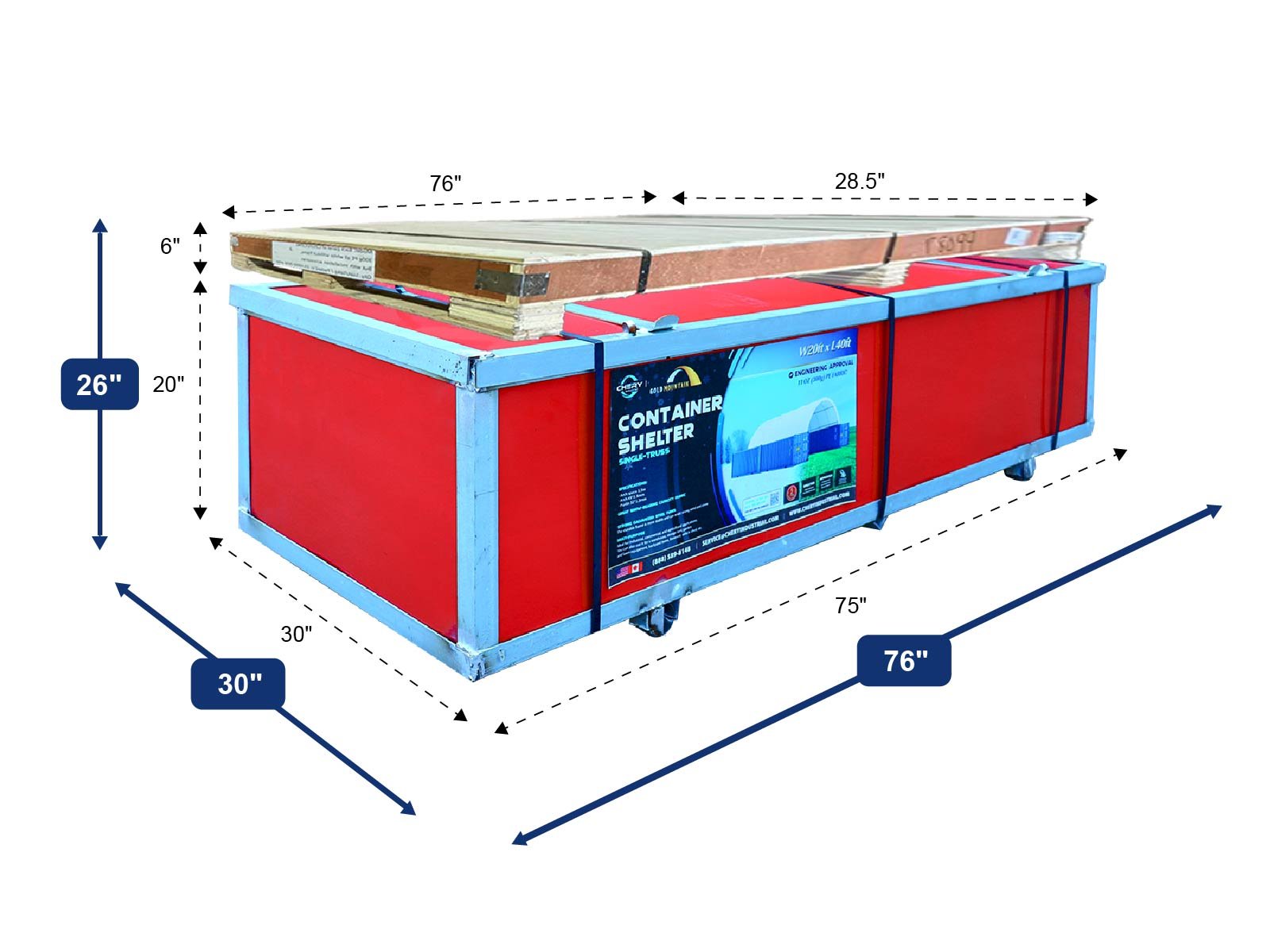

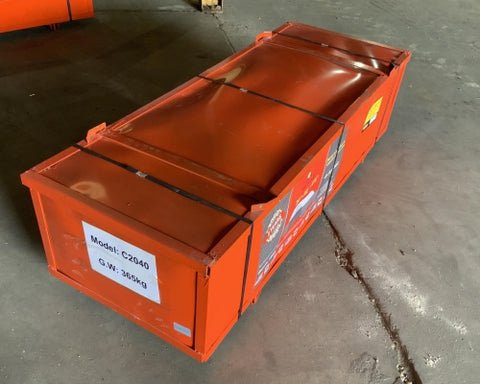

Package Size
Box A
- Dimensions (LxWxH, in): 75 x 30 x 20
- Weight: 805 lb
- Note: A forklift or equivalent is required for unloading
Box B
- Dimensions (LxWxH, in): 76 x 28.5 x 6
- Weight: 86 lb
- Note: A forklift or equivalent is required for unloading
Parts
C2040,20×40, shipping container storm shelter, canopy, container shelter, shipping container shelter, container canopy
