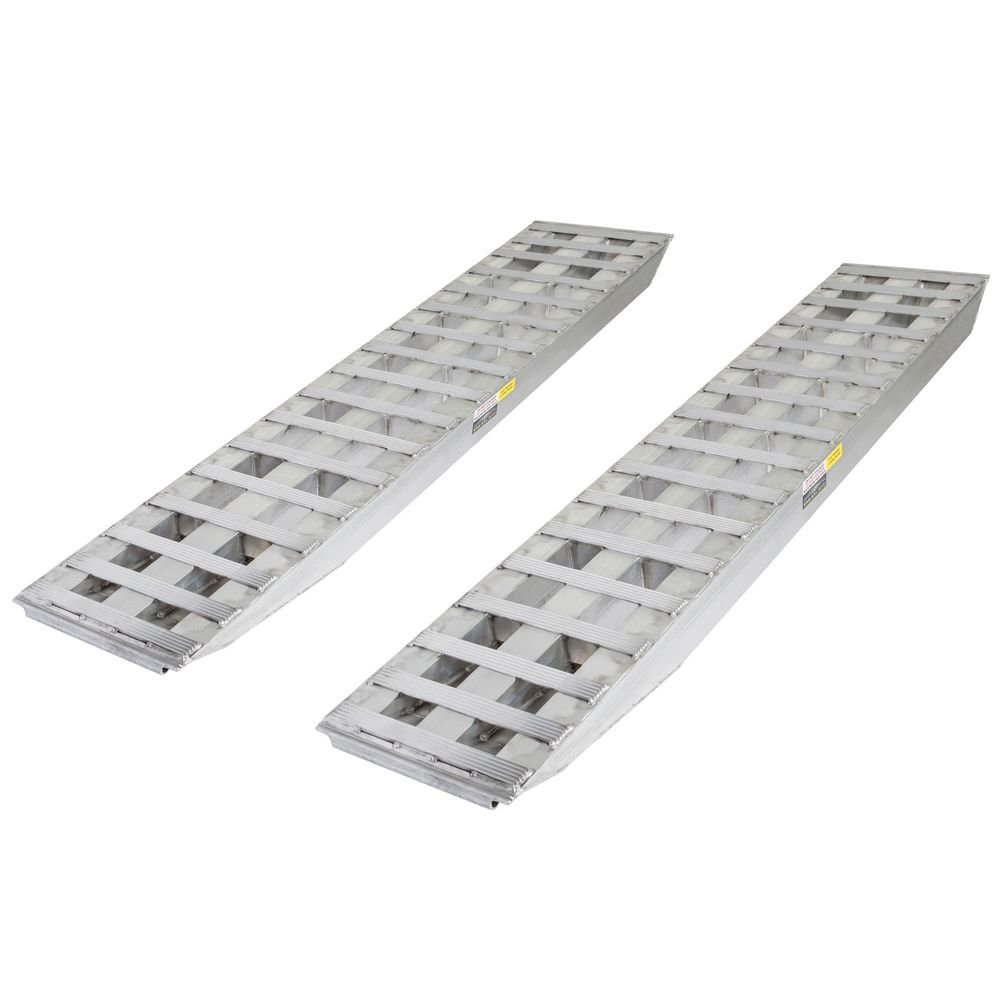

8′ L Aluminum Ramps, Double Pin-On Ends – 20,000 lb. Weight Cap

Heavy-Duty Step Deck Trailer Ramps

Features
Built for heavy loads

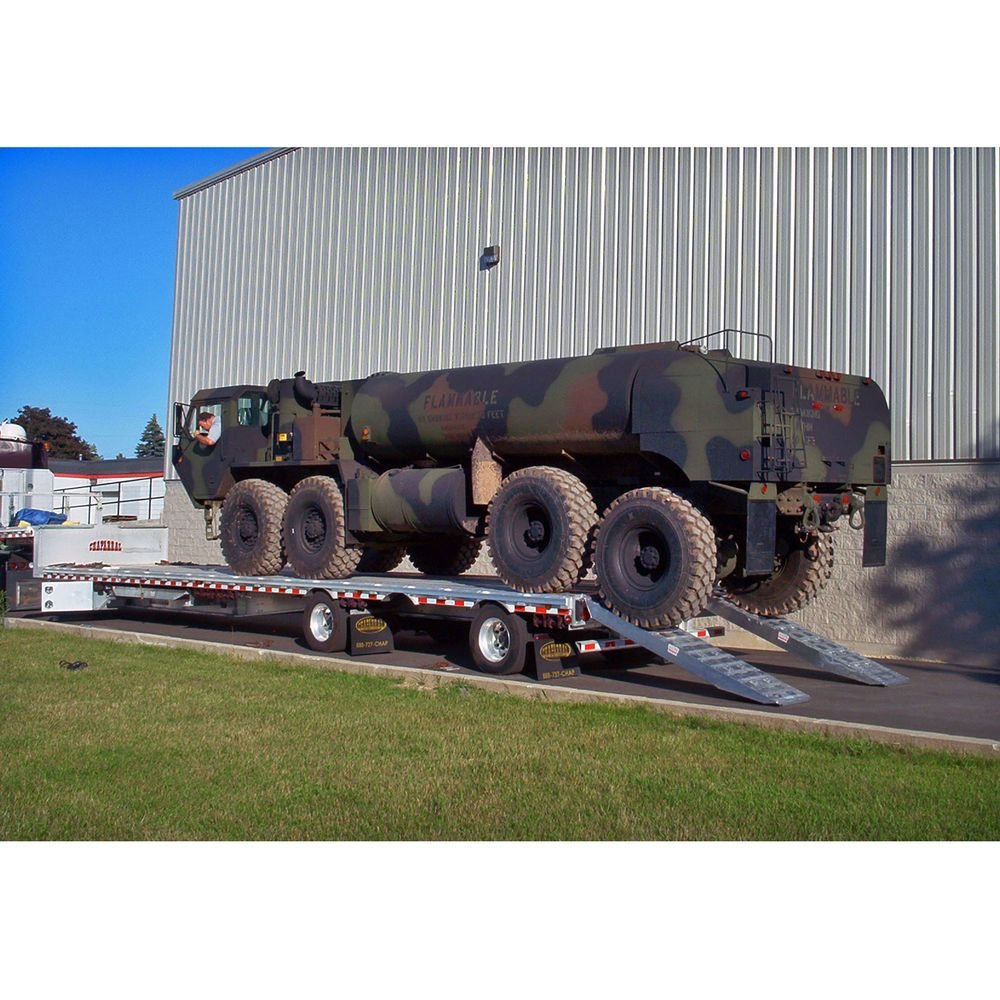

These ramps are engineered for loading heavy equipment, military vehicles, construction machinery, and other large loads, supporting up to 20,000 lbs. per axle. Constructed from welded aluminum, they offer strength comparable to steel while remaining lightweight enough for one or two people to move without a forklift.

Modular load leveling

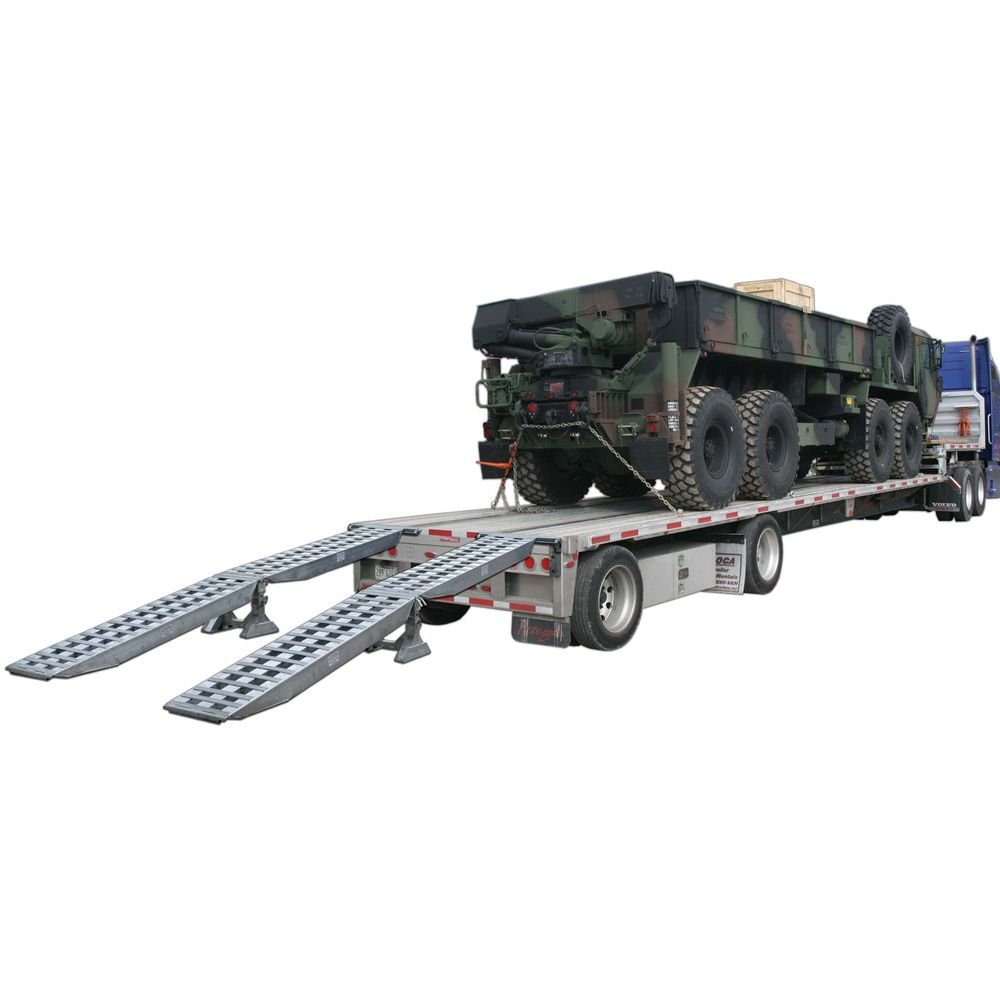

Designed to support weight along the sides, these ramps can be used as load levelers on step deck trailers. Combine them with stake pockets, lumber clips, chains, and optional spacers to balance your load as needed. Optional ramp hanger brackets make under-trailer storage simple and convenient.

Extra traction for safety

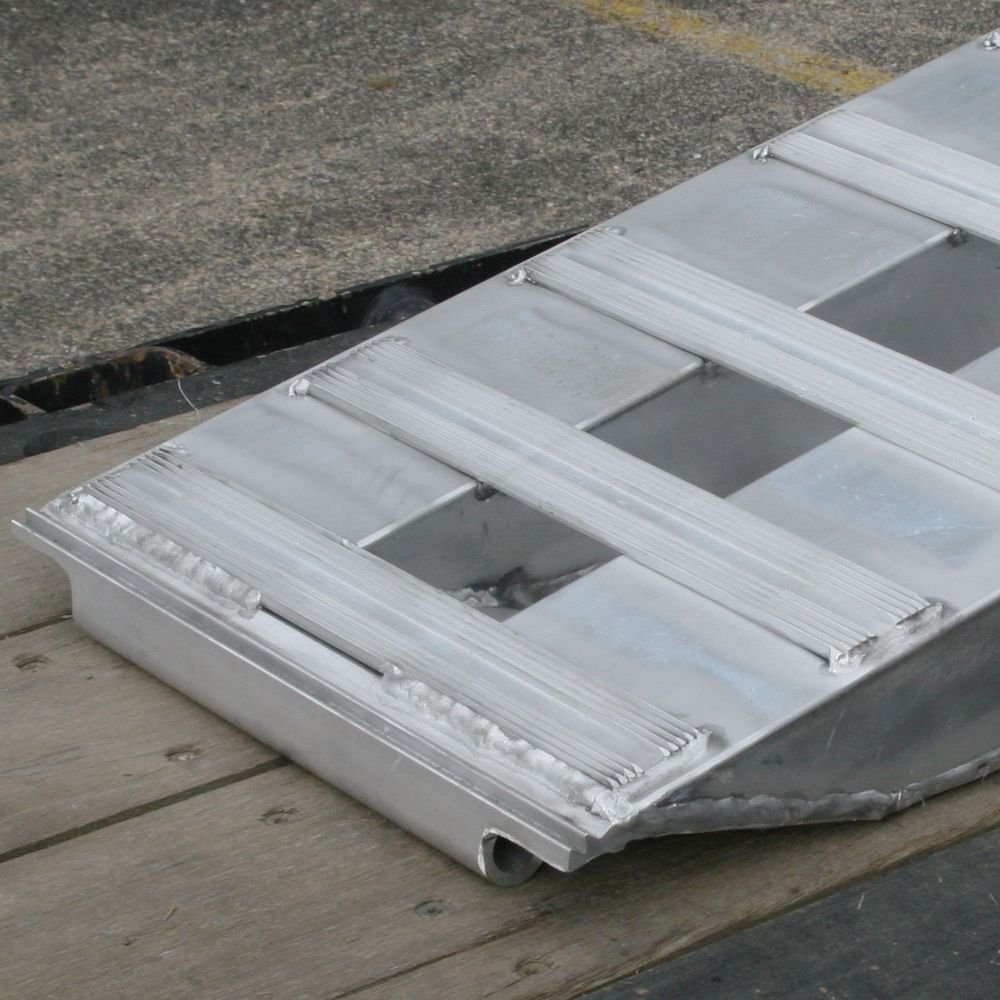

Welded with precision, these ramps feature extra-wide serrated rungs to provide superior tire and track grip, ensuring safe loading in all conditions.

Technology & Features

• Made in the USA

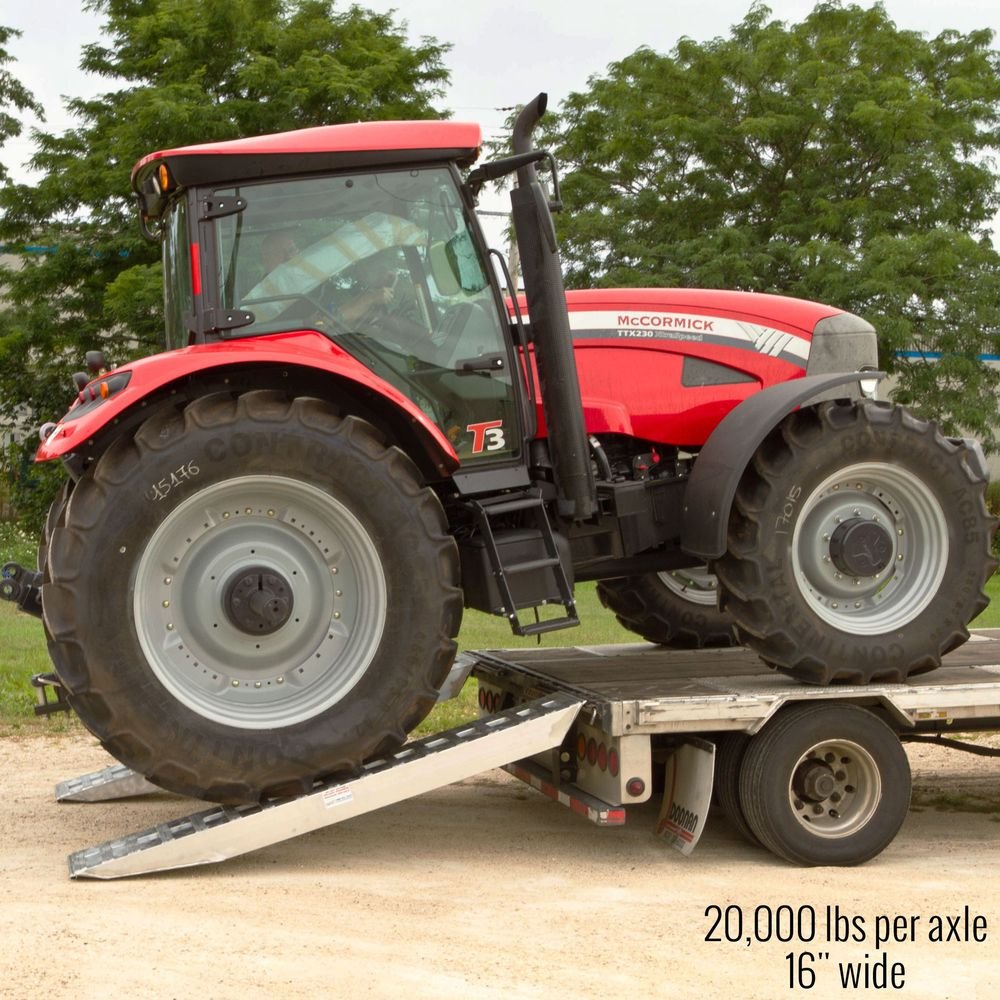

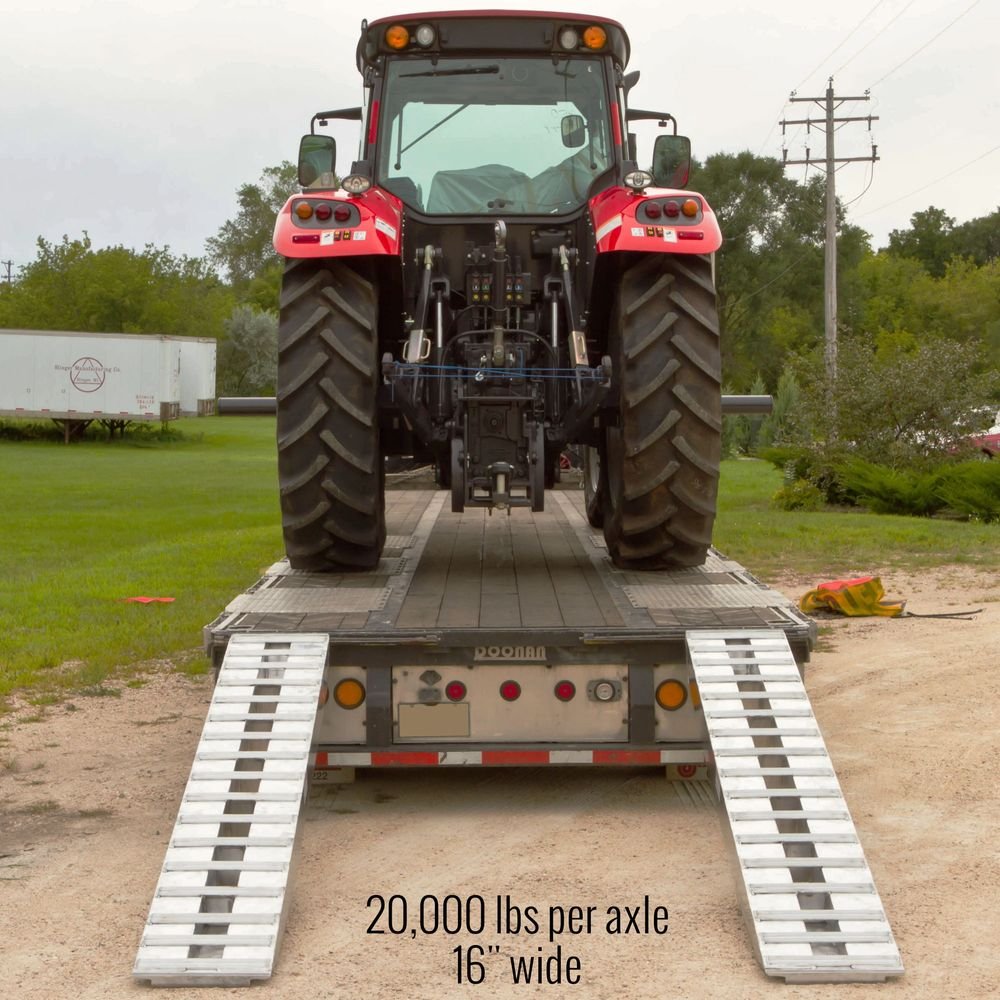

• Maximum Capacity: 20,000 lbs. per axle
• Length: 8′
• Width Options: 16″, 18″, 20″
• Height: 6″
• Weight: 74 lbs. (16″ wide model)
• Material: Aluminum
• Foot Type: Pin-On
• Attaching End: Pin-On
• Surface Type: Serrated Rung

More Information

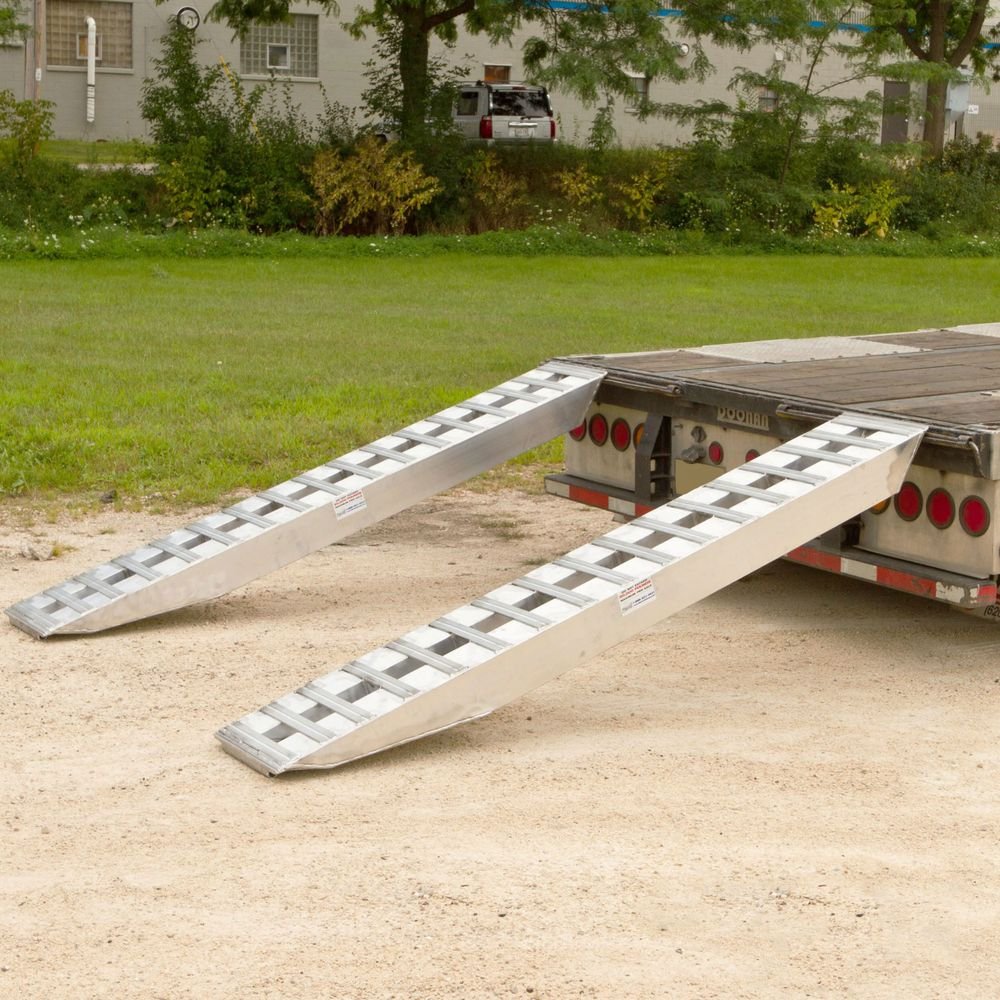

These versatile ramps are ideal for step deck trailers, loading docks, or flatbed trailers. The reinforced stub toe prevents bending under heavy loads and allows the ramps to be used as part of a modular system or individually. Their lightweight construction makes setup quick and easy, even by one person.

• Double pin-on ends for secure attachment
• Aluminum construction for durability and reduced weight
• Easy to store using optional ramp hangers

Usage Guidelines

• Not recommended for trucks with mounted cranes, forklifts, or steel track vehicles.
• Always pin ramps into skid seat brackets before use.
• Never exceed the maximum axle capacity; weigh the heaviest axle to determine safe load limits.

Warranty
Backed by a 5-year warranty, guaranteed to be free of defects at the time of purchase.

Safety Warning
This product may expose you to chemicals, including Cadmium and Lead, known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.
