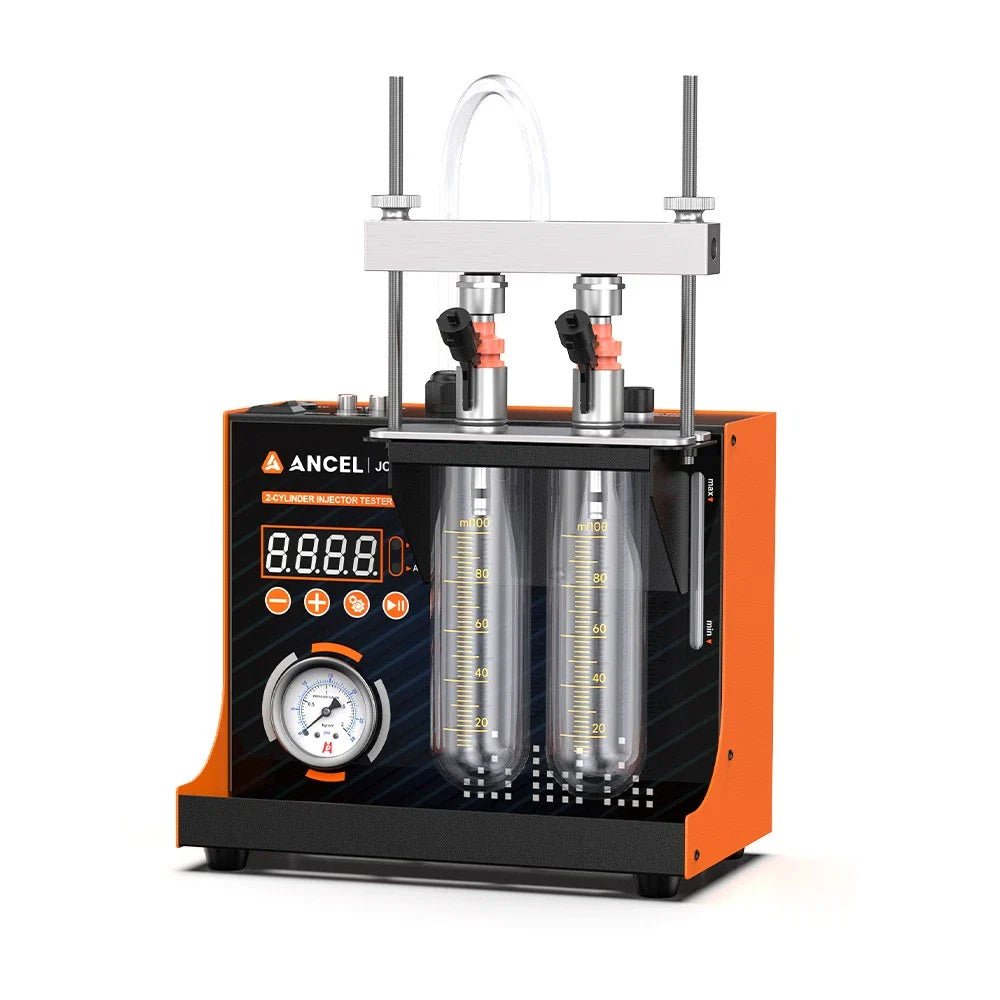

ANCEL JC200 Injector Tester 2 Cylinder Fuel Injection Volume Atomization Test
Original price was: £350.00.£234.50Current price is: £234.50.
ANCEL JC200 Professional 2-Cylinder Fuel Injector Tester for Cars & Motorcycles, 12V Injector Diagnostic Machine with LCD Display, Manual & Auto Test Modes
The ANCEL JC200 2-Cylinder Fuel Injector Tester is a precision-engineered diagnostic solution built for professional technicians and serious workshops that demand accurate, repeatable injector testing. Utilizing advanced mechatronic technology and microcomputer-controlled signal output, the JC200 precisely simulates real engine operating conditions to evaluate injector performance in both automotive and motorcycle fuel systems. Powered by a 12V DC supply, the unit delivers stable and consistent pressure through its pressurized air-driven system, ensuring uniform test conditions for reliable results. The LCD digital display provides clear real-time feedback, while manual and automatic testing modes allow flexible operation for injector uniformity checks, spray atomization analysis, leakage and tightness detection, and precise fuel injection volume measurement. With a wide RPM range of 100–9900, adjustable test durations, and a 150ml recyclable fuel tank, the JC200 enables efficient, low-cost diagnostics without compromising accuracy. Its bright backlit inspection window allows detailed visual observation of spray patterns, and replaceable composite adapters support multiple injector types. Compact, portable, and easy to operate, the ANCEL JC200 is an essential injector testing tool for improving fuel efficiency, engine performance, and repair accuracy.
JC200 Key Features:
- ● LCD Digital display
- ● 12V battery powered
- ● Fuel injection volume testing
- ● Fuel injection uniformity and atomization performance testing
- ● Manual testing
- ● Automatic testing
Operating Instructions
- 1. Remove the injector nozzle from the vehicle.
- 2. Place the injector nozzle into the ultrasonic tank for cleaning.
- 3. Reinstall it into the inspection window for fuel injection testing, allowing direct observation of fuel spray and atomization.
- 4. Cleaning results can be directly observed on the equipment.

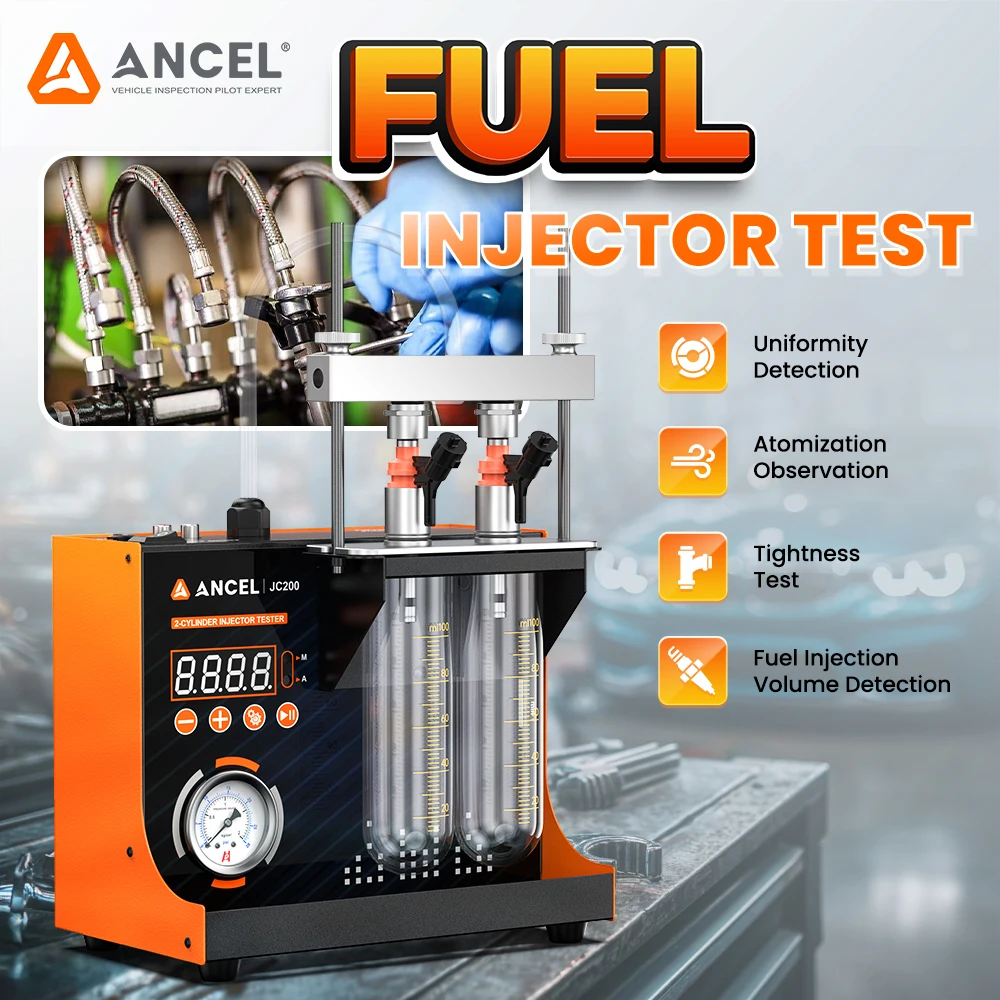

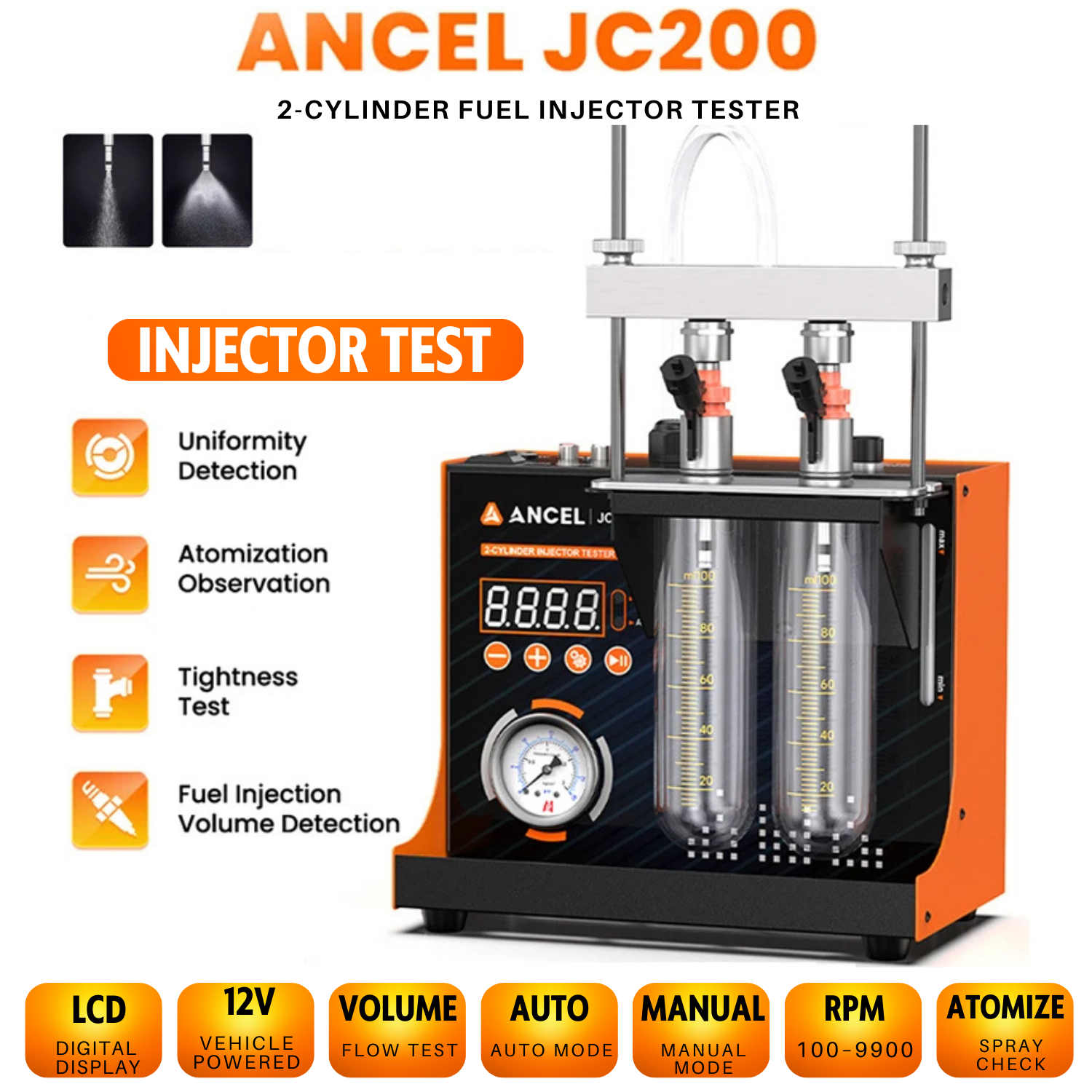

🔥 Main functions
✅ (1) Uniformity test: to check uniformity of the injections.
✅ (2) Atomization observation: with help of the backlight, you can observe the spray atomization situation of the injector in a comprehensive and careful manner.
✅ (3) Tightness test: it can detect the tightness and dropping of the fuel injector under working pressure.
✅ (4) Fuel injection volume detection: it can detect the fuel injection volume of the injector under specific working conditions.
🔥 Main features
✅ (1) Low-cost solution of injection test.
✅ (2) Use pressurized air to push test fluid, ensure stable pressure output, achieve consistence in test conditions.
✅ (3) DC12V power supply, enhance portability of the product.

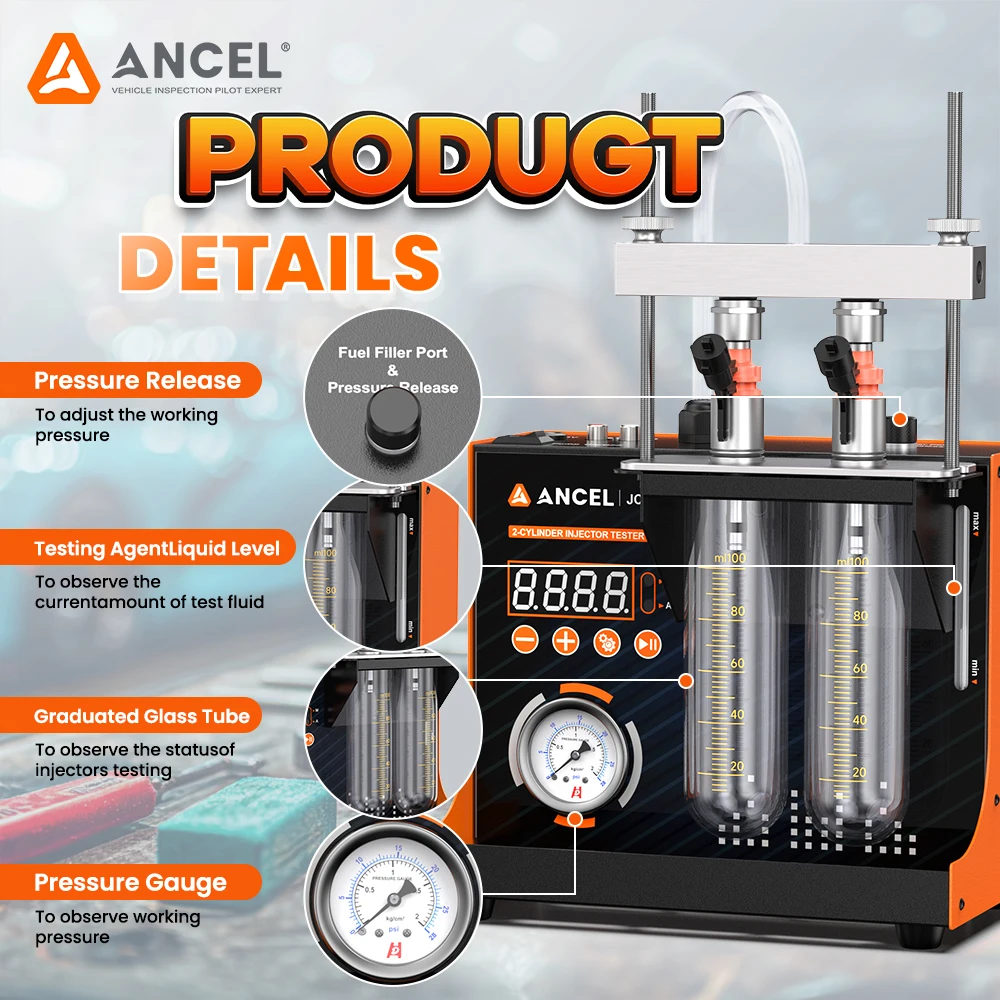

✅ (4) The oil tank liquid level is displayed visually, and the test agent can be recycled.
✅ (5) Bright background light, you can clearly see the various situations of the fuel injector when it is working.

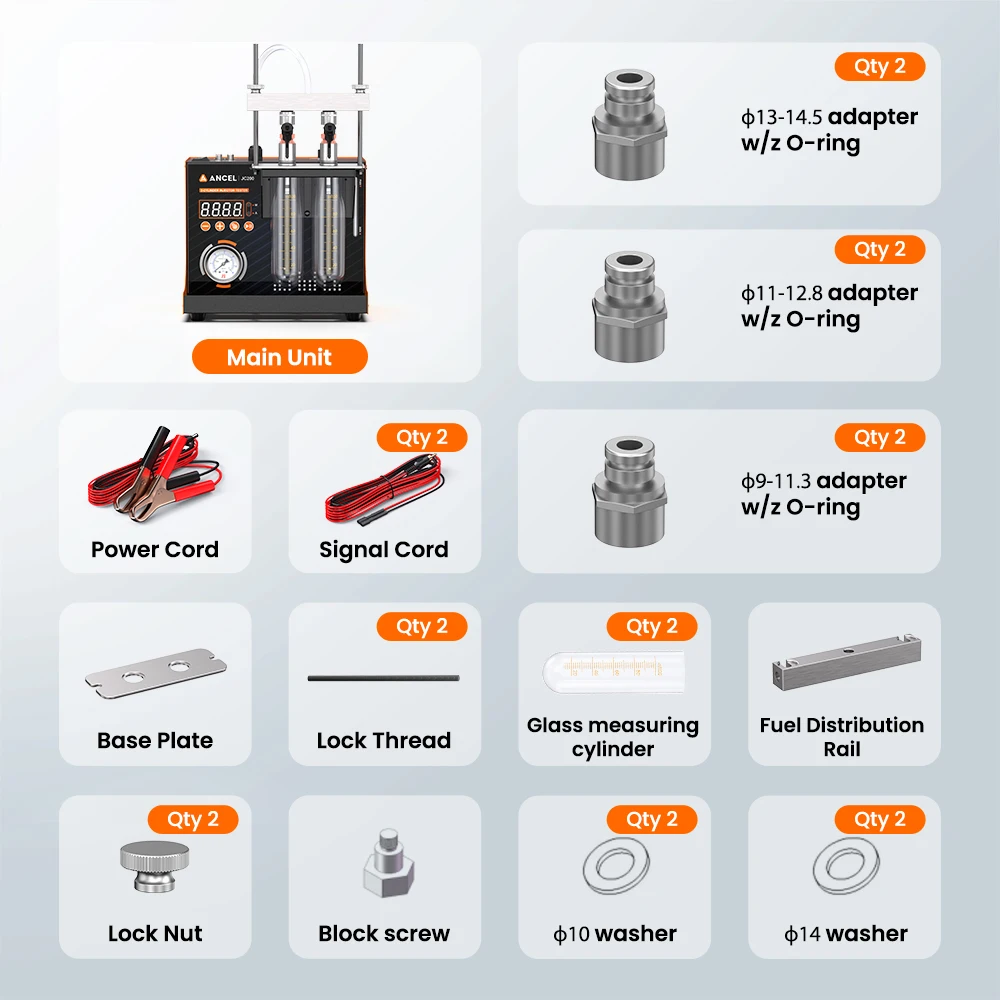

✅ (6) Replaceable composite joints for different injector type.
🔥Technical specifications

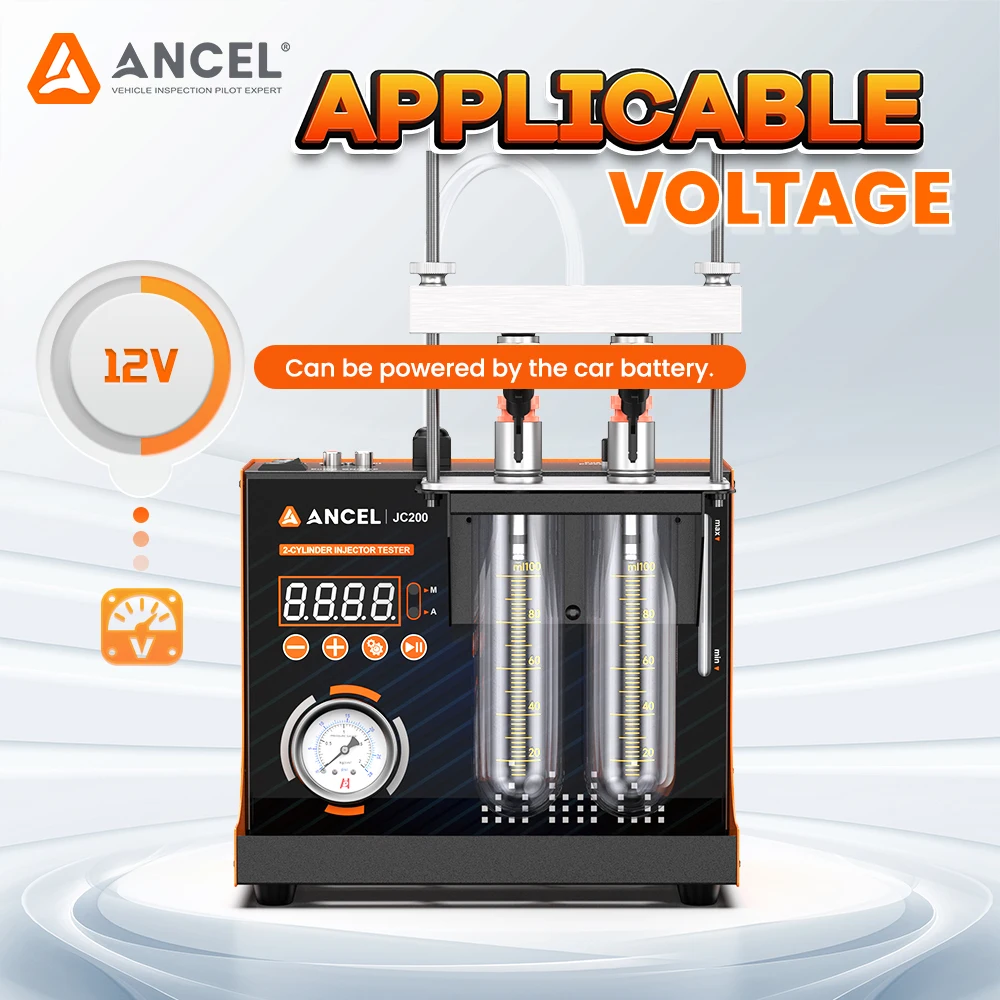

Power supply: DC12V Vehicle Battery, 2Amp
Relative humidity: <85%
Environment temperature: -5oC ~ + 50oC
Tank Capacity: 150ml

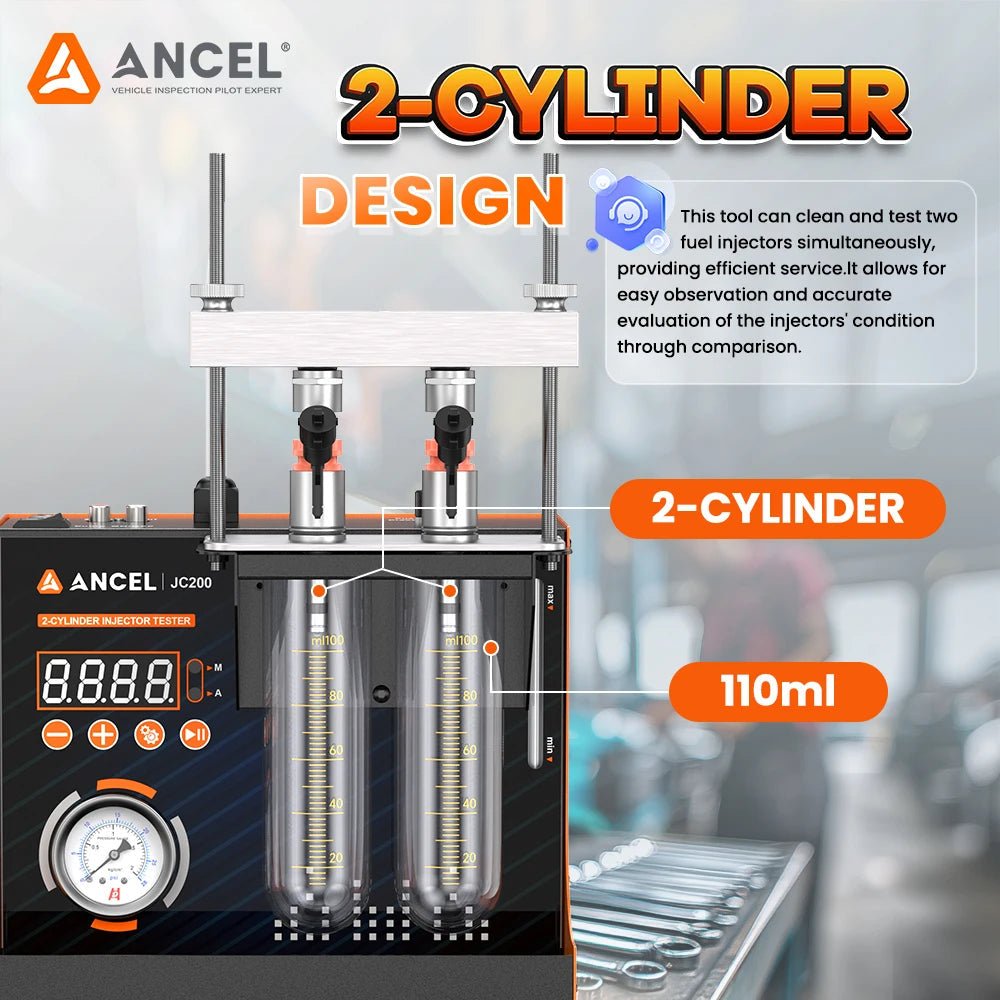

Cylinder Volume: 100ml
RPM: 100~9900 step 100
Time: 30~600 Seconds
Oil Pressure: 1.2~1.5bar (Fixed)
Pressure relief: Manual
Operating Instructions

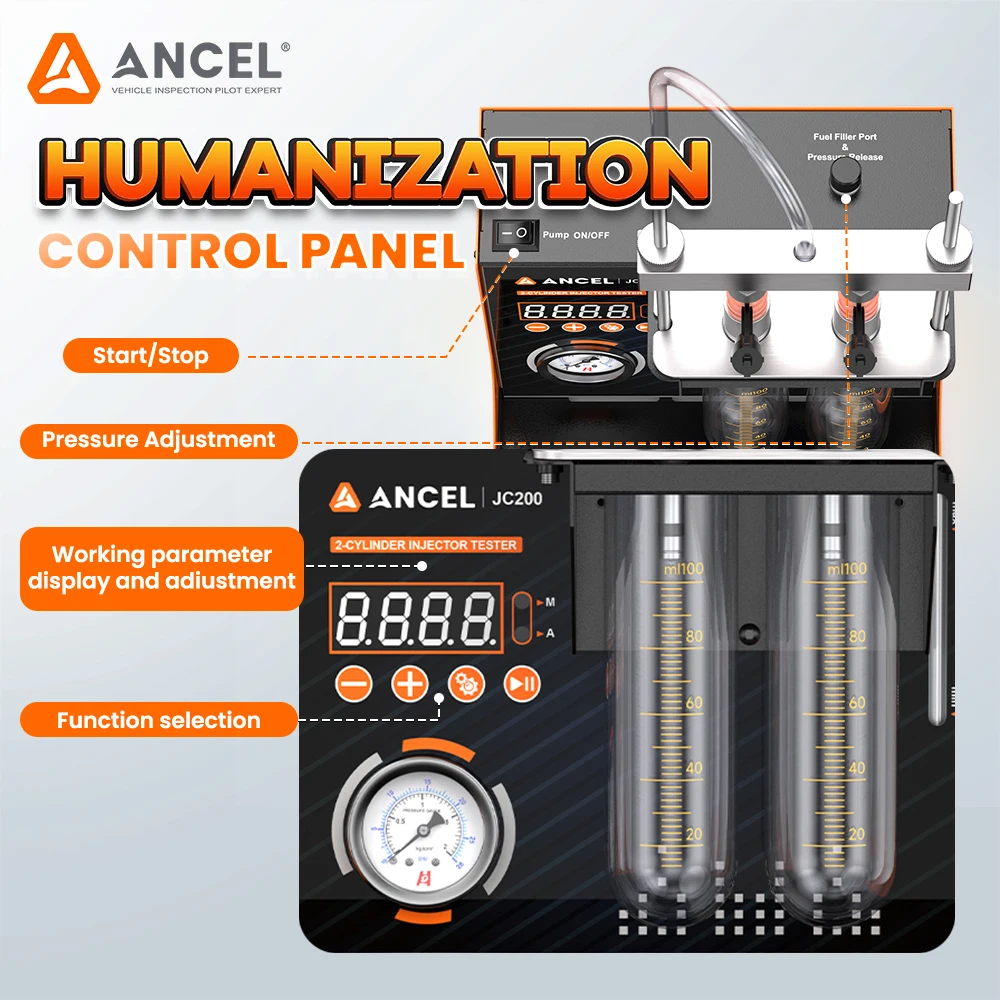

1. Button Functions:
a) -: Time adjustment / Speed adjustment.
b) +: Time adjustment / Speed adjustment.
c) MODE: Mode key, cycles through modes (Manual mode M, Automatic mode A).
d) START: Start/Stop key, short press to start when stopped, short press to stop when running.
2. Indicator Functions:
a) M: Manual mode.
b) A: Auto Mode.
3. Operation Instructions:
a) In stopped state, briefly press “MODE” to switch to M mode. Use “+/-” keys to adjust output speed (range: 100-9900 RPM). Briefly press “START” to activate operation at set speed.
b) In stopped state, briefly press “MODE” to switch to A mode. Use “+-” keys to adjust timer duration (30-600 seconds). Briefly press “START” to activate. Speed automatically adjusts within 500-6000 RPM range at +/-100 RPM increments every 0.5 seconds, stopping automatically upon countdown completion.
