The ANCEL AN301 HD Industrial Endoscope Camera is a professional-grade inspection tool designed to access hard-to-reach and hidden areas without the need for disassembly or damage. Equipped with a 4.3-inch high-brightness HD display (500 nits) and an advanced 1280×720 CMOS camera, it delivers clear, detailed images and smooth video in dark and confined spaces. Its 6.2mm ultra-slim probe with two-way 180° articulation allows precise maneuvering inside engines, pipes, walls, and machinery, while the flexible metal snake tube with tungsten woven mesh ensures durability, wear resistance, and corrosion protection. The IP67 waterproof and oil-proof camera head makes it reliable for use in damp, greasy, or harsh environments. Featuring six adjustable high-intensity LED lights (up to 6800 lux), built-in photo and video recording, and support for a 32GB memory card, the AN301 enables efficient documentation and diagnosis. With high-temperature protection up to 158°F, ergonomic dual-hand control, and wide application across automotive, industrial, HVAC, plumbing, and appliance inspections, the AN301 is a powerful, portable, and dependable inspection solution for professionals.

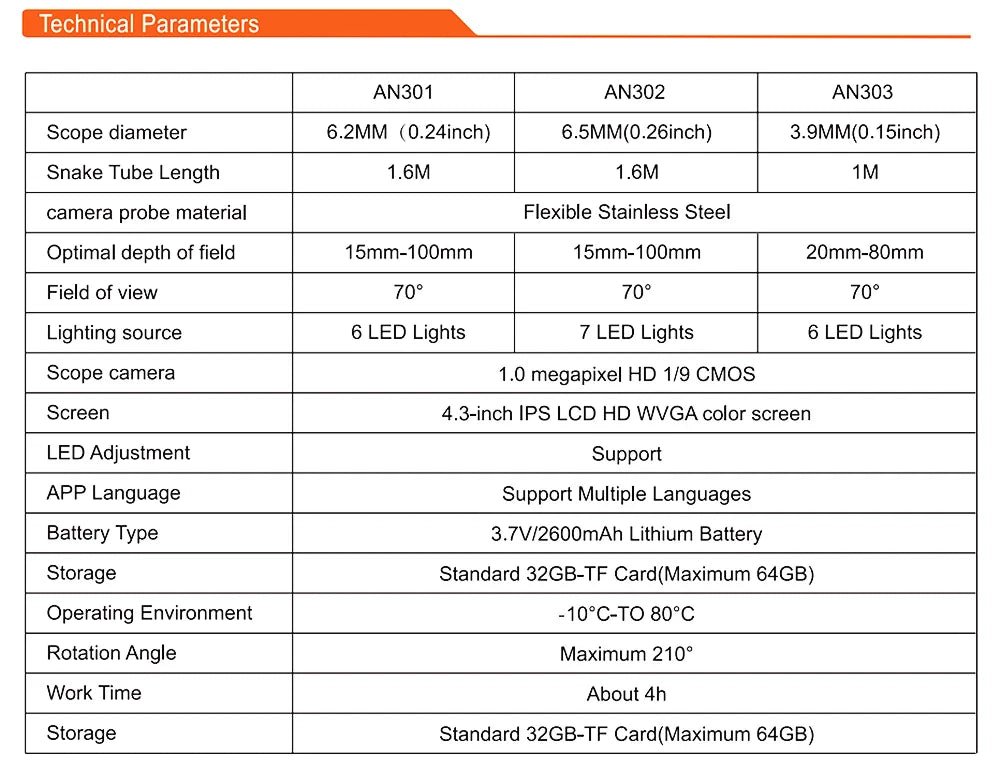

AN301 Parameters:

• Camera Lens Diameter: Φ6.2 × 12mm
• Sensor: 1/9 CMOS, 1280×720
• Fps: 20FPS
• F/No: 3.2
• DOF: 20 ~ 100mm
• Structure: 3P+1IR
• Adjustable LED light: 3 Level, 6 PCS LED
• AWB: On
• AGC: On
• Camera head IP Grade: IP67
• Probe Steering Angle: Both direction ≈ 180°
• Steering Tube Material: Tungsten woven mesh
• Snake Tube Material: Flexible Metal Tube
• Snap Resolution: 640*480/1280*720/1920*1080
• Recording Resolution: 640*480/1280*720/1920*1080

🔍 Professional Inspection Solution

Designed for professional maintenance and inspection personnel, this portable articulated endoscope allows you to inspect hard-to-reach and hidden areas that are invisible to the human eye—without disassembly or damage. It delivers precise, efficient, and non-invasive inspection across a wide range of applications.

Ideal for inspecting:

• 🚗 Automotive & Engine Components

• ❄️ HVAC Systems

• 🚿 Plumbing & Drain Pipes

• 💻 Computers & Electronic Devices

• 🏗️ Building Structures & Wall Cavities

• ⚡ Electrical Systems & Industrial Equipment

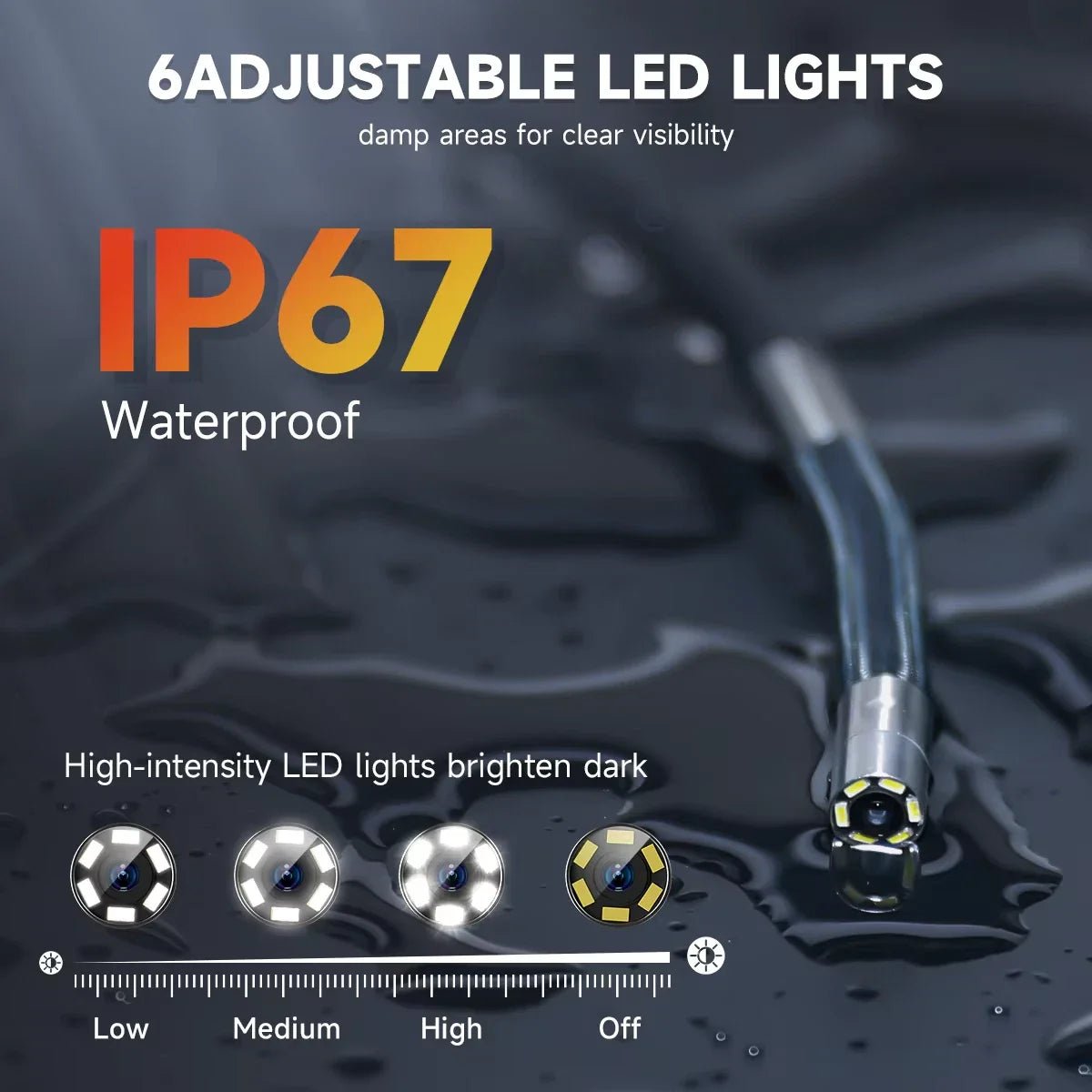

6 Adjustable LED Lights

IP67 Waterproof

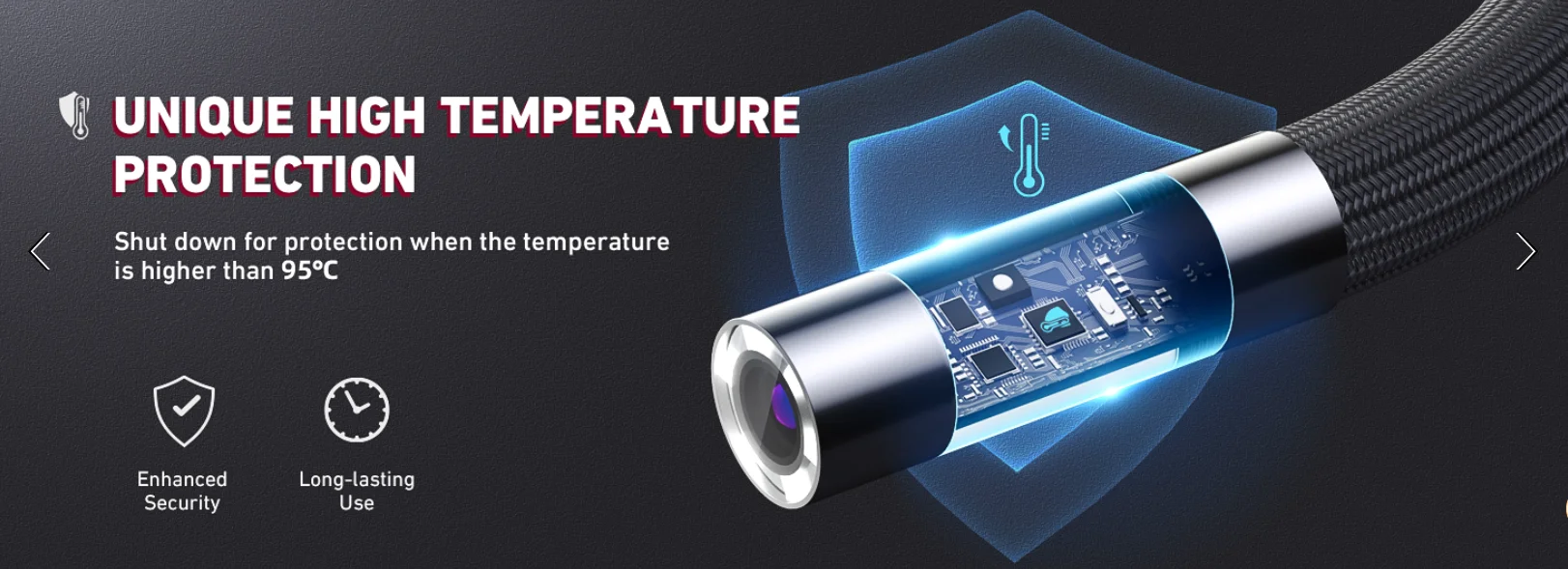

Unique High Temperature Protection

it will automatically shut down to protect the device if the probe temperature exceeds 158°F

What does AN301 bring to you?

1. IP67 waterproof and oil-proof, can work in a more humid and dark environment.
2. 4.3-inch high-definition high-brightness 500NIT display, details are more realistic

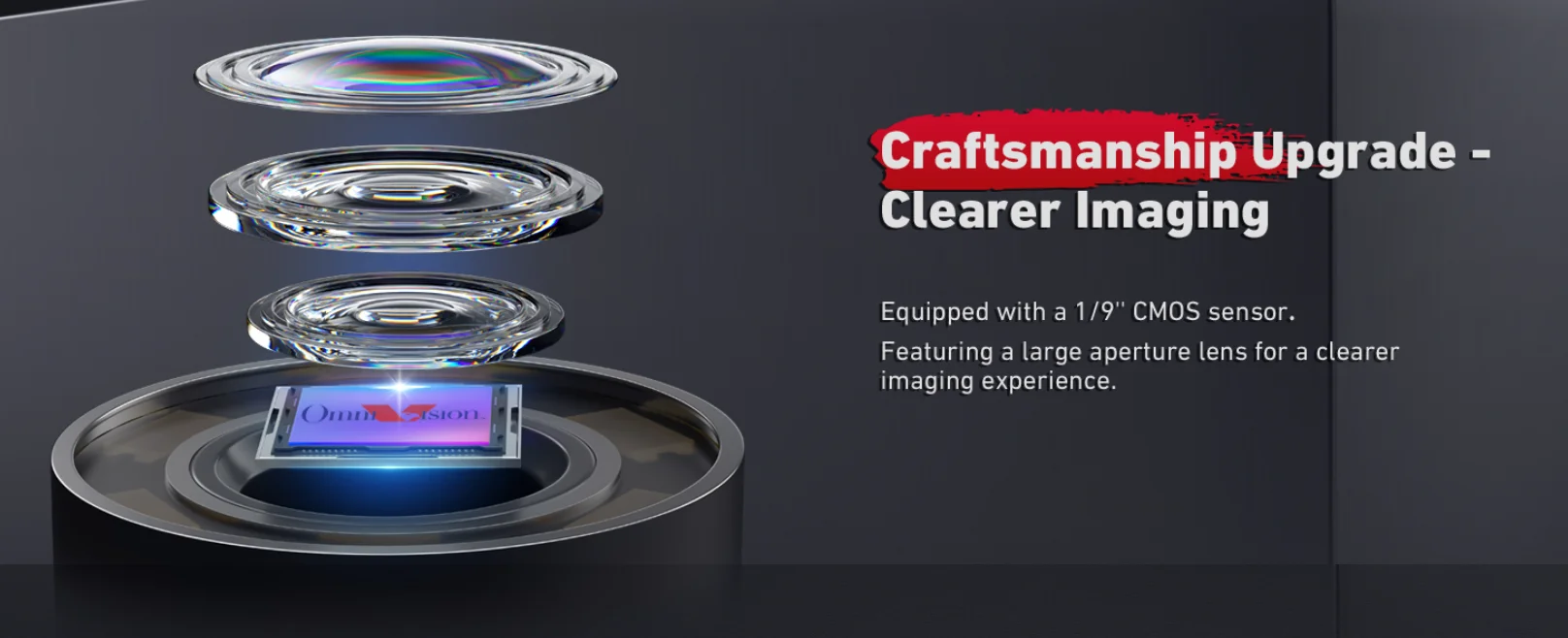

3. Using advanced photosensitive camera chips, it brings users the best user experience at present.
4. The shapeable metal coil allows you to use it effectively in more scenes.
5. 32GB card can take 10,000+ photos. Record 100+ videos
6. LED light: illuminance 6800 Lux In the dark environment of the engine, in the shortest time, non-destructive detection of problems. Save you time and money.

What usage scenarios are suitable for AN301?

1. AUTOMOTIVE MAINTENANCE
2. WALL INSPECTION
3. APPLIANCE REPAIR
4. INDUSTRIAL EQUINMENT INSPECTION
5. DRAIN PIPE INSPECTION

AN301 is currently the best endoscope

1. Picture and video protection function, the most advanced function at present (precious photos will not be lost)
2. 6.2MM probe diameter, 2-way steering endoscope
3. There is a video recording and recording function / currently, the friendly company can only record video
4. The current probe length is 12MM, which is the shortest in the industry. (In a narrow space, it is more handy)
5. Ultra-tight tungsten alloy wire mesh, wear-resistant and corrosion-resistant, is currently the longest. The best. Have a better field of view.
6. LED light: illuminance 6800 Lux
7. The probe diameter is thinner, VS other friendly companies.
8. Metal hard tube 1.6 meters long (can be shaped)
9. 70 degrees high temperature alarm function. It can protect your industrial endoscope very well.
10. The control is twisted in the middle of the handle, and both left and right hands can have a good user experience
11. We use the advanced 16 MB quad-core SPI NOR FLASH, and the friendly company is still using the old 8MB

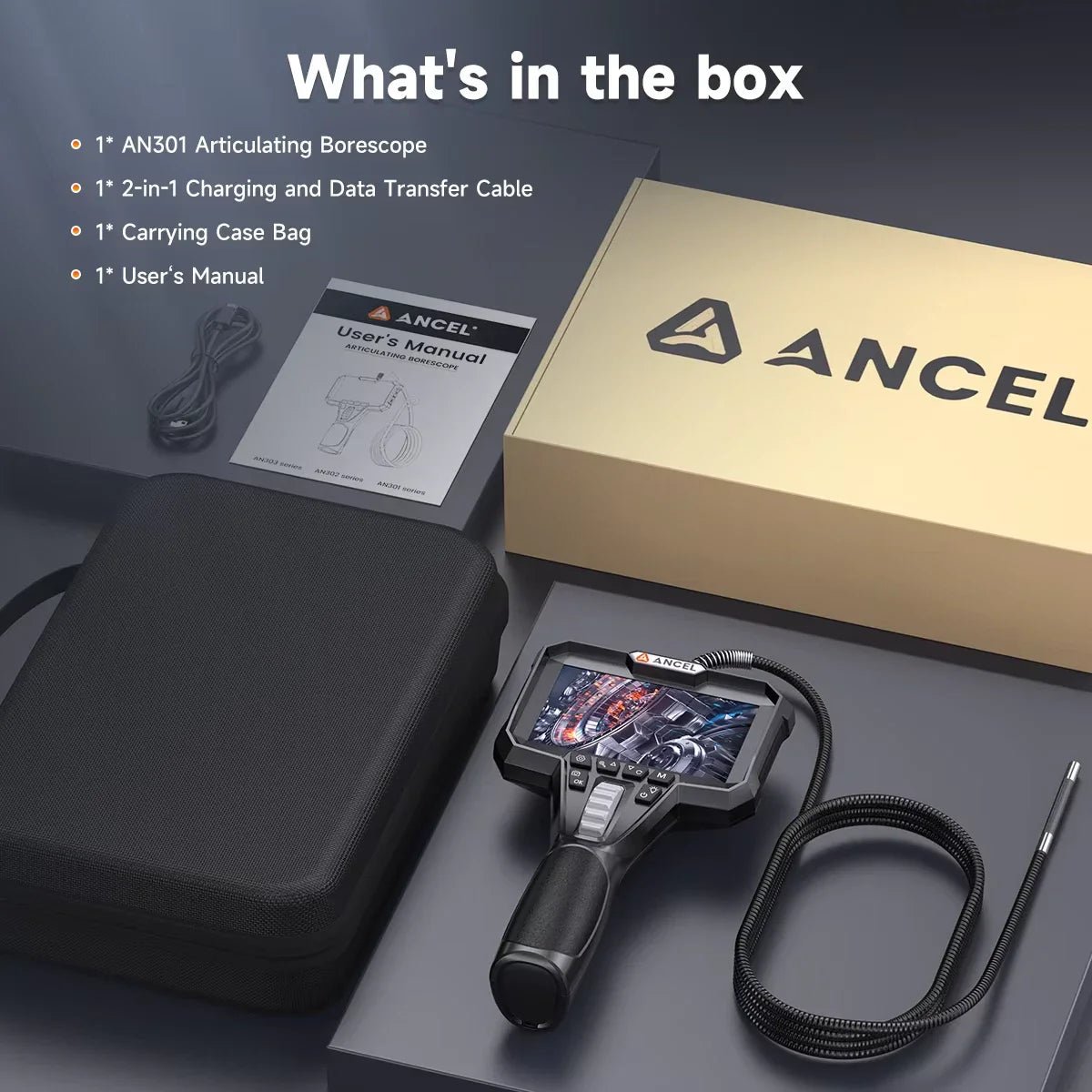

Package List:

1*AN301 Articulating Borescope

1* Charging and Data Transfer Cable

1*Carry Case Bag

1*User’s Manual
