Atlas 12ASL Alignment Scissor Lift and RJ-6 Rolling Jack Combo
Price range: $7,973.93 through $9,273.12
Description
The Atlas® alignment lift offers a lifting height of more than seven feet, allowing it to be either surface mounted or recessed for a flush-mount installation, depending on the customer’s preference. A full-frame structure beneath the scissor mechanism ensures maximum stability during operation. The extended 53″ approach ramps make loading low-profile vehicles simple and efficient.
With high-quality construction, user-friendly operation, a durable powder coat finish, and some of the most competitive pricing in the industry, the Atlas® 12ASL 12,000 lb. alignment scissor lift is an excellent choice for shop owners who demand performance and value.
Concerned about limited bay space? The Atlas Alignment System is engineered to maximize workspace efficiency while accommodating vehicles ranging from compact foreign cars to one-ton dual rear wheel pickup trucks.
All lifts come standard with welded rails positioned inside the runways, allowing compatibility with the bundled Atlas® RJ-6 (6,000 lb. capacity) air/hydraulic rolling jack system. The Atlas® RJ-6 is designed to operate with delivered air pressure between 70–105 PSI.
Please note that if you order an Atlas item, your delivery location must be accessible to a 53-foot truck.
Features
12ASL
- 12,000 lb. Capacity
- Commercial Grade
- Scissor Alignment Lift
- Built-in Slip Plates and Alignment Turntables Included
- Turntable Covers Included
- Open-Center Design for Easy Access
- Air-Operated Single-Point Lock Release (External Air Supply Required)
- Airline Kit Included
- Rear Cross Beam Included for Added Stability
- Extra-Long 72″ Ramps Standard
- Precise Platform Leveling Accuracy
- Separate Self-Contained Control Panel
- Emergency Manual Pump for Lowering
- 19 Locking Positions
- CE Certified
- Surface Mount or Flush Mount Installation
- Mounting Hardware Included
- 220 Volt / 1 Phase Operation (Requires 30 Amp Breaker)

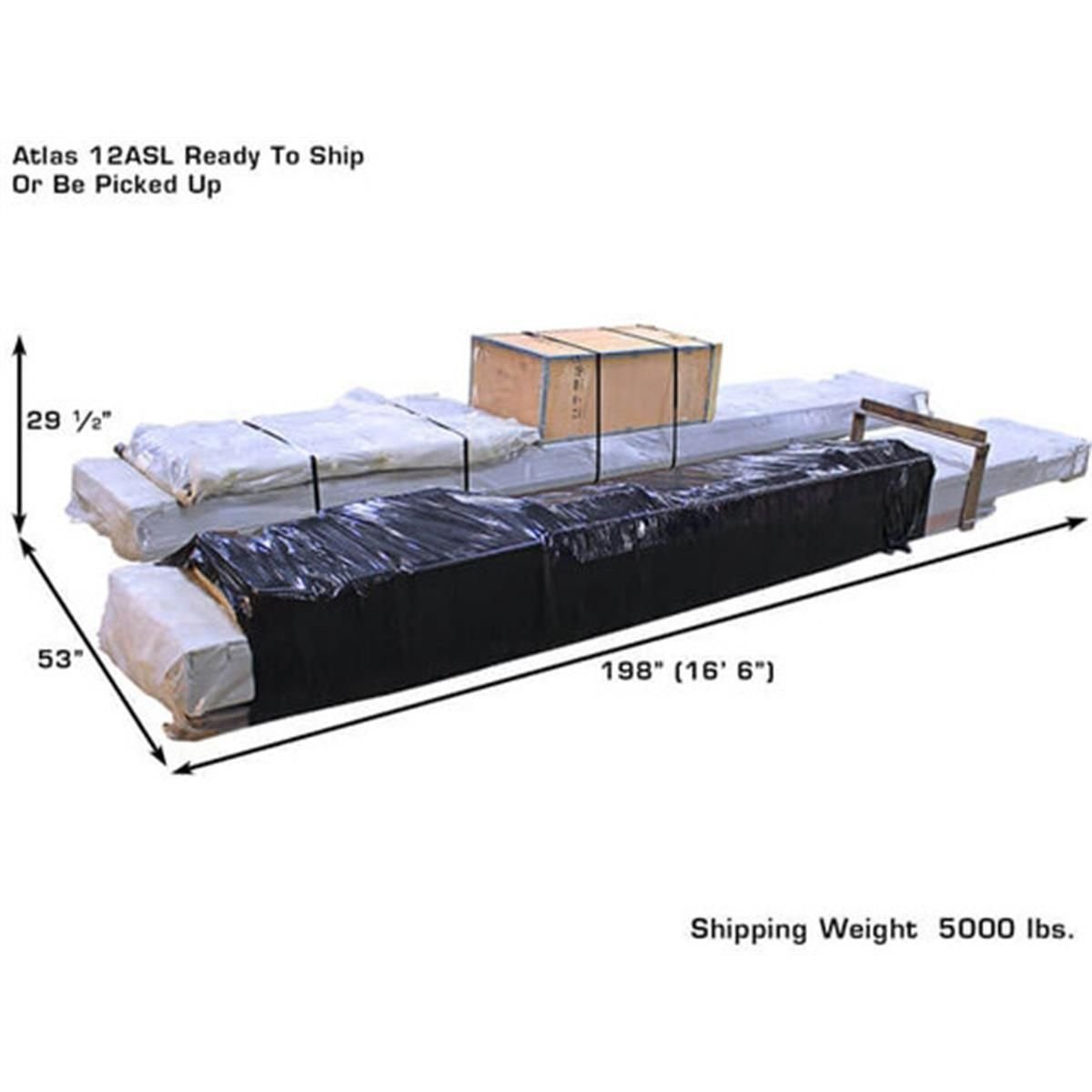

- Shipping Weight: 5,000 lbs.
- 2-Year Structural – 1-Year Hydraulic Warranty – Parts Only
RJ-6
- 6,000 lb. Capacity
- Air/Hydraulic Operation (External Air Supply Required)
- Multiple Safety Lock Positions
- Compact, Low-Profile Design
- Smooth Rolling Action
- Scissor Mechanism for Level Lifting
- Powder Coat Finish
- Double Screw-Up Adapters Included
- 4-Piece Truck Adapter Set Included
- 1-Year Parts-Only Warranty
Specifications
Atlas® 12ASL 12,000 lb. Alignment Scissor Lift Specifications
| Lifting Capacity | 12,000 lb. |
|---|---|
| Lifting Height | 84 1/4″ (7′ 1/4″) |
| Overall Width | 86 3/8″ (7′ 2 3/8″) |
| Overall Length with Approach Ramps | 250″ (20′ 10″) |
| Overall Length without Approach Ramps | 197″ (16′ 5″) |
| Approach Ramp Length | 53″ (4′ 5″) |
| 4-Wheel Alignment Wheelbase | Max. 168 in. / Min. 90 in. |
| 2-Wheel Alignment Wheelbase | Max. 172 in. / Min. 86 in. |
| Runway Width | 23 3/4″ (1′ 11 3/4″) |
| Lowered Height | 11 1/2″ |
| Locking Positions | 19 |
| Width Between Runways | 39″ |
| Motor/Electrical Requirement | 220 volt ±5% (209–231 volts) single (1) phase (30 amp breaker required) |
| Shipping Weight | 5,000 lbs. |
Atlas® RJ-6 Rolling Jack Specifications
| Maximum Width | 64 1/2″ |
|---|---|
| Minimum Width | 30 1/2″ |

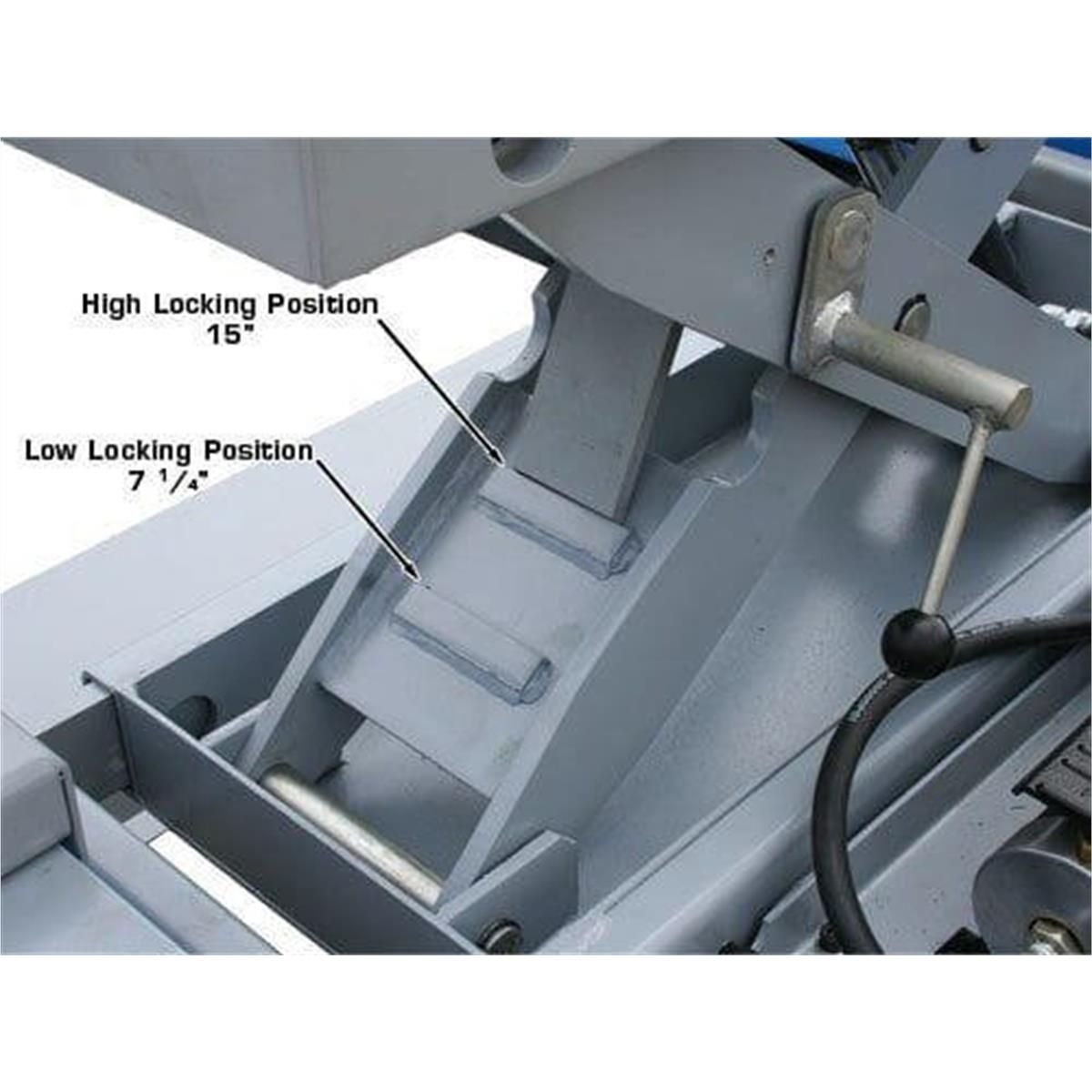

| First Locking Position | 7 1/4″ |
| Second Locking Position | 15″ |
| Minimum Pad Height | 3 1/2″ |
| Maximum Lifting Height | 17 5/8″ |
| Maximum Capacity | 6,000 lb. |
| Recommended Operating Air Pressure | 70–105 PSI |
| Shipping Weight | 350 lbs. |
