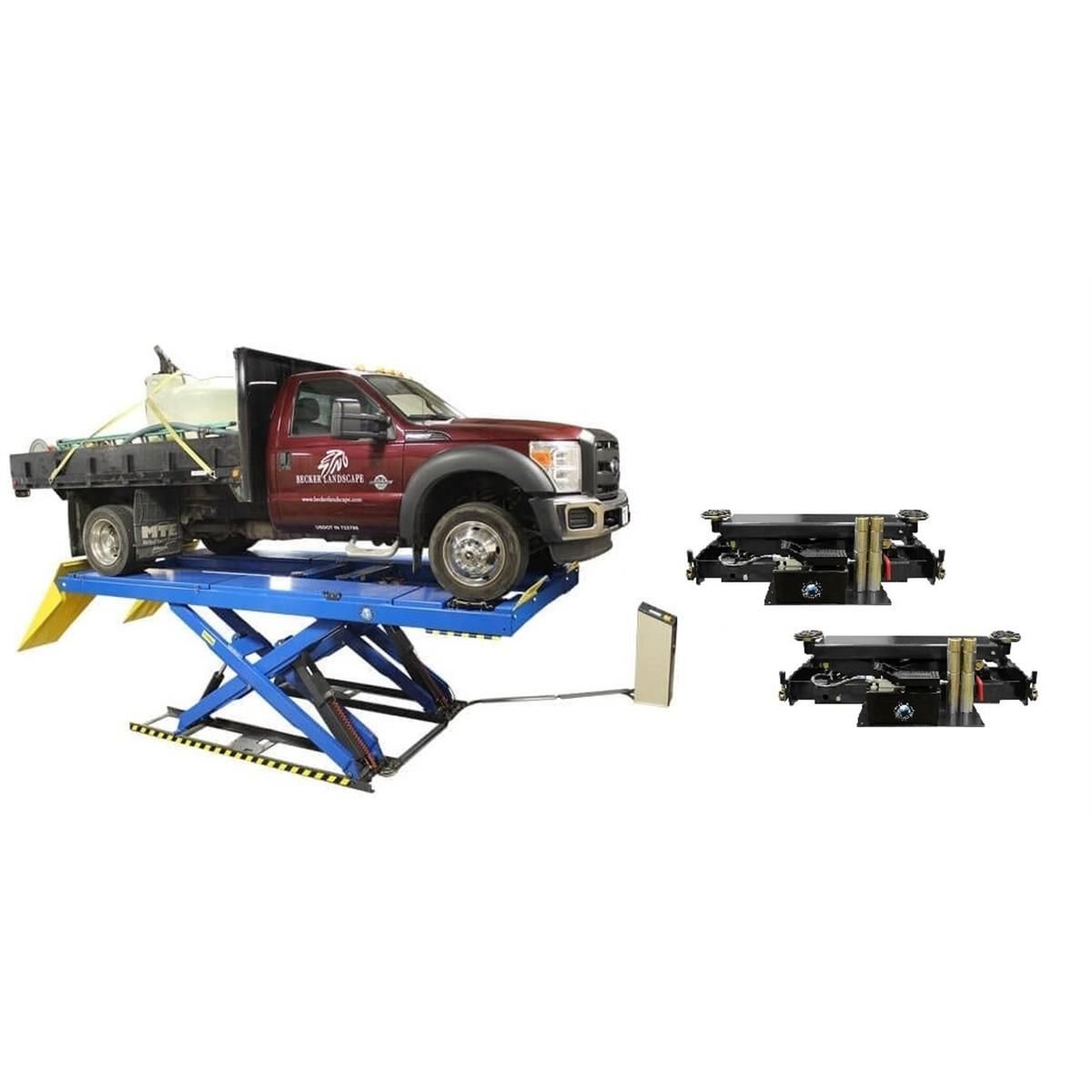

Atlas PX16A Scissor Alignment Lift and RJ8 Rolling Jack Combo
Price range: £10,796.32 through £12,095.51
Description
The Atlas® PX16A is a 16,000 lb. capacity scissor alignment lift designed for service facilities that require a space-saving, narrow-width alignment solution. It is engineered to handle a wide range of vehicles, from passenger cars to heavy-duty long wheelbase trucks and vans.

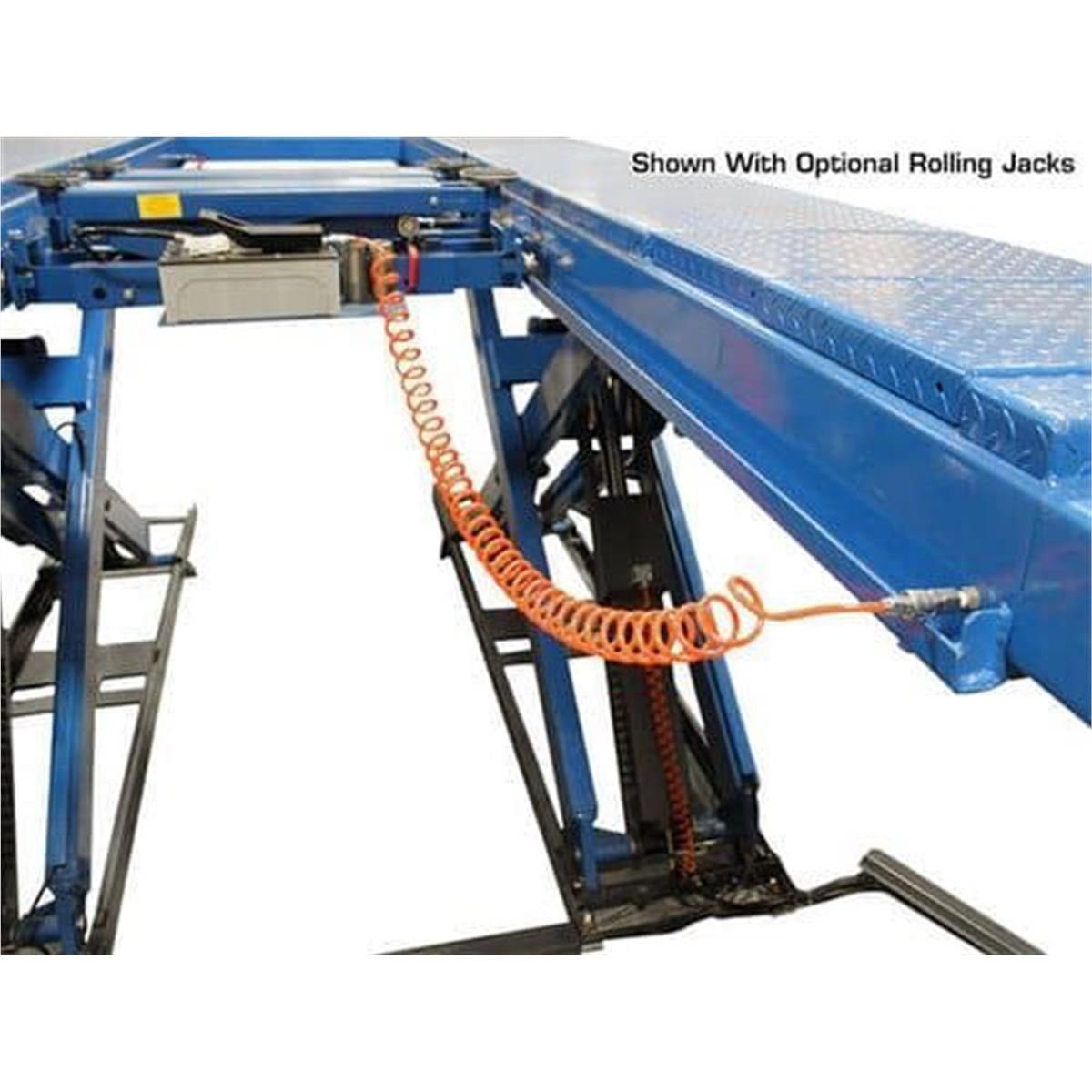

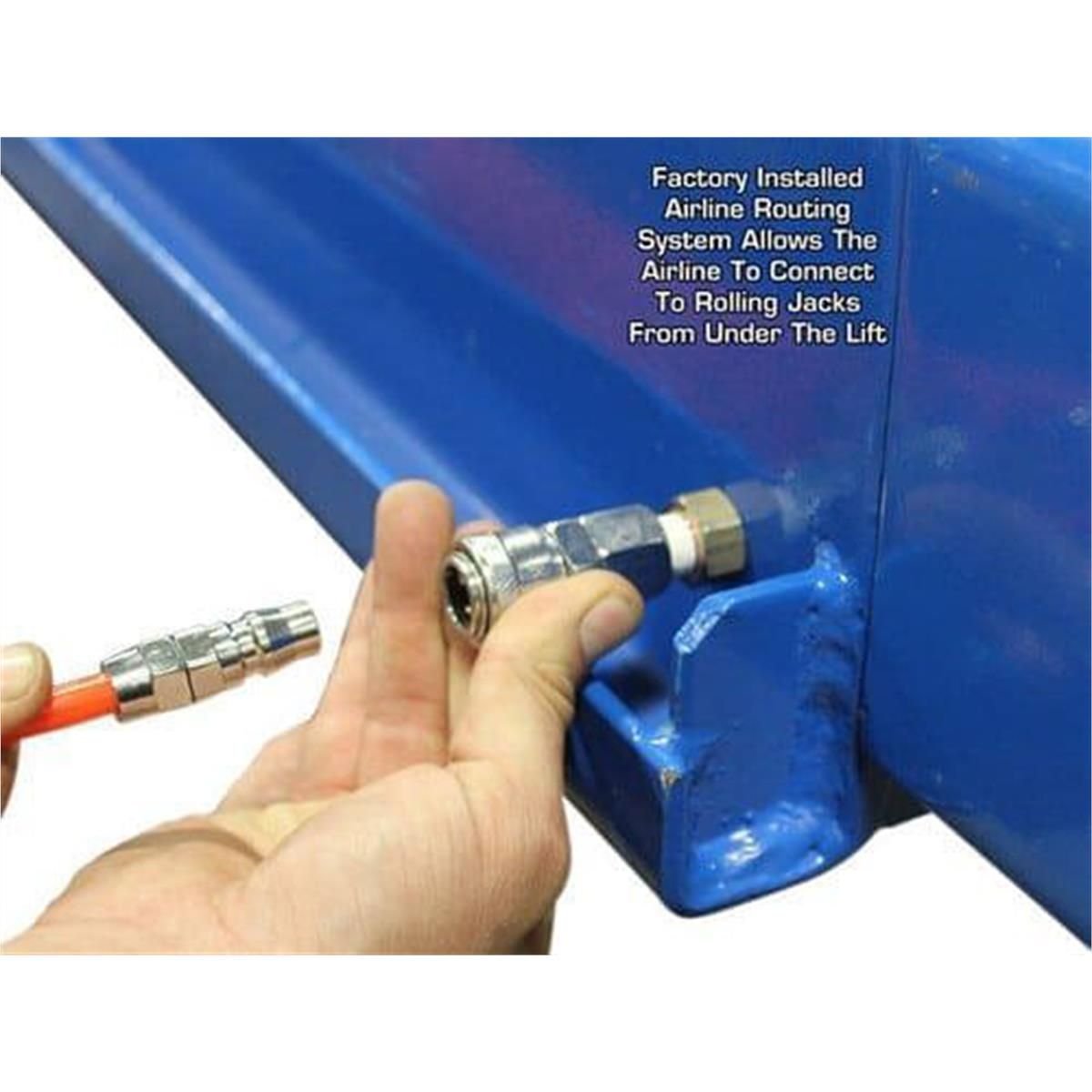

The Atlas® PX16A enables technicians to perform 4-wheel alignments on vehicles with wheelbases ranging from 96 inches to 184 inches. The lift comes standard with alignment turntables and built-in slip plates. It also features a semi-enclosed airline routing system designed to accommodate an optional airline kit. This system supplies air to rolling bridge jacks while keeping air hoses off the shop floor for a cleaner and safer workspace.

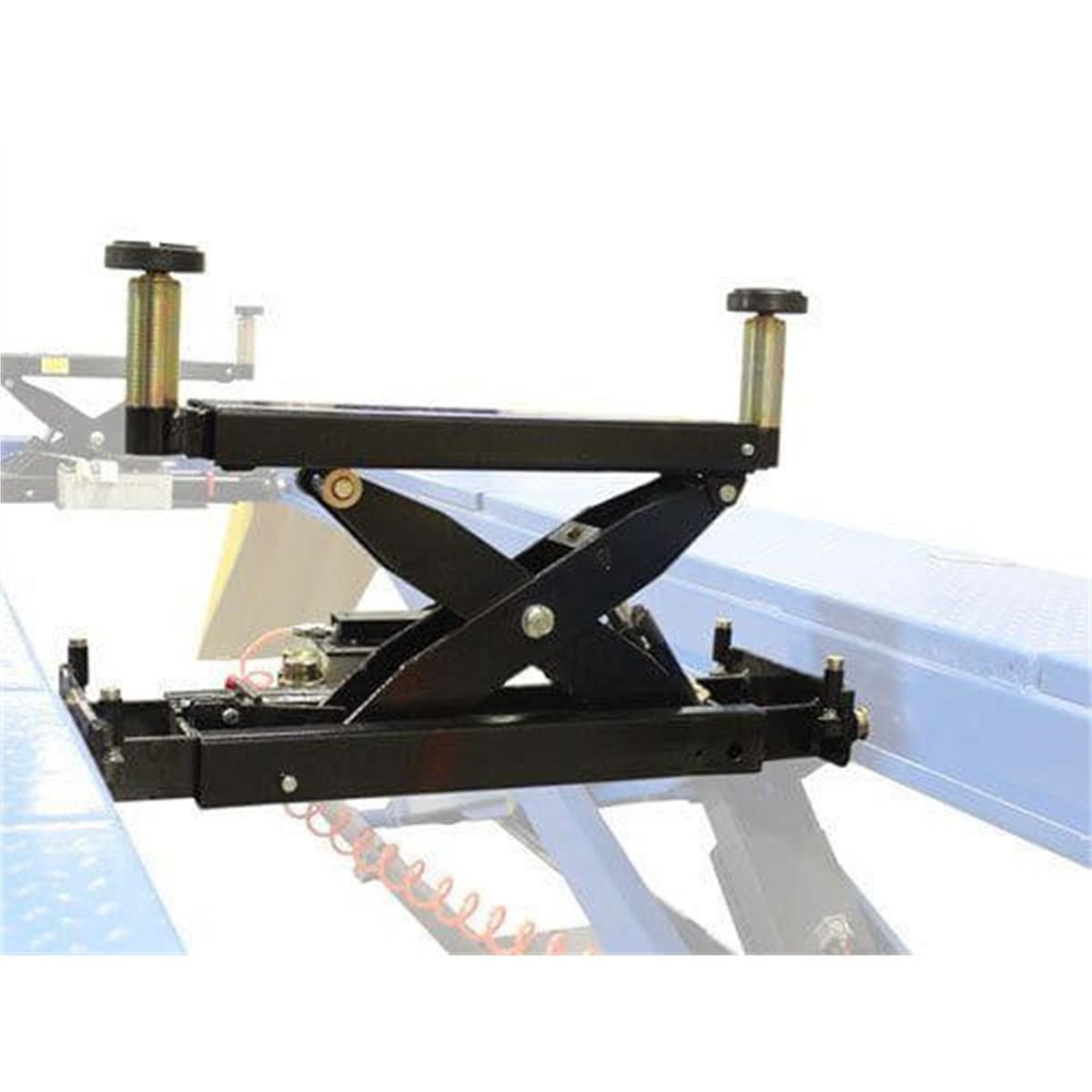

This package includes two Atlas® RJ8 rolling bridge jacks. These jacks allow the operator to lift a vehicle’s wheels off the runways, making tire and brake service efficient and convenient.
Please note: If ordering an Atlas item, the delivery location must be able to accommodate a 53′ truck.
Features
PX16A
- 16,000 lb. capacity
- Heavy-duty commercial-grade construction
- Scissor alignment lift design
- Front cross-beam for enhanced stability
- Super-balanced structure with precise platform leveling accuracy for wheel alignment

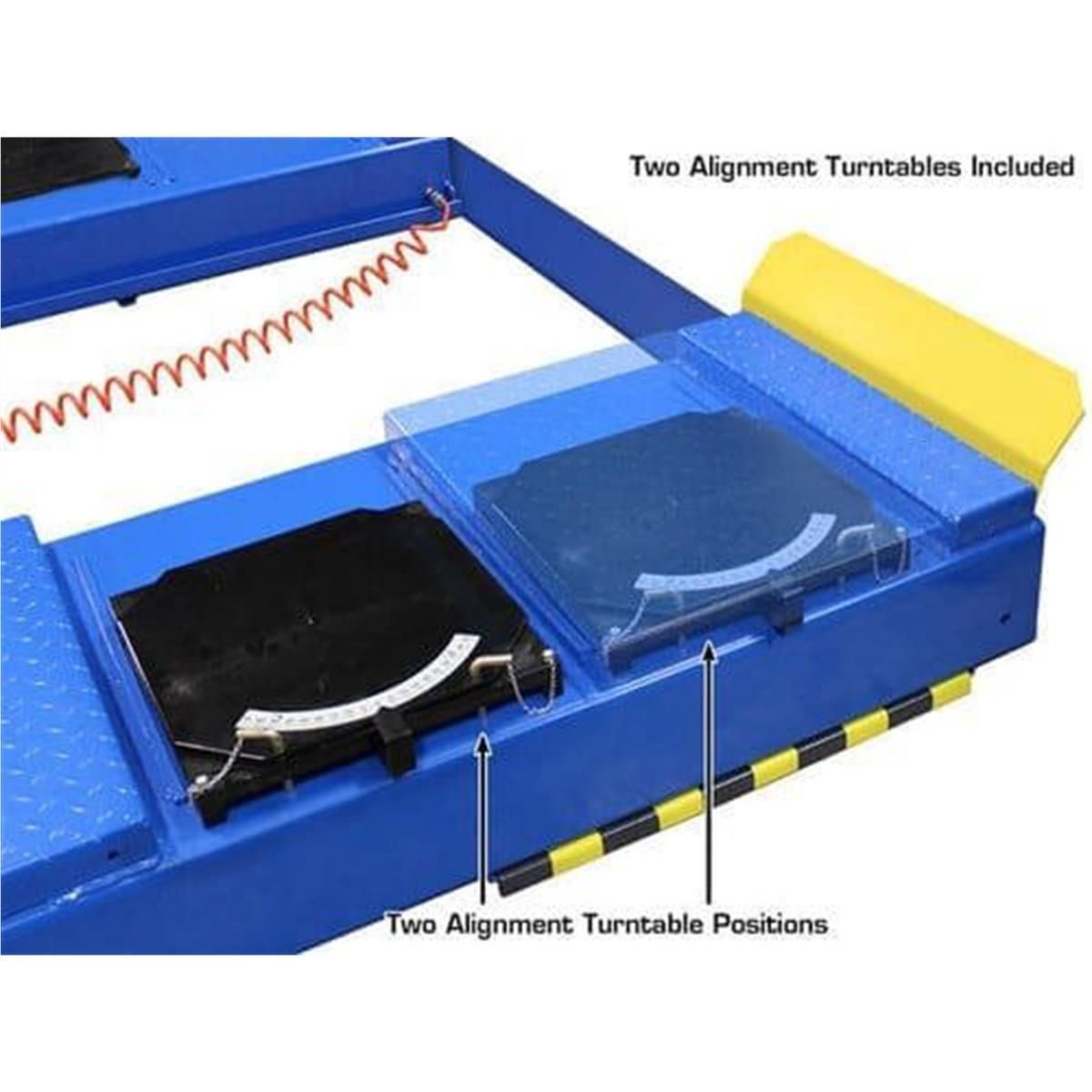

- Built-in slip plates and alignment turntables included
- Recessed turntable positions

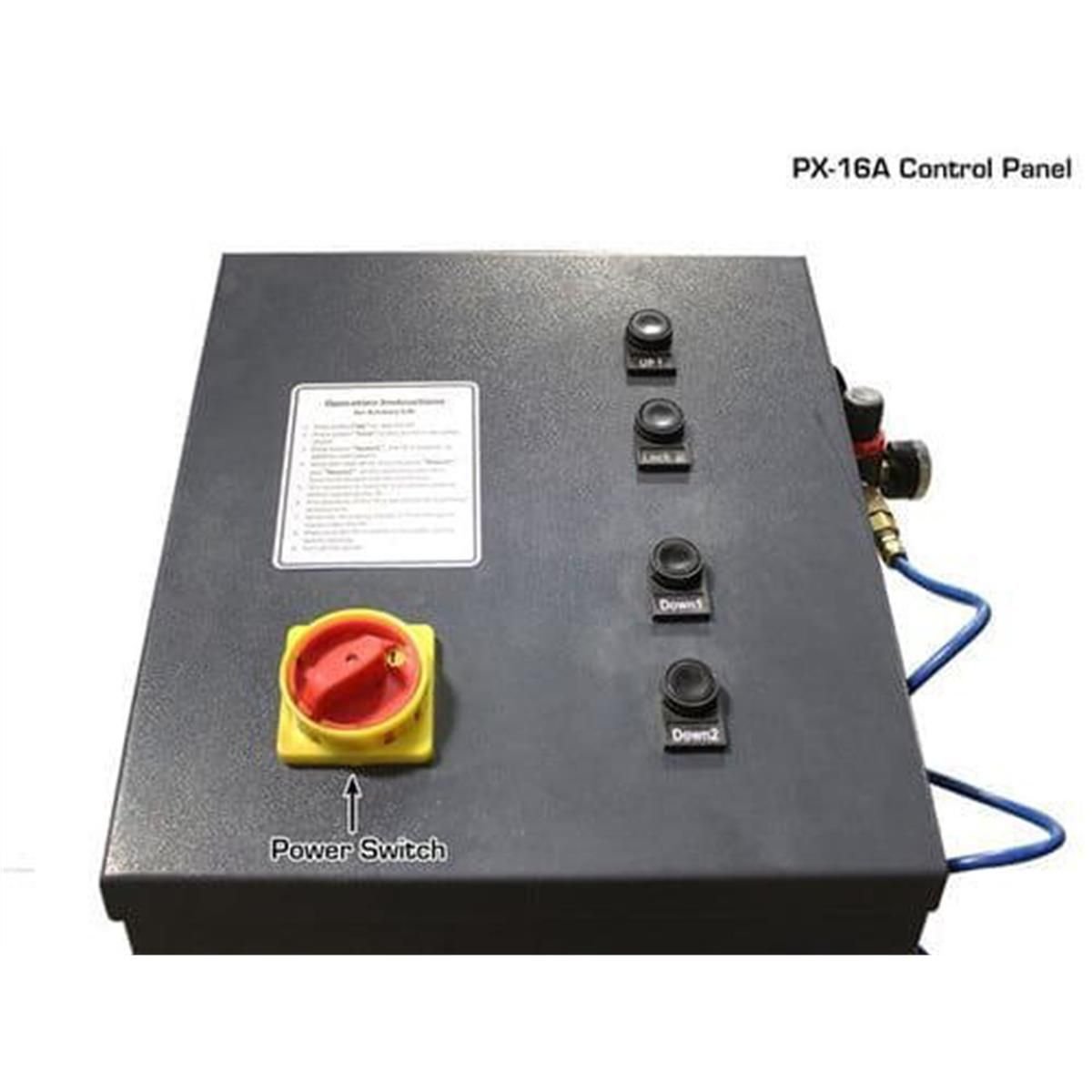

- Separate self-contained control unit
- Air-operated mechanical safety locks (external air supply required)
- Emergency manual lowering pump
- Overload valve included
- Lowering speed control valve included
- Mounting hardware included

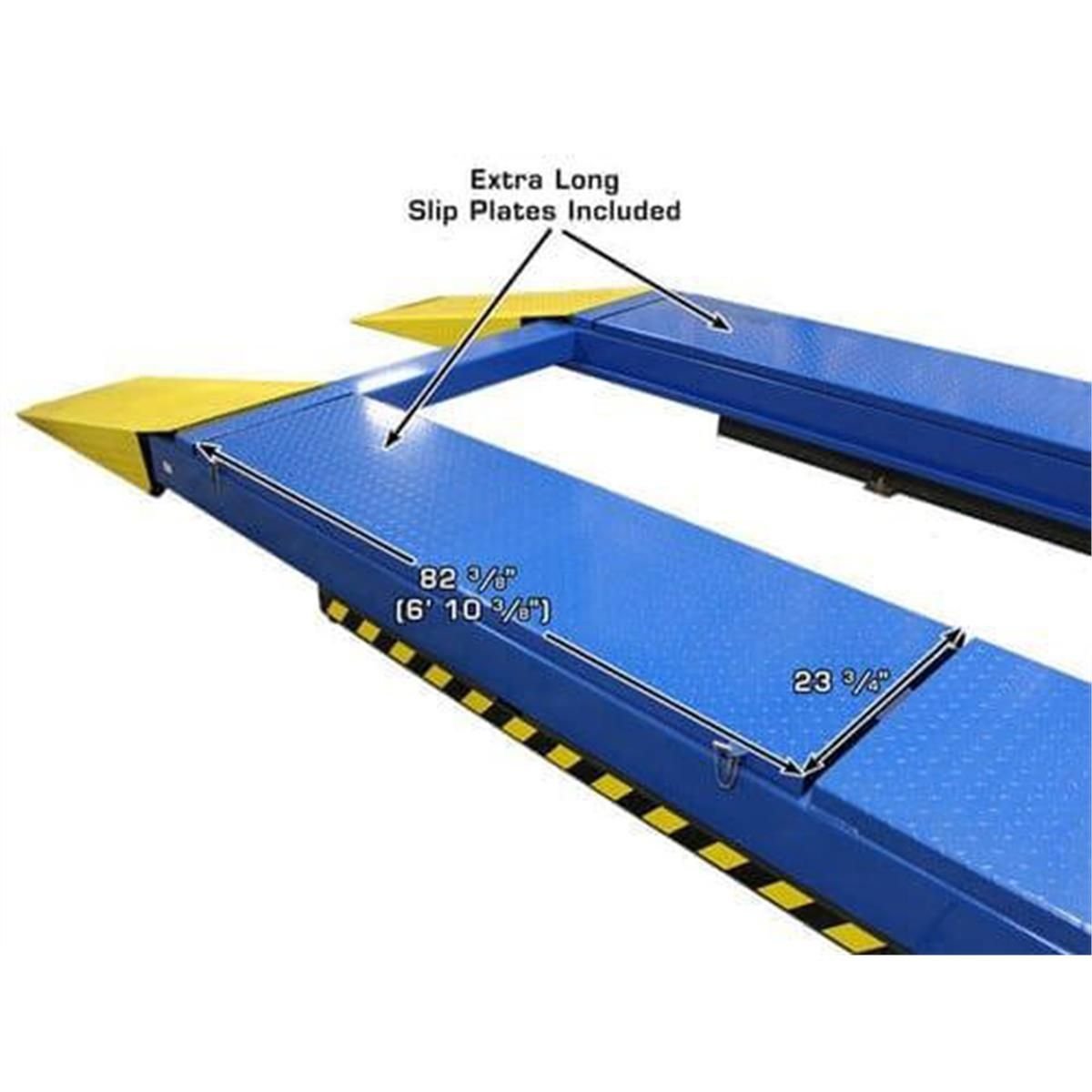

- Extra-long slip plates for 4-wheel alignment on wheelbases from 96″ to 184″

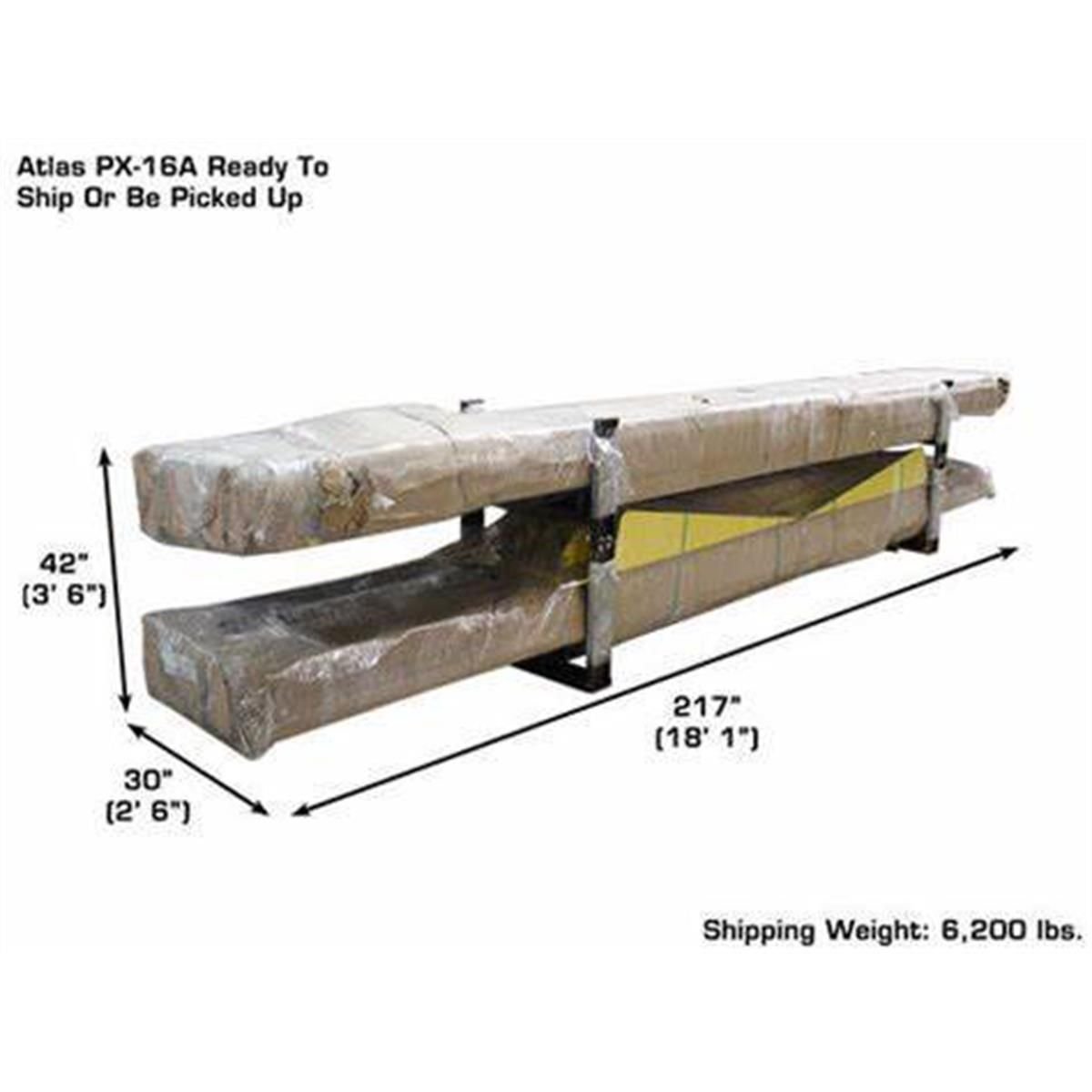

- Shipping weight: 6,200 lbs.
- Warranty: 2-year structural – 1-year hydraulic (parts only)

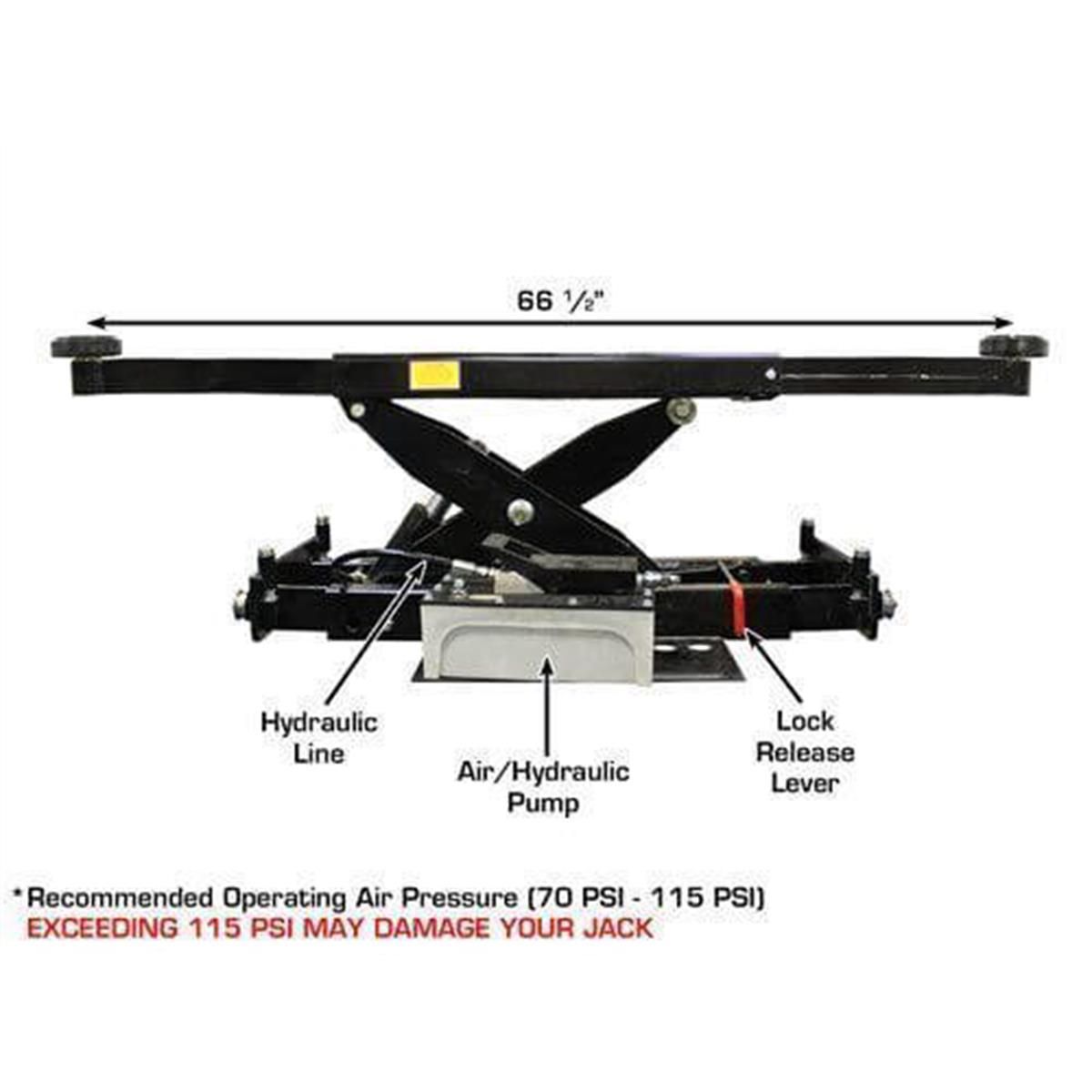

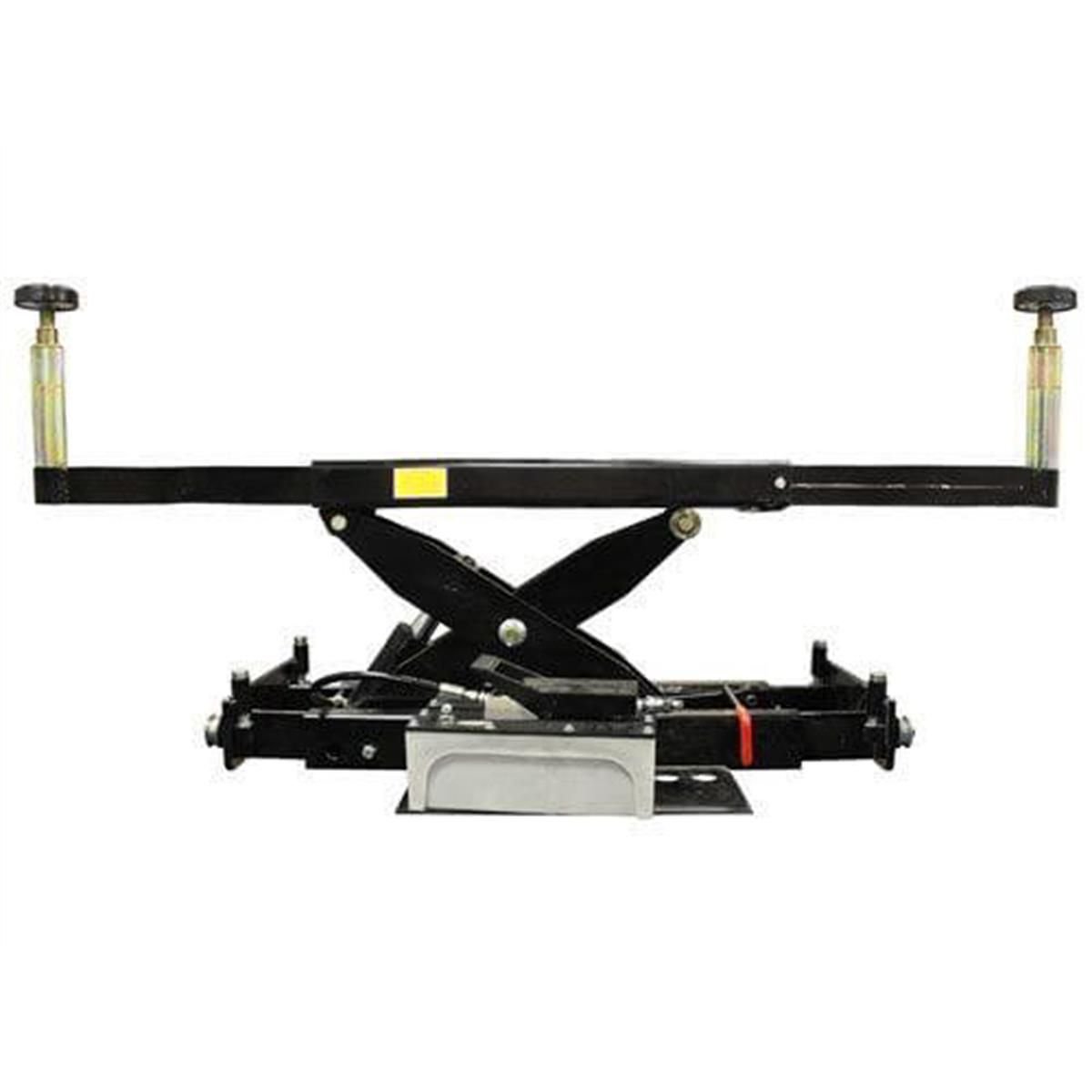

RJ8
- 8,000 lb. capacity
- Air/hydraulic operated (external air supply required)
- Multiple safety lock positions
- Compact, low-profile design

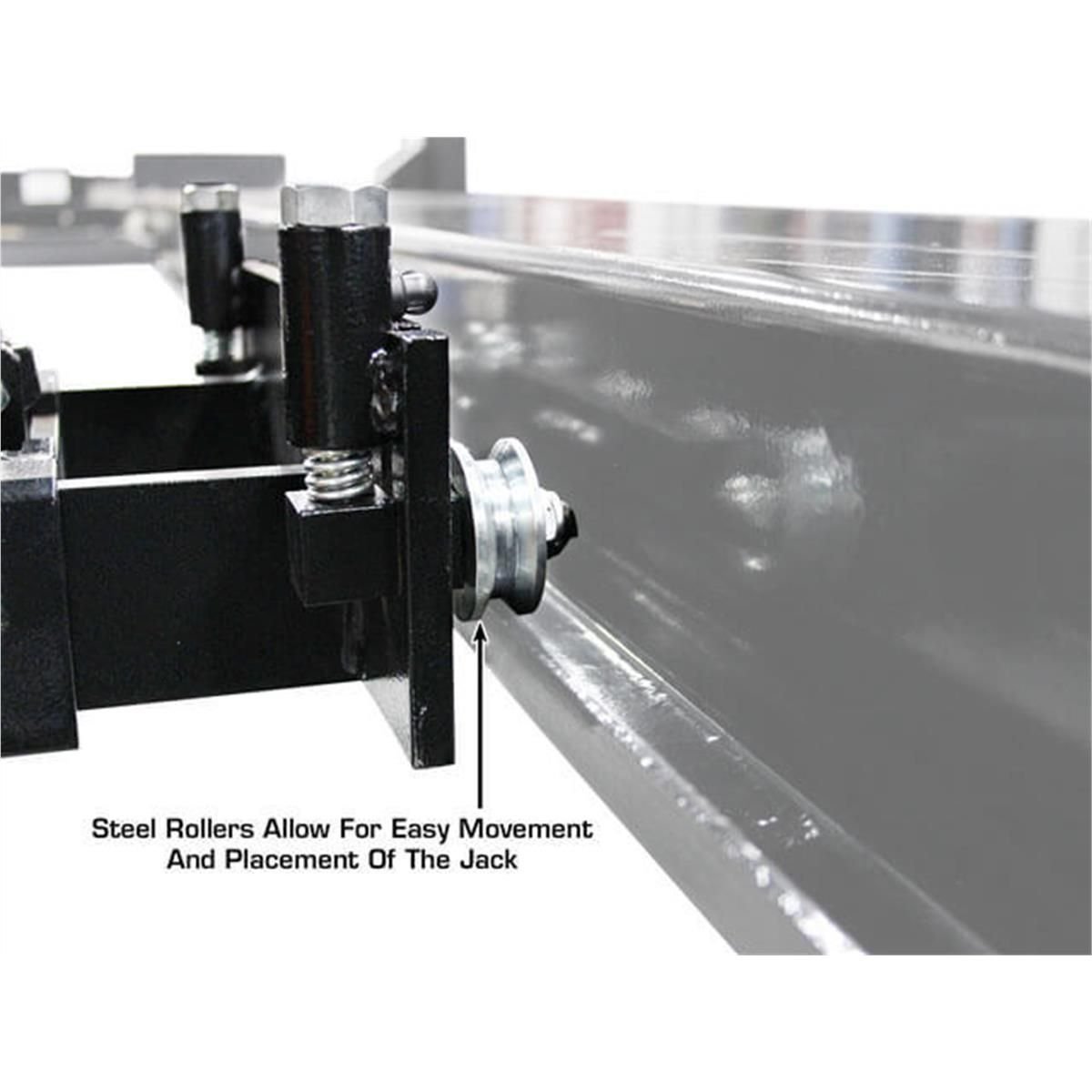

- Smooth rolling operation
- Scissor mechanism for level lifting
- Powder-coated finish
- 4-piece truck adapter set included
- 1-year parts-only warranty
Specifications

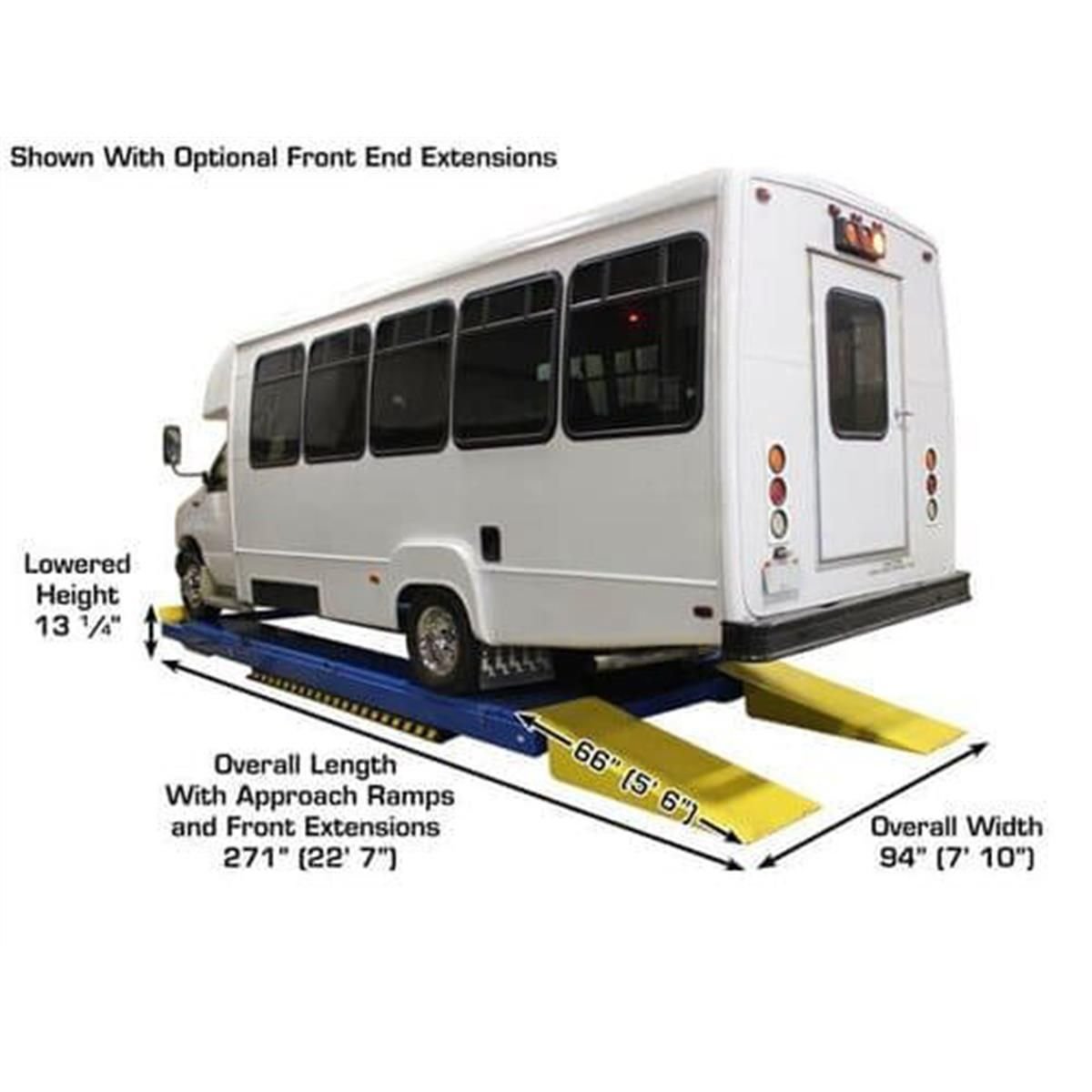

Atlas® PX16A Specifications
| Lifting Capacity | 16,000 lbs. |
|---|---|
| Lifting Height | 71 1/2″ (5′ 11 1/2″) |
| Lowered Height | 13 1/4″ |
| Overall Width | 94″ (7′ 10″) |
| Overall Length with Approach Ramps | 271″ (22′ 7″) |
| Overall Length without Approach Ramps | 206 1/2″ (17′ 2 1/2″) |
| Approach Ramp Length | 66″ (5′ 6″) |

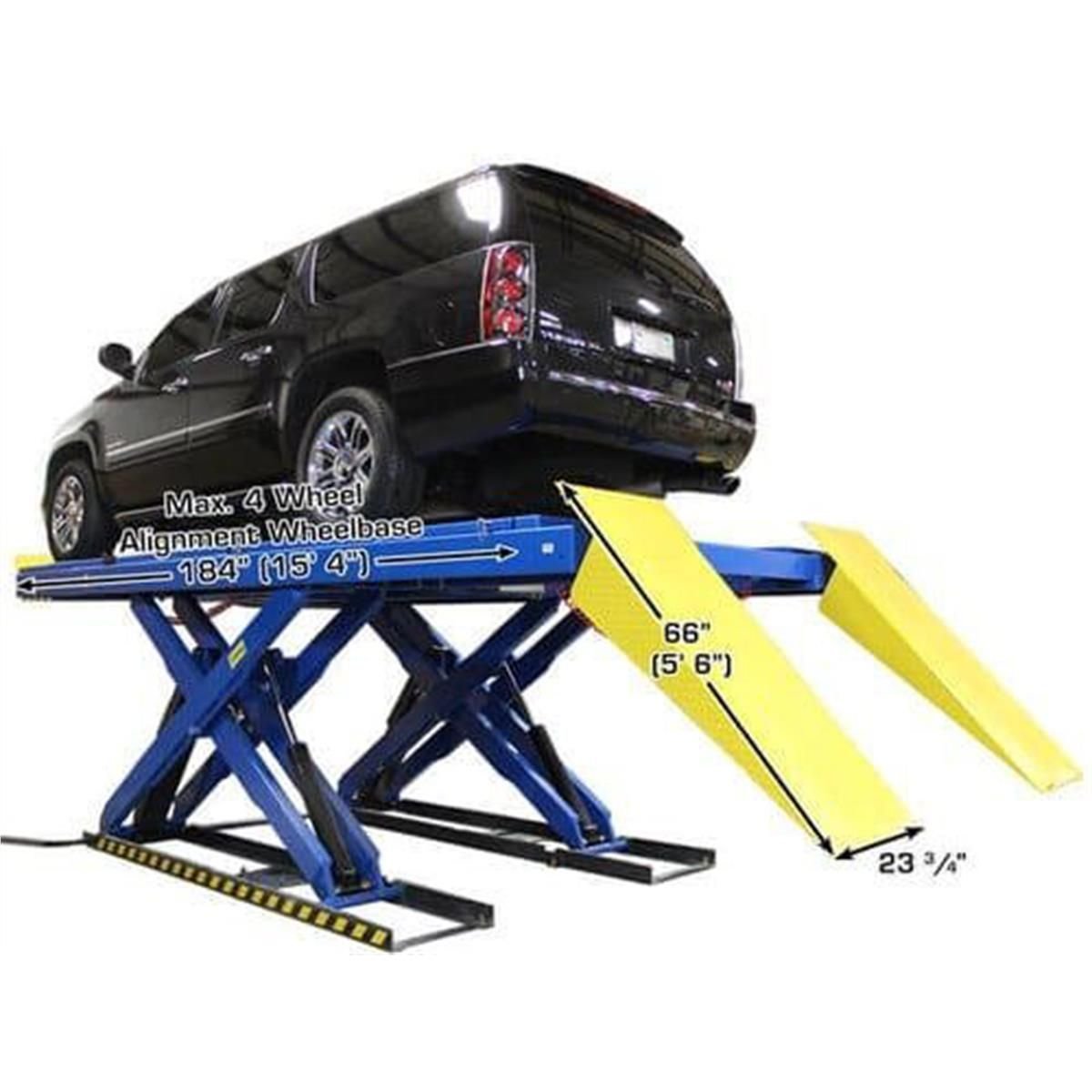

| 4-Wheel Alignment Wheelbase (Max) | 184 in. |
| 4-Wheel Alignment Wheelbase (Min) | 96 in. |
| Runway Width Including Rail | 23 3/4″ (1′ 11 3/4″) |
| Width Between Runways | 44 7/8″ |
| Width Between Runway Rails | 41 3/8″ |
| Air Requirement | 90–120 PSI |
| Motor / Electrical Requirement | 220 volt ±5% (209–231 volts) single (1) phase — 30 amp breaker required |
| Oil Requirement | 3.5 gallons AW32/AW46 |
| Shipping Weight | 6,200 lbs. |
| Concrete Requirement | Minimum 6″ thickness, 3000 PSI rating |
Atlas® RJ8000 Specifications
| Maximum Capacity | 8,000 lbs. |
|---|---|

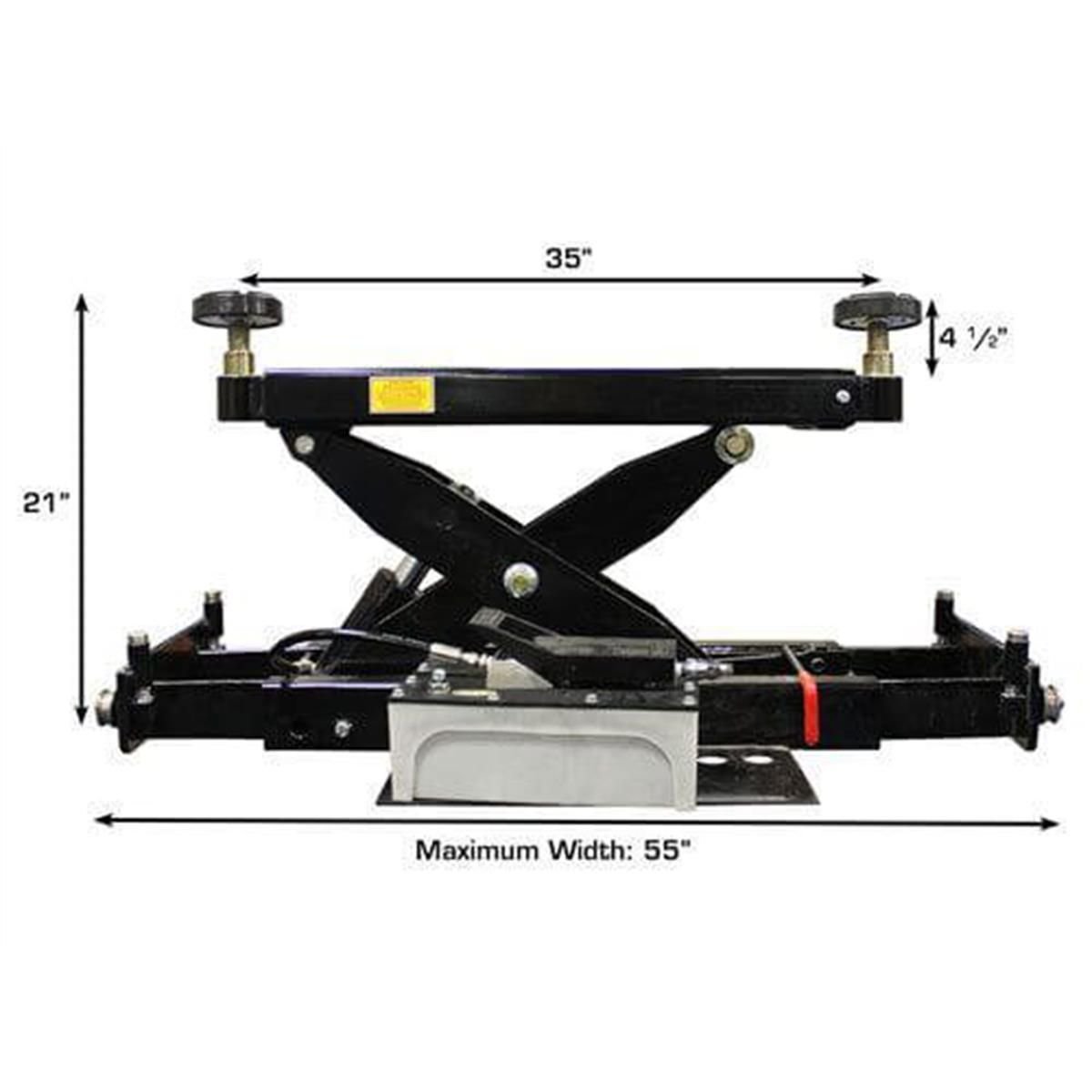

| Maximum Width | 66 1/2″ (5′ 6 1/2″) |
| Minimum Width | 40″ (3′ 4″) |
| Distance Between Runway Capability | 34 1/2″ – 55″ |

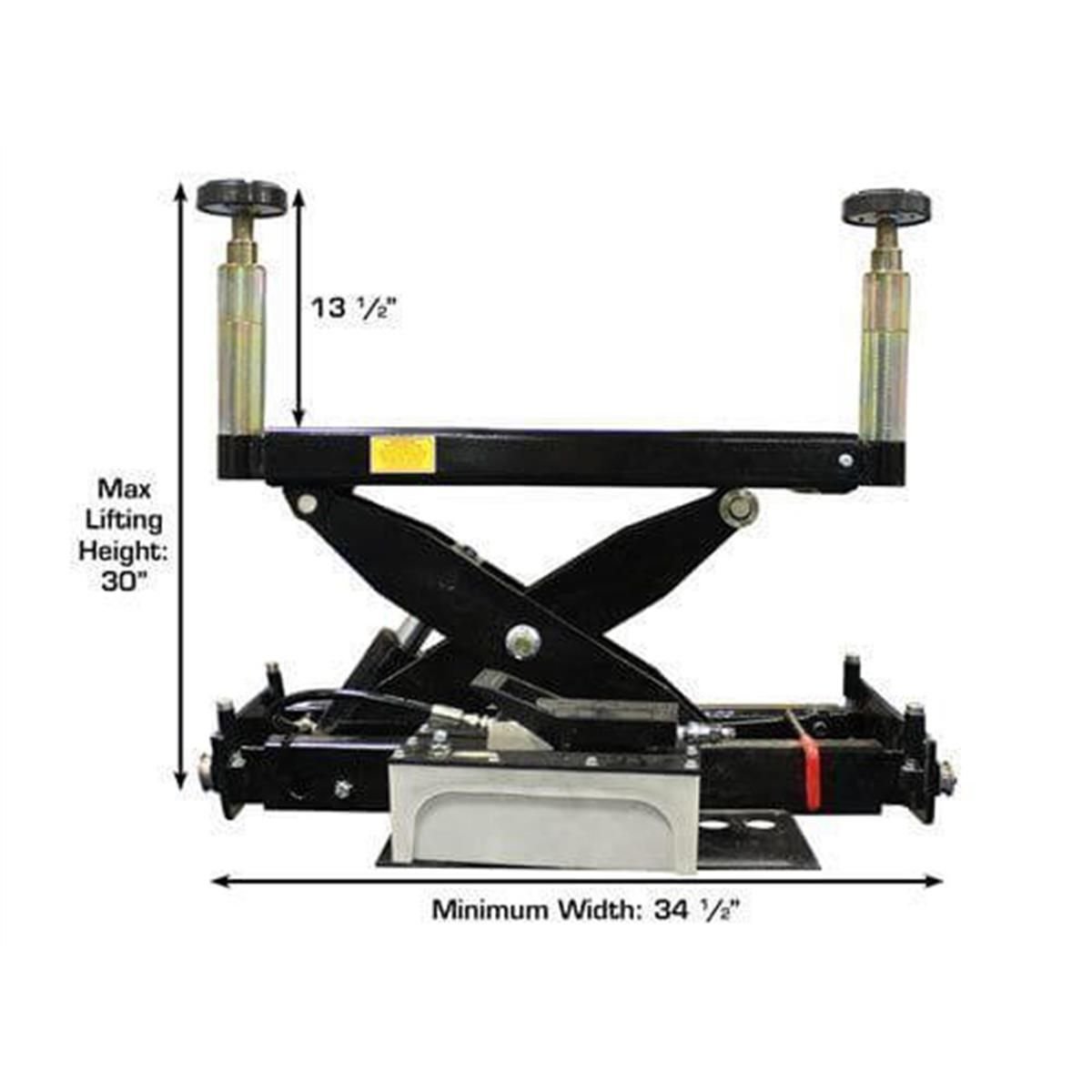

| Maximum Lifting Height (With Adapters) | 30″ |

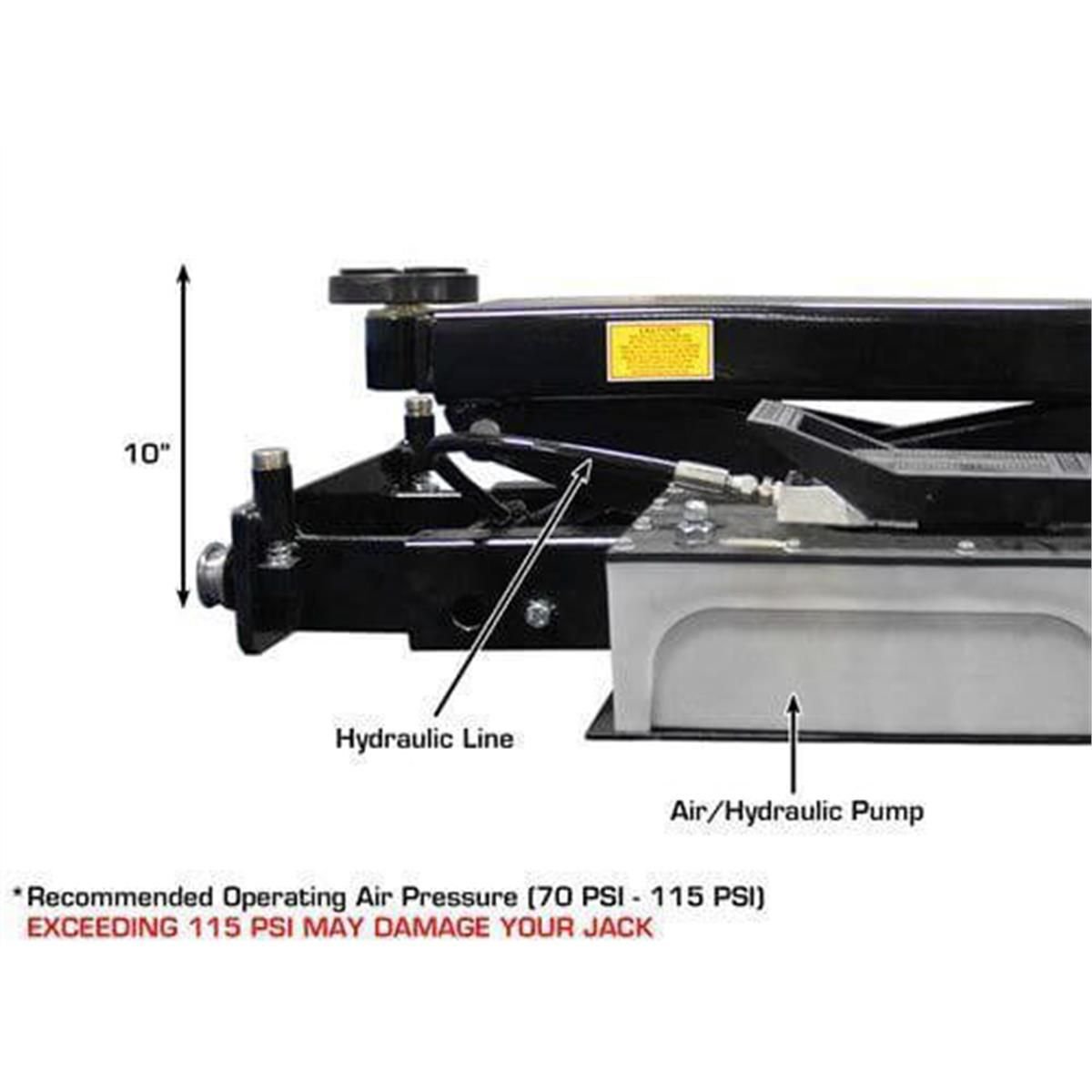

| Air Requirement | 70–115 PSI |
| Shipping Weight | 390 lbs. |

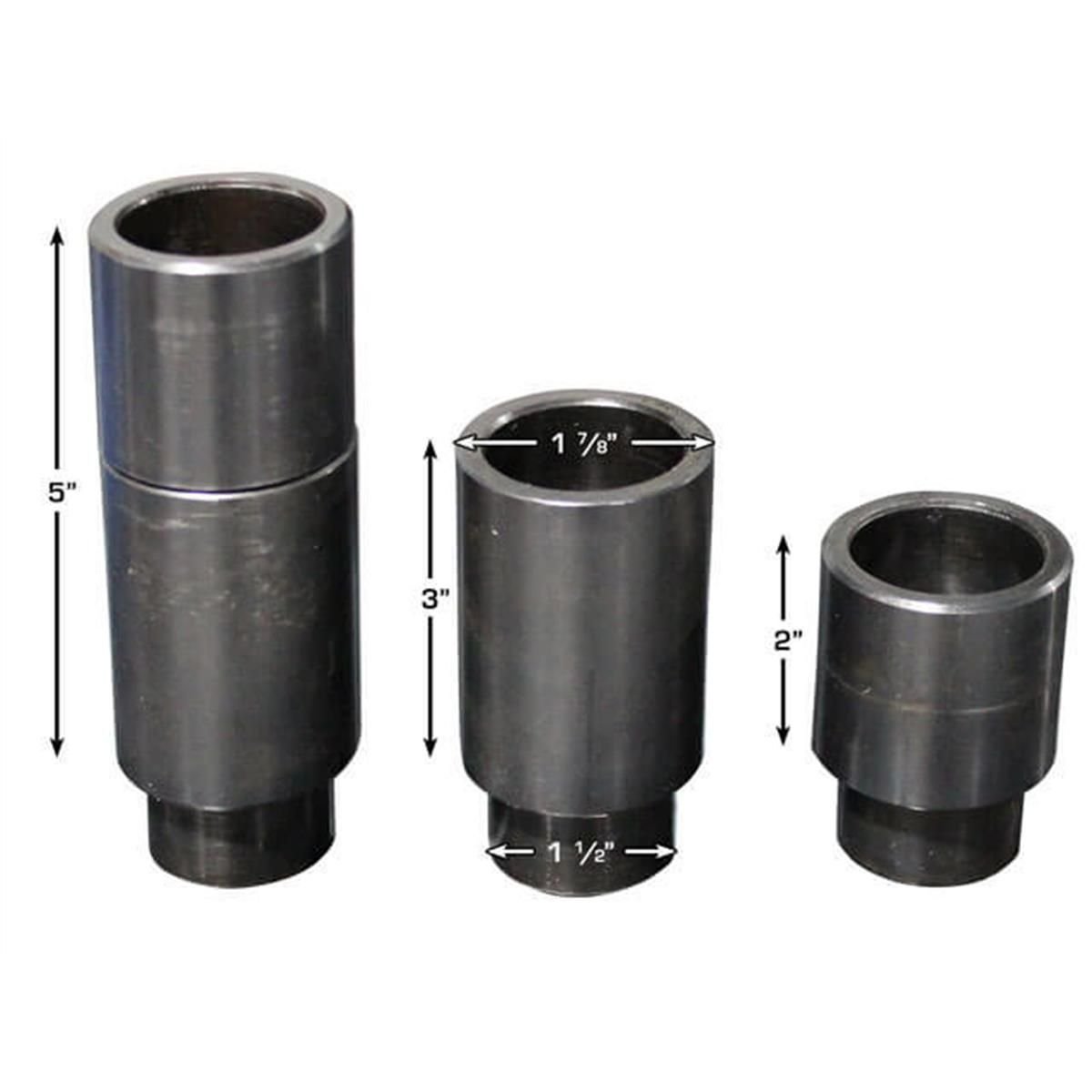

| Adapter Heights | 2 each: 2″, 3″ |
| Arm Hole / Adapter Peg Size | 1.5″ |
