Atlas 180 ATEATTC-AEZWL-2 LB. Capacity Offset Pneumatic Portable Wheel Lift
Price range: $581.95 through $671.55
Description

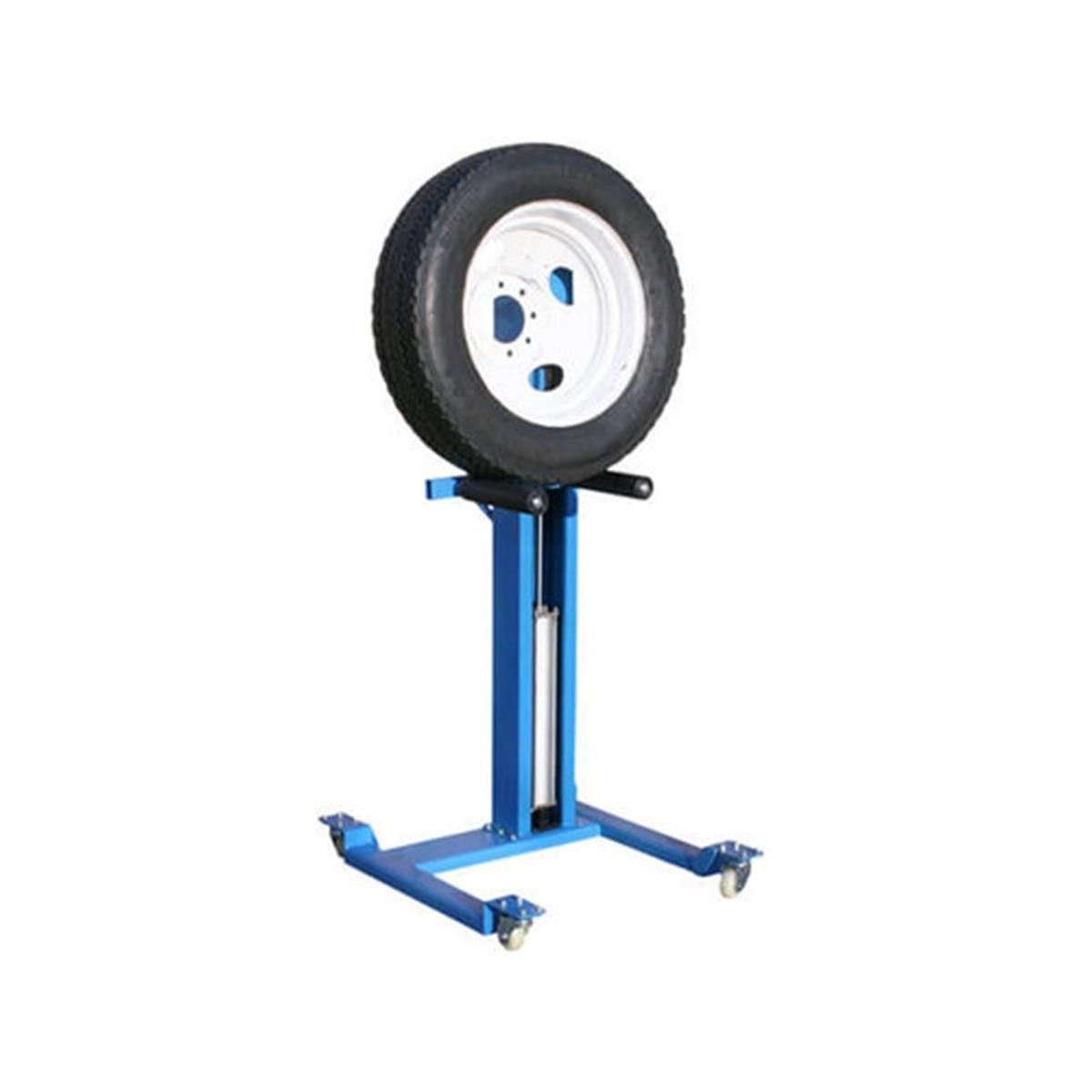

The Atlas Portable Offset Pneumatic Wheel Lift (AEZWL-2) is designed to help prevent back injuries when handling heavy wheel and tire assemblies. It provides a safe and efficient way to lift large wheels onto the shaft of a wheel balancer, onto a tire changer turntable, or when removing and installing wheels on a vehicle raised with a scissor lift or 2-post lift.
Modern wheels and tires continue to increase in size and weight, and many are costly and prone to scratching or damage. The Atlas Offset air-operated wheel lift can easily raise wheel assemblies weighing up to 180 pounds, allowing the operator to accurately position the wheel without risking damage or physical strain. The AEZWL-2 features smooth pneumatic operation and requires only 116–145 PSI of air pressure. Four swivel casters allow for easy mobility and precise positioning in the shop.
Please note: If ordering an Atlas item, your delivery location must be able to accommodate a 53′ truck.
Features
- 180 lb. lifting capacity

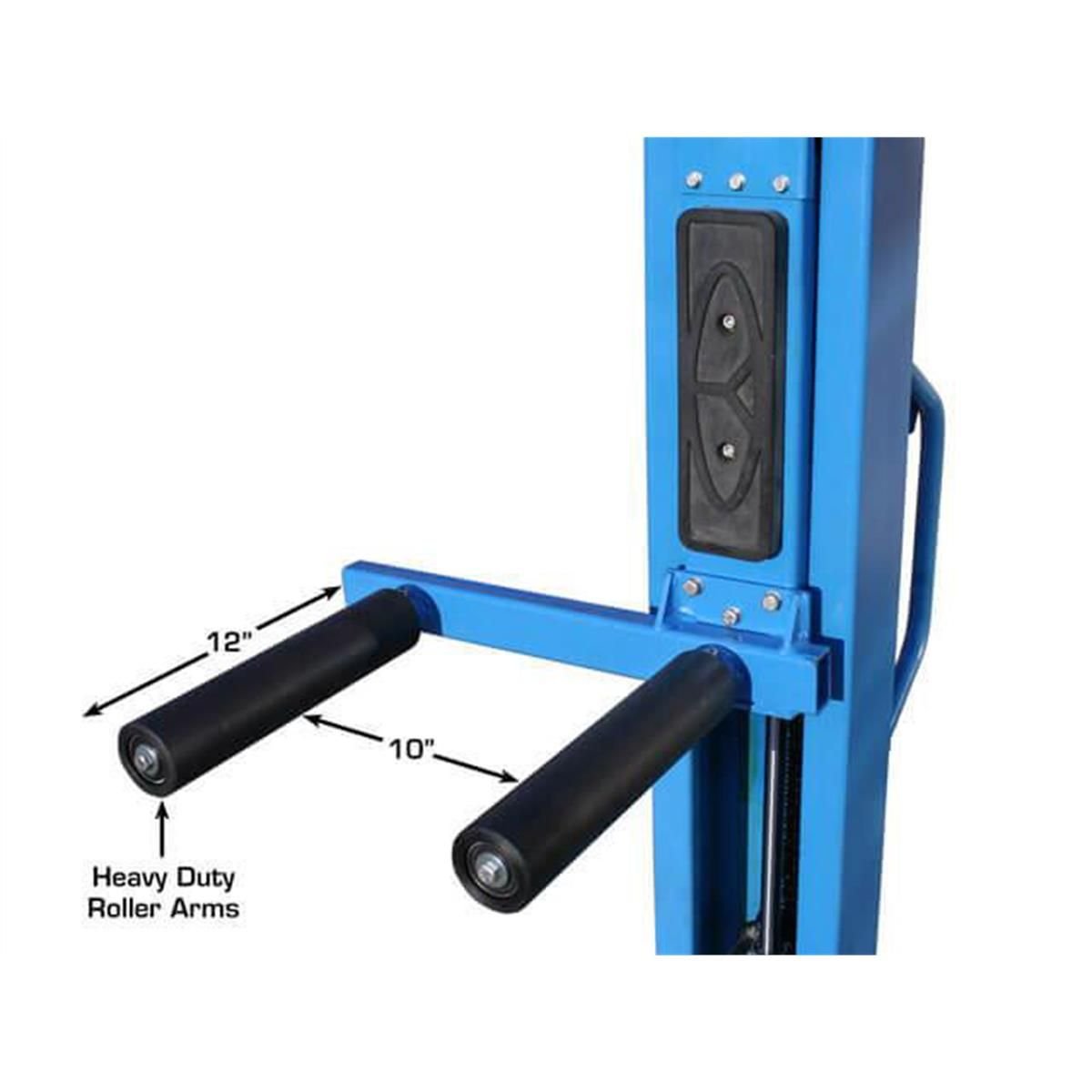

- Offset design with roller arms for easier alignment with lug bolts
- 3″ poly casters for smooth mobility

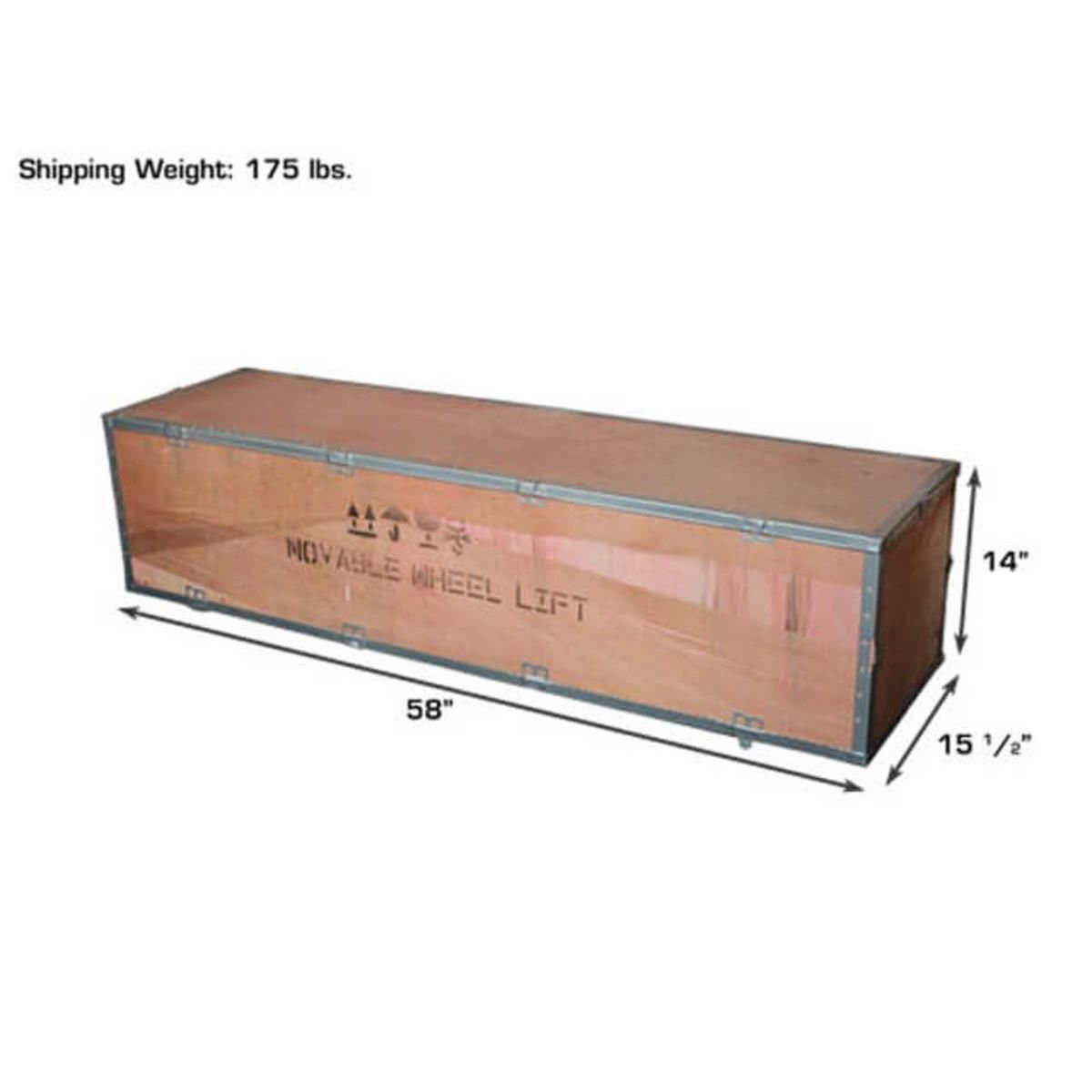

- Shipping dimensions: 58″ x 14″ x 15 1/2″
- Shipping weight: 175 lbs.
- 90-day parts-only warranty
Specifications
Atlas AEZWL-2 Pneumatic Portable Wheel Lift Specifications
| Capacity | 180 lbs. |
|---|---|

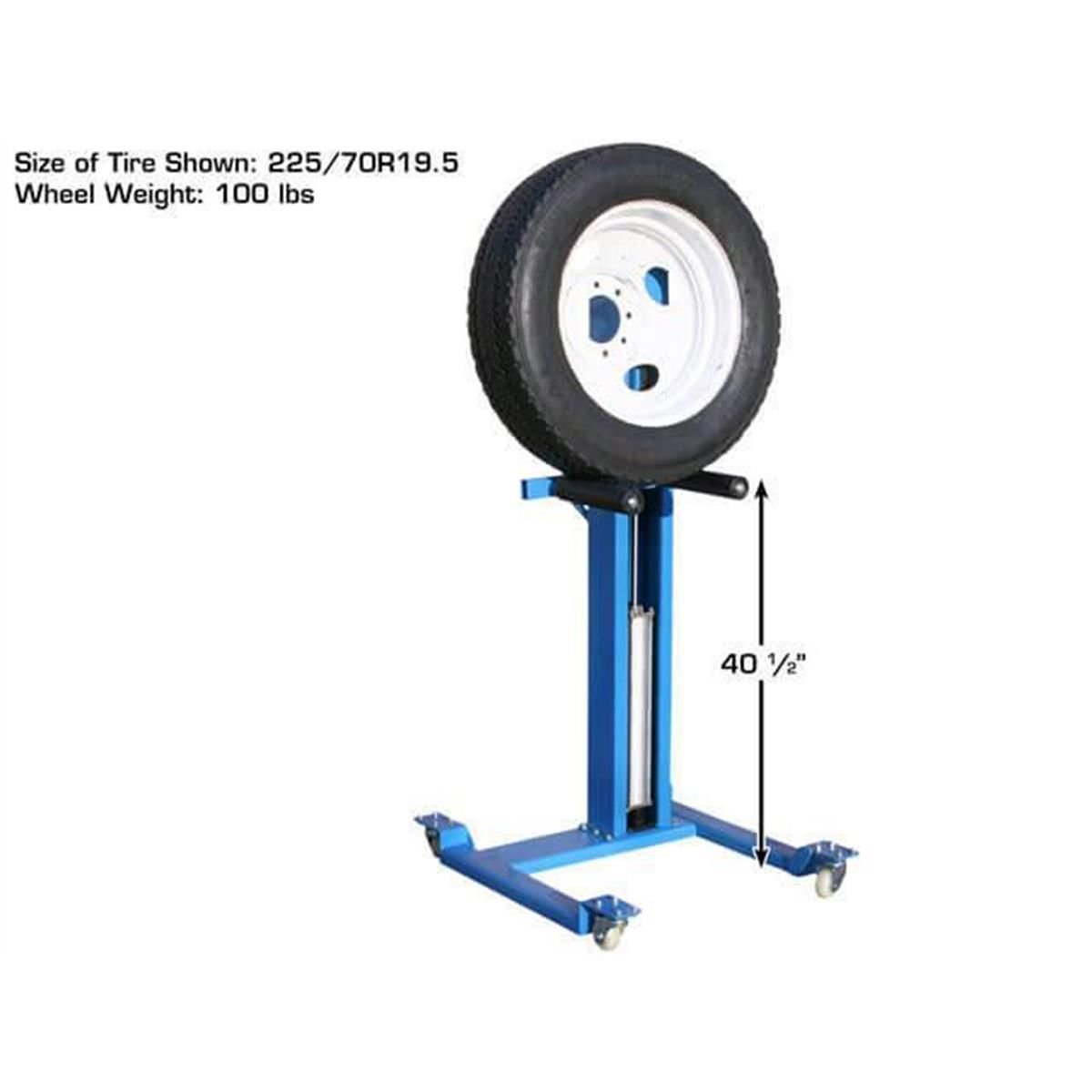

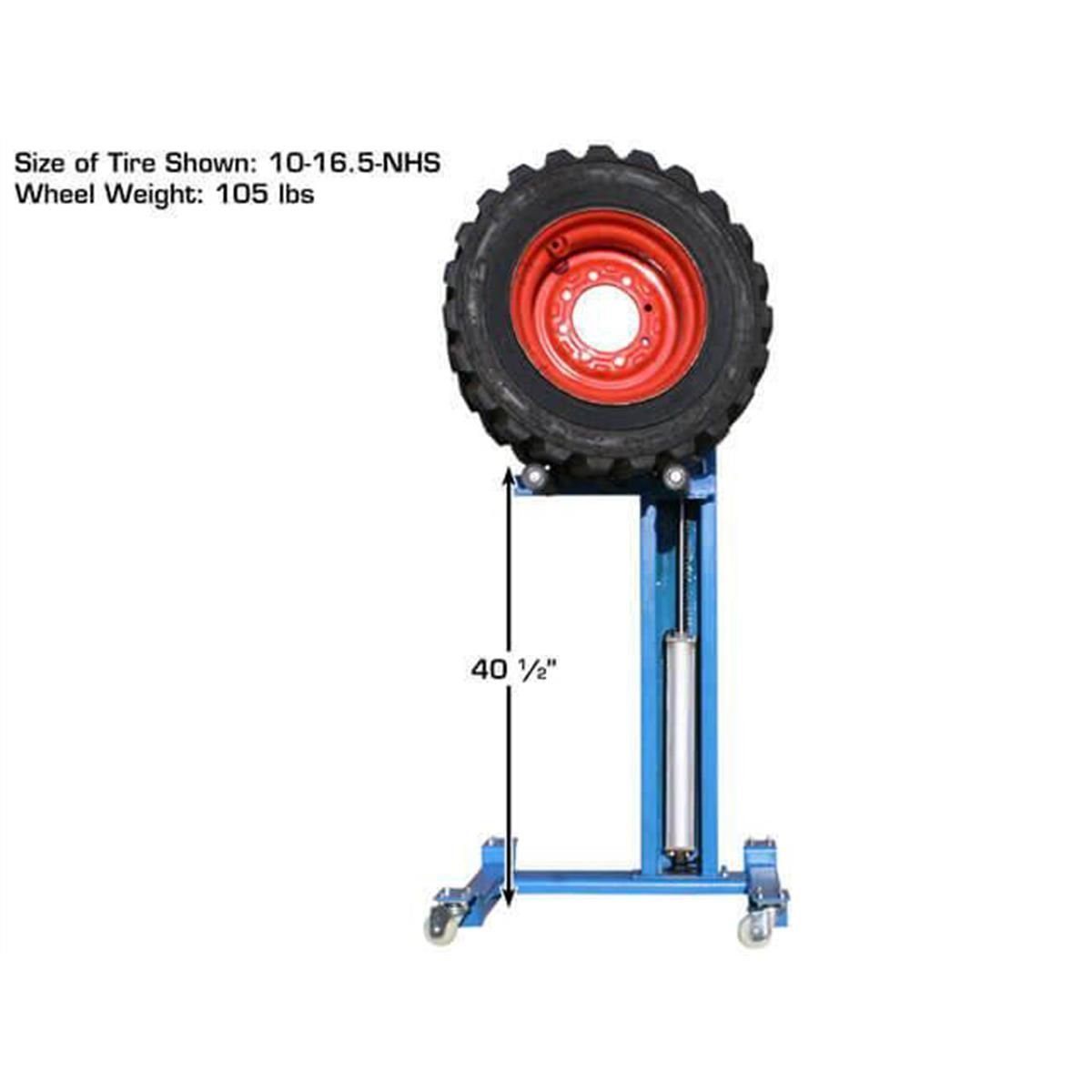

| Max. Lifting Height | 40 1/2″ |
| Min. Lifting Height | 5 1/2″ |
| Arm Length | 12″ |
| Distance Between Arms | 10″ |
| Overall Height | 67 3/4″ |
| Overall Width | 29″ |
| Overall Depth | 34 1/2″ |

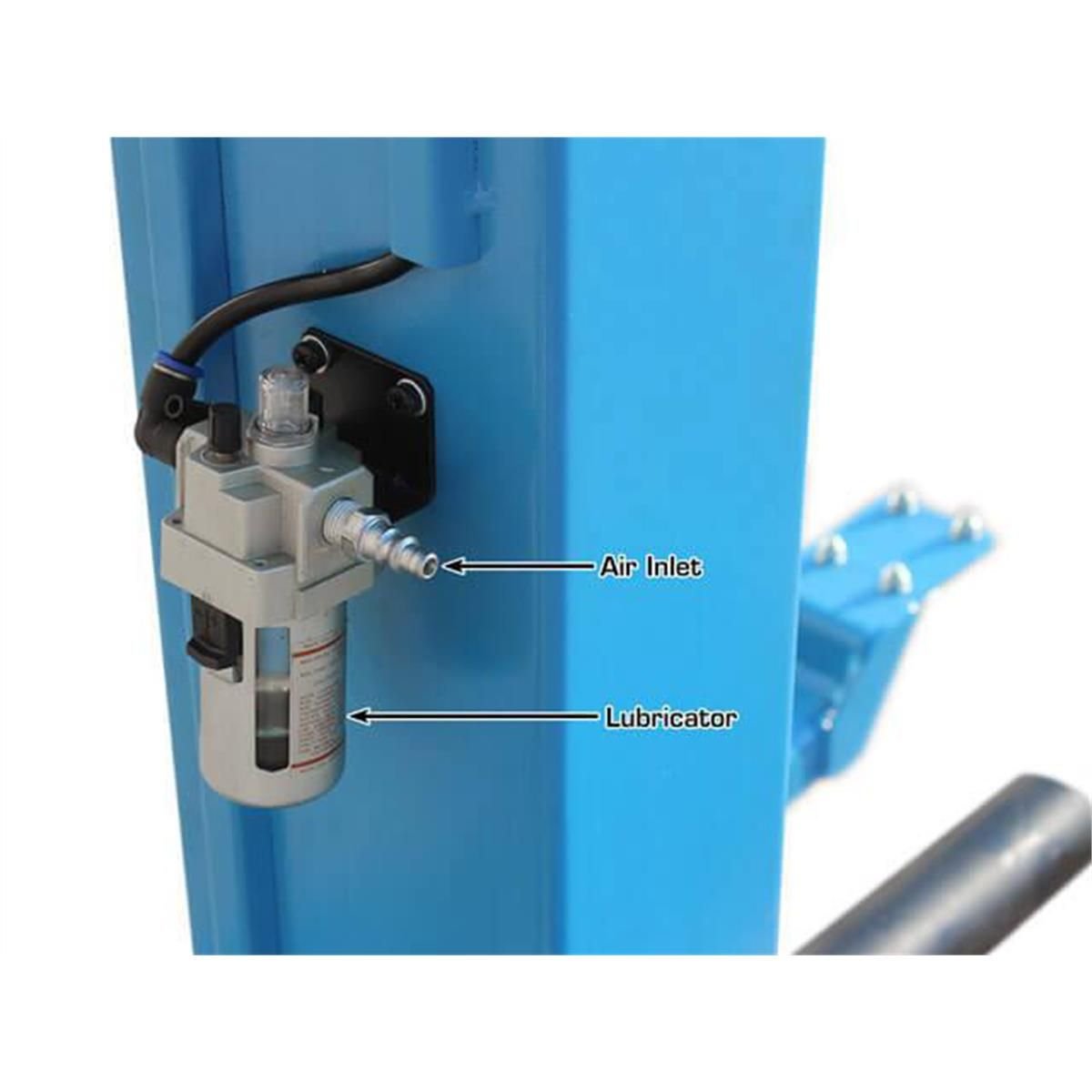

| Required Air Pressure | 116–145 PSI |
| Shipping Weight | 175 lbs. |
