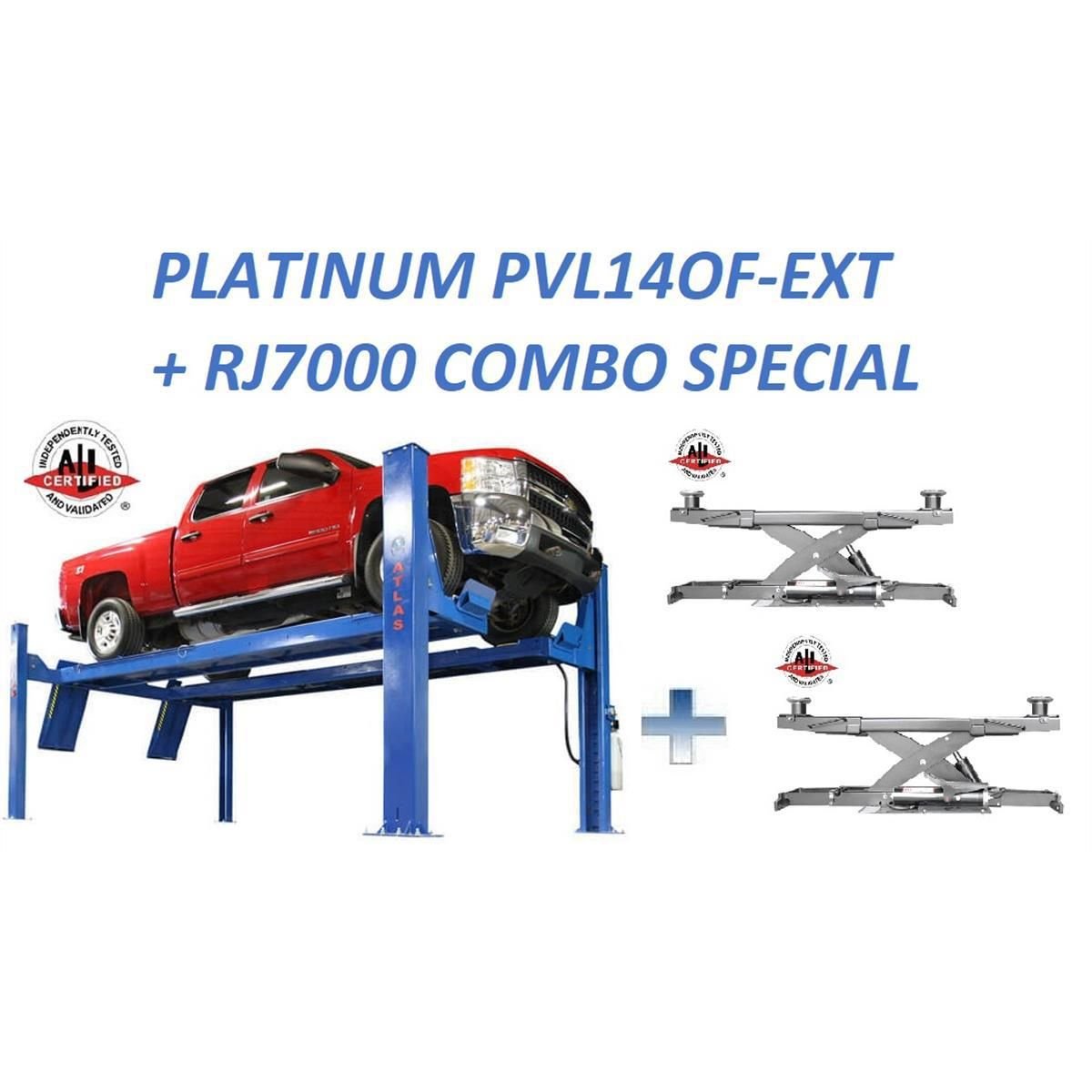

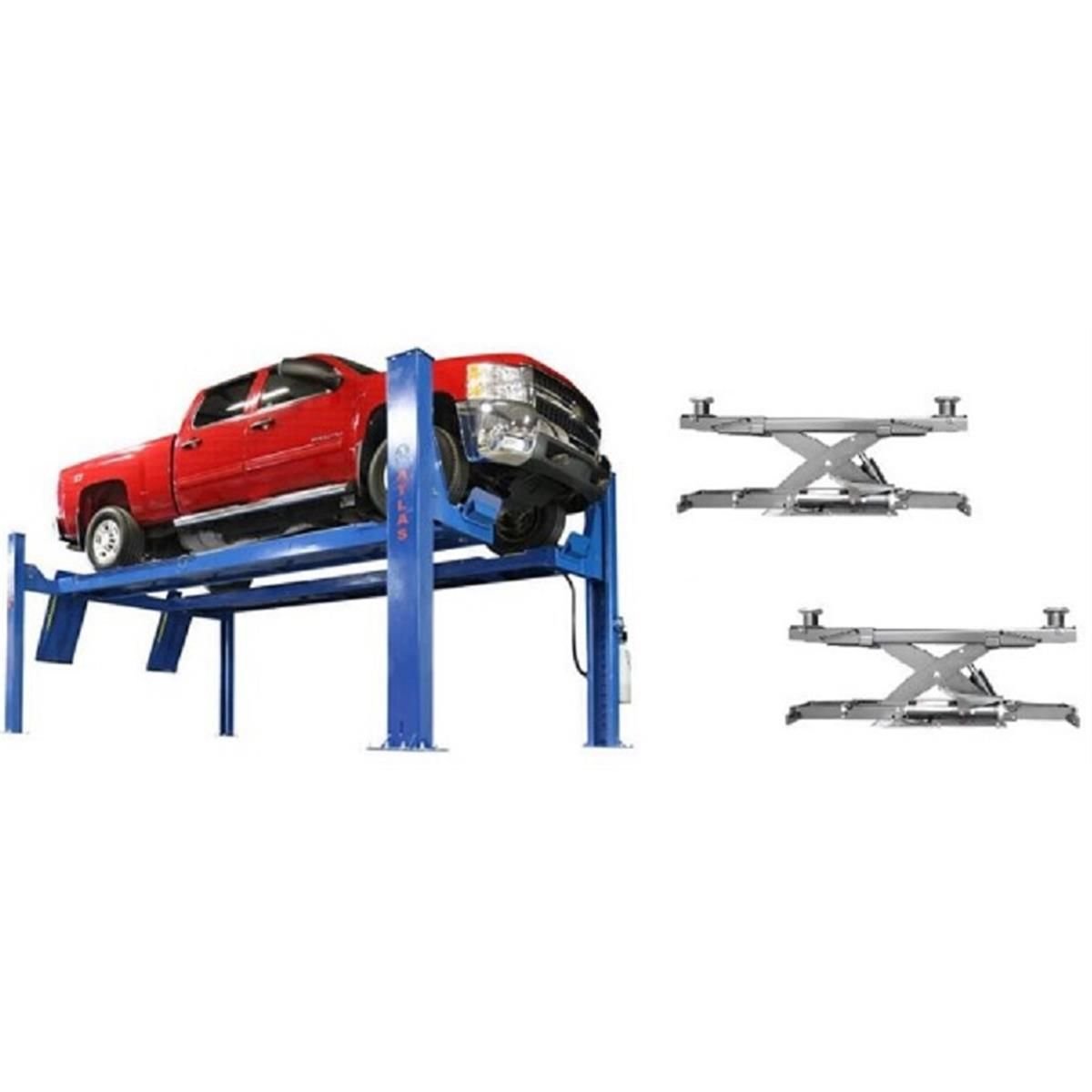

Atlas Platinum PVL14OF-EXT 4 Post Lift + RJ7000 ALI Certified Combo
Price range: $7,212.33 through $7,794.73
Description
The Atlas® Platinum PVL14OF-EXT is a commercial-grade four-post Open-Front alignment lift engineered for professional repair facilities. Designed with extended runways, this lift accommodates a wide range of vehicles including cars, vans, SUVs, trucks, and commercial units. The open-front configuration provides improved access to the vehicle’s underside during service. The AP-PVL14OF-EXT comes standard with built-in slip plates and a pair of heavy-duty turntables, allowing technicians to perform precise wheel alignments.
The Platinum PVL14OF-EXT utilizes a high-strength cable lifting system combined with an oversized hydraulic cylinder mounted beneath the runway, powered by a 220-volt single-phase power unit. Unlike older chain-driven systems with exposed hydraulic cylinders, this modern design simplifies leveling and minimizes the risk of vehicle door damage caused by external components.
The Atlas® Platinum PVL14OF-EXT is ALI certified and supported by one of the strongest warranties in the industry, providing additional confidence for shop owners.

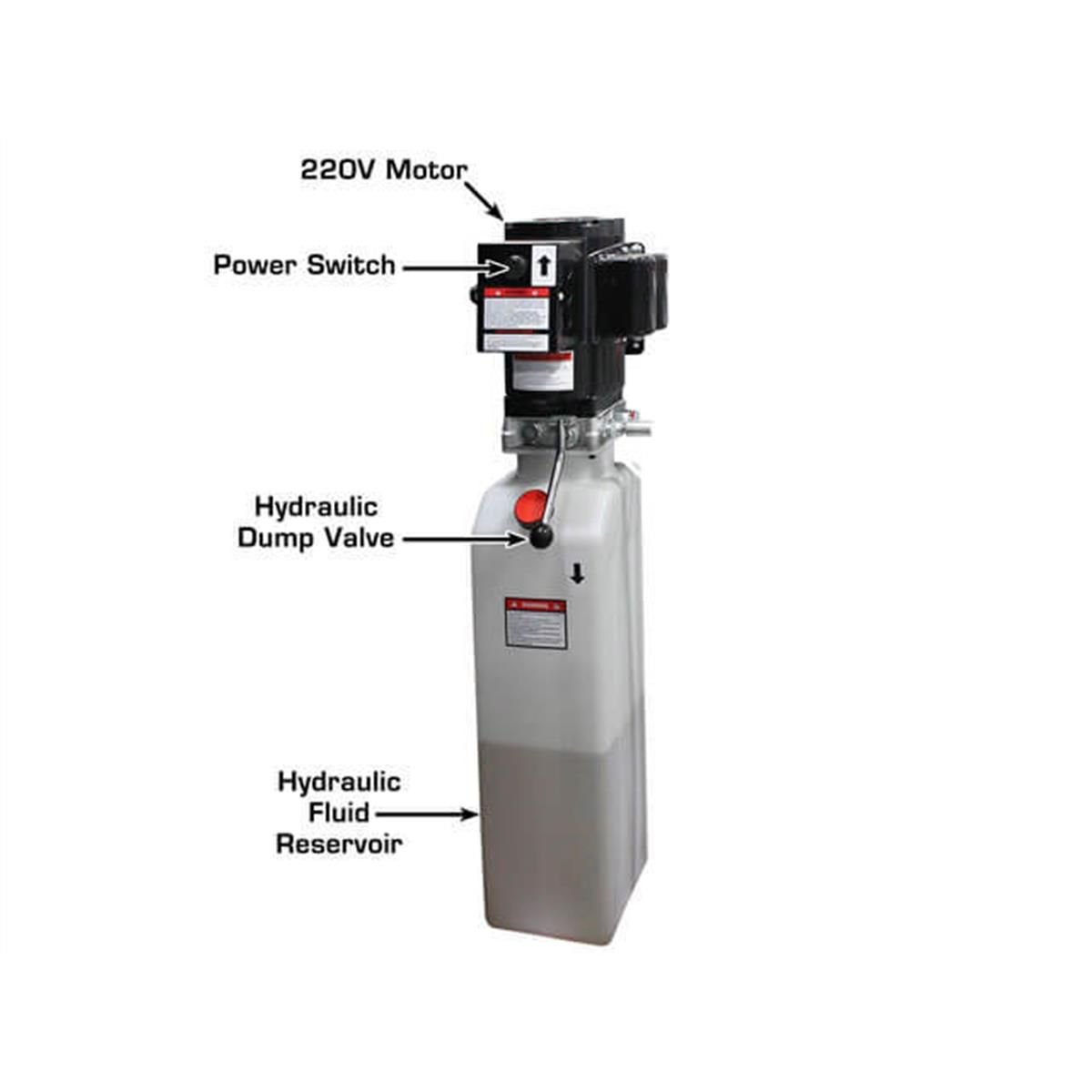

This lift is equipped with the ALLY Hydraulic AL3000 Power Unit. This premium unit is certified by MET Laboratories Inc. for electrical compliance in both the United States and Canada. Its heavy-duty armatures and increased motor windings, with enhanced silver content in wiring and connections, reduce heat buildup and maintain consistent torque throughout the lifting cycle. The ALLY Hydraulic power unit also includes an industry-leading two-year limited warranty.
This package also includes two ALI Certified Atlas® Platinum RJ7000 Rolling Bridge Jacks. These bridge jacks allow technicians to raise the vehicle’s wheels off the runways for brake and tire service.
Please note: If ordering an Atlas item, the delivery location must be capable of accommodating a 53′ truck.
Features
PLATINUM PVL14OF-EXT
- ALI Certified lift
- 14,000 lb. capacity
- Heavy-duty commercial-grade construction
- Alignment lift with built-in slip plates and turntables
- Open-front design for improved access
- Extra-long runways

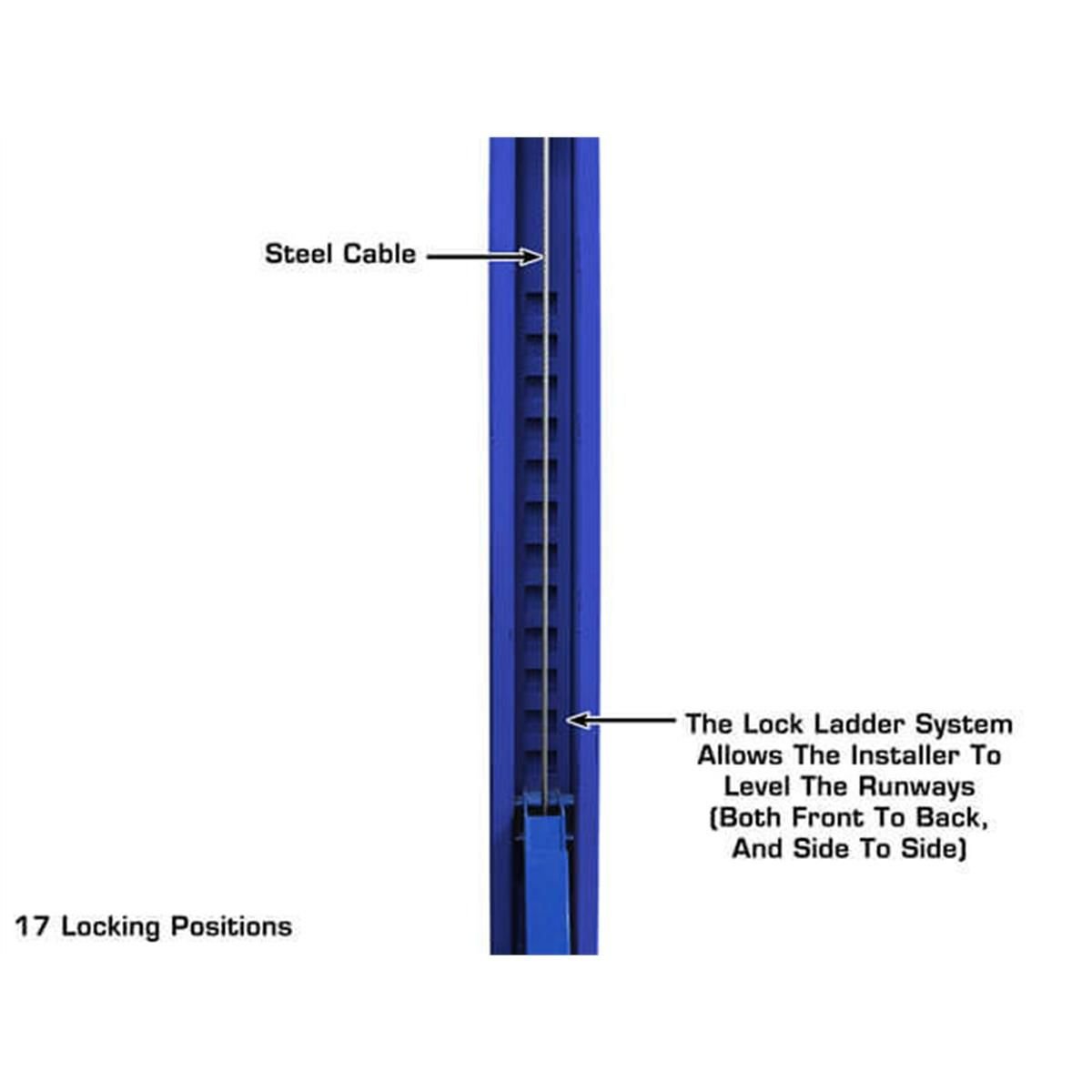

- Adjustable lock ladder design
- Higher-quality powder coat finish

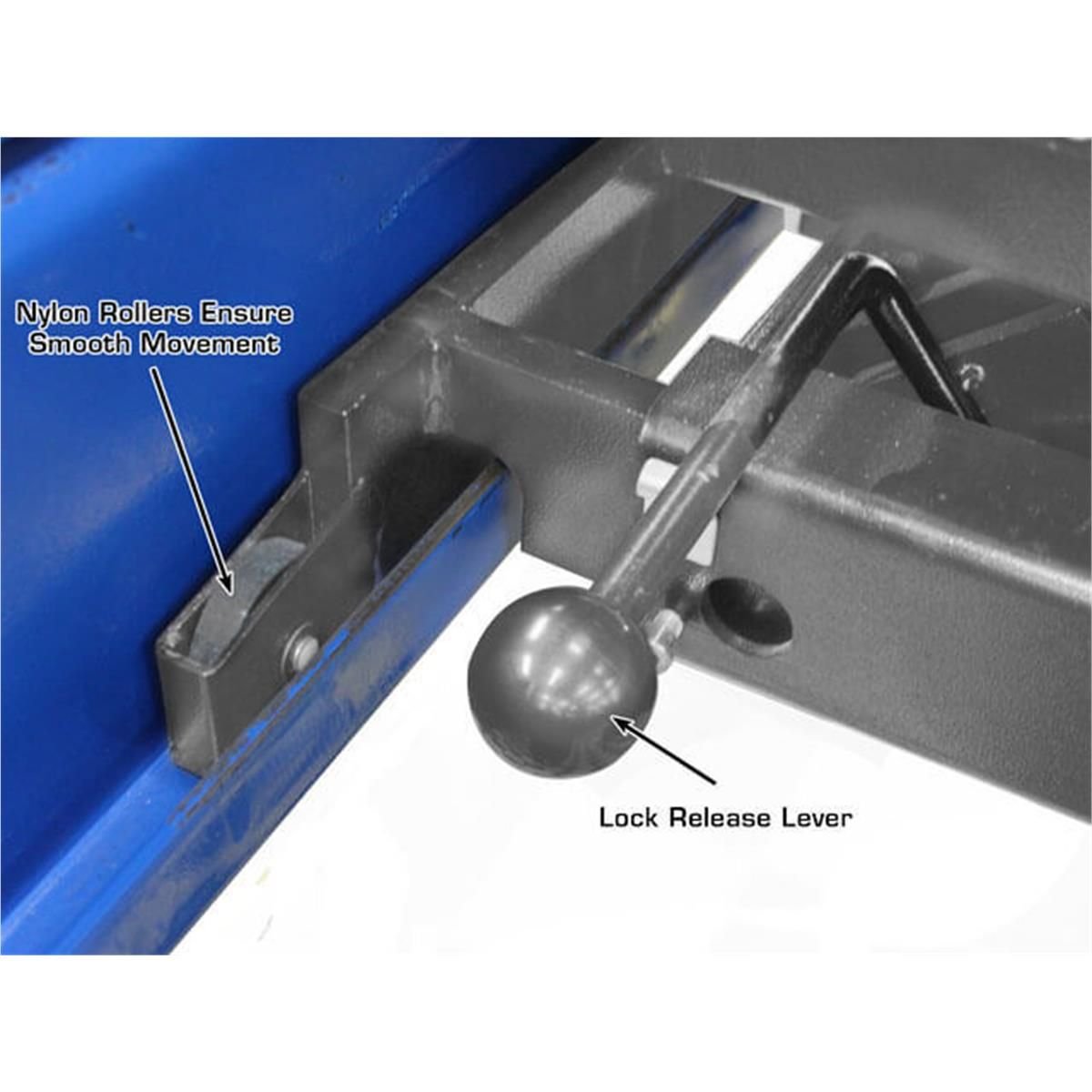

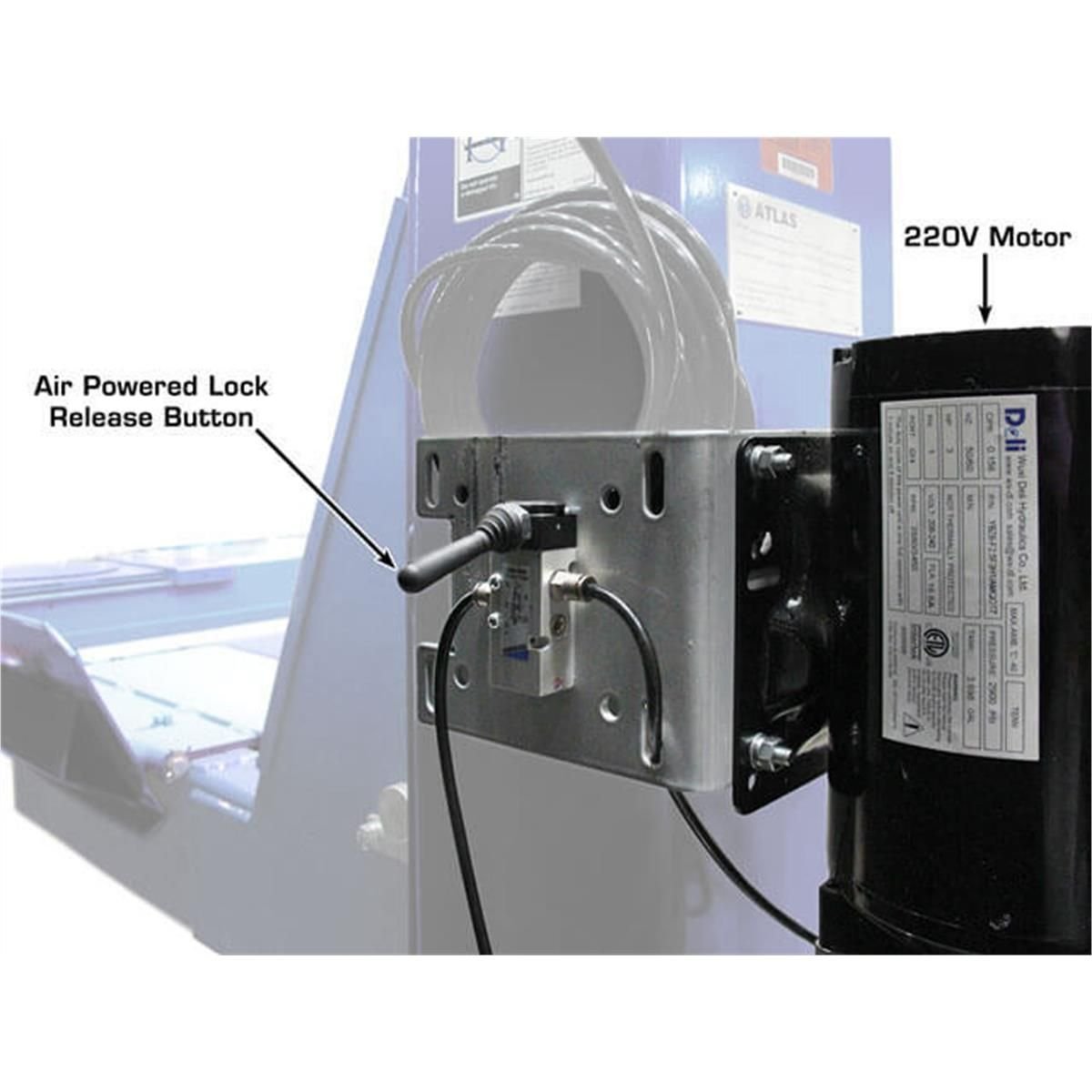

- Air-operated single-point lock release (external air supply required)
- Lock ladder system
- Double-lock safety system
- Powder coat finish
- Steel approach ramps included

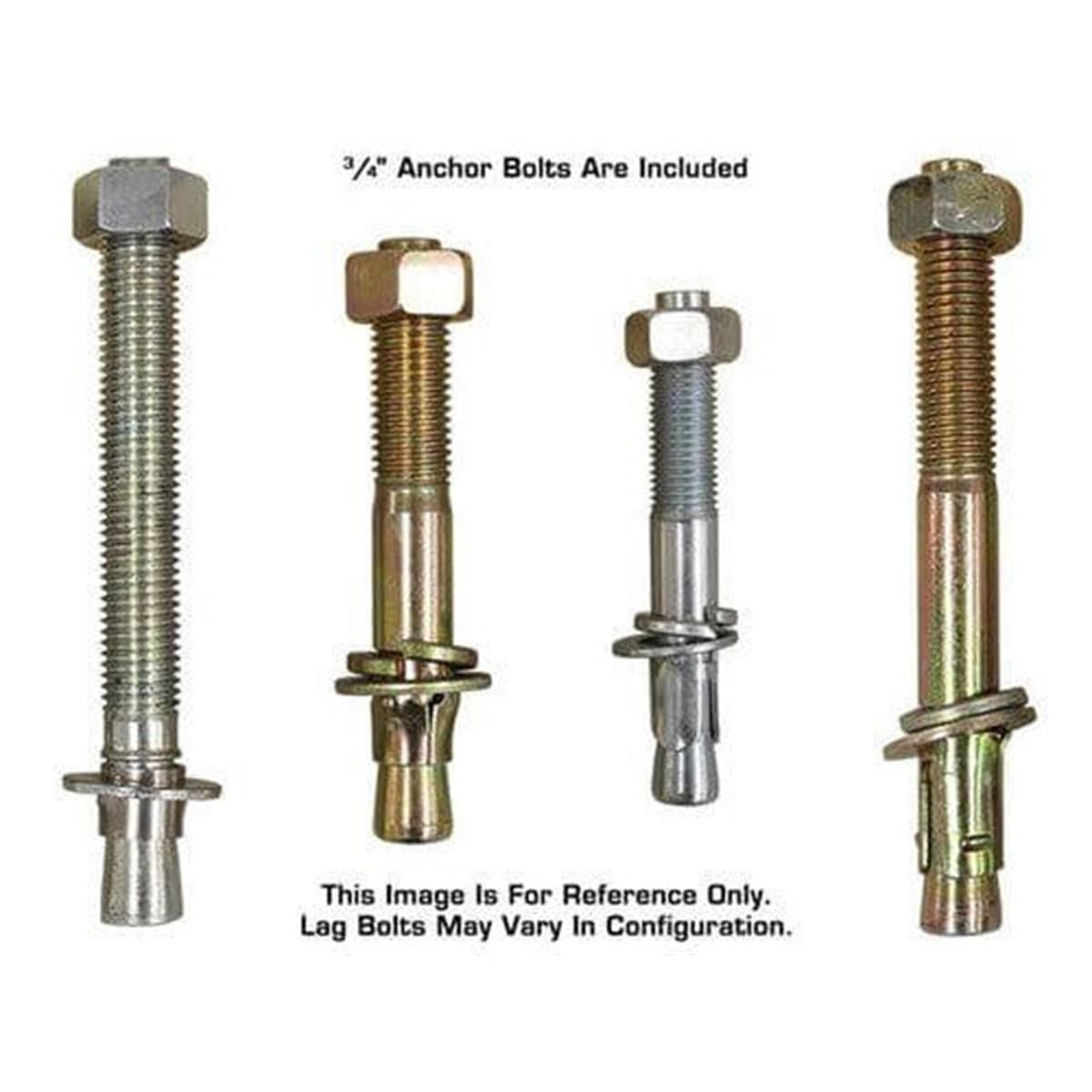

- Mounting hardware included
- Standard with premium ALLY power unit
- 220 volt / single-phase operation (requires 30-amp breaker)

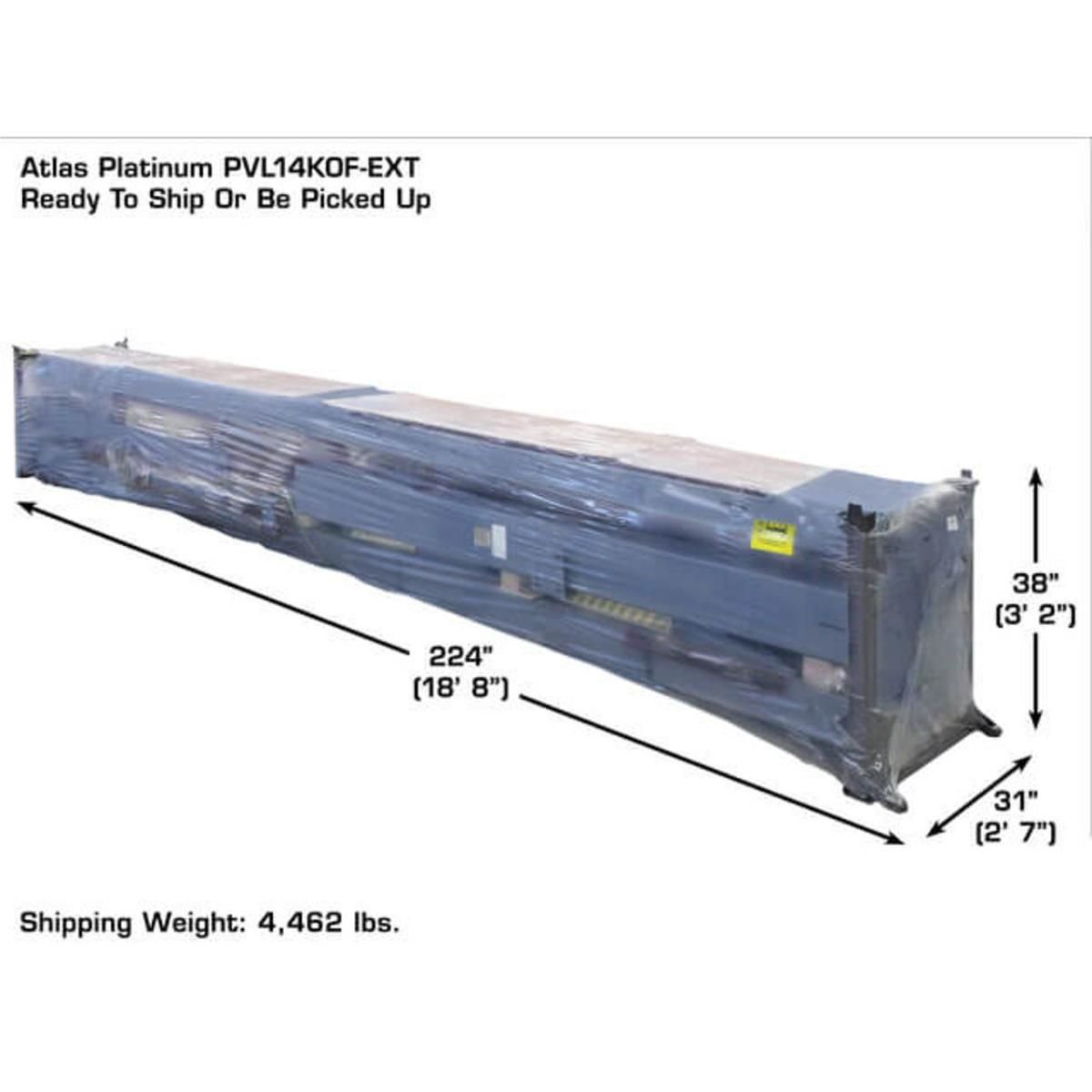

- Shipping weight: 4,462 lbs.
- Warranty: 5-year structural – 2-year hydraulic – 2-year power unit
PLATINUM RJ7000
- 7,000 lb. capacity
- Air/hydraulic operated

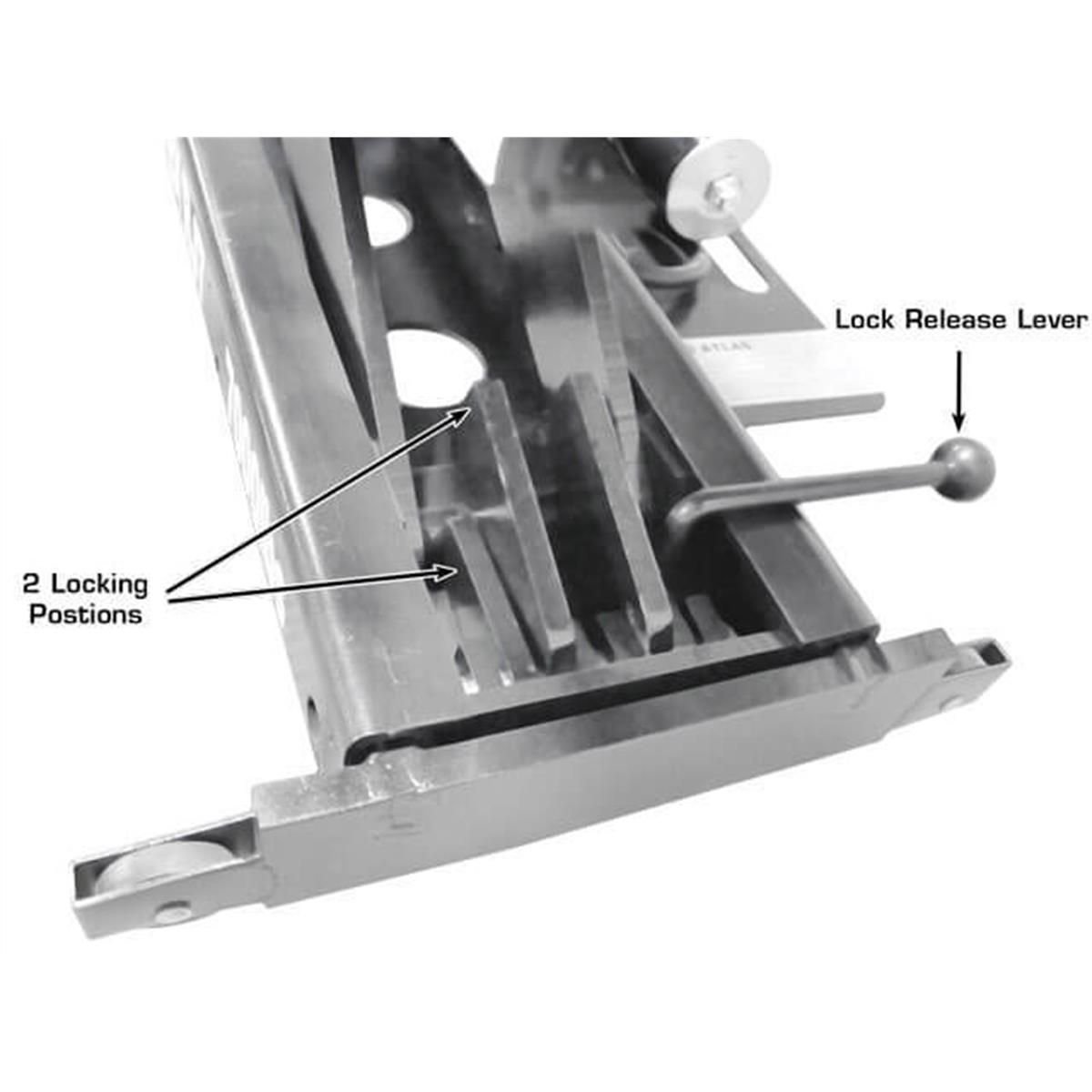

- Two safety lock positions
- Double screw-up adapters included
- Compact, low-profile design
- Smooth rolling operation
- Scissor mechanism for level lifting
- Powder-coated finish
- 1-year parts-only warranty
Specifications
Atlas® Platinum PVL14OF-EXT Specifications
| Capacity | 14,000 lb. |
|---|---|
| Lifting Height | 73 1/4″ (6′ 1 1/4″) |
| Overall Width of Columns (Without Motor) | 140 1/8″ (11′ 8 1/8″) |
| Overall Width of Columns (With Motor) | 148 3/4″ (12′ 4 3/4″) |
| Overall Length With Approach Ramp | 272 1/8″ (22′ 8 1/8″) |
| Length Between Columns | 207″ (17′ 3″) |
| Runway Length | 223 1/2″ (18′ 7 1/2″) |
| Runway Width | 20″ |
| Thickness of Runway | 7″ |
| Width Between Runways | 42 3/4″ (w/ Rail 39 1/4″) |
| Outside Runway to Outside Runway | 83 1/8″ (6′ 11 1/8″) |
| Clearance Under Runways | 66 1/4″ (5′ 6 1/4″) |
| Clearance Between Columns | 116 3/8″ (9′ 8 3/8″) |
| Height of Columns | 92 1/2″ (7′ 8 1/2″) Rear / 109 1/4″ (9′ 1 1/4″) Front |
| Maximum Wheel Base | 203″ (16′ 11″) |
| Drive Thru | 94 1/2″ (7′ 10 1/2″) |
| Air Requirement | 85–115 PSI (External Air Supply Required) |
| Motor / Electrical Requirement | 220 volt single (1) phase — 30 amp breaker recommended |
| Oil Requirement | 3–5 gallons AW32/AW46 (Not Included) |
| Shipping Weight | 4,462 lbs. |
| Concrete Requirement | Minimum 6″ thickness, 3000 PSI rating |

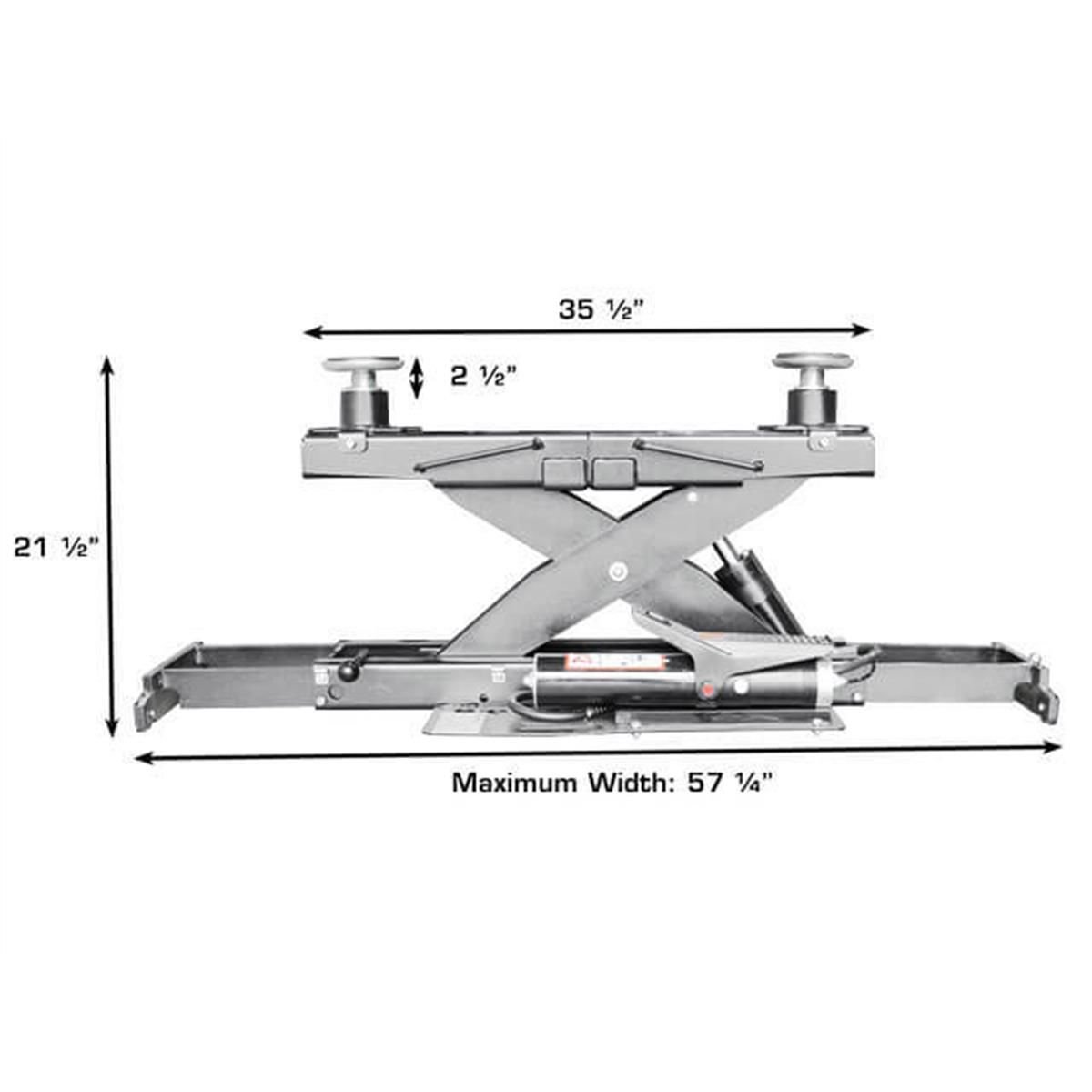

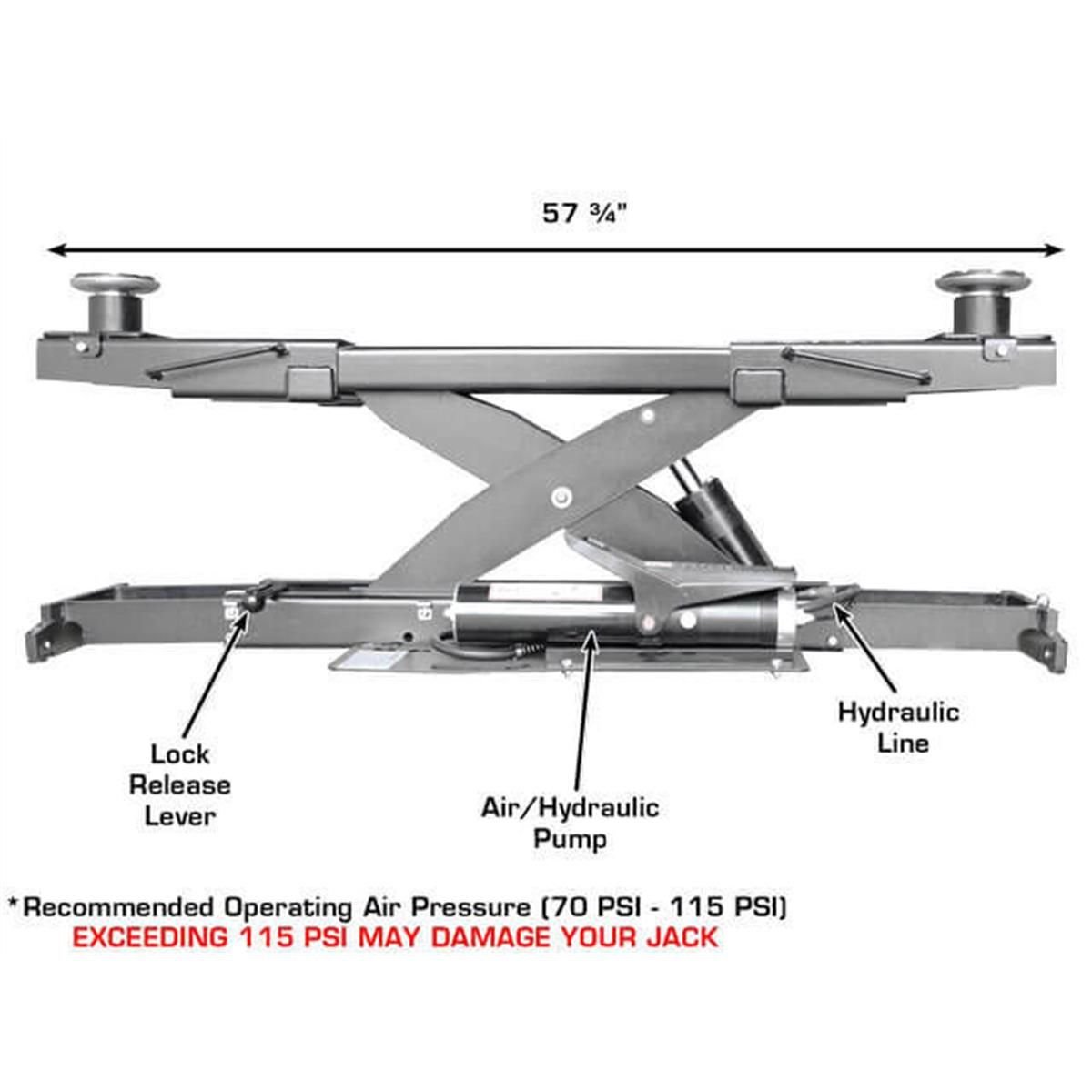

Atlas® Platinum RJ7000 Specifications
| Maximum Capacity | 7,000 lb. |
|---|---|
| Maximum Width | 45 1/2″ (3′ 9 1/2″) |
| Minimum Width | 36″ (3′) |
| Distance Between Runway Capability | 36″ – 45″ |

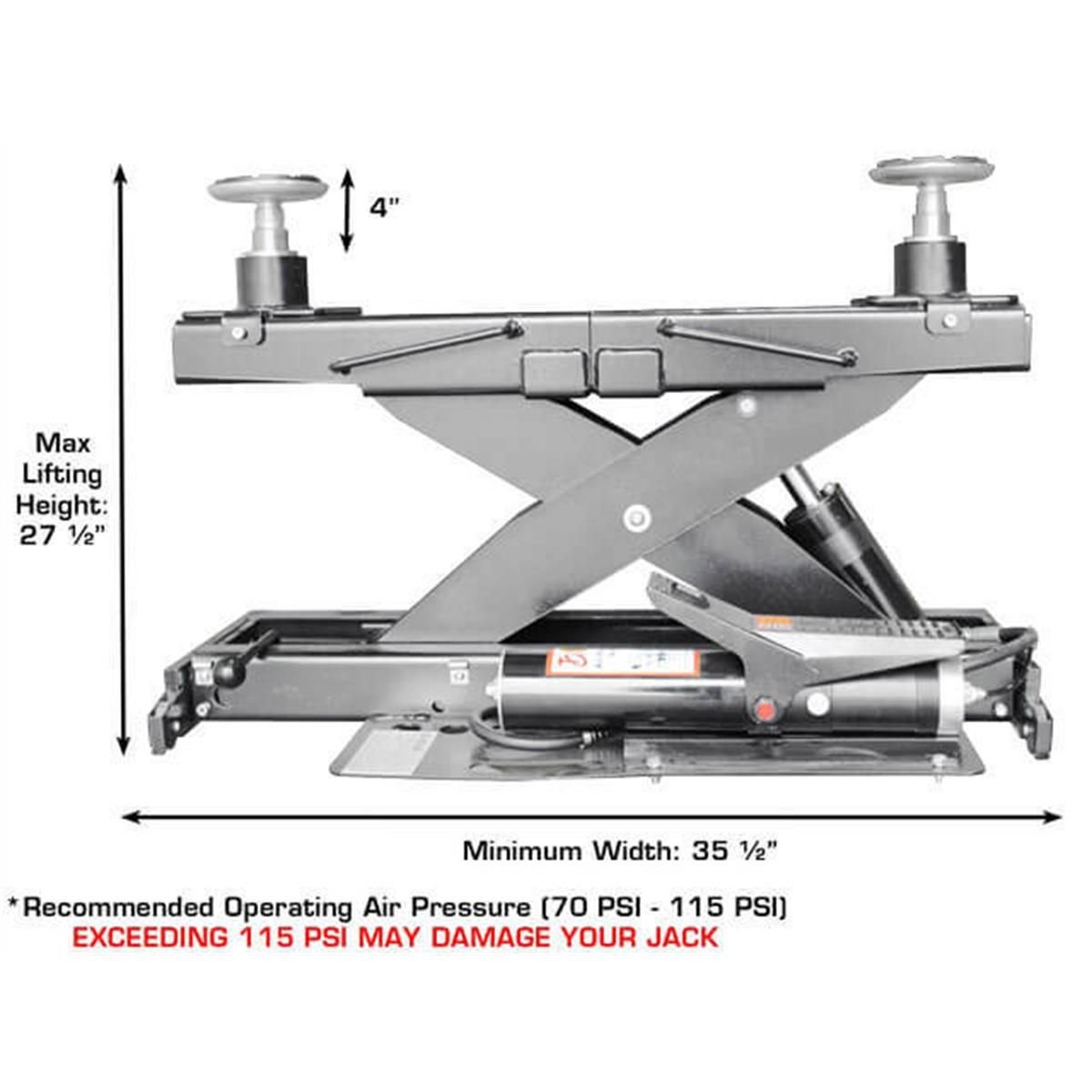

| Maximum Lifting Height (With Adapters) | 27 1/2″ (2′ 3 1/2″) |
| Air Requirement | 70–115 PSI |

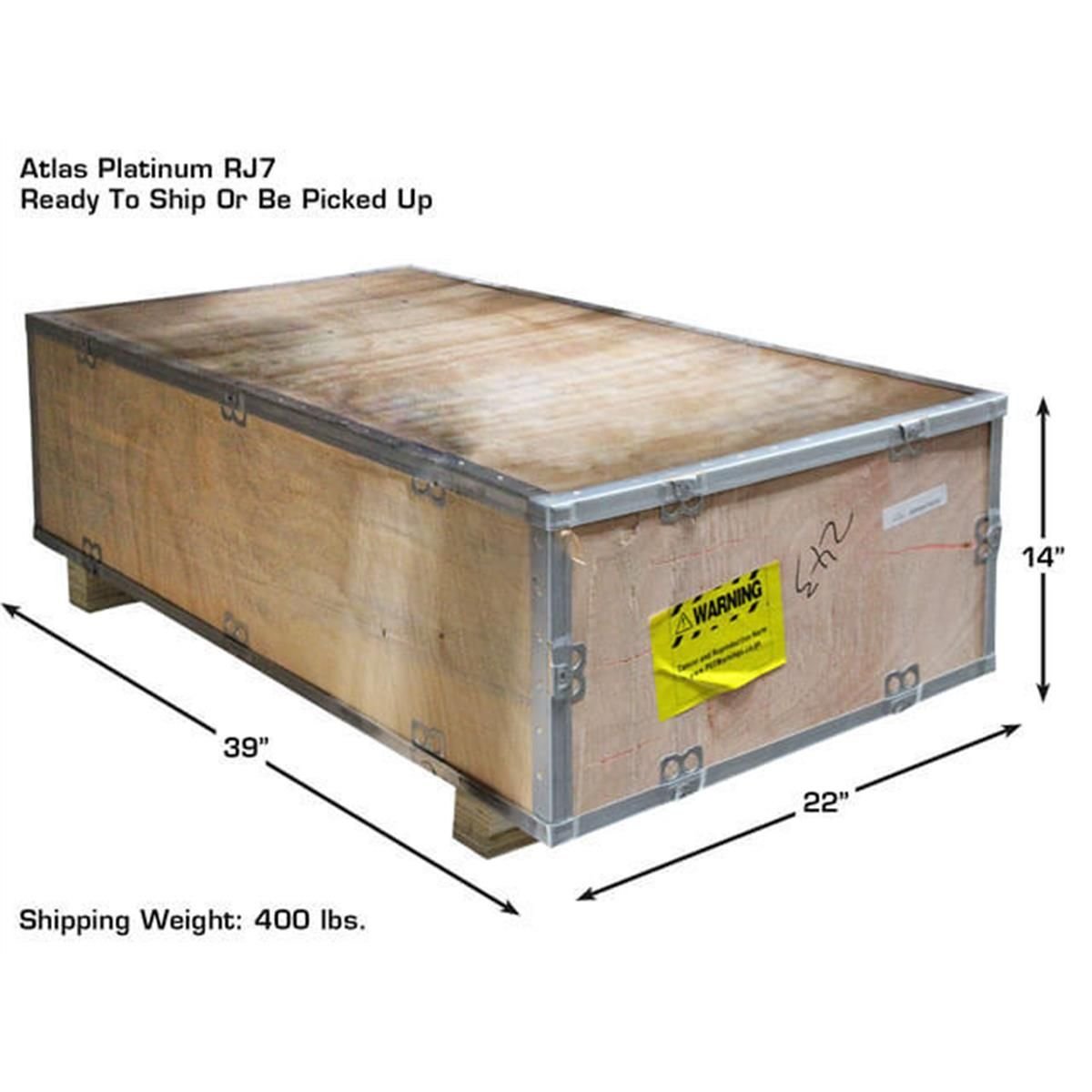

| Shipping Weight | 400 lbs. |
| Double Screw-Up Adapter Pad | 1 1/2″ – 4″ |
