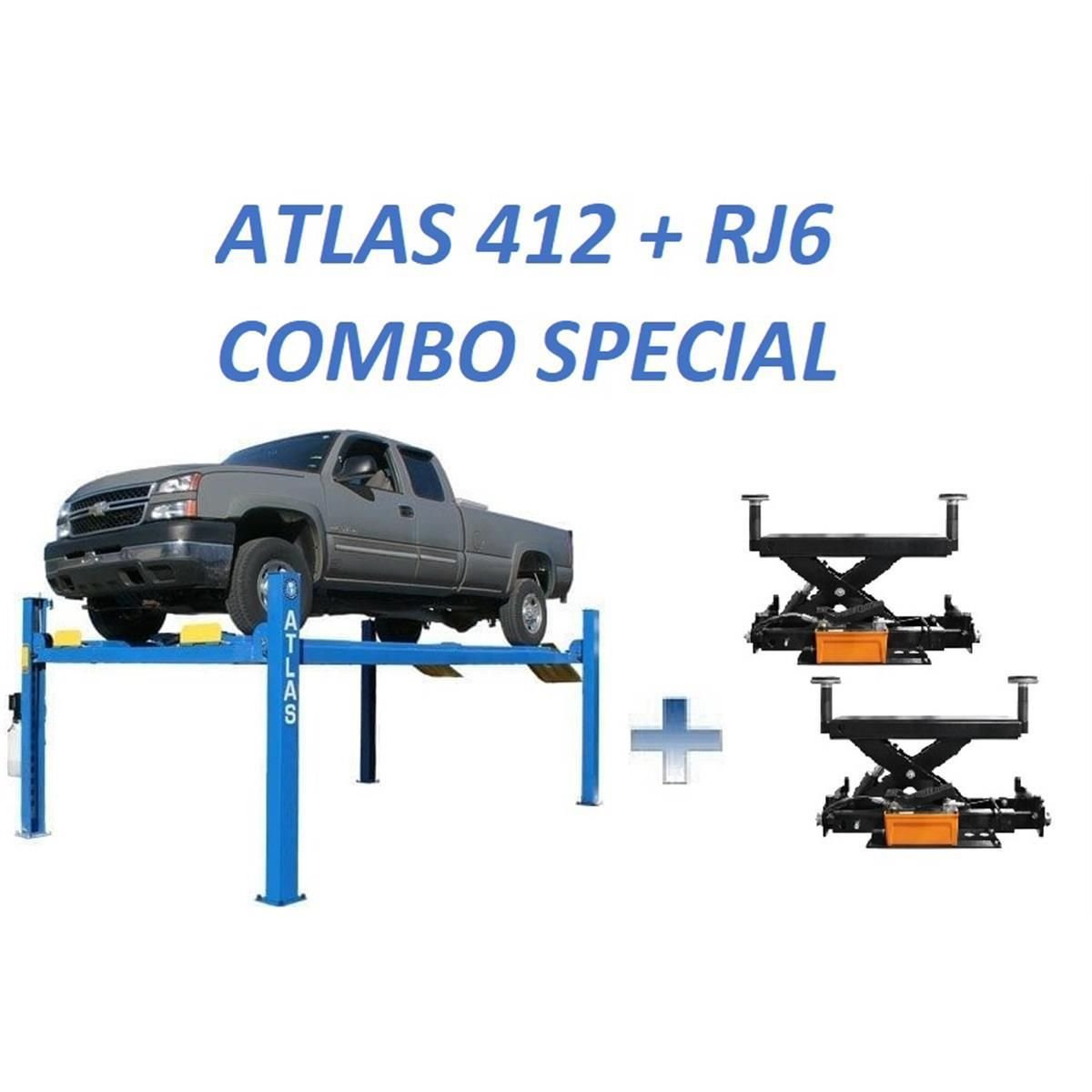

Atlas 412 12,000 lb 4-Post Lift + RJ6 Jacks Combo
Price range: $4,031.54 through $4,613.94
Description
The Atlas® 412 incorporates structural strength and refined design features typically found on lifts priced significantly higher. Each Atlas® 412 lift is tested to verify reliable operation at its full rated capacity. This model has been produced to the same high manufacturing standards for many years, ensuring consistent performance and durability.

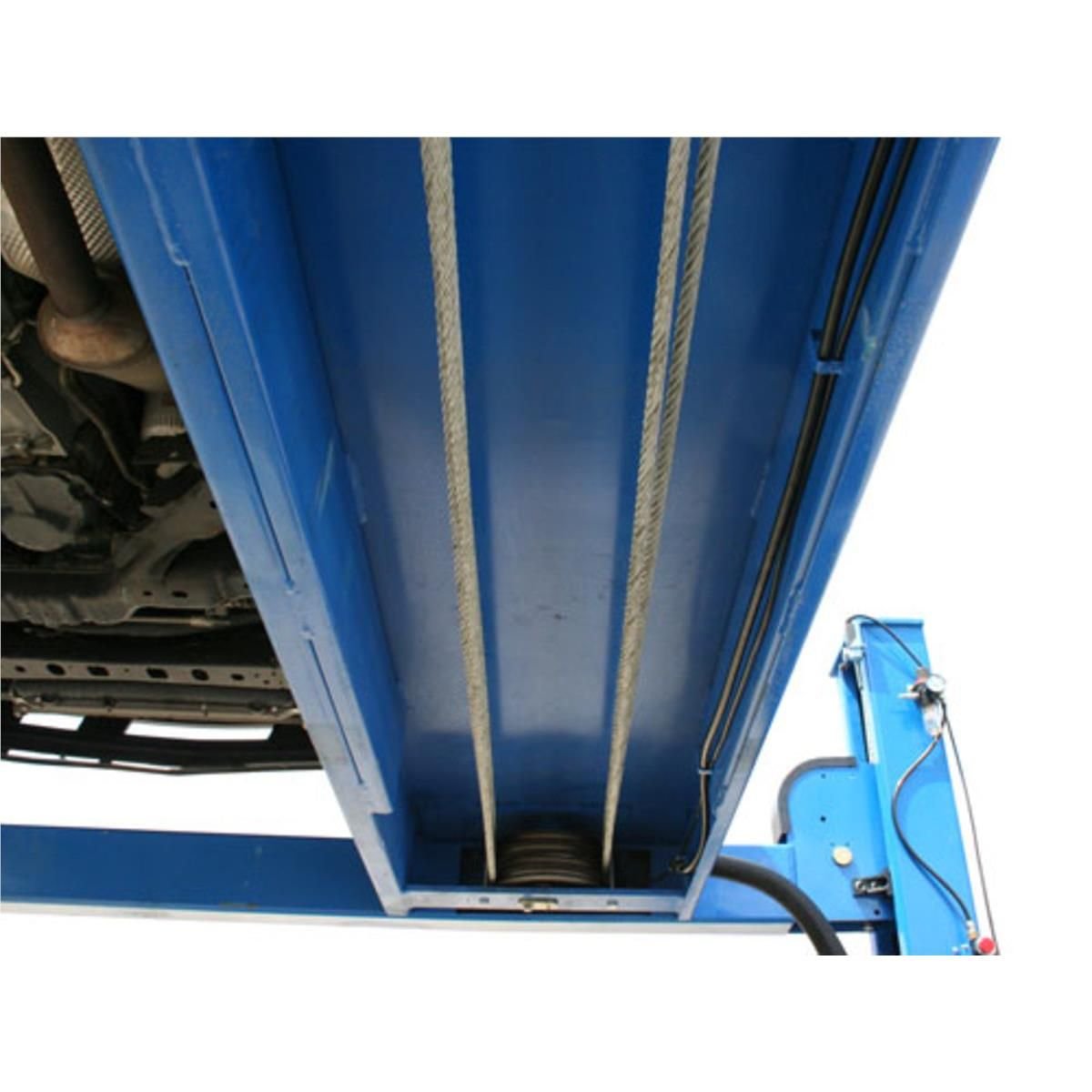

The Atlas® 412 utilizes a high-strength cable lifting system combined with an oversized hydraulic cylinder mounted beneath the runway. The system is powered by a 220-volt (single-phase) power unit for smooth lifting and lowering. Unlike older chain-driven systems with exposed hydraulic cylinders—which can be difficult to level properly and may contribute to vehicle door damage—the 412’s under-runway cylinder design promotes improved leveling and vehicle protection.

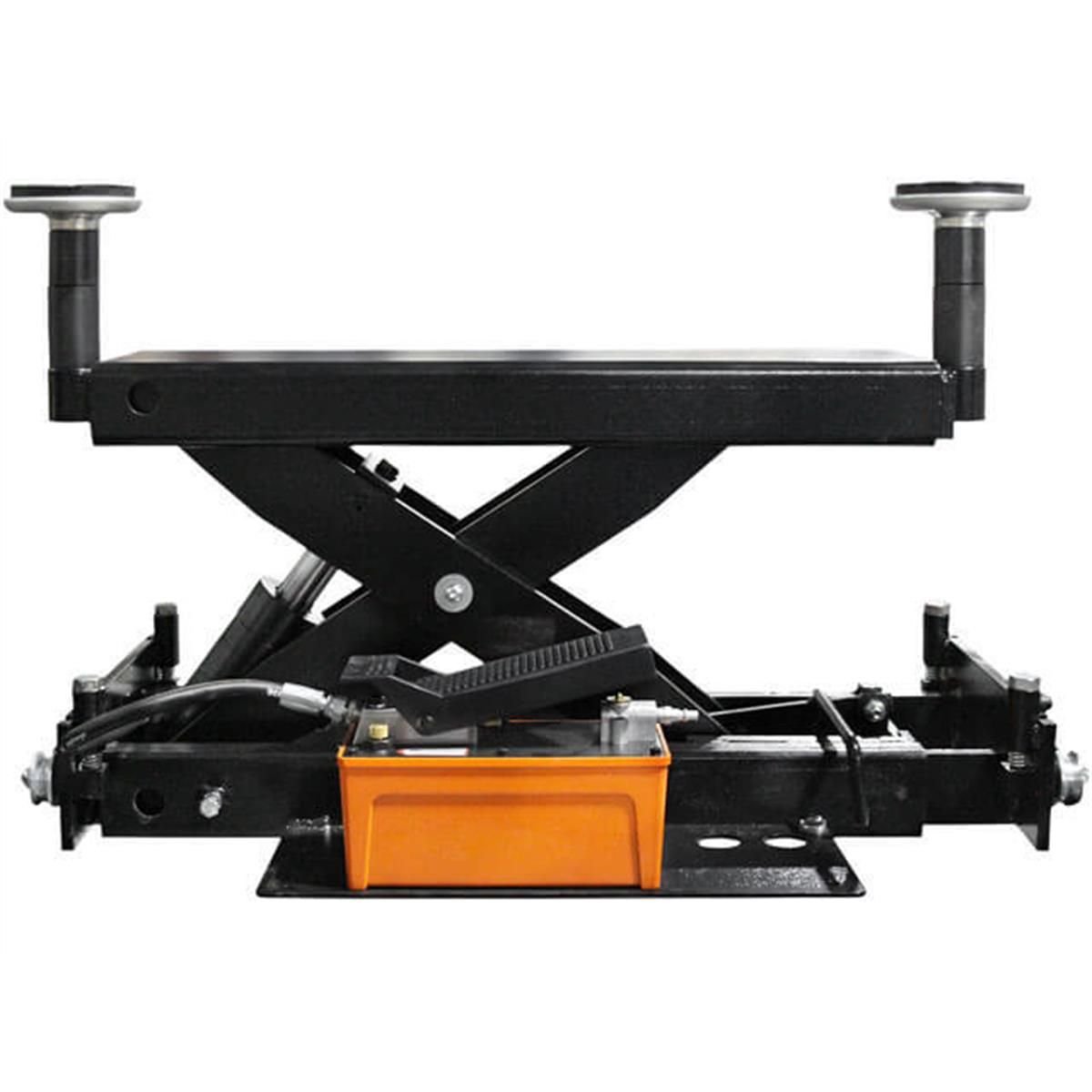

This combo package also includes two Atlas® RJ6 rolling bridge jacks. These jacks allow technicians to lift a vehicle’s wheels off the runways, making tire, brake, and suspension service more efficient.
Please note: If ordering an Atlas item, your delivery location must be capable of receiving a 53′ truck.
Features
412
- 12,000 lb. capacity
- Heavy-duty, commercial-grade construction
- Extra tall, extra wide, and extra long design
- Diamond-plated runways

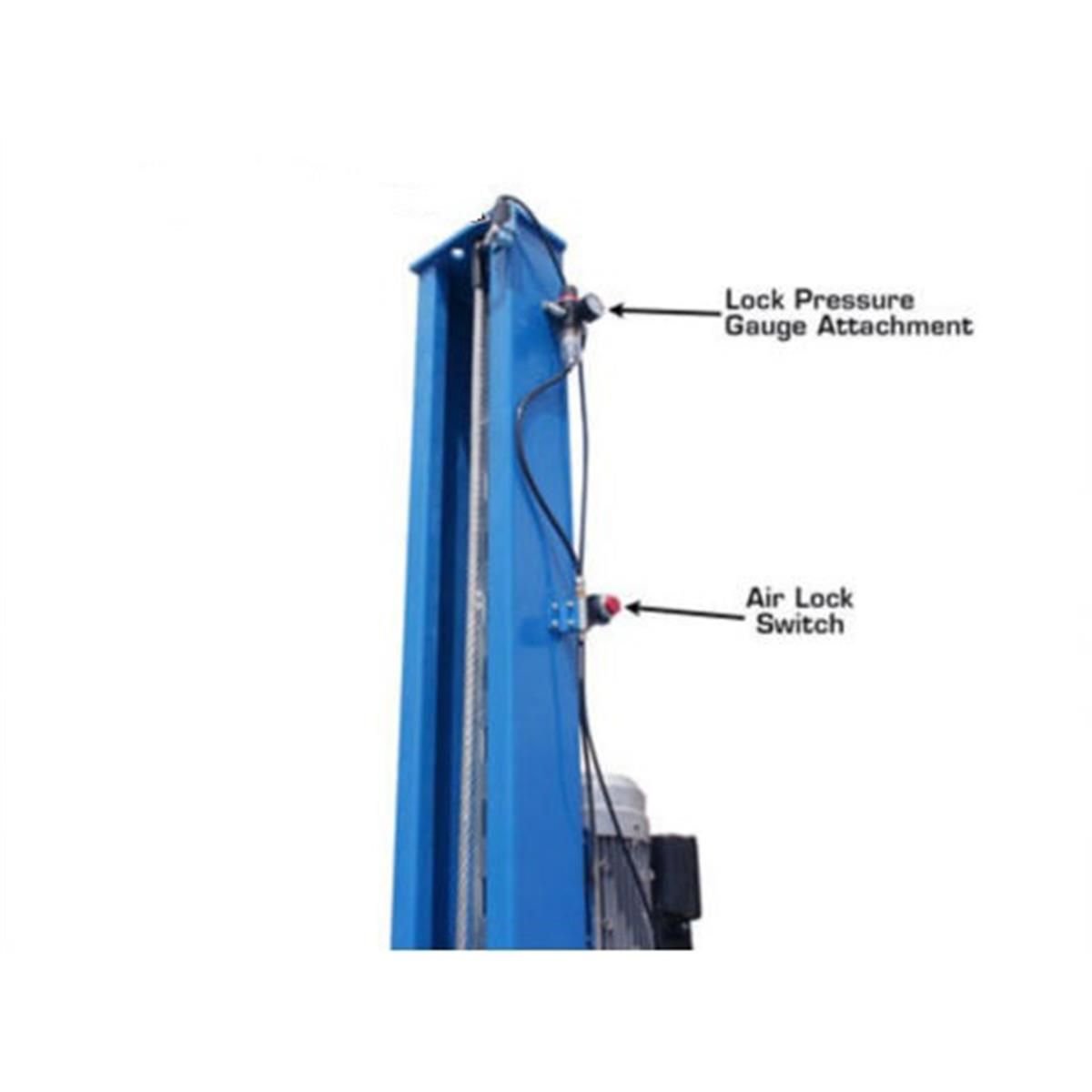

- Air-operated single-point lock release (external air supply required)
- Lock ladder design
- Double-lock safety system
- Powder coat finish
- Steel approach ramps included
- Additional drive-off ramps available (sold separately)
- Runway extensions available (sold separately)
- Mounting hardware included
- 220 volt / single-phase electric operation (30 amp breaker required)
- Shipping weight: 2,800 lbs.
- 5-year structural warranty – 2-year hydraulic warranty (parts only)
RJ6
- 6,000 lb. capacity
- Air/hydraulic operation (external air supply required)
- Multiple safety lock positions
- Compact, low-profile design
- Smooth rolling movement
- Scissor mechanism for level lifting
- Powder-coated finish
- 4-piece truck adapter set included
- 1-year parts-only warranty
Specifications
Atlas® ATTD-412 Specifications
| Specification | Details |
|---|---|
| Capacity | 12,000 lbs. |
| Lifting Height | 77 3/4″ (6′ 5 3/4″) |
| Overall Width of Columns (Without Motor) | 126 1/4″ (10′ 6 1/4″) |
| Overall Width of Columns (With Motor) | 135 1/4″ (11′ 3 1/4″) |
| Overall Length with Approach Ramp | 236 1/2″ (19′ 8 1/2″) |
| Length Between Columns | 183 1/4″ (15′ 3 1/4″) |
| Runway Length | 194 1/2″ (16′ 2 1/2″) |
| Runway Width | 20″ |
| Runway Thickness | 7 1/2″ |
| Width Between Runways | 43 1/4″ (39 3/4″ with rail) |
| Outside Runway to Outside Runway | 83 1/4″ (6′ 11 1/4″) |
| Clearance Under Runways | 70 1/4″ (5′ 10 1/4″) |
| Clearance Between Columns | 112 5/8″ (9′ 4 5/8″) |
| Column Height | 89 3/4″ (7′ 5 3/4″) |
| Maximum Wheelbase | 185″ (15′ 5″) |
| Drive-Thru Clearance | 98″ (8′ 2″) |
| Air Requirement | 85–115 PSI (external air supply required) |
| Motor / Electrical Requirement | 220 volt single (1) phase (30 amp breaker recommended) |
| Oil Requirement | 3–5 gallons AW32/AW46 (not included) |

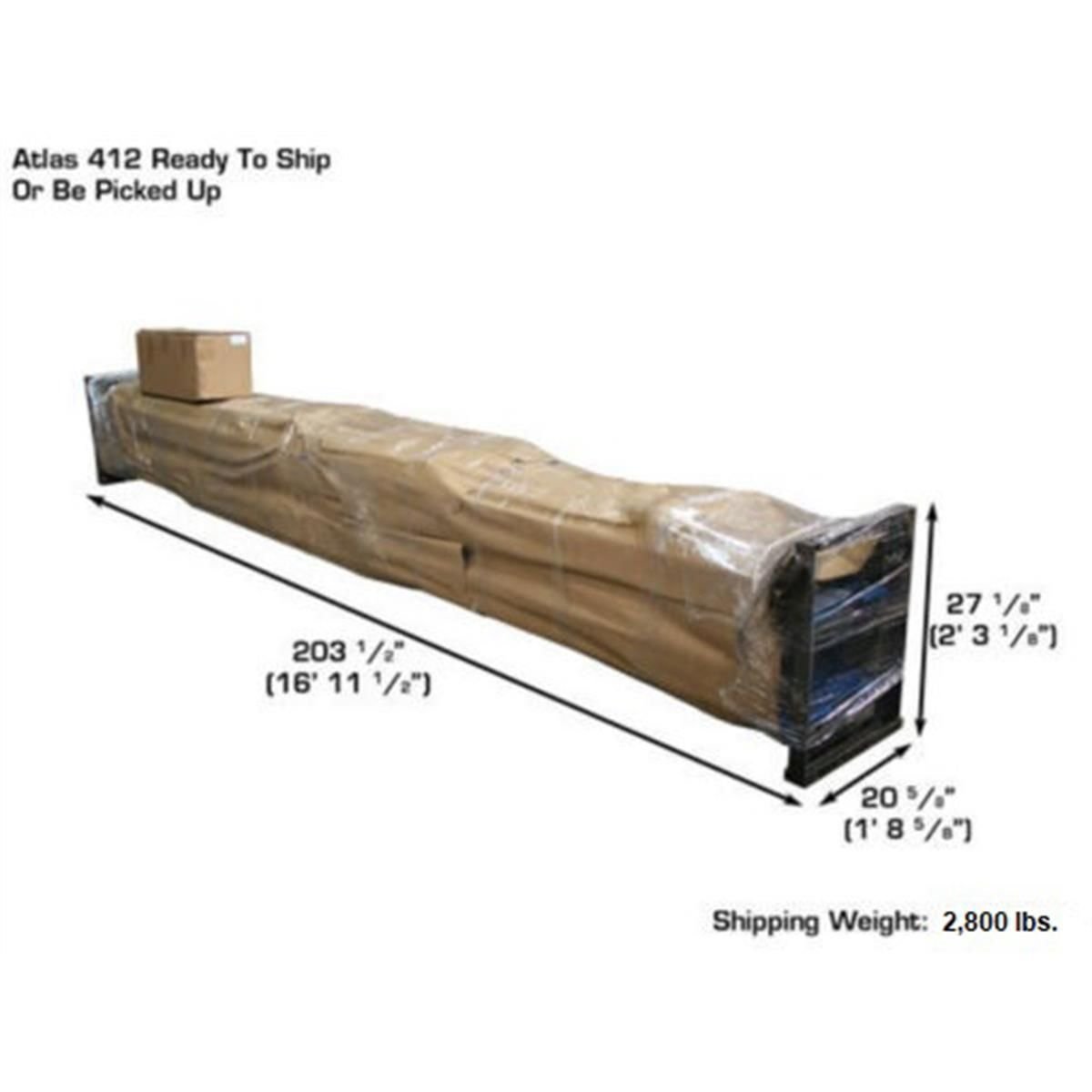

| Shipping Weight | 2,800 lbs. |
Installation Requirement:
Requires a minimum of 6″ thick concrete with a 3,000 PSI rating.
Atlas® RJ6 Specifications
| Specification | Details |
|---|---|
| Maximum Capacity | 6,000 lbs. |
| Maximum Width | 55″ (4′ 7″) |
| Minimum Width | 35″ (2′ 11″) |
| Distance Between Runway Capability | 32″–52″ |
| Maximum Lifting Height (With Adapters) | 21″ (1′ 9″) |
| Air Requirement | 70–115 PSI |
| Shipping Weight | 350 lbs. |
| Adapter Heights | 2 each: 2″, 3″ |
| Arm Hole / Adapter Peg Size | 1.5″ |
