Atlas 414 14,000 LB 4-Post Lift + RJ8 Jacks Combo
Price range: $4,994.74 through $5,577.13
Description
The Atlas® 414 is a heavy-duty four-post lift with a 14,000 lb. capacity, engineered and manufactured to commercial-grade standards for long-term durability and dependable performance. Atlas® lifts are known for incorporating exclusive structural and design features that are not commonly found on competing models.
The Atlas® 414 includes both structural reinforcements and refined design elements typically found on lifts costing significantly more. Each unit is tested to verify reliable operation at its full rated capacity. This model has been produced for many years under consistent and demanding manufacturing standards.
The Atlas® 414 utilizes a high-strength cable lifting system paired with an oversized hydraulic cylinder mounted beneath the runway. The system is powered by a 220-volt single-phase power unit to raise and lower the lift. Unlike many competitors that use traditional chain-driven systems with exposed hydraulic cylinders, the Atlas® 414 design simplifies leveling and reduces the risk of vehicle door damage caused by exposed components.
This package also includes two Atlas® RJ8 rolling bridge jacks. These jacks allow the operator to lift a vehicle’s wheels off the runways, making tire and brake service more efficient and convenient.
Please note: Delivery of any Atlas item requires access for a 53-foot truck.
Features
414
- 14,000 lb. Capacity
- Heavy-Duty, Commercial-Grade Construction
- Extra Tall, Extra Wide, and Extra Long Design
- Diamond-Plated Runways

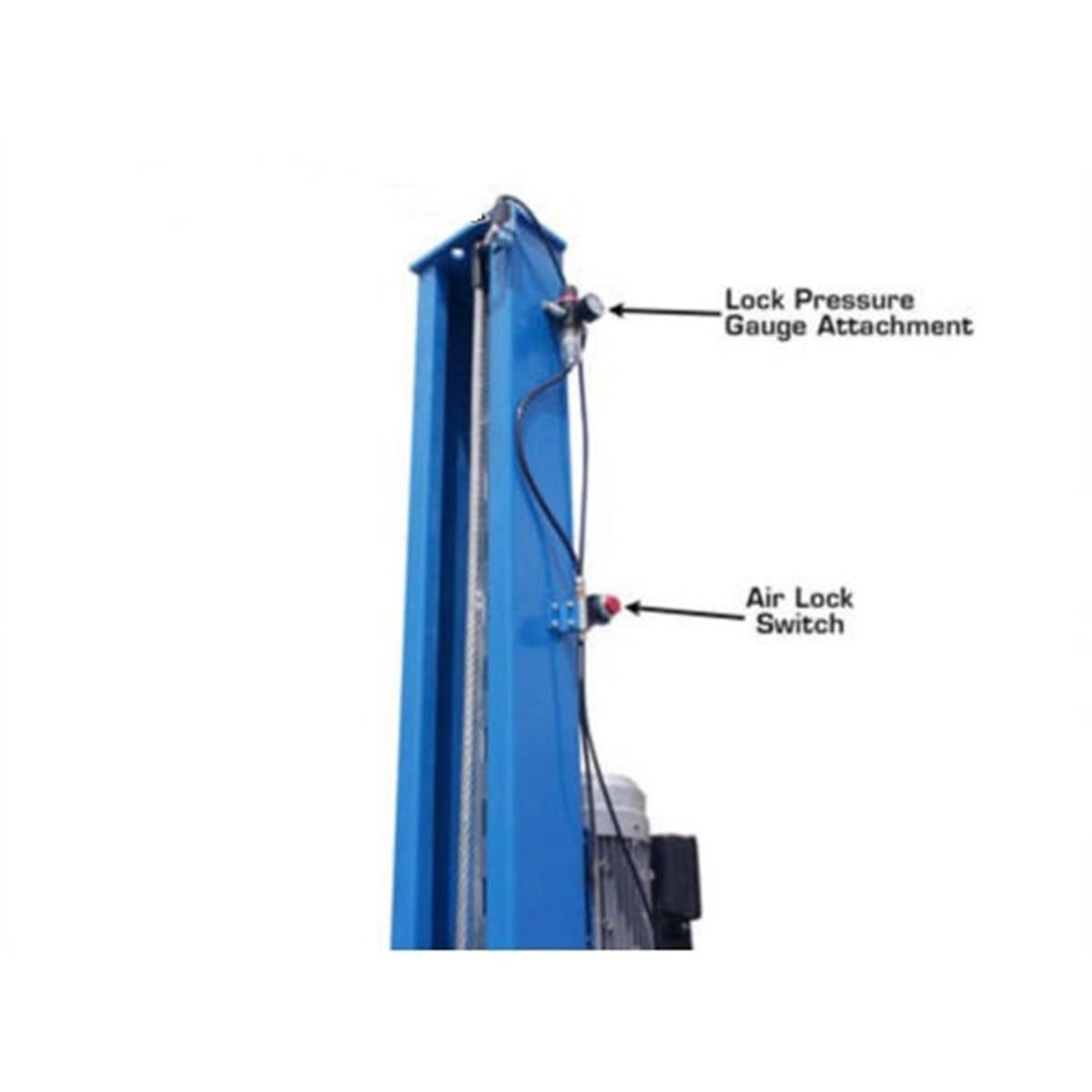

- Air-Operated Single-Point Lock Release (External Air Supply Required)
- Lock Ladder System
- Double Lock Safety System
- Powder-Coated Finish
- Steel Approach Ramps Included
- Additional Drive-Off Ramps Available (Sold Separately)
- Runway Extensions Available (Sold Separately)
- Mounting Hardware Included
- 220 Volt / 1 Phase Operation (30 Amp Breaker Required)
- Shipping Weight: 3,100 lbs.
- 5-Year Structural – 2-Year Hydraulic Warranty – Parts Only
RJ8
- 8,000 lb. Capacity
- Air/Hydraulic Operation (External Air Supply Required)
- Multiple Safety Lock Positions
- Compact, Low-Profile Design
- Smooth Rolling Operation
- Scissor Mechanism for Level Lifting
- Powder-Coated Finish
- 4-Piece Truck Adapter Set Included
- 1-Year Parts-Only Warranty
Specifications
Atlas® ATTD-414 Specifications
| Specification | Details |
|---|---|
| Capacity | 14,000 lb. |
| Lifting Height | 80″ (6′ 8″) |
| Overall Width of Columns (Without Motor) | 130 7/8″ (10′ 10 7/8″) |
| Overall Width of Columns (With Motor) | 138 7/8″ (11′ 6 7/8″) |
| Overall Length with Approach Ramp | 255″ (21′ 3″) |
| Length Between Columns | 197 1/4″ (16′ 5 1/4″) |
| Runway Length | 208 5/8″ (17′ 4 5/8″) |
| Runway Width | 20″ |
| Thickness of Runway | 8 3/4″ |
| Width Between Runways | 46 7/8″ (w/ Rail 44 3/8″) |
| Outside Runway to Outside Runway | 86 7/8″ (7′ 2 7/8″) |
| Clearance Under Runways | 71 1/4″ (5′ 11 1/4″) |
| Clearance Between Columns | 116″ (9′ 8″) |
| Height of Columns | 91 1/8″ (7′ 7 1/8″) |
| Maximum Wheel Base | 197″ (16′ 5″) |
| Drive Thru | 102 1/8″ (8′ 6 1/8″) |
| Air Requirement | 85–115 PSI (External Air Supply Required) |
| Motor / Electrical Requirement | 220 Volt Single (1) Phase 30 Amp Breaker Recommended |
| Oil Requirement | 3–5 Gallons AW32/AW46 (Not Included) |
| Shipping Weight | 3,100 lbs. |
Requires a minimum 6″ concrete slab with a 3,000 PSI strength rating.
Atlas® RJ8000 Specifications
| Specification | Details |
|---|---|
| Maximum Capacity | 8,000 lb. |
| Maximum Width | 66 1/2″ (5′ 6 1/2″) |
| Minimum Width | 40″ (3′ 4″) |
| Distance Between Runway Capability | 34 1/2″ – 55″ |
| Maximum Lifting Height (With Adapters) | 30″ |
| Air Requirement | 70–115 PSI |
| Shipping Weight | 390 lbs. |
| Adapter Heights | 2 Each: 2″, 3″ |
| Arm Hole / Adapter Peg Size | 1.5″ |
