Atlas 414A 14,000 lb 4-Post Alignment Lift

Description

The Atlas 414A Commercial Grade Alignment Lift offers a 14,000 lb. capacity and is engineered to meet demanding commercial service standards. Designed for durability and long-term reliability, the 414A delivers consistent performance in high-volume automotive environments. Atlas lifts incorporate exclusive structural and design features not commonly found in competing models.

The Atlas 414A includes numerous structural and cosmetic enhancements typically found on lifts costing significantly more. Each unit is tested to verify proper operation at its full rated capacity.

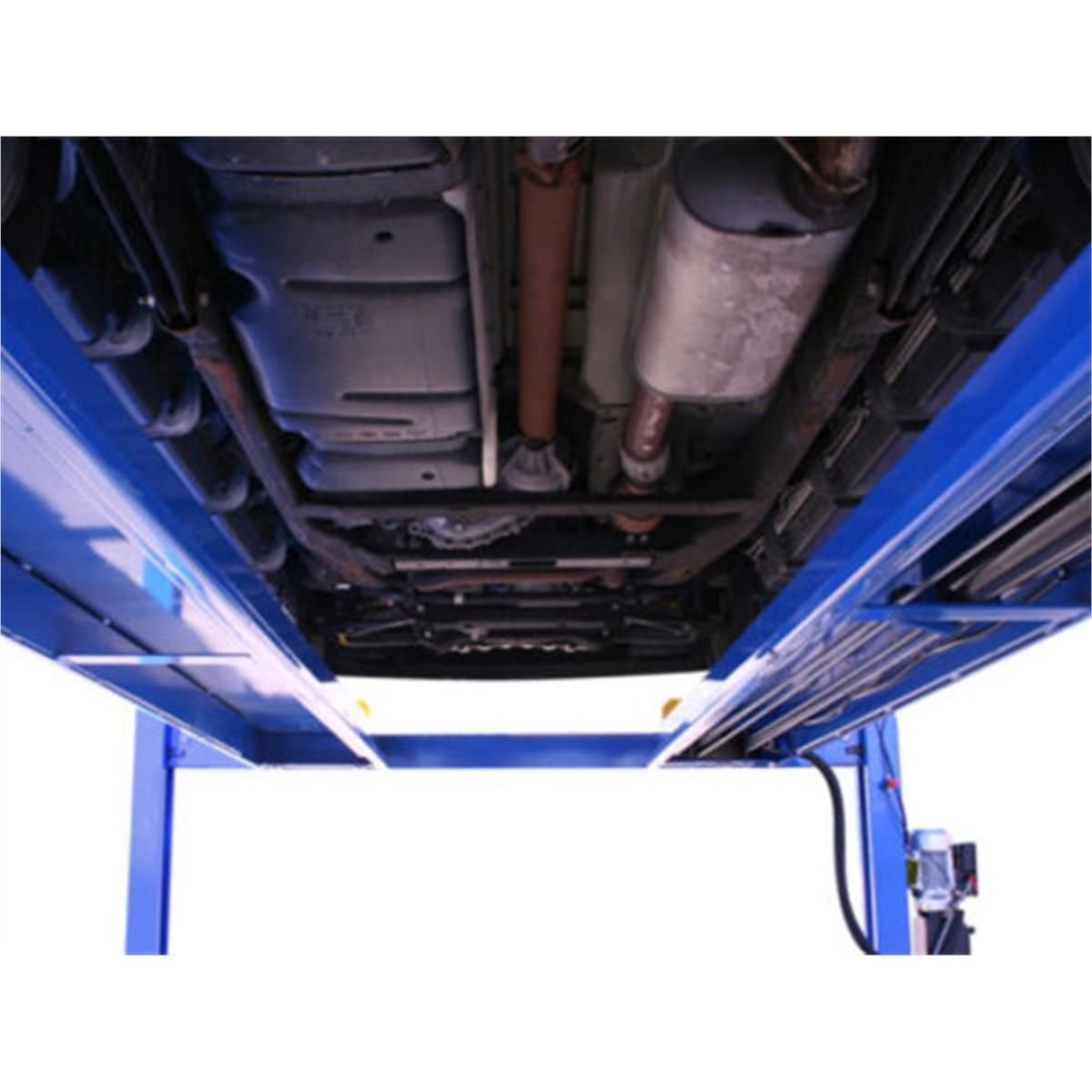

This lift utilizes a high-strength cable lifting system combined with an oversized hydraulic cylinder mounted beneath the runway. The system is powered by a 220-volt (single-phase) power unit for smooth raising and lowering. Unlike older chain-driven systems with exposed cylinders—which can be difficult to level and prone to causing door damage—the 414A’s enclosed under-runway cylinder design promotes easier leveling and improved vehicle protection.

In addition to the heavy-duty construction found in the Atlas 414 series—such as integrated tracks between the runways for compatibility with a rolling bridge jack (Atlas RJ8000BK, sold separately)—the 414A includes built-in slip plates and alignment turntables. The slip plates are factory-integrated and precisely aligned with the turntables. The turntables can be positioned at various locations along the runway to accommodate different wheelbases. Metal cover plates are included to replace the turntables when not in use, allowing the lift to function as a general-purpose four-post lift.

Please note: If ordering an Atlas item, your delivery location must be capable of receiving a 53′ truck.

Features

• 14,000 lb. capacity
• Heavy-duty, commercial-grade construction
• Extra tall, extra wide, and extra long design
• Built-in slip plates and alignment turntables included
• Multiple turntable placement positions

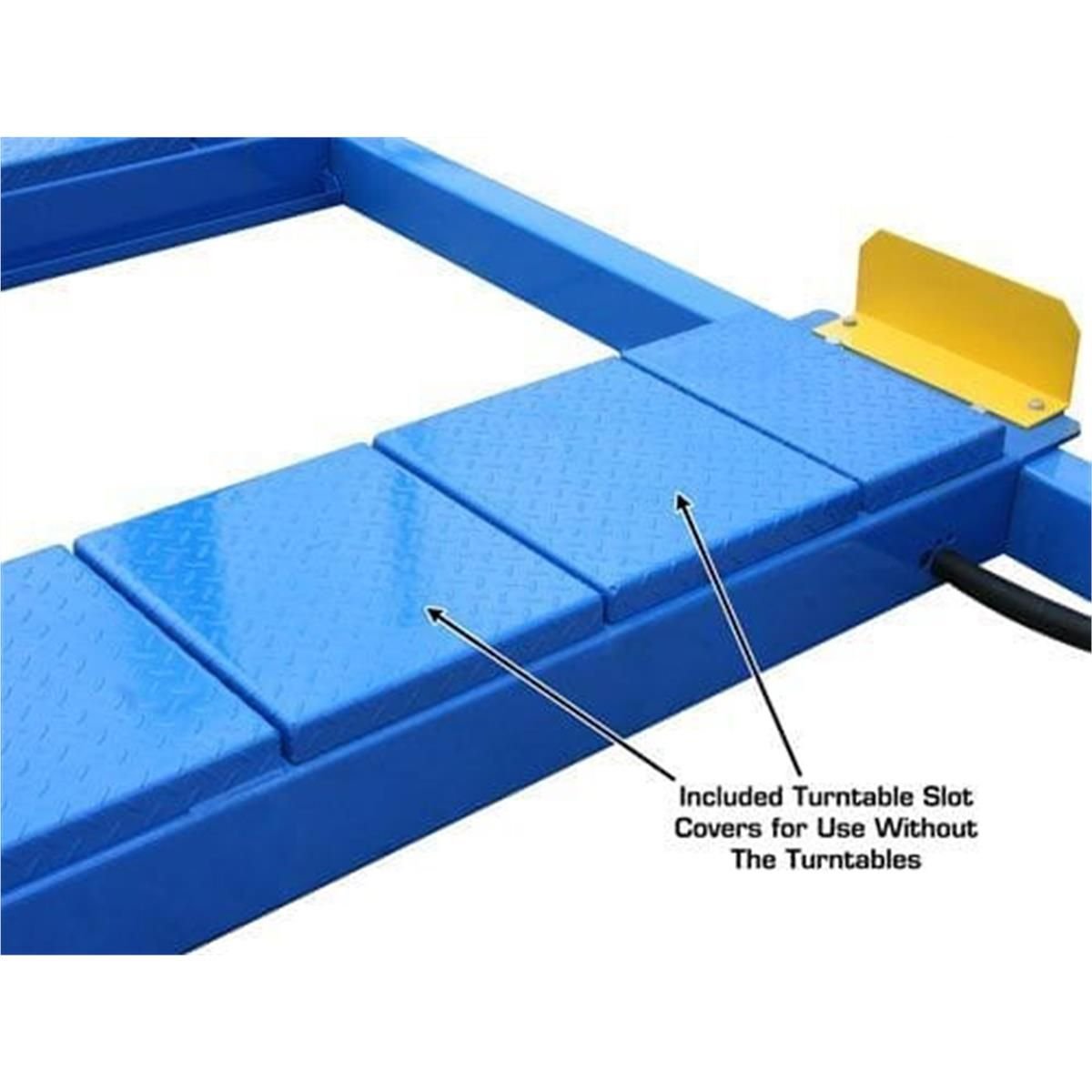

• Runway cover plates included (when turntables are removed)
• Air-operated single-point lock release (external air supply required)
• Lock ladder design
• Double-lock safety system
• Powder coat finish
• Steel approach ramps included
• Additional drive-off ramps available (sold separately)
• Runway extensions available (sold separately)

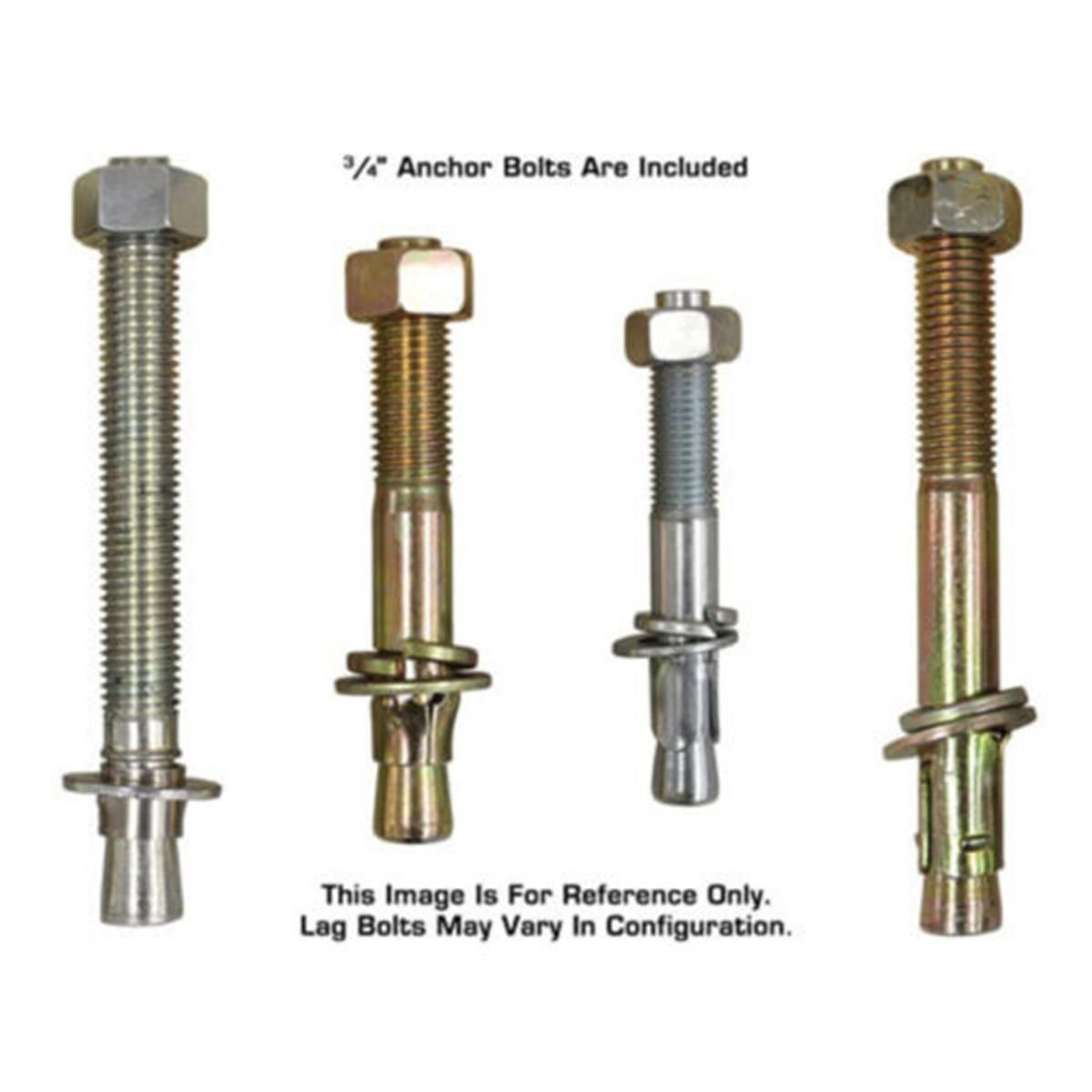

• Mounting hardware included
• 220 volt / single-phase electric operation (30 amp breaker required)
• Shipping weight: 3,200 lbs.
• 5-year structural warranty – 2-year hydraulic warranty (parts only)

Specifications

Atlas ATTD-414A Specifications

Installation Requirement:
Requires a minimum of 6″ thick concrete with a 3,000 PSI rating.

• Atlas 414A Cylinder Bleeding Procedure (Perform immediately after installation)
