Atlas TTC303 Truck Tire Changer + WBT-210 Heavy Duty Wheel Balancer Combo
Price range: £6,741.93 through £7,077.93
Description

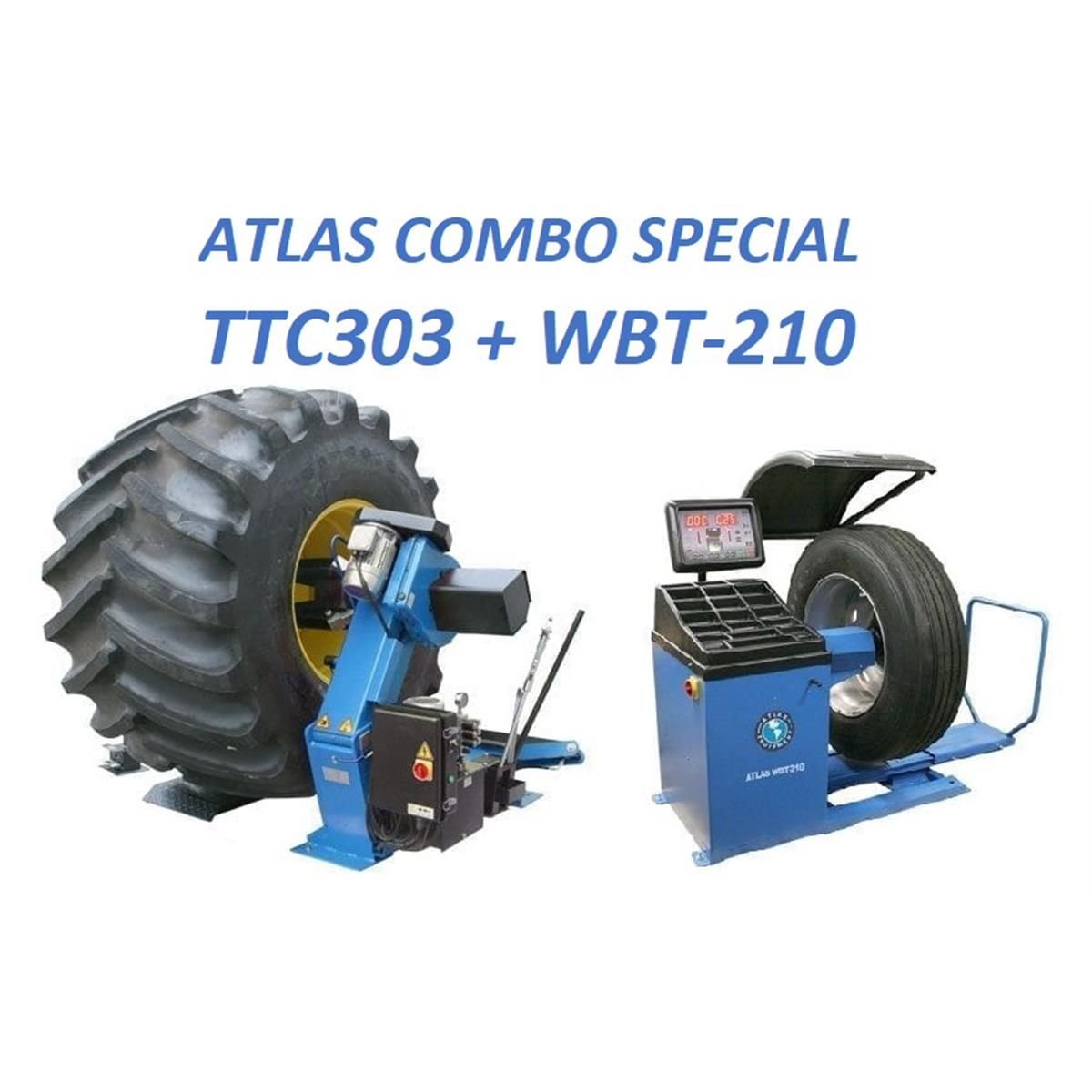

This combo package includes the Atlas® TTC303 truck tire changer and the heavy-duty computerized Atlas® WBT-210 wheel balancer. The Super Duty Atlas® TTC303 is engineered to service large truck wheels, handling rim sizes from 14 inches to 56 inches (with extensions) and tire diameters exceeding 90 inches. It can accommodate tires up to 42 inches wide. The TTC303 has been distributed worldwide for several years and was developed through a joint venture between a respected Italian wheel service manufacturer and a leading Asian wheel service equipment producer.
The Atlas® WBT-210 is designed for shops that require a single balancer capable of servicing everything from 14-inch steel passenger car wheels to 300-pound semi-truck tire assemblies. It is also ideal for balancing oversized custom wheels (up to 32 inches) and large off-road “gumbo-mudder” tires. This makes it a versatile solution for trucking fleets operating passenger vehicles, light trucks, and over-the-road tractor-trailer rigs. The heavy-duty 40 mm shaft supports standard mounting cones for most cars and pickup trucks, and the included large truck adapters allow balancing of most BUDD-style wheels.
Please note: If ordering an Atlas item, the delivery location must be able to accommodate a 53′ truck.
Features
TTC303
- Super-duty truck tire changer
- 220 volt, 1-phase electric operation
- Handles rims from 14″ to 56″ and tire diameters over 90″
- Accommodates tires up to 42″ in width
- Bead breaker
- Mount/demount head
- Electric/hydraulic self-centering four-jaw chuck
- Five rim locking positions
- Wired mobile control unit
- Heavy-duty tire tool included
- Rim clamps for steel and alloy wheels included
- Alloy rim adapter set with plastic inserts included
- 1-year parts-only warranty
WBT-210
- Computer-controlled heavy-duty spin balancer
- Cone sets for car and light truck tires
- Cone and spacer set for truck, bus, or implement tires
- Plastic quick-release nut included
- Heavy-duty steel wing nut included
- Pneumatic wheel lift (external air supply required)
- Automatic start/stop when hood is lowered or raised
- Static and dynamic balancing modes
- Rapid optimization (OPT)
- Self-diagnosis
- Self-calibration
- Exceptional stability in detecting unbalance between planes
- Displays in grams or ounces, and in millimeters or inches
- Wheel weight pliers included
- Wheel width calipers included
- Replacement parts and wear items always in stock
- 1-year parts-only warranty
Specifications
Atlas® TTC303 Specifications
| Rim Clamping Range | 14″ – 46″ |
|---|---|
| Max Clamping Size with Extensions | 56″ |
| Max Wheel Weight | 3,300 lbs. |
| Max Tire Diameter | 90 1/2″ (7′ 6 1/2″) |
| Max Tire Width | 42″ (3′ 6″) |
| Clamping Power | 13,173 lbs. |
| Operating Pressure | 0–1885 PSI |
| Acoustic Pressure | <70 dBA |
| Bead Breaker Force | 5,930 lbs. |
| Tool Arm Positioning | Manual |
| Tool Head Positioning | Manual |
| Construction | Single-piece frame with solid floor plate |
| Hydraulic Motor Power | 2 HP, 220V ±5% (209–231 volts), 1 phase, 30 amp breaker required |
| Chuck Motor Power | 2 HP, 220V ±5% (209–231 volts), 1 phase, 30 amp breaker required |
| Shipping Weight | 1,800 lbs. |
Atlas® WBT-210 Specifications
| Max Tire Diameter | 47″ |
|---|---|
| Rim Sizes (Cars and Light Trucks) | 10″ – 32″ |
| Rim Width | 1 1/2″ – 20″ |
| Shaft Size | 40 mm |
| Max Wheel Weight | 440 lbs. |
| Balancing Speed | 150 rpm (Car/Light Truck Mode) / 90 rpm (Truck Mode) |
| Data Entry | Manual entry for all dimensions |
| Measurements | Standard or Metric |
| Accuracy | 1 gram (Car/Light Truck Mode) / 10 gram (Truck Mode) |
| Weight Position Resolution | 1.4 Degrees |
| Self Calibration | Yes |
| Motor | 1/3 HP |
| Air Requirement | 115–140 PSI (MUST NOT EXCEED 140 PSI) |
| Power Supply | 220V ±5% (209–231 volts), 1 phase, 30 amp breaker required |
| Shipping Weight | 725 lbs. |
