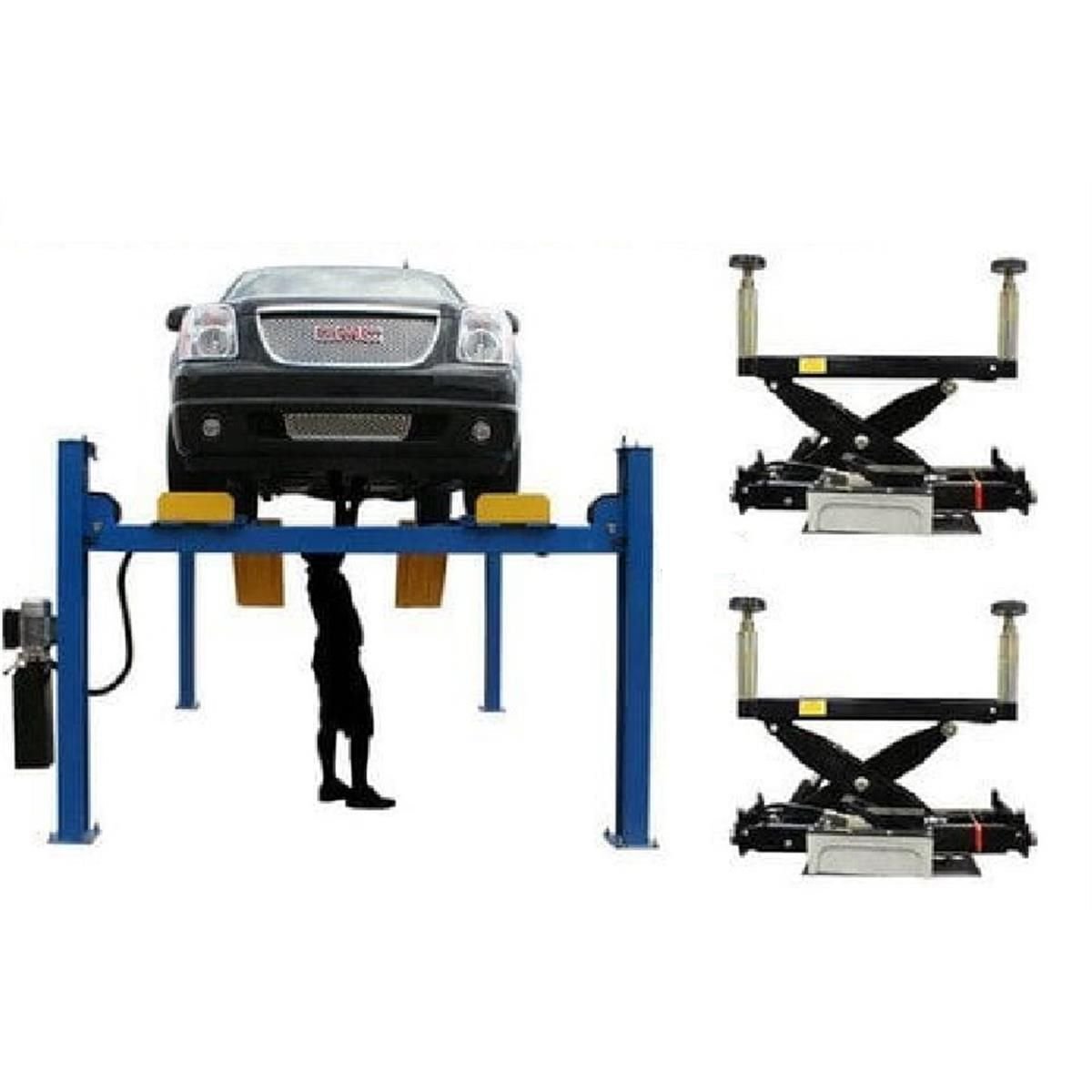

Atlas 414A Alignment Lift + RJ8 Rolling Jacks Combo

Description

The Atlas® 414A is a 14,000 lb. capacity four-post alignment lift engineered to commercial-grade standards for long-term durability and performance. Atlas® lifts incorporate exclusive structural and design features not commonly found on competing models.

The Atlas® 414A includes structural reinforcements and cosmetic refinements typically seen on lifts priced significantly higher. Each unit is tested to verify consistent operation at its full rated capacity.

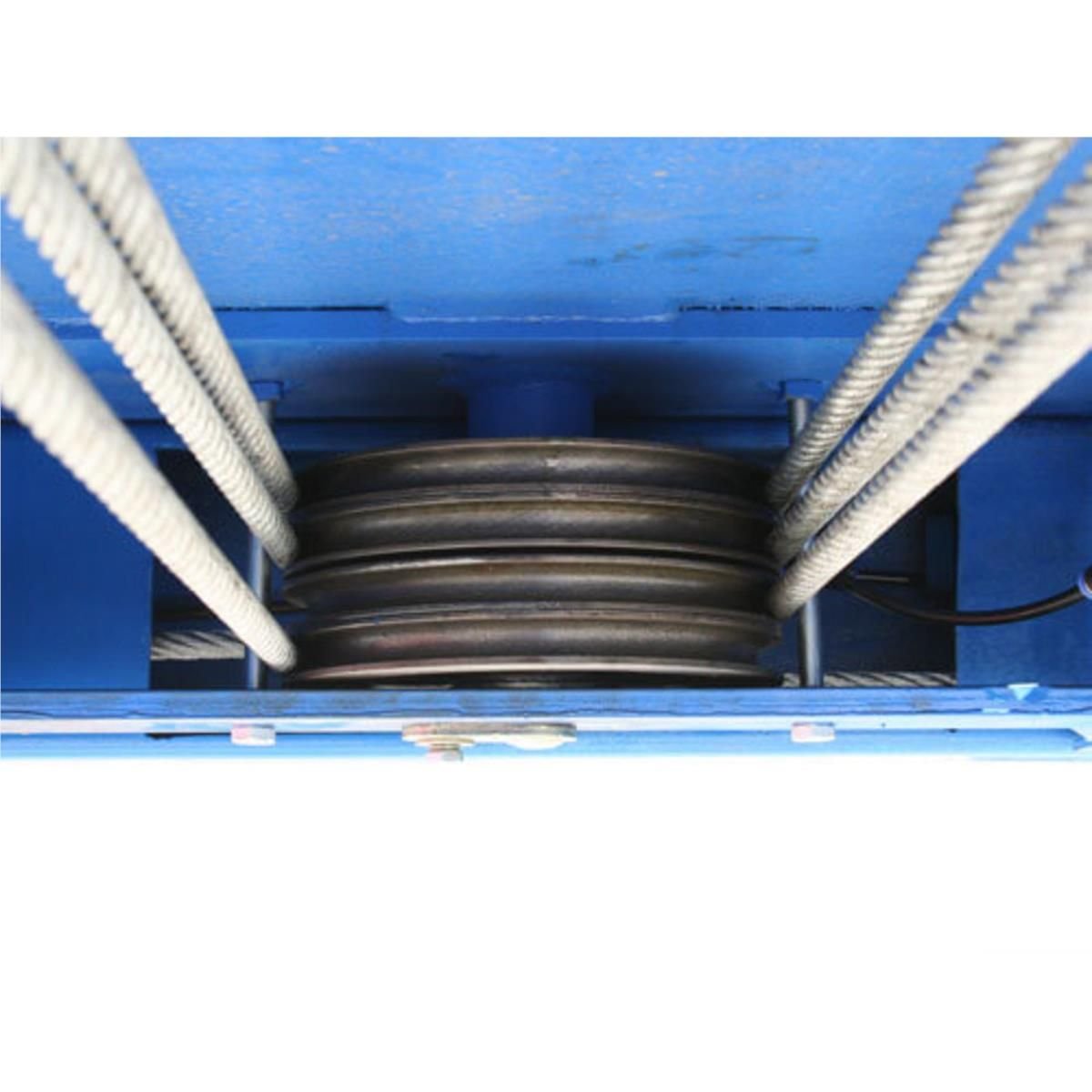

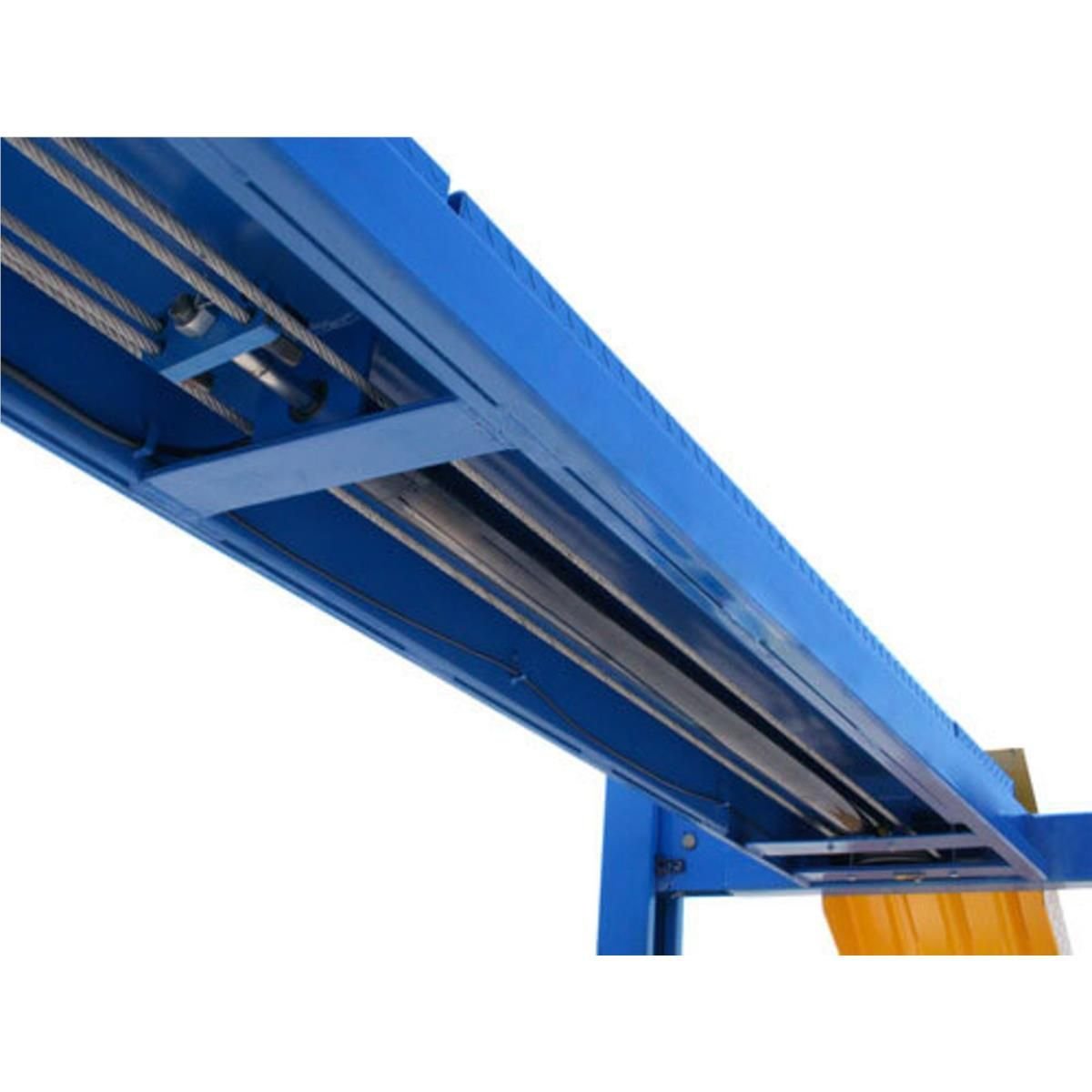

This lift utilizes a high-strength cable lifting system combined with an oversized hydraulic cylinder mounted beneath the runway. The system is powered by a 220-volt (single-phase) power unit for smooth lifting and lowering. Unlike older chain-driven systems with exposed hydraulic cylinders—which can be difficult to level and may contribute to door damage—the 414A’s under-runway cylinder design enhances leveling accuracy and vehicle protection.

In addition to the heavy-duty construction found in the Atlas® 414 platform, the 414A includes built-in slip plates and alignment turntables. The slip plates are factory-integrated and level with the turntables. Turntables can be positioned at various points along the runway to accommodate different wheelbases. Metal runway cover plates are included, allowing the lift to function as a standard service lift when alignment components are not in use.

This combo package also includes two Atlas® RJ8 rolling bridge jacks. These jacks allow technicians to raise a vehicle’s wheels off the runways for tire, brake, and suspension service.

Please note: If ordering an Atlas item, your delivery location must be capable of receiving a 53′ truck.

Features

414A

• 14,000 lb. capacity
• Heavy-duty, commercial-grade construction
• Extra tall, extra wide, and extra long design

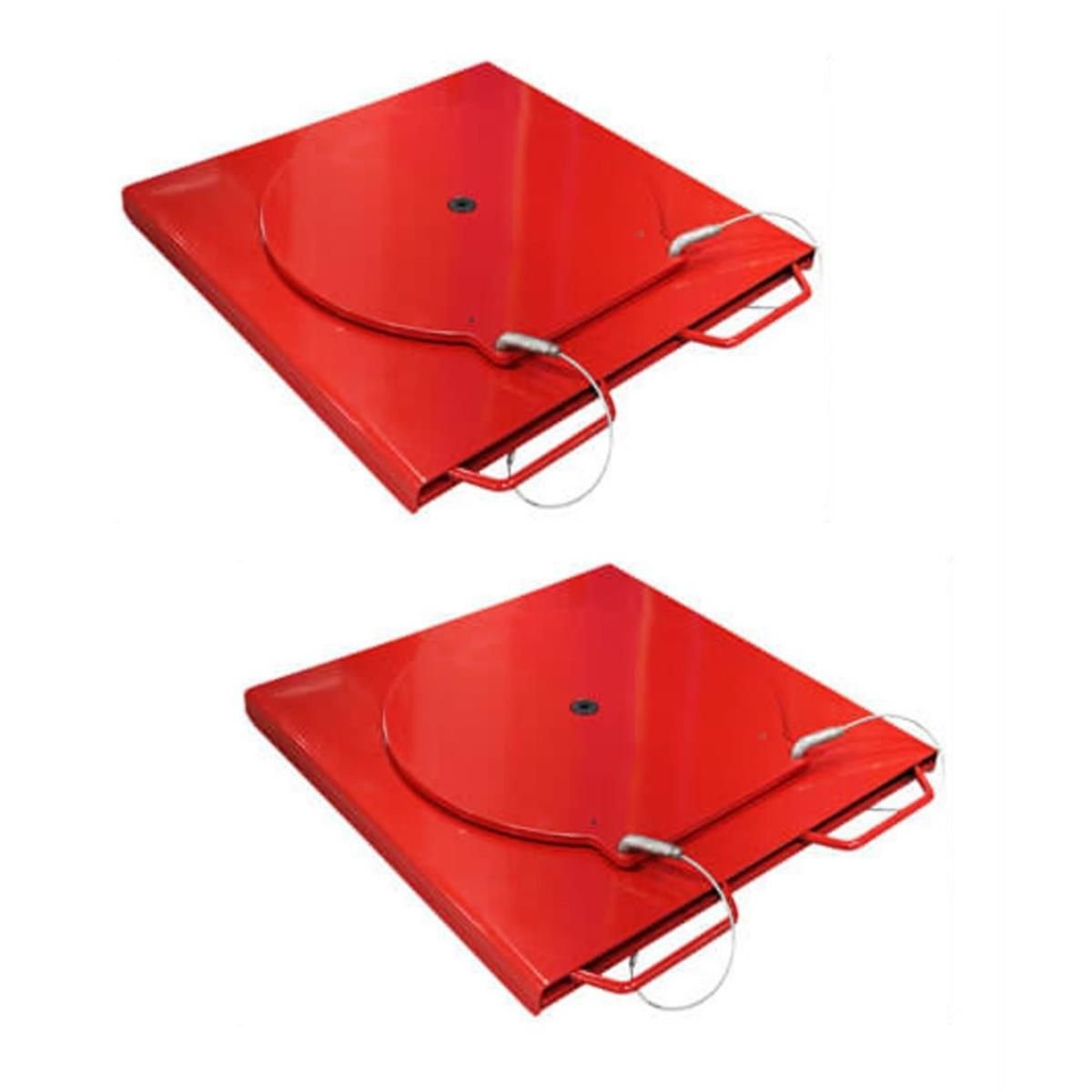

• Built-in slip plates and alignment turntables included
• Multiple turntable placement positions
• Runway cover plates included (when turntables are removed)
• Air-operated single-point lock release (external air supply required)

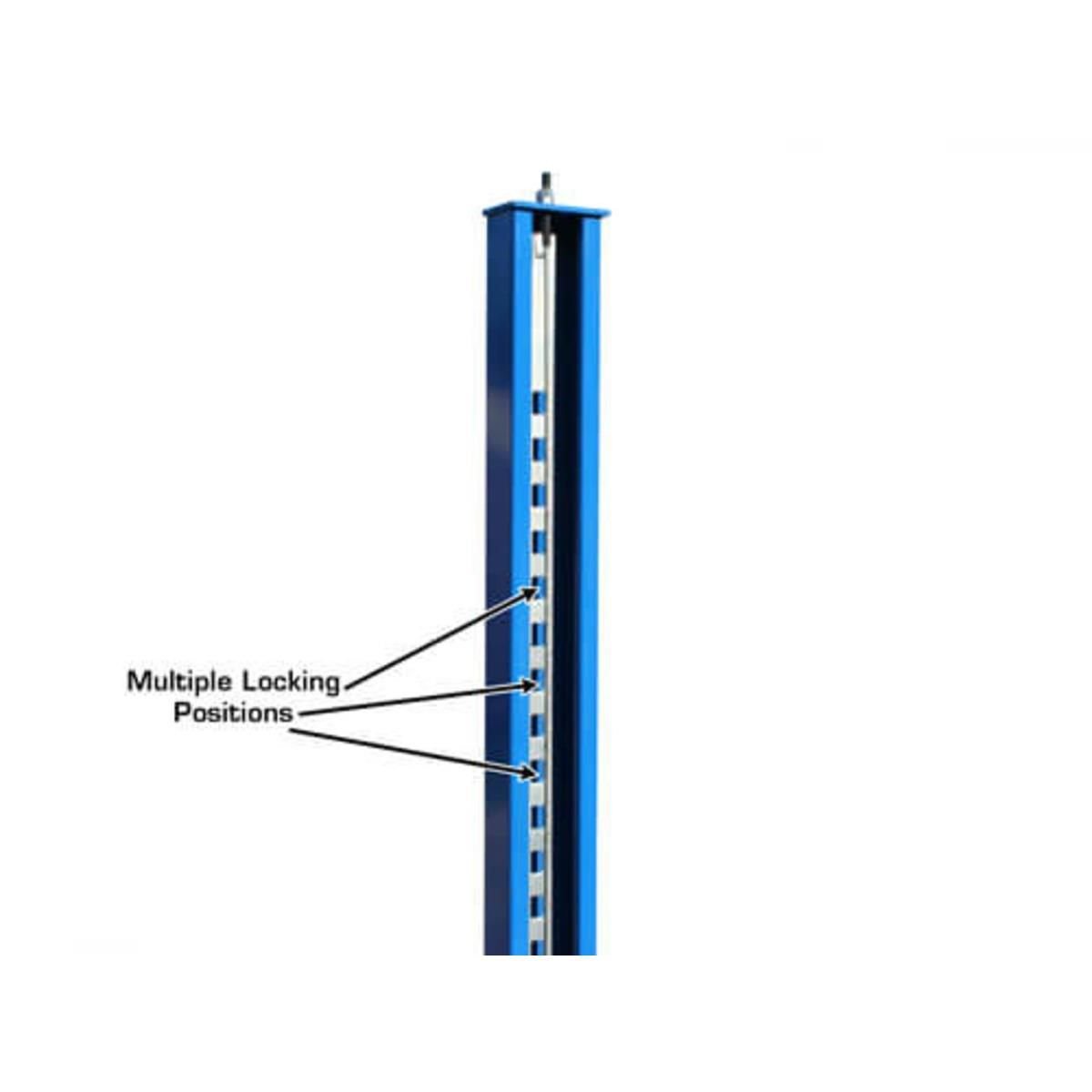

• Lock ladder design
• Double-lock safety system
• Powder coat finish

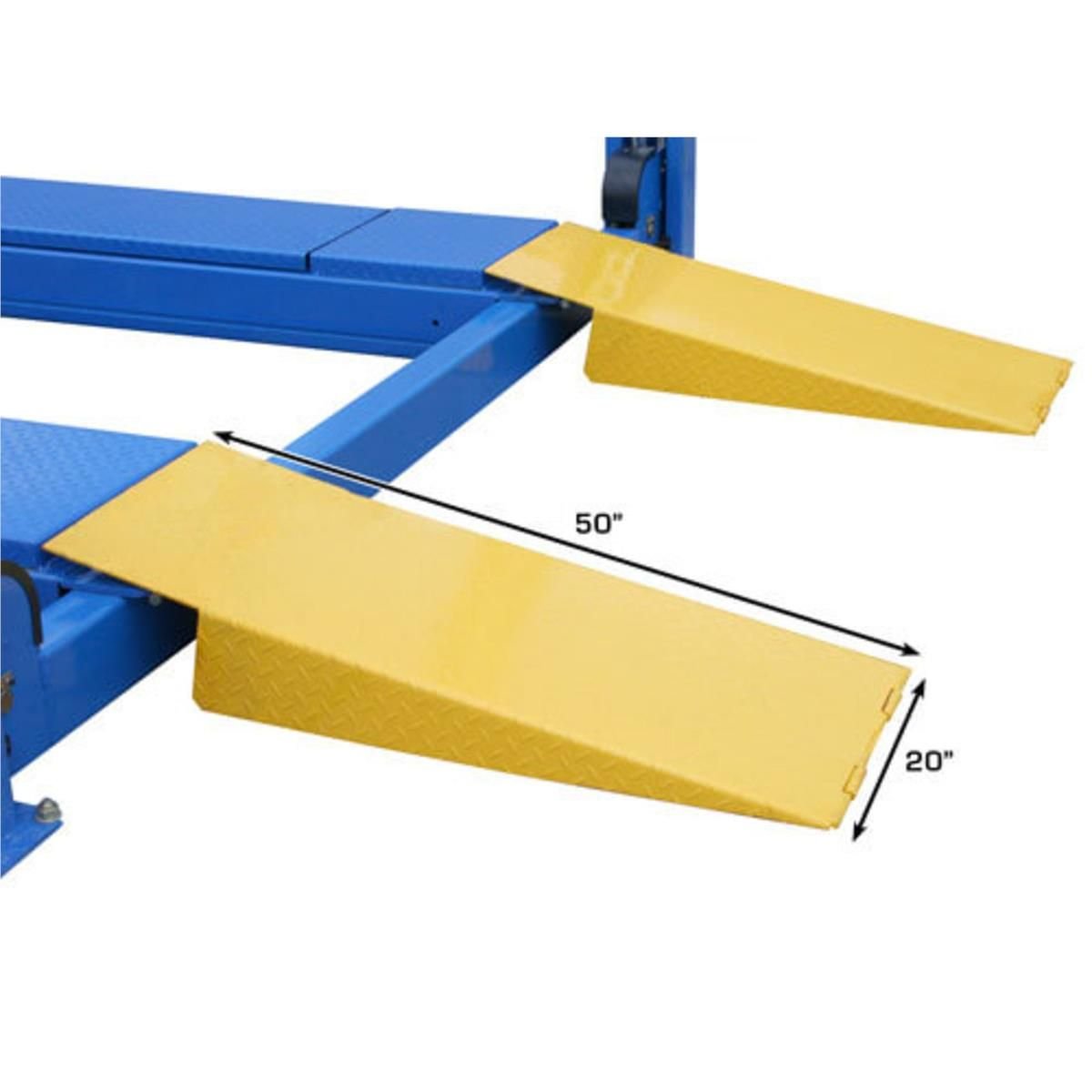

• Steel approach ramps included
• Additional drive-off ramps available (sold separately)
• Runway extensions available (sold separately)

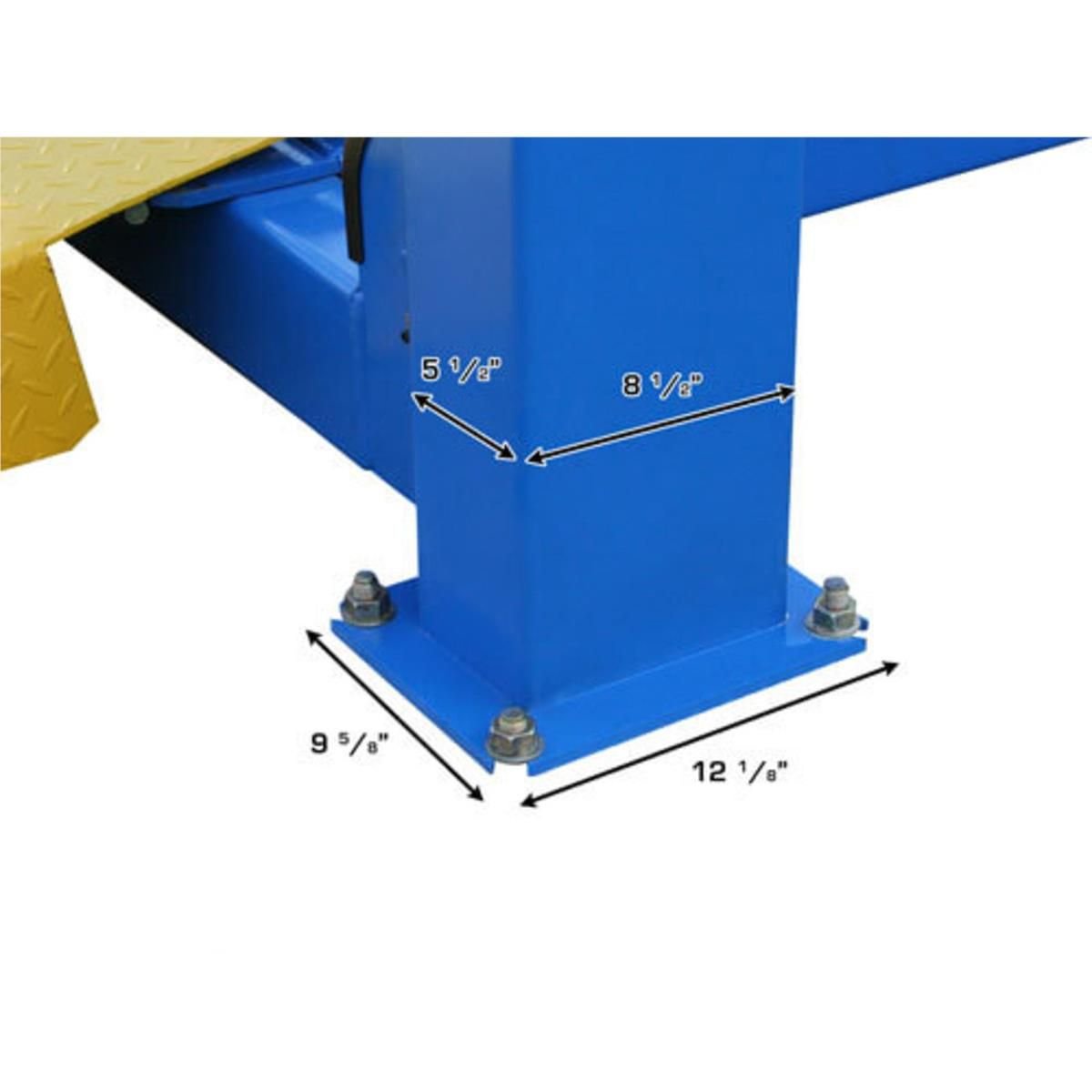

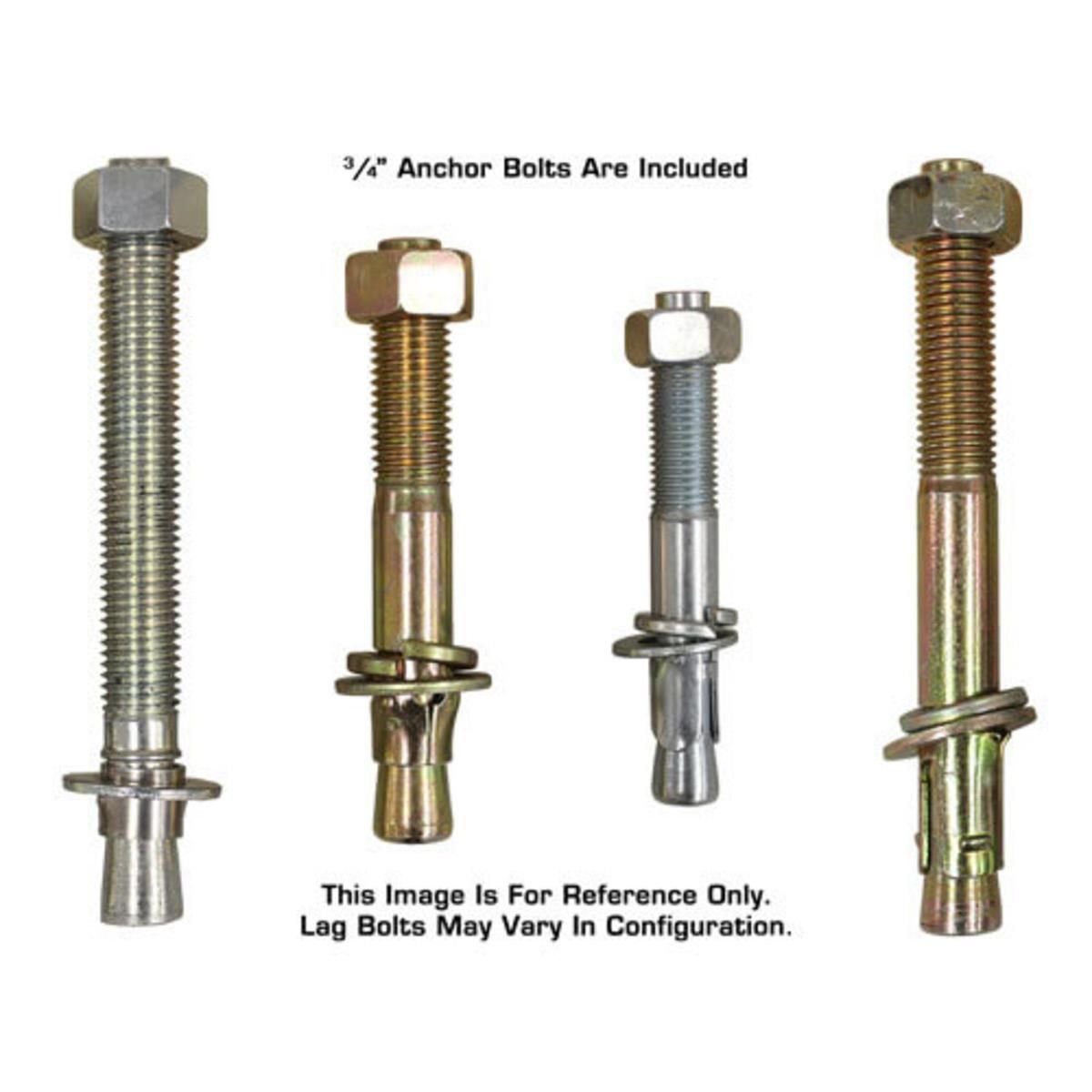

• Mounting hardware included
• 220 volt / single-phase electric operation (30 amp breaker required)
• Shipping weight: 3,200 lbs.
• 5-year structural – 2-year hydraulic warranty (parts only)

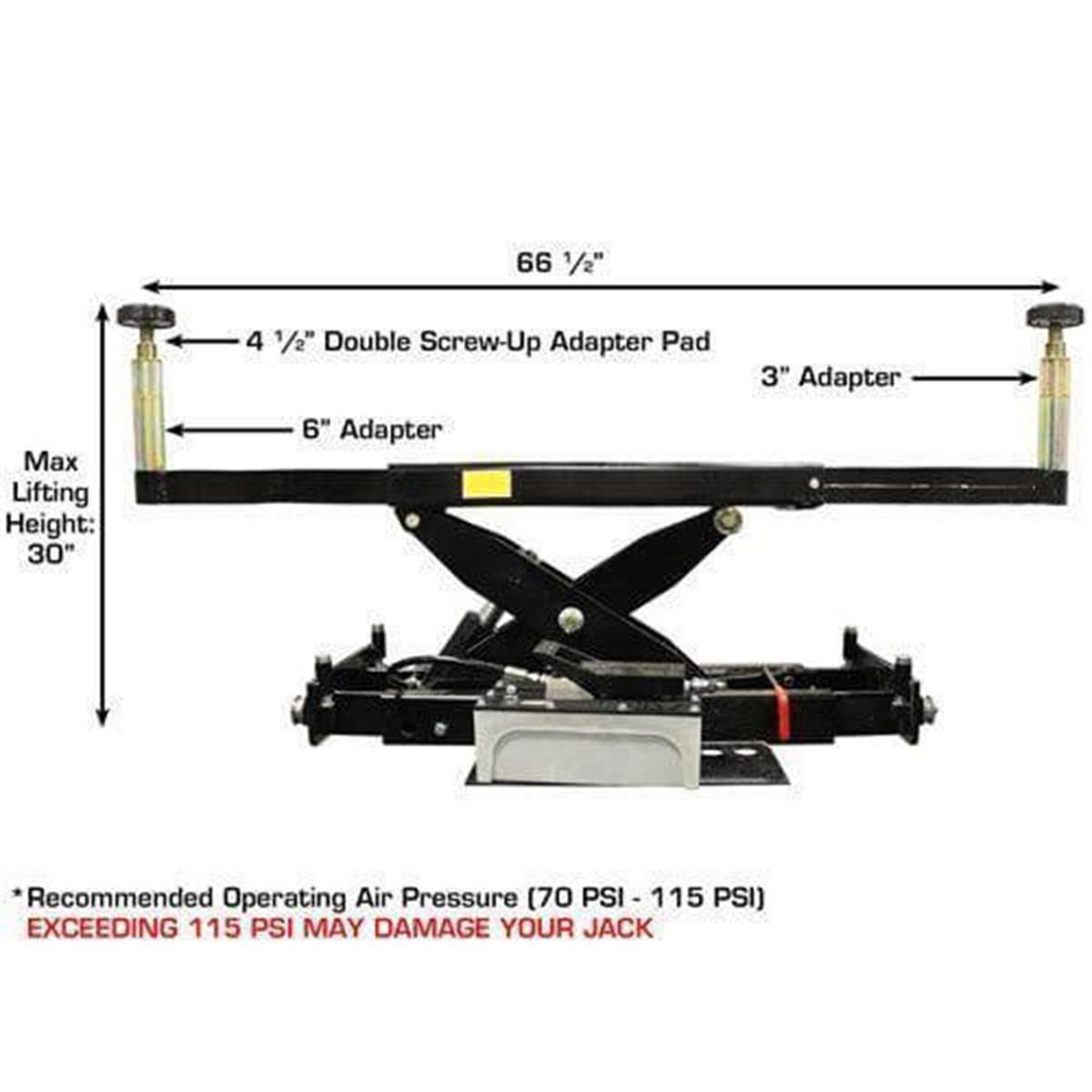

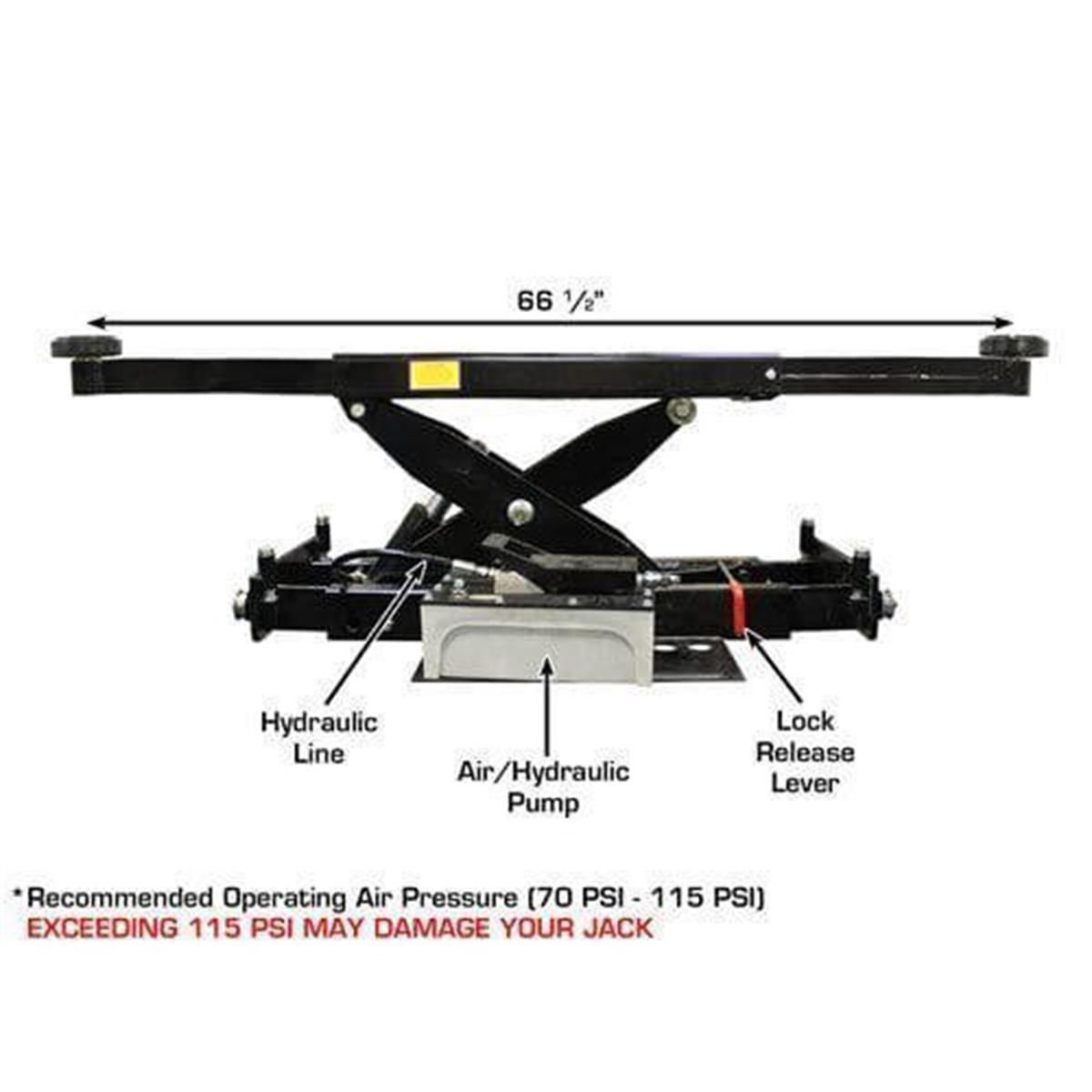

RJ8

• 8,000 lb. capacity

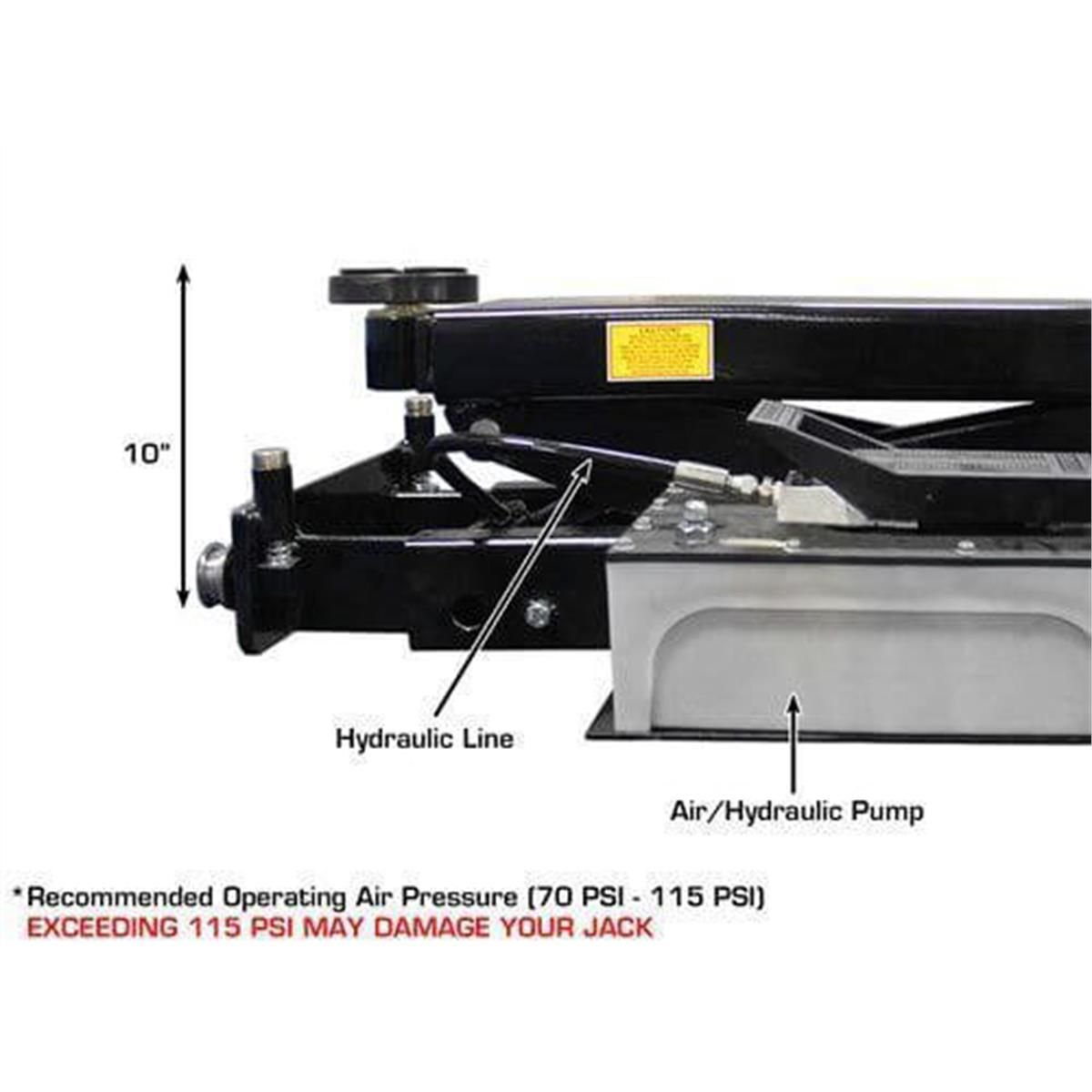

• Air/hydraulic operation (external air supply required)
• Multiple safety lock positions
• Compact, low-profile design
• Smooth rolling movement
• Scissor mechanism for level lifting
• Powder-coated finish

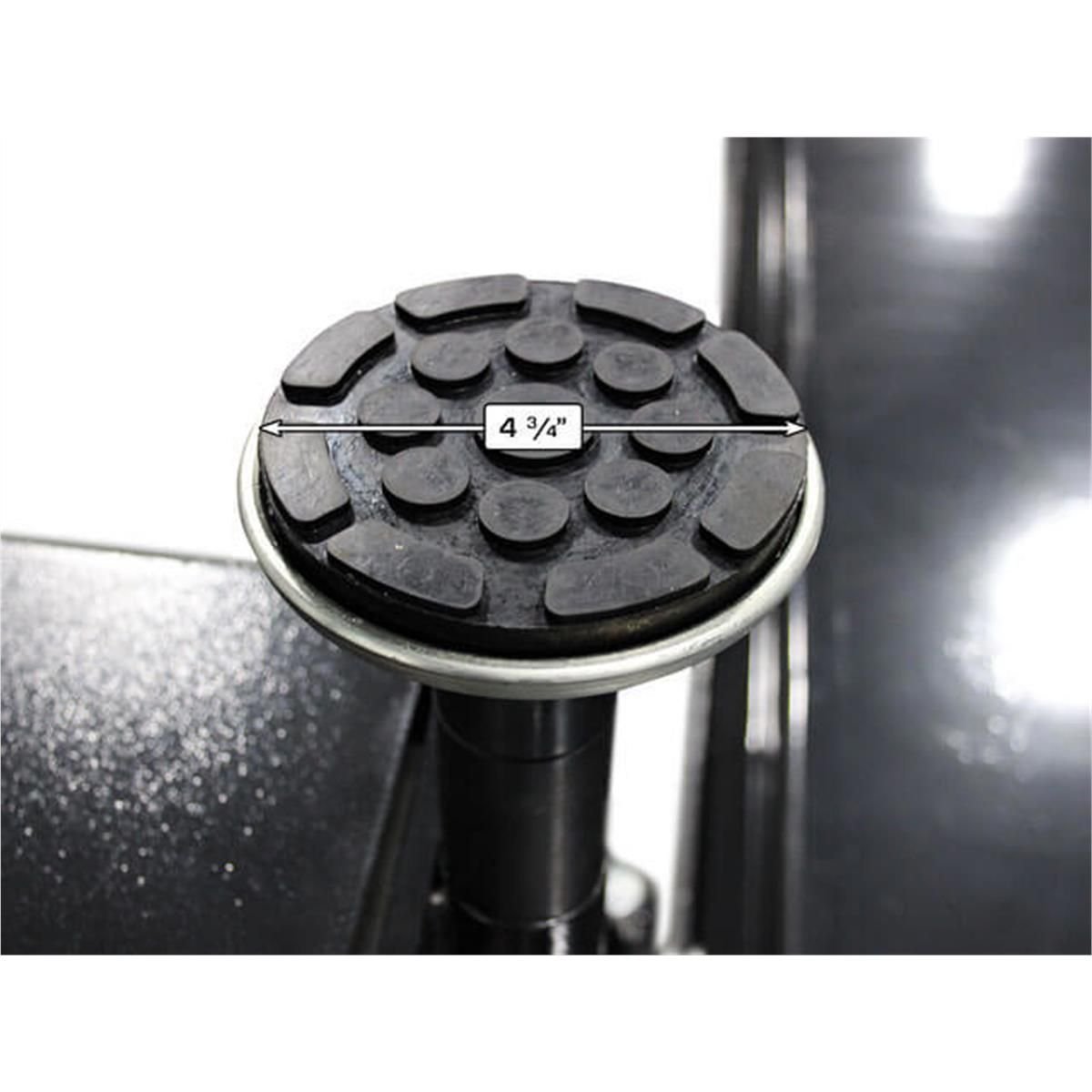

• 4-piece truck adapter set included
• 1-year parts-only warranty

Specifications

Atlas® ATTD-414A Specifications

Installation Requirement:
Requires a minimum of 6″ thick concrete with a 3,000 PSI rating.

Atlas® RJ8000 Specifications

• Atlas® 414A Cylinder Bleeding Procedure (Perform immediately after installation)
