Atlas TC289 Extra Large Rim-Clamp Tire Changer
Price range: $1,298.75 through $1,388.35
Description
The Atlas® TC289 rim-clamp, swing-arm tire changer is well-suited for general automotive service departments and mid-sized tire shops. It is also ideal for farm applications and homeowners who need to service larger tires. The TC289 features an oversized turntable with increased clearance, allowing it to handle large-diameter tires commonly found on SUVs and one-ton trucks. A built-in “Beadblaster” system assists with inflating stiff sidewall or other difficult-to-seat tires.

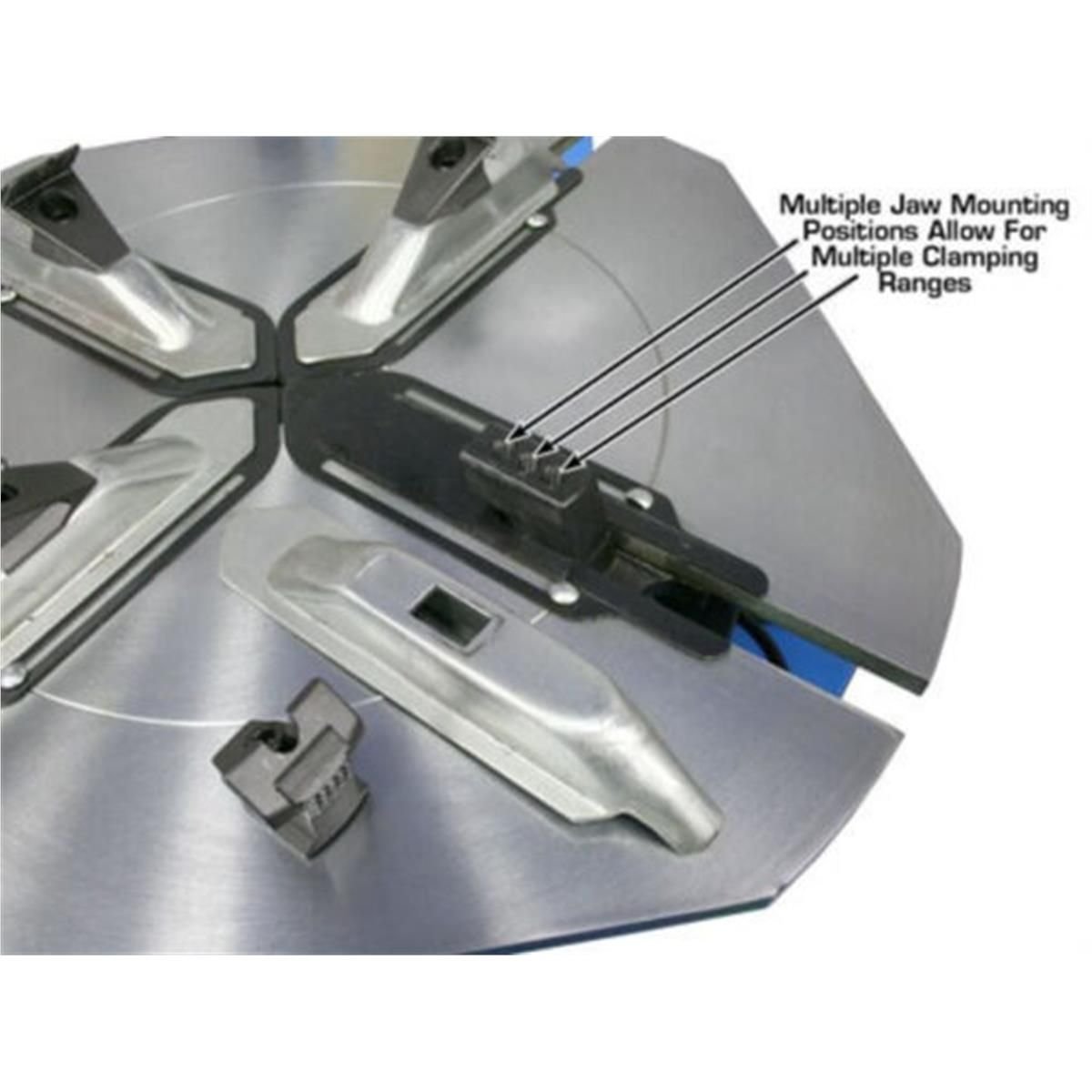

Atlas® wheel clamp tire changers are engineered to service both alloy and steel wheels without causing rim or tire damage. The Atlas® TC289 includes a powerful, adjustable bead breaker mounted on the side of the machine, designed to separate even rusted or stubborn beads without harming the wheel. The turntable jaws—compatible with protective plastic covers—secure the rim firmly while protecting the wheel surface. These jaws can be repositioned to three different mounting points along the turntable slide, expanding or reducing the clamping range to accommodate a wide variety of tire sizes.
The Atlas® TC289 requires assembly after purchase.
Please note: Delivery of any Atlas item requires access for a 53-foot truck.
Features
- Large Rim-Clamp / Swing-Arm Tire Changer
- Extra-Large Turntable with Increased Clearance
- Air-Operated Jaws and Bead Breaker (External Air Supply Required)

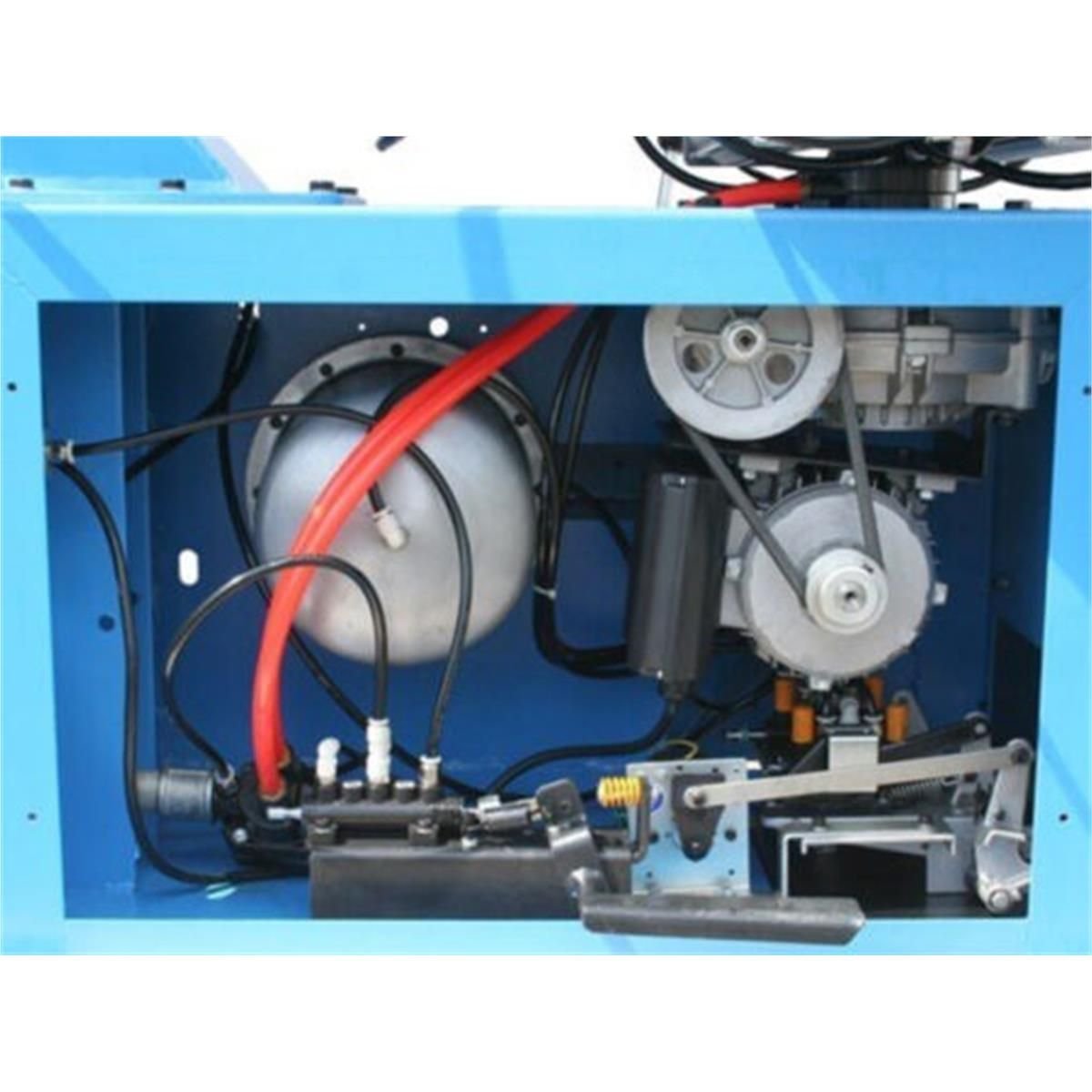

- Electric Turntable
- Adjustable Jaws with Three Mounting Positions
- Adjustable Bead Breaker Plate
- Metal Mount/Demount Head with Metal Roller or Replaceable Plastic Inserts
- Column-Mounted Inflator Box with Gauge Included
- Filter / Regulator / Lubricator Included
- 20″ Tire Tool Included
- Lube Bucket with Brush Included
- Set of Large Plastic Jaw Covers Included
- Plastic Cover for Bead Breaker Shovel Included
- Multiple Replacement Plastic Inserts for Mount/Demount Head Included

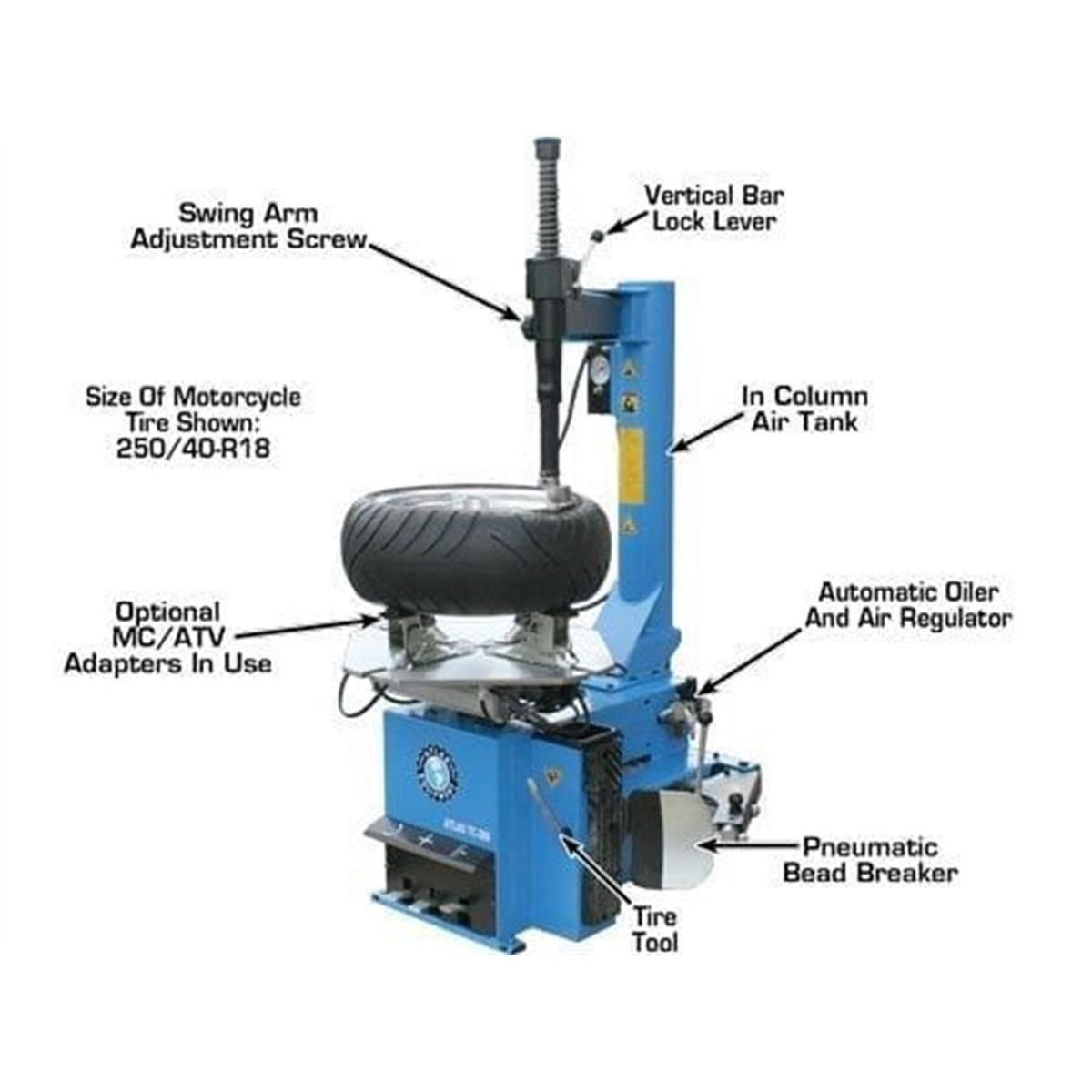

- Motorcycle and ATV Adapters Available (Sold Separately)
- Built-In “Beadblaster”
- Replacement Parts and Wear Items Always in Stock
- 1-Year Parts-Only Warranty
Specifications
Atlas® TC289 Specifications
| Specification | Details |
|---|---|
| Rims | Steel, Aluminum, Alloy |

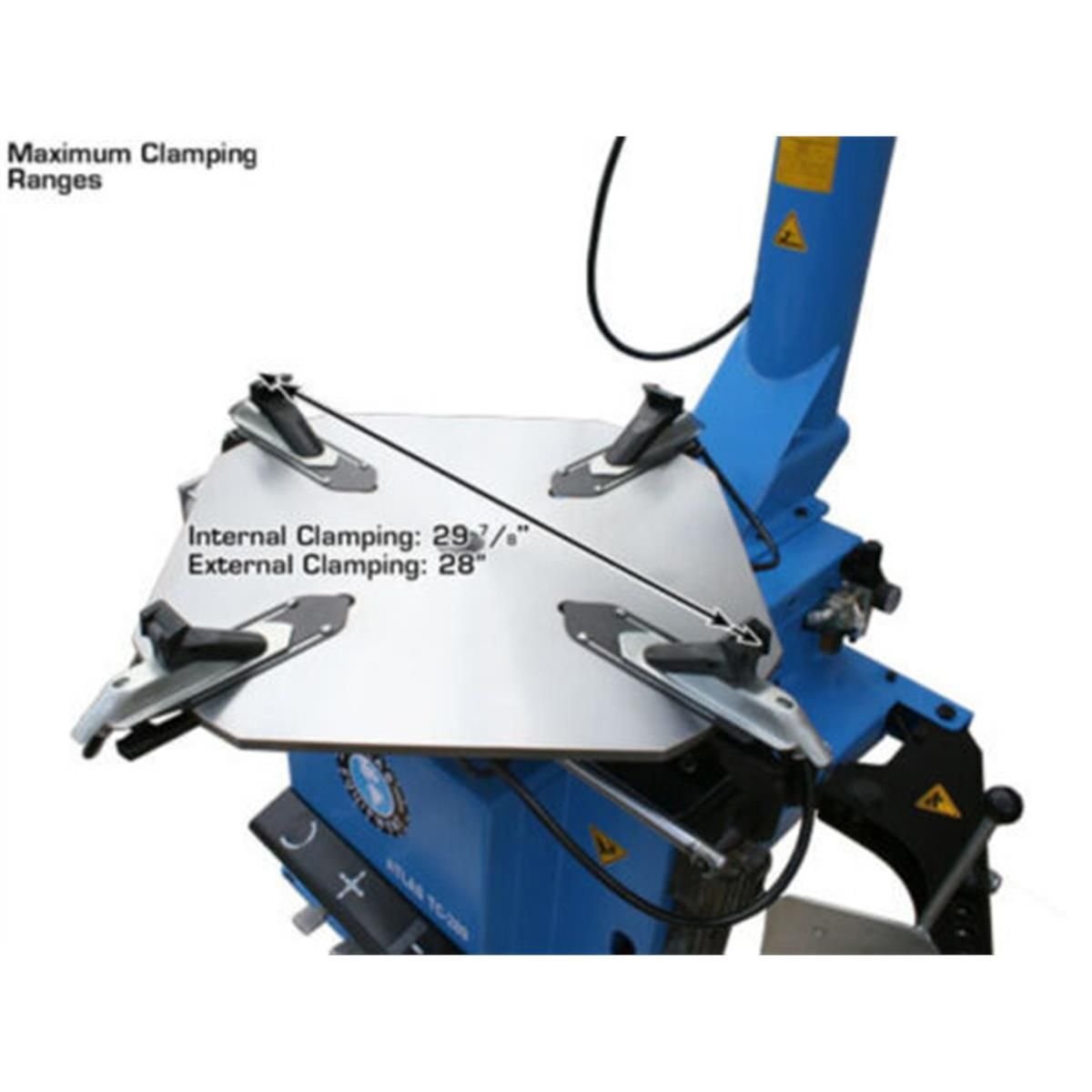

| External Locking Rim Dimension (3 Positions) | 1) 11 7/8″ – 26″ 2) 12 7/8″ – 27″ 3) 13 3/4″ – 28″ |
| Internal Locking Rim Dimension (3 Positions) | 1) 13 7/8″ – 27 7/8″ 2) 14 5/8″ – 28 7/8″ 3) 15 5/8″ – 29 7/8″ |
| Maximum Tire Diameter | 47″ |
| Maximum Wheel Width (Bead Breaker) | Position 1: 14 3/4″ Position 2: 18 1/2″ |
| Table Motor | 1 HP |
| Turntable Rotating Torque | 885 ft/lbs |
| Bead Breaker | 5,500 lb. Force |
| Air Requirement | 90–110 PSI (MUST NOT EXCEED 140 PSI) |
| Operating Voltage | 110 Volt |

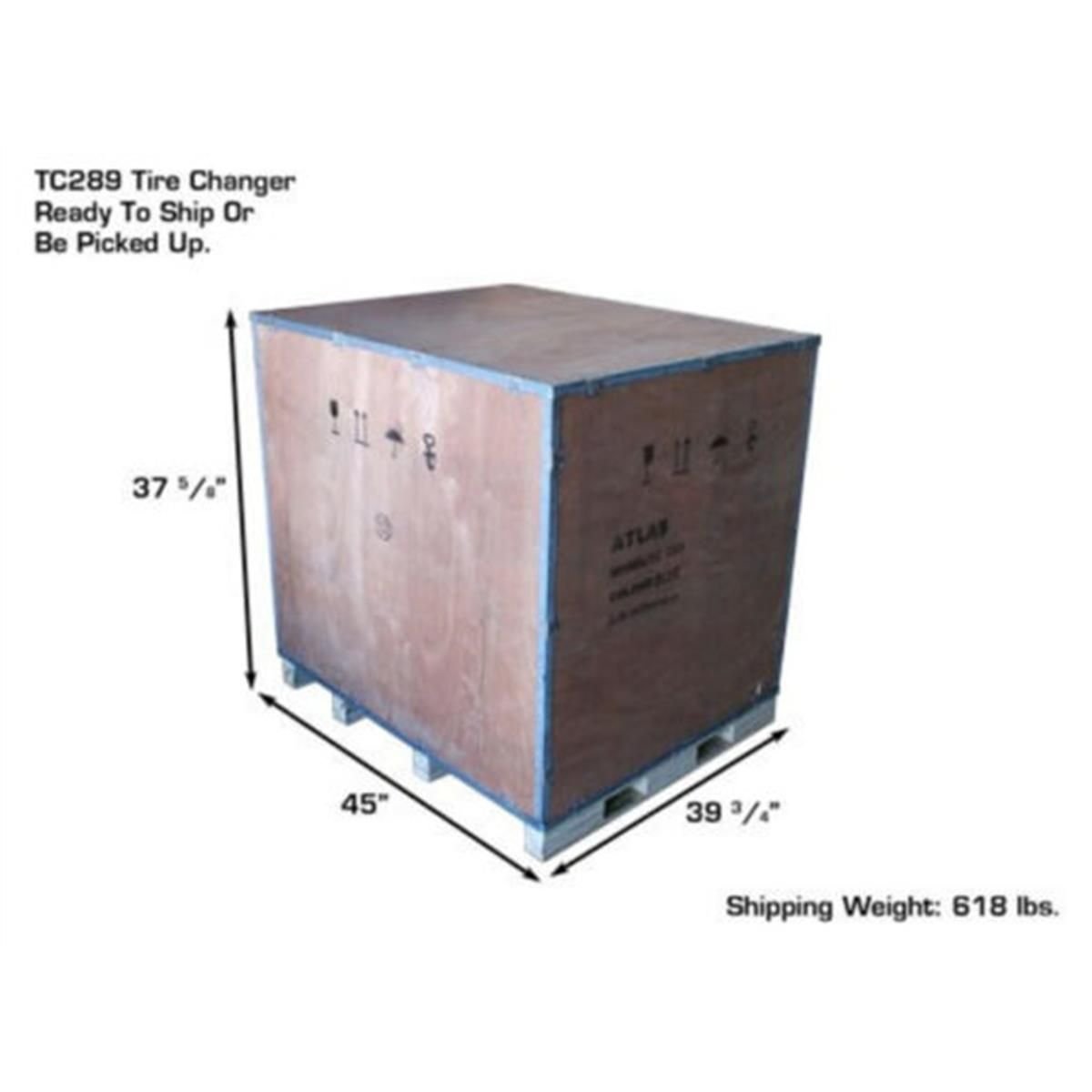

| Shipping Weight | 620 lbs. |
