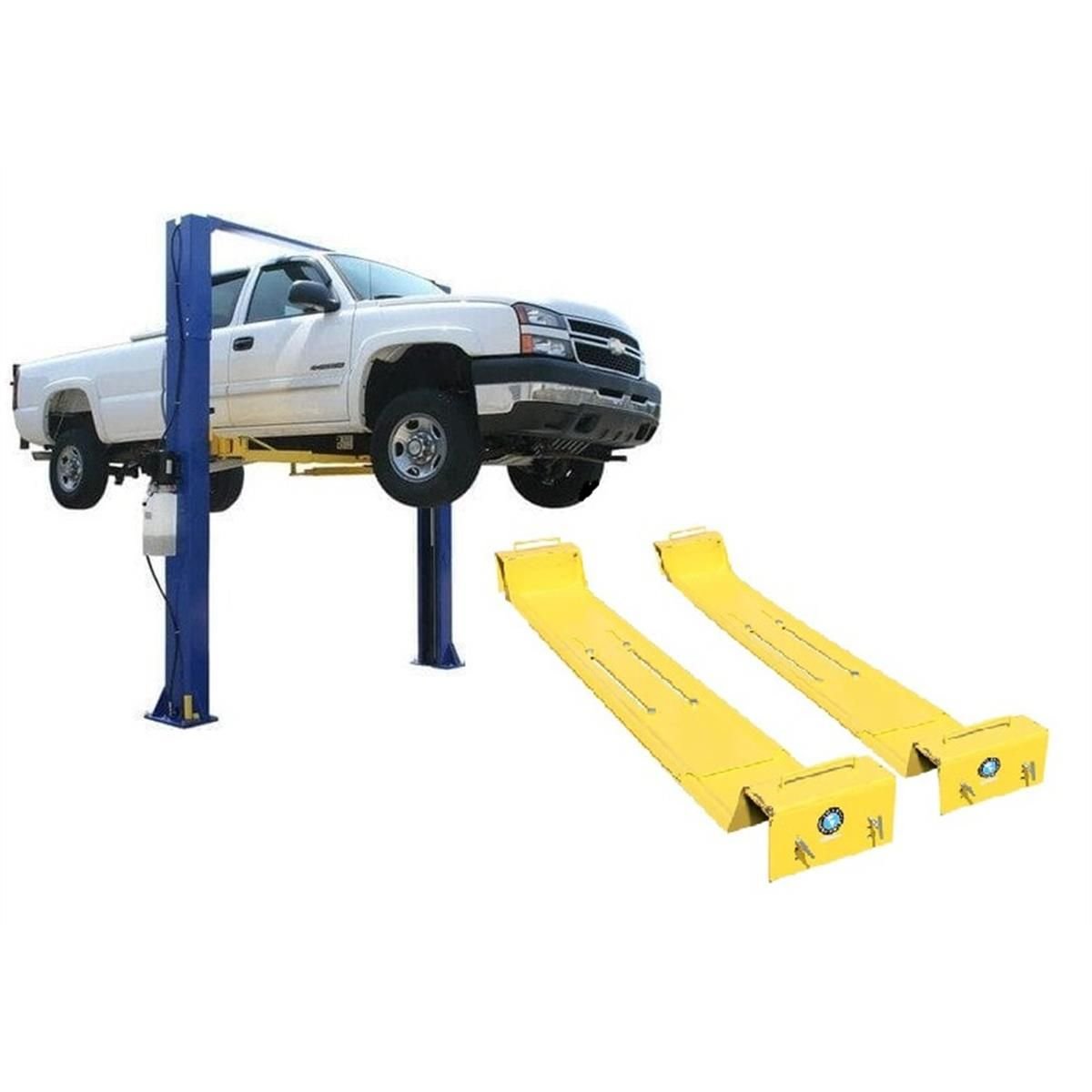

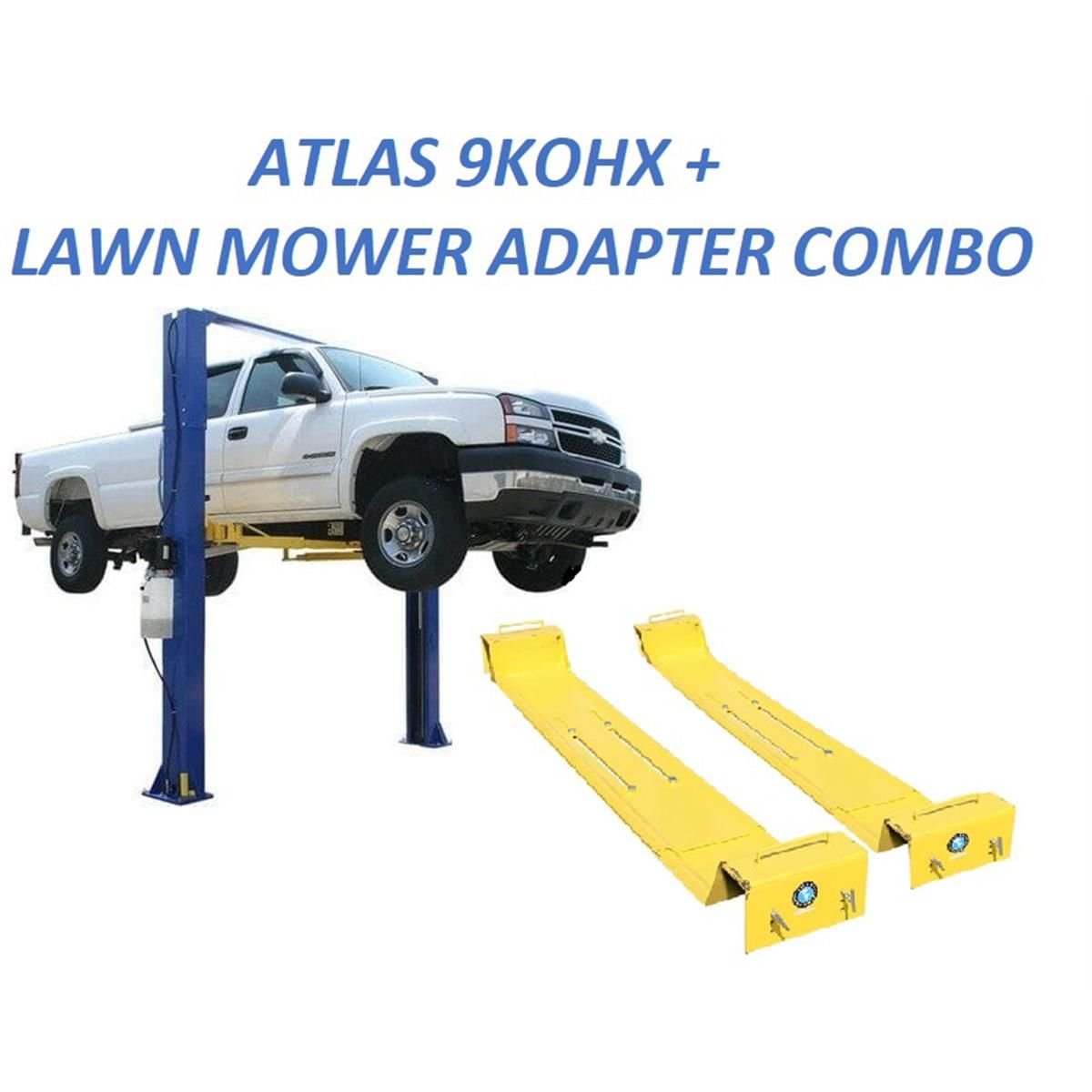

Atlas 9KOHX 9,000 lb Overhead 2-Post Lift w/ LMA Combo
Price range: £2,149.94 through £2,373.94
Description
The light-duty Atlas® 9KOHX is an economically designed overhead, clear-floor 2-post lift. Its dependable chain-drive cylinders and dual safety system make it an excellent option for homeowners and small commercial shops servicing cars, SUVs, and light-duty trucks. The 9KOHX can be configured to two height settings—11′ 6″ or 11′ 10″—allowing installation in most standard garage spaces.
The Atlas® 9KOHX features symmetric columns and specially engineered arms that can be positioned in either symmetric or asymmetric configurations. This dual arm design provides an extremely low lift pad height with the EZ-metric arm setup, enabling easy placement under small cars with low lifting points as well as heavier pickup trucks. The Atlas® 9KOHX “chain over roller” lift system includes a spring-loaded Secondary Lock System (SLS) that automatically engages if a chain becomes slack or fails.
This package also includes the Atlas® Lawn Mower Adapter (LMA). The LMA enhances the versatility of the 2-post lift by allowing it to safely raise ATVs, UTVs, and lawn mowers. The adapter can be adjusted along the length of the lift arms to accommodate different wheelbases. Its lifting capacity depends on adapter positioning (greater capacity when positioned closer to the columns) and proper vehicle weight distribution.
Features
9KOHX
- 9,000 lb. capacity
- Overhead, open-floor design
- Overall height: 138″ (11′ 6″) or 142″ (11′ 10″)
- Asymmetric / Symmetric arms
- Automatic arm restraints
- Dual-point lock release
- Rubber guards on carriages
- Dual hydraulic chain-drive cylinders
- Secondary Lock System (SLS)
- Free 8-piece truck adapter set
- Free set of sliding arm adapters
- Mounting hardware included
- Shipping weight: 1,450 lbs.
- Warranty: 2-year structural – 1-year hydraulic (parts only)
LMA
- “Lawnmower” adapter for 2-post lifts
- Includes 4 plates and all necessary hardware
- Adjustable to fit various sizes and brands (may not be compatible with all lifts)
- Up to 5,000 lb. capacity (varies by lift and wheelbase)
- Can be positioned along the lift arms (leveling blocks may be required)
Specifications
Atlas® 9KOHX Specifications
| Capacity | 9,000 lbs. |
|---|---|
| Overall Height | 138″ (11’ 6″) or 142″ (11’ 10″) |
| Overall Floor Width | 134 1/2″ (11’ 2 1/2″) |
| Outside Column to Outside Column | 124 7/8″ (10’ 4 7/8″) |
| Maximum Lift Height (Without Adapters) | 74 1/2″ |
| Maximum Lift Height (With Adapters) | 81″ |
| Minimum Arm Height | 4″ |
| Inside Column Width | 110″ (9’ 2″) |
| Drive Thru | 100″ (8’ 4″) Symmetric / 90 1/2″ (7’ 6 1/2″) Asymmetric |
| Column Size | 7 1/4″ x 11″ |
| Column Steel Thickness | 5 mm |
| Base of Lift | 14 1/4″ x 18″ |
| Motor / Electrical Requirement | 220 volt single (1) phase — 30 amp breaker recommended |
| Oil Requirement | 3–5 gallons AW32/AW46 (Not Included) |
| Shipping Weight | 1,450 lbs. |
| Adapter Heights | 4 each: 1.5″, 5″ |
| Arm Hole / Adapter Peg Size | 1.5″ |
| Concrete Requirement | Minimum 4″ thickness, 3000 PSI rating |
Atlas® Lawn Mower Adapter (LMA) Specifications
| Capacity | Up to 5,000 lbs.* |
|---|---|
| Adjusts in Width | 8′ 11″ |
| Wheel Base | 32″ to 90″** |
| Wheel Well Width | 12″ |
| Steel Thickness | 1/4″ (2 Gauge) |
| Shipping Weight | 600 lbs. |
LMA consists of two wheel platforms. Lift not included.
* Capacity may vary depending on lift type and weight distribution. Longer wheelbases reduce overall lifting capacity.
** Blocks and/or shims may be required at various lift arm positions to maintain stable and level wheel platforms.
Atlas® 9KOHX Cylinder Bleeding Procedure (To be performed immediately after installation)
