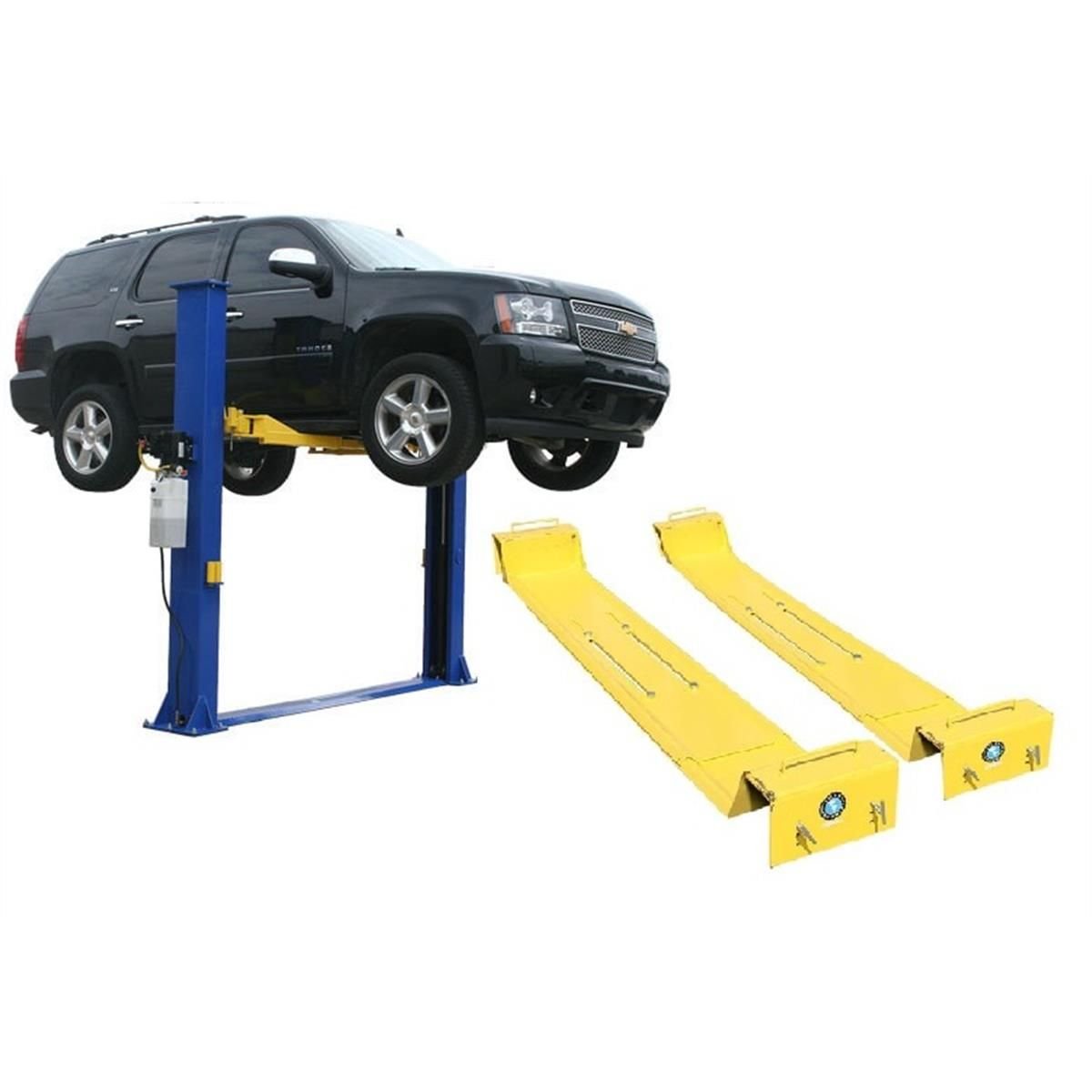

Atlas 9KBPX 9,000 lb Baseplate 2 Post Lift w/ LMA Combo
Price range: £2,105.15 through £2,329.15
Description
The Atlas® 9KBPX is a cost-effective baseplate two-post lift designed specifically for garages with limited ceiling height. With a total column height of 111 1/2″ (9′ 3 1/2″), this lift can be installed in professional or residential garages with ceilings as low as 9′ 6″. The Atlas® 9KBPX features a “chain over roller” design and incorporates a spring-loaded Secondary Lock System (SLS) that automatically activates if a chain becomes slack or breaks.
Equipped with dependable dual chain-drive hydraulic cylinders, symmetric arms, and automatic arm restraints, this lift is ideal for homeowners or small commercial shops servicing cars, SUVs, and light-duty trucks (not recommended for diesel dually or other heavy-duty trucks).
This package also includes the Atlas® Lawn Mower Adapter (LMA). The LMA allows the two-post lift to safely raise ATVs, UTVs, and lawn mowers. It can be adjusted along the length of the lift arms to accommodate various wheelbases. The LMA’s weight capacity depends on adapter positioning (higher capacity when positioned closer to the columns) and proper vehicle weight distribution.
Please note that if you order an Atlas item, your delivery location must be accessible to a 53-foot truck.
Features
9KBPX
- 9,000 lb. Capacity
- Baseplate, Open-Top Style Lift
- Designed for Low Ceiling Clearance – 9′ 3 1/2” Columns
- Symmetric Arms
- Dual Hydraulic Chain-Drive Cylinders
- Secondary Lock System (SLS)
- Free 8-Piece Truck Adapter Set
- Automatic Arm Restraints
- Dual-Point Lock Release
- Mounting Hardware Included
- Shipping Weight: 1,400 lbs.
- 2-Year Structural – 1-Year Hydraulic Warranty – Parts Only
LMA
- “Lawnmower” Adapter for 2-Post Lifts
- Includes 4 Plates and All Necessary Hardware
- Adjustable to Fit Various Sizes and Brands (MAY NOT WORK WITH ALL LIFTS)
- Up to 5,000 lb. Capacity (VARIES BY LIFT AND WHEELBASE)
- Can Be Positioned Along the Length of the Lift Arms (LEVELING BLOCKS MAY BE REQUIRED)
Specifications
Atlas® XH-9KBPX Specifications
| Capacity | 9,000 lb. |
|---|---|
| Overall Height | 111 1/2″ (9’ 3 1/2″) |
| Overall Floor Width | 134 1/2″ (11’ 2 1/2″) |
| Outside Column to Outside Column | 124 7/8″ (10’ 4 7/8″) |
| Maximum Lift Height (Without Adapters) | 74 1/2″ |
| Maximum Lift Height (With Adapters) | 81″ |
| Minimum Arm Height | 4″ |
| Inside Column | 110” (9’ 2”) |
| Drive Thru | 101” (8’ 5”) |
| Column Size | 7 1/4″ x 11″ |
| Column Thickness of Steel | 5 mm |
| Base of Lift | 14 1/4″ x 18 1/4″ |
| Motor/Electrical Requirement | 220 volt single (1) phase (30 amp breaker recommended) |
| Oil Requirement | 3–5 Gallons AW32/AW46 (NOT INCLUDED) |
| Shipping Weight | 1,400 lbs. |
| Adapter Heights | 4 Each: 1.5”, 5” |
| Arm Hole/Adapter Peg Size | 1.5” |
Requires a minimum of 4″ thick concrete with a 3,000 PSI rating.
Atlas® Lawn Mower Adapter (LMA) Specifications
| Capacity | Up to 5,000 lbs.* |
|---|---|
| Adjusts in Width | 8′ 11″ |
| Wheel Base | 32″ to 90″** |
| Wheel Well Width | 12″ |
| Thickness of Steel | 1/4″ (2 Gauge) |
| Shipping Weight | 600 lbs. |
LMA consists of two wheel platforms. Lift not included.
* Capacity may vary depending on lift model and weight distribution. Longer wheelbases will reduce the overall lifting capacity of the LMA.
** Blocks and/or shims may be required at various lift arm positions to keep the wheel platforms stable and level.
