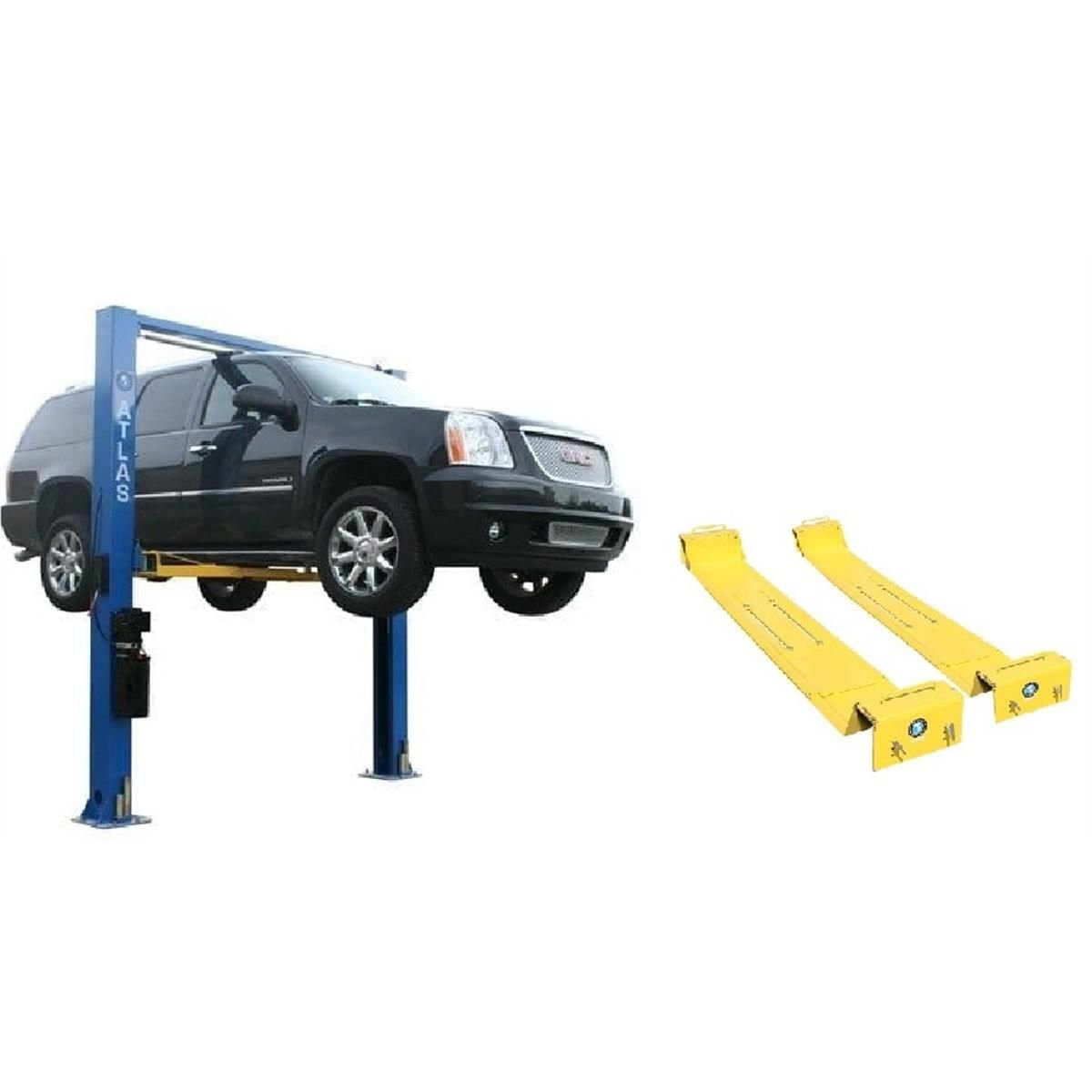

Atlas 9OHSC 2-Post Lift + Lawn Mower Adapter Combo
Price range: £2,329.15 through £2,597.95
Description
The Atlas® 9OHSC two-post above-ground lift is an excellent option for smaller commercial repair shops or homeowners who require premium quality at a highly competitive price. The 9OHSC is a TRUE 9,000 lb. capacity two-post lift designed to deliver outstanding value.

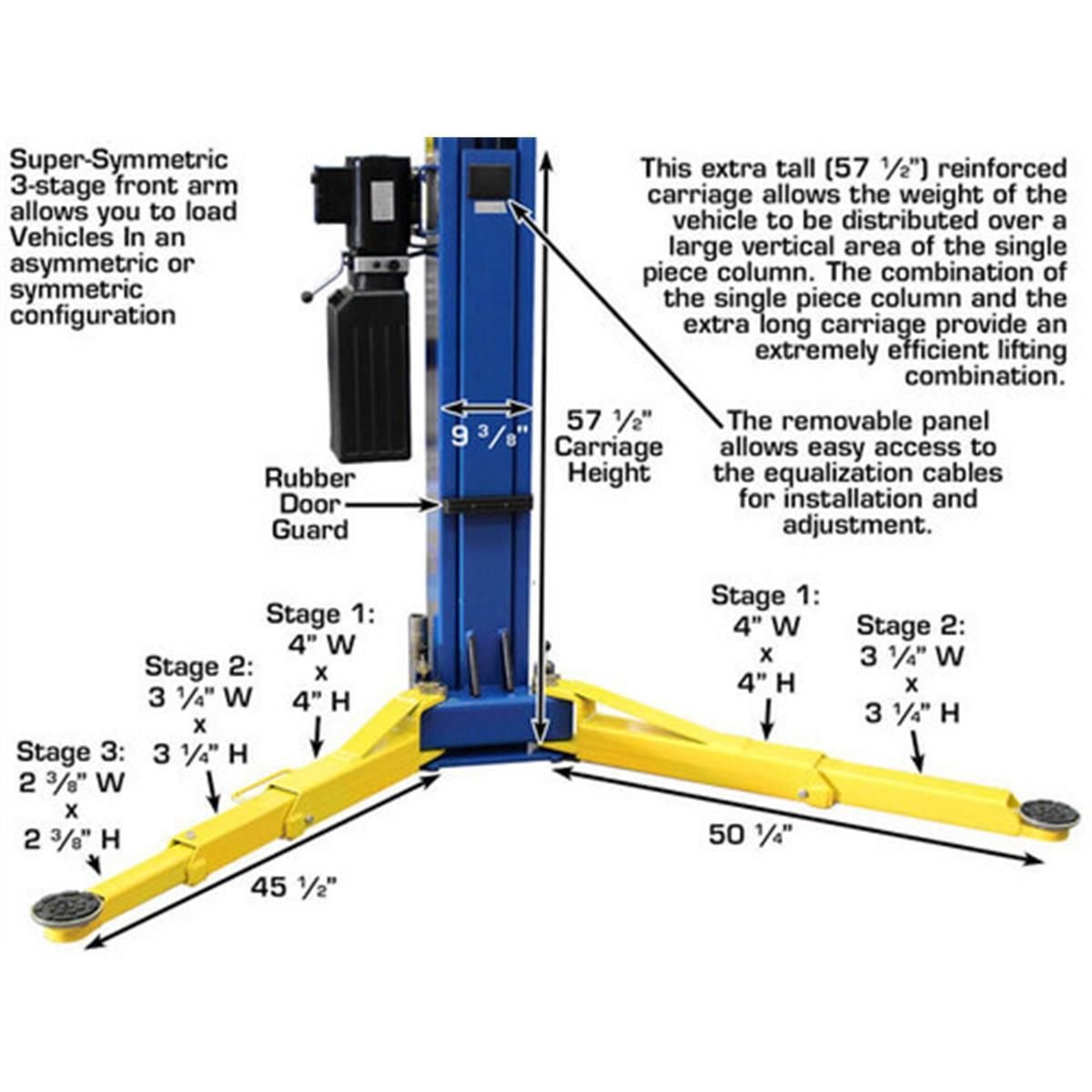

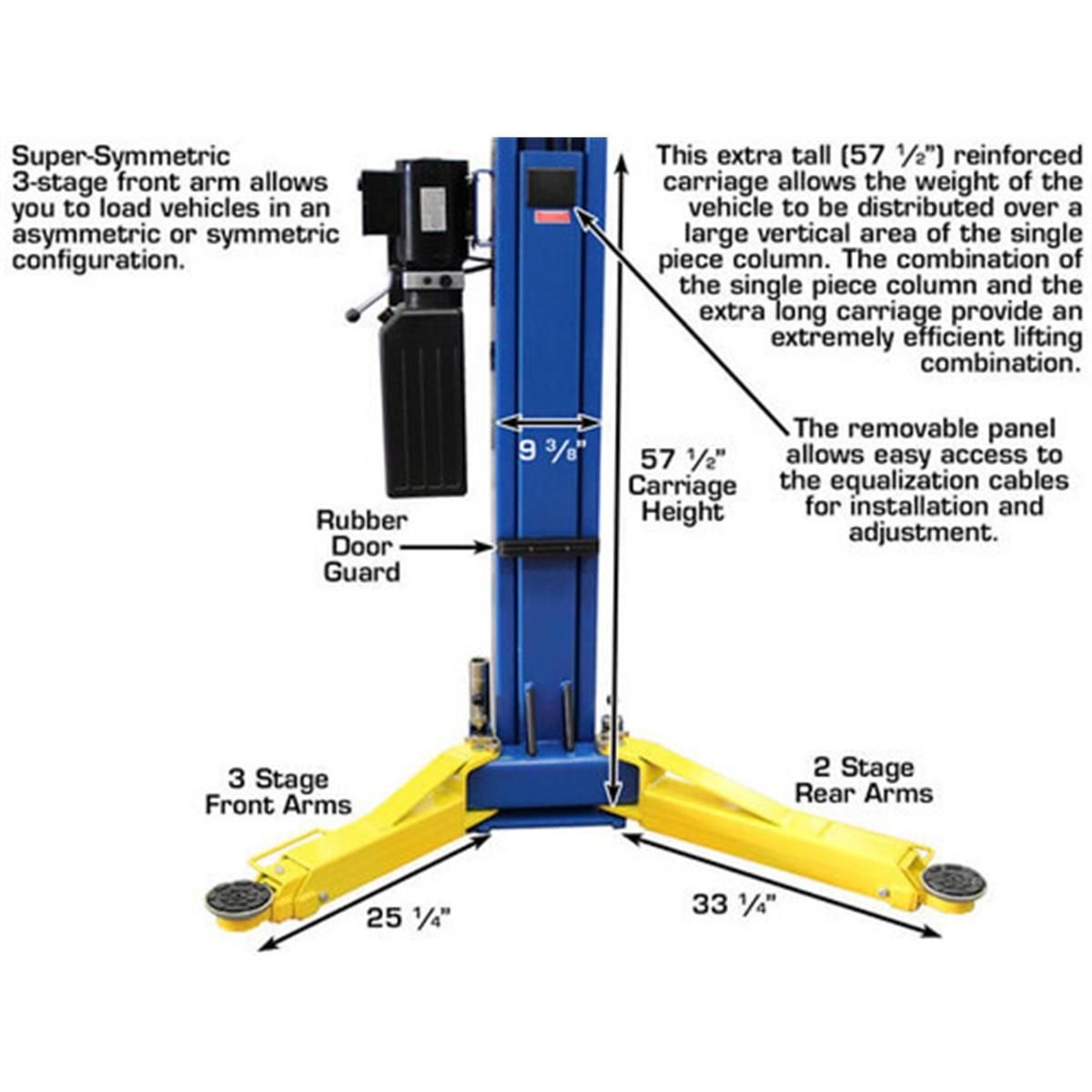

The Atlas® 9OHSC is designed and built to raise vehicles ranging from Smart Cars® to a Suburban®. It features a single-piece 11’ 10” formed column along with an extended carriage, maximizing column integrity and arm strength to safely lift and support vehicles up to 9,000 lbs.
Built with single-piece columns and extra-long carriages, the Atlas® 9OHSC is engineered for long-term, reliable performance. Due to the single-piece column construction, a minimum ceiling height of 12 feet is required for proper column installation.

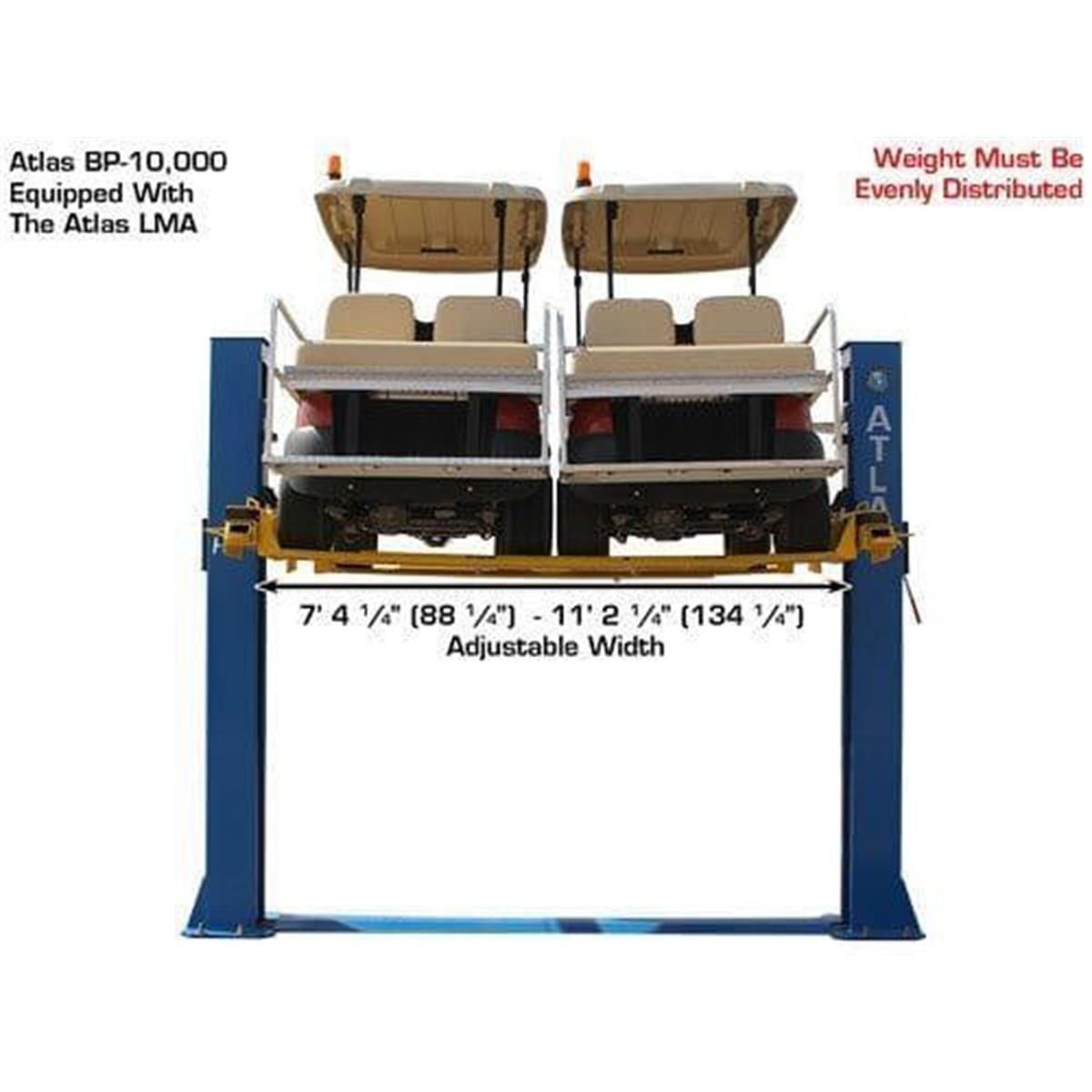

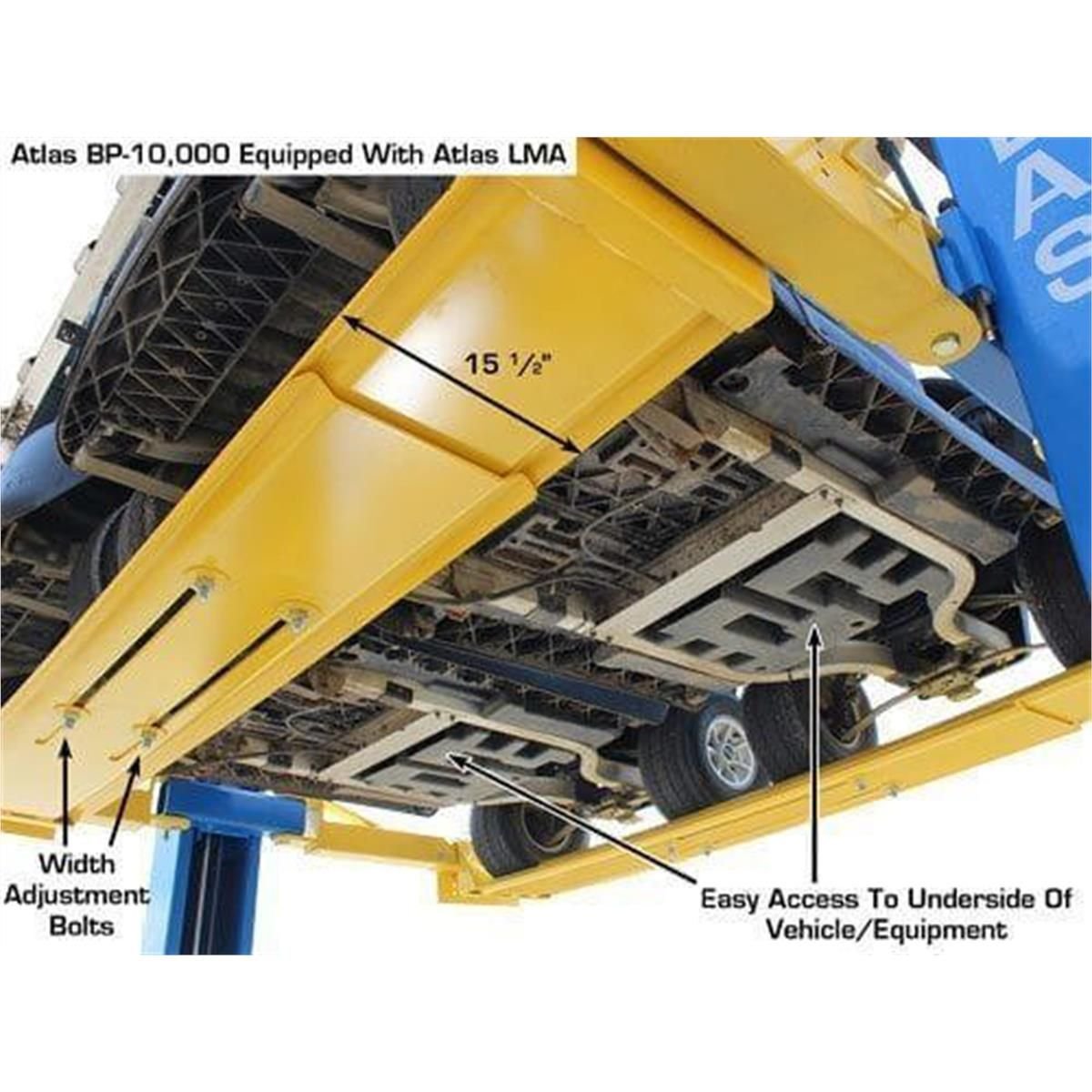

This package also includes the Atlas® Lawn Mower Adapter (LMA). The LMA enhances the versatility of the 2-post lift by enabling it to safely lift ATVs, UTVs, and lawn mowers. It can be adjusted along the lift arms to accommodate various wheelbases. The LMA’s lifting capacity depends on adapter placement (higher capacity when positioned closer to the columns) and the weight balance of the vehicle being lifted.
Please note: Delivery of any Atlas item requires a location accessible to a 53-foot truck.
Features
9OHSCa
- 9,000 lb. Capacity
- Overhead, Open-Floor Lift
- Single-Piece Column Construction
- Overall Height: 142″ (11′ 10″)

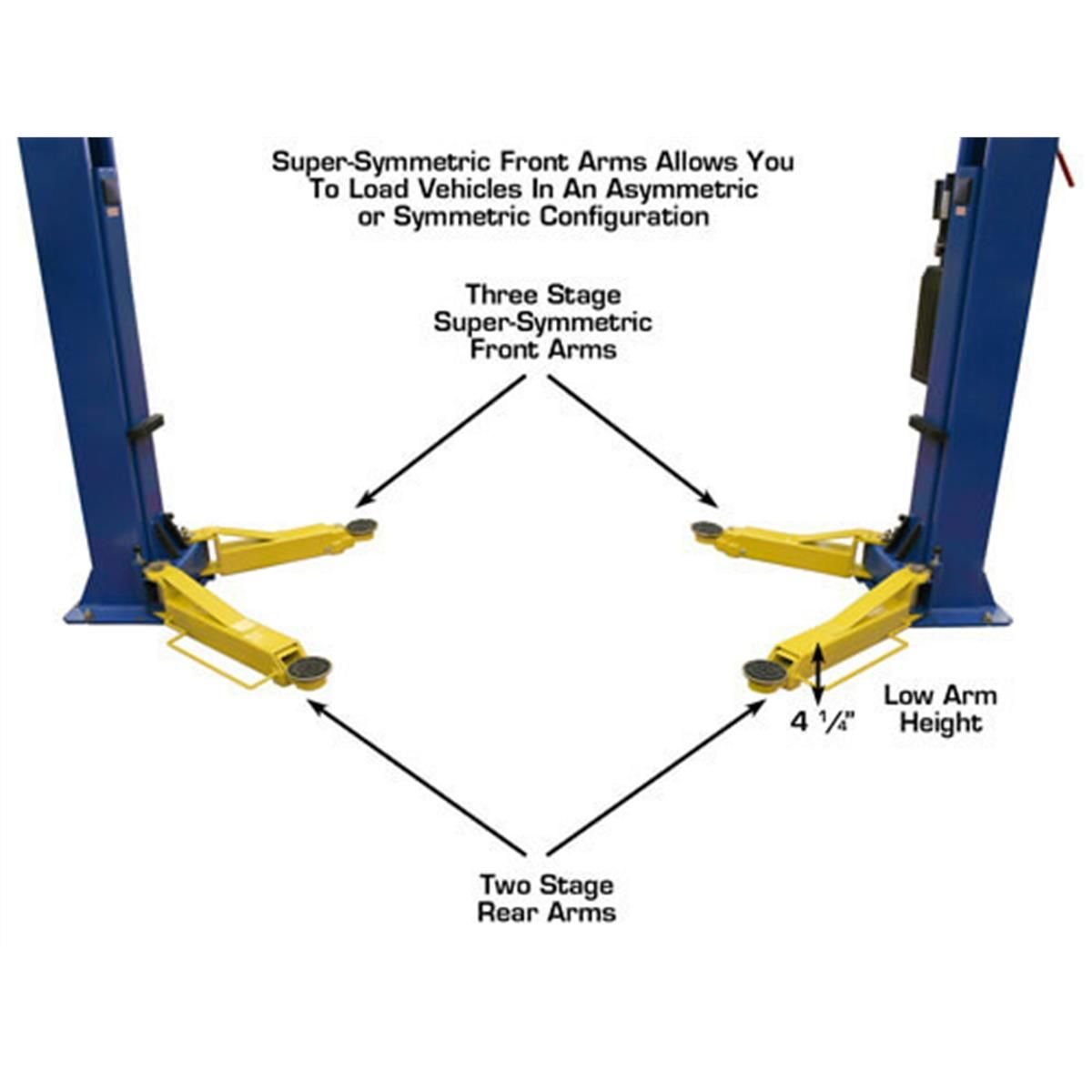

- 3-Stage Front Arms / 2-Stage Rear Arms

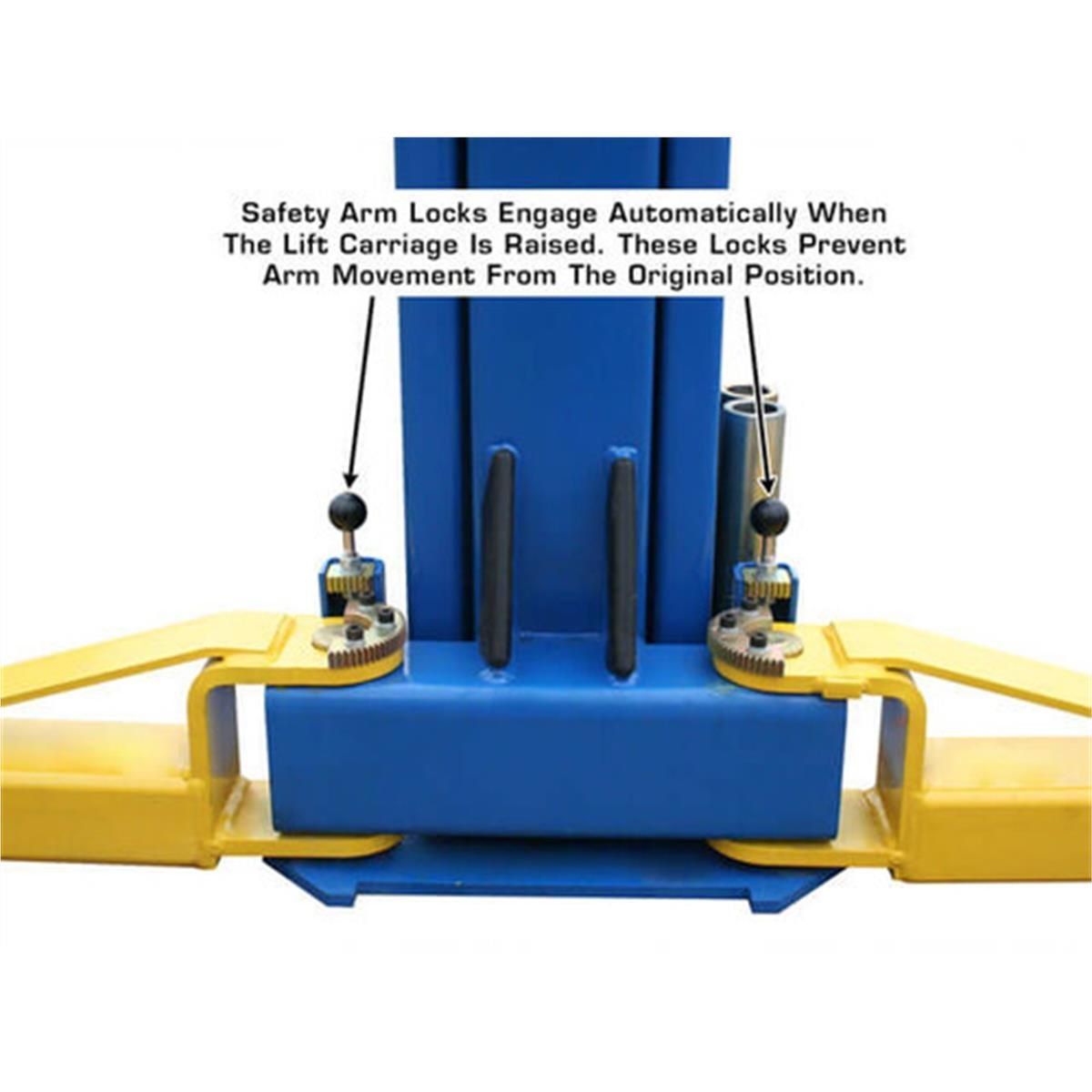

- Automatic Arm Restraints

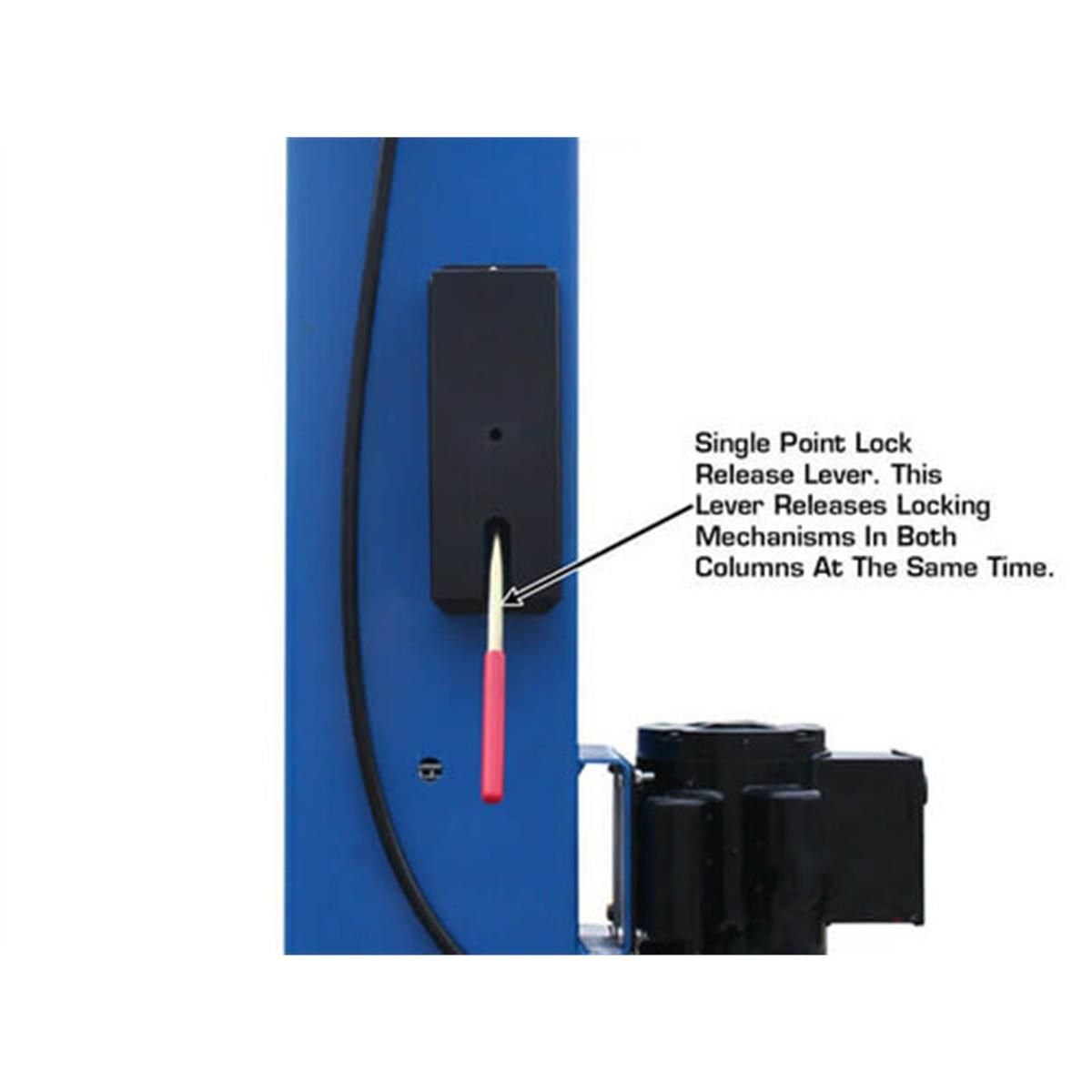

- Single-Point Lock Release
- Rubber Guards on Carriages
- Dual Hydraulic Chain-Drive Cylinders
- Free 12-Piece Truck Adapter Set
- Mounting Hardware Included

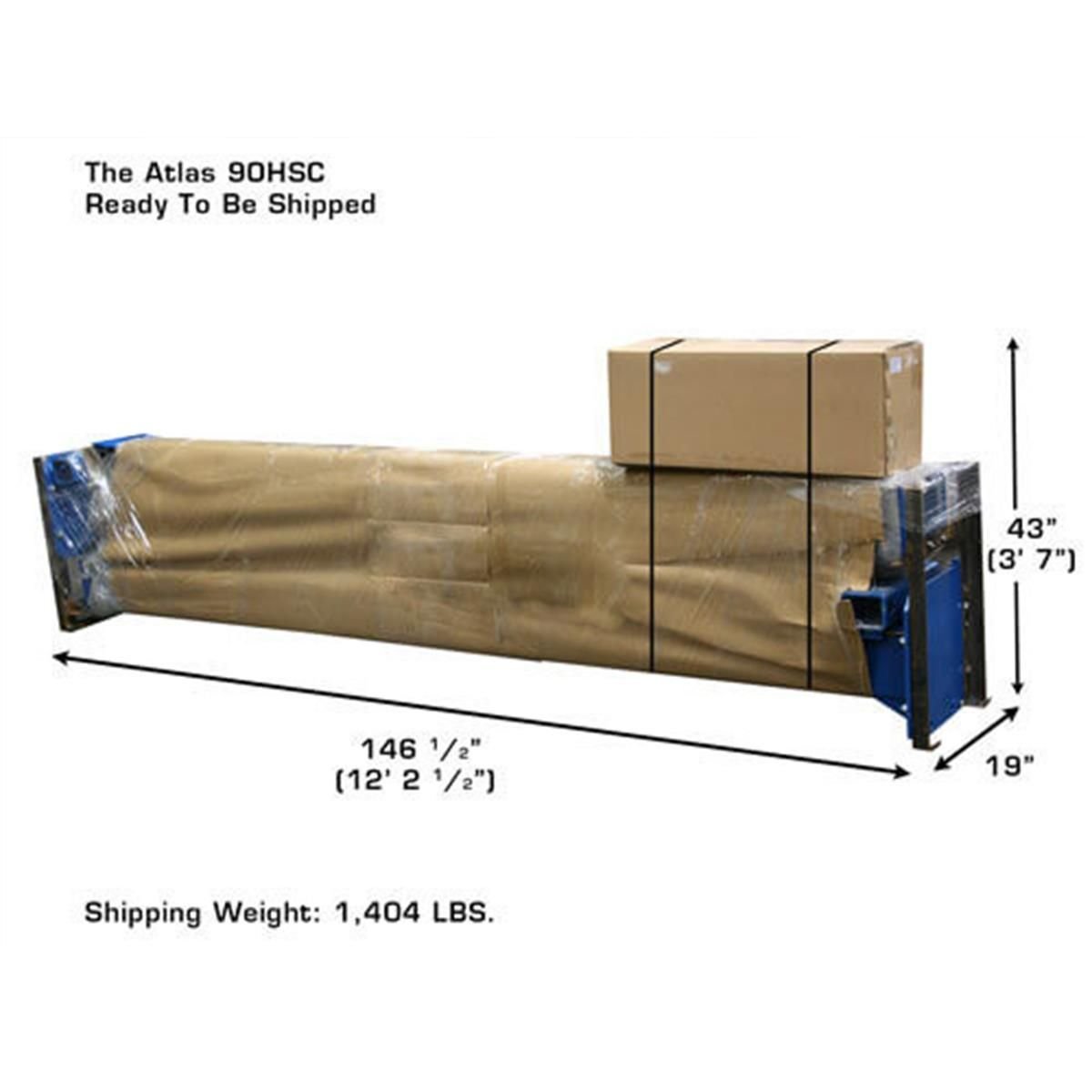

- Shipping Weight: 1,430 lbs.
- 5-Year Structural – 2-Year Hydraulic Warranty – Parts Only

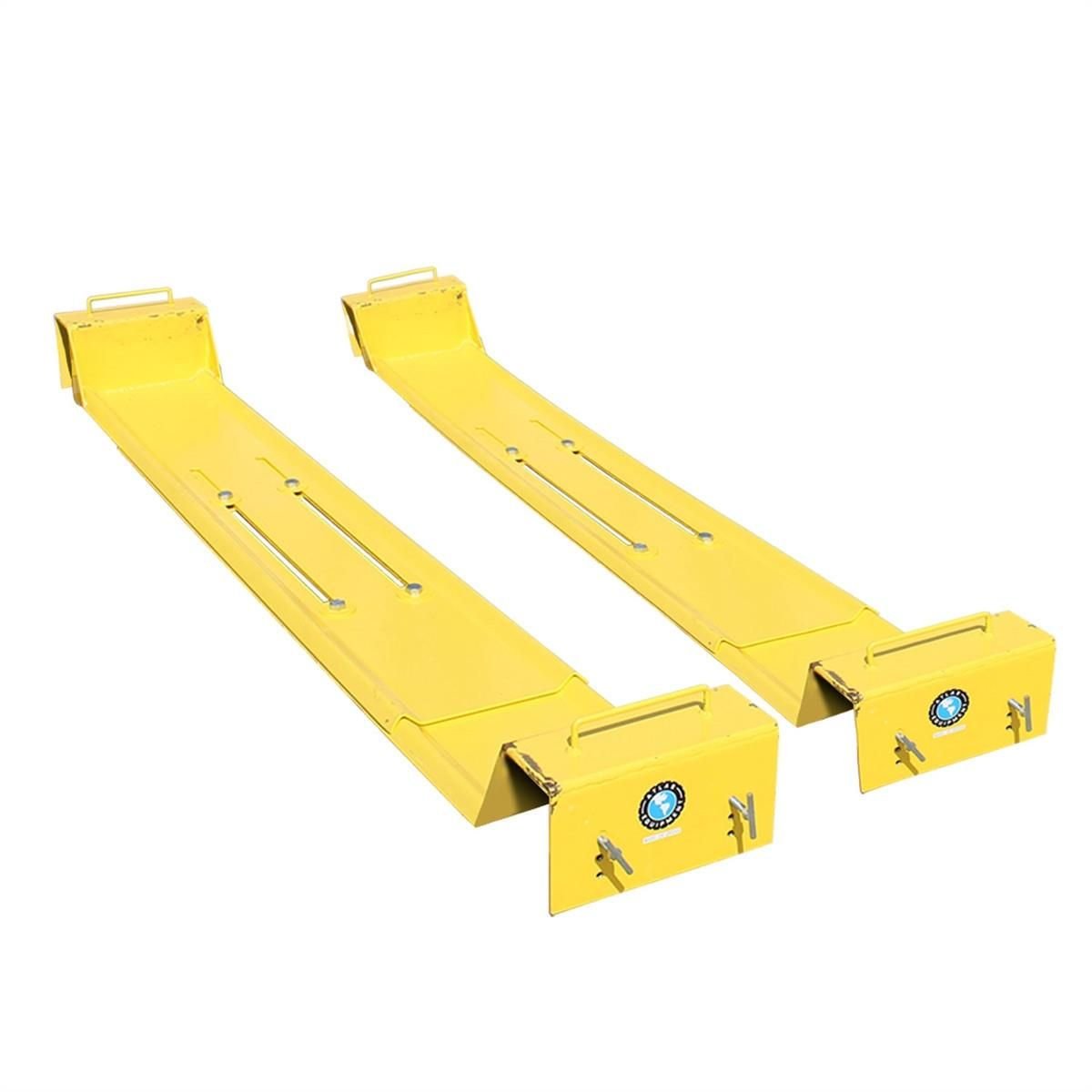

LMA
- “Lawnmower” Adapter for 2-Post Lifts
- Includes 4 Plates and All Necessary Hardware
- Adjustable to fit multiple sizes and brands (MAY NOT BE COMPATIBLE WITH ALL LIFTS)
- Up to 5,000 lb. Capacity (VARIES BY LIFT AND WHEELBASE)

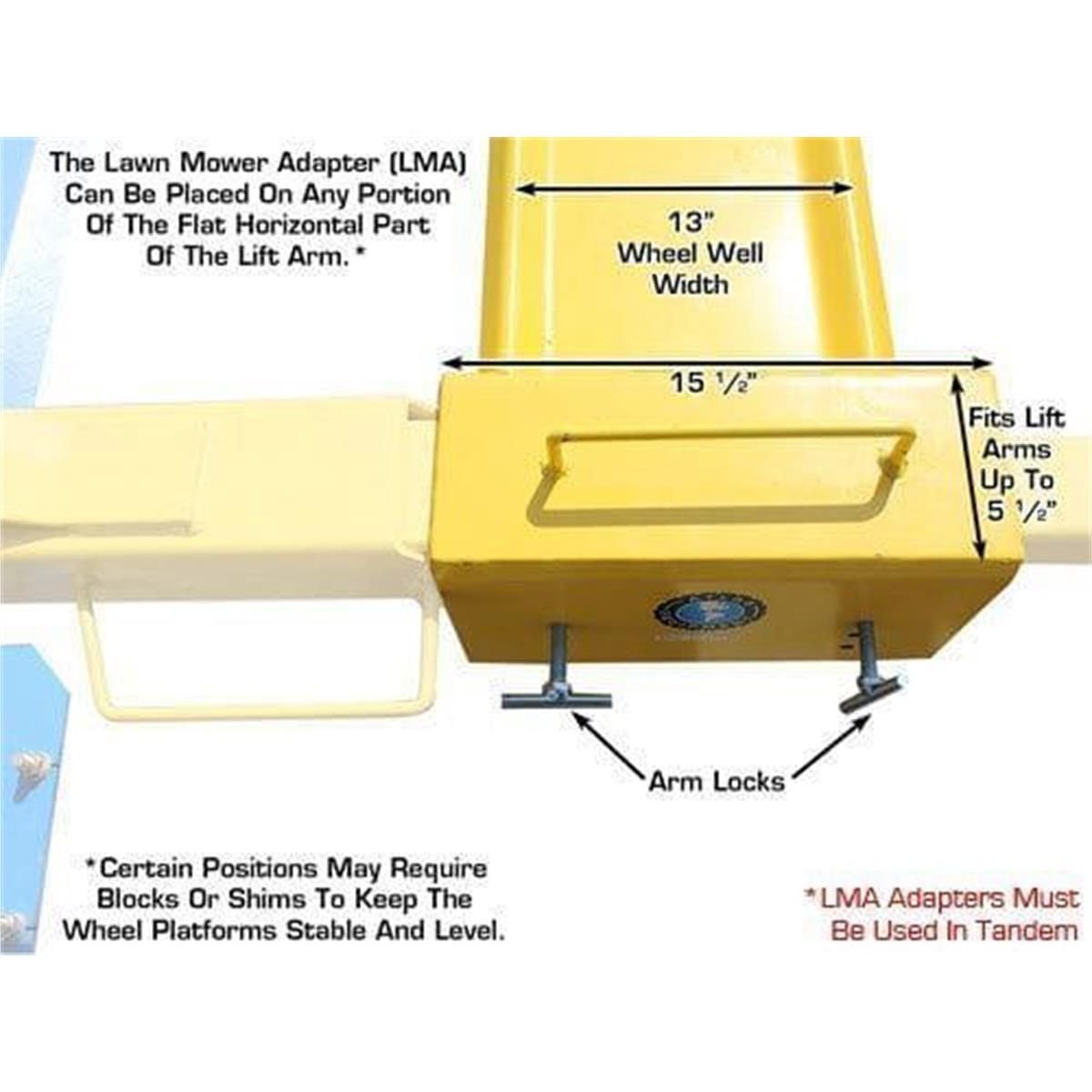

- Adjustable positioning along lift arms (LEVELING BLOCKS MAY BE REQUIRED)
Specifications
Atlas® ATTD-9OHSC-SS Specifications
| Specification | Details |
|---|---|
| Capacity | 9,000 LB. |
| Overall Height | 142″ (11’ 10″) |
| Overall Floor Width | 133 1/2″ (11’ 1 1/2″) |
| Outside Column to Outside Column | 125 1/2″ (10’ 5 1/2″) |
| Maximum Lift Height (Without Adapters) | 76 3/4″ |
| Maximum Lift Height (With Adapters) | 87 3/4″ |
| Minimum Arm Height | 4″ |
| Inside Column | 109 1/2” (9’ 1 1/2”) |
| Drive Thru | 100 1/2” (8’ 4 1/2”) |
| Column Size | 8″ x 9 3/8″ |
| Column Thickness of Steel | 5mm |

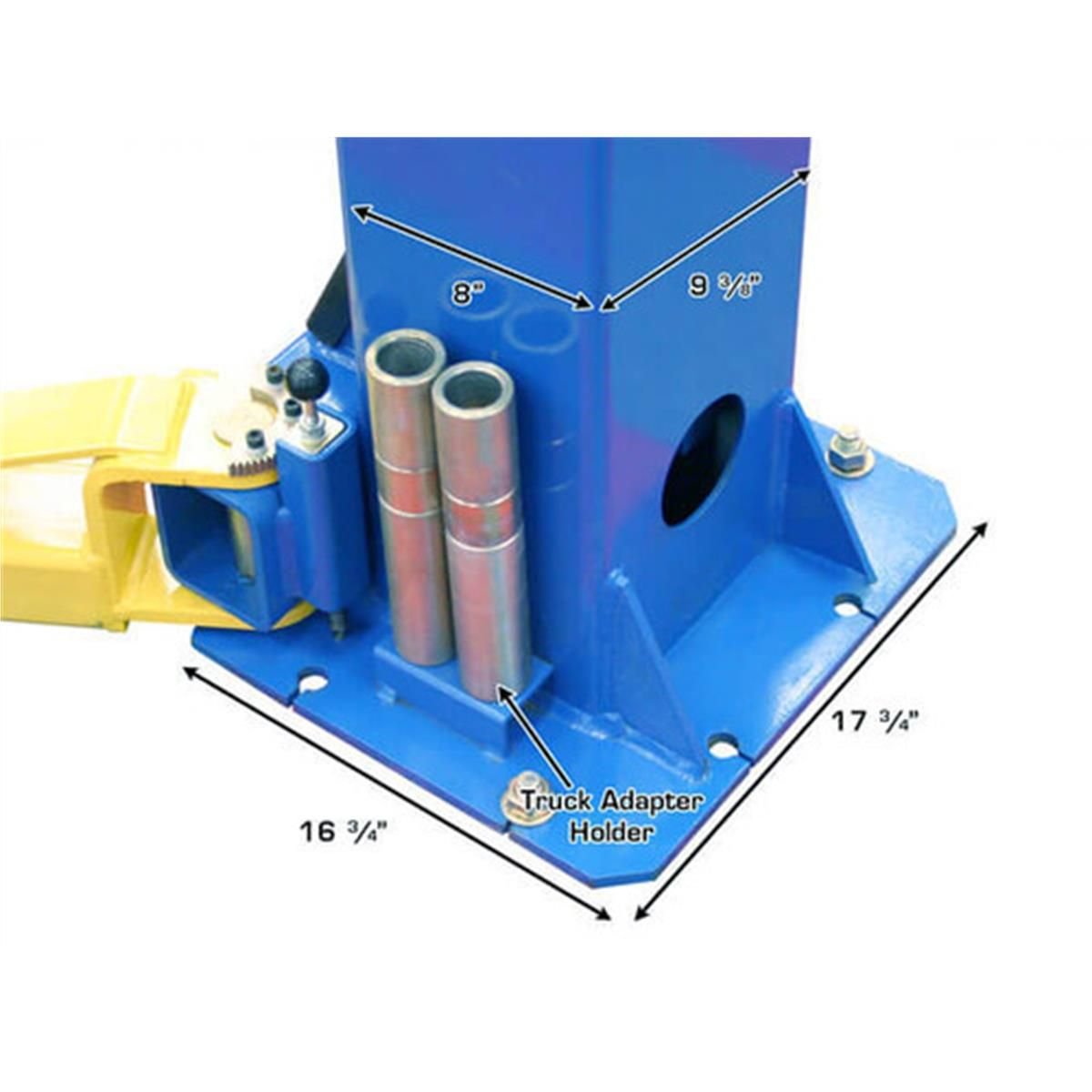

| Base of Lift | 16 3/4″ x 17 3/4″ |
| Motor/Electrical Requirement | 220 volt single (1) phase. A 30 amp breaker is recommended |
| Oil Requirement | 3–5 Gallons AW32/AW46 (NOT INCLUDED) |
| Shipping Weight | 1,430 LBS. |

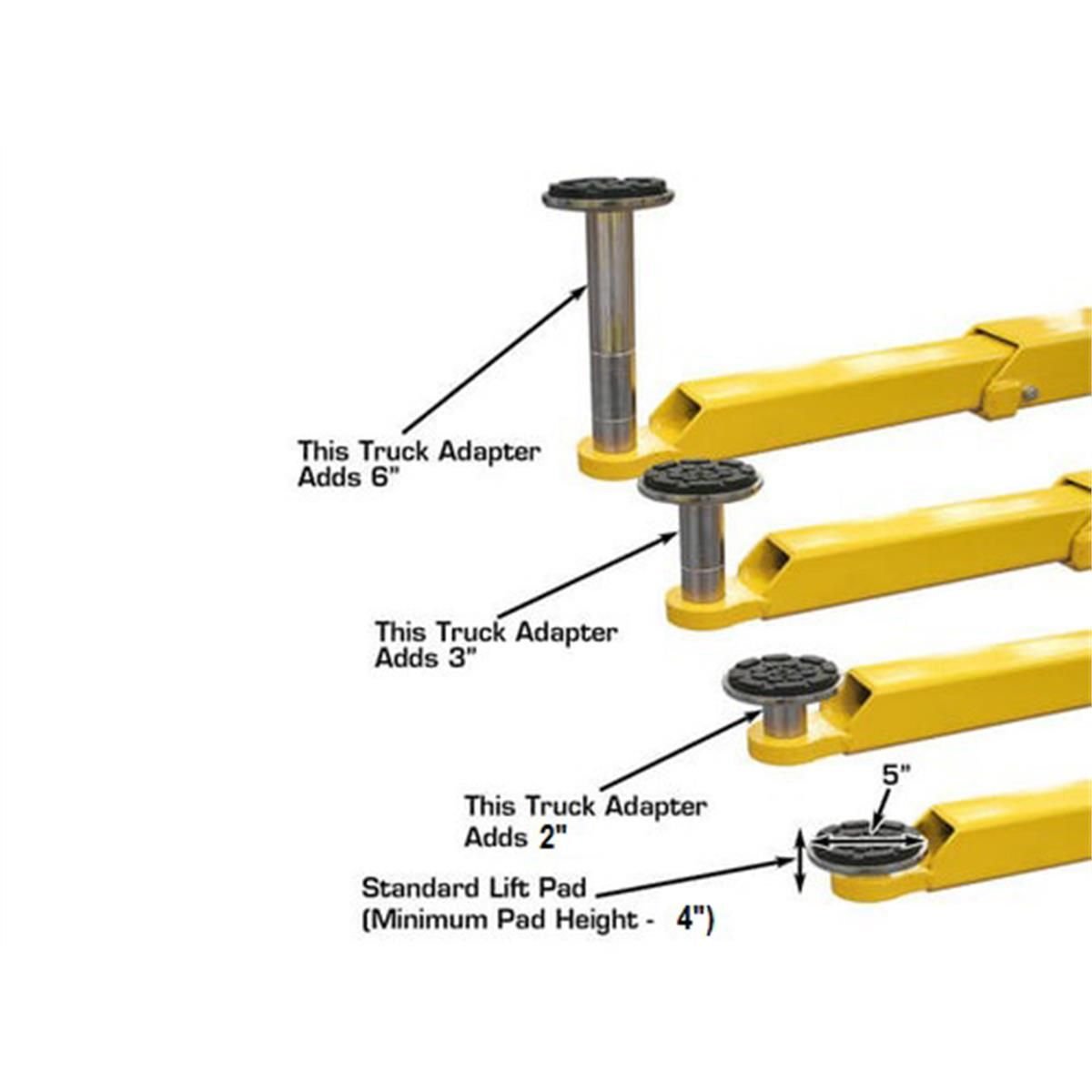

| Adapter Heights | 4 Each: 2”, 3”, 6” |
| Arm Hole/Adapter Peg Size | 1.5” |
Requires a minimum of 4″ thick concrete with a 3000 PSI rating.

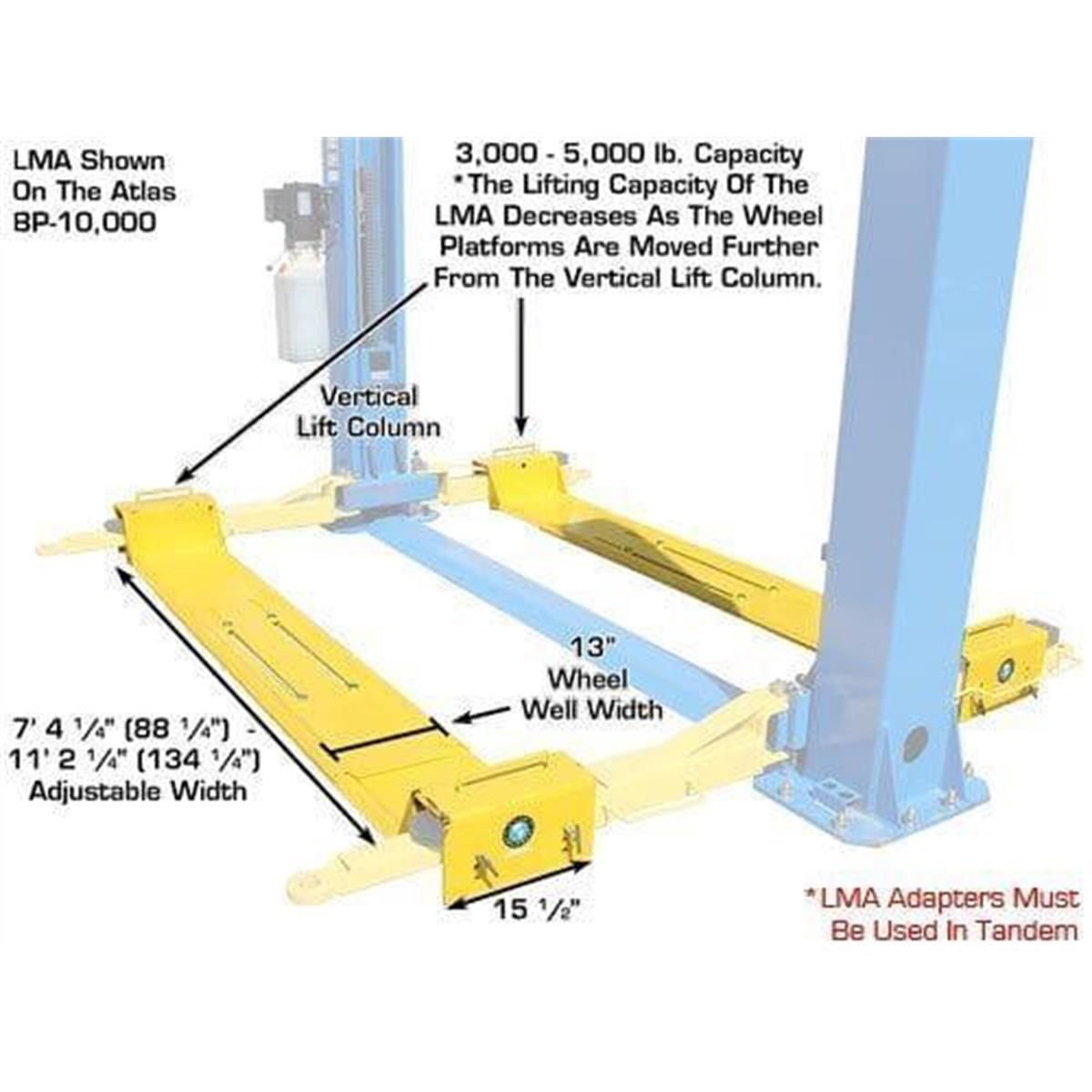

Atlas® Lawn Mower Adapter (LMA) Specifications
| Specification | Details |
|---|---|
| Capacity | Up To 5,000 lbs. * |

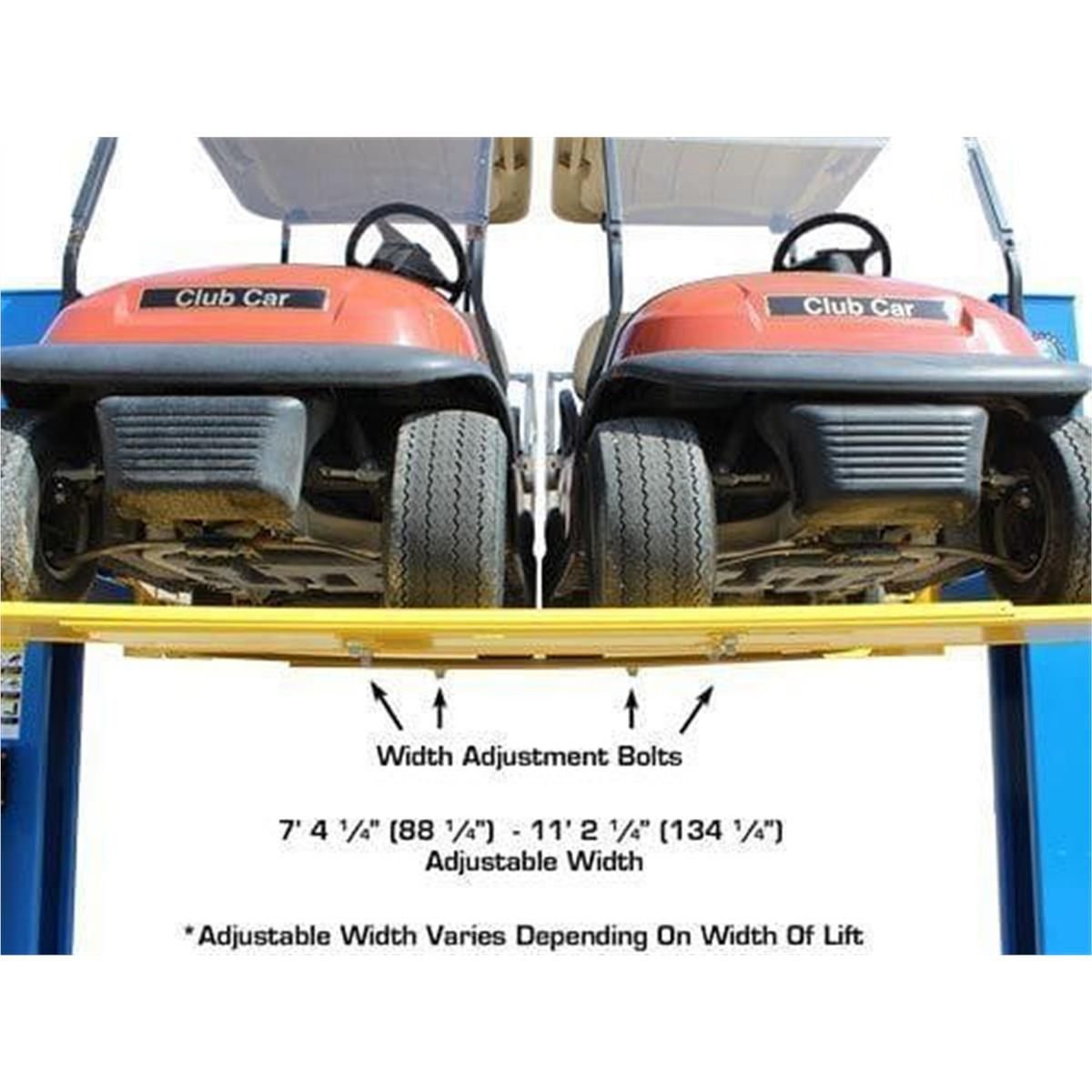

| Adjusts In Width | 8′ 11″ |
| Wheel Base | 32″ to 90″ ** |
| Wheel Well Width | 12″ |
| Thickness of Steel | 1/4″ (2 Gauge) |

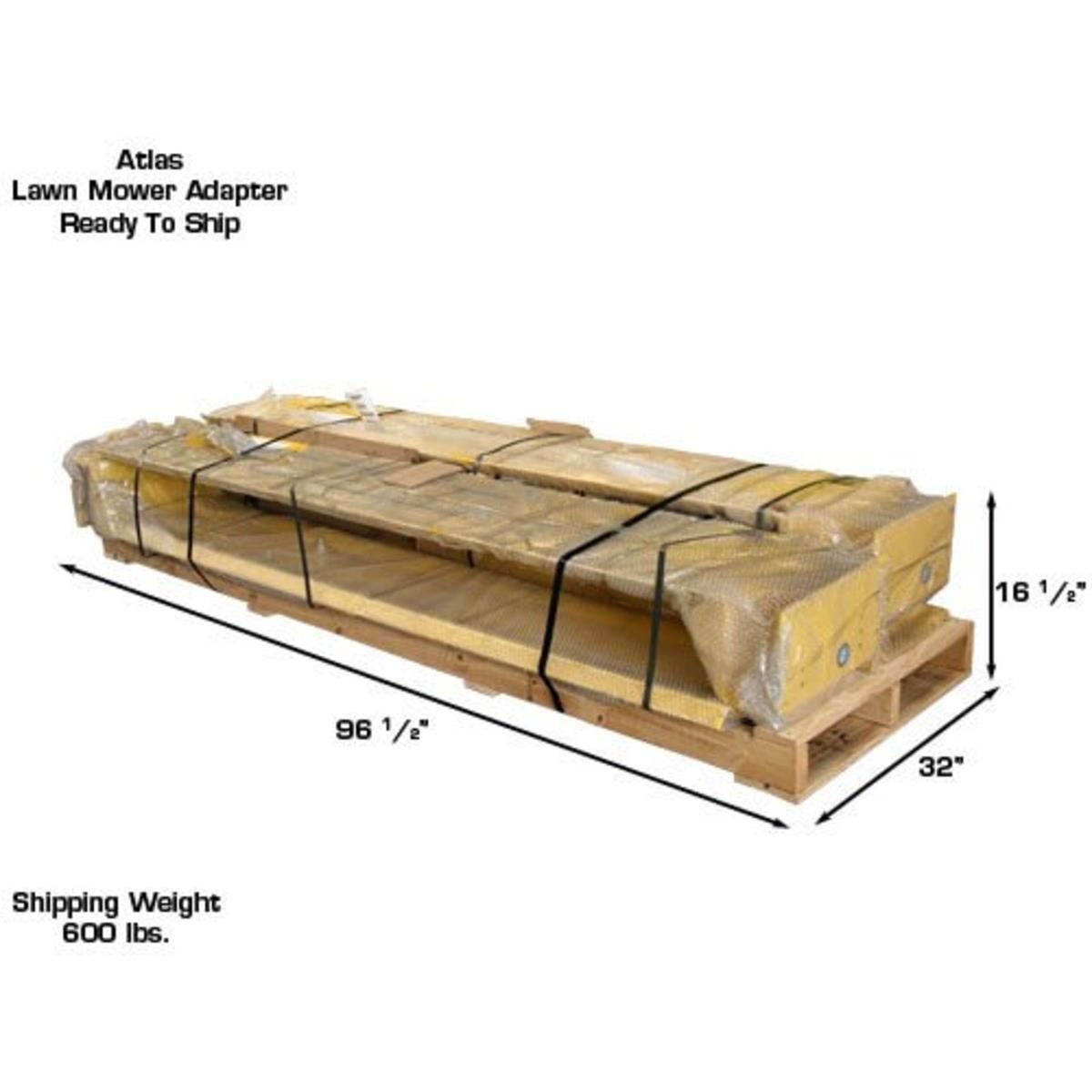

| Shipping Weight | 600 lbs. |
LMA includes two wheel platforms. Lift not included.

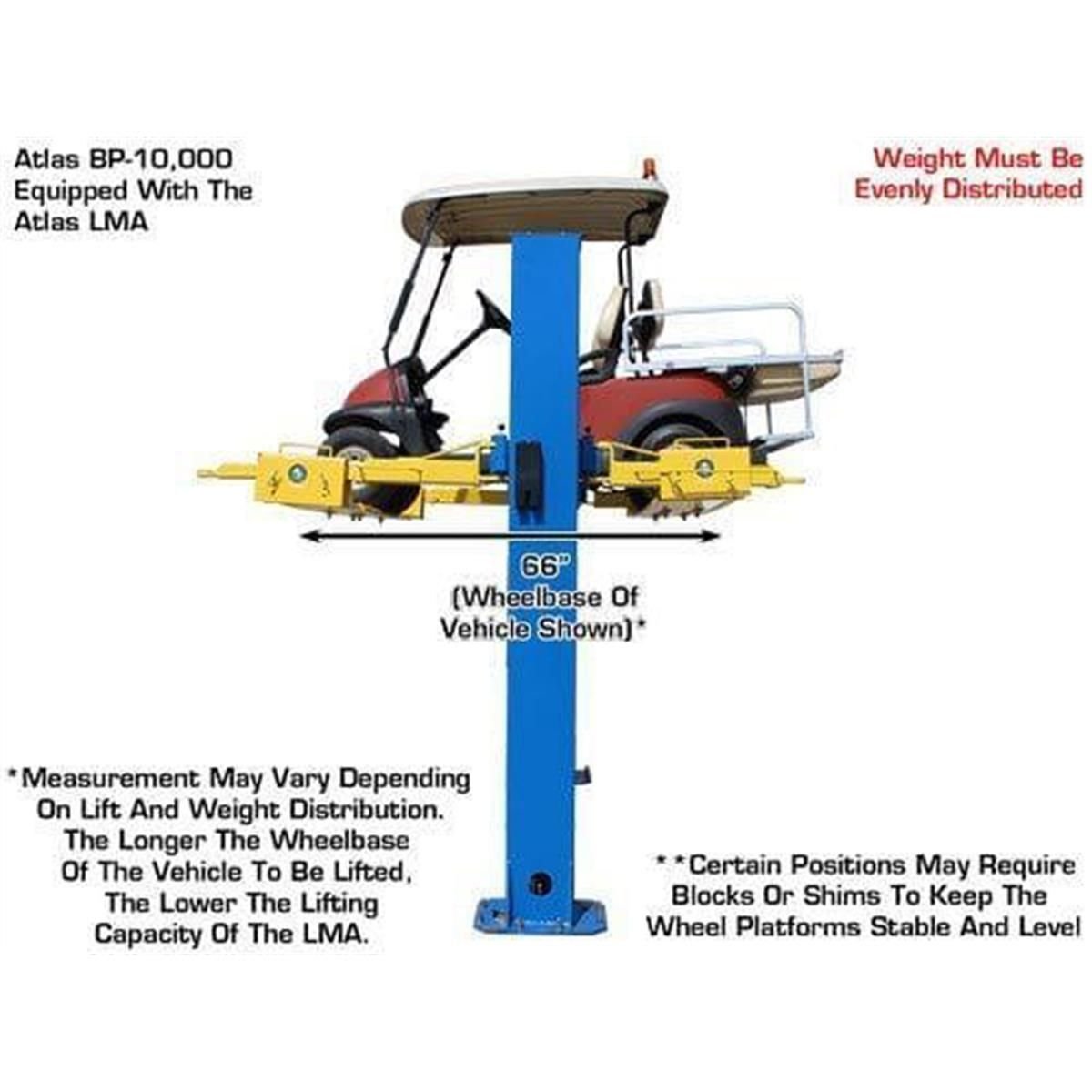

* Capacity may vary depending on the lift and weight distribution. Vehicles with longer wheelbases will reduce the overall lifting capacity of the LMA.
** Blocks and/or shims may be necessary at various arm positions to maintain stable and level wheel platforms.
- Atlas® 9OHSC-SS Cylinder Bleeding Procedure
(Must be completed immediately after installation)
