Atlas BP12000X 12,000 lb Baseplate 2 Post Lift
Price range: £2,239.54 through £2,463.55
The Atlas BP12000X Commercial Grade Lift

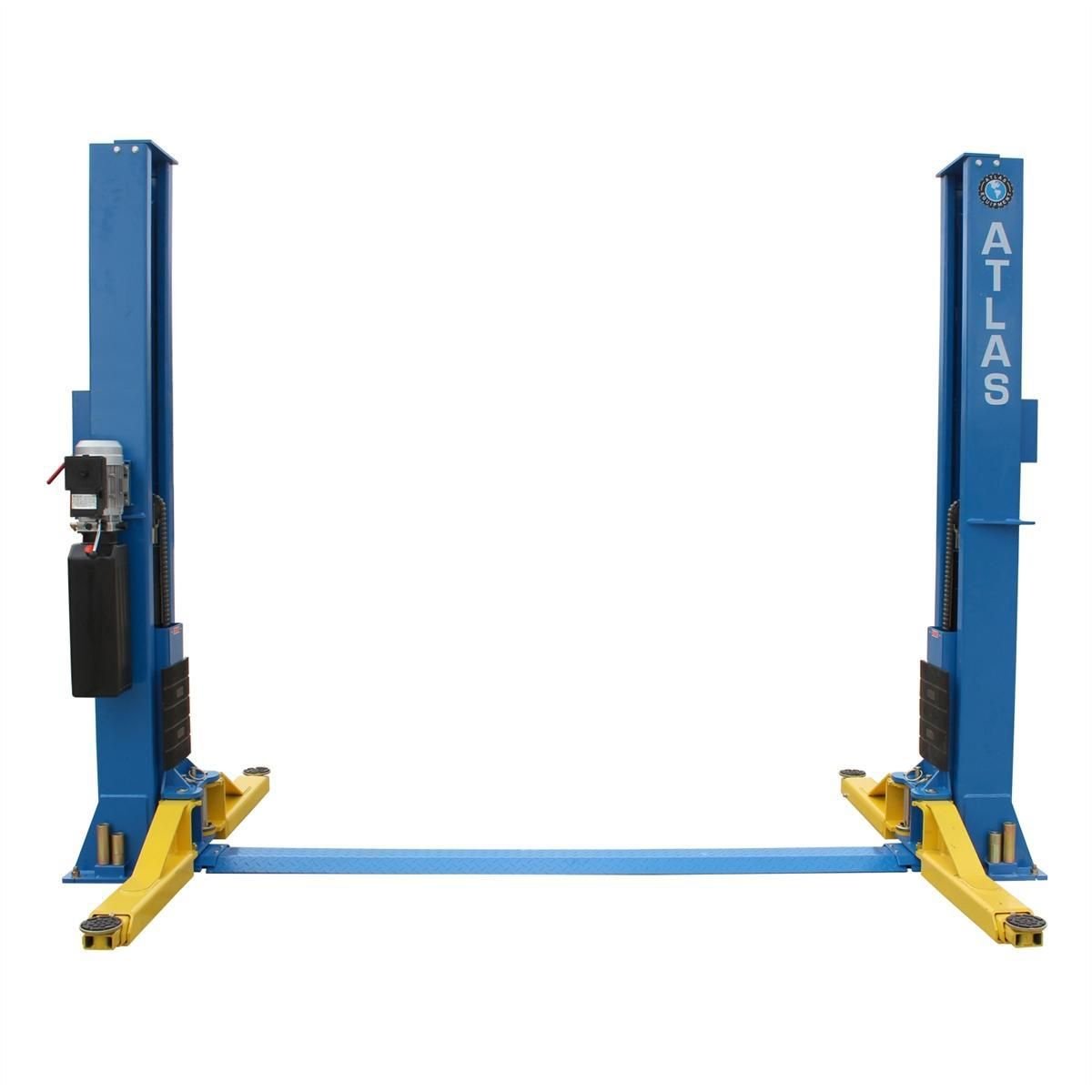

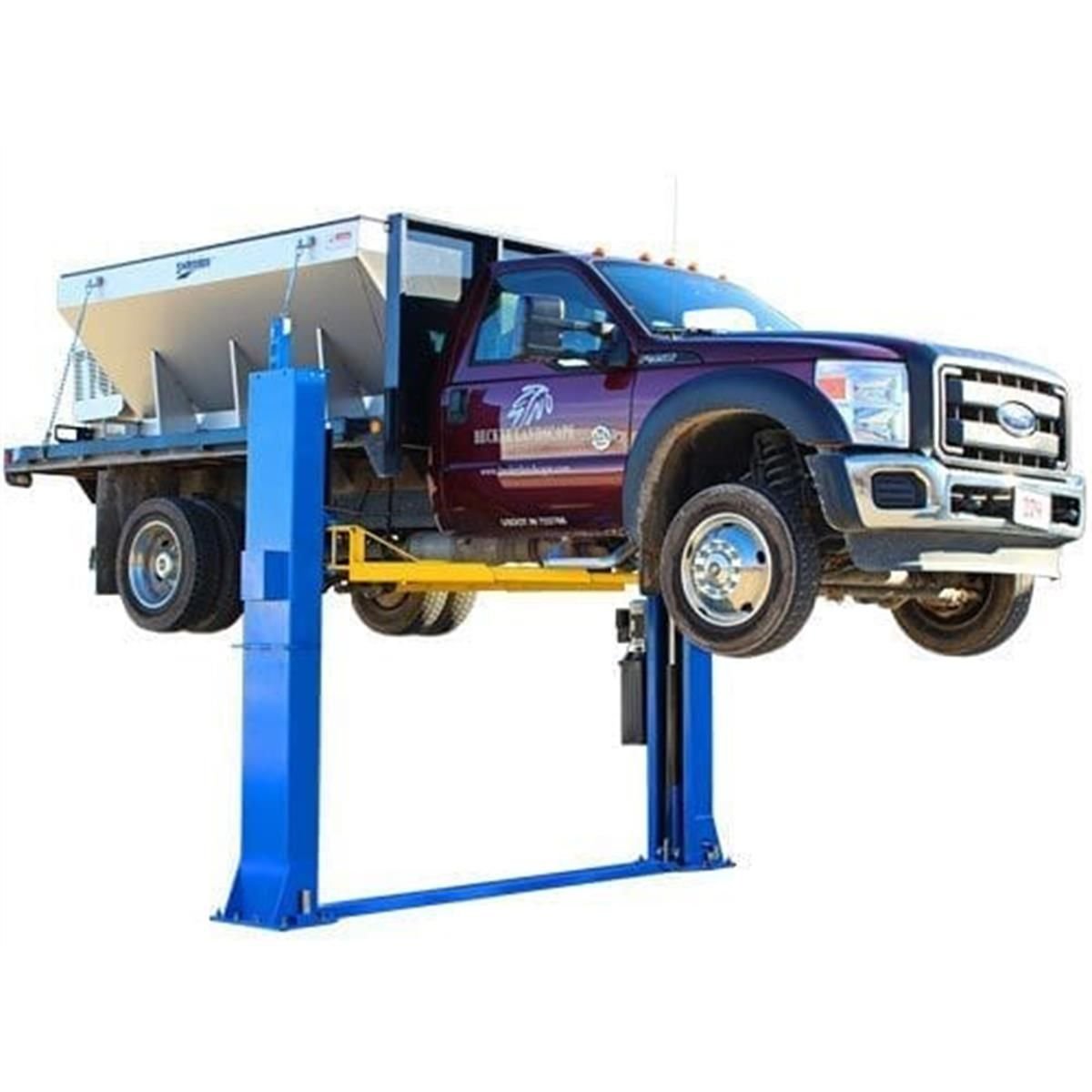

The Atlas® BP12000X is a heavy-duty, commercial-grade 2-post above-ground lift with a 12,000 lb. lifting capacity and base plate design. It features oversized columns, symmetric three-stage arms, and a single-point lock release system. This model is ideal for commercial garages that need to service heavier vehicles while operating in facilities with restricted ceiling height.
The Atlas® BP12000X offers two selectable width configurations, allowing accommodation for wider trucks or trailers and enabling vehicles to be driven between the lift columns more easily.
Please note: Delivery of any Atlas item requires access for a 53-foot truck.
Features
- 12,000 lb. Capacity
- Heavy-Duty, Commercial-Grade Construction
- Baseplate, Open-Top Style Lift
- Overall Height: 122 1/2″ (10′ 2 1/2″)
- Adjustable Width Settings

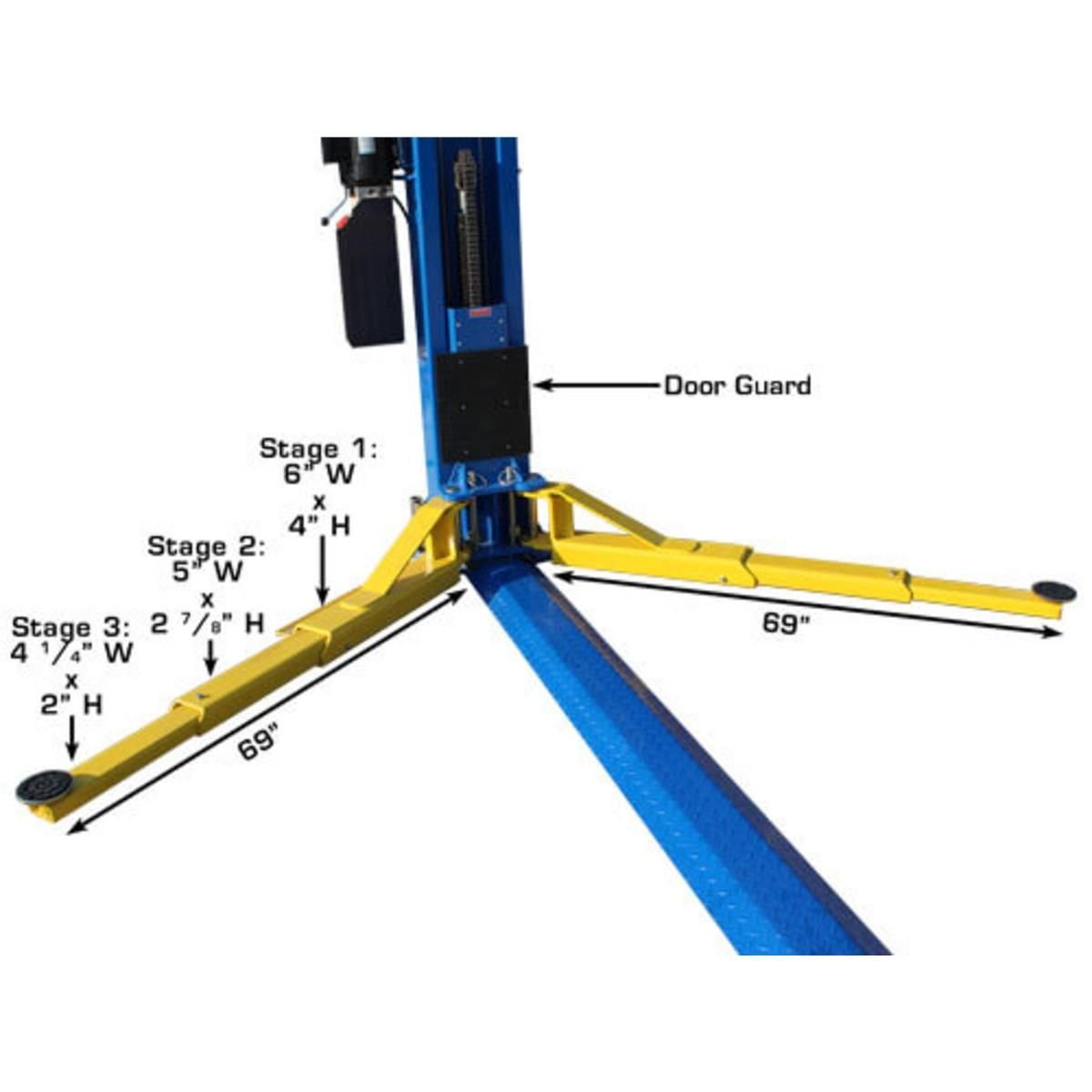

- 3-Stage Symmetric Arms

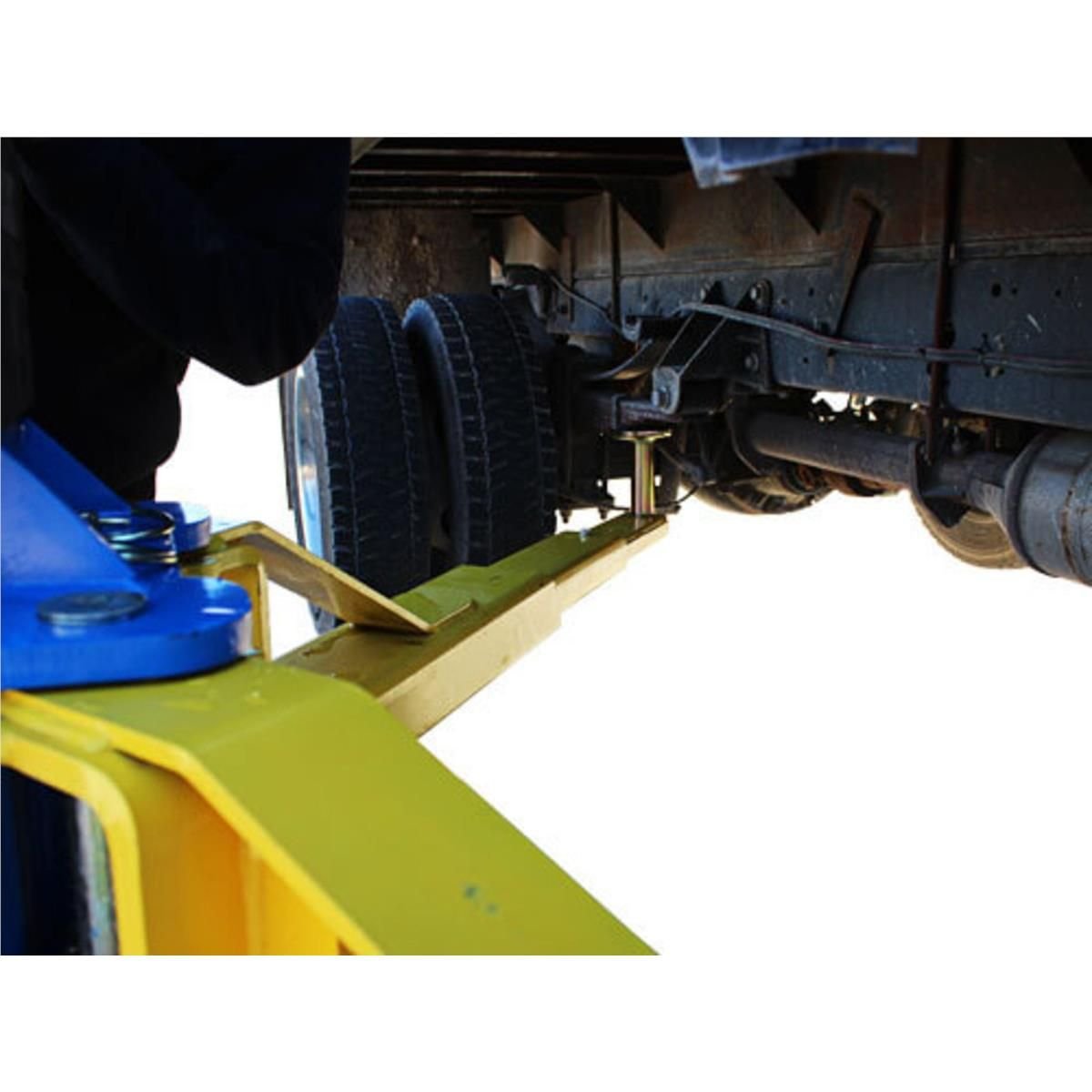

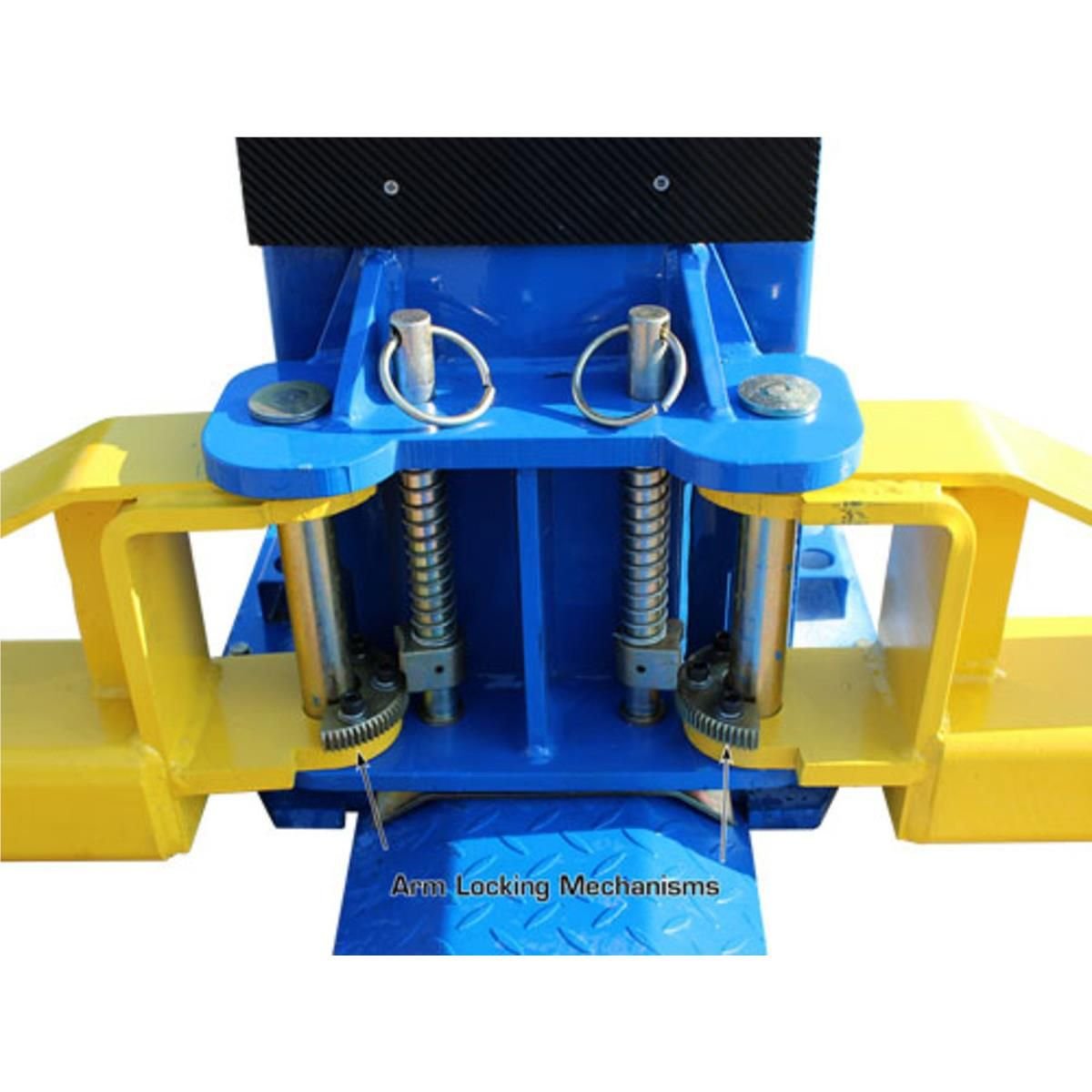

- Automatic Arm Restraints
- Single-Point Lock Release

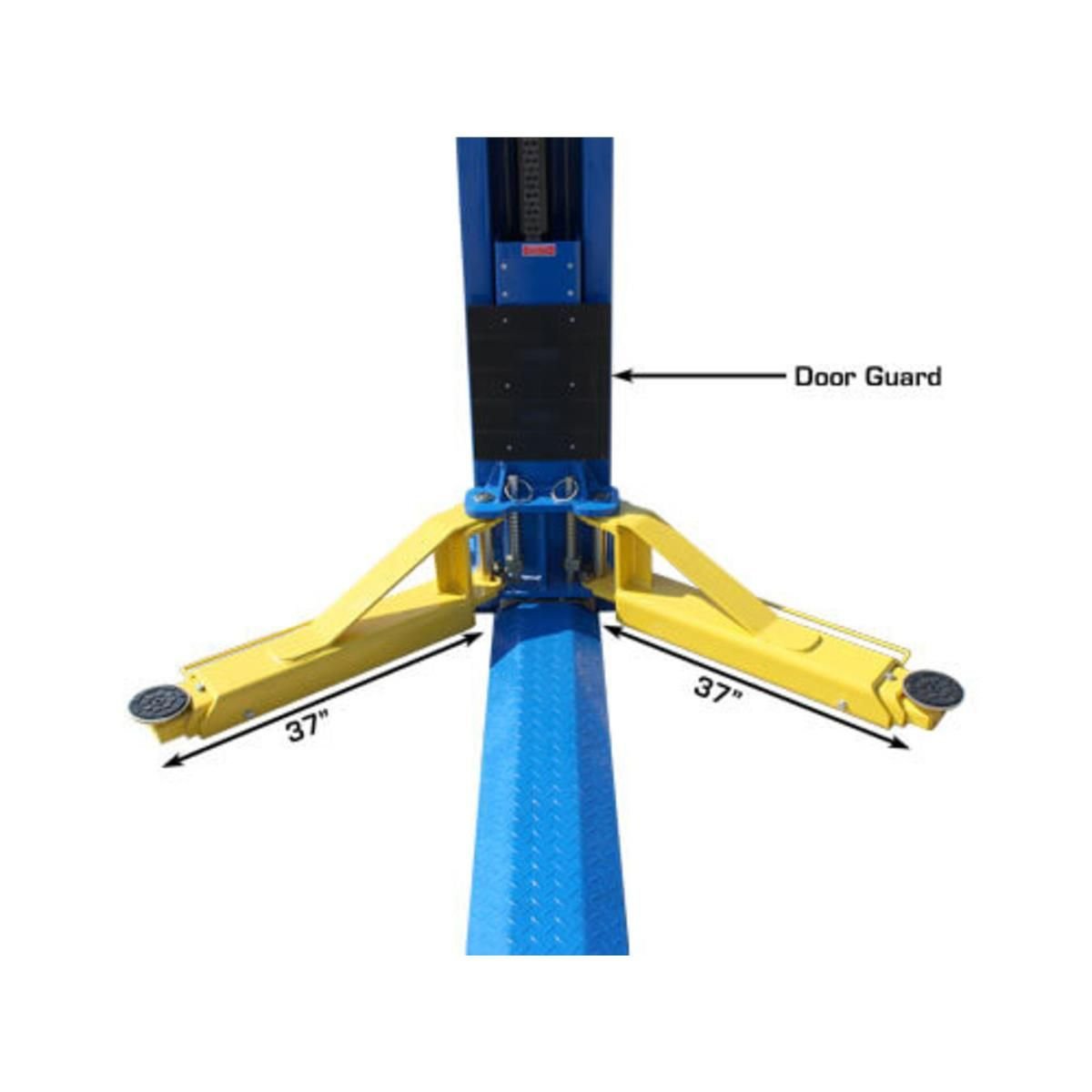

- Rubber Guards on Carriages

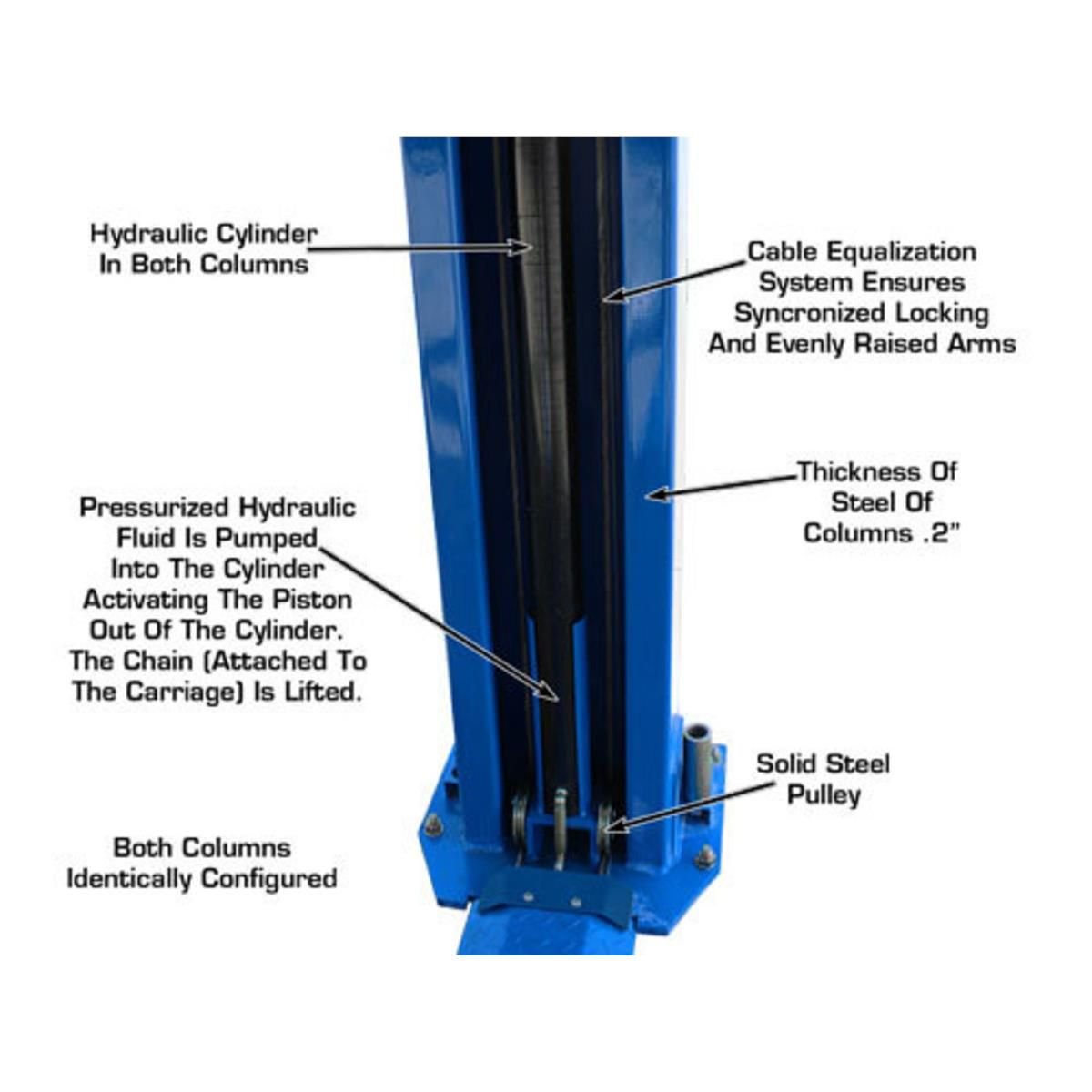

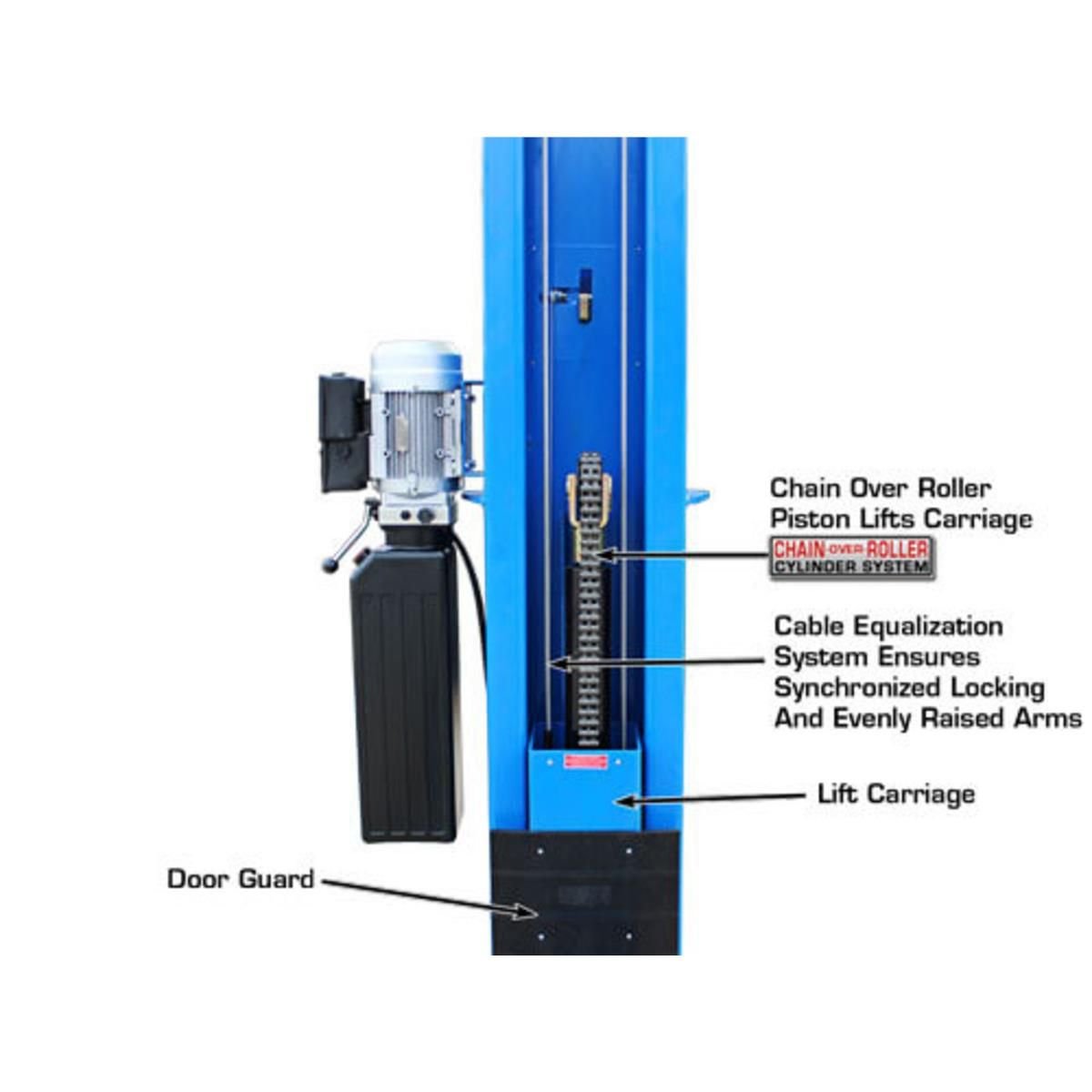

- Dual Hydraulic Chain-Over Cylinders
- Powder Coat Finish

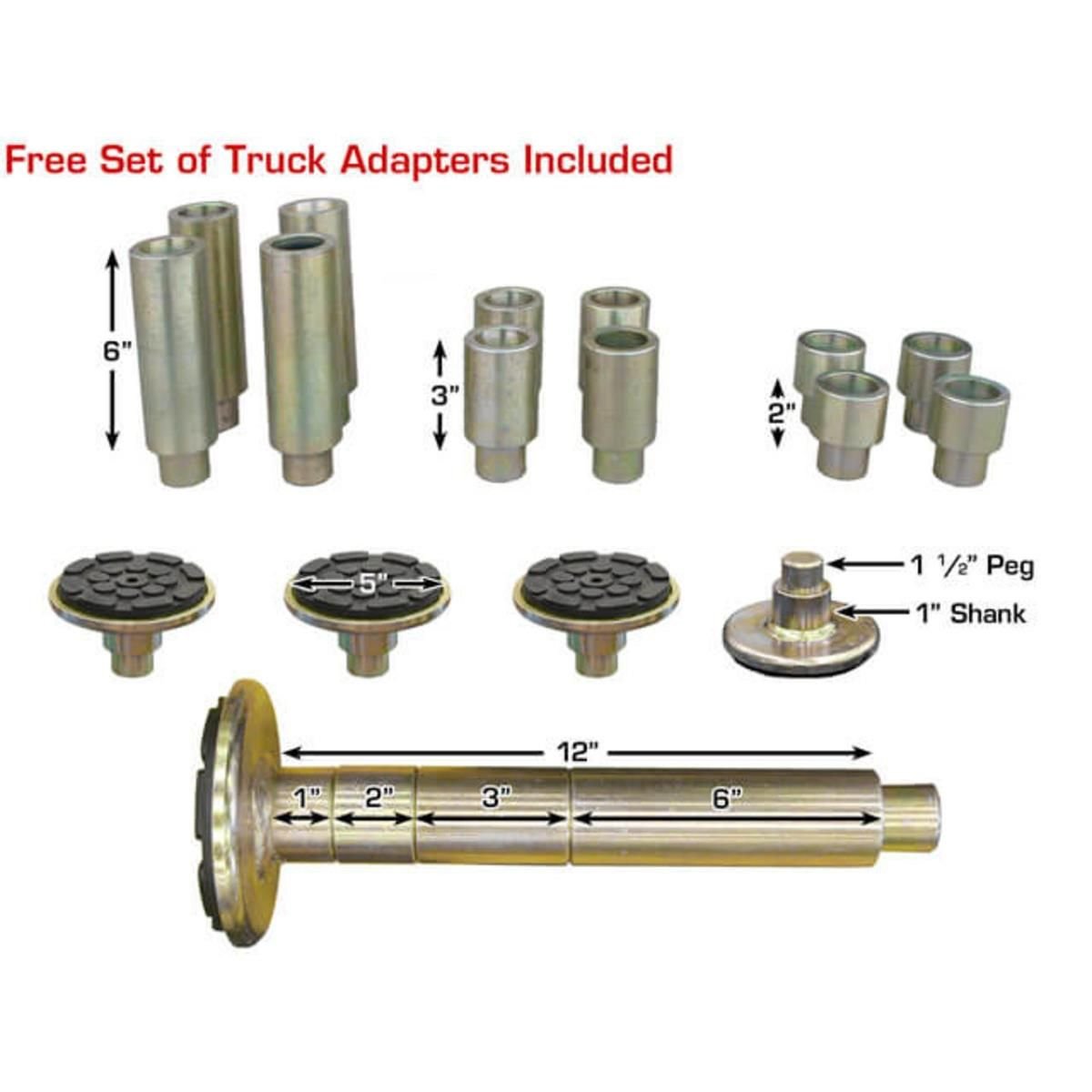

- Free 12-Piece Truck Adapter Set

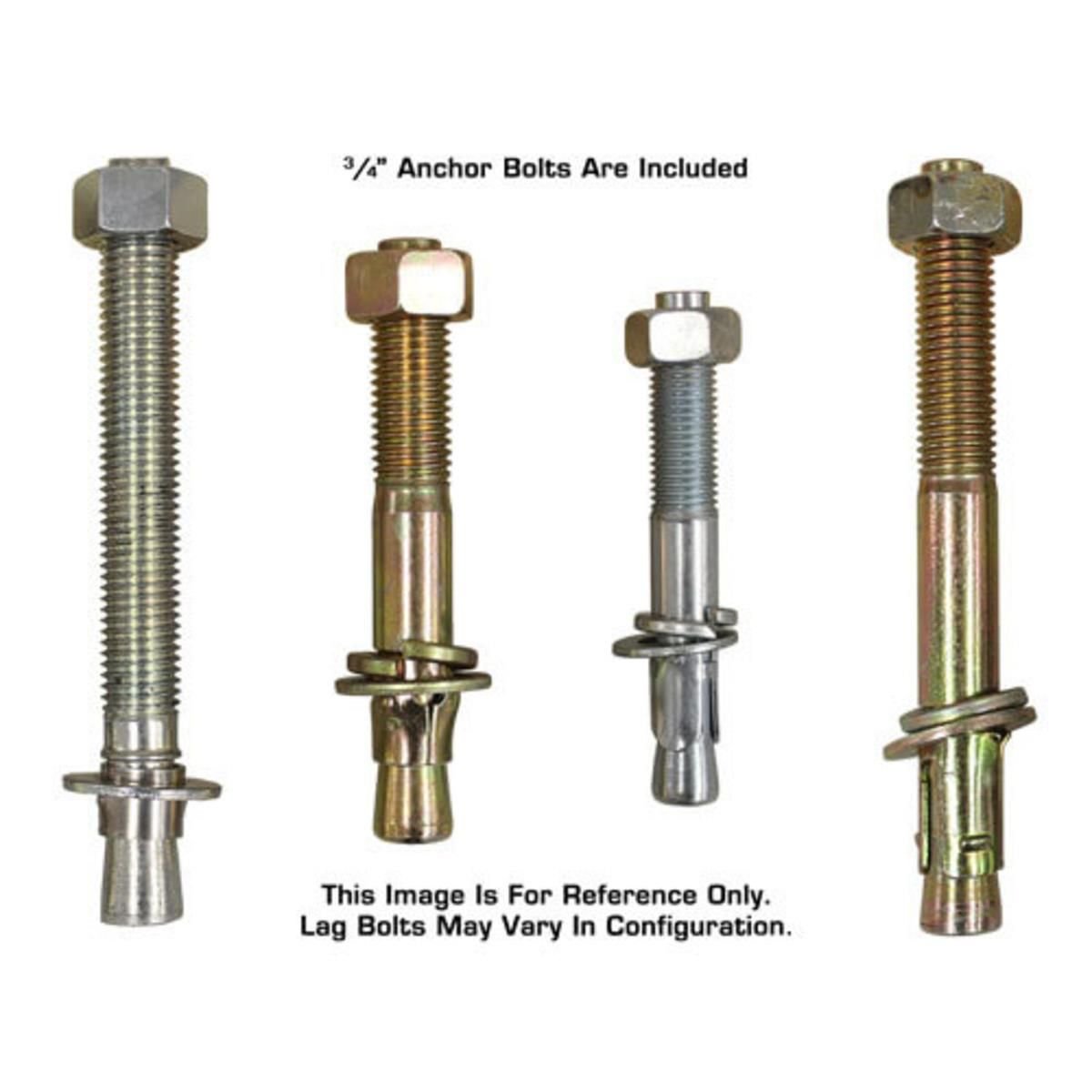

- Mounting Hardware Included
- Shipping Weight: 2,130 lbs.
- 5-Year Structural – 2-Year Hydraulic Warranty – Parts Only
Atlas® ATTD-BP12000X Specifications
| Specification | Details |
|---|---|
| Capacity | 12,000 LB. |
| Overall Height | 122 1/2″ (10’ 2 1/2″) |

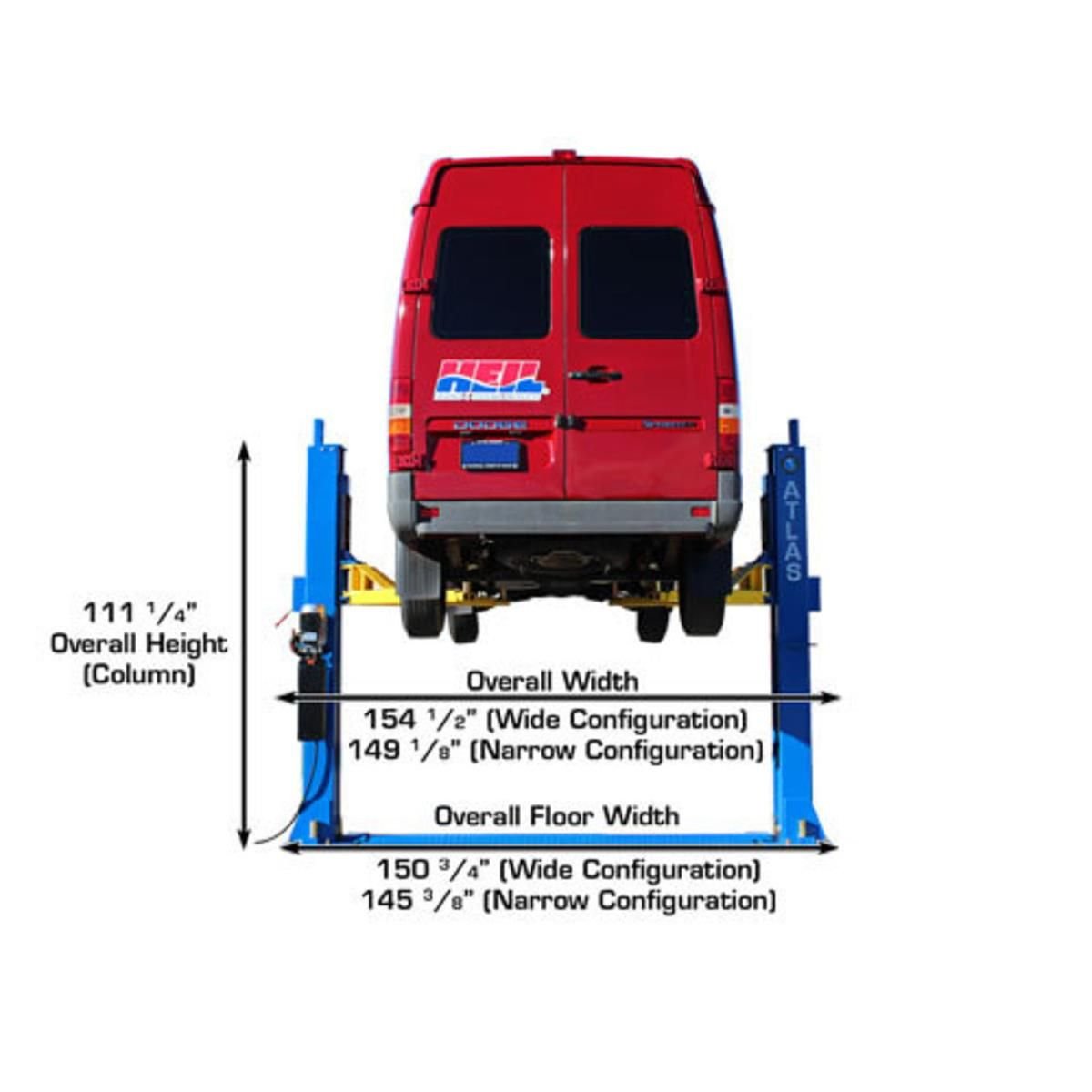

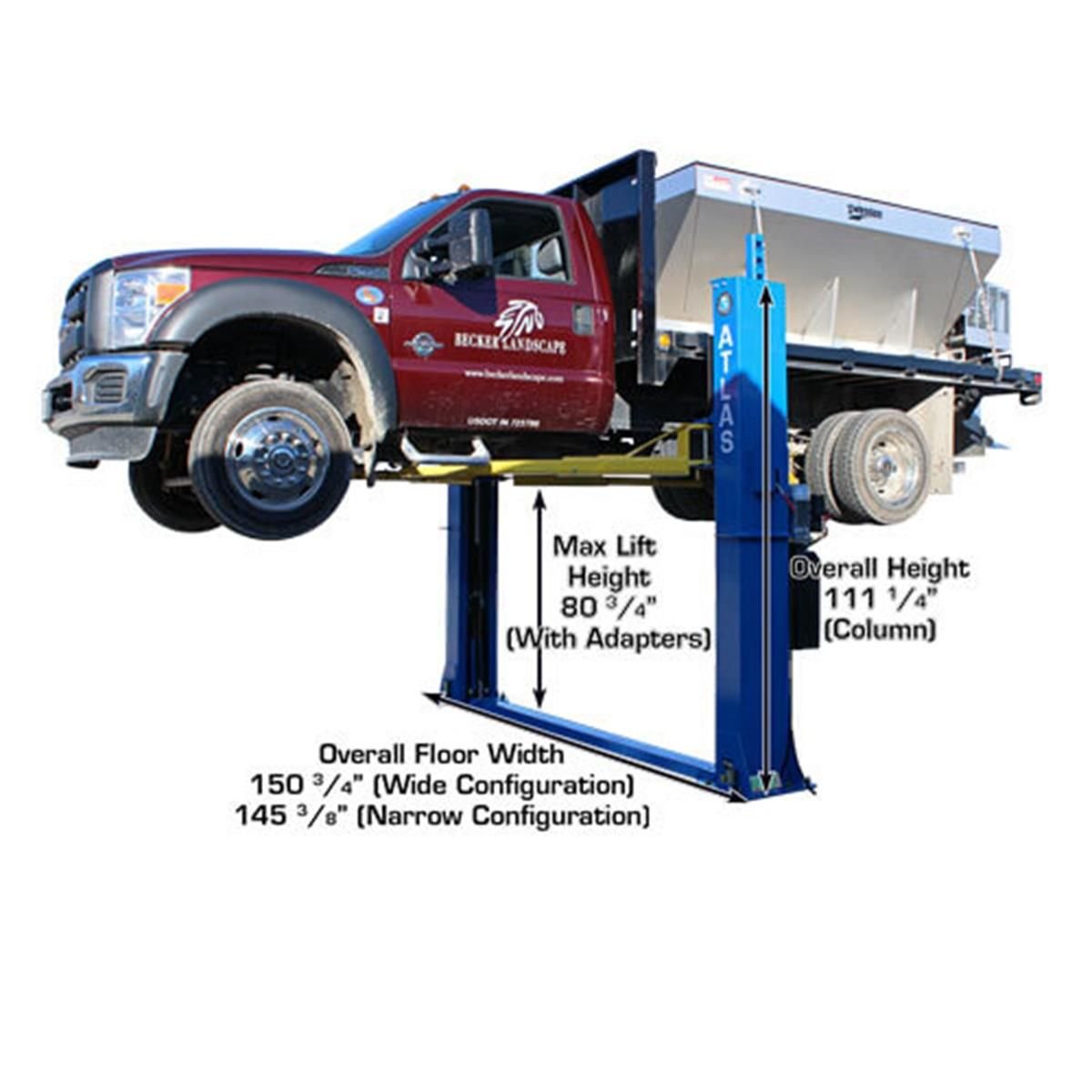

| Overall Floor Width | 149 3/8″ (12’ 5 3/8″) or 154 1/2” (12’ 10 1/2”) |

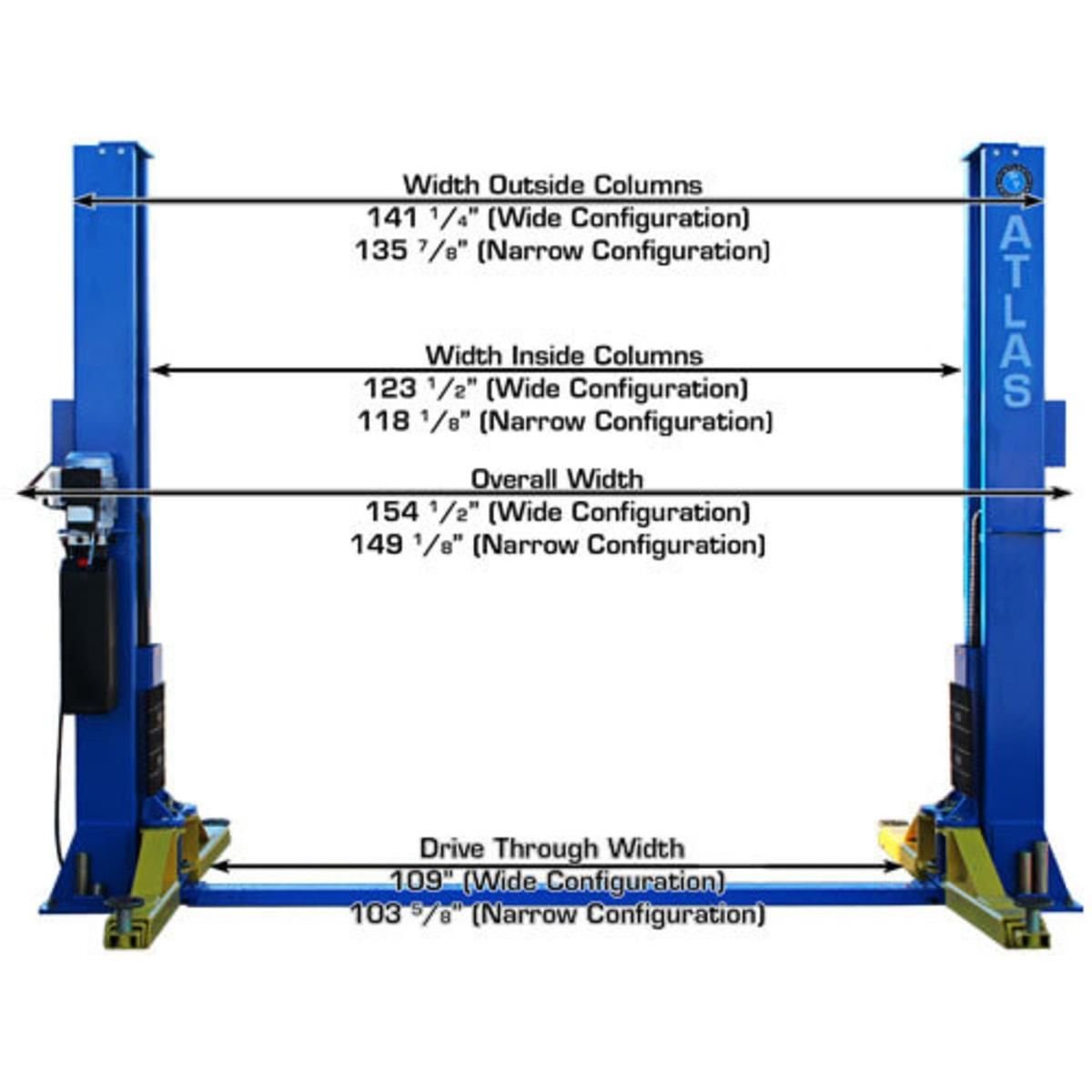

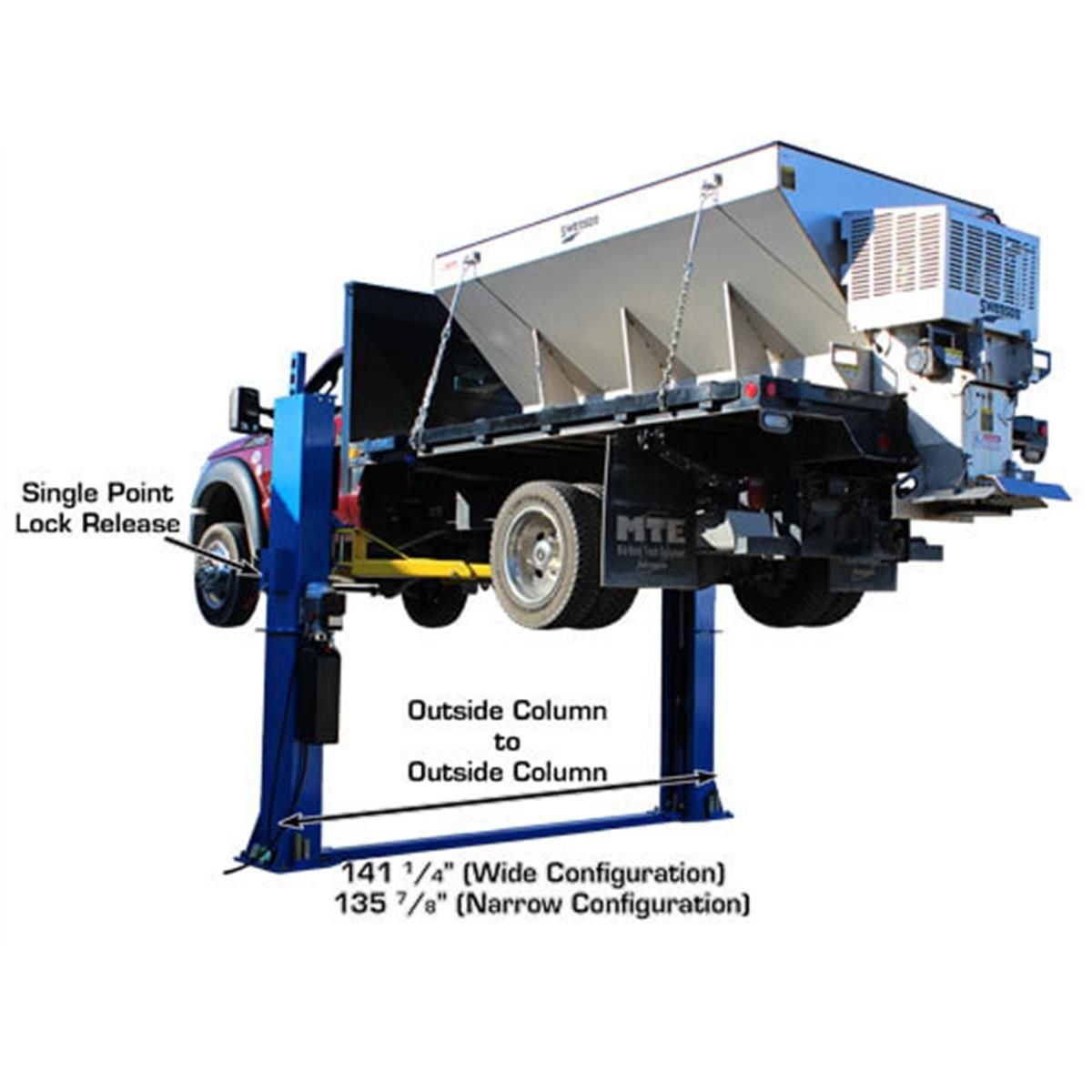

| Outside Column to Outside Column | 135 7/8″ (11’ 3 7/8″) or 141 1/4″ (11’ 9 1/4”) |
| Maximum Lift Height (Without Adapters) | 77 1/2″ |

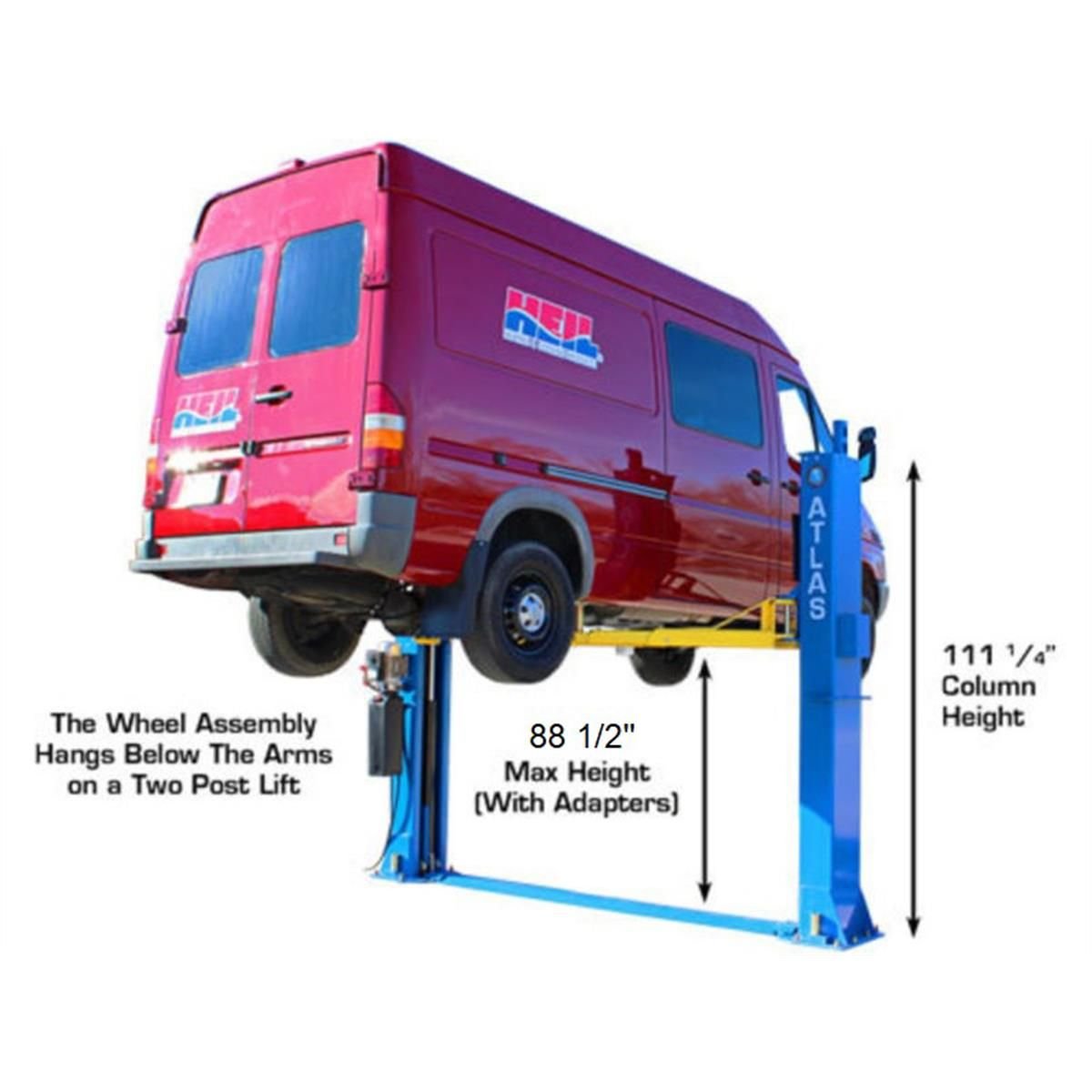

| Maximum Lift Height (With Adapters) | 88 1/2″ |

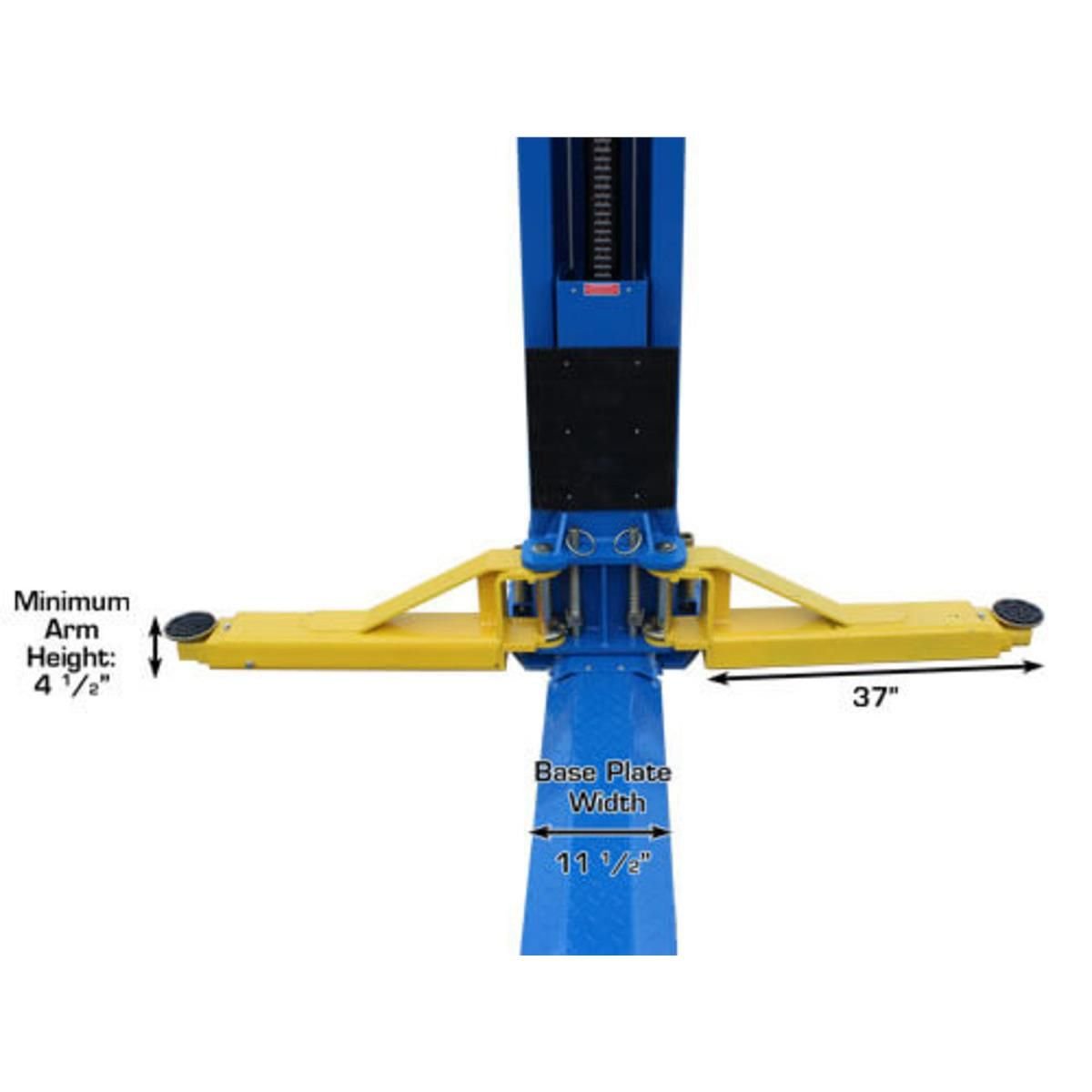

| Minimum Arm Height | 4″ |
| Inside Column | 118 1/8” (9’ 10 1/8”) or 123 1/2″ (10’ 3 1/2″) |
| Drive Thru | 103 5/8” (8’ 7 5/8”) or 109” (9’ 1”) |

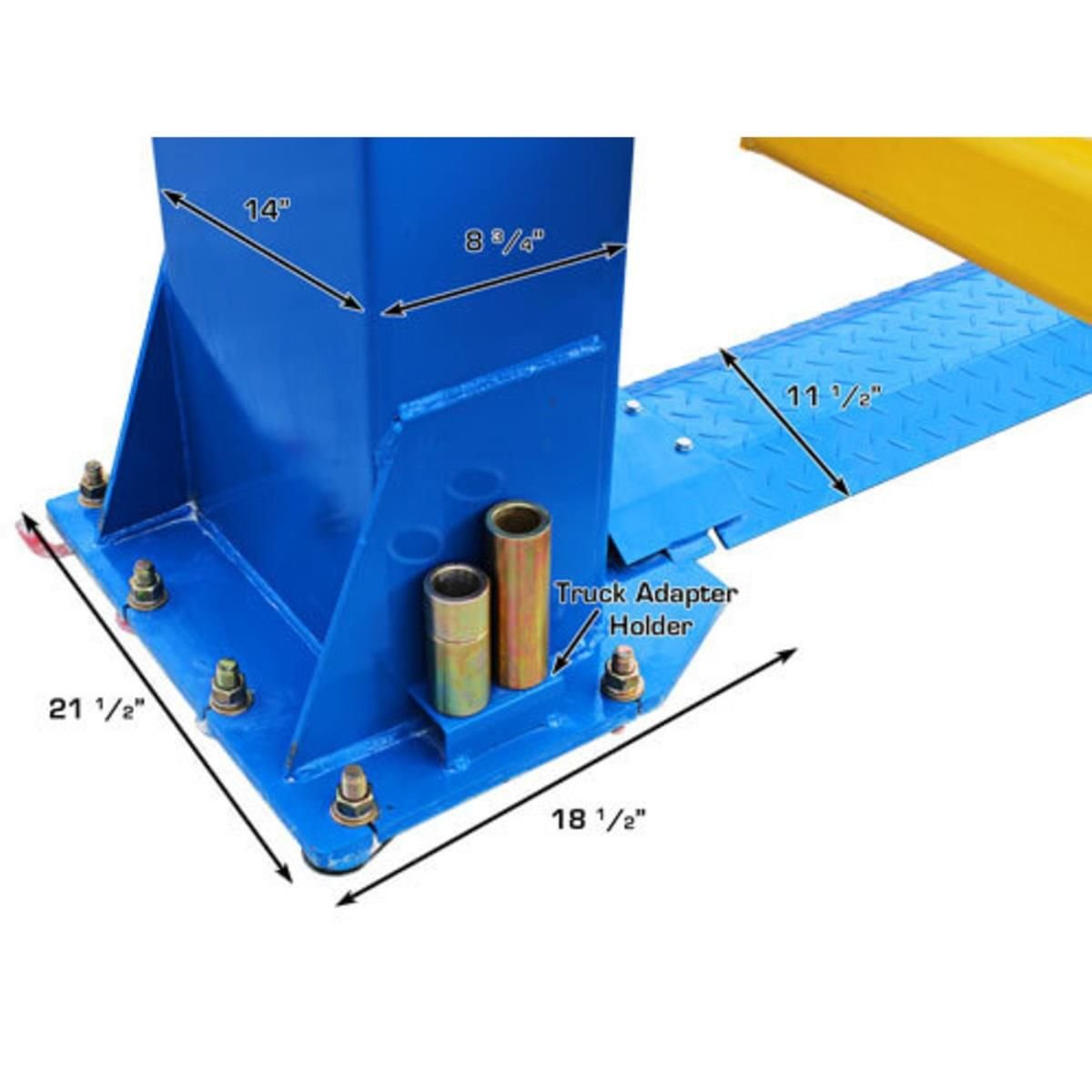

| Column Size | 8 3/4″ x 14″ |
| Column Thickness of Steel | 6mm |
| Base of Lift | 18 1/2″ x 21 1/2″ |
| Motor/Electrical Requirement | 220 volt single (1) phase. A 30 amp breaker is recommended |
| Oil Requirement | 3–5 Gallons AW32/AW46 (NOT INCLUDED) |
| Shipping Weight | 2,130 LBS. |
| Adapter Heights | 4 Each: 2”, 3”, 6” |
| Arm Hole/Adapter Peg Size | 1.5” |
Requires a minimum of 6″ thick concrete with a 3000 PSI rating.
- Atlas® BP12000 Cylinder Bleeding Procedure (Must be completed immediately after installation)
