Atlas Garage PRO7000ST 7,000 lb Super Tall 4-Post Lift
Price range: £3,829.94 through £4,367.54
Description

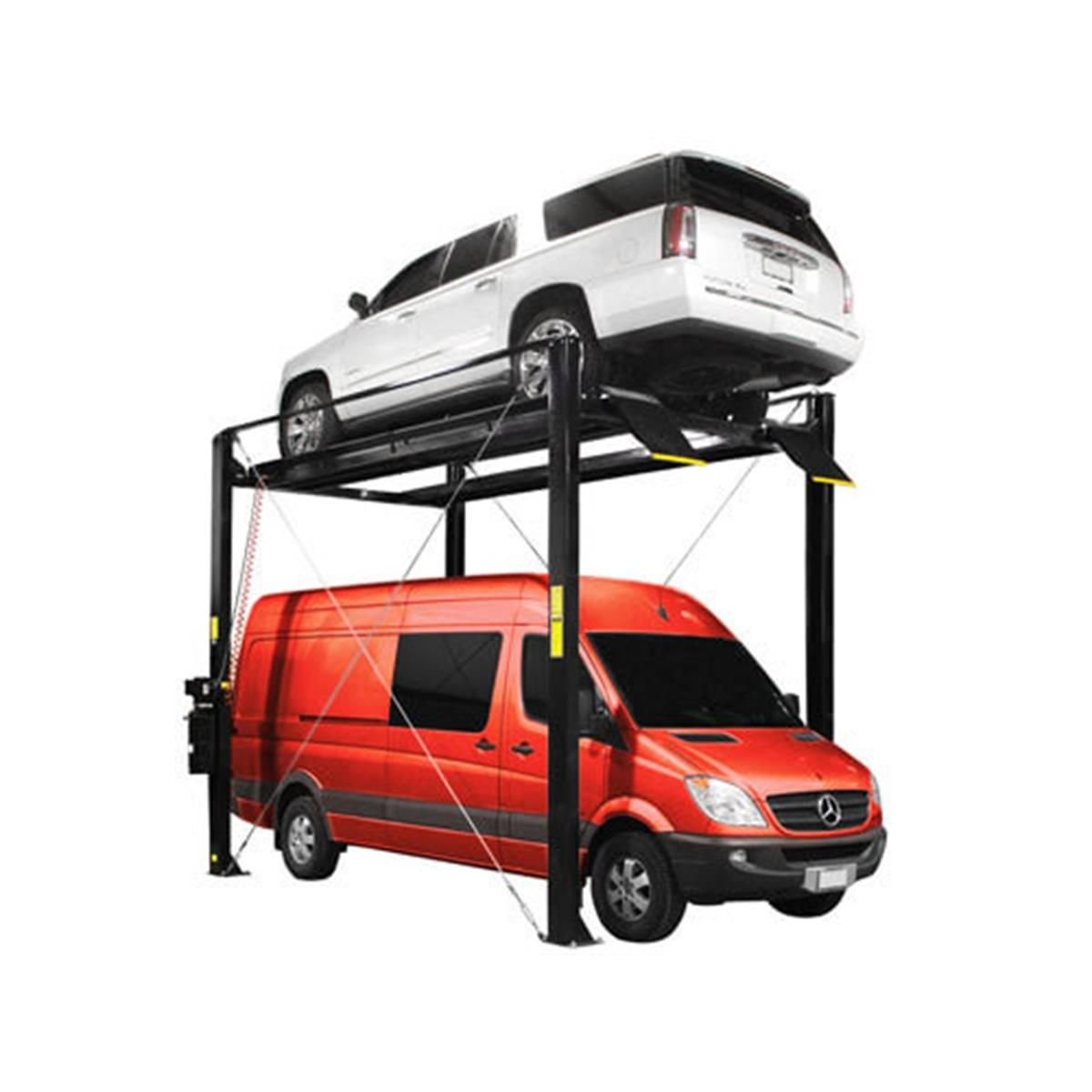

The Atlas® Garage PRO7000ST is designed for automotive enthusiasts with extra-tall ceilings who need to store standard-height vehicles above taller vehicles. This lift has a 7,000 lb. capacity and raises vehicles to more than 12 feet of clearance beneath the runways (over 144 inches), making it ideal for maximizing vertical storage space.
The PRO7000ST utilizes the same heavy-duty runways found on the Atlas® Garage PRO9000. These diamond-plated runways feature welded tracks, allowing compatibility with rolling bridge jacks such as the Atlas® RJ6BK. The extended lifting height provides ample clearance to park taller vehicles underneath those stored above. The lift includes 21 locking positions within the lock ladder system, and the ladder can be adjusted during installation to provide a wide range of usable locking heights.

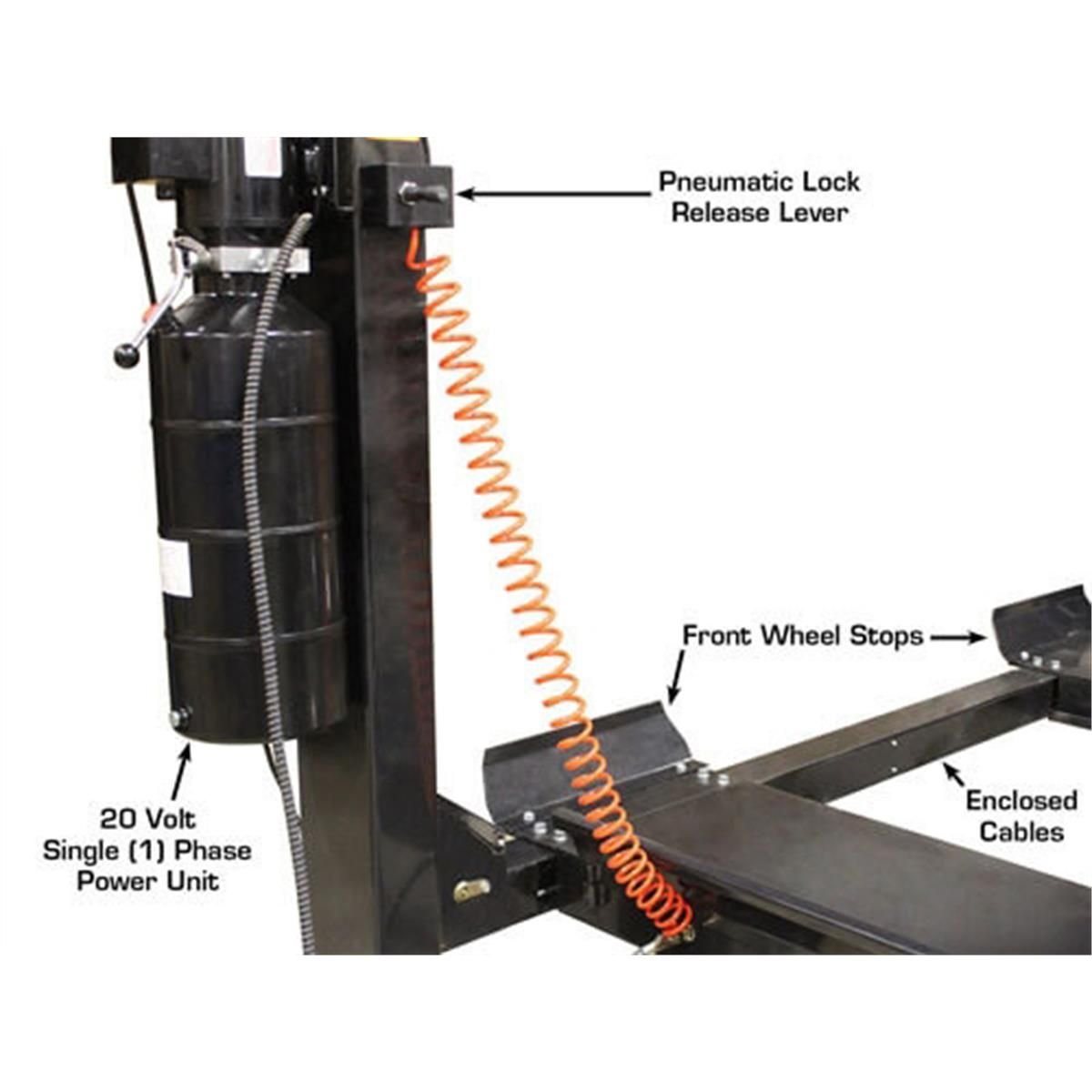

A single-point release toggle, positioned near the power unit, simultaneously disengages all four spring-loaded pneumatic locks. Compressed air is required to release the locks (air supply not included). The emergency slack-cable secondary lock system remains continuously active and automatically engages if cable tension is lost or compromised.
Please note: If ordering an Atlas item, the delivery location must be able to accommodate a 53′ truck.
Features
- 7,000 lb. capacity
- Heavy-duty construction
- “Super Tall” lifting height
- Extra wide and extra long design

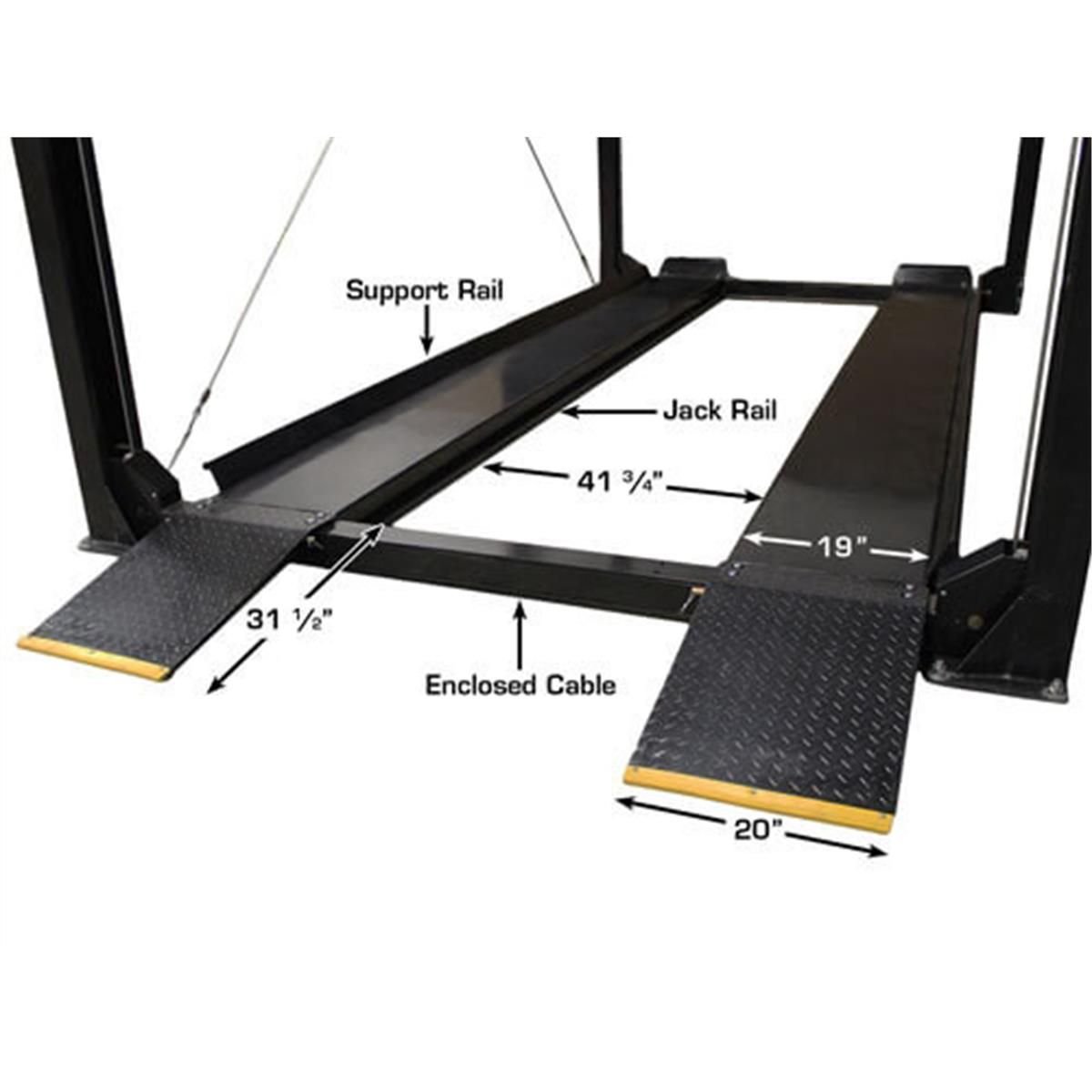

- Diamond-plated runways

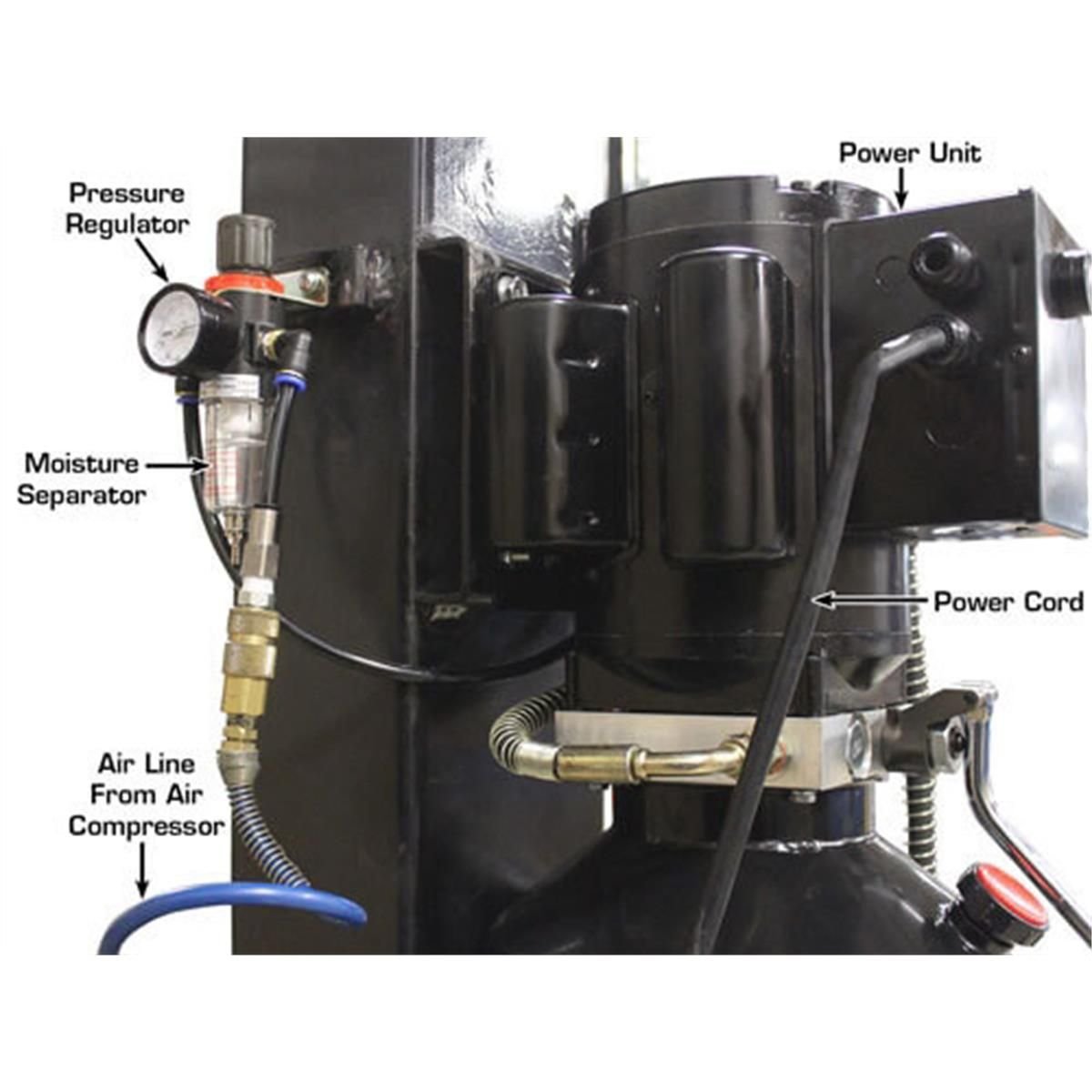

- Single-point release with pneumatic locks (external air supply required)
- Lock ladder design
- Double-lock safety system
- Steel approach ramps included

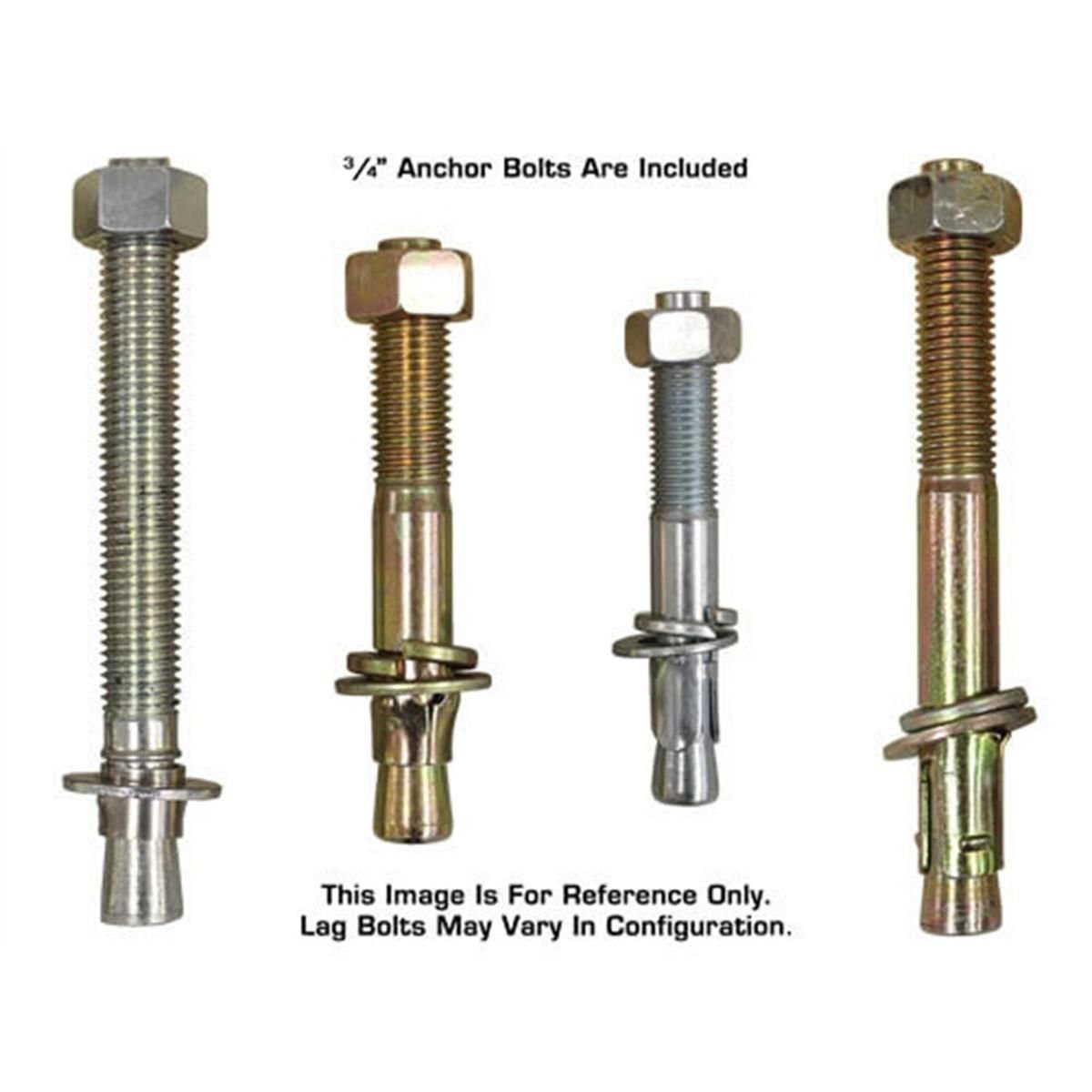

- Mounting hardware included
- Ideal for vehicle storage or service work
- 220 volt / 1-phase electric operation (30 amp breaker required)
- Shipping weight: 2,866 lbs.
- Warranty: 2-year structural – 1-year hydraulic (parts only)
Specifications
Atlas® Garage PRO7000ST Specifications
| Capacity | 7,000 lbs. |
|---|---|
| Lifting Height to Top of Runway | 147″ (12′ 3″) |
| Clearance Under Runways | 142″ (11′ 10″) |
| Height of Columns | 162″ (13′ 6″) |
| Overall Width (Without Motor) | 110 1/2″ (9′ 2 1/2″) |
| Overall Width (With Motor) | 123″ (10′ 3″) |

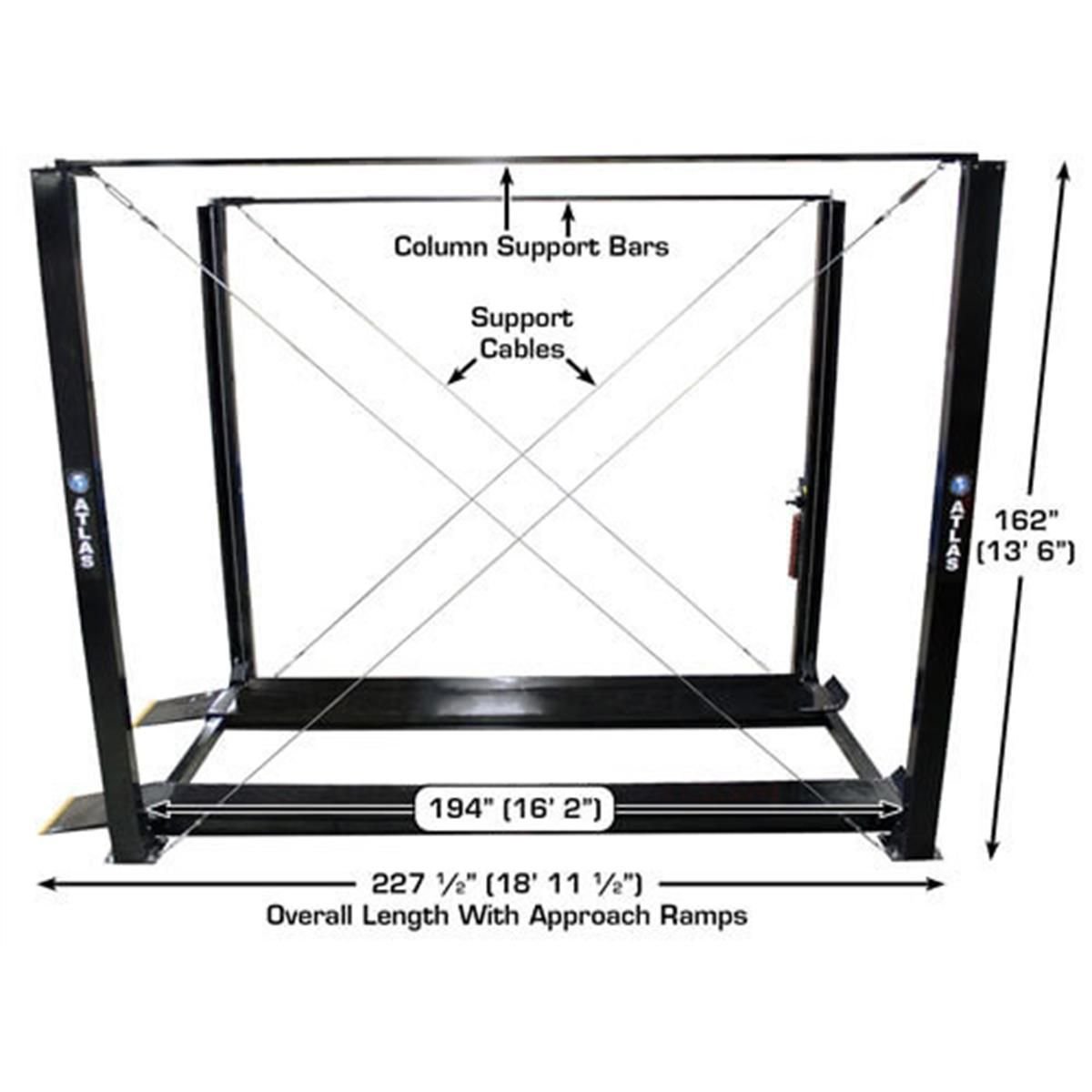

| Overall Length with Approach Ramp | 227 1/2″ (18′ 11 1/2″) |
| Approach Ramp Length | 31″ (2′ 7″) |
| Runway Width | 21″ (with rails) or 20″ (driving surface) |
| Runway Length | 194″ (16′ 2″) |
| Runway Thickness | 4 3/4″ |
| Width Between Runways | 45″ (3′ 9″) |
| Width Between Runway Rails | 41 3/4″ (3′ 5 3/4″) |
| Outside Runway to Outside Runway | 83″ (6′ 11″) |
| Clearance Between Columns | 100″ (8′ 4″) |
| Length Between Columns | 185″ (15′ 5″) |
| Maximum Wheelbase | 182″ (15′ 2″) |
| Drive Thru (Outside Tire to Outside Tire) | 82 1/2″ (6′ 10 1/2″) |
| Motor / Electrical Requirement | 220 volt, 1 phase, 30 amp breaker required |
| Shipping Weight | 2,866 lbs. |
Locking Positions Under Runway (± 2″)
- 23″ (1′ 11″)
- 29″ (2′ 5″)
- 35″ (2′ 11″)
- 41″ (3′ 5″)
- 47″ (3′ 11″)
- 52″ (4′ 4″)
- 58″ (4′ 10″)
- 64″ (5′ 4″)
- 70″ (5′ 10″)
- 76″ (6′ 4″)
- 82″ (6′ 10″)
- 88″ (7′ 4″)
- 94″ (7′ 10″)
- 100″ (8′ 4″)
- 106″ (8′ 10″)
- 112″ (9′ 4″)
- 118″ (9′ 10″)
- 124″ (10′ 4″)
- 130″ (10′ 10″)
- 136″ (11′ 4″)
- 142″ (11′ 10″)
Atlas® Garage Pro Lifts Cylinder Bleeding Procedure (Perform immediately after installation)
