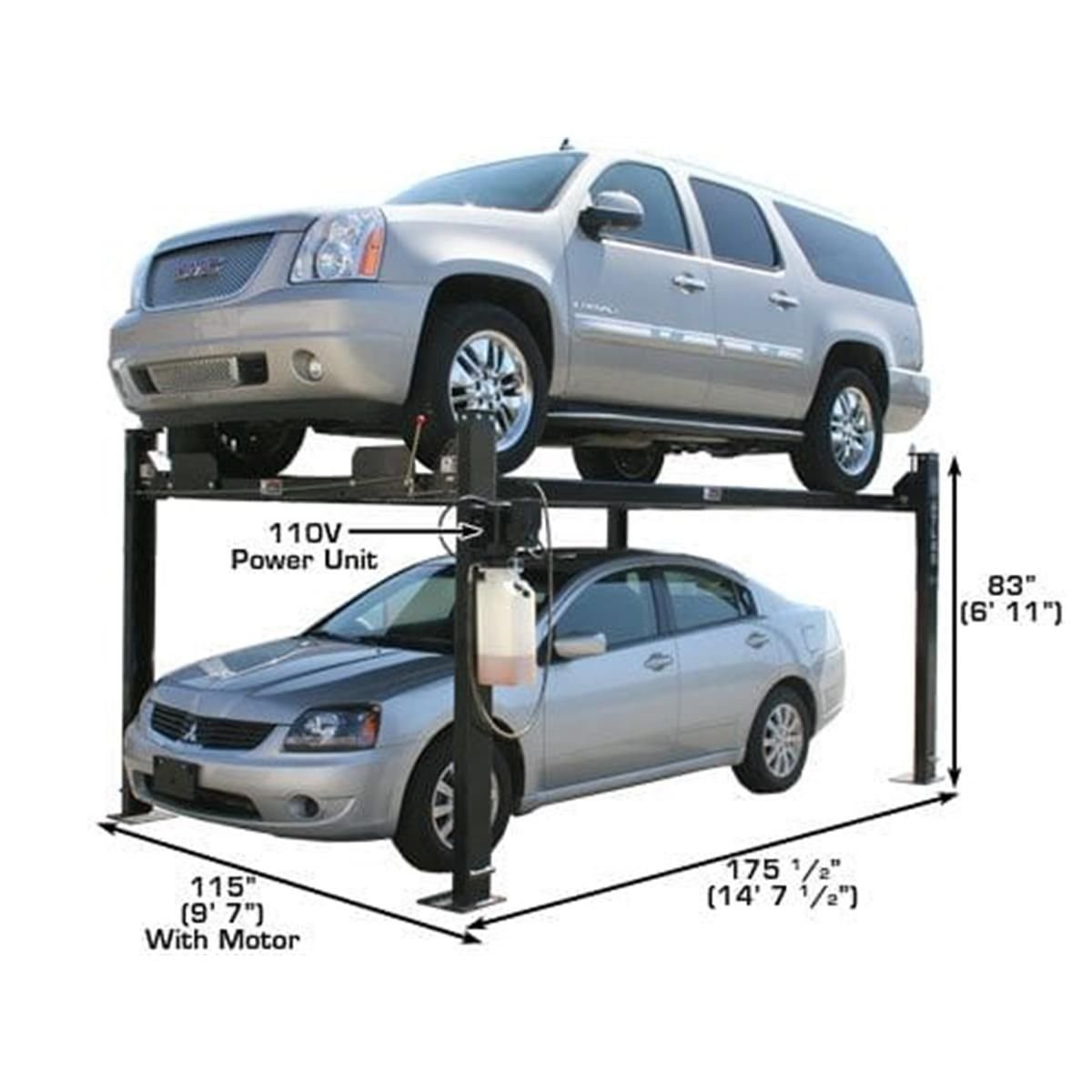

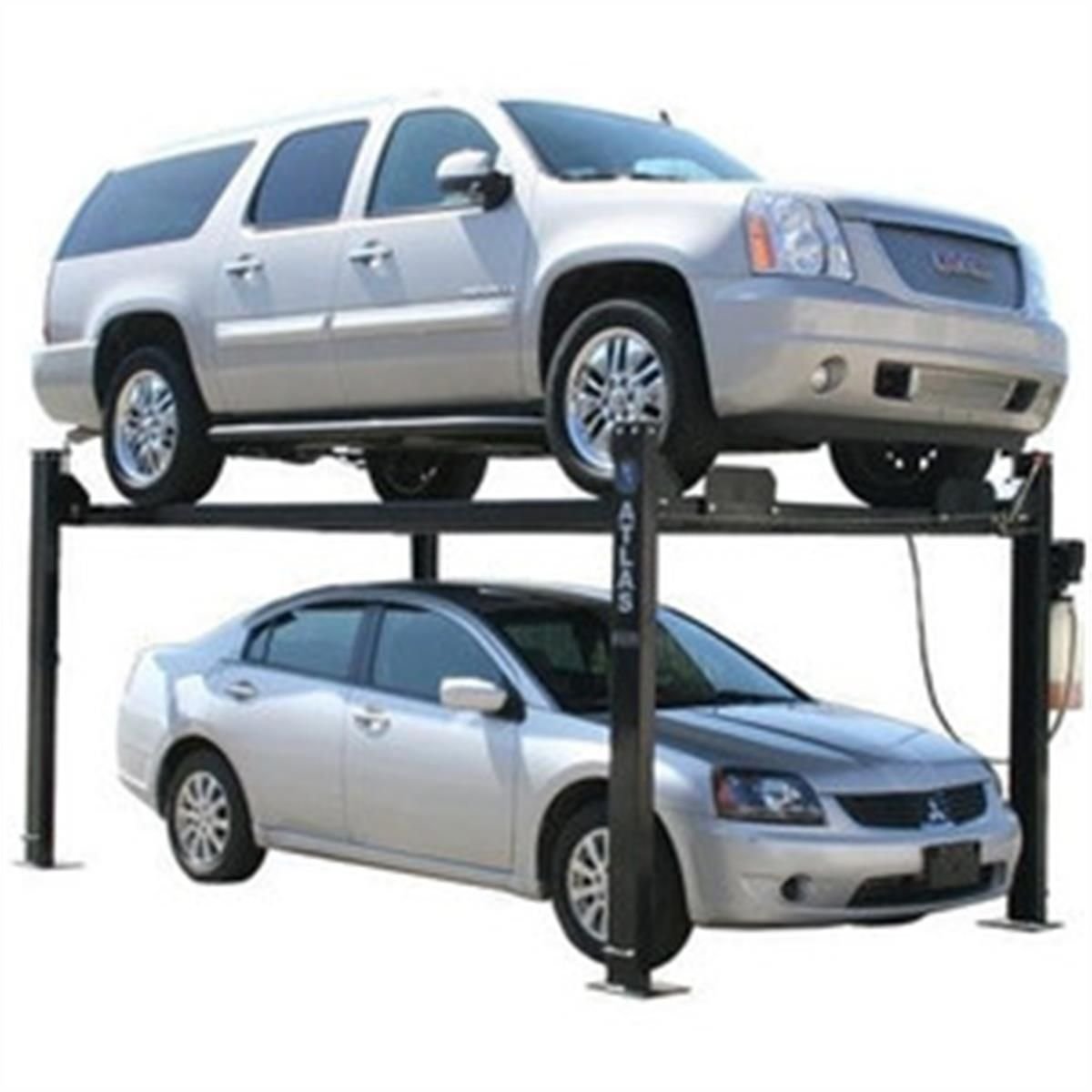

Atlas Garage PRO8000 8,000 lb 4-Post Lift
Price range: £1,567.55 through £1,746.74
Description

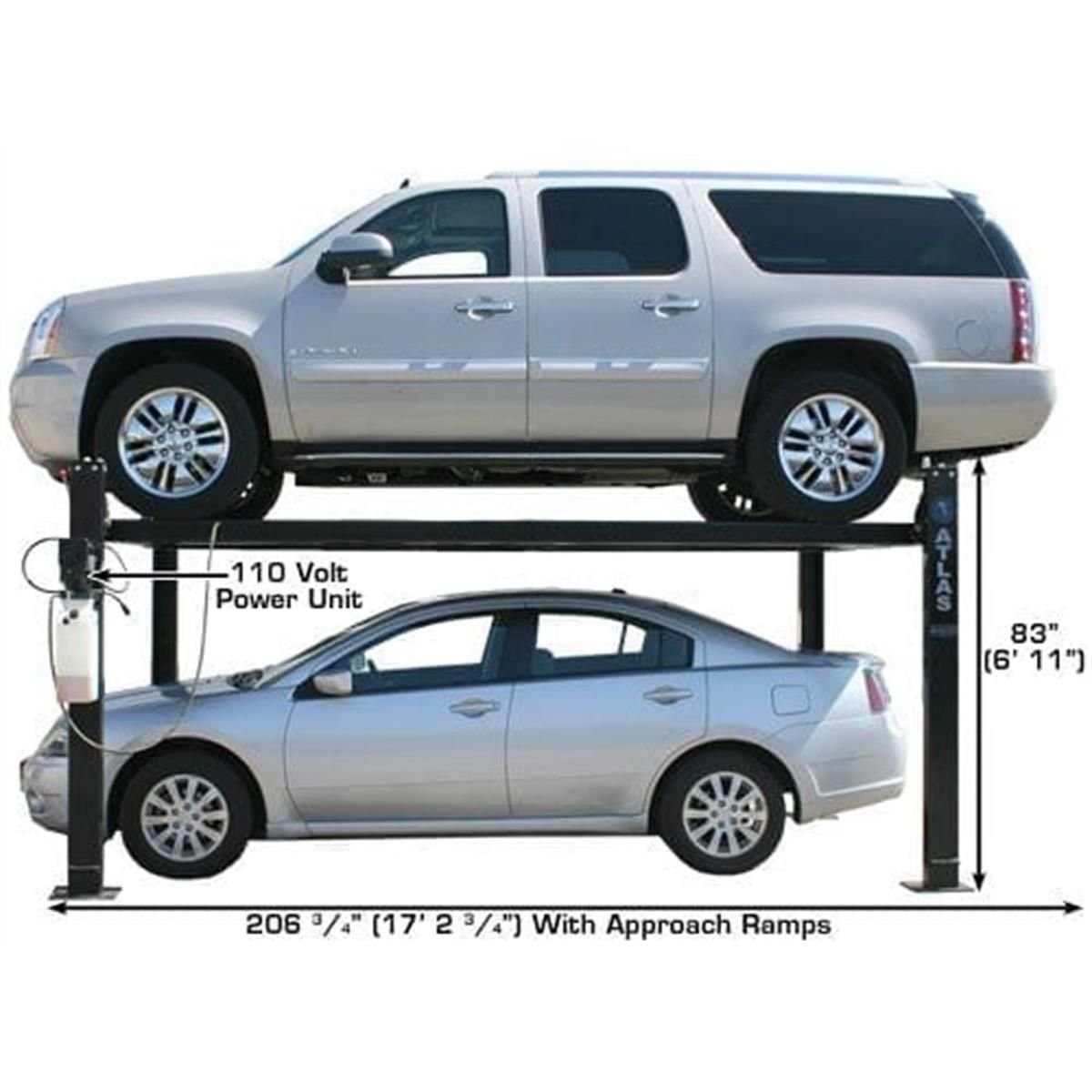

The Atlas® Garage PRO8000 is the most popular 4-post hobbyist lift in the Atlas® lineup. It is an ideal solution for customers who have multiple vehicles but limited garage space. The Garage PRO8000 allows users to effectively double their storage capacity by stacking most passenger vehicles.
The Atlas® Garage PRO Series (8,000 lb. capacity) is designed for homeowners and restoration shops. These lifts are not intended for high-cycle commercial repair environments where they would be raised and lowered repeatedly throughout the day. For application-specific guidance, contacting a sales representative is recommended.
The Atlas® Garage PRO8000 includes several value-added accessories at no additional cost: plastic drip trays, a steel jack tray, and a caster kit with polyurethane wheels. The caster kit can be installed or removed within minutes, allowing the lift to be repositioned between bays or even moved outdoors. These features make the Garage PRO8000 one of the best-value 4-post hobbyist lifts available.
Many customers who purchase this lift also select the Atlas® RJ35 rolling jack for additional service capability.
Please note: If ordering an Atlas item, your delivery location must be capable of receiving a 53′ truck.
Features
- 8,000 lb. capacity
- Free-standing, portable design
- Diamond-plated runways

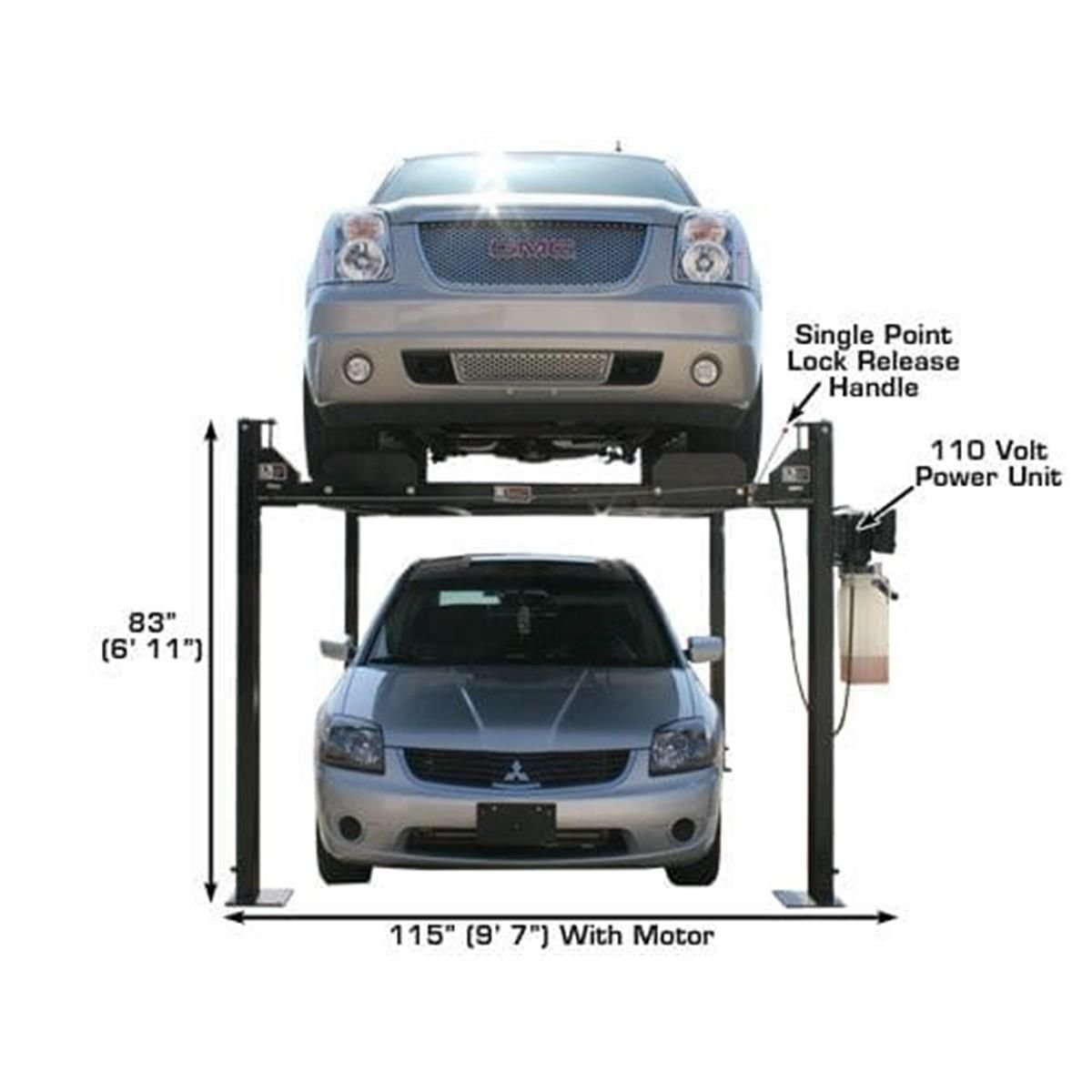

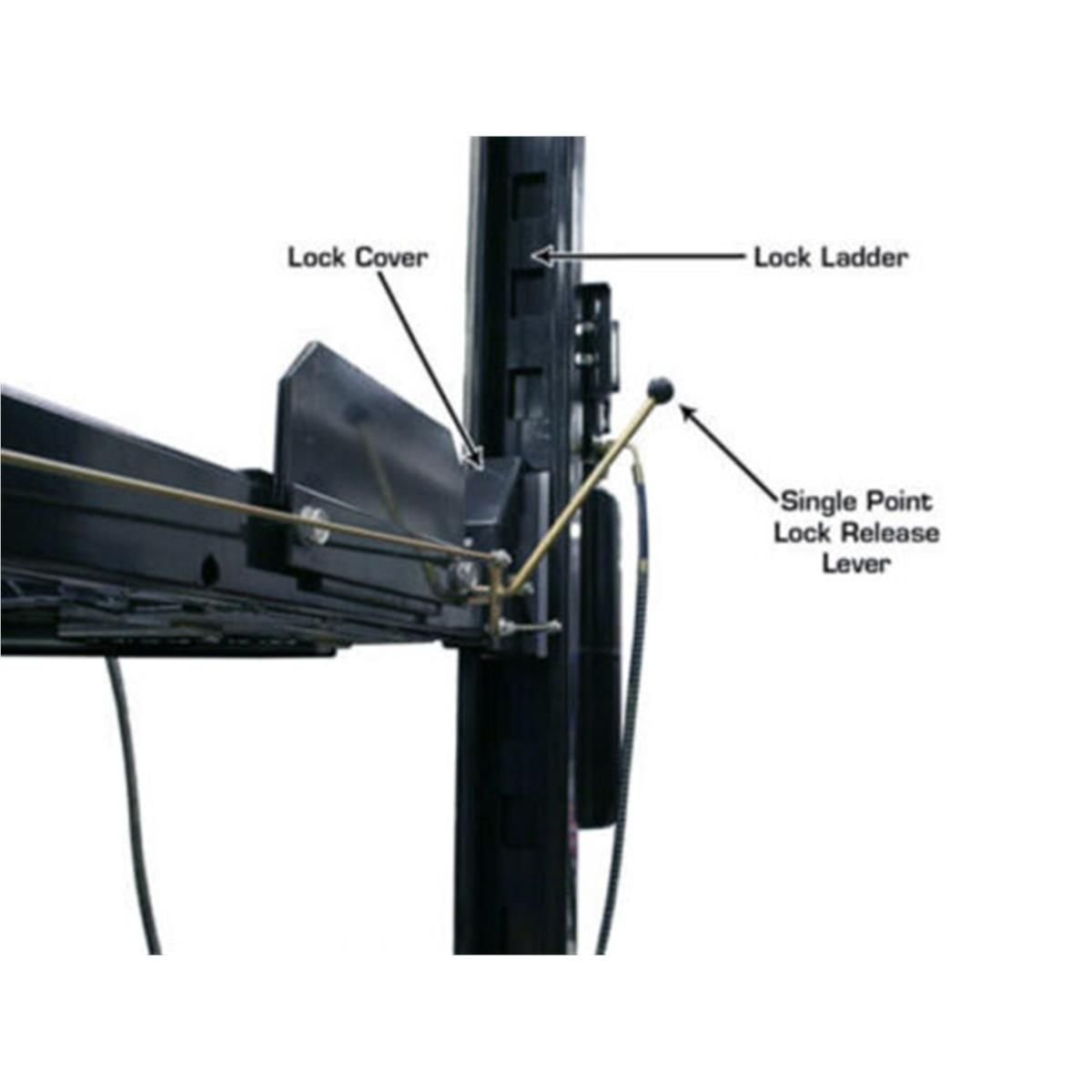

- Single-point lock release

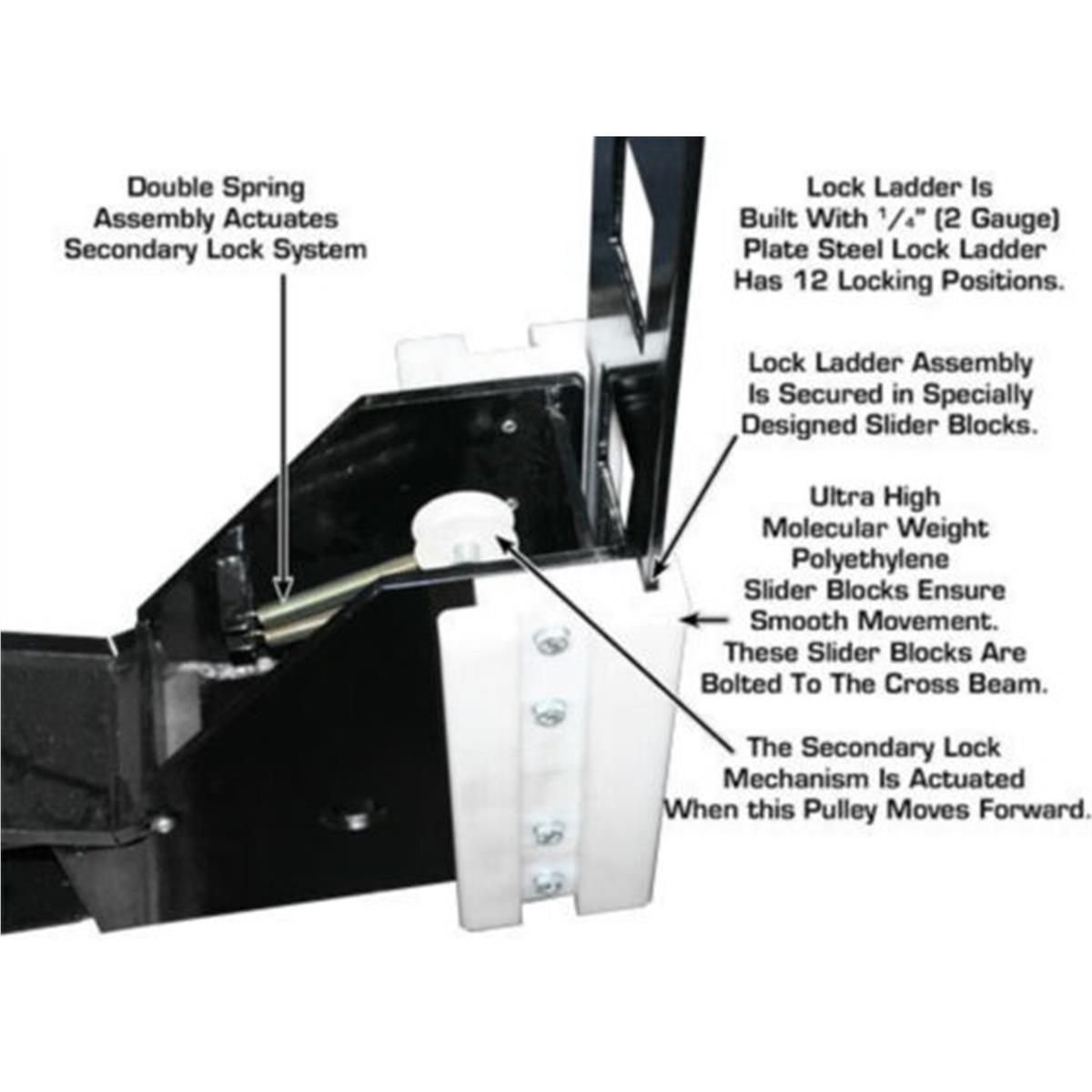

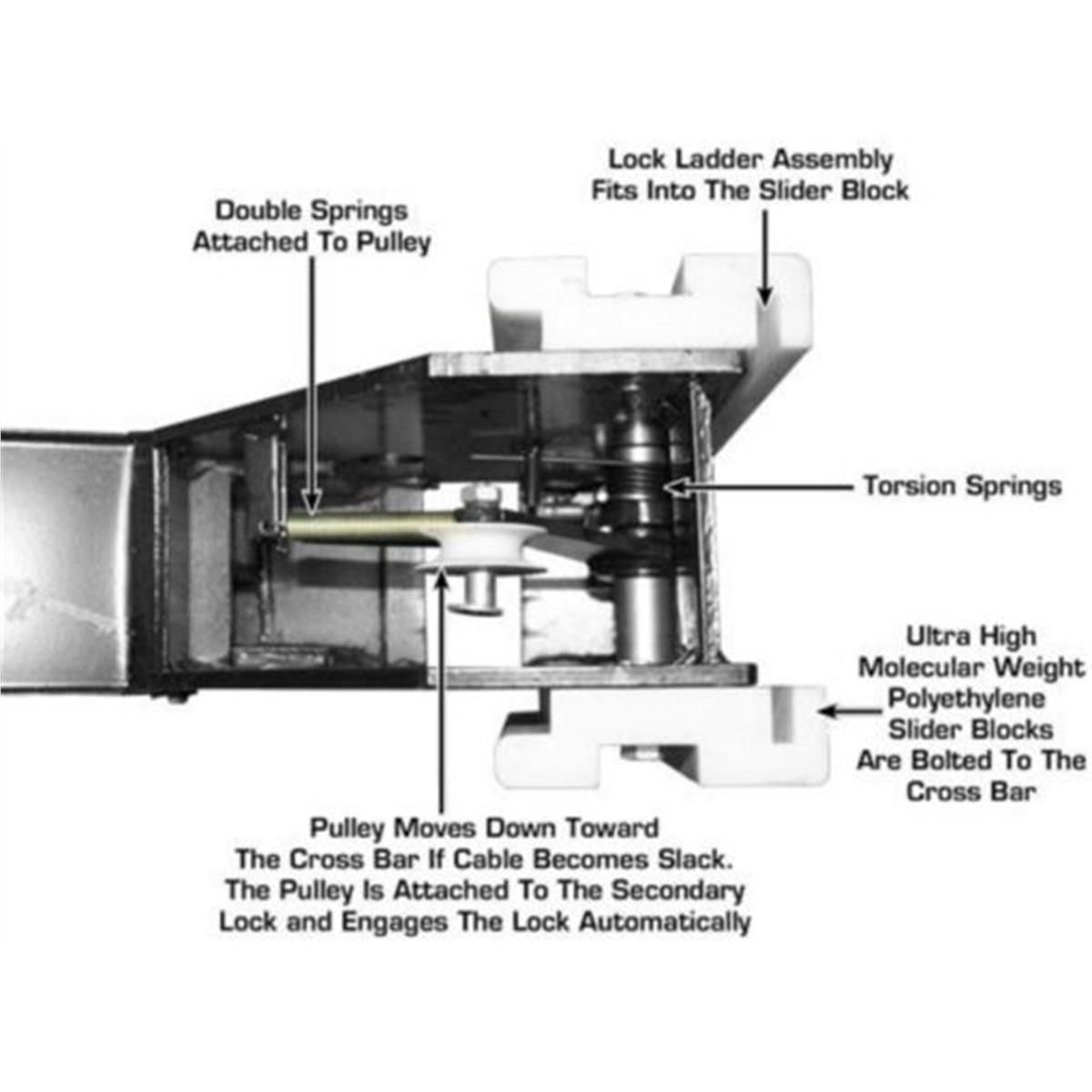

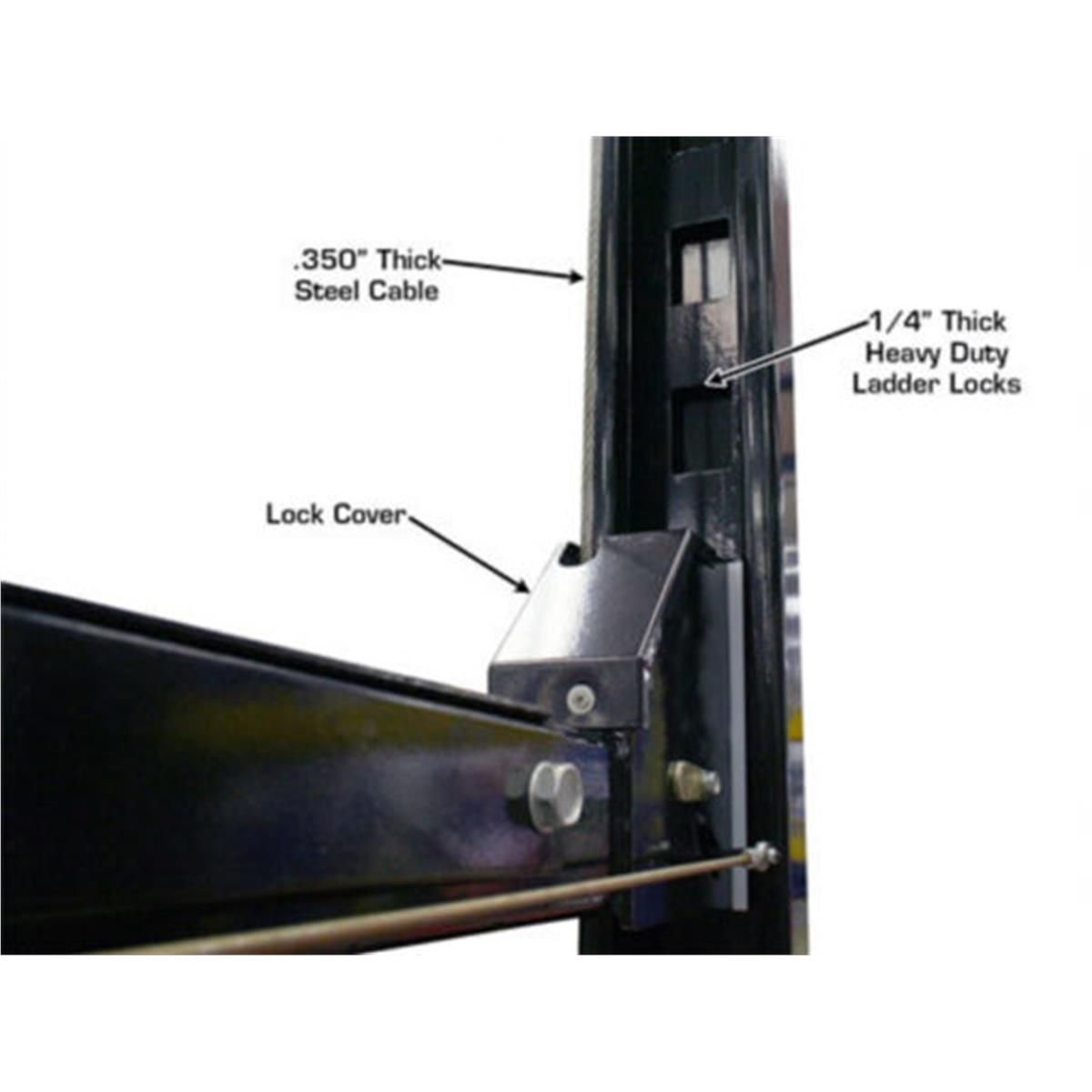

- Lock ladder design

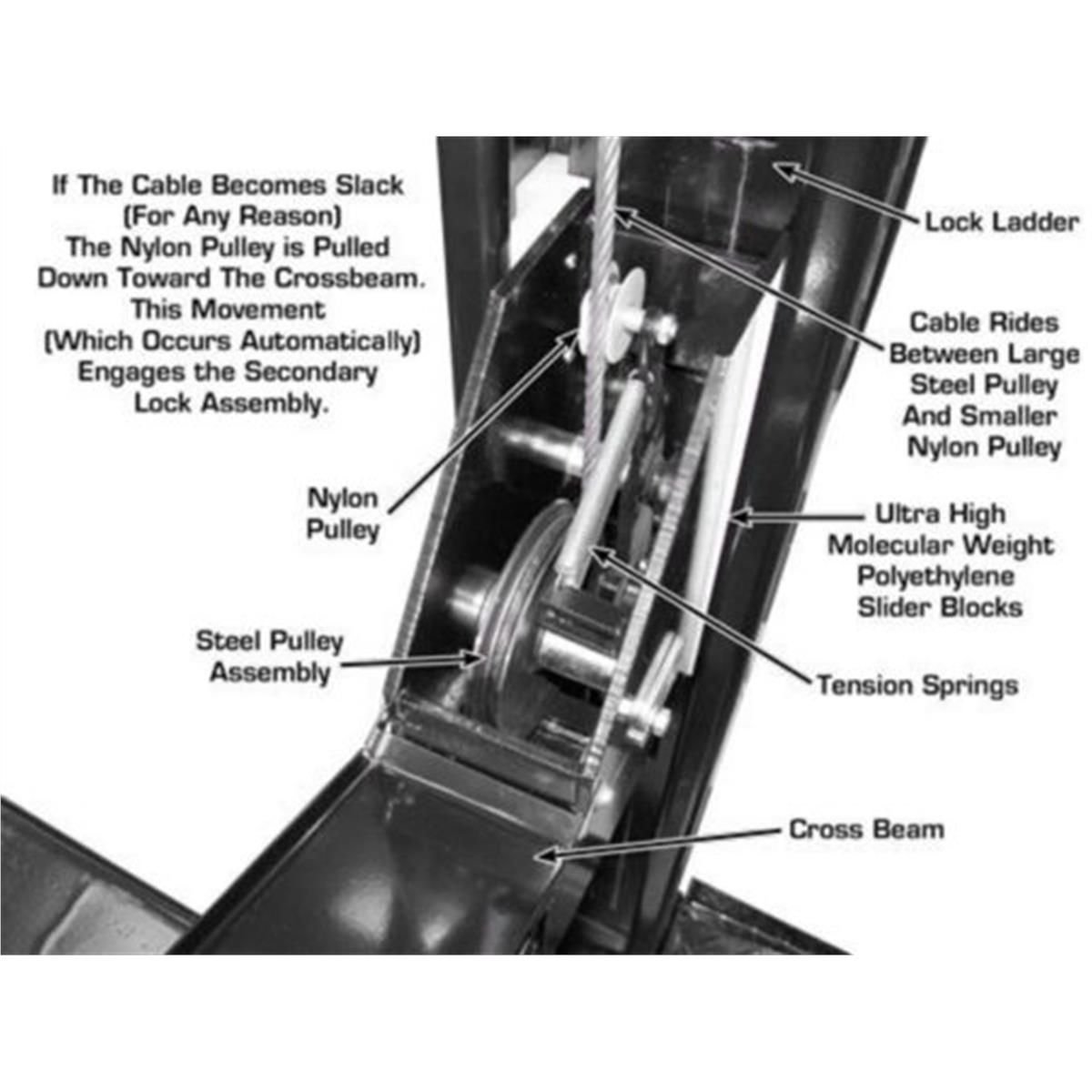

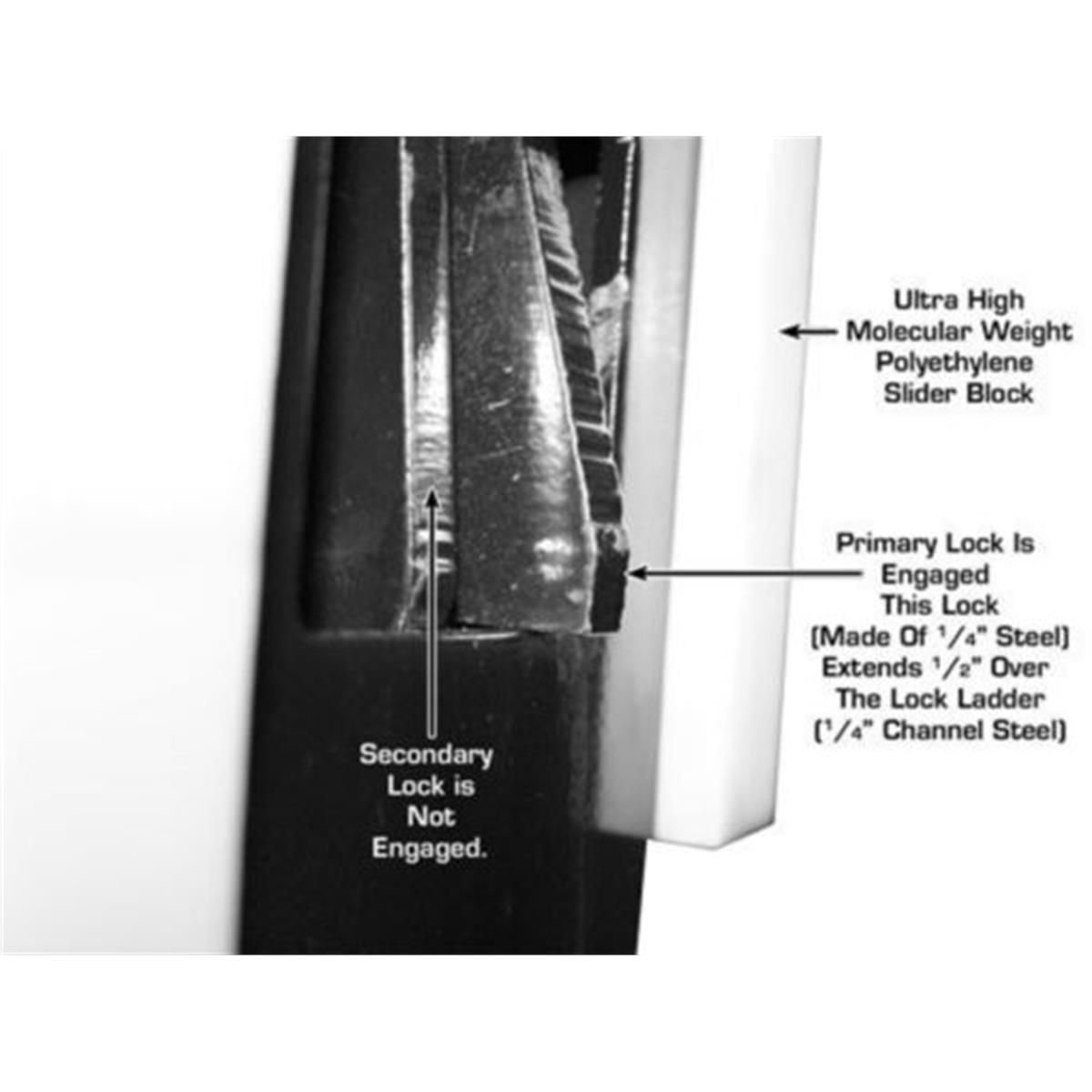

- Double-lock safety system

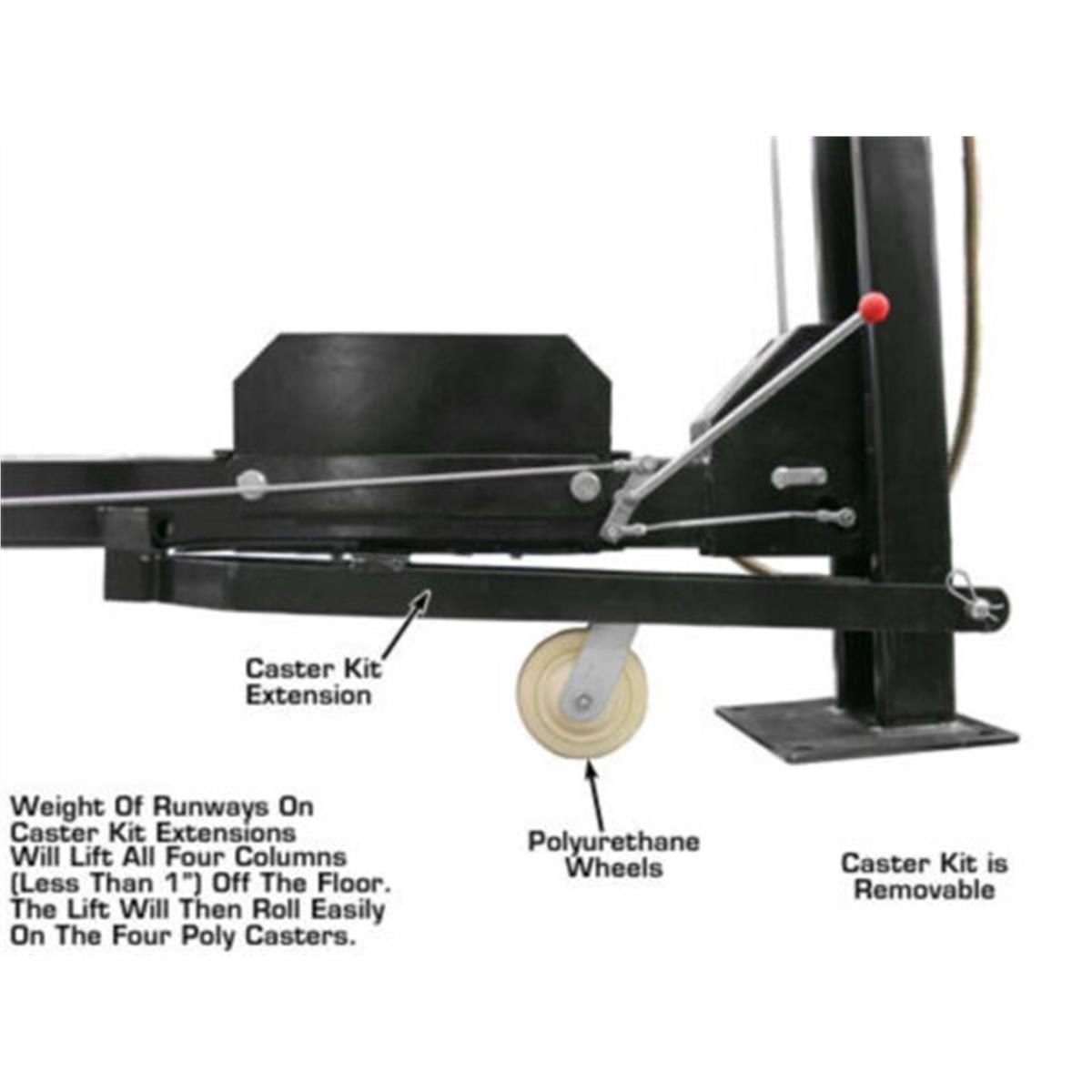

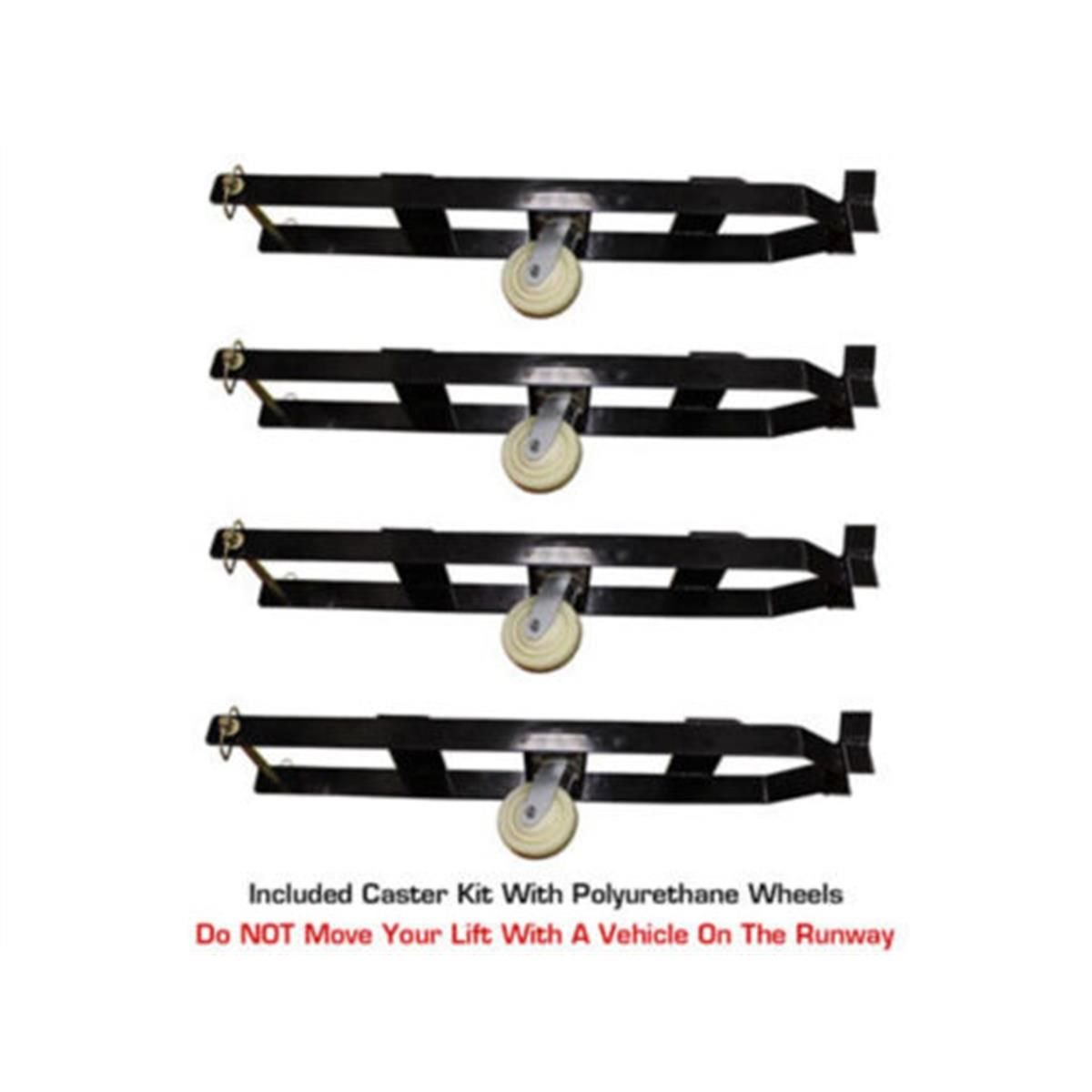

- Caster kit with polyurethane wheels included

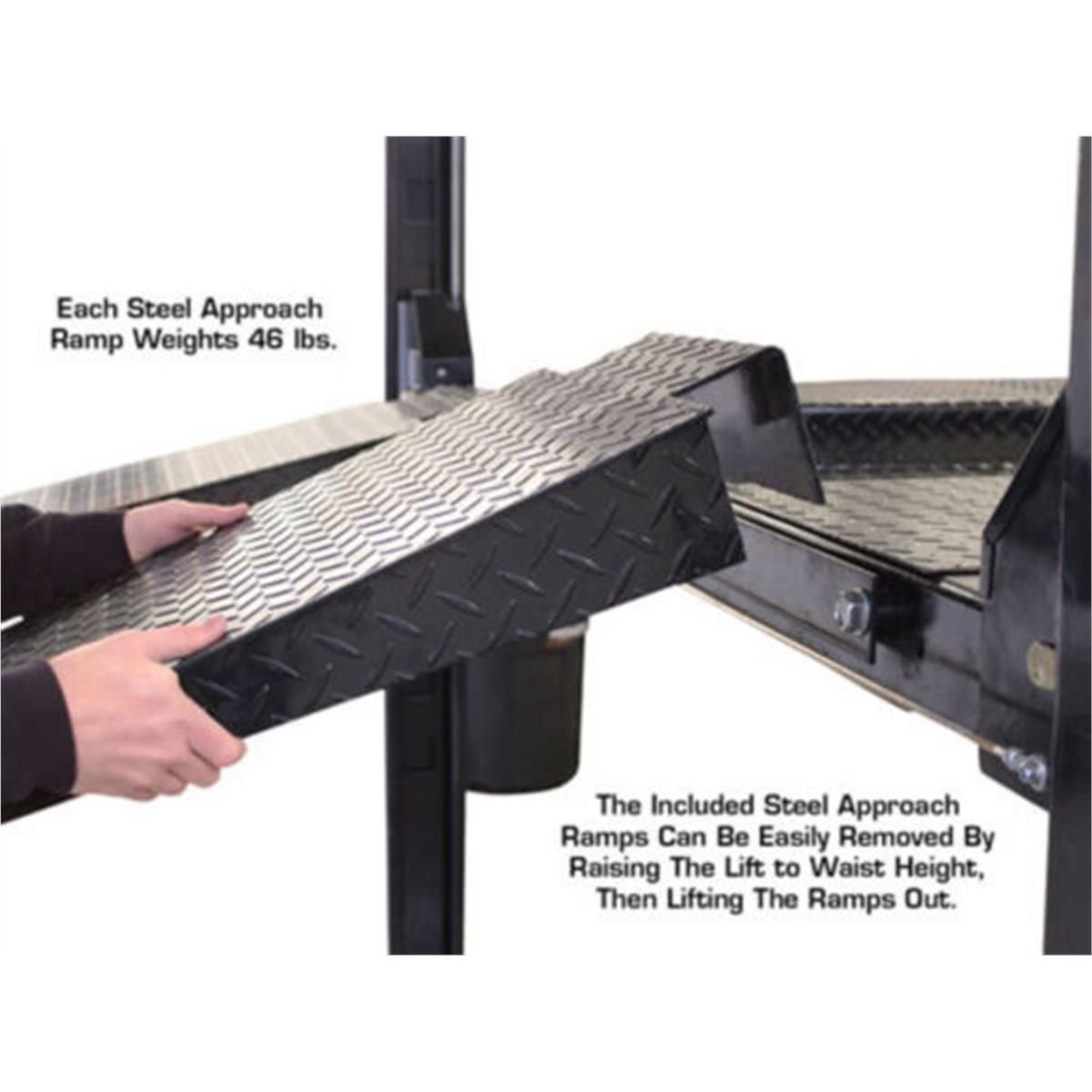

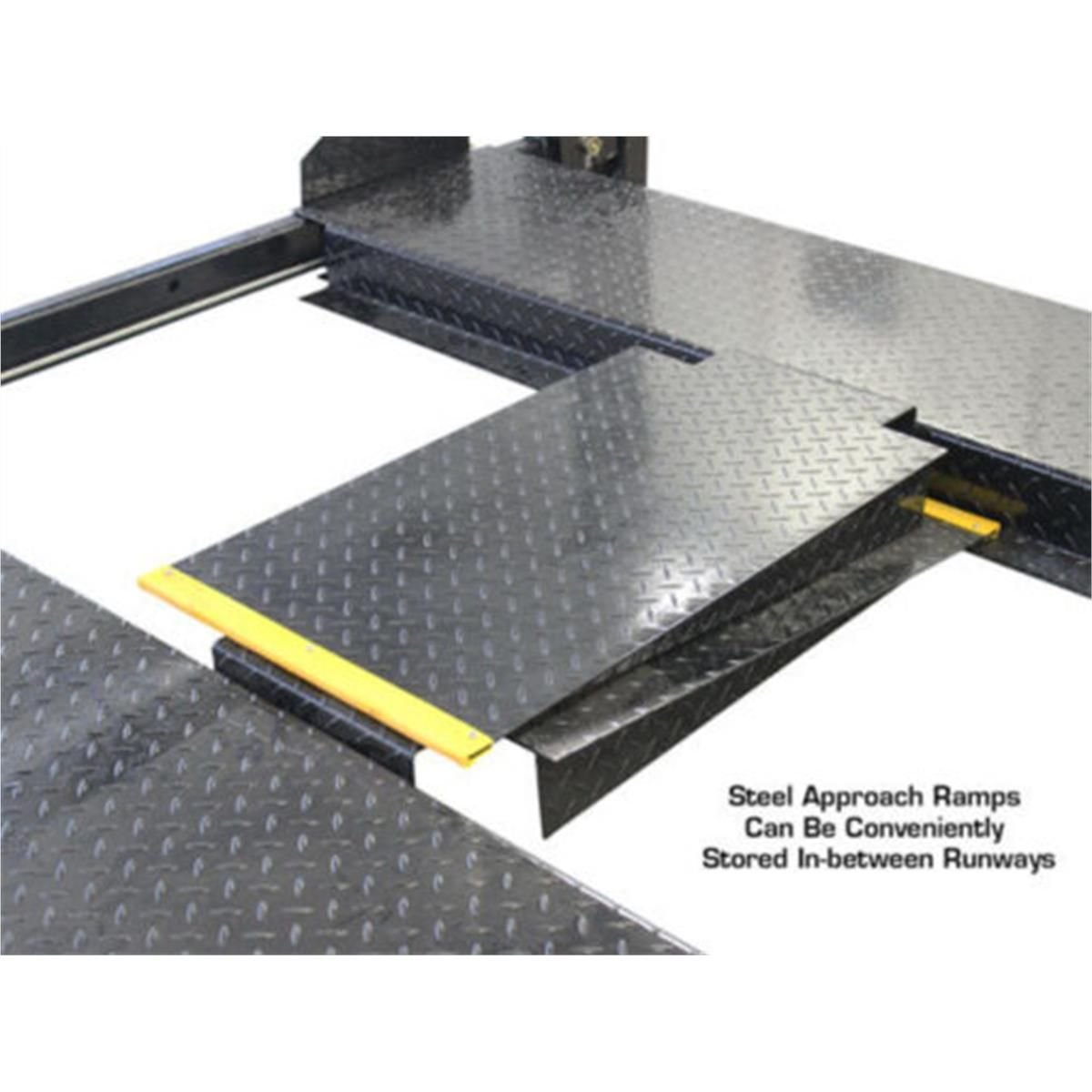

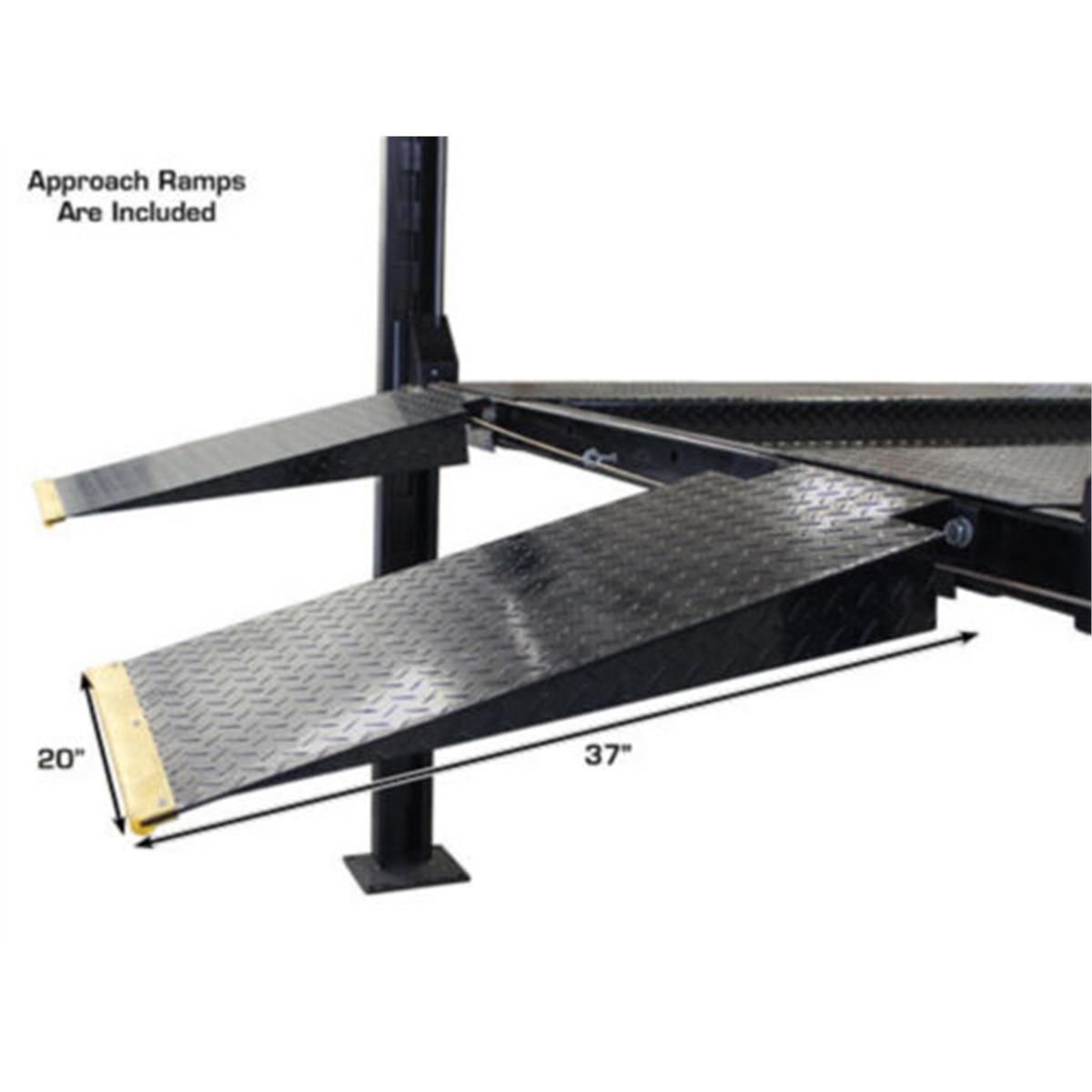

- Steel approach ramps included

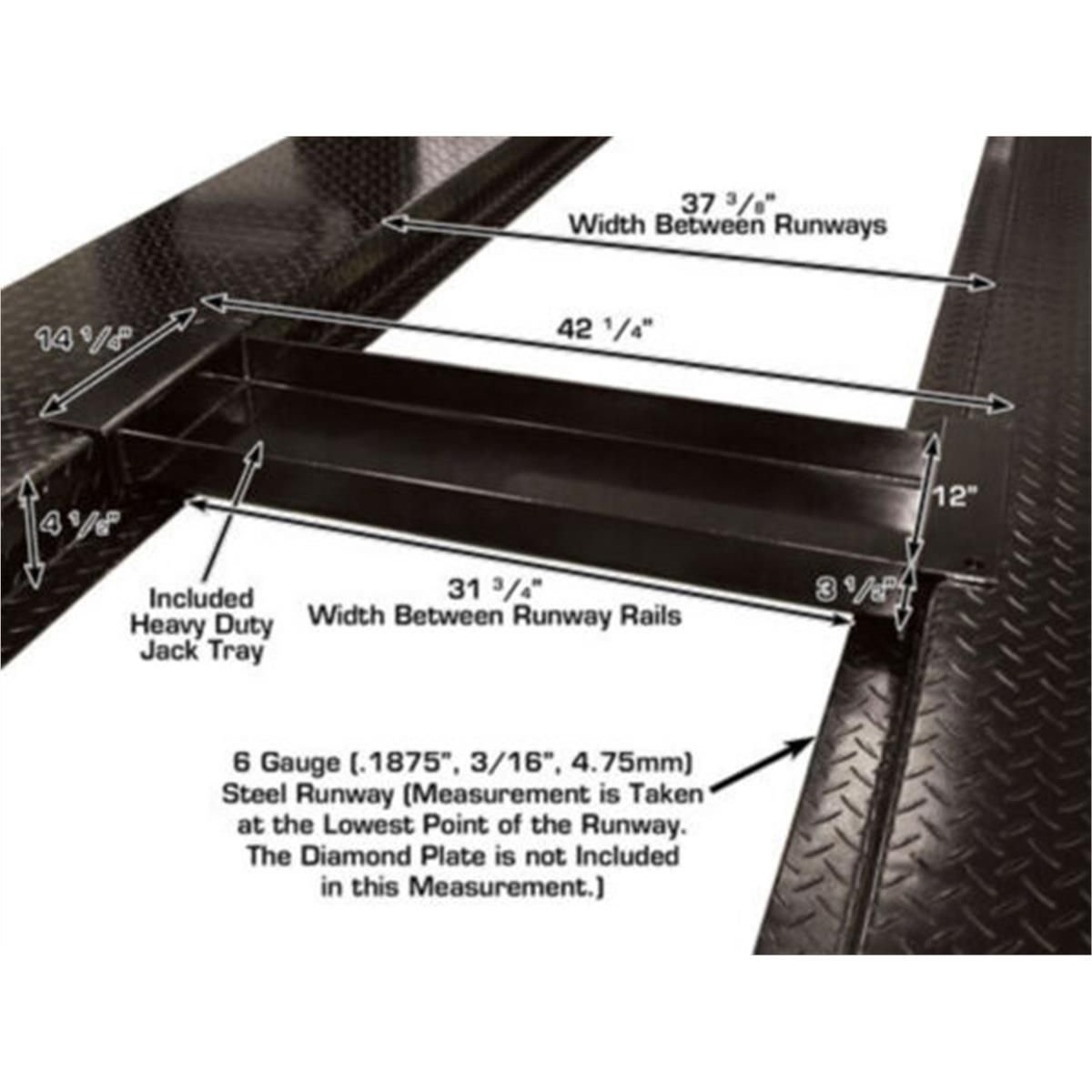

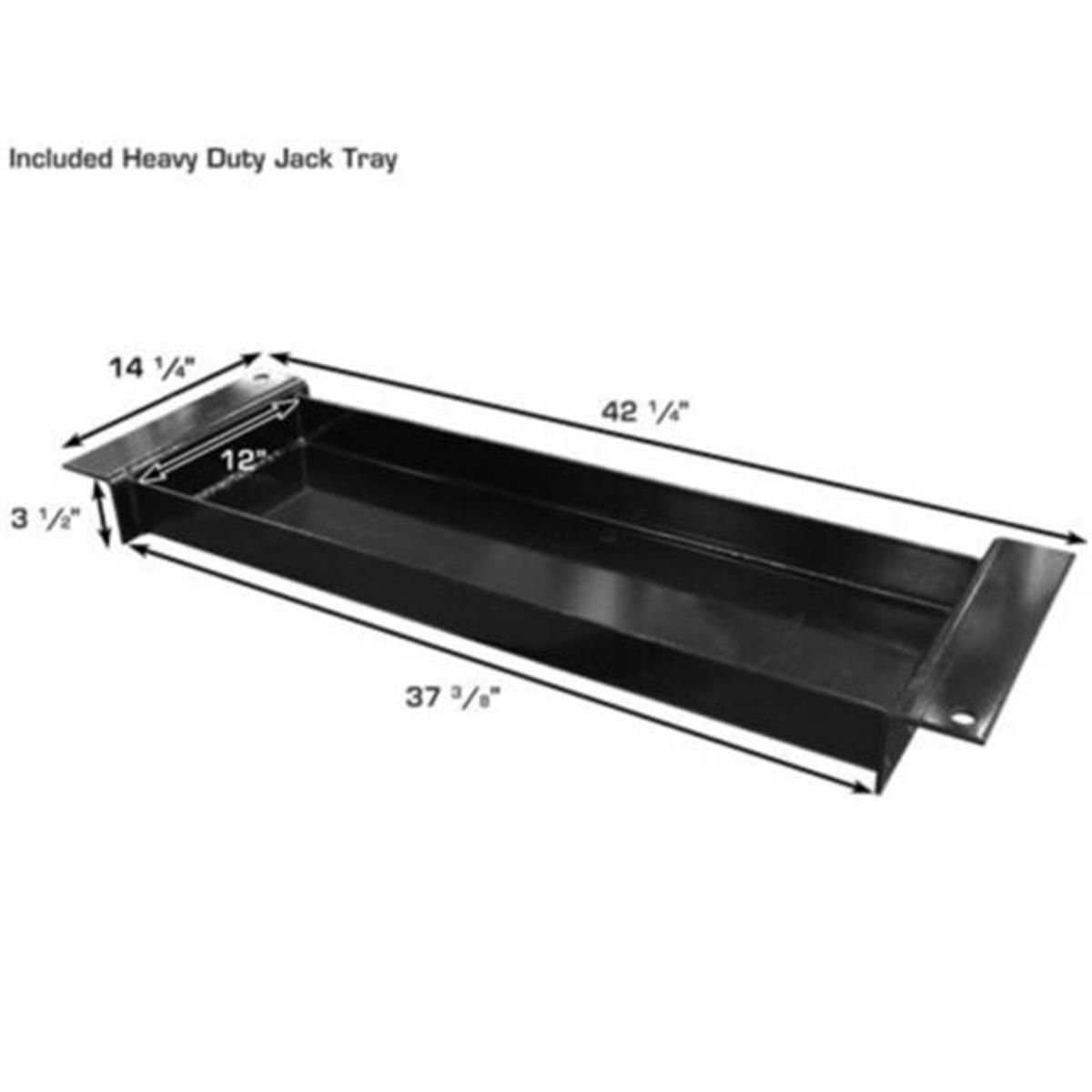

- Steel jack tray included
- Four plastic drip trays included
- Four wheel stops included

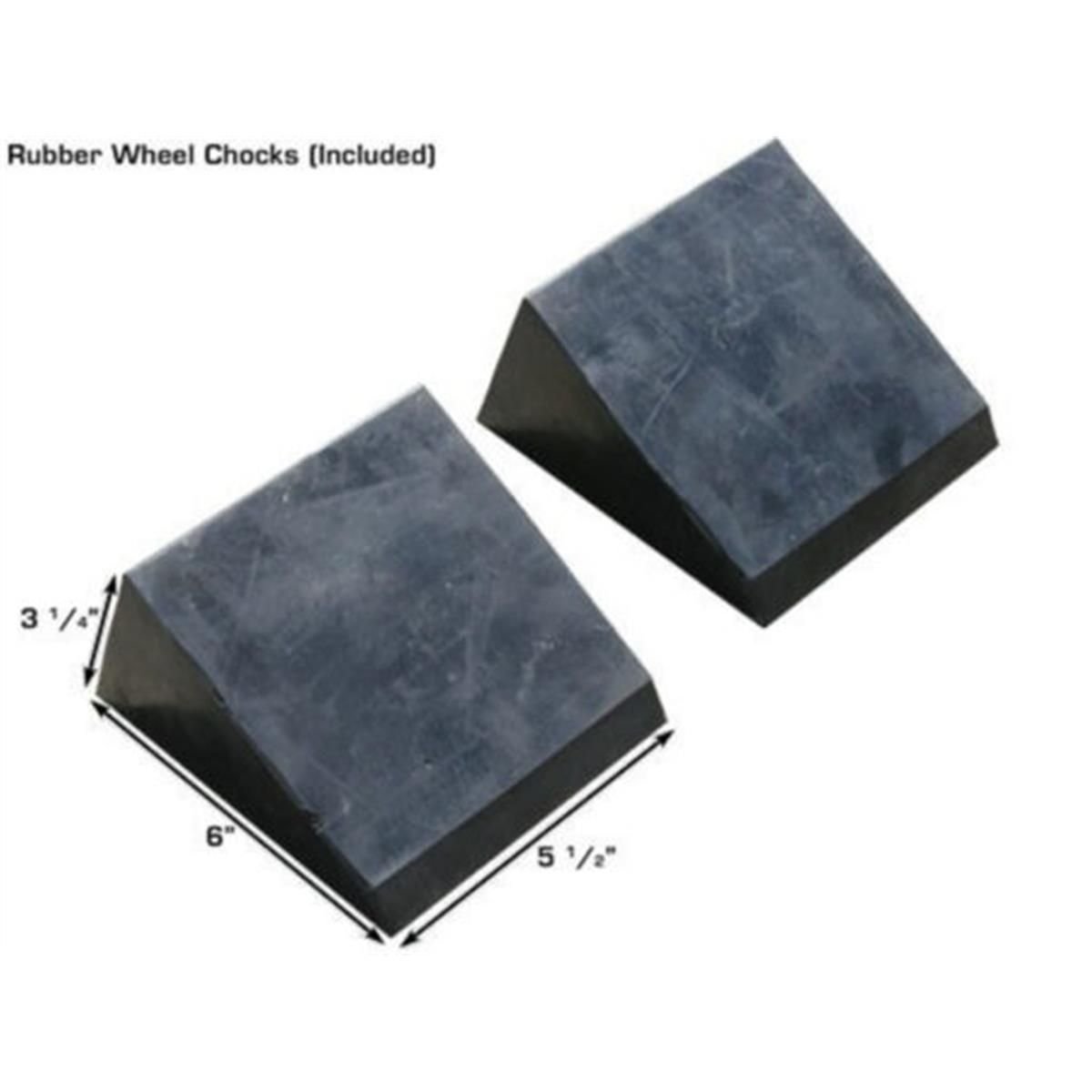

- Two rubber wheel chocks included
- Ideal for vehicle storage or light service work
- 110-volt electric operation (30 amp breaker required)

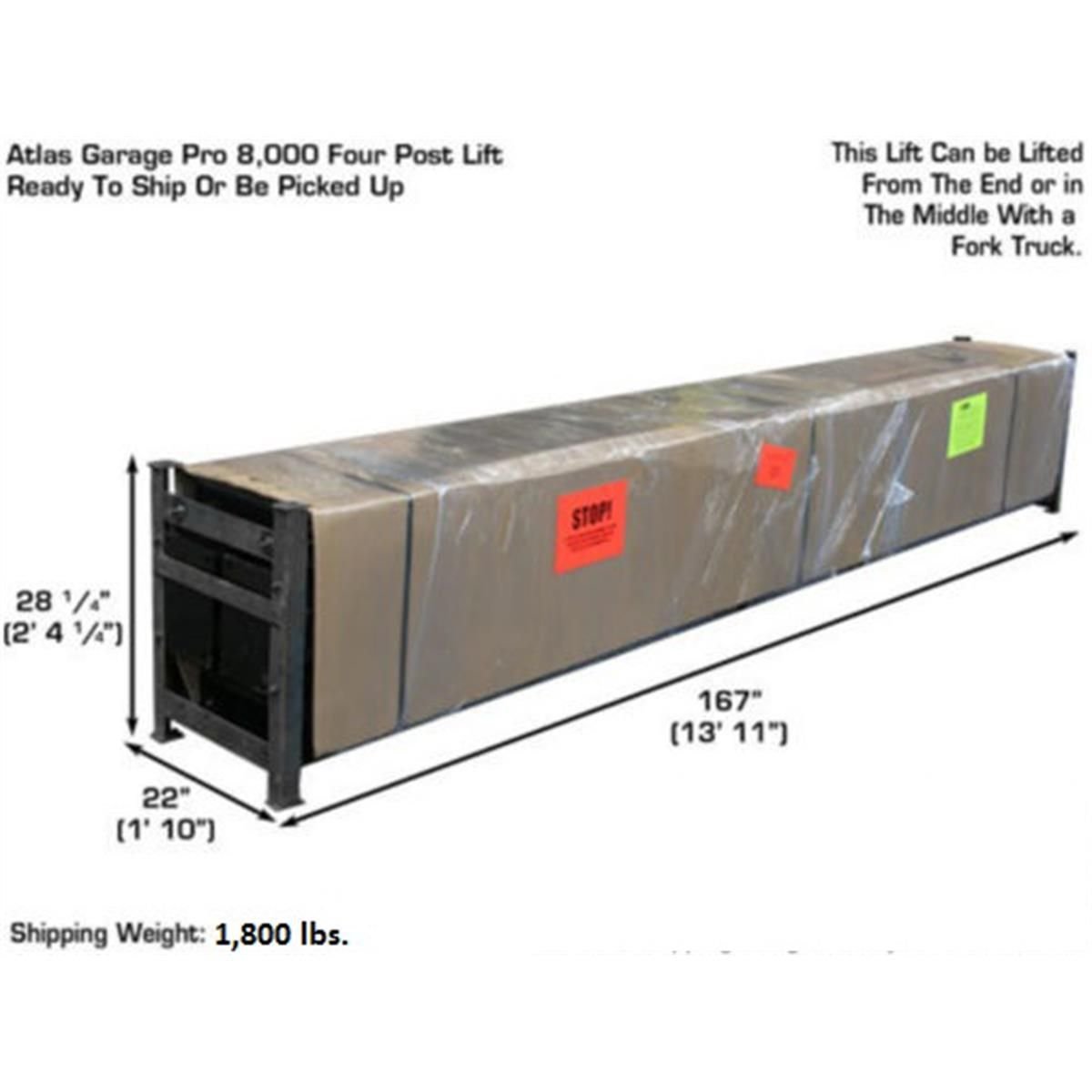

- Shipping weight: 1,800 lbs.
- 2-year structural – 1-year hydraulic warranty (parts only)

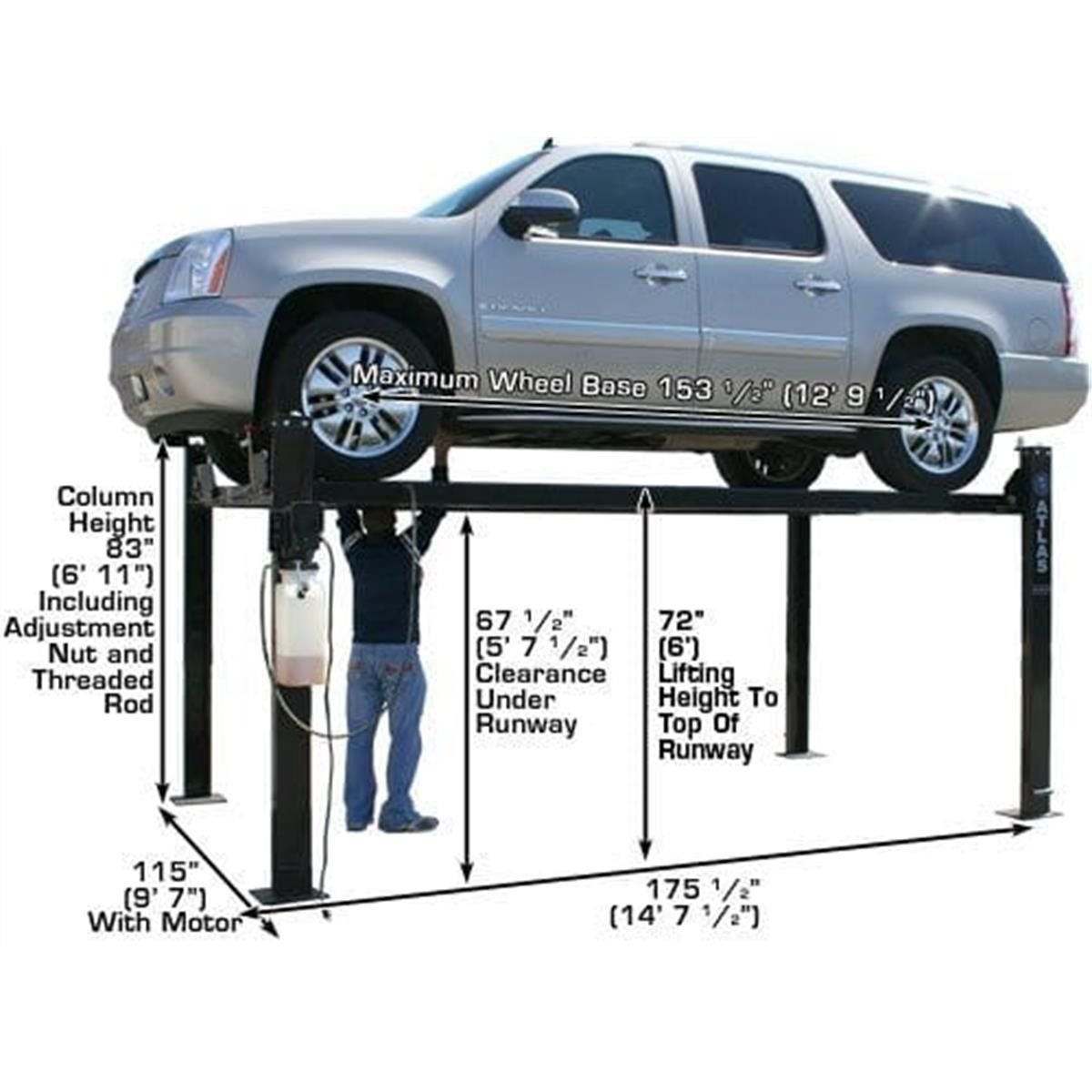

Specifications
Atlas® Garage PRO8000 Specifications
| Specification | Details |
|---|---|
| Capacity | 8,000 lbs. |

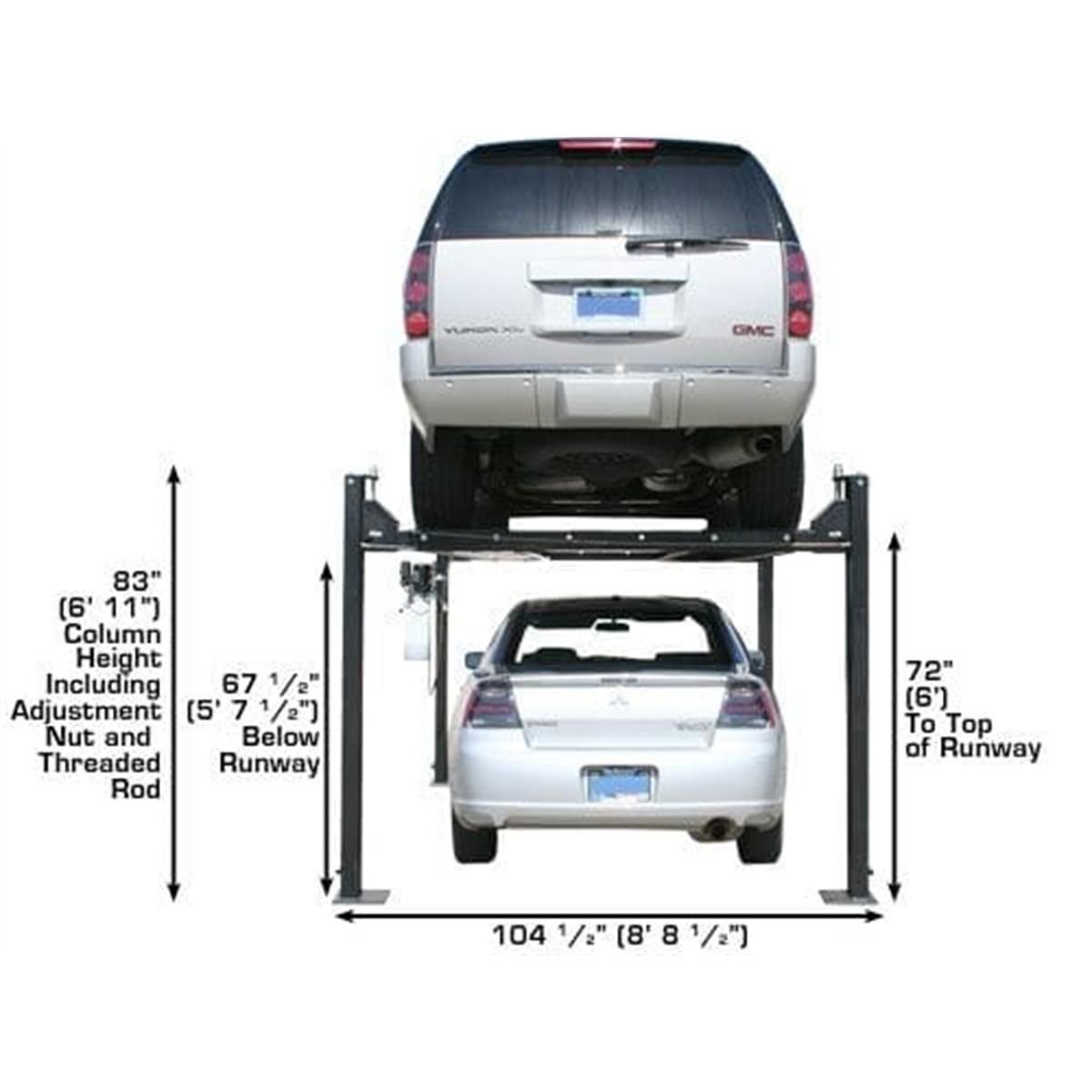

| Lifting Height to Top of Runway | 72″ (6′) |
| Clearance Under Runways | 67″ (5′ 7″) |
| Column Height | 83″ (6′ 11″) |
| Overall Width (Without Motor) | 104 1/2″ (8′ 8 1/2″) |
| Overall Width (With Motor) | 115″ (9′ 7″) |
| Overall Length with Approach Ramp | 206 3/4″ (17′ 2 3/4″) |
| Approach Ramp Length | 37″ (3′ 1″) |
| Runway Width | 21 1/2″ (with rails) / 18 3/4″ (driving surface) |
| Runway Length | 165 3/4″ (13′ 9 3/4″) |
| Runway Thickness | 4 1/2″ |
| Width Between Runways | 37″ (3′ 1″) |
| Width Between Runway Rails | 31 1/2″ (2′ 7 1/2″) |
| Outside Runway to Outside Runway | 74 5/8″ (6′ 2 5/8″) |
| Clearance Between Columns | 94 1/2″ (7′ 10 1/2″) |
| Length Between Columns | 157 1/2″ (13′ 1 1/2″) |
| Maximum Wheelbase | 153 1/2″ (12′ 9 1/2″) |
| Drive-Thru (Outside Tire to Outside Tire) | 80 1/2″ (6′ 8 1/2″) |
| Motor / Electrical Requirement | 110 volt (30 amp breaker required) |
| Shipping Weight | 1,800 lbs. |
-
Atlas® Garage PRO8000 Manual
-
Atlas® Garage Pro Lifts Cylinder Bleeding Procedure (Perform immediately after installation)
