Atlas 9KOHX 9,000 lb Overhead 2-Post Lift
Price range: $1,209.15 through $1,343.55
Description
The Atlas Overhead 9,000 lb. Capacity 2-Post Lift (9KOHX) is a light-duty, economy-designed overhead clear-floor lift. It features reliable chain-drive cylinders and a dual safety system, making it an excellent option for homeowners and small commercial shops servicing cars, SUVs, and light-duty trucks. The 9KOHX can be configured to two overall height settings—11′ 6″ or 11′ 10″—allowing installation in most standard garage environments.
The Atlas 9KOHX utilizes symmetric columns with specially engineered arms that can be positioned in either symmetric or asymmetric configurations. The asymmetric/symmetric arm system provides an extremely low lift pad height in the EZ-metric arm configuration, enabling operators to access low-clearance passenger cars as well as heavier pickup trucks. This model also incorporates a spring-loaded Secondary Lock System (SLS) that automatically engages if a slack or broken chain condition occurs, enhancing operational safety.
The 9KOHX is designed for customers seeking maximum lifting capacity at an economical price point.
Please note: If ordering an Atlas item, your delivery location must be capable of receiving a 53′ truck.
Features
- 9,000 lb. capacity
- Overhead, open-floor design
- Overall height: 138″ (11′ 6″) or 142″ (11′ 10″)
- Asymmetric/symmetric arm configuration
- Automatic arm restraints
- Dual-point lock release
- Rubber guards on carriages
- Dual hydraulic chain-drive cylinders
- Secondary Lock System (SLS)

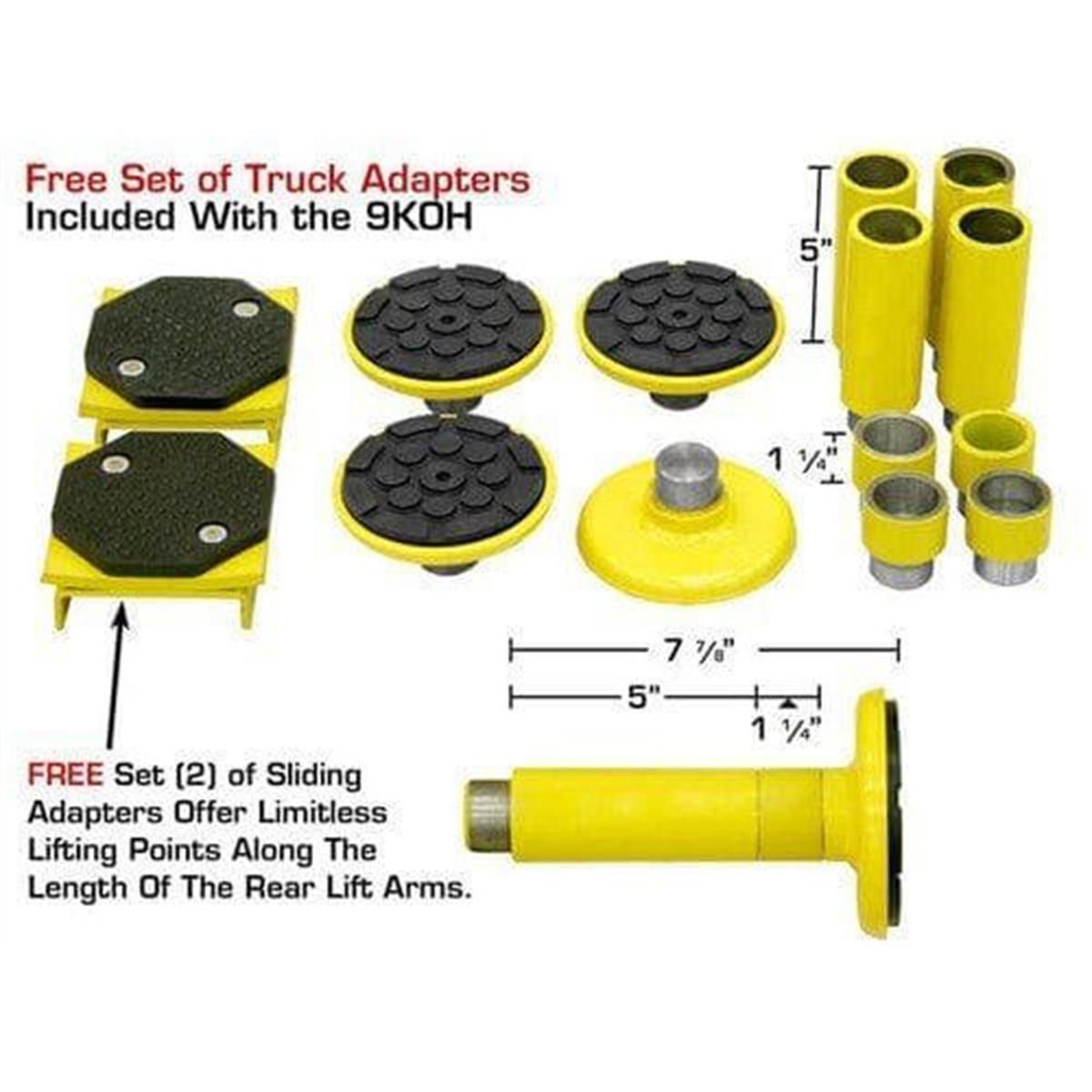

- Free 8-piece truck adapter set
- Free set of sliding arm adapters
- Mounting hardware included
- Shipping weight: 1,450 lbs.
- 2-year structural – 1-year hydraulic warranty (parts only)
Specifications
Atlas 9KOHX Specifications
| Specification | Details |
|---|---|
| Capacity | 9,000 lbs. |
| Overall Height | 138″ (11′ 6″) or 142″ (11′ 10″) |
| Overall Floor Width | 134 1/2″ (11′ 2 1/2″) |
| Outside Column to Outside Column | 124 7/8″ (10′ 4 7/8″) |
| Maximum Lift Height (Without Adapters) | 74 1/2″ |
| Maximum Lift Height (With Adapters) | 81″ |
| Minimum Arm Height | 4″ |
| Inside Column Width | 110″ (9′ 2″) |
| Drive-Thru Clearance | 100″ (8′ 4″) symmetric / 90 1/2″ (7′ 6 1/2″) asymmetric |
| Column Size | 7 1/4″ × 11″ |
| Column Steel Thickness | 5 mm |
| Base of Lift | 14 1/4″ × 18″ |
| Motor / Electrical Requirement | 220 volt single (1) phase (30 amp breaker recommended) |
| Oil Requirement | 3–5 gallons AW32/AW46 (not included) |
| Shipping Weight | 1,450 lbs. |
| Adapter Heights | 4 each: 1.5″, 5″ |
| Arm Hole / Adapter Peg Size | 1.5″ |
Installation Requirement:
Requires a minimum of 4″ thick concrete with a 3,000 PSI rating.
-
Atlas 9KOHX Cylinder Bleeding Procedure (Perform immediately after installation)
