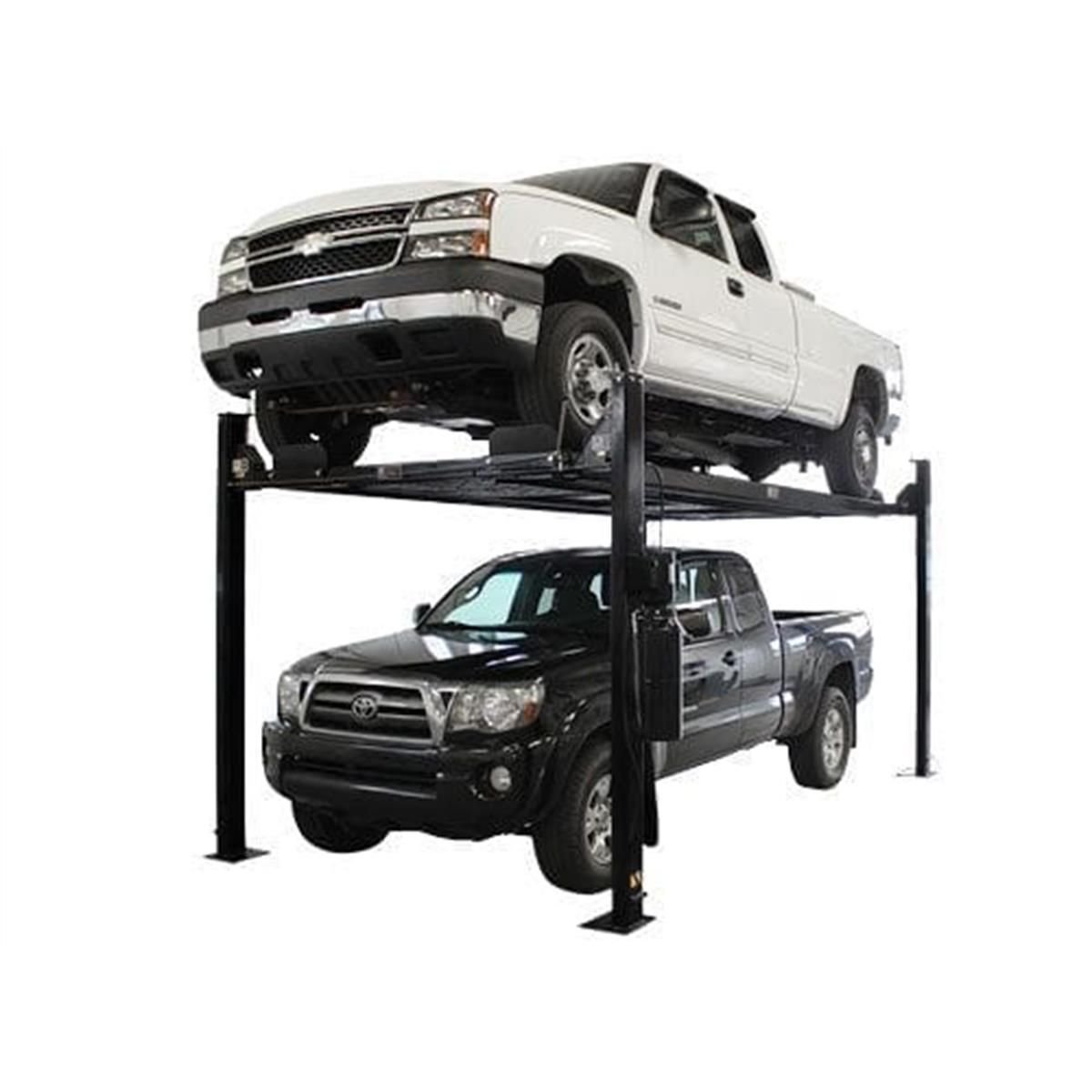

Atlas Garage PRO8000EXT-L 8,000 lb Extra Tall/Extra Long 4-Post Lift
Price range: $1,881.14 through $2,060.35
Description
The Atlas® Garage PRO8000EXT-L delivers the added lifting height of the PRO8000EXT while also increasing overall length by 20 inches and width by 3 inches. Compared to the original Atlas® Garage PRO8000, the PRO8000EXT-L is 20 inches longer, 3 inches wider, and 14 inches taller. The extended runway length accommodates most longer-wheelbase pickup trucks, with the exception of dually models. Dual rear wheel trucks are too wide to fit between the column lock assemblies. If a portable lift is needed for a dually, consider the Atlas® Garage PRO9000.
The Atlas® Garage PRO series four-post lifts (8,000 lb. capacity) are engineered for homeowner use and restoration shops. They are not intended for commercial repair facilities where lifts are cycled multiple times per day. If assistance is needed in selecting the proper lift for a specific application, consult a sales representative.
The Atlas® Garage PRO8000EXT-L includes plastic drip trays, a steel jack tray, and a caster kit with polyurethane wheels at no additional cost. The caster kit can be installed or removed in minutes, allowing the lift to be moved between bays or even outdoors when necessary.
Many customers who purchase this lift also choose the Atlas® RJ35 sliding bridge jack.
Please note: If ordering an Atlas item, the delivery location must be able to accommodate a 53′ truck.
Features
- 8,000 lb. capacity
- Free-standing / portable design
- Extra tall and extra long configuration
- Diamond-plated runways

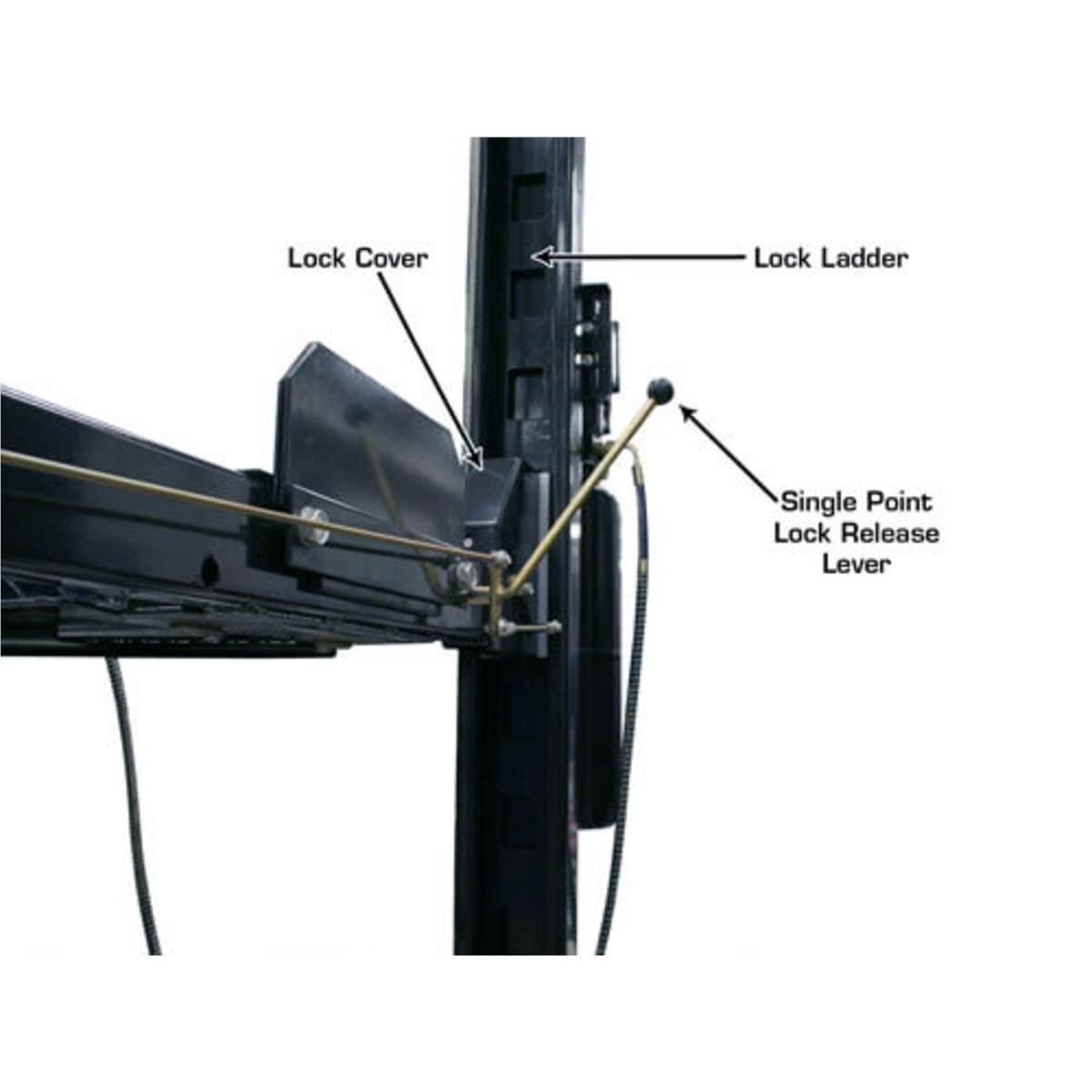

- Single-point lock release

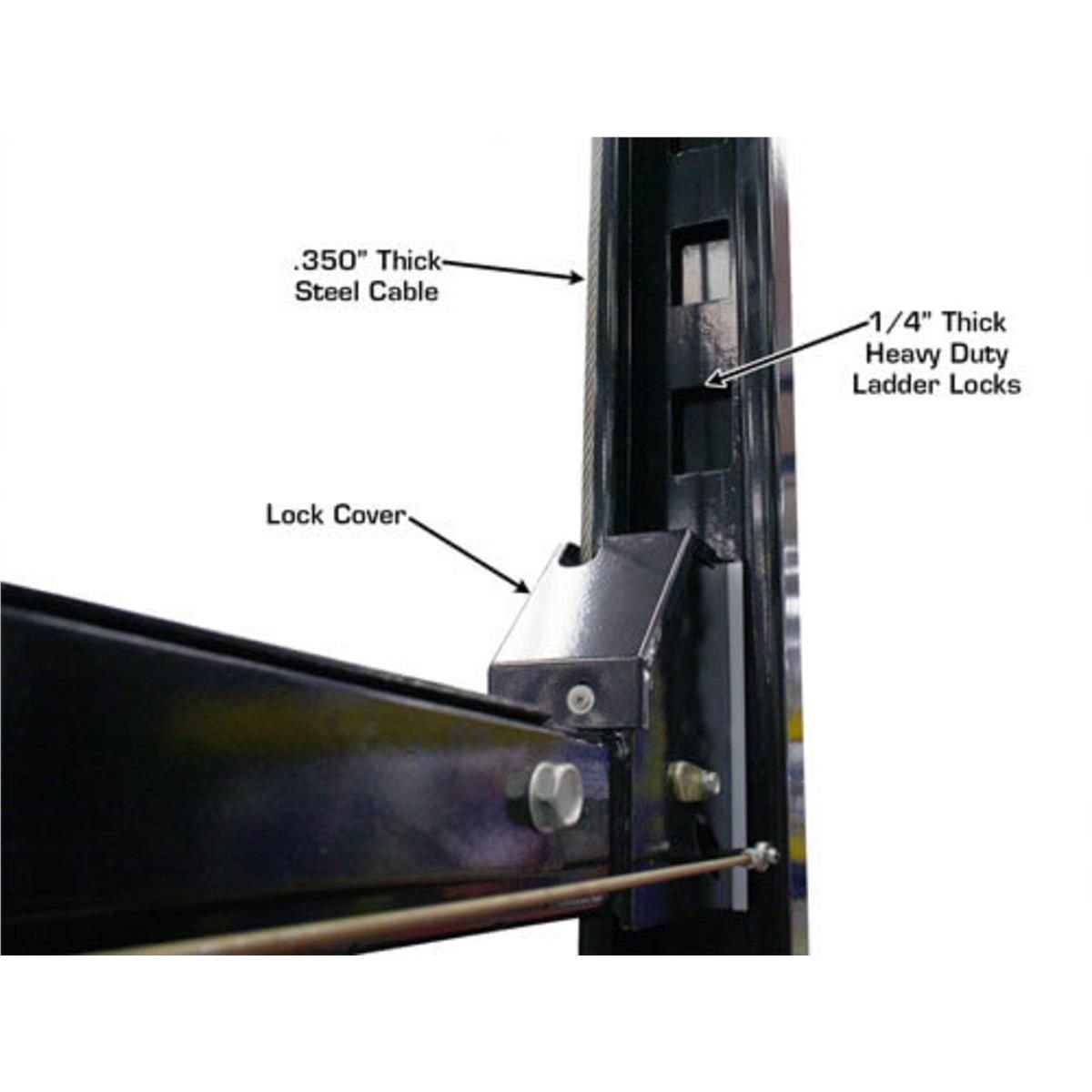

- Lock ladder design

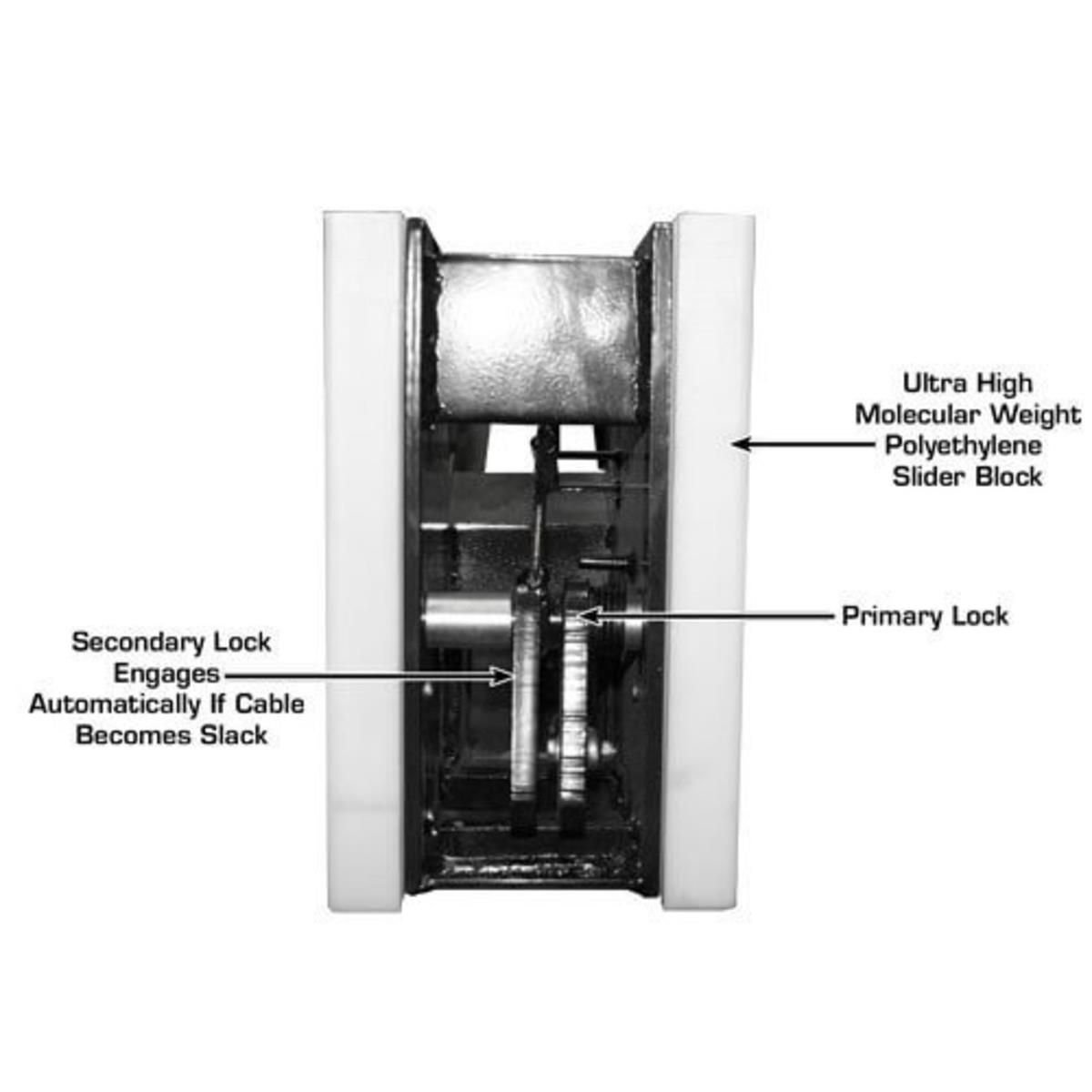

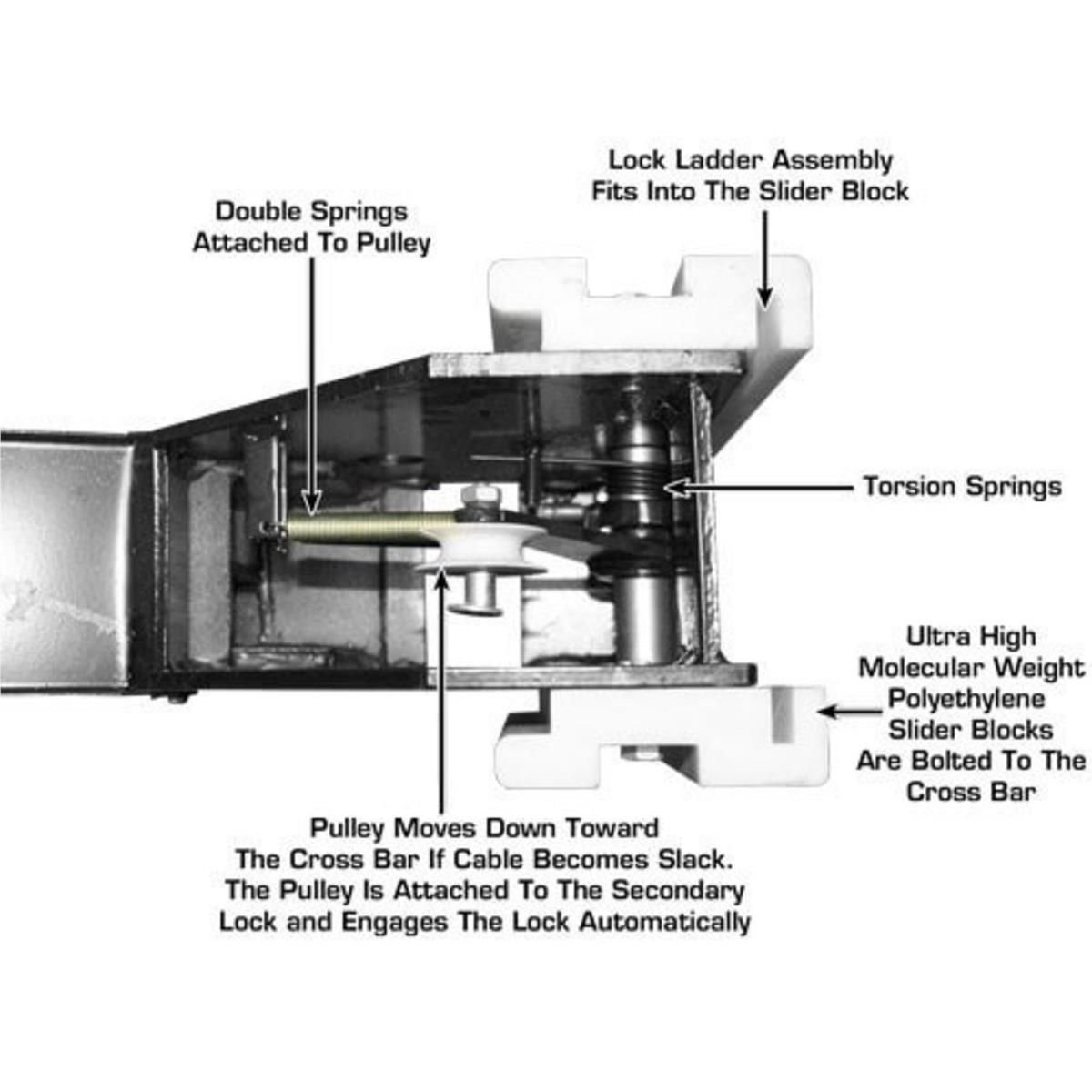

- Double-lock safety system
- Caster kit with polyurethane wheels included

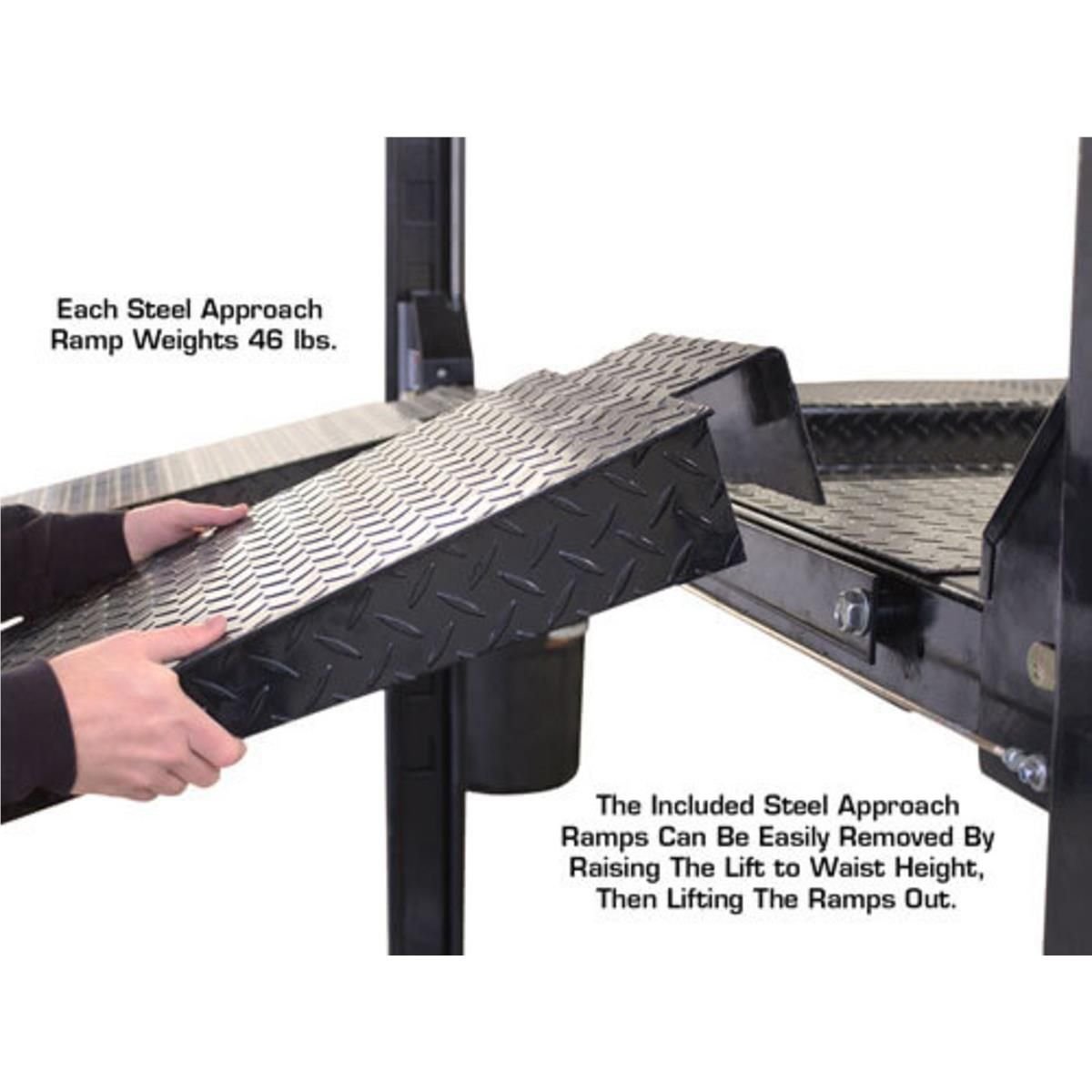

- Steel approach ramps included

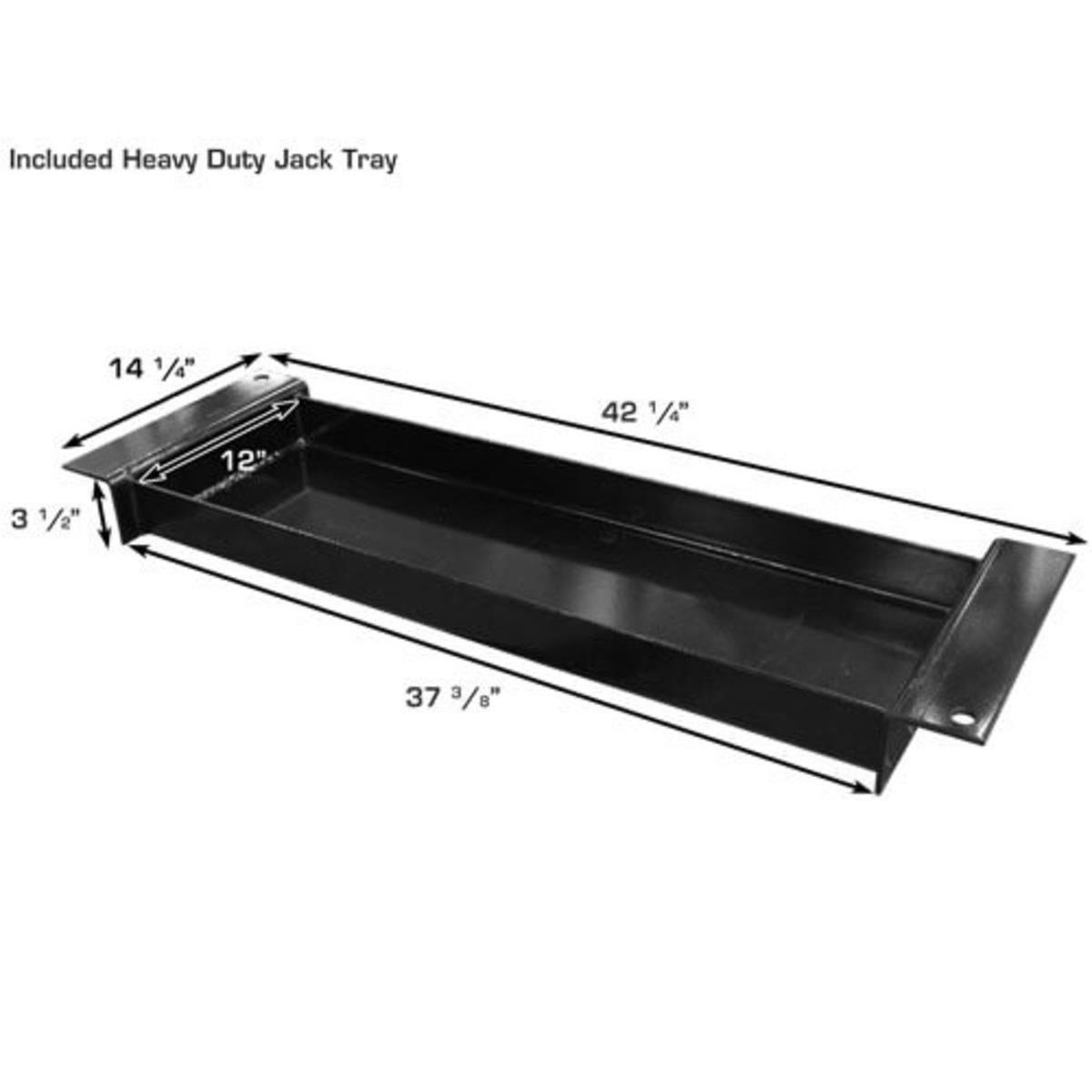

- Steel jack tray included
- 4 plastic drip trays included
- 4 wheel stops included

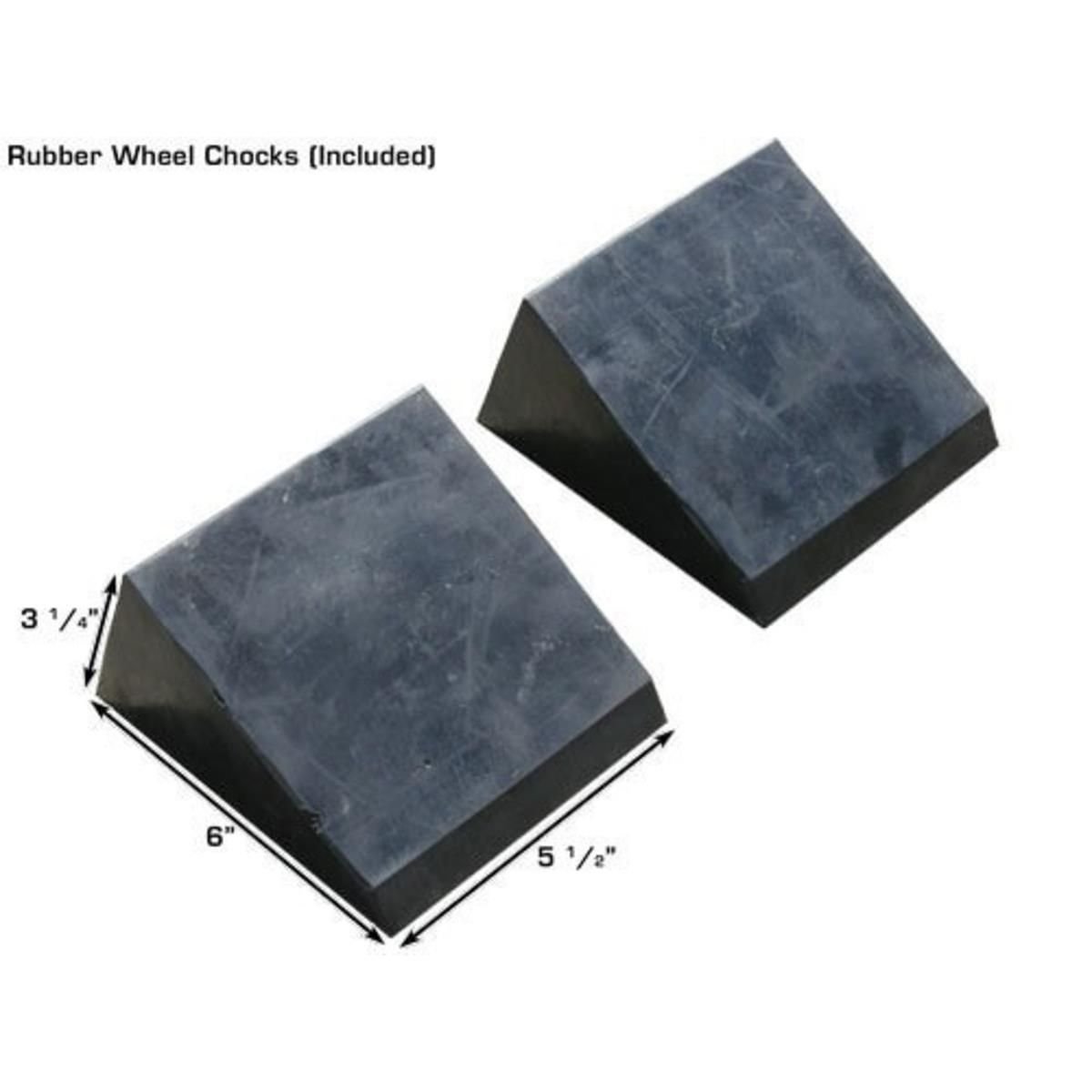

- 2 rubber wheel chocks included
- Ideal for vehicle storage or service work
- 110-volt electric operation (30 amp breaker required)
- Shipping weight: 1,900 lbs.
- Warranty: 2-year structural – 1-year hydraulic (parts only)
Specifications

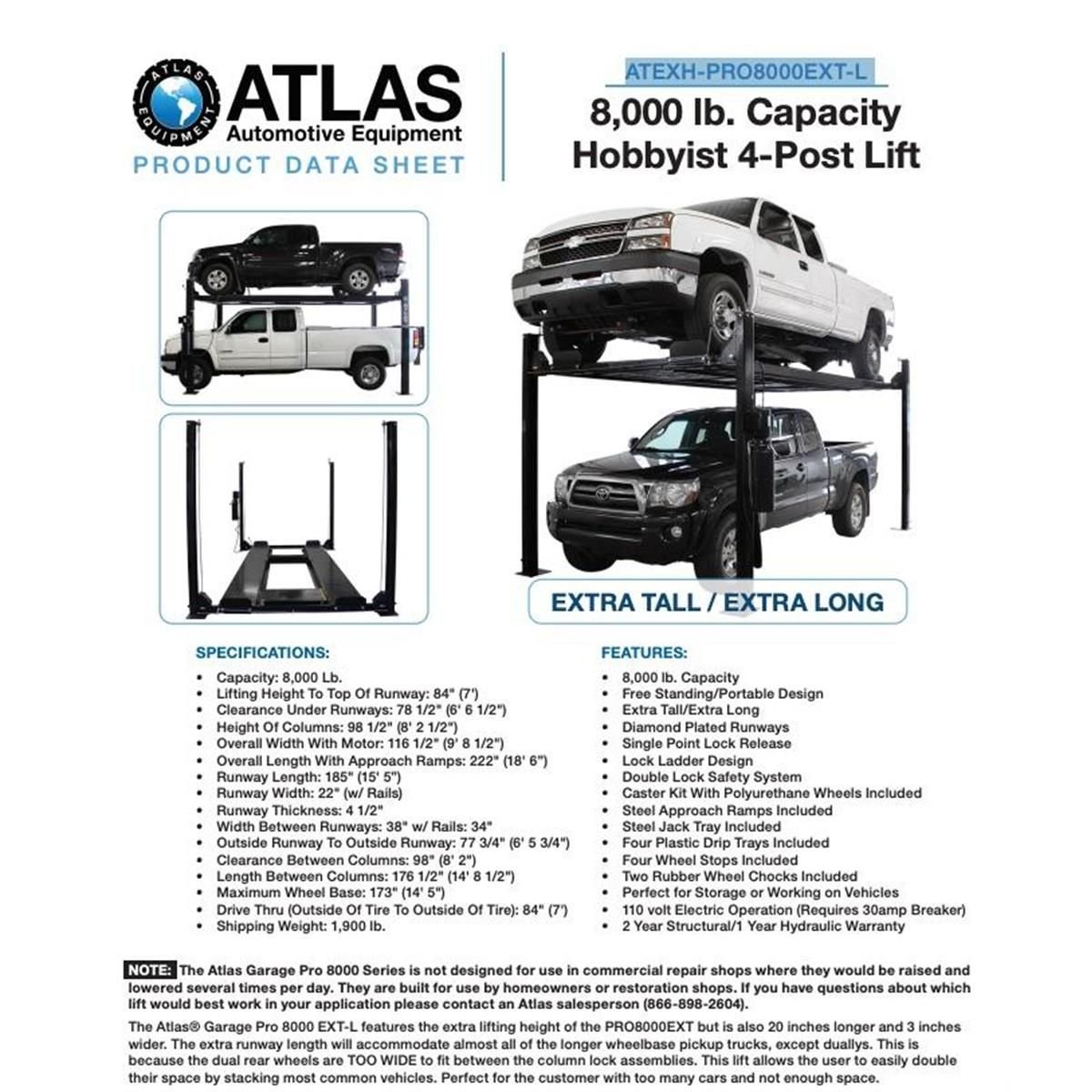

Atlas® Garage PRO8000EXT-L Specifications
| Capacity | 8,000 lbs. |
|---|---|

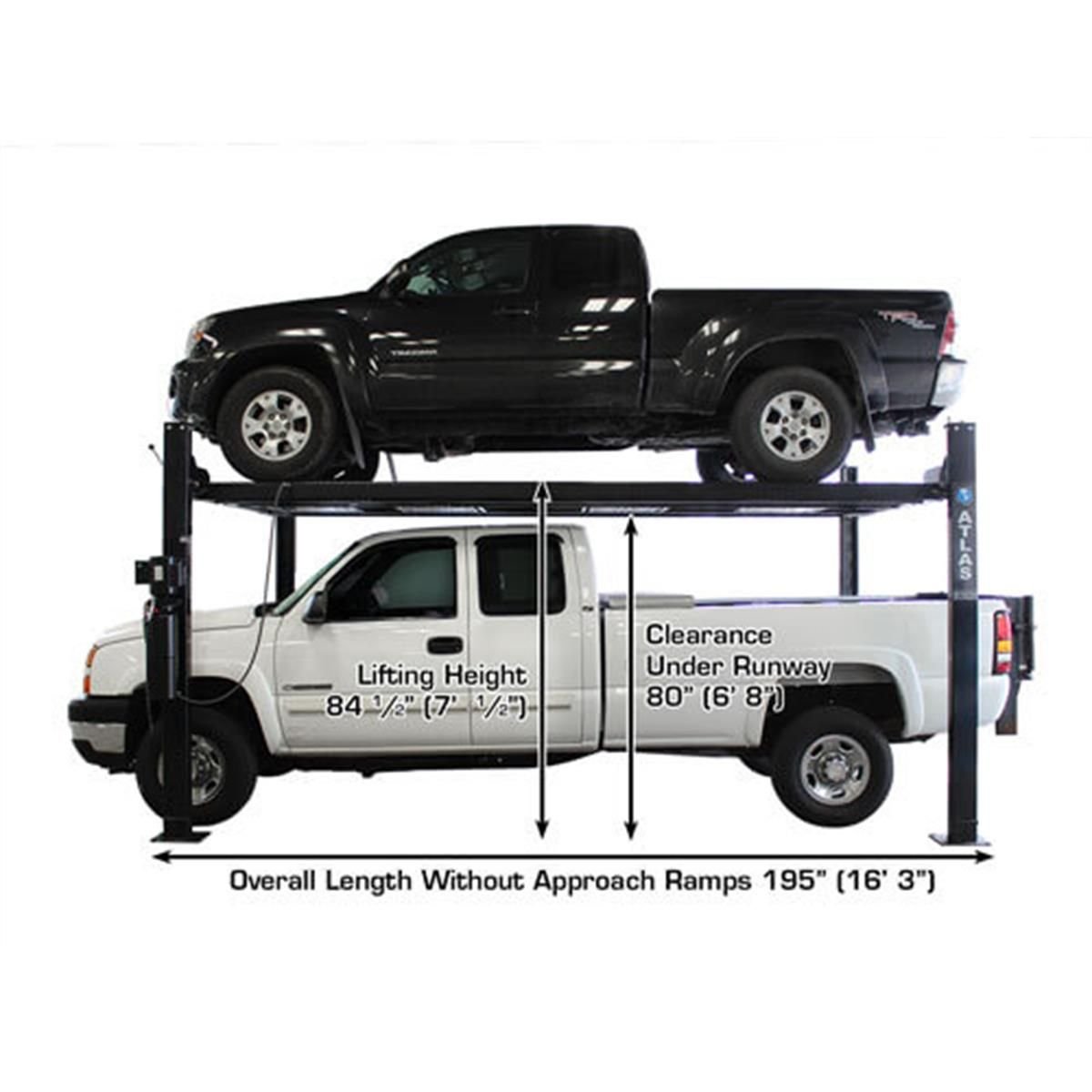

| Lifting Height to Top of Runway | 84″ (7′) |
| Clearance Under Runways | 78 1/2″ (6′ 6 1/2″) |
| Height of Columns | 98 1/2″ (8′ 2 1/2″) |
| Overall Width (Without Motor) | 108″ (9′) |
| Overall Width (With Motor) | 116 1/2″ (9′ 8 1/2″) |
| Overall Length with Approach Ramp | 222″ (18′ 6″) |

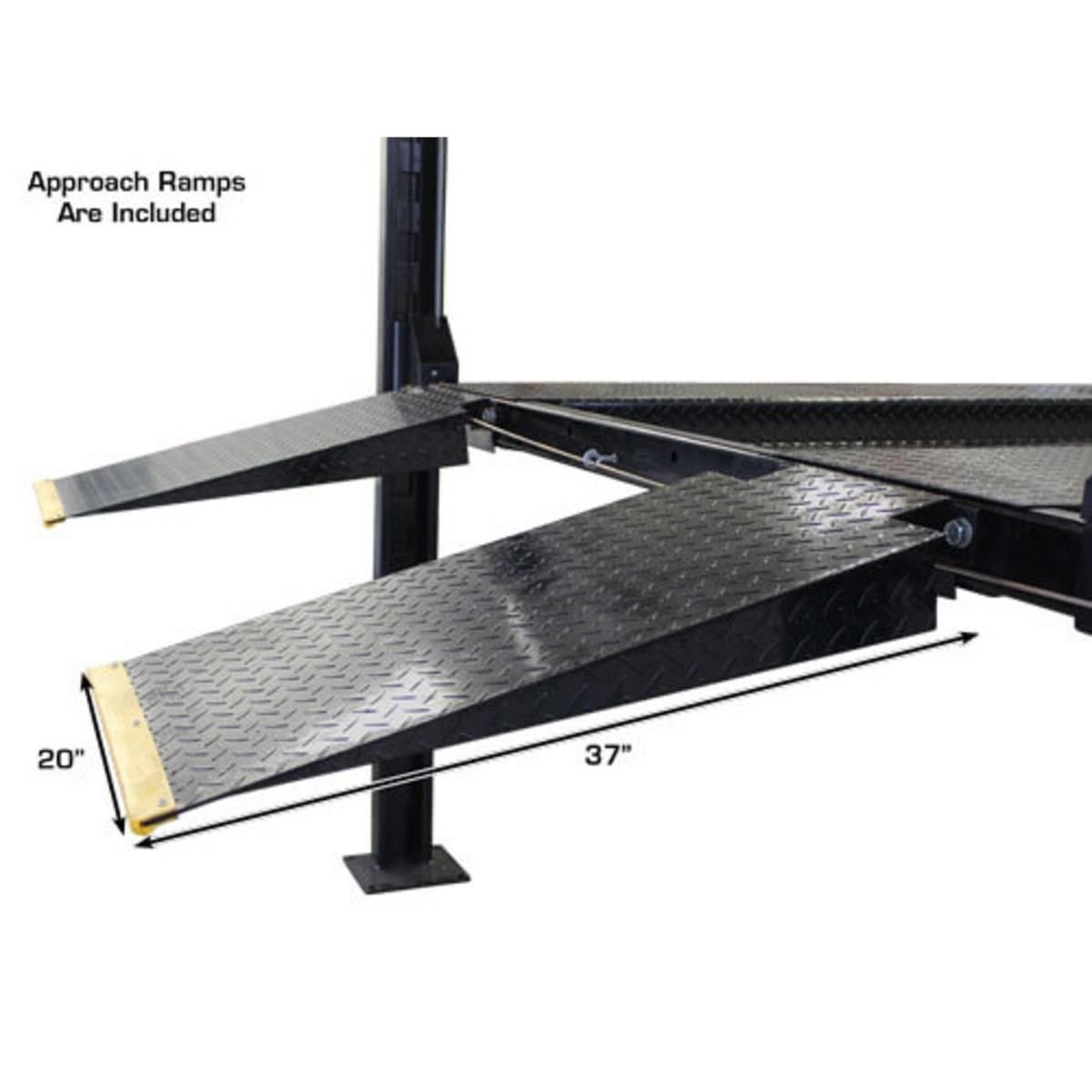

| Approach Ramp Length | 37″ (3′ 1″) |
| Runway Width | 22″ (with rails) or 18 3/4″ (driving surface) |
| Runway Length | 185″ (15′ 5″) |
| Runway Thickness | 4 1/2″ |
| Width Between Runways | 38″ (3′ 2″) |
| Width Between Runway Rails | 34″ (2′ 10″) |
| Outside Runway to Outside Runway | 77 3/4″ (6′ 5 3/4″) |
| Clearance Between Columns | 98″ (8′ 2″) |
| Length Between Columns | 176 1/2″ (14′ 8 1/2″) |
| Maximum Wheelbase | 173″ (14′ 5″) |
| Drive Thru (Outside Tire to Outside Tire) | 84″ (7′) |

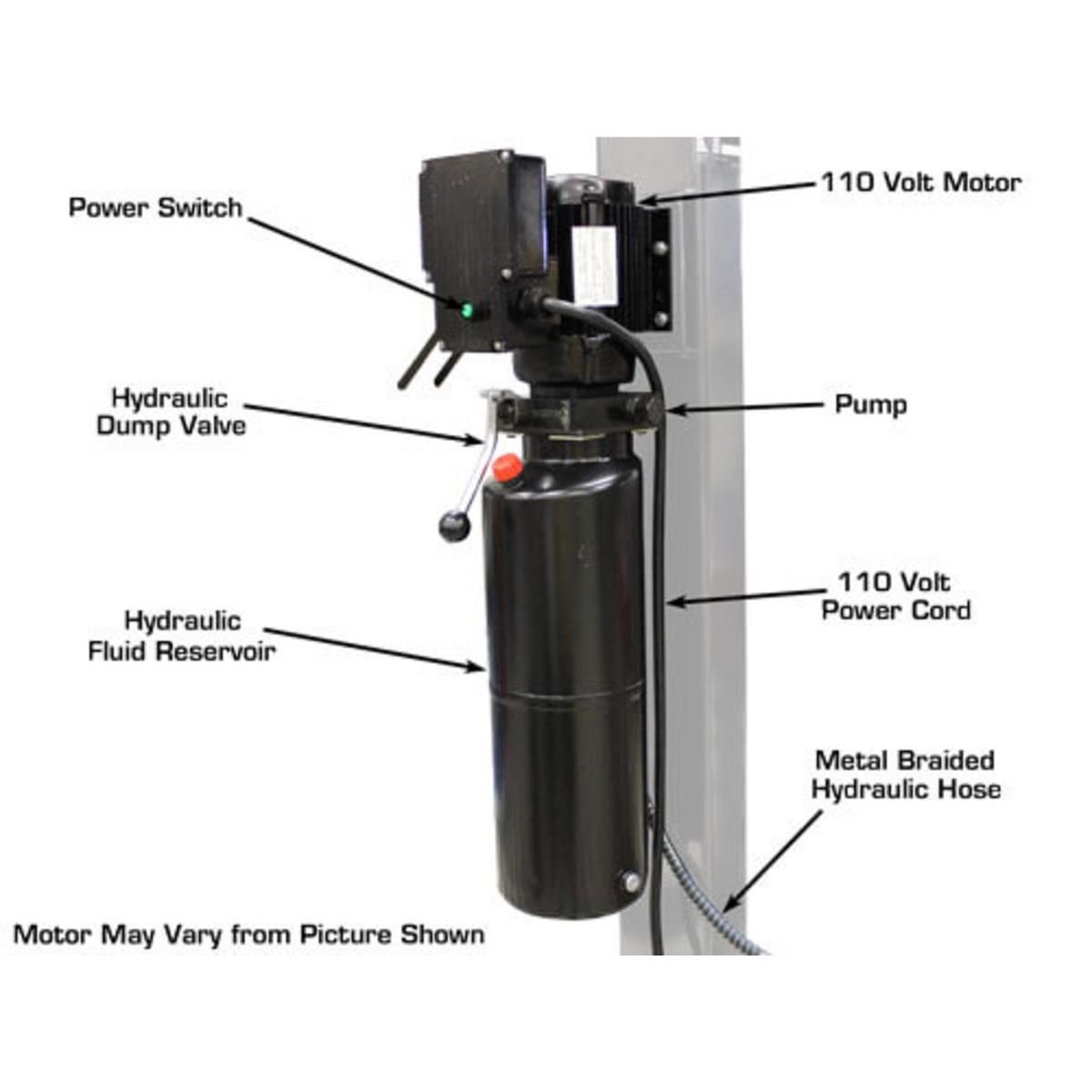

| Motor / Electrical Requirement | 110 volt – 30 amp breaker required |
| Shipping Weight | 1,900 lbs. |
Atlas® Garage Pro Lifts Cylinder Bleeding Procedure (Perform immediately after installation)
