Atlas TTC301 Truck Tire Changer + WBT-210 Heavy Duty Wheel Balancer Combo
Price range: $6,249.13 through $6,585.13
Description

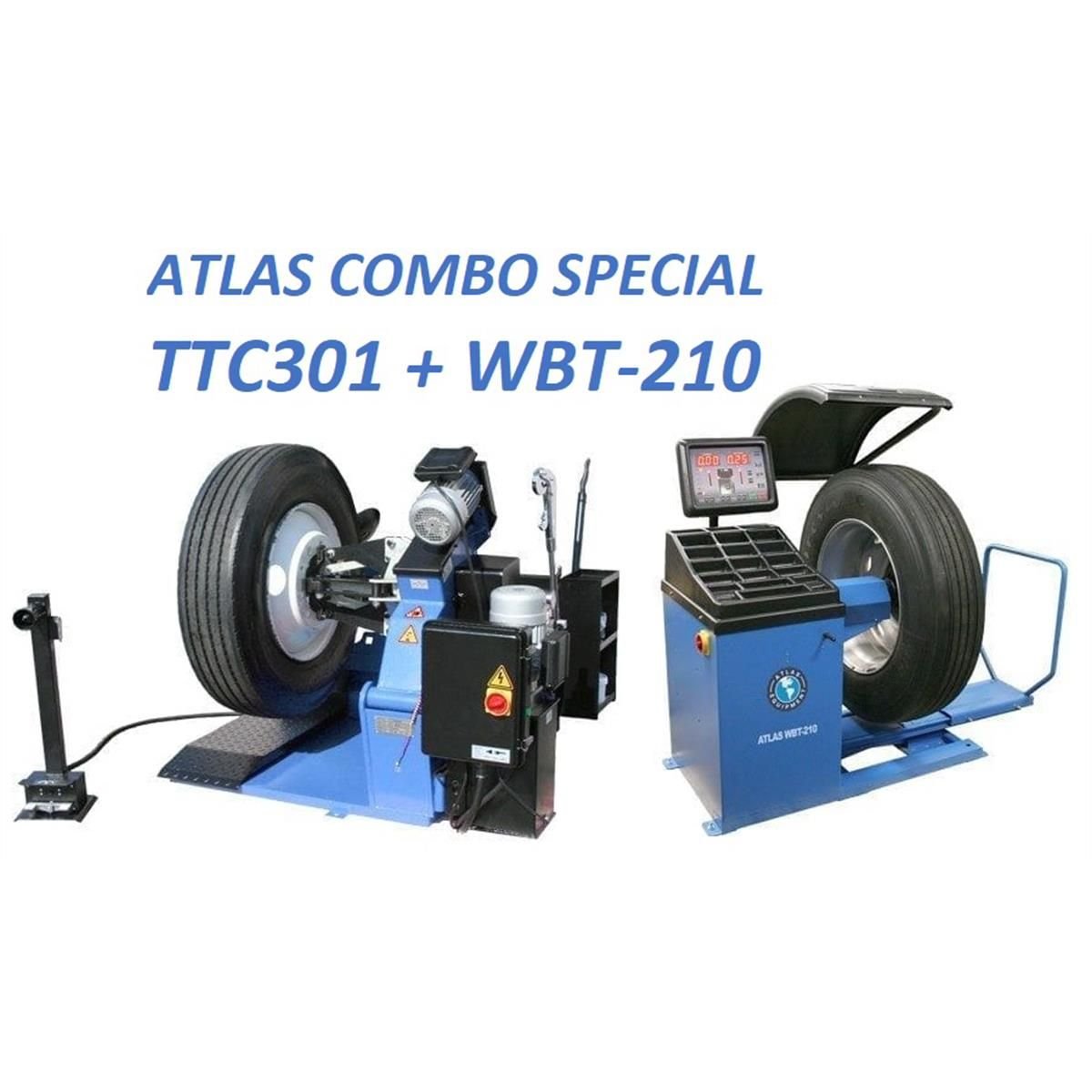

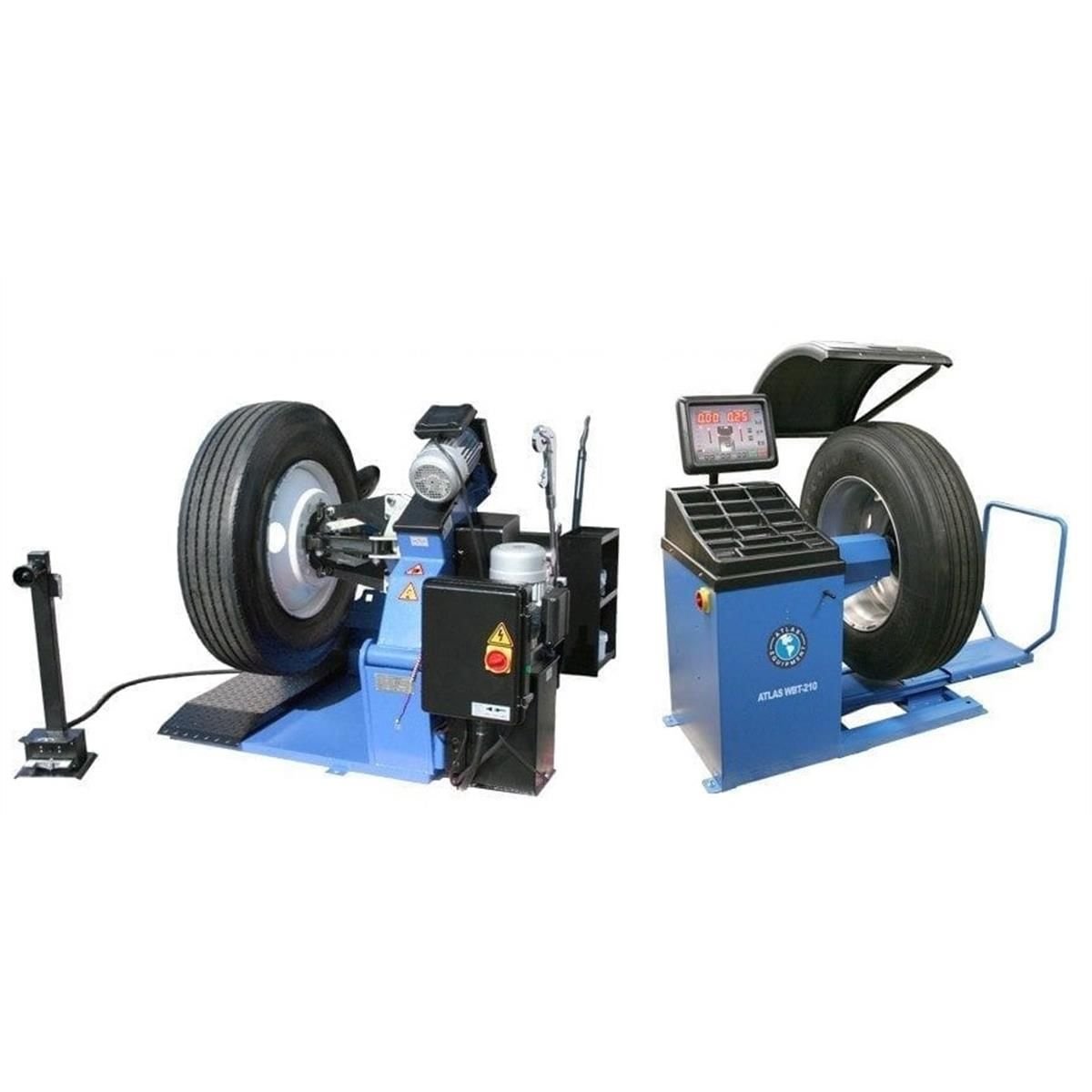

This combo package includes the Atlas® TC301 truck tire changer and the heavy-duty computerized Atlas® WBT-210 wheel balancer.
The Atlas® TC301 is engineered for demanding truck tire applications, handling rim sizes from 13″ to 27″ and tire diameters exceeding 63″. It can accommodate tires up to 30 1/2″ wide. This model has been distributed worldwide for several years and was developed through a joint venture between a highly regarded Italian wheel service manufacturer and a leading wheel service equipment manufacturer in Asia.
The Atlas® WBT-210 is designed for shops that require a single balancer capable of servicing everything from a 14-inch steel passenger rim to a 300-pound semi-truck tire. Large 32-inch custom wheels and oversized off-road “gumbo-mudders” can also be balanced efficiently on this computerized unit.
The WBT-210 is well suited for trucking operations that service passenger cars, light trucks, and over-the-road tractor/trailer rigs. Its heavy-duty 40 mm shaft supports standard mounting cones for most cars and pickups, while the included large truck adapters allow mounting and balancing of most BUDD-style wheels.
Please note that if you order an Atlas item, your delivery location must be accessible to a 53-foot truck.
Features
TTC301
- Standard Truck Tire Changer
- Handles Rims from 13″ to 27″ and Tire Diameters Over 63″
- Accommodates Tires Up to 30 1/2″ Wide
- Bead Breaker
- Mount/Demount Head
- Electric/Hydraulic Self-Centering Four-Jaw Chuck
- Five Different Rim Locking Positions
- Wired Mobile Control Unit
- Heavy-Duty Tire Tool Included
- Rim Clamps for Steel and Alloy Wheels Included
- Alloy Rim Adapter Set with Plastic Inserts Included
- 1-Year Parts-Only Warranty
WBT-210
- Computer-Controlled Heavy-Duty Spin Balancer
- Cone Sets for Car and Light Truck Tires
- Cone and Spacer Set for Truck, Bus, or Implement Tires
- Plastic Quick-Release Nut Included
- Heavy-Duty Steel Wing Nut Included
- Pneumatic Wheel Lift (External Air Supply Required)
- Automatic Start/Stop When Hood Is Lowered or Raised
- Static and Dynamic Balancing Modes
- Rapid Optimization (OPT)
- Self-Diagnosis
- Self-Calibration
- High Stability in Measuring Imbalance Between Planes
- Displays in Grams or Ounces, and in Millimeters or Inches
- Wheel Weight Pliers Included
- Wheel Width Calipers Included
- Replacement Parts & Wear Items Always in Stock
- 1-Year Parts-Only Warranty
Specifications
Atlas® TTC301 Specifications
| Rim Clamping Range | 13″ – 27″ |
|---|---|
| Minimum Clamping Size with Alloy Adapters | 6 3/8″ |
| Max Wheel Weight | 3,300 lbs. |
| Max Tire Diameter | 63″ (5′ 3″) |
| Max Tire Width | 30 1/2″ (2′ 6 1/2″) |
| Clamping Power | 6,614 lbs. |
| Operating Pressure | 0–1885 PSI |
| Acoustic Pressure | <70 dBA |
| Bead Breaker Force | 4,112 lbs. |
| Tool Arm Positioning | Manual |
| Tool Head Positioning | Manual |
| Construction | Single-Piece Frame with Solid Floor Plate |
| Hydraulic Motor Power | 2 HP, 220V (+/- 5% 209–231 volts), 1 phase (30 amp breaker required) |
| Chuck Motor Power | 3 HP, 220V (+/- 5% 209–231 volts), 1 phase (30 amp breaker required) |
| Shipping Weight | 1,390 lbs. |
Atlas® WBT-210 Specifications
| Max Tire Diameter | 47″ |
|---|---|
| Rim Sizes (Cars and Light Trucks) | 10″ – 32″ |
| Rim Width | 1 1/2″ – 20″ |
| Shaft Size | 40 mm |
| Max Wheel Weight | 440 lbs. |
| Balancing Speed | 150 rpm (Car/Light Truck Mode) / 90 rpm (Truck Mode) |
| Data Entry | Manual Entry for All Dimensions |
| Measurements | Standard or Metric |
| Accuracy | 1 gram (Car/Light Truck Mode) / 10 gram (Truck Mode) |
| Weight Position Resolution | 1.4 Degrees |
| Self Calibration | Yes |
| Motor | 1/3 HP |
| Air Requirement | 115–140 PSI (MUST NOT EXCEED 140 PSI) |
| Power Supply | 220V +/- 5% (209–231 volts), 1 phase (30 amp breaker required) |
| Shipping Weight | 725 lbs. |
