Atlas OHX10000X 10,000 lb Extra Tall 2-Post Lift
Price range: £1,993.15 through £2,172.35
Description

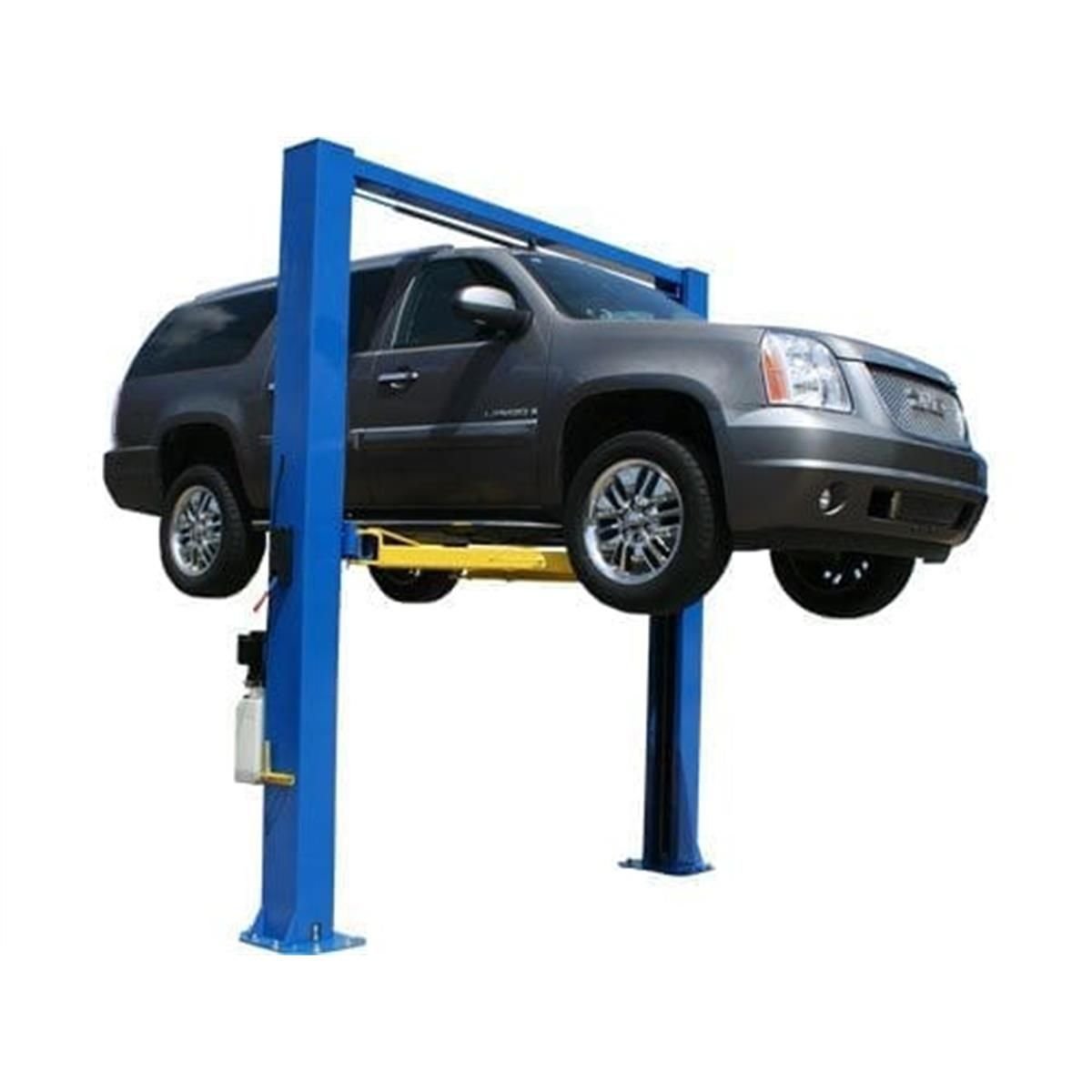

The Atlas® OHX10000X two-post commercial-grade above-ground lift is an excellent solution for large commercial repair shops as well as homeowners who expect premium quality at the best possible value. The Atlas® OHX10X is a TRUE 10,000 lb. capacity two-post lift designed to deliver outstanding performance and reliability.

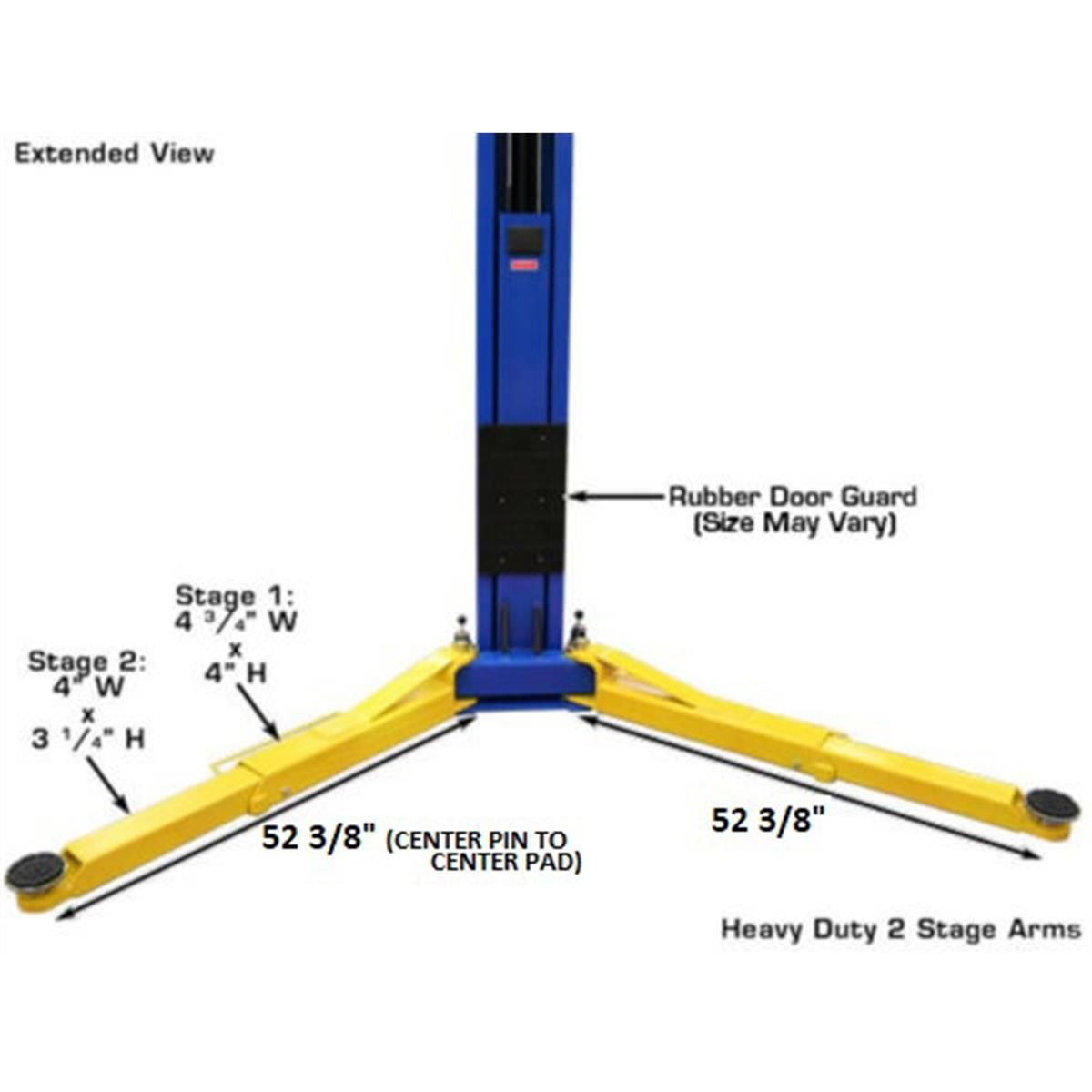

With its generous drive-through width, extended arm length, and arm configuration, the Atlas® OHX10000X is engineered to lift a broad range of vehicles, including longer wheelbase models such as one-ton diesel dually trucks. The additional lifting height and increased space between the columns allow technicians to service vehicles of various sizes and provide approximately 6 inches of extra clearance when driving through to another area of the building or when lifting taller vehicles such as vans or ladder trucks. For operators taller than 6′ 1″, the Atlas® OHX10X features longer cylinders, enabling the vehicle to be raised approximately 3 inches higher than many comparable lifts.
The Atlas® OHX10X features a single-piece 12′ 7″ formed column combined with an extended carriage for enhanced column and arm strength, ensuring stable support for vehicles up to 10,000 lbs. Because of the one-piece column design, a minimum ceiling height of 13 feet is required for installation.
Please note that if you order an Atlas item, your delivery location must be accessible to a 53-foot truck.
Features
- 10,000 lb. Capacity
- Commercial Grade
- Extra Tall & Extra Wide Design

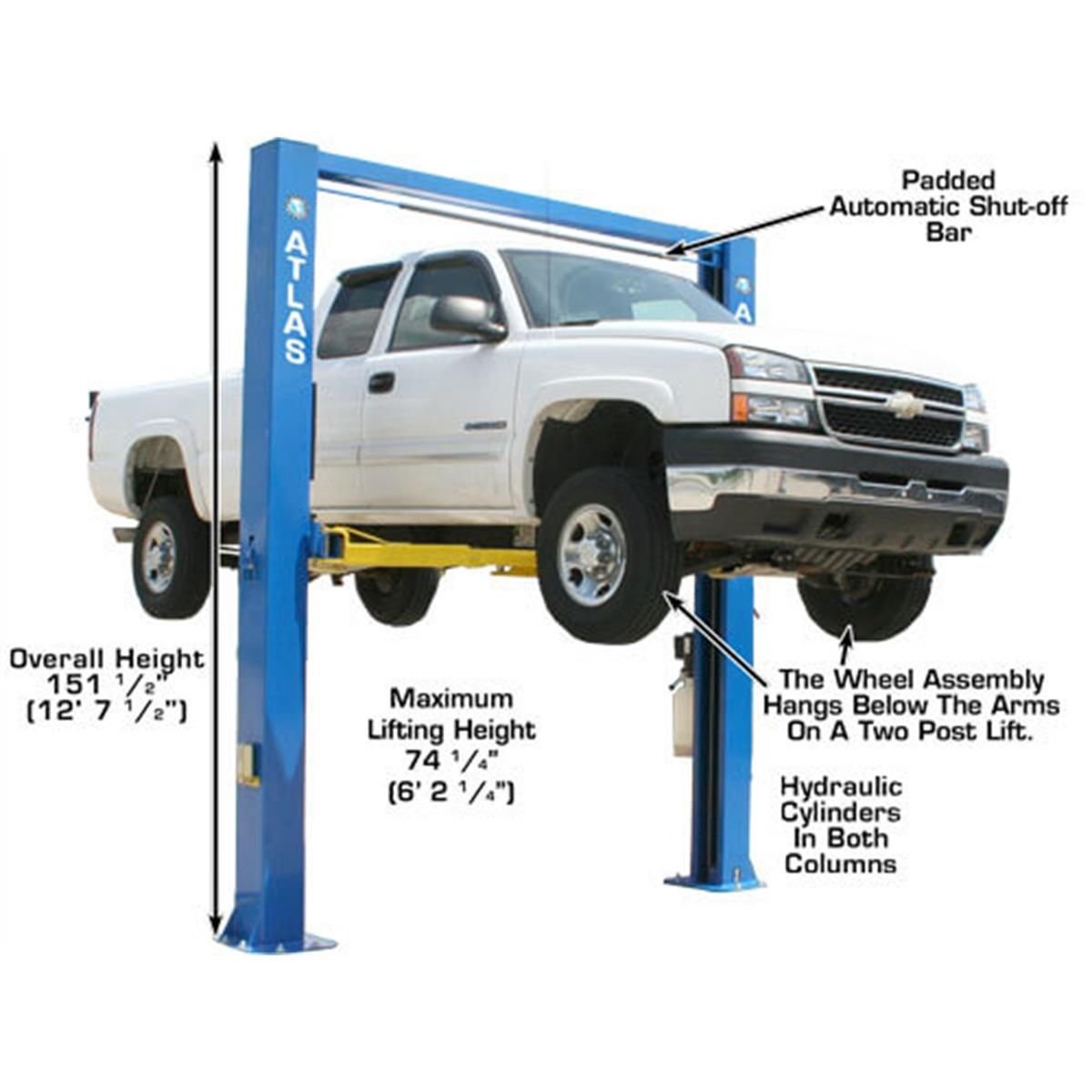

- Overall Height: 152″ (12′ 8″)

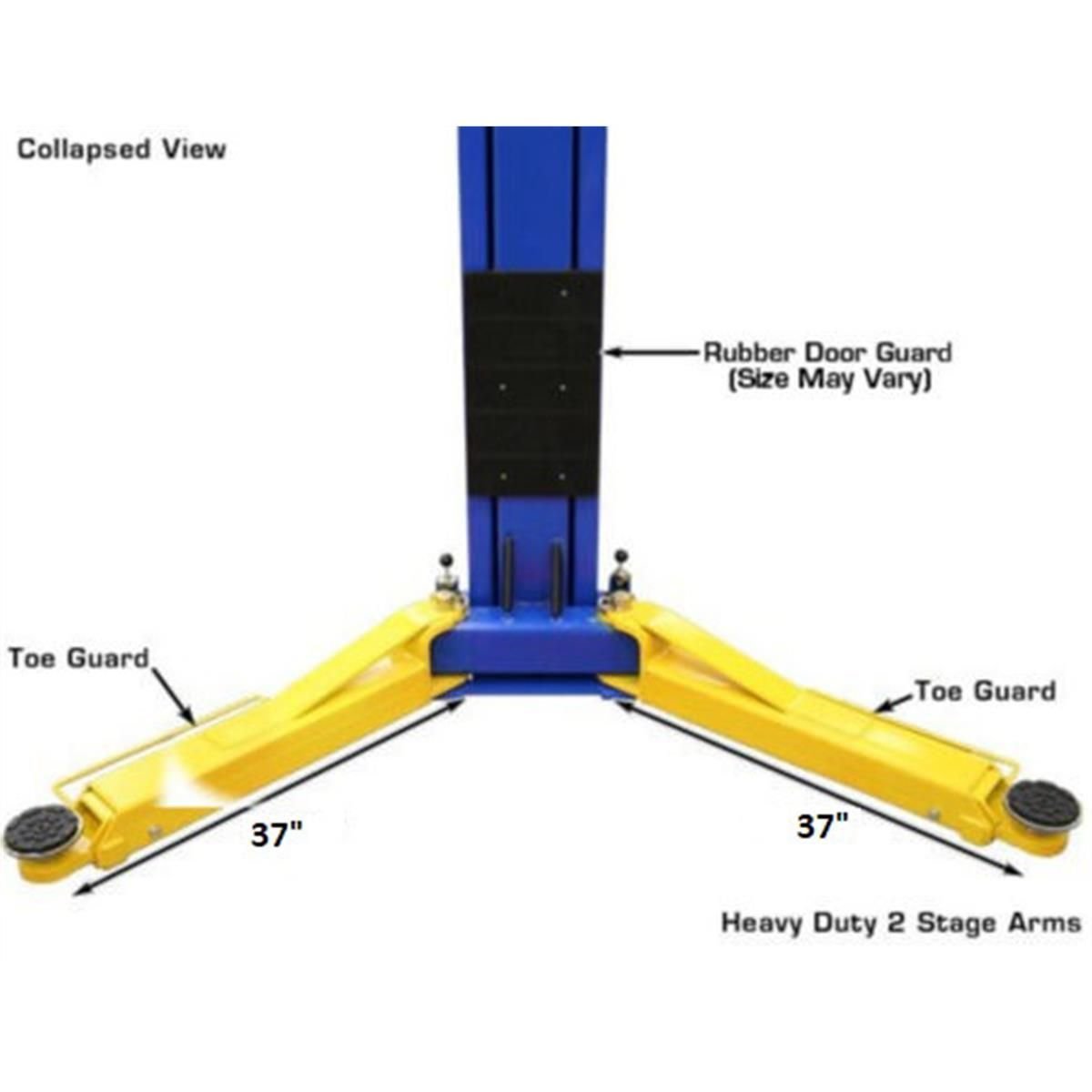

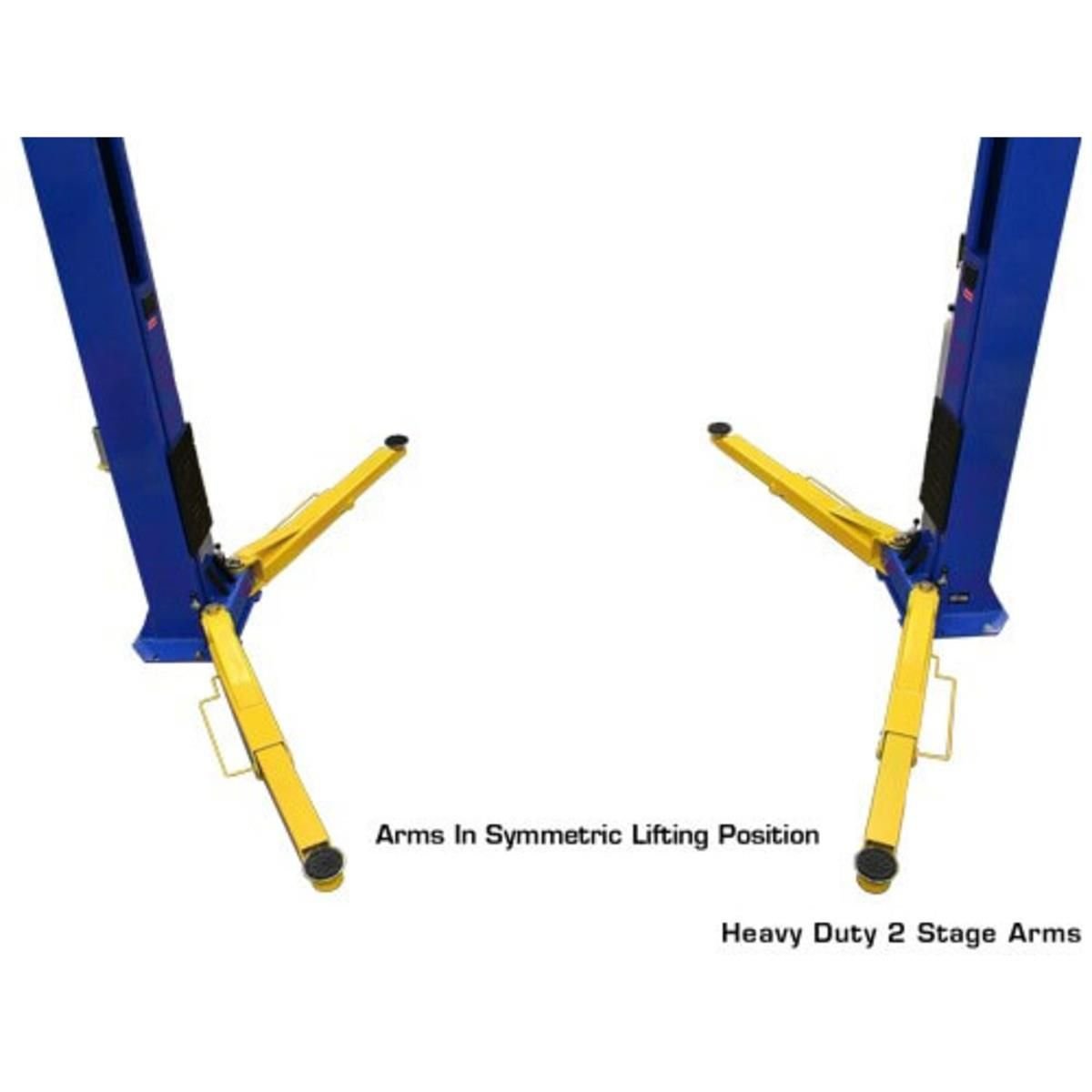

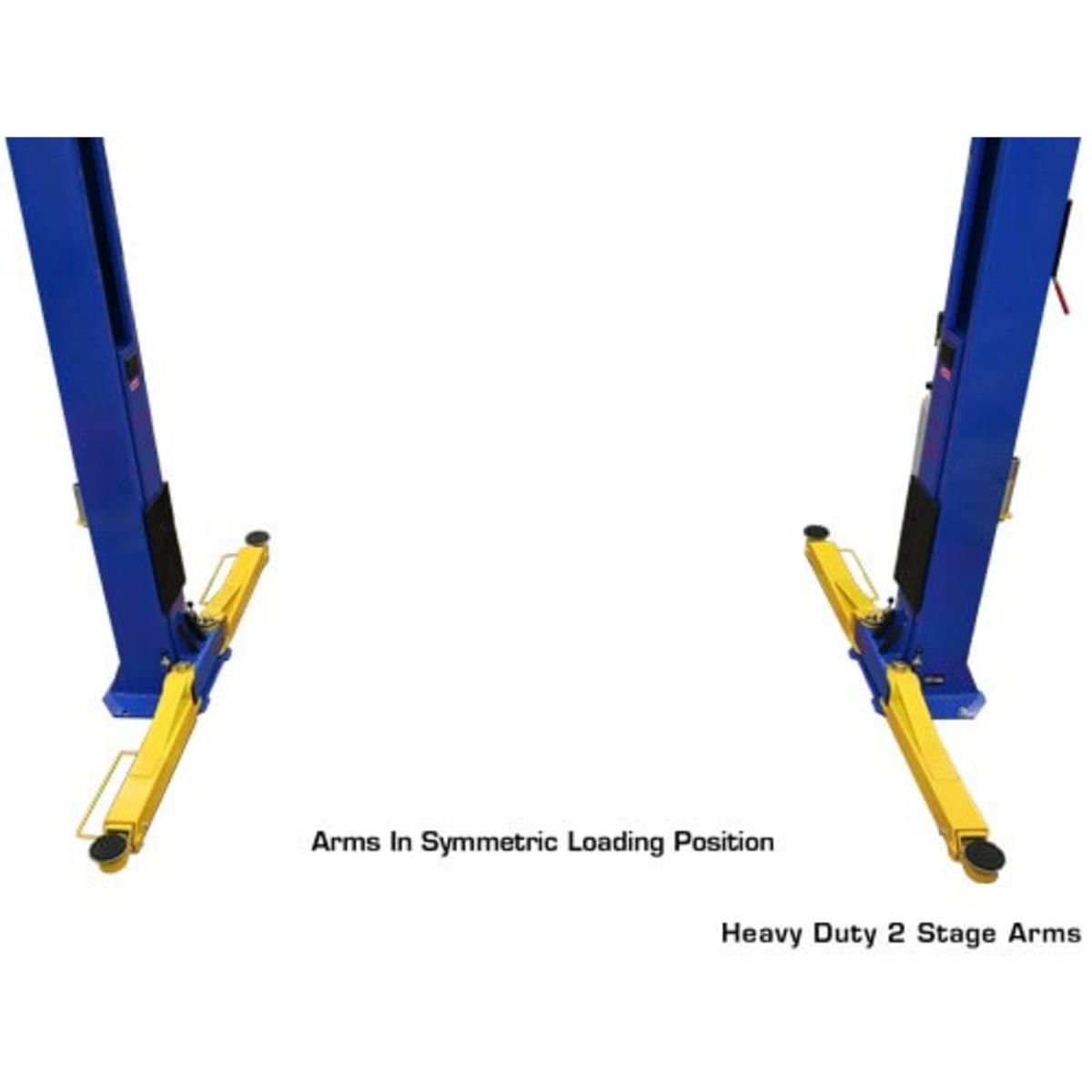

- Symmetric Arms
- Automatic Arm Restraints
- “Padded” Shut-Off Bar
- Rubber Covers on Carriages
- Single-Point Lock Release

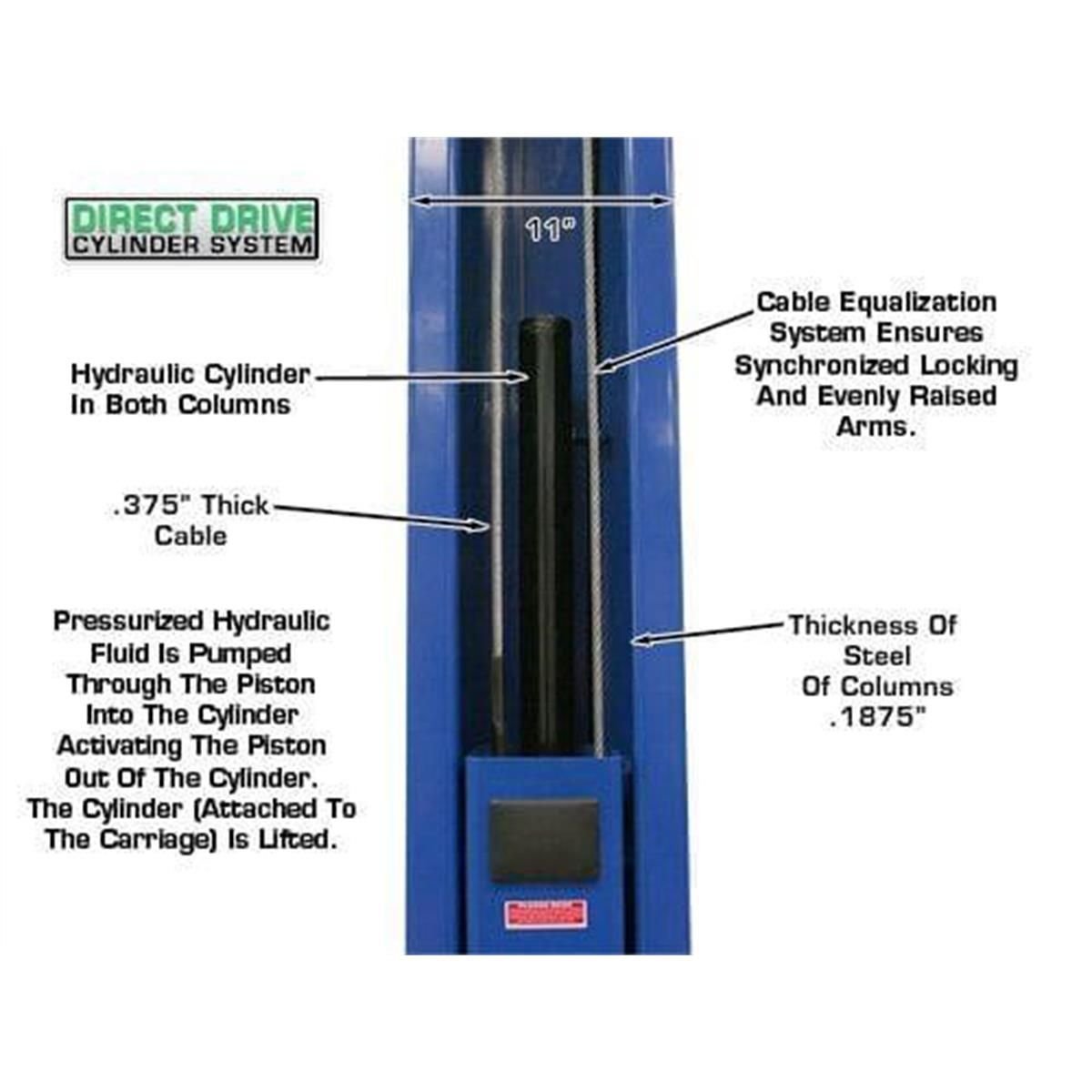

- Dual Direct-Drive Cylinders
- Powder Coat Finish
- Free 12-Piece Truck Adapter Set

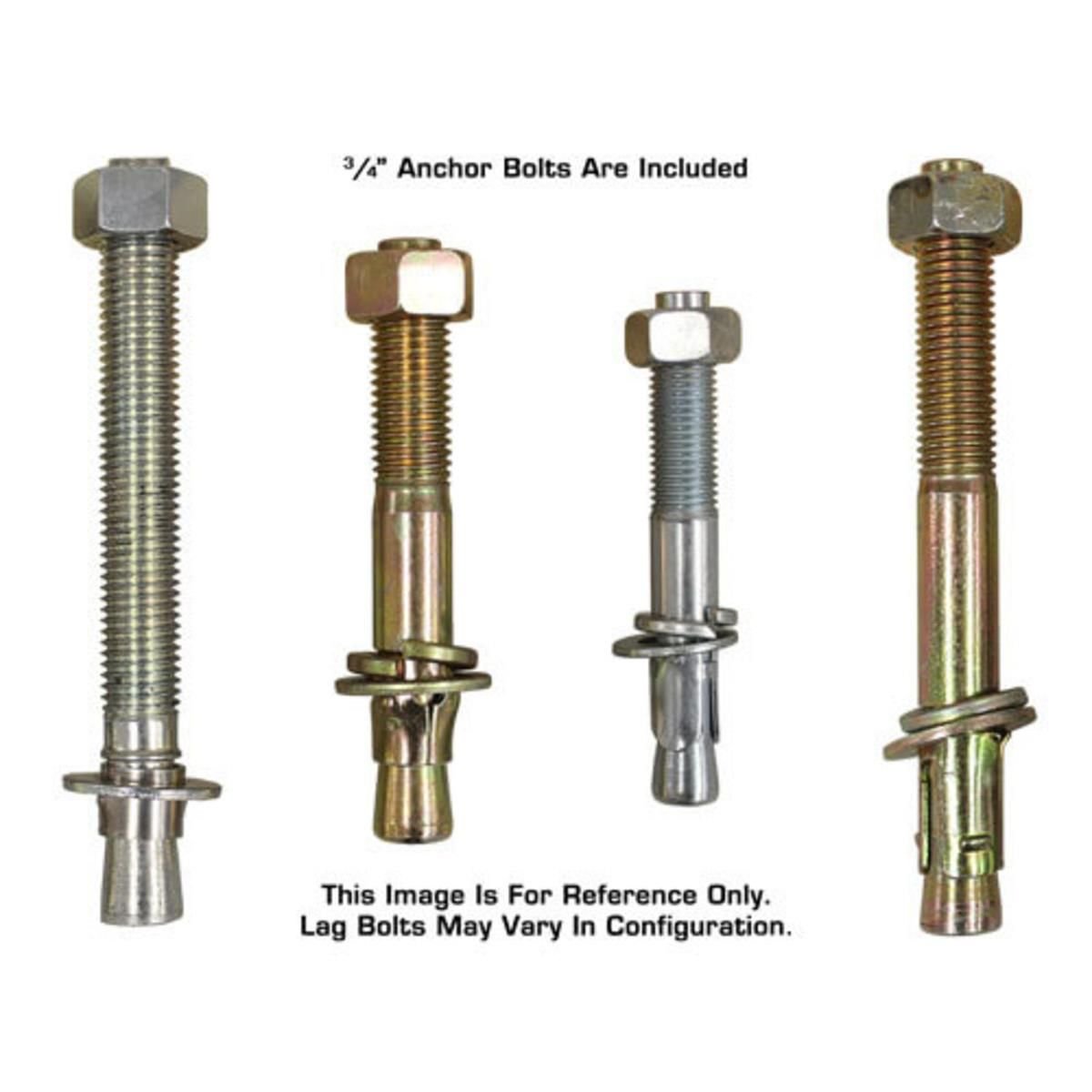

- Mounting Hardware Included

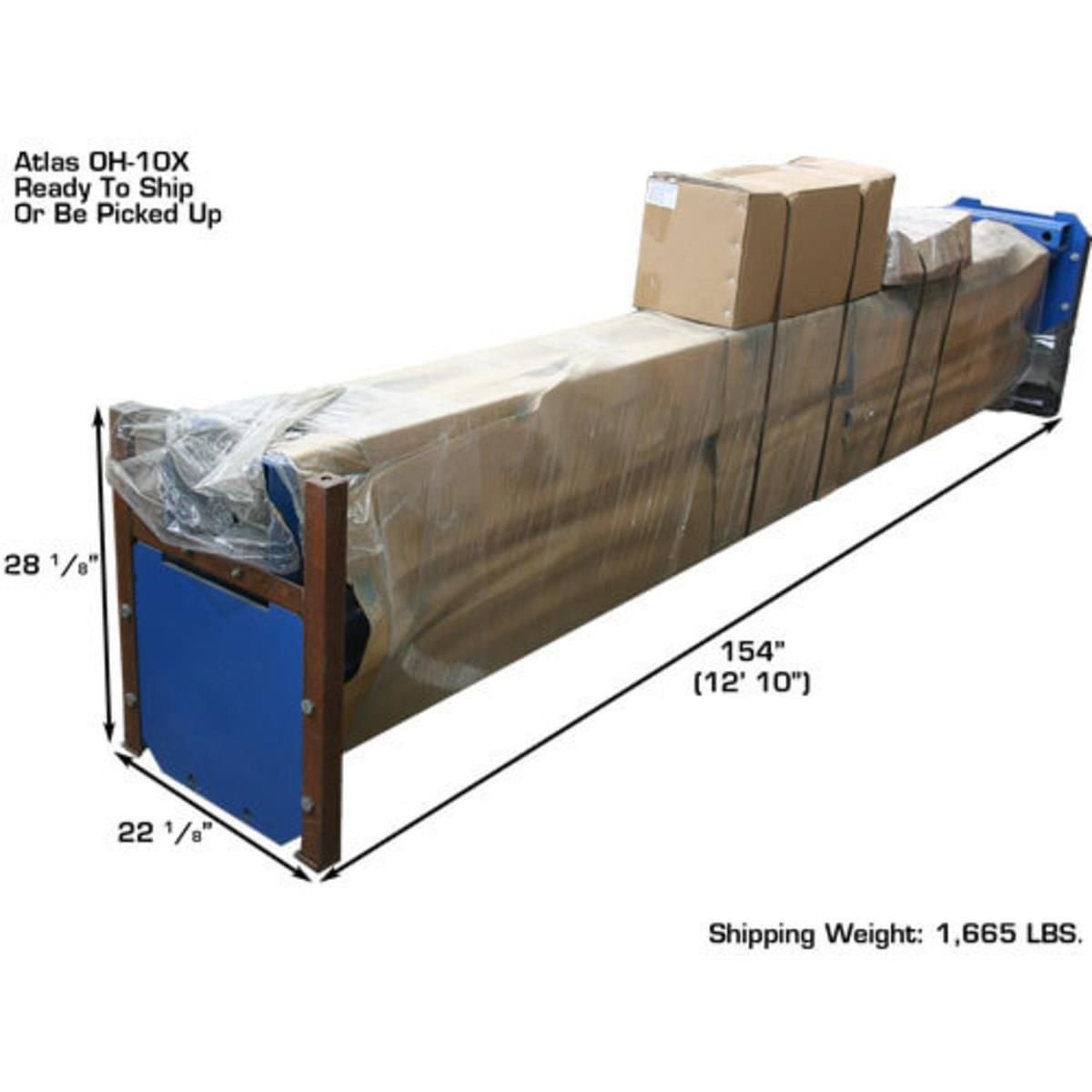

- Shipping Weight: 1,665 lbs
- 5-Year Structural – 2-Year Hydraulic Warranty – Parts Only
Specifications
Atlas® ATTD-OHX10000X Specifications
| Capacity | 10,000 lb. |
|---|---|
| Overall Height | 152″ (12’ 8”) |
| Overall Floor Width | 144 3/8″ (12’ 3/8″) |
| Outside Column to Outside Column | 136″ (11’ 4″) |
| Maximum Lift Height (Without Adapters) | 74 3/4″ |

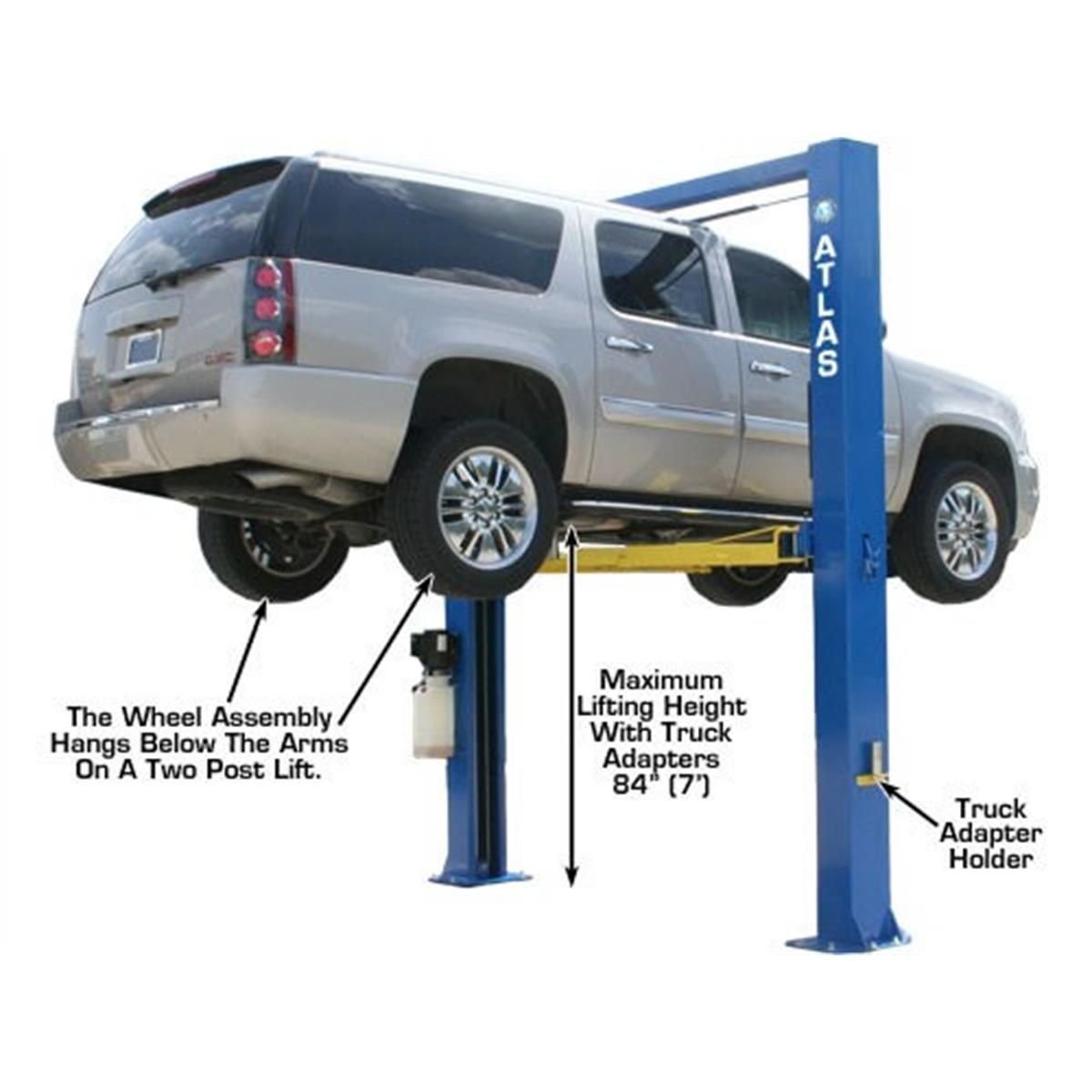

| Maximum Lift Height (With Adapters) | 85 3/4″ |
| Minimum Arm Height | 4 1/2″ |
| Inside Column | 118 1/4” (9’ 10 1/4”) |
| Drive Thru | 106 7/8” (8’ 10 7/8”) |

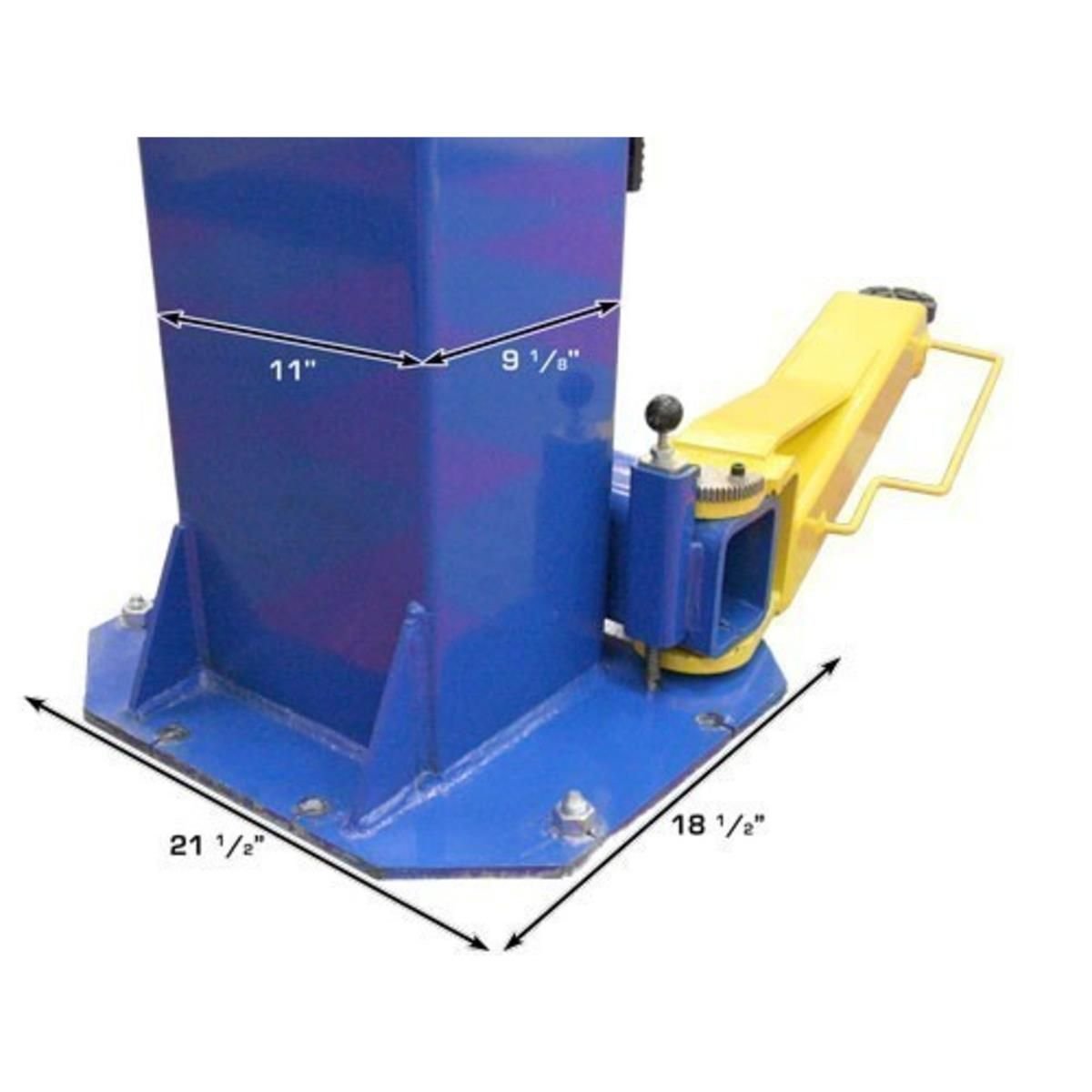

| Column Size | 9 1/8″ x 11″ |
| Column Thickness of Steel | 5 mm |
| Base of Lift | 18 1/2″ x 21 1/2″ |

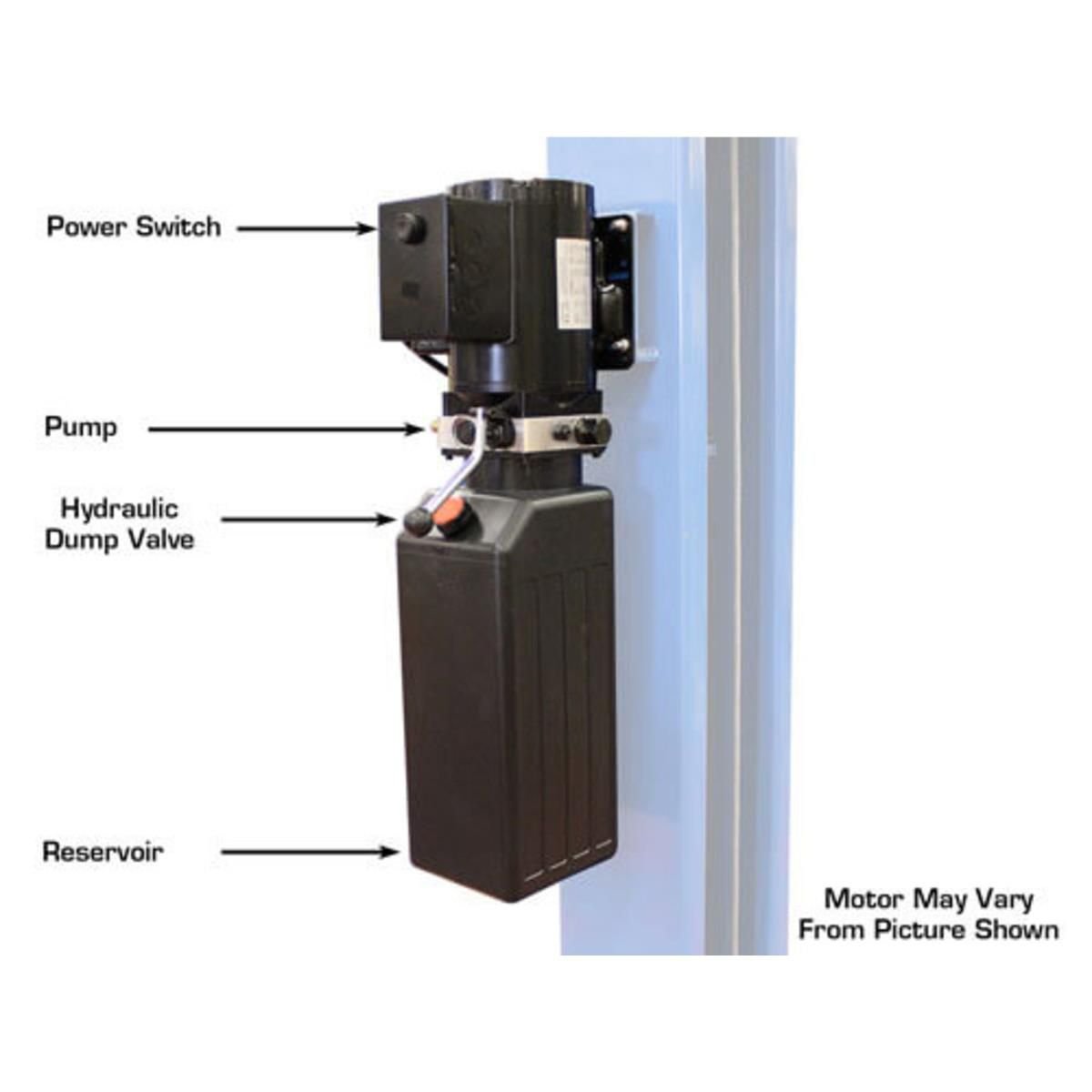

| Motor/Electrical Requirement | 220 volt single (1) phase (30 amp breaker recommended) |
| Oil Requirement | 3–5 Gallons AW32/AW46 (NOT INCLUDED) |
| Shipping Weight | 1,665 lbs |
| Adapter Heights | 4 Each: 2”, 3”, 6” |
| Arm Hole/Adapter Peg Size | 1.5” |
Requires a minimum of 4″ thick concrete with a 3,000 PSI rating.
