Atlas TC229 Tire Changer + PWB50 Wheel Balancer Combo Package
Price range: $2,463.55 through $2,642.74
Description
This combo package features the Atlas® TC229 rim-clamp swing arm tire changer paired with the Atlas® Platinum PWB50 computerized spin balancer. It is well-suited for commercial shops that need reliable equipment for mounting, demounting, and balancing tires. Both units operate on 110 volts and are CE approved. The Atlas® TC229 includes a 1-year parts-only warranty, while the Atlas® Platinum PWB50 comes with an extended 2-year parts-only warranty.
Features

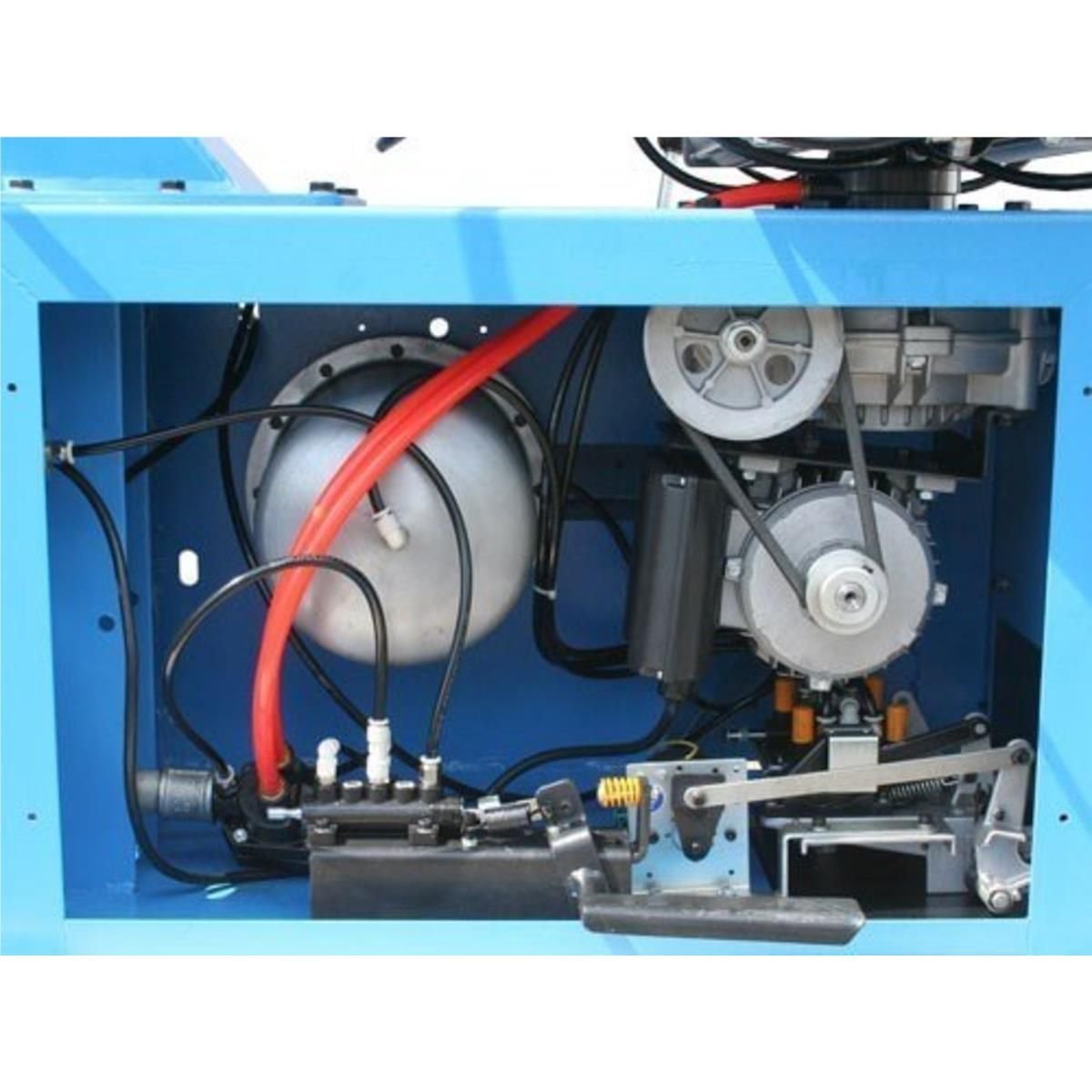

TC229 Tire Changer
- Rim Clamp / Swing Arm Tire Changer
- Air-operated jaws and bead breaker (external air supply required)
- Electric turntable
- Adjustable jaws with three mounting positions
- Metal mount/demount head with metal roller or replaceable plastic inserts
- Column-mounted inflator box with gauge included
- Filter / Regulator / Lubricator included
- 20″ Tire Tool included
- Lube bucket with brush included
- Set of large plastic jaw covers included
- Plastic cover for bead breaker shovel included
- Multiple replacement plastic inserts for mount/demount head included
- Built-in “Beadblaster”
Please note: If ordering an Atlas item, the delivery location must be capable of accommodating a 53′ truck.
PWB50 Wheel Balancer
- Platinum computer-controlled motorized spin balancer
- Italian engineering and components
- Automatic and pedal-operated brake
- Automatic start/stop when hood is lowered or raised
- Static and dynamic balancing modes
- Optimatch, FES (Split), and OPF (Opposite Position) functions
- Special ALU-S and additional ALU programs
- Automatic 2D data entry
- NWN (No Wheel Need) system
- Self-diagnosing and self-calibrating
- USB hub for firmware updates via PC or notebook
- Exceptional stability in detecting unbalance between planes
- Displays in grams or ounces, and in millimeters or inches
- No anchor-down installation required
- Includes plastic quick-release nut, 4 centering cones, wheel weight pliers, and measuring calipers
Specifications
Atlas® TC229 Specifications
| Rims | Steel, Aluminum, Alloy |
|---|---|
| External Locking Rim Dimension (3 Positions) | 1) 9 3/4″ – 21 5/8″ 2) 10 3/4″ – 22 1/2″ 3) 11 5/8″ – 23 1/4″ |
| Internal Locking Rim Dimension (3 Positions) | 1) 11 5/8″ – 23 1/4″ 2) 12 5/8″ – 24 1/4″ 3) 13 1/2″ – 25 1/4″ |
| Maximum Tire Diameter | 39″ |
| Maximum Wheel Width (Bead Breaker) | 13″ |
| Table Motor | 1 HP |
| Turntable Rotating Torque | 885 ft/lbs |
| Bead Breaker | 5,500 lb. Force |
| Air Requirement | 90–110 PSI (MUST NOT EXCEED 140 PSI) |
| Operating Voltage | 110 volt |
| Shipping Weight | 550 lbs. |
Atlas® Platinum PWB50 Specifications
| Max Tire Diameter | 43″ |
|---|---|
| Rim Sizes (Cars and Light Trucks) | 10″ – 30″ |
| Rim Width | 1 1/2″ – 20″ |

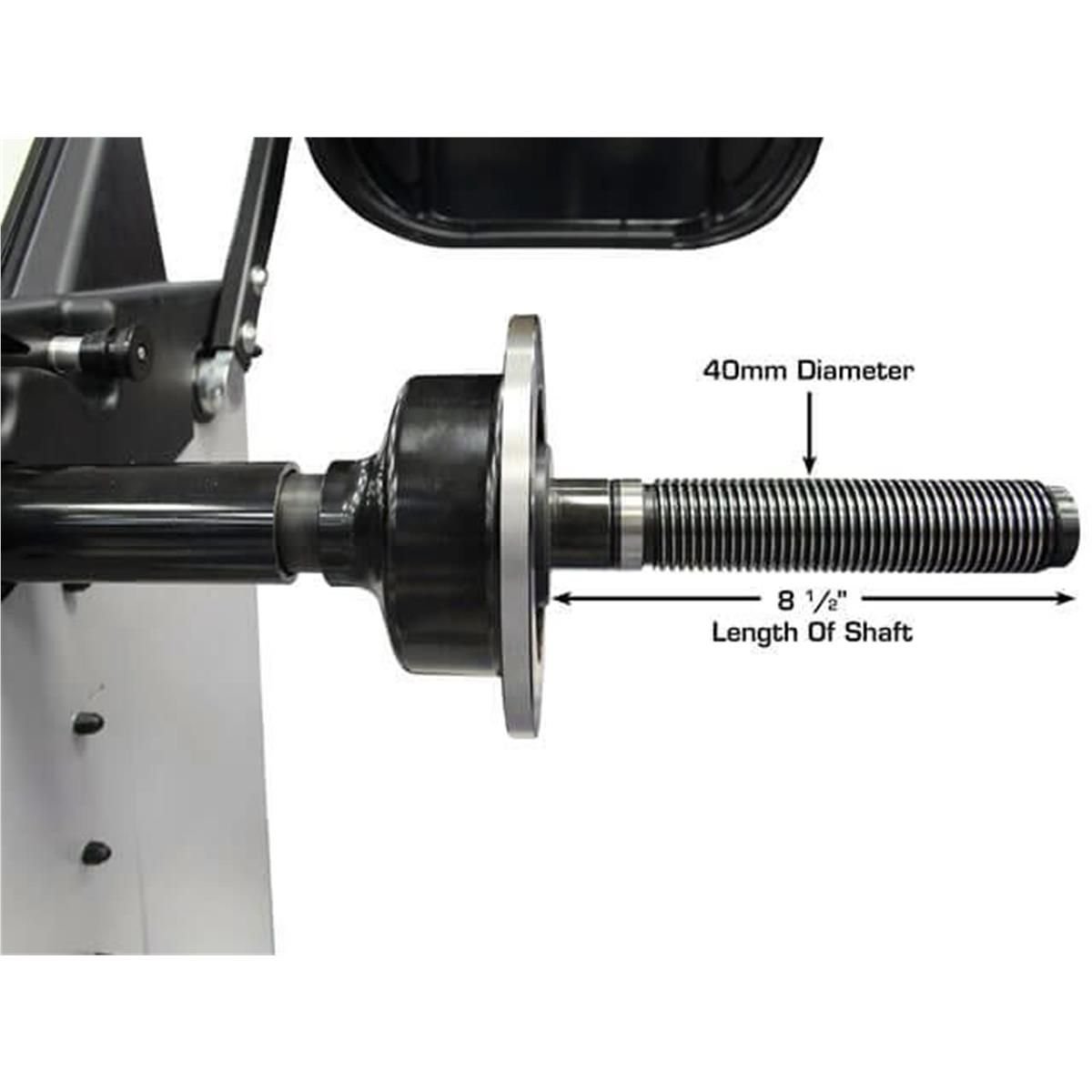

| Shaft Size | 40 mm |
| Max. Wheel Weight | 165 lbs. |
| Balancing Speed | 130 rpm |
| Data Entry | Automatic 2D |
| Measurements | Standard or Metric |
| Accuracy | 1 gram |
| Weight Position Resolution | 1.4 Degrees |
| Self Calibration | Yes |
| Cycle Time | 7 seconds |
| Power Supply | 110 volt |
| Shipping Weight | 230 lbs. |
