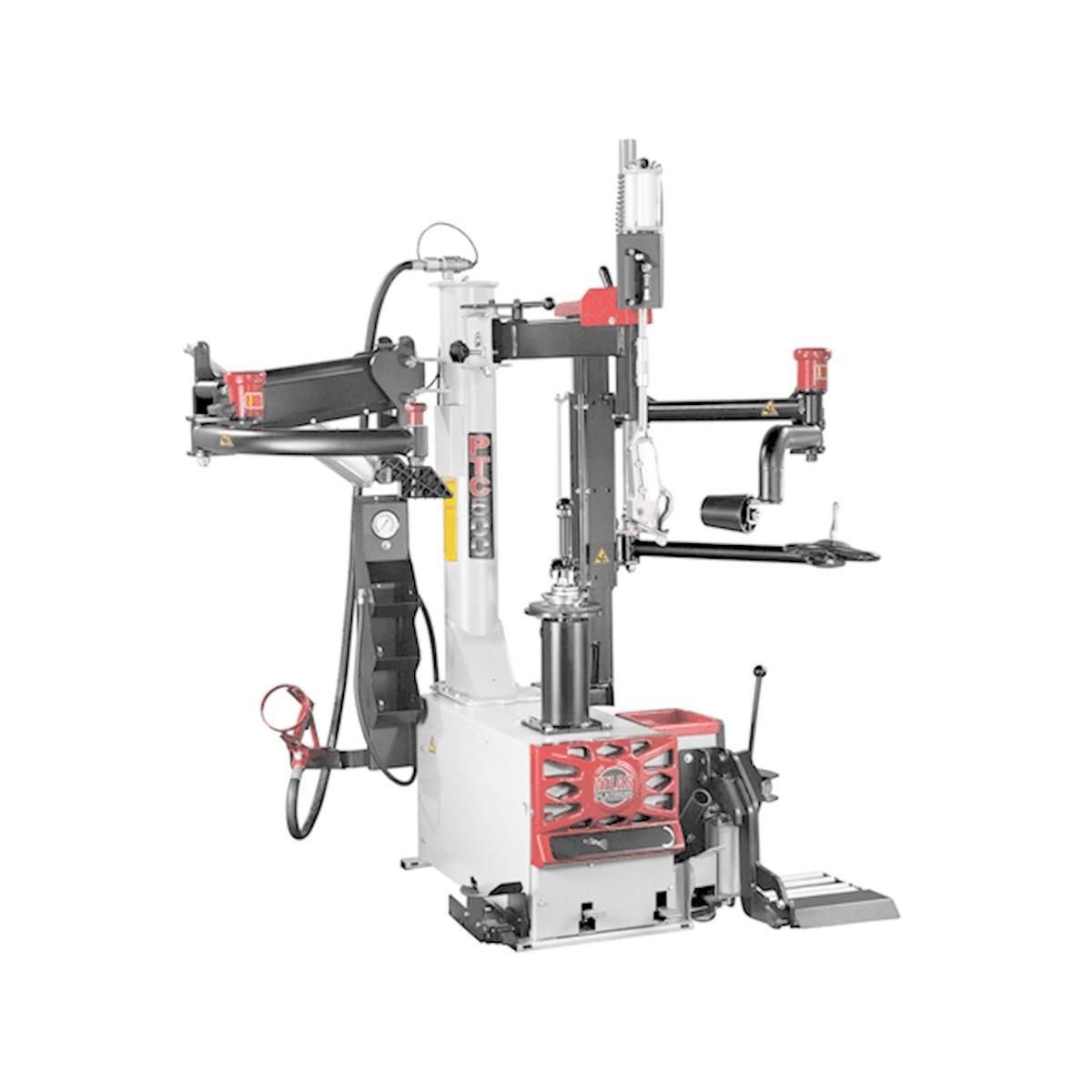

Atlas Platinum PTC500 Center Post Tire Changer w/ Assist Arms
Price range: £3,897.14 through £4,031.54
Description
The Atlas® Platinum PTC500 center-post tire changer is engineered for high-volume tire shops that regularly service the most demanding wheel and tire combinations on the market.
The Atlas® Platinum PTC500 incorporates patented, innovative features that distinguish it from conventional machines. The first is the “Lever/No-Lever System,” allowing the operator to perform tire changes either with a traditional tire lever or in a fully leverless configuration that eliminates the need for manual tools. The second key feature is the “Smart Lock” center-post system, which secures the wheel instantly with a simple lever action—removing the need to manually thread a center cone or manage complex pneumatic locking mechanisms.
An external bead seating system simplifies inflation of even the most difficult tire assemblies, and the integrated wheel lift reduces operator strain while helping prevent damage to expensive wheels.
The Atlas® Platinum line of wheel service equipment features high-quality Italian-designed components and engineering. Backed by a 2-year parts-only warranty, the PTC500 delivers premium performance and value in its class.

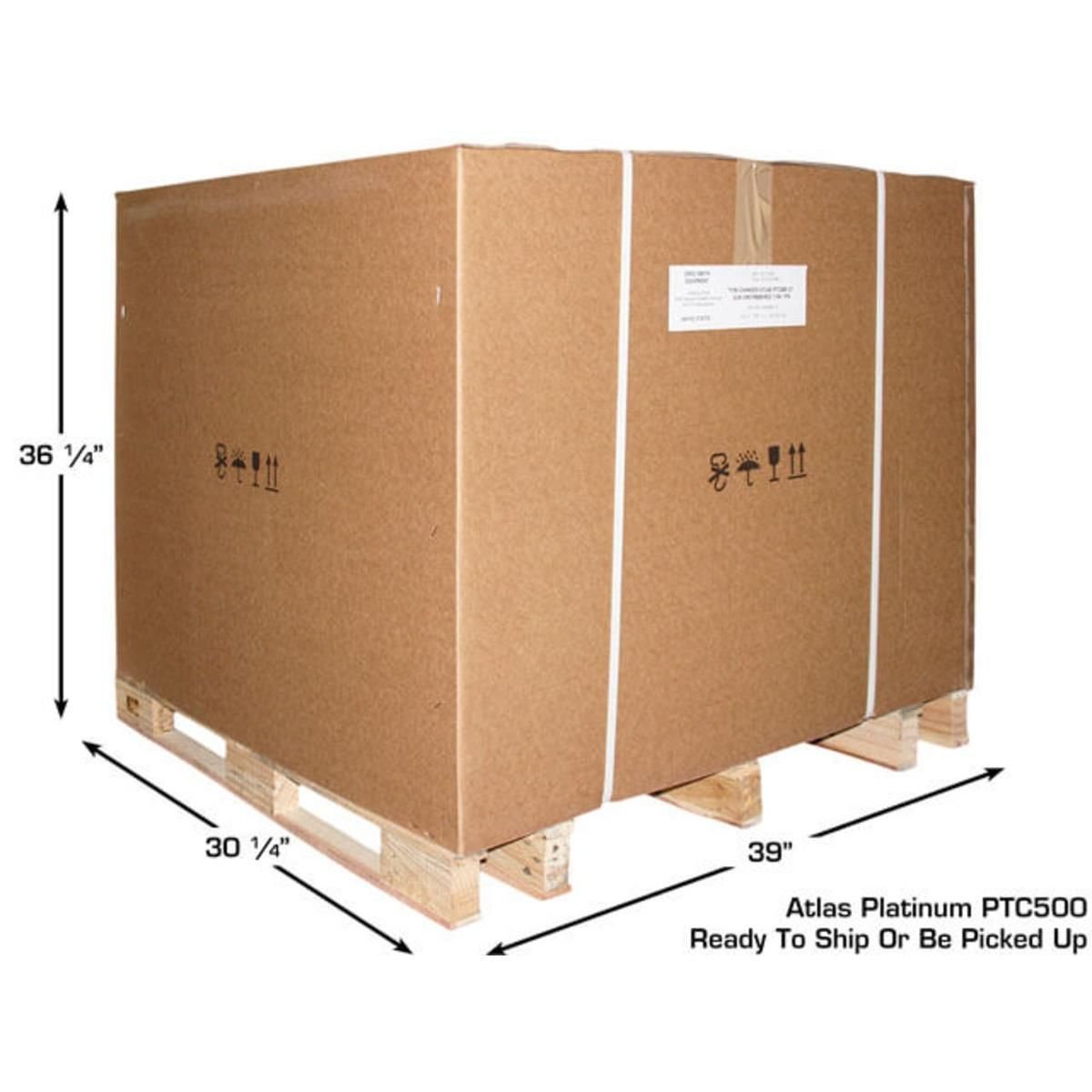

Please note: Delivery of any Atlas item requires access for a 53-foot truck.
Features
- Platinum Center-Post Tire Changer
- Dual Assist Arms Included

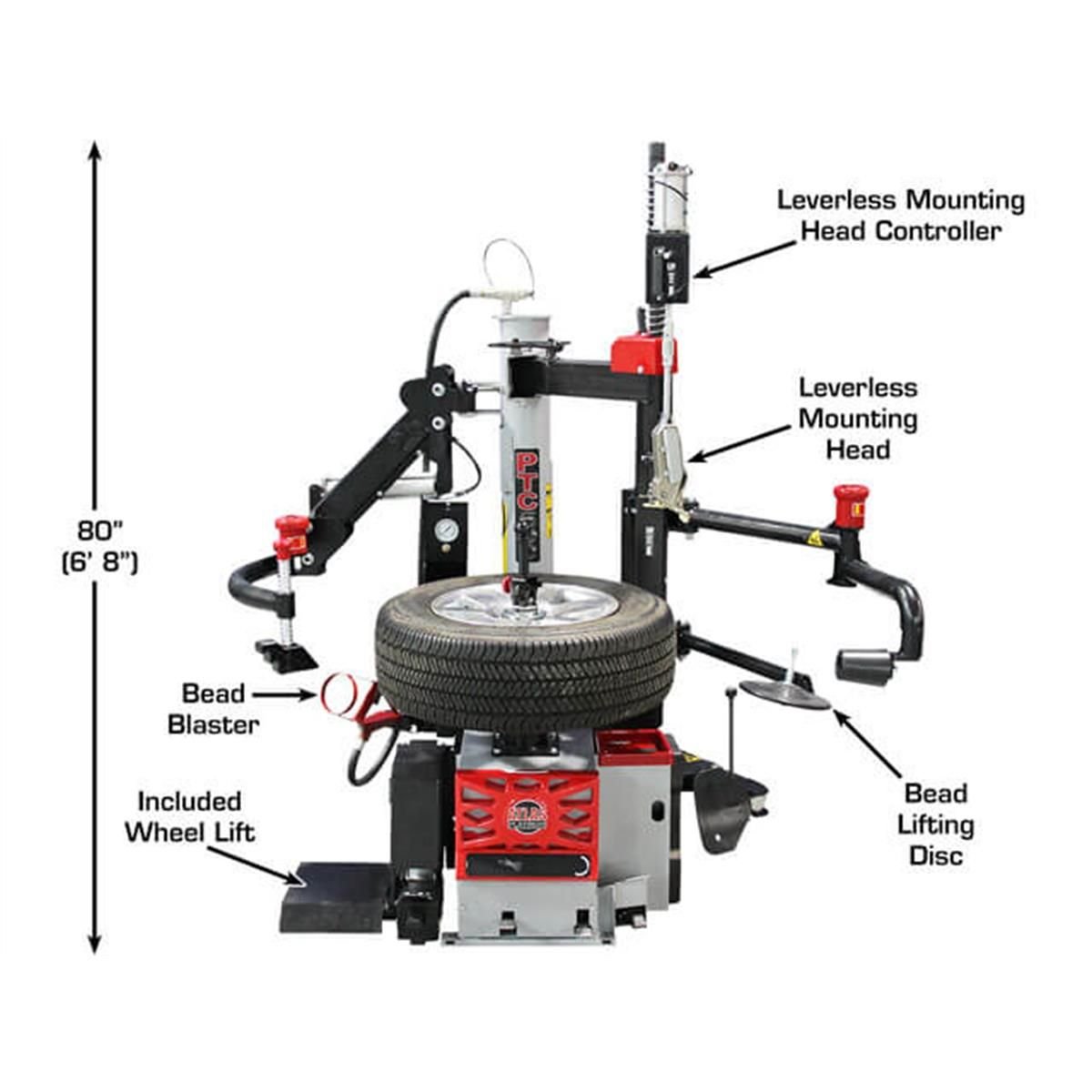

- Integrated Wheel Lift Included

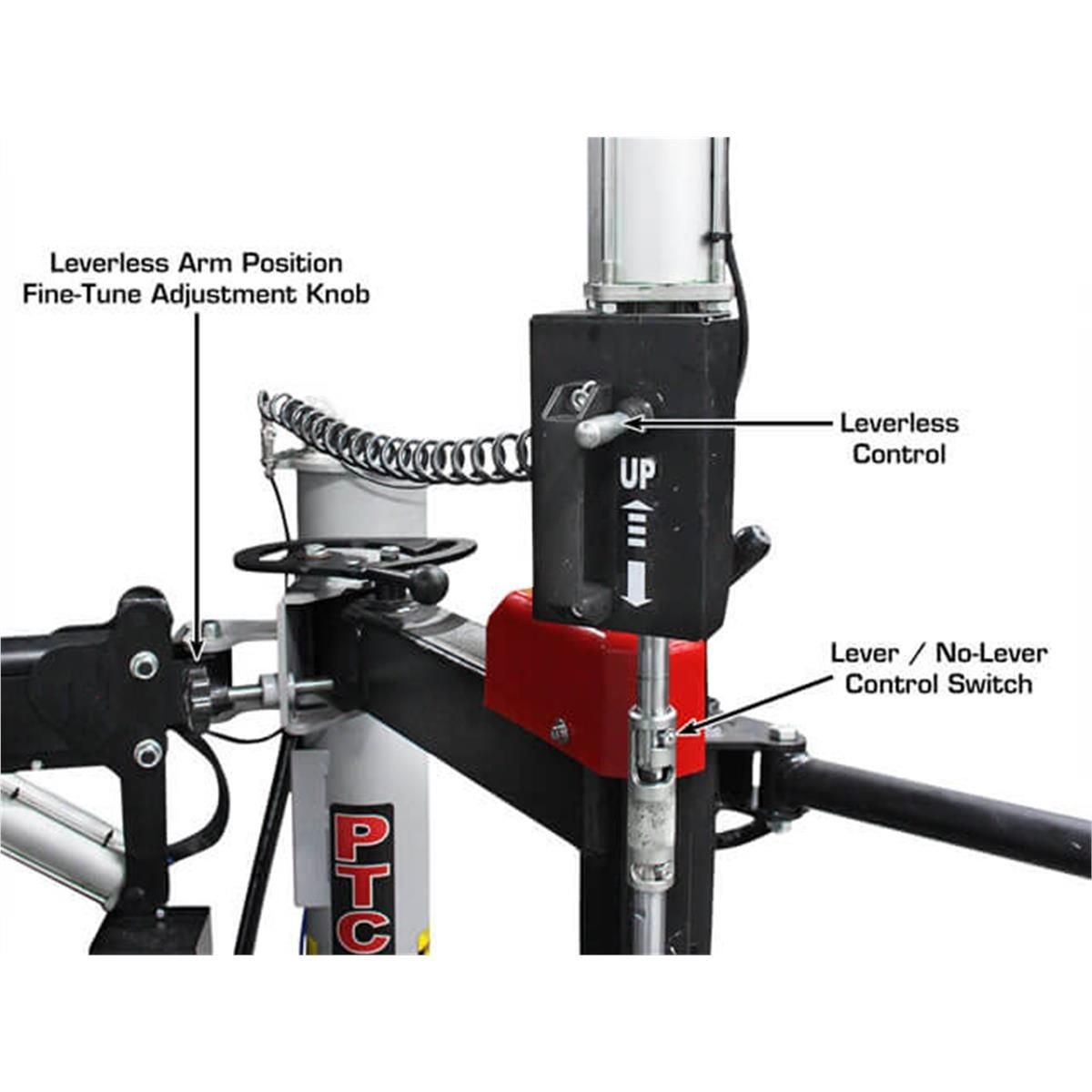

- “Lever/No-Lever” Changing System
- Air-Operated Bead Breaker (External Air Supply Required)
- Metal Mount/Demount Head with Replaceable Plastic Inserts
- External Flexible Bead-Blasting System
- “Smart Lock” Center-Post Mounting System
- Filter / Regulator / Lubricator Included
- Tire Tool Included
- Lube Bucket with Brush Included
- Multiple Plastic Protectors Included
- Replacement Parts and Wear Items Always in Stock
- 2-Year Parts-Only Warranty
Accessories Available (Sold Separately)
- Reverse Mount Adapter Kit
- Light Truck Cone Kit (Center Hole 4.72″ – 7.48″)
- Light Truck Cone Kit (Center Hole 5.5″ – 8.66″)
- Double-Sided Cone (Center Hole 2.95″ – 5.7″)
- Low-Profile Steel Rim Cone (Center Hole 2.95″ – 4.7″)
Specifications
Atlas® Platinum PTC500 Specifications
| Specification | Details |
|---|---|
| Rims | Steel, Aluminum, Alloy |
| Clamping Range | 12″ – 30″ |
| Maximum Tire Diameter | 47″ |
| Maximum Wheel Width | 15″ |
| Turntable Rotating Speed | 7 RPM |
| Bead Breaker Force | 6,924 lb. |
| Air Requirement | 120–145 PSI |
| Operating Voltage | 110 Volt |
| Shipping Weight | 885 lbs. |
